Raymarine Limited. Registered in England. Company No. 1177969 Registered Office: Anchorage Park, Portsmouth PO3 5TD Raymarine Limited Pathfinder Radar scanners FCC ID: PJ5MTX2-S3, PJ5MTX4-S3 & PJ5MTX4-S3 Owner's Handbook Note 1:This Draft Owner's Handbook covers the 2kW Radome Scanner (PJ5MTX2-S3), the 4kW Radome Scanner (PJ5MTX4-S3), the 4kW Open Array Scanner (PJ5MTX5-S3) and the 10kW Open Array Scanner (PJ5MTX9). There is no new FCC application for the 10kW Scanner Unit at this time. Note 2:The information within the handbook is complete and up-to-date, except that the EC Declaration of Conformity will be replaced (except for 10kW) with new versions after assessment of the current CE application. Pathfinder Radar Scanners Owner’s Handbook Document number: 81154_6 Date: 11th March2002 Pathfinder Radar Scannersi Pathfinder Radar Scanners Owners Handbook January 2002 Intended Use The scanner units detailed in this handbook form part of naviga- tional radar systems intended for light marine use. These radar systems are only an aid to navigation. WARNING: The 4D radome scanner connected to an SL70, SL70 PLUS or SL70RC PLUS 7" LCD display unit DOES NOT conform to the EU directive 95/5/EC, therefore such a system cannot be installed on a vessel within the EU . Safety Notices This radar equipment must be installed and operated in accord- ance with the instructions contained in this manual. Failure to do so can result in personal injury and/or navigational inaccuracies. In particular: 1. High Voltage. The scanner unit contains high voltages. Adjust- ments require specialised service procedures and tools only avail- able to qualified service technicians – there are no user serviceable parts or adjustments. The operator should never remove the scanner unit internal covers or attempt to service the equipment. 2. Electromagnetic Energy. The radar scanner transmits electro- magnetic energy. It is important that the radar is turned off when- ever personnel are required to come close to the scanner to perform work on the scanner assembly or associated equipment. It is recommended that the radar scanner is mounted out of range of personnel (above head height). Do not look directly at the antenna at close range as your eyes are the most sensitive part of the body to electromagnetic energy. When properly installed and operated, the use of this radar will conform to the requirements of ANSI/IEEE C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Fre- quency Electromagnetic Fields, 3 Hz to 300 GHz and NRPB, iiPathfinder Radar Scanners Board Statement on Restrictions on Human Exposure to Static and Time Varying Electromagnetic Fields and Radiation, Doc NRPB, No. 5 (1993). 3. Navigation Aid. This radar unit is only an aid to navigation. Its accuracy can be affected by many factors, including equipment failure or defects, environmental conditions, and improper han- dling or use. It is the user’s responsibility to exercise common prudence and navigational judgements. This radar unit should not be relied upon as a substitute for such prudence and judgement. Raymarine products are supported by a network of Authorized Service Representatives. For information on Raymarine products and services, contact either of the following: United StatesRaymarine Inc. Recreational Products 22 Cotton Road, Unit D Nashua NH 03063-4219, USA Telephone +1 603 881 5200 Fax +1 603 864 4756 www.raymarine.com EuropeRaymarine Limited Anchorage Park Portsmouth Hampshire PO3 5TD England Telephone +44 (0)23 9269 3611 Fax +44 (0)23 9269 4642 www.raymarine.com Copyright © Raymarine Ltd. 2002 The technical and graphical information contained in this hand- book, to the best of our knowledge, was correct as it went to press. However, the Raymarine policy of continuous improvement and updating may change product specifications without prior notice. As a result, unavoidable differences between the product and handbook may occur from time to time, for which liability cannot be accepted by Raymarine. SeaTalk is a registered trademark of Raymarine Limited. HSB and hsb 2 are trademarks of Raymarine Limited. Pathfinder is a trademark of Raymarine Limited. Pathfinder Radar Scannersiii Preface This handbook describes the following Raymarine Pathfinder radar scanners: 2D 18" 2 kW Radome Scanner 4D 24" 4 kW Radome Scanner 5S48" 4 kW Open Array Scanner 7S72" 4 kW Open Array Scanner 9S48" 10 kW Open Array Scanner 11S 72" 10 kW Open Array Scanner These scanner units may be connected to any HSB/hsb 2 display unit. In addition, the 2D radome scanner unit may be connected to an SL70, SL70 PLUS or SL70RC PLUS 7" LCD display. CAUTION: The open array scanners must not be used with the SL70, SL70 PLUS, SL70RC PLUS or Autohelm 7" LCD Display Unit. This may result in damage to the display due to the high power requirements of the open array scanner. The handbook contains very important information on the instal- lation and operation of your new equipment. In order to obtain the best results in operation and performance, please read this hand- book thoroughly. Raymarine’s Technical Support representatives or your local dealer will be available to answer any questions you may have. Display Software Version For full operation of the Pathfinder scanners, the display unit requires an appropriate software version. For new displays, the correct software version is normally already installed in the dis- play unit and is fully compatible with the Pathfinder scanners. Early display units may not have the correct software and will therefore require upgrading. The software version can be confirmed by switching-on the dis- play and checking the version number during the magnetron warm-up sequence. ivPathfinder Radar Scanners Note: If a scanner unit is not connected the version number is only displayed for 10 seconds. Where, necessary Software Upgrade Kits are available from your dealer, distributor or from Raymarine. We recommend that where a repeater d…

Text truncated - open the document above for the full version.

Raymarine Limited. Registered in England. Company No. 1177969 Registered Office: Anchorage Park, Portsmouth PO3 5TD Raymarine Limited Pathfinder Radar Scanners FCC ID: PJ5MTX2-S3, PJ5MTX4-S3 & PJ5MTX5-S3 Owner's Handbook Note 1: This Draft Owner's Handbook covers the 2kW Radome Scanner (PJ5MTX2-S3), the 4kW Radome Scanner (PJ5MTX4-S3), the 4kW Open Array Scanner (PJ5MTX5-S3) and the 10kW Open Array Scanner (PJ5MTX9). There is no new FCC application for the 10kW Scanner Unit at this time. Note 2: The information within the handbook is complete and up-to-date, except that the EC Declarations of Conformity will be replaced (except for 10kW) with new versions after assessment of the current CE application.

Raymarine Limited. Registered in England. Company no. 1177969 Registered Office: Anchorage Park, Portsmouth PO3 5TD Raymarine Limited Anchorage Park Portsmouth Hampshire PO3 5TD England 023 9269 3611 023 9269 4642 (Fax) Raymarine Inc. 22 Cotton Road, Suite 280 Nashua NH 03063 4219 U.S.A. 603 881-5200 800-539-5539 (Fax) www.raymarine.com BABT Claremont House 34 Molesey Road Hersham, Walton-on-Thames Surrey KT12 4RQ 30 th October, 2002 Gentlemen, FCC ID: PJ5MTX5-S3 The Commission has already given a grant of type acceptance for the Raymarine 'Pathfinder' 4kW Open Array Radar Scanner Unit (FCC ID: PJ5MTX5), when used with either a 48" or 72" antenna and in combination with a range of specified Display Units. This application for authorization of a new grant has resulted from proposed changes to enhance performance, which affect the characteristics originally reported to the commission. The new Scanner Unit can be connected to either antenna and any of the same Display Units that are currently in use, to form light marine radar systems (see Annex 1 below). The primary changes are to the magnetron (transmitting device) and to the associated circulator, which now incorporates an isolator and low pass filter (LPF). The purpose of these changes is to improve the Spurious Emissions and Out of Band Emissions of the transmitter in accordance with the requirements of ITU-R M1177. The peak-radiated power remains the same at 4 kW, as do the Pulse Repetition Frequencies (PRF). Of the 8 available Pulse Widths, the two shortest have been increased in width. Removal of the unwanted emissions has been mainly achieved by filtering. The new 4kW Scanner Unit has been fully tested to the appropriate parts of CFR 47 Part 2 and Part 80. The measurement data taken demonstrates that the scanner continues to be compliant with the Rules and its performance is within the technical ratings specified by Raymarine (manufacturer). The modifications will be introduced to all new scanner units of this type in production after the grant has been authorized. Sincerely, Chris Bird, Approvals Manager, Raymarine Limited. - 2 - Raytheon Marine Limited. Registered in England. Company no. 1177969 Registered Office: Anchorage Park, Portsmouth, PO3 5TD ANNEX 1 The following Raymarine Display Units are combined with the Raymarine 5S, 4kW 48" or 7S 72" Open Array Scanner Unit to form operational light marine radar systems. Display Unit Scanner Unit Radar System SL70M PLUS – 7" mono LCD 5S – 4kW, 48" open array SL75M PLUS SL70MRC PLUS – 7" mono LCD/Chart 5S SL75MRC PLUS RL70 PLUS – 7" mono LCD/hsb² 5S RL75 PLUS RL70RC PLUS – 7" mono LCD/hsb²/Chart 5S RL75RC PLUS R70 PLUS – 7" CRT/hsb² 5S R75 PLUS R70RC PLUS – 7" CRT/hsb²/Chart 5S R75RC PLUS R80 PLUS – 10" CRT/hsb² 5S R85 PLUS R80RC PLUS – 10" CRT/hsb²/Chart 5S R85RC PLUS SL70C PLUS – 7" Colour LCD 5S SL75C PLUS SL70CRC PLUS – 7" Colour LCD/Chart 5S SL75CRC PLUS RL70C PLUS – 7" Colour LCD/hsb² 5S RL75C PLUS RL70CRC PLUS – 7" Colour LCD/hsb²/Chart 5S RL75CRC PLUS RL80C PLUS – 10" Colour LCD/hsb² 5S RL85C PLUS RL80CRC PLUS – 10" Colour LCD/hsb²/Chart 5S RL85CRC PLUS Display Unit Scanner Unit Radar System SL70M PLUS – 7" mono LCD 7S – 4kW, 72" open array SL77M PLUS SL70MRC PLUS – 7" mono LCD/Chart 7S SL77MRC PLUS RL70 PLUS – 7" mono LCD/hsb² 7S RL77 PLUS RL70RC PLUS – 7" mono LCD/hsb²/Chart 7S RL77RC PLUS R70 PLUS – 7" CRT/hsb² 7S R77 PLUS R70RC PLUS – 7" CRT/hsb²/Chart 7S R77RC PLUS R80 PLUS – 10" CRT/hsb² 7S R87 PLUS R80RC PLUS – 10" CRT/hsb²/Chart 7S R87RC PLUS SL70C PLUS – 7" Colour LCD 7S SL77C PLUS SL70CRC PLUS – 7" Colour LCD/Chart 7S SL77CRC PLUS RL70C PLUS – 7" Colour LCD/hsb² 7S RL77C PLUS RL70CRC PLUS – 7" Colour LCD/hsb²/Chart 7S RL77CRC PLUS RL80C PLUS – 10" Colour LCD/hsb² 7S RL87C PLUS RL80CRC PLUS – 10" Colour LCD/hsb²/Chart 7S RL87CRC PLUS Key: The allocated designation for each unit or system is shown in bold. hsb² (high speed bus) – allows the connection of one or more repeater display unit Chart – Chartplotter feature built-in

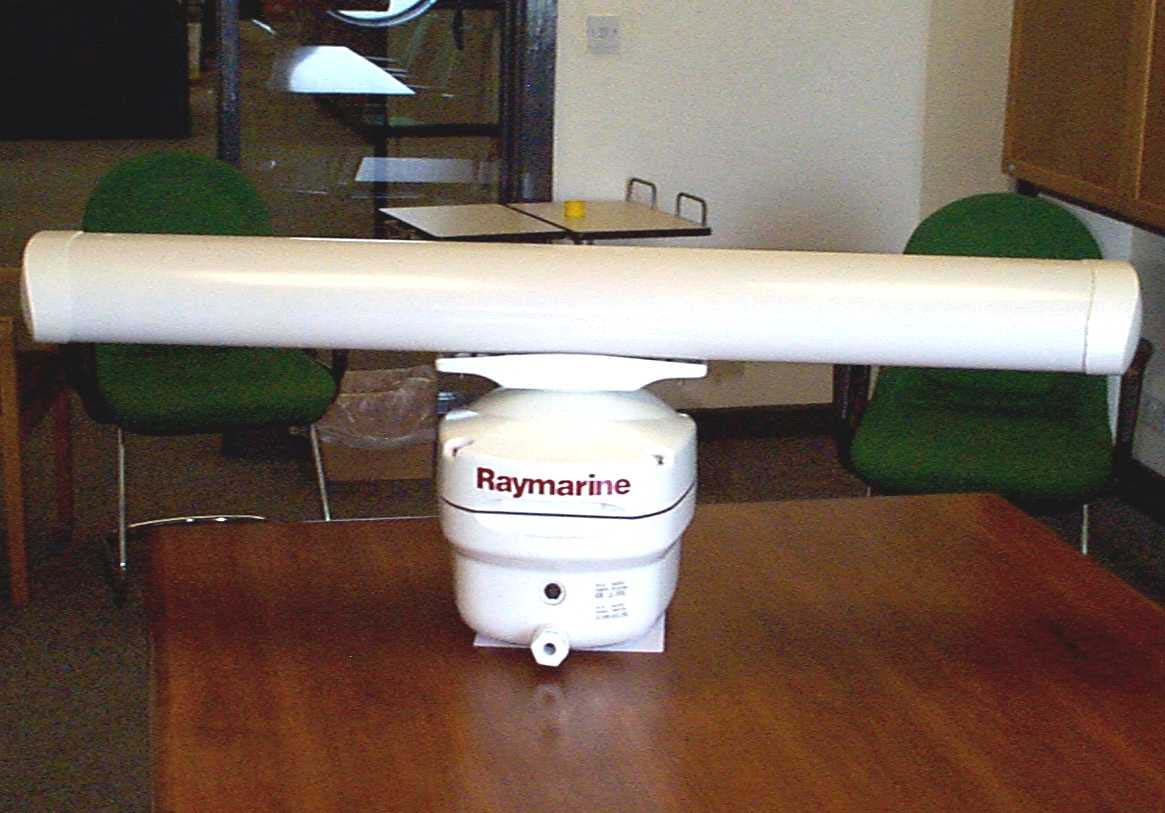

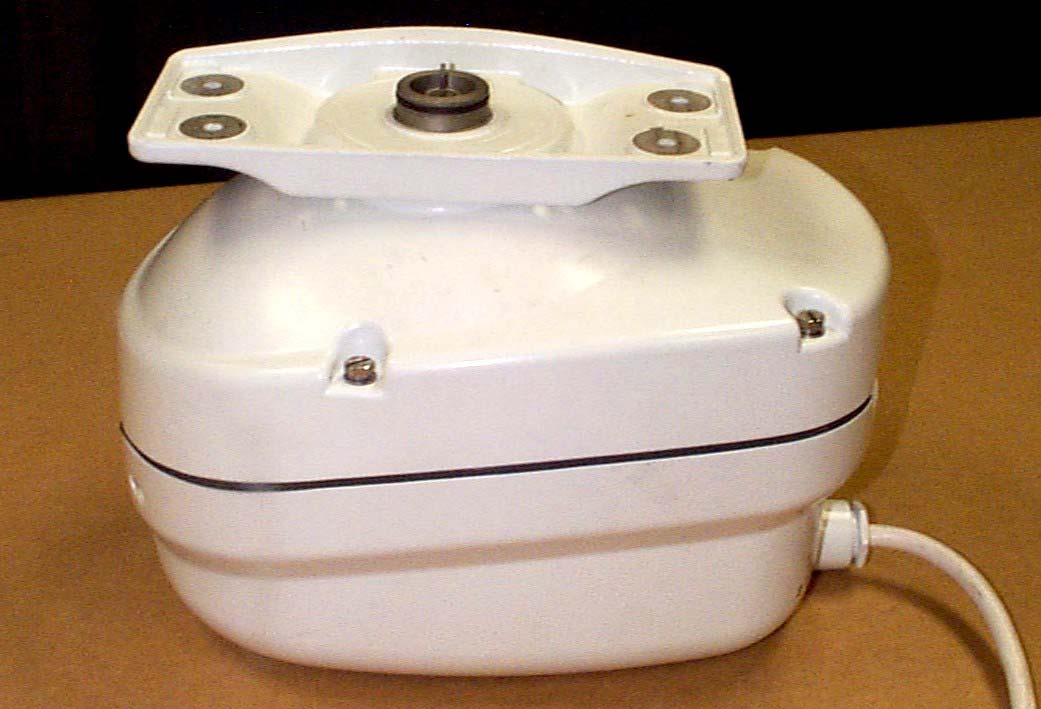

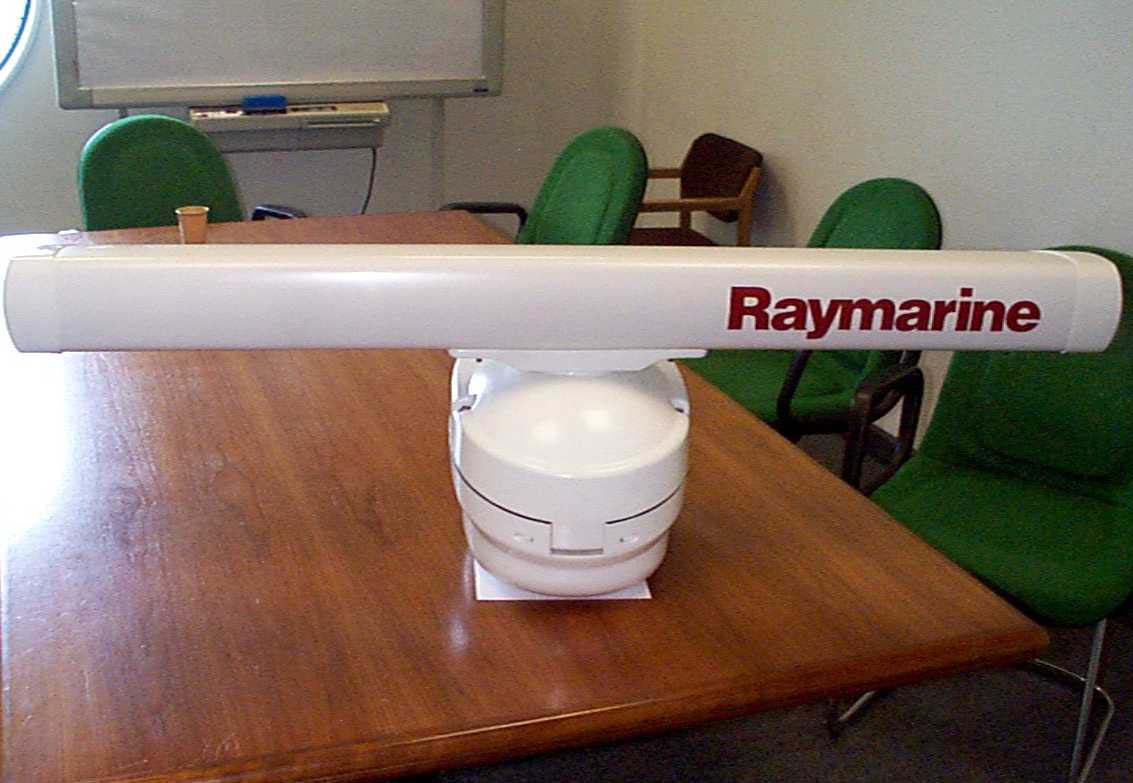

Raymarine Limited. Registered in England. Company No. 1177969 Registered Office: Anchorage Park, Portsmouth PO3 5TD Raymarine Limited 4kW, Open Array Radars FCC ID: PJ5MTX5-S3 External Photographs Raymarine Limited. Registered in England. Company No. 1177969 Registered Office: Anchorage Park, Portsmouth PO3 5TD 4kW, 48" Open Array Scanner Unit Raymarine Limited. Registered in England. Company No. 1177969 Registered Office: Anchorage Park, Portsmouth PO3 5TD 4kW, 48" Open Array Scanner Unit Raymarine Limited. Registered in England. Company No. 1177969 Registered Office: Anchorage Park, Portsmouth PO3 5TD 4kW, 72" Open Array scanner Unit Raymarine Limited. Registered in England. Company No. 1177969 Registered Office: Anchorage Park, Portsmouth PO3 5TD 4kW or 10kW Pedestal Unit

Raymarine Limited. Registered in England. Company No. 1177969Registered Office: Anchorage Park, Portsmouth PO3 5TDRaymarine Limited4kW, Open Array RadarsFCC ID: PJ5 MTX5 -S3 ID Label Drawings

Raymarine Limited, Anchorage Park, Portsmouth, England Raymarine Limited Raytheon Pathfinder Series Radar Photographs –Internal FCC ID: PJ5MTX5-S3 4kW, Open Array Scanner Unit Raymarine Limited, Anchorage Park, Portsmouth, England 4Kw Open Array Scanner Unit Core Assembly Gear Box Raymarine Limited, Anchorage Park, Portsmouth, England 4Kw Open Array Scanner Unit Pedestal open Core Assembl y Isolator/Isolator/LPF Magnetron Raymarine Limited, Anchorage Park, Portsmouth, England 4Kw Open Array Scanner Unit Gearbox and part of Co-axial tube assembly Raymarine Limited, Anchorage Park, Portsmouth, England 4kW Open array Scanner Unit Co-axial tube assembly Raymarine Limited, Anchorage Park, Portsmouth, England 4kW Open Array Scanner Unit Top view of Core Circulator/ Isolator/ LPF Magnetron Low Noise Converter Raymarine Limited, Anchorage Park, Portsmouth, England 4kW Open Array Scanner Unit Under view of core Raymarine Limited, Anchorage Park, Portsmouth, England 4kW Open Array Scanner Unit Underside of Modulator PCB, with screening plate removed Raymarine Limited, Anchorage Park, Portsmouth, England 4kW Open Array Scanner Unit Modulator PCB Raymarine Limited, Anchorage Park, Portsmouth, England 4kW Open Array Scanner Unit Underside of IF PCB, with screening plate removed Raymarine Limited, Anchorage Park, Portsmouth, England 4kW Open Array Scanner Unit IF PCB Raymarine Limited, Anchorage Park, Portsmouth, England ‘Pathfinder’ Scanner Unit Low Noise Converter (LNC) and cover

1 Part 5 Chapter 2 Technical Description Technical Description 4kW and 10kW Open Array Scanner Units 1. Overview Scanner configuration D6144-1 60dBm (maximum) 4kW/10kW CirculatorLPF IF Receiver, micro, I/O board Magnetron Low Noise Converter Scanner uplink connection Motor Antenna/Rotary joint assembly Modulator, PSU board Transition Ships power Waveguide Limiter (10kW only) Isolator Figure 1. Scanner Block Diagram The system comprises the functional blocks as shown in the above diagram. The basis of operation is as follows: The Modulator, PSU board generates a high voltage pulse of between 75ns and 1.2us duration (1.0us maximum for 4kW unit) dependant upon the range setting and the corresponding IF/Video filter control lines. This pulse begins on the rising edge of a negative going trigger at a pulse repetition frequency (PRF) also defined by the range setting. The resulting pulse is output to the magnetron which converts the energy into an RF pulse at a frequency of 9.41GHz (nominal). All supply requirements are also provided by the Modulator, PSU board. The RF pulse is routed to an antenna via a 3-port circulator combined with an isolator and LPF (IFC) , which propagates microwave energy in only one direction and thereby provides isolation between the transmit source and the low noise converter. Note that the circulator for the 10kW system incorporates a waveguide diode limiter to reduce the power entering the receiver. A rotary joint is used to maintain continuity between a waveguide output from the circulator and a coaxial input to the antenna. The energy is then radiated, with a narrow azimuth beam shape (1.85° for the 48" antenna and 1.15° for the 72" antenna), with low sidelobe levels (<-22dB). The elevation beamwidth is maintained at approximately 25° in order to illuminate targets during pitch and roll of the transmitting vessel. Echoes are returned due to reflections from potential targets such as boats, buoys, land etc, and in the form of clutter from sea, rain, etc. The returned energy is collected by the same antenna used to transmit the original pulse and is routed through the IFC to the low noise converter (LNC). These comparatively low level signals are 2 Part 5 Chapter 2 Pathfinder Radar/Chartplotter Series amplified by a low noise transistor in order to maintain signal/noise performance and are mixed down to an IF frequency of 60MHz nominal for further amplification and subsequent detection. The IF receiver board provides further low noise amplification and adjustable gain to maximise the dynamic range (“dynamic attenuation control”) in the presence of clutter, target and range variations. The IF board also includes a logarithmic detection stage with approximately 50dB dynamic range, which provides a compressed signal output in terms of dB input power versus output Voltage level. Various filtering stages are also employed in the IF Receiver to provide optimum signal/noise characteristics for the detected pulse and to provide some immunity against the bulk effects of rain. The IF Receiver also provides the interface for the up-link commands to the scanner, including clutter and gain selection, 3-phase motor control and display synchronisation pulse generation. Receiver configuration (LNC/IF) The basic configuration of the microwave and IF receiver circuitry is as follows : Low Noise Converter (LNC)IF Receiver Board Filter select logic Limiter LNA 90 deg 90 HYB Switched Filter Logarithmic Detector Video Filter Curve Splitter Autotune Receiver LNC Supplies Scanner uplink MBS / STC / Rain / Sea / Gain Generation and Summing Network Lineariser Lineariser D4055-1 Figure 2. Receiver Configuration (LNC/IF) Low Noise Converter/Limiter (LNC) The primary function of the LNC is to provide low noise amplification of the low level signal returns and mixing to an IF frequency of 60MHz nominal. The low noise amplification is provided by a single low noise FET, with bias conditions, and associated matching set to minimise noise figure and maximise gain and compression levels. Maximum gain is required so as to minimise the noise figure contribution from subsequent stages. The mixing function is carried out in an image reject mixer configuration which reduces image noise by 20dB nominal in order to minimise the degradation in overall noise figure. Protection is provided in the form of three limiter diodes which are configured to become forward biased in the presence of increasing RF power. Note that the circulator for the 10kW system also incorporates a waveguide diode limiter. NOTE. There are no user / dealer serviceable parts within the LNC due to its high frequency of operation. 3 Part 5 Chapter 2 Technical Description LNA Limiter 90 degrees Mixer Constant current bias circuitry +5Volts -5Volts Ground μW I/P VCO tune compensation 90 HYB 60MHZIF Tune_V D4056-1 Figure 3. LNC Configuration D4648-2 Modulator/PSU/Motor Magnetron 3-Phase Motor P7 LNC P1 P2P4 Ship's Heading Sensor CN2 CN5 CN7 CN8 CN3 CN6 CN10 CN9 Ships Supply Display Unit Scanner Disable Switch IF Receiver CN2 IF Inter-connect CN3 3-Phase Motor CN5 Ships Header Transducer CN6 Magnetron CN7 IF Display Interface Inter-connect CN8 Display Inter-connect CN9 Scanner Disable Switch CN10 Ships Power CN11 Cooling Fan (10 kW only) JP1 Service Motor enable Jumper Note: CN3, CN5, CN8, CN9, CN10, JP1 are fitted to non-component side to give access to the installer. JP1 CN11 Figure 4. Scanner Interfaces 4 Part 5 Chapter 2 Pathfinder Radar/Chartplotter Series 2. Modulator / PSU – Interface Description The interfaces to the Mod/PSU are shown in Figure 4. and the individual signal functions are described below :- Ship Supply Power Input (CN10) Ref.Signal NameTypeStateFunction CN10-7+V_SHIPPower input–Ships power i/p CN10-8 CN10-1–V_SHIPPower input–Ships power return CN10-2 Modulator Control/Status (CN2) Ref.Signal NameTypeStateFunction CN2-18RADAR_TX_ENLogic input1Enable modulator (magnetron) pulses 0 (default)Disable modulator, regardless …

Text truncated - open the document above for the full version.

Raymarine Limited. Registered in England. Company No. 1177969 Registered Office: Anchorage Park, Portsmouth PO3 5TD Raymarine Limited Pathfinder Radar scanners FCC ID: PJ5MTX2-S3, PJ5MTX4-S3 & PJ5MTX4-S3 Tune-up Procedures There are no Tune-up Procedures associated with the 2kW Radome Scanner (PJ5MTX2-S3), 4kW Radome Scanner (PJ5MTX4-S3) and 4kW Open Array Scanner (PJ5MTX5-S3). Note:For Parts List information refer to the Schematic exhibits.

Raymarine Limited. Registered in England. Company No. 1177969 Registered Office: Anchorage Park, Portsmouth PO3 5TD Raymarine Limited 4kW Open Array Radar FCC ID: PJ5MTX5-S3 Schematics Index Scanner Interconnect 4357-033 Sht. 1 Modulator/PSU 4357-024 Sht. 1 Modulator/PSU (Top Level) Sht. 2 Power I/P Filter Sht. 3 Main PSU Sht. 4 Auxiliary PSU Sht. 5 Modulator Sht. 6 3 Phase DC Brushless Motor Drive Sht. 7 Stepper Motor (not fitted) Sht. 8 Ship's Heading Interface Low Noise Converter (LNC) 4346-028 Sht. 1 IF Receiver 4346-026 Sht. 1 IF Receiver (Top Level) Sht. 2 Control Interface Sht. 3 IF Strips Sht. 4 IF Log Det/Video Sht. 5 STC Generator Sht. 6 Scanner Micro ANTENNA -- 48" or 72" Open Array ISOLATOR/ FILTER/ CIRCULATOR MAF 1561B (4kW) MAF 1565B (10kW) CScanner compliance1--10--02 Date: February 28, 2002 Sheet 1 of 8 Size Document Number REV A2 4357-024 M Title Pathfinder Radar : Modulator/PSU (MkII) EnglandPortsmouthAnchorage ParkRaymarine Ltd Connector toMagnetronConnector toCooling Fan(NF on 4kW) 12 CN6 12 CN11 MOLEX_KK_1X2 Open Array Disable SwClosed = PSU & Motor On MODULATORMODULAT.SCH PW0 PW1PRI HEATER HEAT/CATH PW_ADJUSTHV_GNDMOD+HV+HEAT+26VFET_INHPTX_ADJUST HEATER_OK MOD_ISENSE GND+5V+12V HEATER HEATER/CATHODE PW0PW1 PW_ADJUST PRI_PLS HV_GND PTX_ADJUST HEATER_OKMOD_ISENSE FAN+FAN- AUXILIARY PSUAUX_PSU.SCH MOD+HV HV_GND PWM+V MCLOCK +Vp-Vp AUX_GND MOD+HT +12V MOTOR_ON 12345678 CN8 Wago-733-368 C253 100p C254 100p IF/Display Interconnect (Open Array) C17100p C19100p C20100p R8 10R R9 10R C21100p TP3 TP4 TP5 TP6 TP7 TP8 TP9 TP10 TP11 TP12 TP15 TP16 TP17 C22 100p C18 100p L1 BEAD_L1 L4 BEAD_L1 L11 BEAD_L1 L12 BEAD_L1 123456789 10 CN7 PicoFlex2x5 34 65 T1BTDK-ZJYS51R5-4P 12 87 T1A TDK-ZJYS51R5-4P R10R R04k7 TP14 TP13 C255 100p C257 100p C259 47p C258 100p C256 100p Az-Az+Data-Data+Pri-Pri+SpareVidIF_GNDIF_GND Connector fromship's supply(4-way fitted) POWER IP FILTERIPFILTER.SCH +V_SHIP -V_SHIP IP_FET -Vp+Vp 12345678 CN1 Wago-257-454 NF 123456789 101112 CN10Wago-256-404/406 Term1 Term2 Term3 Term4 EndCap1 EndCap2 -V_SHIP+V_SHIP RX_GND +Vp-Vp MAIN PSUAMAINPSU.SCH STEP_GND STEP+12V GND+5V +12V+26V PWM+V MCLOCK +HIGATEFET_INH AUX_0V AUX+12VAUX_GND +HEAT HV_GNDMOD+HT SWITCH+SWITCH- IF-5VIF_GNDIF+5VIF+12VIF+26VIP_FET-Vp+VpRADAR_TX_EN FAN+FAN- IF-5VIF+5VIF+26VRX_GNDIF+12V RADAR_TX_EN * Only one of these is fitted CN3 STEPPER DRIVE (RADOME ONLY)ASTEP_MOT.SCH MOTOR_EN_N STEP+5VSTEP_IOSTEP_+12VSTEP_GND 3-PHASE DRIVE (OPEN ARRAY ONLY)3P_MOTOR.SCH HIGATE +5VSTEP_IOMOTOR_EN_N M+M- AUX_0VAUX_+12VGNDMOTOR_ON TP410 TP291 MOTOR_EN_N +Vp-Vp RX_GND STEP_IO 123 CN9 Molex_KK_1x3_RA D ECN 4357-013-006 24-2-99 ECN 4357-013/016/017-007ECN 4357-013/016/017-008 Add C205 E ECN 4357-013/016/017-009ECN 4357-013-010 24-3-99 F ECN 4357-013/016/017-011ECN 4357-013-012 27-4-99 ECN 4357-013/016/017-013 G 13-5-99 H Issue D PCB Many updates for 15-10-99 and for 10kW build I 15-11-99 Minor Corrections J Minor Corrections 18-01-00 K Add D70, D71 28-01-00 1234 CN5 Molex_KK_1x4_RA L ECN 4357-017/016 12-04-00 M MOD M-01-0128 28-02-02 Connector to Ship's Heading Sensor CN4 SHIPS HEADING I/FASHIP_HD.SCH SH_GND B_ZERO SHP+12V+5VGND SH+V STEP_IOMOTOR_EN_N SHP_IN C91n C101n C111n C121n C131n C141n CH4 RX_GND FAN+FAN- Connector to IF Board C11n C21n C31n C41n C51n C61n C71n C81n C151n C161n TP445 123456789 101112131415161718 CN2 PicoFlex2x9 IF+12VPTX_ADJUSTIF+26VIF+5VPRI_PLSPW1STEP_IOSHP_INMOD_ISENSERADAR_TX_ENMOTOR_EN_NHEAT_EN_NHEATER_OKPW0PW_ADJUSTIF-5VRX_GND "4" "6" "10" Visual Build Std. Identification "OPEN ARRAY" #1 Footprint#3 Tolerance/Rating#6 4kW Open Array Build Option p/n#7 6kW Open Array Build Option p/n#8 10kW Open Array Build Option p/nOrcad Schematic / Part Field Allocation :Note:these are written as 4kW/6kW/10kWSome part values change with build type#4 not used#5 not used#2 Build Option (4A,6A,10A,ALL,NF) R715K TP1 TP2 DATUM TH2 FID1 R41K8 R53K9 TH_DATUM TH_TH2 R31K0 SK11 Molex_KK_1x2 Fan1 12V Misc. H/W (NF on 4kW) FID2 FID3 CH9 CH11 CH8 SIL1 1kV CLIP1 RIV1 RIV2 RIV3 RIV4WASH4 WASH3 WASH2 WASH1 LABEL1 LABEL2 VARNISH TP446 123 HT3HEATSINK-3036-172 12 HT1SW50-28.6C/W 12 HT2SW50-28.6C/W SIL2 1kV CLIP2 SCRW2 SCRW3 SCRW4 SCRW5 PCB 3015-185 Cap-Insulator Brkt1 Crimp1 Crimp2 HV_GND CHASSIS CH4 CH5CH6 CH7 CH8 CH9 RM12 RM10 PCB 3015-185 TOP VIEW (showing chassis connections) CH11 CH7 RIV5 RIV6 RIV7 WASH6 WASH5 RIV8 WASH7 SIL3 RIV9WASH9 WASH8 01-9-98 ISS Description of change Date CH1 CH2 CH3 Initial Draft's Ax 07-9-98 A12 Intial PCB Rev. B B10 13-1-99 As for PCB Iss C C Minor BOM corrections 25-1-99 ECN 4357-013-001ECN 4357-013/016/017-002ECN 4357-013/016/017-003ECN 4357-013/016/017-004 Date: February 28, 2002 Sheet 2 of 8 Size Document Number REV A3 4357-024 M Title POWER I/P FILTER EnglandPortsmouthAnchorage Park(c) Raymarine Ltd. C28100n C274n7 +FILTER C25100n TP26 TP30 CH6 VR2NF 21 43 T3 B8275-A2103-N1 C234n7 FB1BL01RN1-A62 TP31 C38470p100V FB2BL01RN1-A62 C392n2/1uF/1uF63V C402n2/1uF/1uF63V +HF_FILTER TP18 1 TP19 1 TP20 VR1V56ZA2 C35470p100V C36470p100VC37470p100V C34470p100V CH5 TP447 +V_SHIP 1 TP21 1 TP22 TP23 -V_SHIP +FILTER R1447K TP27 FB3BL01RN1-A62 TP32 23 D1 BZX84C12V FB4BL01RN1-A62 1 2 3 Q1 STP60N05FI -HF_FILTER C26100n TP25 C244n7 +Vp -FILTER -Vp C32100n -FILTER TP29 IP_FET Date: February 28, 2002 Sheet 3 of 8 Size Document Number REV A2 4357-024 M Title Main PSU (Open Array) EnglandPortsmouthAnchorage Park(c) Raymarine Ltd. R132 10k C1021n C117100n C118100n R145 470R TP66 TP67 R203 100R TP124 1 3 2 D22 BAV99 C1474u725V C1481u50V TP125 TP123 2 3 D26 BAS19 2 13 Q29 BC846 R1304K7 C2521n R13310k R150 1K0 R151 1K0 FET_INH +26VIF+26V +26V +26V +12V IF_GND GND R135 47R R136 47R R137 47R R138 47R R141 22R R142 4K7 R143 100R R14422R 2 13 Q23BC807 TP54 TP56 TP57 C158100n C1591n TP121 TP122 C109 2n2 TP55 TP118 2 1 D21 10BQ060 C128 220p100V TP119 TP120 C116 100n C127220p100V 2 1 D16BYV27-200 2 1 D25 11DQ050 TP63 TP64 TP427 TP428 C15647p1KV 2 1 D28UF180 2 1 D15 MURS120T3 2 1 D17 MURS120T3 R148 1K0 -5V -Vp HV_GND C10410…

Text truncated - open the document above for the full version.

Raymarine Limited. Registered in England. Company No. 1177969 Registered Office: Anchorage Park, Portsmouth PO3 5TD Raymarine Limited 4kW Open Array Radars FCC ID: PJ5MTX5-S3 Parts Lists Index Mod/PSU PCB 4357-024 LNC 4346-006 IF PCB 4346-025 4kW Open Array Scanner Unit - Mod/PSU PCB PCBPART NUMBERDESCRIPTIONQty perCCT designators 4357-0243036-199-AH/S Bracket1BRKT1 4357-02415096H/S Clip2CLIP1, CLIP2 4357-02407299CONNECTOR PicoFlex2x91CN2 4357-02407371Molex-39-30-10801CN3 4357-02407349Molex-KK-1x4-RA1CN5 4357-02407307CONNECTOR MOLEX_MINIFITJR_1X21CN6 4357-02407370CONNECTOR PicoFlexx2x51CN7 4357-02407369Wago-733-3681CN8 4357-02407368Molex-KK-1x3-RA1CN9 4357-024-Wago-256-404/4061CN10 4357-02493041000PCAPACITOR 1n24C1, C2, C3, C4, C6, C7, C8, C9,C10, C11, C12, C13, C14, C15,C16, C80, C92, C102, C140, C141, C159, C215, C252 4357-024930147PCAPACITOR 47p2C202, C509 4357-02493BDHXXX4N7CAPACITOR 4n75C23, C24, C27, C129, C130 4357-02493070U1CAPACITOR 100n52C25, C26, C28, C32, C41, C66, C69, C70, C71, C72, C73, C74, C74, C76, C77, C81, C82, C83, C96, C101, C104, C105, C106, C107, C108, C116, C117, C118, C124, C135, C137, C145, C158, C160, C191, C192, C193, C195, C206, C217, C218, C219, C226, C227, C235, C237, C238, C239, C241, C242, C243, C246, C251 4357-0249301470PCAPACITOR 470p10C34, C35, C36, C37, C38, C89, C90, C91, C196, C209 4357-02403083CAPACITOR 2n22C39, C40 4357-02403132CAPACITOR 680u4C44, C47, C133, C172 4357-02403083CAPACITOR 2n21C103 4357-02493BDHXXX2N2CAPACITOR 2n21C229 4357-02403134CAPACITOR 1000u2C123, C110 4357-02403135CAPACITOR 220u5C111,C136, C149, C150, C151, C152, C155,C213 1 PCBPART NUMBERDESCRIPTIONQty perCCT designators 4357-02403093CAPACITOR 100n2C120, C121 4357-0249300220PCAPACITOR 220p5C127, C128, C199, C220, C262 4357-02493040U01CAPACITOR 10n17C42, C45, C48, C55, C56, C57, C75, C84, C85, C87, C100, C122, C132, C203, C204, C210 4357-024930433NCAPACITOR 33n2C88, C134 4357-02493BDHBXX330PCAPACITOR 330p1C139 4357-0249306105X7RCAPACITOR 1u10 C62, C64, C65, C114, C115, C143, C144, C245, C249 4357-02403151CAPACITOR 47n5C51, C52, C53, C146, C154 4357-02493HEFEXX4U7CAPACITOR 4u74C142, C147, C207, C208 4357-02493HEHEXX1UCAPACITOR 1u1C148 4357-02403135CAPACITO 220u3C149, C150, C151 4357-02403090CAPACITOR 1n1C153 4357-02403148CAPACITOR 47p2C156, C157 4357-024930122PCAPACITOR 22p1C200 4357-02493060U47CAPACITOR 470n1c79 4357-02403121CAPACITOR 33p1C222 4357-02403138CAPACITOR 4n71C228 4357-02403128CAPACITOR 2u21C232 4357-02403149CAPACITOR 100u1C234 4357-02403162CAPACITOR 220p2C263, C264 4357-02403122CAPACITOR 4n71C67 4357-024932410UCAPACITOR 10u1C60 4357-02403152CAPACITOR 100n1C94 4357-02403134CAPACITOR 1000u2C110, C123, 4357-02403093CAPACITOR 1u1C113 4357-024930133PCAPACITOR 33p1C194 4357-0249300150PCAPACITOR 150p1C199 4357-02493070U1CAPACITOR 100n1C216 4357-0249324100UCAPACITOR 100u2C65, C66 4357-024W-LINKW-L1C221 4357-0249203BZX12VDIODE BZX84C12V5D1, D12, D13, D14, D34 4357-0249200UF1A200VDIODE MURS120T32D29, D54 4357-024920010BQ060DIODE 10BQ0607D19, D21, D23, D61, D62, D64, D65 2 PCBPART NUMBERDESCRIPTIONQty perCCT designators 4357-0249200BAV99DIODE BAV992D38, D22 4357-0249200BAS19DIODE BAS198D8, D9, D10, D26, D40, D60, D63, D66 4357-02402087DIODE UF1802D27, D28 4357-02402082DIODE BYV27-2001D33 4357-0249203BZX84C5V1DIODE BZX84C5V11D39 4357-02402074DIODE BZV85-C181D41 4357-0249200BAV70DIODE BAV702D52, D53 4357-02402077DIODE UX-FOB2D56, D57 4357-02402078DIODE UF54042D58, D59 4357-02415249FERRITE BL01RN1-A622FB1, FB3 4357-02415347HEATSINK SW50-22HT1, HT2 4357-0243036-172HEATSINK 3036-1721HT3 4357-02407350JUMPER MOTOR-ON1JP1 4357-024-LABEL2LABEL1, LABEL2 4357-02415185INDUCTOR 100uH3L6, L7, L8 4357-0249600L1BEAD_L16L2, L3, L5, L9, L10, L13 4357-0249400PC357DOPTO PC357-D4OP1, OP2, OP3, OP4 4357-0243015-185-C/D3015-1851PCB 4357-02405052TRANSISTOR STP60N05FI7Q1, Q5, Q9, Q13, Q14, Q15, Q16 4357-02405045TRANSISTOR IRF540/IRFP28071Q21 4357-0249500BC846TRANSISTOR BC8466Q3, Q7, Q11, Q22, Q29, Q39 4357-0249500BC807TRANSISTOR BC8071Q23 4357-0249500BC856TRANSISTOR BC8564Q2, Q6, Q10, Q25 4357-0249500IMT1TRANSISTOR IMT12Q24, Q26 4357-0249500IMX1TRANSISTOR IMX16Q17, Q27, Q34, Q38, Q40, Q43 4357-02495002N2222ATRANSISTOR 2N2222A3Q20, Q28, Q44 4357-02495003904TRANSISTOR 2N39043Q35, Q36, Q37 4357-02405056TRANSISTOR IRFP4501Q41 4357-02495003906TRANSISTOR 2N39063Q4, Q8, Q12 4357-02495001MZ1TRANSIS…
