PJ5RAY230VHF Marine Transmitter

RAY230 & RAY230E Fixed Mount VHF Radio Ownerís Handbook Document number: R49006_1 Date: May 2001 iii PURPOSEPURPOSE PURPOSEPURPOSE PURPOSE This handbook contains very important information on the installation, operation, and maintenance of your RAY230 US version or RAY230E European version VHF radio. To get the best results in operation and performance, please take the time to read this handbook thoroughly. RAY230 US VersionRAY230 US Version RAY230 US VersionRAY230 US Version RAY230 US Version Raymarine radios comply with the Federal Communications Commission (FCC) and Industry Canada requirements that regulate marine VHF radio usage for the US and Canada, respectively. Marine VHF radio users in the US must comply with all applicable FCC rules and regulations, some of which are described here and in Section 7. This information was current at the time this handbook was printed. Up- to-date information, including licensing requirements, can be obtained on the FCC website at: www.fcc.gov/wtb/marine FCC NOTICEFCC NOTICE FCC NOTICEFCC NOTICE FCC NOTICE This device complies with PART 15 of the FCC Rules. Operation is subject to the conditions that this device does not cause harmful interference. Changes or modifications to this equipment not expressly approved in writing by Raymarine, Incorporated could violate compliance with FCC rules and void the operator’s authority to operate the equipment. Station LicenseStation License Station LicenseStation License Station License An FCC Ship Radio Station License and Call Sign are not required for most recreational vessels travelling in US waters. However, you must obtain a license if: (1) you are required by law or treaty to carry a radio on your vessel; (2) your vessel travels to foreign ports; (3) you use marine radio equipment on board your vessel other than marine VHF radios, any type of Emergency Position Indicating Radio Beacon (EPIRB), any type of radar, GPS or LORAN receivers, depth finders, CB radio, or amateur radio (an amateur license is required). Ships that use MF/HF single side-band radio, satellite communications, or telegraphy must continue to be licensed by the FCC. You can obtain a Station License by completing FCC Form 605 and mailing it with the required fee to: Federal Communications Commission 1270 Fairfield Road Gettysburg, PA 17325-7245 iv Operator LicenseOperator License Operator LicenseOperator License Operator License An Operator License is not required to operate a VHF Marine Radio within US territorial waters. However, a license is required to operate the radio if you dock in a foreign port (including Canada and Mexico) or leave a foreign port to dock in a U.S. port. You can request a Restricted Radiotelephone Operator Permit from the FCC by filing Form 753. Maritime Mobile Service Identity (MMSI)Maritime Mobile Service Identity (MMSI) Maritime Mobile Service Identity (MMSI)Maritime Mobile Service Identity (MMSI) Maritime Mobile Service Identity (MMSI) A nine-digit Maritime Mobile Service Identity (MMSI) number is required to operate the DSC equipment in this radio. You can request an MMSI number from the FCC when you apply for a Station License. If your vessel does not require a license, you may obtain an MMSI by contacting either BoatUS (www.boatus.com) or MariTEL (www.maritelusa.com). Once obtained, you can program the MMSI number into your RAY230 using the Menu Operation described in this handbook. INDUSTRY CANADAINDUSTRY CANADA INDUSTRY CANADAINDUSTRY CANADA INDUSTRY CANADA You do not need a license to operate this radio within sovereign waters of Canada or the US. You will need a license to operate this radio outside of Canada or the US. To obtain Industry Canada licensing information, contact the nearest field or regional office, or write: Industry Canada Radio Regulatory Branch Attention: DOSP 300 Slater Street Ottawa, Ontario Canada, KIA OC8 The following information about the radio is required to complete the license application: Industry Canada Type Approval________ FCC Type NumberPJ5RAY230 FCC Type AcceptedPart 80 Output Power1 watt (low) & 25 watts (high) Modulation16FE (FM) Frequency Range156.025-157.425 v RAY230E European VersionRAY230E European Version RAY230E European VersionRAY230E European Version RAY230E European Version The RAY230E is a VHF radiotelephone that includes equipment for Class “D” Digital Selective Calling. It is intended for general communication within the Maritime Mobile Service worldwide and is for use on non- SOLAS vessels. Compliance InformationCompliance Information Compliance InformationCompliance Information Compliance Information The Declaration of Conformity to EC standards for radio equipment appears on page vii. LicenseLicense LicenseLicense License Regulations in some regions require that you obtain an operator license before operating VHF radio equipment. It is your responsibility to determine whether a license is required in your area before operating this equipment. Maritime Mobile Service Identity (MMSI)Maritime Mobile Service Identity (MMSI) Maritime Mobile Service Identity (MMSI)Maritime Mobile Service Identity (MMSI) Maritime Mobile Service Identity (MMSI) An MMSI number is required to operate the Digital Selective Calling (DSC) equipment in this radio. In some areas, a radio operator license is required before an MMSI number will be issued. You can request an MMSI number from the same agency that issues radio operator licenses in your area. You can then program the MMSI number into your RAY230E using the Menu Operation described in this handbook. If your region does not permit you to program the MMSI number yourself, your distributor can program the number for you. Automatic Transmission Identification System (ATIS)Automatic Transmission Identification System (ATIS) Automatic Transmission Identification System (ATIS)Automatic Transmission Identification System (ATIS) Automatic Transmission Identification System (ATIS) Your RAY230E can activate the ATIS feature, if nee…

Text truncated - open the document above for the full version.

TIMCO ENGINEERING, INC. P.O. BOX 370 849 N.W. STATE ROAD 45 NEWBERRY, FL 32669 PHONE: 888-472-2424 OR 352-472-5500 FAX: 352-472-2030 EMAIL: [email protected] June 7, 2001 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Raymarine, Inc.’s application for certification for their FCC ID: PJ5RAY230, Confirmation Number EA101262 To Whom It May Concern: This letter is to advise you that an application for certification has been submitted for Raymarine Inc.’s FCC ID: PJ5RAY230, Confirmation Number EA101262 to replace the application that was submitted for Raymarine, Inc’s FCC ID: PKQRAY230. Should you have any questions, please advise. Regards, Sharon A. Hoffman TIMCO ENGINEERING, INC.

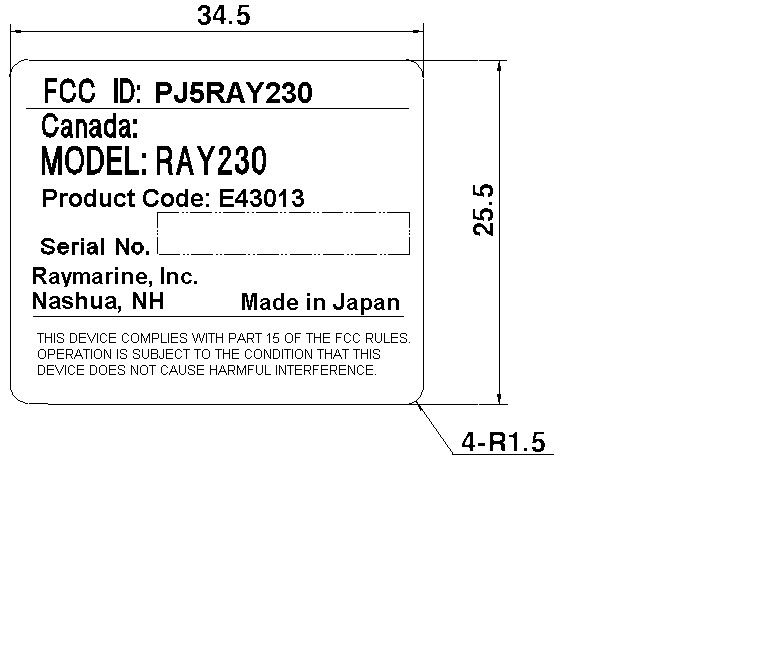

FCC ID LABEL LOCATION

Ray theon Marine Co. PKQRAY230 0 5 10 15 20 25 30 35 40 45 50 100100010000 Freque ncy rms mVolts audio response Raymarine, Inc. FCC ID: PKQRAY230 Job #: 102U1 Exhibit #: 8

Modulation Limiting Raytheon Marine Co. PKQRAY230 0 500 1000 1500 2000 05101520 rms mVolts Deviation 300 Hz Raymarine, Inc. FCC ID: PKQRAY230 Job #: 102U1 Exhibit #: 10A

Modulation Limiting Raytheon Marine Co. PKQRAY230 0 1000 2000 3000 4000 5000 05101520 rms mVolts Deviation 1000 Hz Raymarine, Inc. FCC ID: PKQRAY230 Job #: 102U1 Exhibit #: 10B

Modulation Limiting Raytheon Marine Co. PKQRAY230 0 1000 2000 3000 4000 5000 05101520 rms mVolts Deviatio n 3000 Hz Raymarine, Inc. FCC ID: PKQRAY230 Job #: 102U1 Exhibit #: 10C

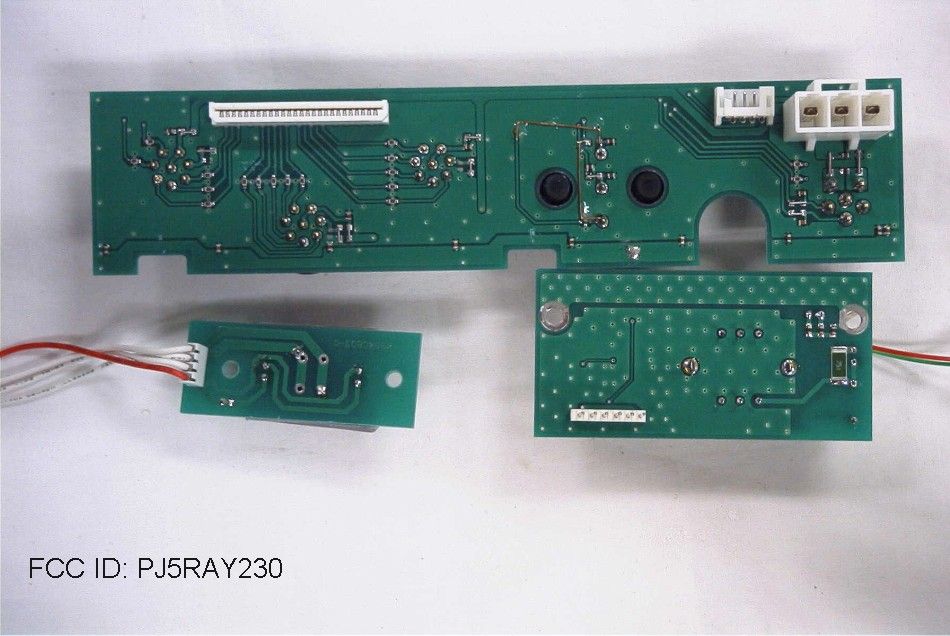

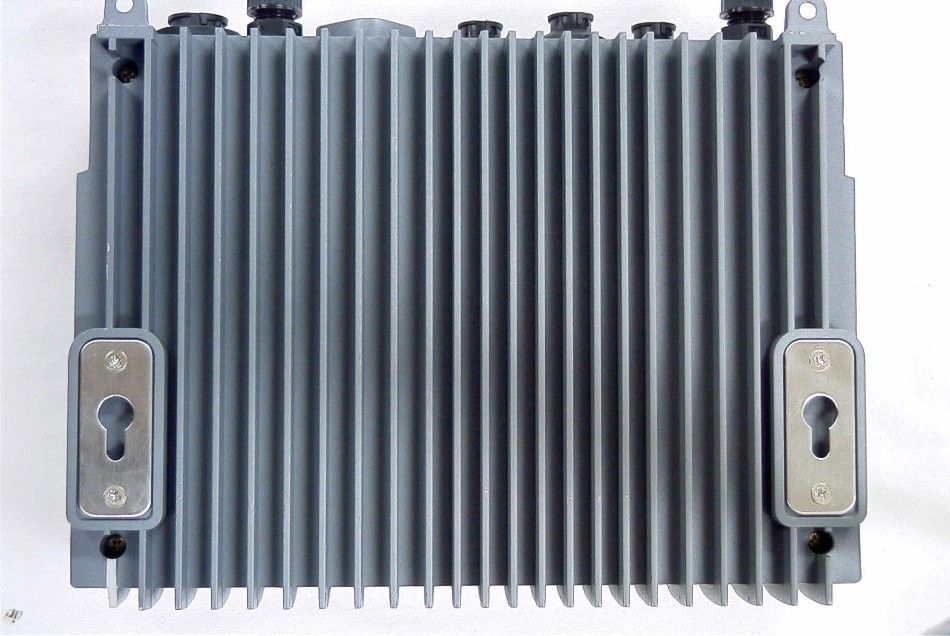

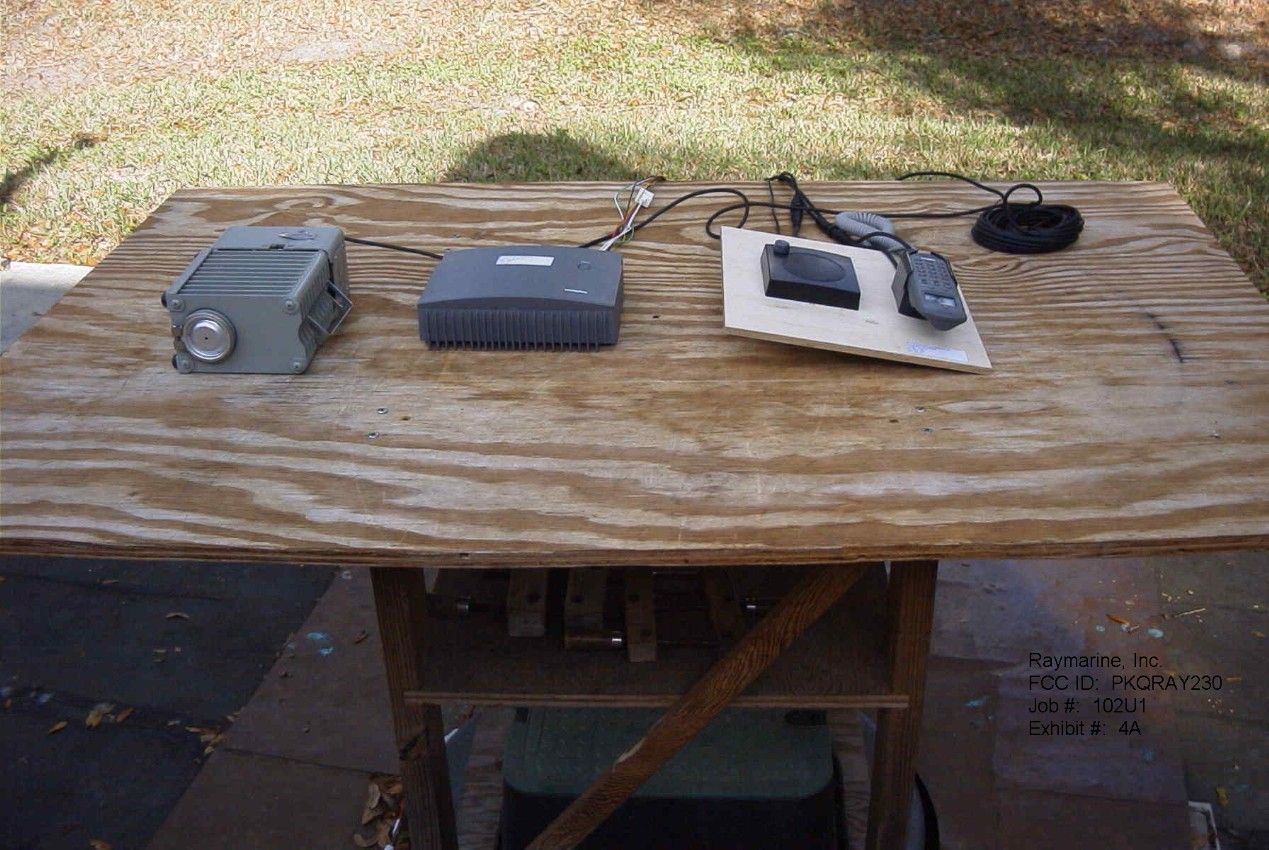

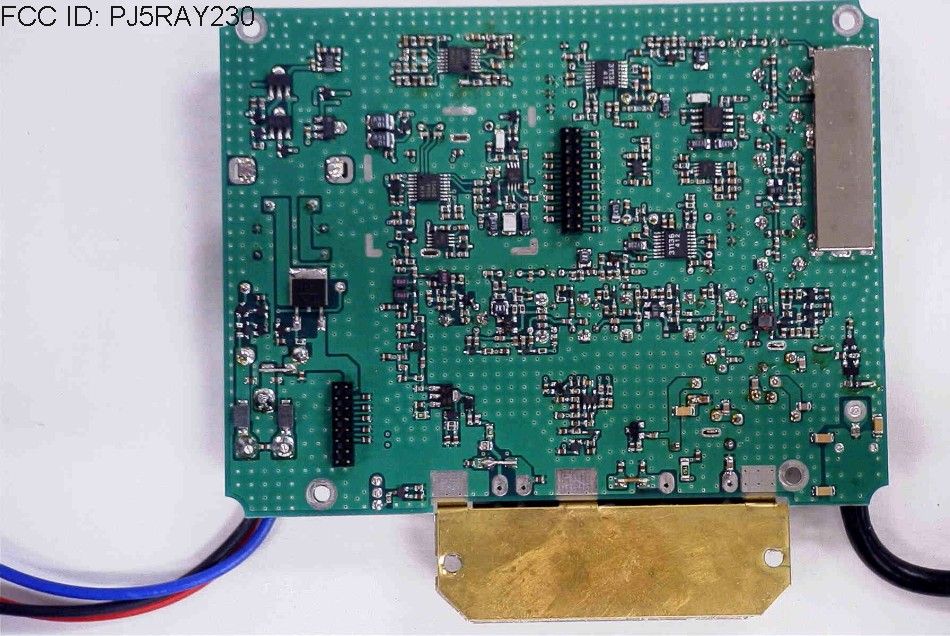

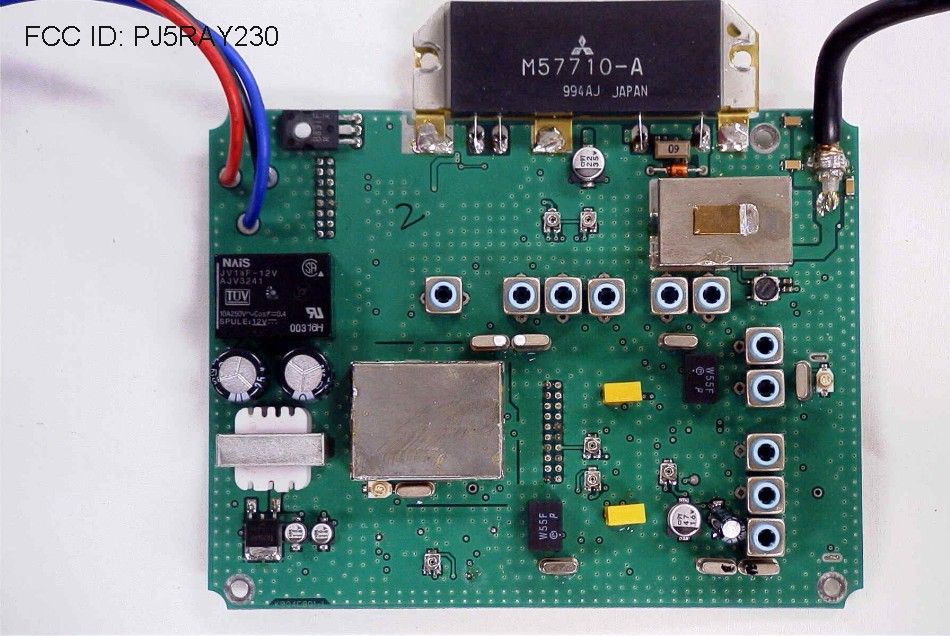

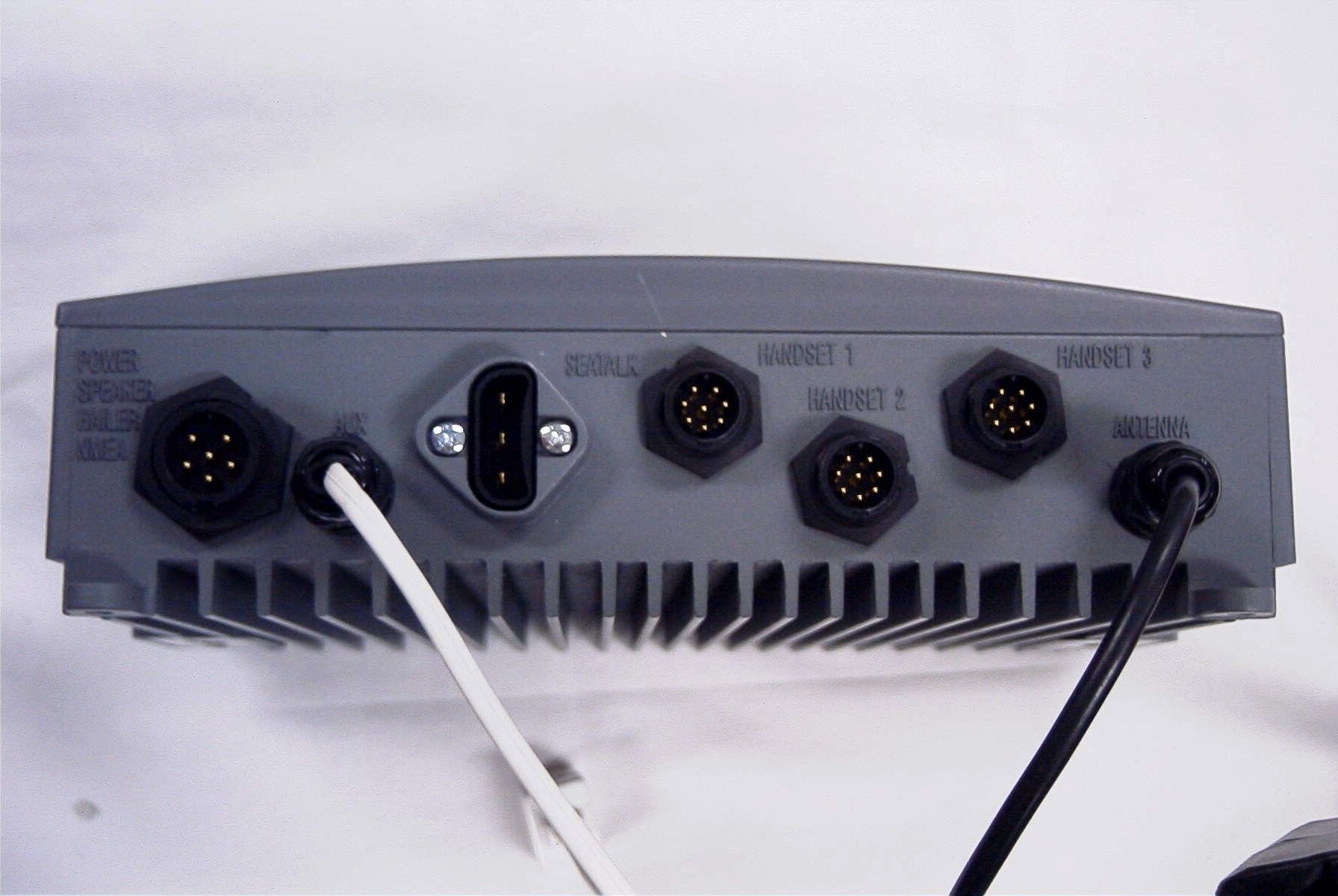

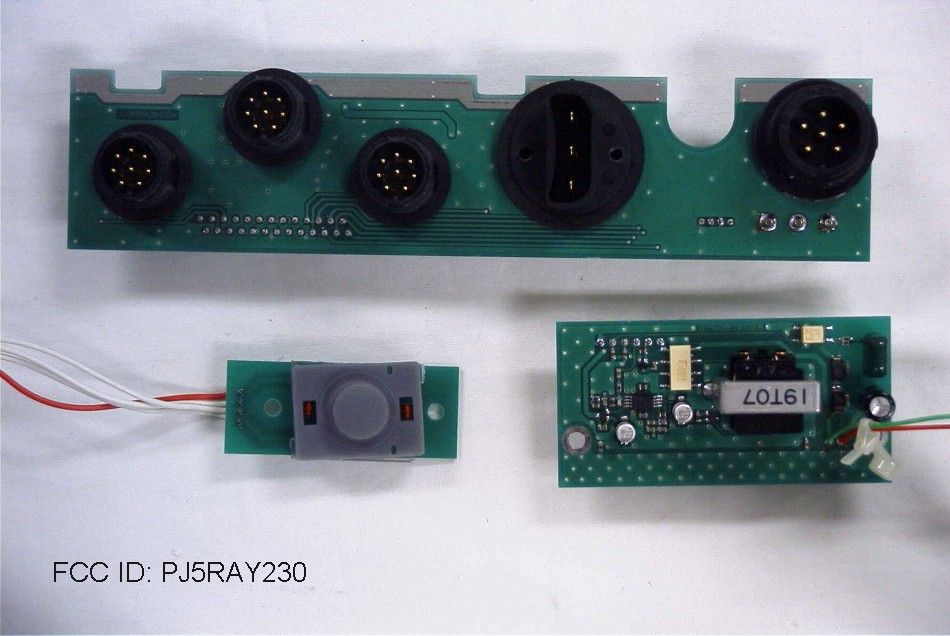

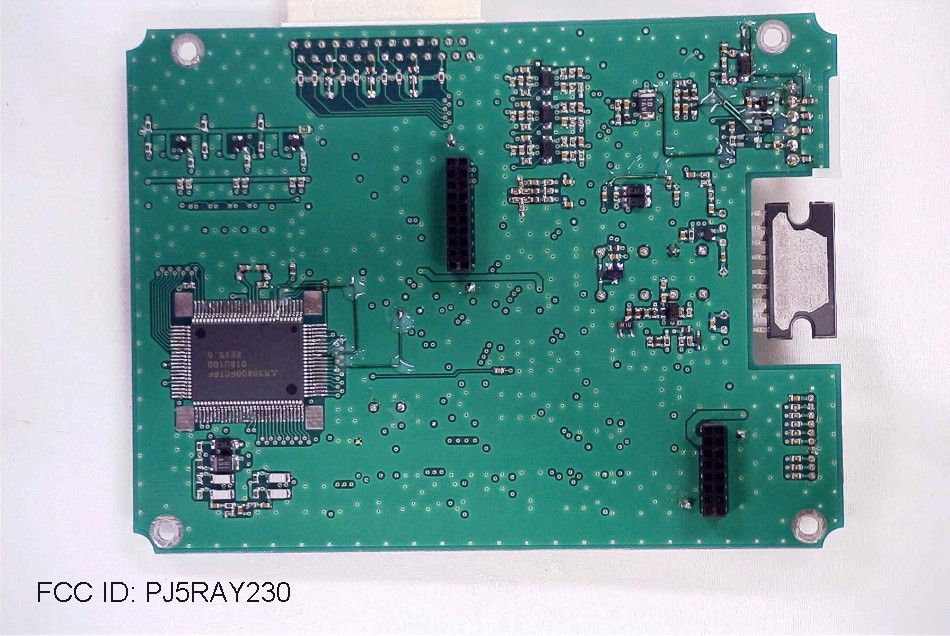

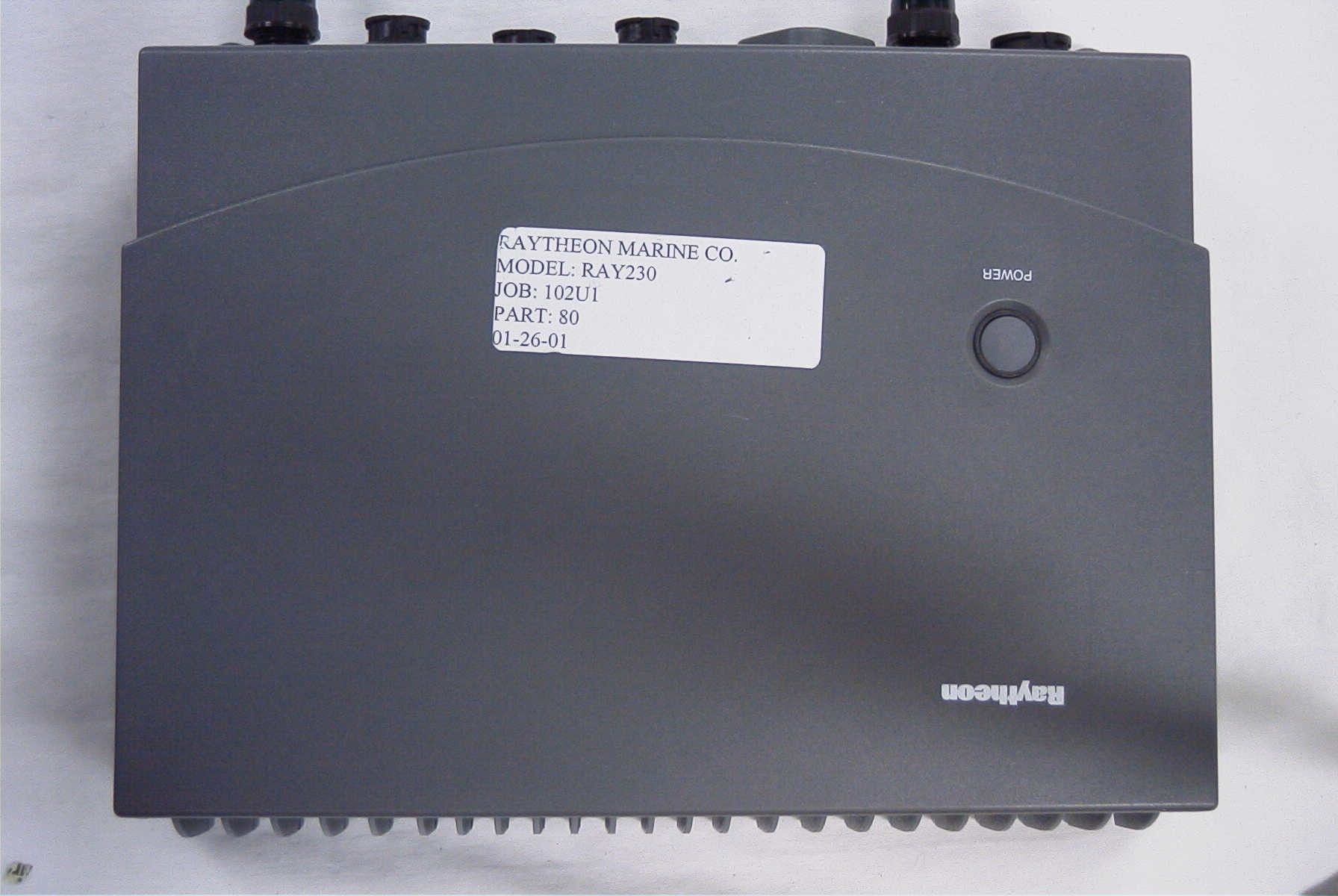

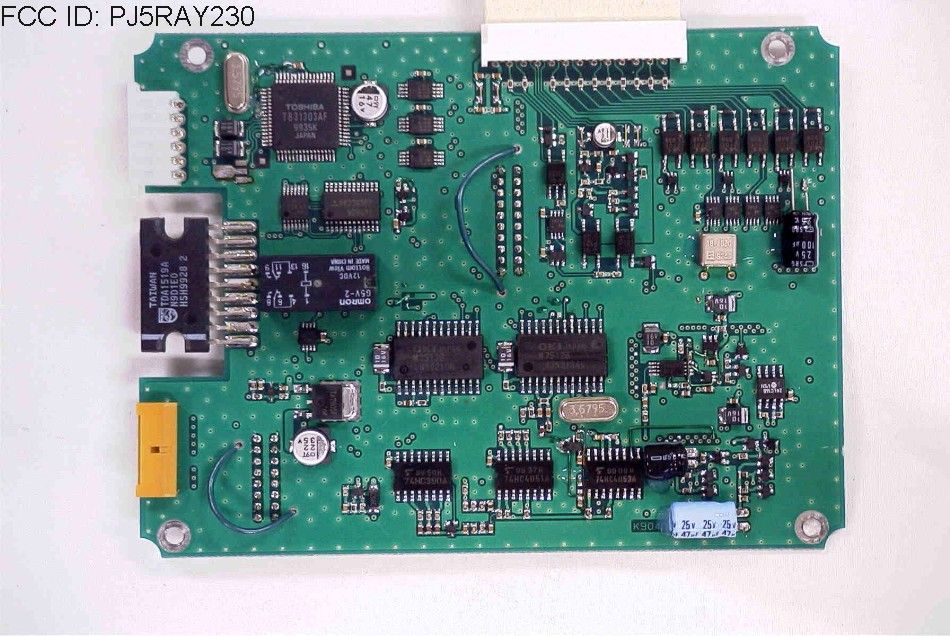

TABLE OF CONTENTS LIST APPLICANT: RAYMARINE, INC. FCC ID: PJ5RAY230 TEST REPORT: PAGE 1......COVER SHEET - GENERAL INFORMATION & TECHNICAL DESCR. PAGE 2......TECHNICAL DESCRIPTION CONTINUE & RF POWER OUTPUT PAGE 3......RF POWER OUTPUT CONTINUED PAGE 4......SPURIOUS EMISSIONS AT ANTENNA TERMINALS PAGE 5......FIELD STRENGTH OF SPURIOUS EMISSIONS PAGE 6......METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 7......FREQUENCY STABILITY PAGE 8......LIST OF TEST EQUIPMENT EXHIBIT CONTAINING: EXHIBIT 1.........FCC ID LABEL SAMPLE EXHIBIT 2.........SKETCH OF FCC ID LOCATION EXHIBIT 3A........EXTERNAL PHOTOGRAPH - FRONT VIEW EXHIBIT 3B........EXTERNAL PHOTOGRAPH - REAR VIEW EXHIBIT 3C........INTERNAL PHOTOGRAPH - COPPER VIEW EXHIBIT 3D........INTERNAL PHOTOGRAPH - COMPONENT VIEW EXHIBIT 4A-4B.....TEST SETUP PHTOGRAPHS EXHIBIT 5A-5E.....BLOCK DIAGRAM EXHIBIT 6A-6I.....SCHEMATICS EXHIBIT 7.........USER'S MANUAL EXHIBIT 8.........AUDIO FREQUENCY RESPONSE GRAPH EXHIBIT 9.........AUDIO LOWPASS FILTER GRAPH EXHIBIT 10A.......MODULATION LIMITING - 300 Hz EXHIBIT 10B.......MODULATION LIMITING - 1000 Hz EXHIBIT 10C.......MODULATION LIMTING - 3000 Hz EXHIBIT 11........OCCUPIED BANDWIDTH 2.5K DEVIATION PLOT EXHIBIT 12........OCCUPIED BANDWIDTH PLOT - 70 DB ATTN. APPLICANT: RAYMARINE, INC. FCC ID: PJ5RAY230 REPORT #: T:\CUS\R\RAYTHEON\102U1\EXTRA\102U1.RPT PAGE: TABLE OF CONTENTS GENERAL_INFORMATION_REQUIRED FOR_TYPE_ACCEPTANCE 2.983 (a,b,c) RAYMARINE, INC. will sell the MODEL NO. PJ5RAY230 VHF Marine transmitter in quantity, for use under FCC RULES PART 80. 80.203(n) DSC – The statement regarding DSC can be found in Page 7 of the manual. 2.983 (d) TECHNICAL_DESCRIPTION (1) Type of Emission: 16K0G3E/16K0F3E For 20KHz For 25KHz Bn = 2M + 2DK M = 3000 D = 4.6KHz (Peak Deviation) K = 1 Bn = 2(3.0K) + 2(4.6K)(1) = 6.0K + 10.0 = 16.0K 80.205(A) ALLOWED AUTHORIZED BANDWIDTH = 20.00KHz. (2) Frequency Range: 156.025-157.425 MHz (3) Power Range and Controls:There is a user Power switch for High/Low Power. (4) Maximum Output Power Rating: High 25.0 Watts, 1.0Watt into a 50 ohm resistive load. (5) DC Voltages and Current into Final Amplifier: POWER INPUT FINAL AMPLIFIER ONLY High Low Vce = 13.6 Volts Vce = 13.6 VDC Ice = 5.66 A. Ice = 1.51 Pin = 76.97 Watts Pin = 20.53 Watts (6) Function of each electron tube or semiconductor device or other active circuit device: - SEE EXHIBIT# 7 2.983(d) (7) Complete Circuit Diagrams: The circuit diagram is included as EXHIBIT 6A-6I. The block diagram is included as EXHIBIT 5A-5E. (8) Instruction book. The instruction manual is included as EXHIBIT #7. APPLICANT: RAYMARINE, INC. FCC ID: PJ5RAY230 REPORT #: T:\CUS\R\RAYTHEON\102U1\EXTRA\102U1.RPT PAGE #: 1 2.983(d) (9) Tune-up procedure. The tune-up procedure is given in EXHIBIT #7. (10) Description of all circuitry and devices provided for determining and stabilizing frequency is included in the circuit description in the instruction manual. 2.983 (11) Description of any circuits or devices employed for suppression of spurious radiation, for limiting modulation, and for limiting power. In addition to the interstage filtering the multi- section low pass filter made up of L12, L11, C40, C47, C95, C46, C94, C45, & C26. Limiting Modulaton: The transmitter audio limiting circuitry is contained in the loop filter IC01. Limiting Power: There is no provision for limiting power. (12) Digital modulation. This unit does NOT use digital modulation. 2.983(e) The data required by 2.985 through 2.997 is submitted below. 2.985(a) RF_power_output. 80.215(e)(1) RF power is measured by connecting a 50 ohm, re- sistive wattmeter to the RF output connector. With a nominal battery voltage of 13.6V, and the transmitter properly adjusted the RF output measures: POWER OUTPUT INPUT POWER: (13.6V)(5.66A) = 75.97 Watts OUTPUT POWER: 25.0 Watts Efficiency: 32.5 METHOD OF MEASURING RF POWER OUTPUT /-----------\ /---------\ |Transmitter|---------------------|50 ohm | |under test | |Resistive| \-----------/ |Wattmeter| | \---------/ /-----------\ |Power | |Supply | \-----------/ APPLICANT: RAYMARINE, INC. FCC ID: PJ5RAY230 REPORT #: T:\CUS\R\RAYTHEON\102U1\EXTRA\102U1.RPT PAGE #: 2 2.987(a) Voice Modulation_characteristics: (a) AUDIO_FREQUENCY_RESPONSE See the EXHIBIT #8. 2.987(a) AUDIO_LOW_PASS_FILTER The audio low pass filter is included and the plot is shown as EXHIBIT #9. Rules 80.213(e) for ship stations with a low pass filter. 2.987(b) Audio_input_versus_modulation A plot of the 80.213(d) audio input versus deviation is shown in in EXHIBITS 10A-10C. 2.989(c) Occupied_bandwidth: 80.210(b,) Data in the plots shows that on any frequency removed from the assigned frequency by more than 50%, but not more than 100%: At least 25dB. On any frequency removed from the assigned frequency by more than 100%, but not more than 250%: At least 35dB. On any frequency removed from the assigned frequency by more than 250%, of the authorized bandwidth: At least 43+log(P)dB. Radiotelephone transmitter with modulation limiter. Test procedure: TIA/EIA-603 para 2.2.11 , with the exception that various tones were used. Test procedure diagram OCCUPIED BANDWIDTH MEASUREMENT Coupler /-----------\ /---\ /---------\ |Transmitter| | | |50 ohm | |under test |------------| |---------|Resistive| \-----------/ | | |Wattmeter| | \---/ \---------/ /-----------\ /----------\ |Audio | | Spectrum | |Oscillator | | Analyzer | \-----------/ \----------/ APPLICANT: RAYMARINE, INC. FCC ID: PJ5RAY230 REPORT #: T:\CUS\R\RAYTHEON\102U1\EXTRA\102U1.RPT PAGE #: 3 2.991 Spurious_emissions_at_antenna_terminals(conducted): 80.213 The data on the following page shows the level of conducted spurious responses. The carrier was modu- lated 100% using a 2500Hz tone. The spectrum was scanned from 0.4 to at least the 10th harmonic of the fundamental. The measurements were made in accordance with standard TIA/EIA-603. Method of Measuring Conducted Spurious Emissions /--------\ |HP | |Spectrum| |Analyzer| |8566B | \--…
