PJ5RAY49VHF/FM Marine Transmitter with Class D DSC

Ray49 Marine VHF Radio Owner’s Handbook Document number: 81296-1 Date: July 2007 Trademarks and registered trademarks Raymarine is a registered trademark of Raymarine plc. All other product names are trademarks or registered trademarks of their respective owners. Contents of this handbook © Raymarine 2007 3 Contents Trademarks and registered trademarks ............................................ 2 About this Handbook .............................................................................................9 Intended Use .................................................................................................. 9 Conventions Used ........................................................................................ 9 Technical Accuracy .......................................................................................... 9 Warranty ....................................................................................................... 9 Important Information .......................................................................................10 FCC Notice .................................................................................................... 10 Station License .............................................................................................. 10 Operator License ........................................................................................... 10 Industry Canada Notice ................................................................................ 11 License ................................................................................................. 11 Outside the US and Canada .......................................................................... 11 Maritime Mobile Service Identity (MMSI) ..................................................... 11 Safety Notices ............................................................................................... 11 Antenna Mounting and EME Exposure ................................................ 12 Safe Compass Distance ........................................................................ 12 EMC Conformance ............................................................................... 12 Duty Cycle ............................................................................................ 12 Chapter 1: Introduction .....................................................................................13 1.1 Ray49 Fixed Station VHF Radios ........................................................... 13 1.2 Features ............................................................................................... 13 Digital Selective Calling (DSC) .............................................................. 14 Chapter 2: Installation .......................................................................................15 2.1 Unpacking and Inspection .................................................................... 15 Removing the Sun Cover ..................................................................... 15 Equipment Supplied ............................................................................. 16 2.2 Planning the Installation ...................................................................... 17 2.3 Cable Connections ............................................................................. 19 Power ................................................................................................ 20 External Speaker ............................................................................... 20 NMEA Data ........................................................................................ 20 Antenna ............................................................................................... 21 Antenna Mounting Suggestions .................................................... 22 Grounding ............................................................................................22 Chapter 3: General Operations .........................................................................23 3.1 Keypad and Rotary Knobs .................................................................... 23 Microphone Keys ................................................................................. 23 1. PTT ......................................................................................... 23 4Ray49 Marine VHF Radio 2. HILO / LOC DIST .........................................................................23 3. 16/9 ........................................................................................23 4. UP/DOWN ................................................................................24 5. SCAN / SAVE .............................................................................24 Transceiver Controls .............................................................................24 6. CH/OK ........................................................................................24 7. PWR/VOL ...................................................................................24 8. SQ ..............................................................................................24 Transceiver Push Keys ...........................................................................24 9. MENU/DSC ...............................................................................24 10. CLR/WX ................................................................................25 11. DW/TRI ....................................................................................25 12. 16/9 ......................................................................................25 13. DISTRESS ................................................................................25 3.2 Transceiver LCD ..................................................................................25 1. (TX) Transmitting ............................................................................26 2. (RX) Receiving…

Text truncated - open the document above for the full version.

57 Chapter 5: Digital Selective Calling (DSC) The Ray49 includes equipment for Class “D” Digital Selective Calling (DSC). DSC protocol is a globally applied system used to send and receive digital calls. DSC uses a unique Maritime Mobile Service Identity (MMSI) number to direct DSC calls directly to your radio, much like a telephone number. Note: An MMSI number is required to operate the DSC equipment in this radio. You can obtain an MMSI from BoatUS (www.boatus.com). Once obtained, you can program the MMSI number yourself one time only using the operation described in “My MMSI ID“ on page 81. Otherwise, your Raymarine dealer can program or change the number for you. The Ray49 includes a separate dedicated receiver just for DSC communications on channel 70. When a DSC call is received, the radio automatically responds based on the type of call. When receiving a DSC call from another vessel or a coast station, an alert sounds and DSC data appears in the LCD–such as time of a call, the caller and the type and priority of a call. 5.1 DSC Call Menu You access DSC functions via the DSC menu. Press and hold the MENU/DSC key for 3 seconds to enter DSC call mode. Note: Distress calls are made using the DISTRESS key. The Ray49 can make the following type of DSC calls: DSC Call TypeDescription DISTRESSSends out your MMSI number, the nature of your Distress, and the position and time information currently displayed. This information is from NMEA data, if available, or the position data you have entered manually. This digital information lets other ships and shore stations equipped with appropriate DSC equipment know where you are and that you are in a Distress situation. Distress Calls are made using the DISTRESS key. INDIVIDUALMakes a ROUTINE DSC call to a specific station identified by its MMSI number. D10165-1 10 15 20 25 30 35 40 45 50 55 60 5 DSC MENU >INDIVIDUAL GROUP ALL SHIPS 58Ray49 Marine VHF Radio Making DSC Menu and Programming Selections There are two ways to make DSC menu and character selections in your radio: 1. Most examples in this chapter describe making selections using the CH/OK knob on the transceiver. 2. However, you can also press the microphone up/down keys to make your selections and then press the microphone HI/LO key to accept. GROUPSends transmissions that are only received by radios sharing a com- mon Group MMSI number. Up to 3 Group MMSI numbers can be stored and called. ALL SHIPSSends out a message to all stations within range that you have impor- tant information but the situation is not serious enough for a Distress Call. All Ships calls should only be used if hailing for assistance on channel 16 fails. There are two types of All Ships Calls: SAFETY for advisory alerts and URGENCY for assistance when life is not in imme- diate danger. POSITION REQUEST This option enables you to request GPS position information from any vessel for which an MMSI number is known. You can specify the target vessel either by selecting it from your MMSI phonebook or by manu- ally entering its MMSI number. You can also be requested to send out your position to someone else. RECEIVED CALLS Three separate logs listing all received DSC Call types by number and time of call. Entries are separated into the following: Distress Log, Call Log for all other types of DSC Calls, and Position Log. NOTE: You can place a call directly from a log to the station that is cur- rently displayed. You can also add the displayed station to the DSC Phonebook. DSC Call TypeDescription D10023-1 Chapter 5: Digital Selective Calling (DSC)59 5.2 Distress Calls For a Distress Call transmission, the Ray49 takes the position and time information (either from NMEA or manually input) along with your MMSI and converts it into a digital “packet”. When transmitted, this digital information lets other ships and shore stations equipped with appropriate DSC equipment know where you are and that you are in a Distress situation. Your call can specify the nature of the Distress (designated call) or not (undesignated call). Sending a Distress Call Lift the spring-loaded door on the front panel of the transceiver. Undesignated (Quick) Distress Call To send a distress call without specifying its nature: • Press and hold the red DISTRESS key for 3 seconds to initiate the call. During this time, the radio beeps, the display flashes and a timer counts down 03...02...01. D10166-1 D10168-1 PRESS and HOLD for 3 SECS 10 15 20 25 30 35 40 45 50 55 60 5 DISTRES CALL COUNTING DOWN... DISTRES CALL COUNTING DOWN... DISTRES CALL COUNTING DOWN... DISTRES CALL TRANSMITTING DISTRESS UNDESIGNATED 60Ray49 Marine VHF Radio Designated Distress Call To send a distress call and specify its nature: 1. Press the red DISTRESS key. 2. Release the DISTRESS key. The Distress Call screen appears. 3. Rotate the CH/OK knob until the type of Distress you wish to designate is highlighted: 4. Press the CH/OK knob to choose that type of Distress. 5. Press and hold the DISTRESS key for 3 seconds to initiate the call. During this time, the radio beeps, the display flashes and a timer counts down 03...02...01... , just as with the Undesignated Distress Call illustrated above. • UNDESIG(NATED)• SINKING • FIRE • ADRIFT • FLOODING • ABANDONING • COLLISION• PIRACY • GROUNDING• MANOVERBD • LISTING • EXIT D10167-1 Release Press 10 15 20 25 30 35 40 45 50 55 60 5 HOLD 3 SECS PRESS and DISTRES CALL >UNDESIG FIRE FLOODING 16 16 DISTRES CALL UNDESIG FIRE >FLOODING 16 DISTRES CALL >FLOODING HOLD DISTRES 3 SECONDS Chapter 5: Digital Selective Calling (DSC)61 Transmitting After the Distress transmission, the radio is automatically set to channel 16 at high power to listen for and respond to voice replies from Coast Guard or other vessels that may have received your Distress Call. To mute the alarm: PressCLR/WX. To manually cancel the automatic Distress resend: PressCLR/WX a second time. The Distress Call is resent randomly every 3.5 – 4.5 minutes until an acknowledgement is received…

Text truncated - open the document above for the full version.

Raymarine, Inc. 21 Manchester Street Merrimack NH 03054 USA 603 881-5200 800-539-5539 (Fax) www.raymarine.com August 21, 2007 BABT Balfour House Churchfield Road Walton-on-Thames Surrey KT12 2TD Dear Sir or Madam: We, Raymarine Inc., 21 Manchester Street, Merrimack, NH 03054, USA, hereby authorize TÜV Product Service Limited, Octagon House, Concorde Way, Segensworth North, Fareham, PO15 5RL, to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. I further certify that the applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. Section 862. This authorization expires on March 06, 2008. Sincerely, Keith Wansley Raymarine, Inc. VP of Sales Tel: 603-881-5200 EXT 4831 [email protected]

Raymarine, Inc. 22 Cotton Road, Unit D Nashua NH 03063 4219 USA 603 881-5200 800-539-5539 (Fax) www.raymarine.com Rev. 1/1/03 BABT Balfour House Churchfield Road Walton-on-Thames Surrey KT12 2TD RE: Confidentiality Request regarding application for certification of FCC ID: PJ5RAY49 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: • Schematics • Block Diagrams • Bill of Materials • PCB Layout The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Keith Wansley Raymarine, Inc. VP of Sales Telp: 603-846-4831 [email protected]

Raymarine, Inc. 21 Manchester Street Merrimack NH 03054 USA 603 881-5200 800-539-5539 (Fax) www.raymarine.com Rev. 1/1/03 Federal Communications Commission Authorization and Evaluation Division We hereby declare that the Ray49 complies with the following FCC regulations: • Part 80.203 (b), (c) and (n) • Part 80.207 (a), (b) and (d) • Part 80.225 (a) and (c) Sincerely, Keith Wansley Raymarine, Inc. VP of Sales Tel: 603-881-5200 EXT 4831 [email protected]

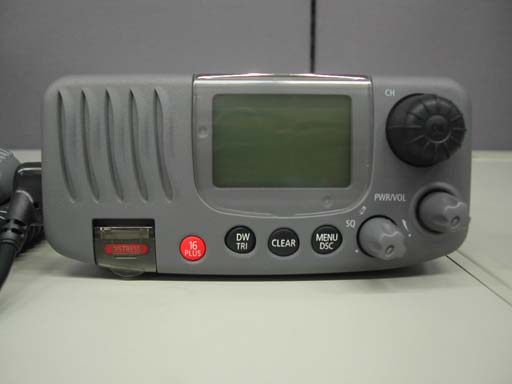

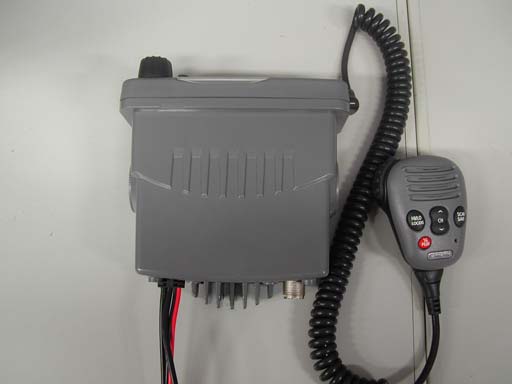

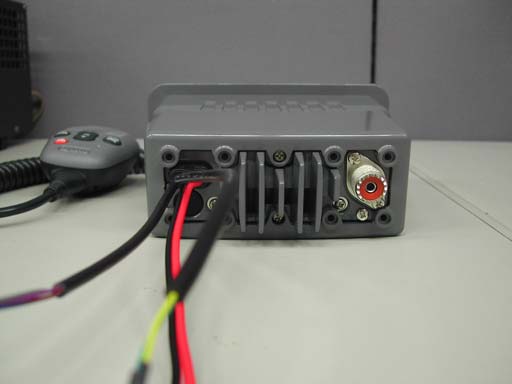

RAY 49 External photographs Face Rear Left side Right side Top Bottom

Ray 49 Internal Photographs Ray49 Control PCB - Front Ray49 Control PCB - Back Ray49 RF/AF PCB - Front Ray49 RF/AF PCB - Back

REPORT ON RF Exposure Assessment Raymarine plc. Fixed Mount VHF Radio Model Number RAY49 Doc Number 75900802 Report 08 Issue 1 August 2007 Choose certainty. Add value. Commercial-in-Confidence TUV Product Service Ltd, Octagon House, Concorde Way, Segensworth North, Fareham, Hampshire, United Kingdom, PO15 5RL Tel: +44 (0) 1489 558100. Website: www.tuvps.co.uk ; www.babt.com Doc Number 75900802 Report 08 Issue 1 Page 1 of 15 REPORT ON RF Exposure Assessment Raymarine plc. Fixed Mount VHF Radio Model Number RAY49 Doc Number 75900802 Report 08 Issue 1 FCC ID: PJ5RAY49 PREPARED FOR Raymarine plc. Quay Point Northarbour Road Portsmouth Hampshire PO6 3TD United Kingdom ATTESTATION The wireless device described within this report has been shown to be capable of compliance with the basic restrictions related to human exposure to electromagnetic fields (10 MHz - 300 MHz) - General public. The calculations shown in this report were made in accordance the procedures specified in the applied test specification(s). All reported calculations were carried out on a sample of equipment to demonstrate compliance with the applied test specification(s) the sample tested was found to comply with the requirements of the applied rules. PREPARED BY A Miller Principal Engineer APPROVED BY M Jenkins Authorised Signatory DATED 14 th August 2007 FCC ID: PJ5RAY49 Doc Number 75900802 Report 08 Issue 1 Page 2 of 15 CONTENTS Section Page No 1 Report Summary............................................................................................................................... 3 1.1 Status................................................................................................................................................. 4 1.2 Test Specifications............................................................................................................................. 4 1.3 References ........................................................................................................................................ 4 1.4 Summary ........................................................................................................................................... 5 1.5 Required Minimum Separation Distances ......................................................................................... 5 2 Test Details........................................................................................................................................ 7 2.1 Rationale for Assessment of the RF Exposure ................................................................................. 8 2.2 Defined Limits .................................................................................................................................... 9 2.3 Establishing Wavelength and 1/4 Wavelength .................................................................................. 9 2.4 Far Field Calculations ...................................................................................................................... 10 2.5 Field Representations...................................................................................................................... 10 3 Figures ............................................................................................................................................. 11 3.1 Field Representations...................................................................................................................... 12 4 Disclaimers and Copyright ............................................................................................................ 14 4.1 Disclaimers and Copyright............................................................................................................... 15 FCC ID: PJ5RAY49 Doc Number 75900802 Report 08 Issue 1 Page 3 of 15 SECTION 1 REPORT SUMMARY SUMMARY Based upon the supplied data for Model Number RAY49 and point of investigation ‘R’ being 1.410 m (141.0 cm) GENERAL PUBLIC LIMITS The calculations have shown that they meet the General Public Exposure Levels described in the FCC 47 CFR § 1.1310 Guidelines OCCUPATIONAL LIMITS The calculations have shown that they meet the Occupational Exposure Levels described in the FCC 47CFR § 1.1310 Guidelines FCC ID: PJ5RAY49 Doc Number 75900802 Report 08 Issue 1 Page 4 of 15 1.1 STATUS APPLICANT Raymarine plc. MANUFACTURING DESCRIPTION Fixed Mount VHF Radio MODEL NUMBER RAY49 1.2 TEST SPECIFICATIONS 1. OET Bulletin 65 Edition 97-01 August 1997 - Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields. 1.3 REFERENCES 2. National Council on Radiation Protection and Measurements (NRPC) - Report No. 86(1986) "Biological Effects and Exposure Criteria for Radio frequency Electromagnetic Fields". 3. FCC Guidelines for Evaluating exposure to RF Emissions - 47 CFR § 1.1310; 47 CFR § 1.1307(b) & 47 CFR § 80.83. 4. EN 50383:2002 - Basic standard for the calculation and measurement of electromagnetic field strength and SAR related to human exposure from radio base stations and fixed terminal stations for wireless telecommunication systems (110 MHz - 40 GHz). 5. IEEE Std C95.1-2005: IEEE Standard for Safety Levels with respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3KHz to 300GHz. FCC ID: PJ5RAY49 Doc Number 75900802 Report 08 Issue 1 Page 5 of 15 1.4 SUMMARY The equipment subject to the RF exposure assessment is a Fixed Mount VHF Radio model number RAY49. The RF exposure assessment is based upon the following criteria:- • The Fixed Mount VHF Radio operates in the frequency range of 156.025 MHz to 157.425 MHz, the numeric gain of the Fixed Mount VHF Radio is 1.995 gain. • The length of the Fixed Mount VHF Radio is assumed as 40.64 centimetres (cm). • The Fixed Mount VHF radio power is 25.0 Watt maximum. • The point of investigation is calculated to be 141.0 cm with an assumed maximum antenna gain of 3 dBi. 1.5 REQUIRED MINIMUM SEPARATION …

Text truncated - open the document above for the full version.

REPORT ON Limited FCC CFR 47: Parts 15 and 80 of a Raymarine RAY49 Fixed Mount VHF (with Class D DSC) COMMERCIAL-IN-CONFIDENCE FCC ID: PJ5RAY49 Doc Number 75900802 Report 06 Issue 3 September 2007 Choose certatiny. Add value. COMMERCIAL-IN-CONFIDENCE TUV Product Service Ltd, Octagon House, Concorde Way, Segensworth North, Fareham, Hampshire, United Kingdom, PO15 5RL Tel: +44 (0) 1489 558100. Website: www.tuvps.co.uk ; www.babt.com Doc Number 75900802 Report 06 Issue 3 Page 1 of 81 COMMERCIAL-IN-CONFIDENCE REPORT ON Limited FCC CFR 47: Parts 15 and 80 Testing of a Raymarine RAY49 Fixed Mount VHF (with Class D DSC) FCC ID: PJ5RAY49 Doc Number 75900802 Report 06 Issue 3 September 2007 PREPARED FOR Raymarine Anchorage Park Portsmouth Hampshire PO3 5TD United Kingdom PREPARED BY N Bennett Administrator APPROVED BY K Adsetts M Jenkins Authorised Signatory Authorised Signatory DATED 5 th September 2007 This report is up-issued to issue 3 to correct typographical errors in the summary table. ENGINEERING STATEMENT The measurements shown in this report were made in accordance with the procedures described on test pages. All reported testing was carried out on a sample equipment to demonstrate limited compliance with FCC CFR 47: Parts 2, 15 and 80. The sample tested was found to comply with the requirements defined in the applied rules. Test Engineers; R Blagg M Hardy P Harrison FCC ID: PJ5RAY49 COMMERCIAL-IN-CONFIDENCE Doc Number 75900802 Report 06 Issue 3 Page 2 of 81 COMMERCIAL-IN-CONFIDENCE CONTENTS Section Page No 1 REPORT SUMMARY 1.1 Status .................................................................................................................................. 4 1.2 Introduction.......................................................................................................................... 5 1.3 Brief Summary of Results ................................................................................................... 6 1.4 Application Form................................................................................................................. 7 1.5 Test Conditions ................................................................................................................... 21 1.6 Deviations from the Standard............................................................................................. 21 1.7 Modification Record ............................................................................................................ 21 2 TEST DETAILS FCC Part 15 2.1 Spurious Radiated Emissions ............................................................................................. 23 FCC Part 80 2.2 Occupied Bandwidth ........................................................................................................... 25 2.3 Occupied Bandwidths DSC................................................................................................. 29 2.4 Transmitter Frequency Tolerances - Voltage....................................................................... 33 2.5 Transmitter Frequency Tolerances - Temperature............................................................... 35 2.6 Frequency Stability DSC Emissions..................................................................................... 39 2.7 Emissions Limitations (Emissions Mask).............................................................................. 40 2.8 Emissions Limitations (Emissions Mask) DSC..................................................................... 44 2.9 Emissions Limitations (Conducted Transmitter Spurious).................................................... 48 2.10 Emissions Limitations DSC (Conducted Transmitter Spurious)............................................ 55 2.11 Emissions Limitations (Radiated Transmitter Spurious) ...................................................... 59 2.12 Modulation Characteristics................................................................................................... 61 2.13 Transmitter Power................................................................................................................ 64 2.14 Transmitter Power - DSC ..................................................................................................... 66 2.15 Suppression of Interference aboard ships .......................................................................... 68 3 TEST EQUIPMENT 3.1 Test Equipment ................................................................................................................... 74 3.2 Measurement Uncertainty ................................................................................................... 79 4 ACCREDITATION, DISCLAIMERS AND COPYRIGHT 4.1 Accreditation, Disclaimers and Copyright ........................................................................... 81 FCC ID: PJ5RAY49 COMMERCIAL-IN-CONFIDENCE Doc Number 75900802 Report 06 Issue 3 Page 3 of 81 COMMERCIAL-IN-CONFIDENCE SECTION 1 REPORT SUMMARY Limited FCC CFR 47: Parts 15 and 80 Testing of a Raymarine RAY49 Fixed Mount VHF (with Class D DSC) FCC ID: PJ5RAY49 COMMERCIAL-IN-CONFIDENCE Doc Number 75900802 Report 06 Issue 3 Page 4 of 81 COMMERCIAL-IN-CONFIDENCE 1.1 STATUS Manufacturer Raymarine Type Designation RAY49 Fixed Mount VHF Serial No Sample No. 2 Sample ATIS (Blue) Number of Samples Tested Two Test Specification/Issue/Date FCC CFR 47: Part 15: 2006 FCC CFR 47: Part 80: 2006 Date of Receipt of Test Sample 18 th April 2007 Sample No. 2 28 th June 2007 Sample ATIS (Blue) Start of Test 2 nd July 2007 Finish of Test 11 th July 2007 Test Engineer(s) R Blagg M Hardy P Harrison FCC ID: PJ5RAY49 COMMERCIAL-IN-CONFIDENCE Doc Number 75900802 Report 06 Issue 3 Page 5 of 81 COMMERCIAL-IN-CONFIDENCE 1.2 INTRODUCTION The information contained within this report is intended to show limited verification of compliance of the Raymarine RAY49 Fixed Mount VHF (with Class D DSC) to the requirements of FCC Specification Parts 15 a…
