PJKCR45-A-53Point to Point Fixed UNII Transmitter

CR45-A-53/58/58L Transceivers User Reference (Part numberxxxx) Ver 0.01 May 2001 (BitRage logo) BitRage™ is a trademark of BitRage, Inc. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ??Reorient or locate the receiving antenna ??Increase the separation between the equipment and receiver ??Connect the equipment into an outlet on a circuit different from that to which the receiver is connected ??Consult the dealer or experienced radio/TV technician for help The user must not make any modifications to the unit, unless expressly approved by the party responsible for compliance. Failure to comply with this rule could void the user's authority to operate the equipment. Information is this document is subject to change without notice. Names and data used in examples herein are fictitious unless otherwise noted. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express consent of BitRage, Inc. Copyright © 2001 by BitRage, Inc. All rights reserved. xxxx, Ver. 0.01 2-1 Section 1. Product Description [BitRage company, introductory info] Symbols Used In This Guide A note (icon1:) within this guide provides supplemental information that may be useful in procedures or may indicate an exception or anomaly. A caution (icon2:) indicates a condition or a risk factor that could disrupt normal operations or create difficulty with data reception or output. A warning (icon3) indicates danger a situation that could cause bodily injury or death. Note: This guide is intended for use by professional installation personnel Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents.. CR45-A Overview [add photograph of CR45-A] Figure 1-1. The CR45-A Troubleshooting xxxx, Ver 0.01 2–2 The CR45-A radio system provides full duplex data communication at full- time 45 Mbps rate, operating in the UNII bands [range needed?]. Under FCC rules, users are not required to be licensed to operate a system, as long as the radio meets the maximum allowable EIRP limits. CR45-A radio has been designed uniquely without a special modulation scheme to provide clear channel. While this radio can manage the transmission of the packet based DS-3 signal, its ability to manage the constant stream of DS-3 signal allows the transportation of most complex signals. Because the radio was designed without complex modulation technology to meet the unlicensed spectrum, data is transported accurately and efficiently. To provide installation ease and minimal maintenance, antenna alignment is the only required procedure. All other adjustments are done automatically. Product Specifications Wireless Digital Transceiver RF system 5.8 GHz Operation Full-duplex Operating Frequency 5.775 GHz TX and 5.301 GHz RX 5.301 GHz TX and 5.775 GHz RX Data Interface Baseband DS-3 Data Modulation Scheme none Connectors 75 ohm female BNC (Data In, Data Out) Type N female (antenna) 4-pin twist lock (DC power) Regulatory Compliance FCC Part 15, Subpart E Operating Temperature Range -40C to +80C Power Requirement 15 VDC to 27 VDC @ 0.85 Amps Operating Range 11 miles Physical Dimensions 7.50 in. wide, 8.5 in. high, 2 in. deep (width includes mounting ears) Troubleshooting xxxxxx Ver. 0.01 1-3 Antenna Requirements Use 2.0 ft. dish for distance up to 4.0 miles Use 3.0 ft. dish for distance up to 7.0 miles Use 6.0 ft. dish for distance up to 11.0 miles Note: Line of sight required. Digital Signal Process (included within radio housing) Data Interface DS-3 Line Rate 44.736 Mbps ? 20 PPM Line Code B3ZS Clock Jitter 30 pico second peak-to-peak RMS Load 75Ohms ? 5% Power Level When all "1" pattern is transmitted, power level @22.368 MHz ?0.002MHz must be -1.8dbM to +5.8dbM and the power level at 44.736 MHz ?0.002 MHz must be -21.8dbM to -14.3dbM 2,3 Operating Power +4.5 VDC to +5.0 VDC (supplied from radio) Operating Temperature -40C to +85 C General Information Maximum Cable Use Length Data cables: Up to 900 feet. featuring auto gain and auto EQ Power cables: Up to 900 feet Hazard Warnings Warning: The CR45-A products should only be installed by professional installers. RF Exposure Compliance Installation of the CR45A and its antenna must be performed by qualified personnel who are following the procedures and guidelines given in the CR45A Installation and Setup Guide. To comply with FCC radio frequency exposure requirements, the antennas used for this device must be installed to provide a separation distance at least 1.5 meters (5 feet) from all persons. Under no circumstances should you or anyone get closer than 1.5 m to the antenna without first ensuring that the system is powered off. Troubleshooting xxxx, Ver 0.01 2–4 User Requirements Persons operating the equipment must ensure that it does not cause interference. Specifications must be followed for any special cables (for example, shielded cables) that are required for the unit to meet the EMC standards to which compliance is declared. The user must not make any modifications to the unit, unless expressly approved by the party responsible for compliance. Failure to comply with this rule could void the us…

Text truncated - open the document above for the full version.

CR45-A-53/58/58L Transceivers Installation and Set-up Guide (Part numberxxxx) Ver 0.01 May 2001 (BitRage logo) BitRage™ is a trademark of BitRage, Inc. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ??Reorient or locate the receiving antenna ??Increase the separation between the equipment and receiver ??Connect the equipment into an outlet on a circuit different from that to which the receiver is connected ??Consult the dealer or experienced radio/TV technician for help The user must not make any modifications to the unit, unless expressly approved by the party responsible for compliance. Failure to comply with this rule could void the user's authority to operate the equipment. Information is this document is subject to change without notice. Names and data used in examples herein are fictitious unless otherwise noted. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express consent of BitRage, Inc. Copyright © 2001 by BitRage, Inc. All rights reserved. xxxx, Ver. 0.01 1-1 Section 1. Product Description Introduction [BitRage company, introductory info] Symbols Used In This Guide A note (icon1:) within this guide provides supplemental information that may be useful in procedures or may indicate an exception or anomaly. A caution (icon2:) indicates a condition or a risk factor that could disrupt normal operations or create difficulty with data reception or output. A warning (icon3) indicates danger a situation that could cause bodily injury or death. Note: This guide is intended for use by professional installation personnel Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents.. CR45-A Overview [add photograph of CR45-A] Figure 1-1. The CR45-A Product Description xxxx, Ver 0.01 1–2 The CR45-A radio system provides full duplex data communication at full- time 45 Mbps rate, operating in the UNII bands [range needed?]. Under FCC rules, users are not required to be licensed to operate a system, as long as the radio meets the maximum allowable EIRP limits. CR45-A radio has been designed uniquely without a special modulation scheme to provide clear channel. While this radio can manage the transmission of the packet based DS-3 signal, its ability to manage the constant stream of DS-3 signal allows the transportation of most complex signals. Because the radio was designed without complex modulation technology to meet the unlicensed spectrum, data is transported accurately and efficiently. To provide installation ease and minimal maintenance, antenna alignment is the only required procedure. All other adjustments are done automatically. Product Specifications Wireless Digital Transceiver RF system 5.8 GHz Operation Full-duplex Operating Frequency 5.775 GHz TX and 5.301 GHz RX 5.301 GHz TX and 5.775 GHz RX Data Interface Baseband DS-3 Data Modulation Scheme none Connectors 75 ohm female BNC (Data In, Data Out) Type N female (antenna) 4-pin twist lock (DC power) Regulatory Compliance FCC Part 15, Subpart E Operating Temperature Range -40C to +80C Power Requirement 15 VDC to 27 VDC @ 0.85 Amps Operating Range 11 miles Physical Dimensions 7.50 in. wide, 8.5 in. high, 2 in. deep (width includes mounting ears) Product Description xxxxx, Ver 0.01 1–3 Antenna Requirements Use 2.0 ft. dish for distance up to 4.0 miles Use 3.0 ft. dish for distance up to 7.0 miles Use 6.0 ft. dish for distance up to 11.0 miles Note: Line of sight required. Digital Signal Process (included within radio housing) Data Interface DS-3 Line Rate 44.736 Mbps ? 20 PPM Line Code B3ZS Clock Jitter 30 pico second peak-to-peak RMS Load 75Ohms ? 5% Power Level When all "1" pattern is transmitted, power level @22.368 MHz ?0.002MHz must be -1.8dbM to +5.8dbM and the power level at 44.736 MHz ?0.002 MHz must be -21.8dbM to -14.3dbM 2,3 Operating Power +4.5 VDC to +5.0 VDC (supplied from radio) Operating Temperature -40C to +85 C General Information Maximum Cable Use Length Data cables: Up to 900 feet. featuring auto gain and auto EQ Power cables: Up to 900 feet Product Description xxxx, Ver 0.01 1–4 Connectors and Indicators The cable connectors and status indicators on the CR45-A are shown in Figure 1-2 and described as follows: [insert illustration here] Figure 1-2. CR45-A Connectors and Indicators ?Antenna connector Type N female 50 Ohm Use up to 3.0 ft cable ? Data In connector BNC female 75 Ohm Use RG 59 cable up to 900 feet Note: Automatic Gain and Automatic EQ circuits are built-in ? Data Out connector BNC female 75 Ohm Use RG 59 cable up to 900 feet Note: Automatic Gain and Automatic EQ circuits are built-in ? Power connector 4-pin female twist lock 2 pins are assigned to receive the DC operating voltage 2 pins are assigned to send the status data signal to the remote monitoring unit ? Numeric display Used during the alignment process. Maximum value is displayed when antenna is in the ideal position. ? RX LED On when data is being received ? TX LED On when data is being transmitted ? Power display On when DC operating power is present in the radio xxxx, Ver. 0.01 2-1 Section 2 . Installing the Equipment [O…

Text truncated - open the document above for the full version.

File: R42555 March 19, 2001 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA. 22101 Gentlemen: The enclosed documents constitute a formal submittal and application for a Grant of Equipment Authorization pursuant to Subpart C of Part 15 of FCC Rules (CFR 47) regarding intentional radiators. Data within this report demonstrates that the equipment tested complies with the FCC limits for intentional radiators. Elliott Laboratories, as duly authorized agent prepared this submittal. A copy of the letter of our appointment as agent is enclosed. If there are any questions or if further information is needed, please contact Elliott Laboratories for assistance. Sincerely, Mark R. Briggs Director of Engineering MRB/dmg Enclosures: Agent Authorization Letter Emissions Test Report with Exhibits

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 April 18, 2001 Applicant: BitRage Inc. FCC ID: PJKCR45-A-53 Attention: Mark Briggs Mark, I have a couple of comments on this Application. 1.) External photographs can never be held Confidential. Internal photographs can be held confidential only in very rare or unusual circumstances (i.e. protecting a unique manufacturing operation). Please justify how the photographs can be Confidential or change the Request for Confidentiality letter. 2.) Page 12 of the test report specifies the RF power output was measured using broadband instrumentation. Please identify the meter and sensor. 3.) FYI: In the future, please do not make one MPE report to cover multiple products. This is confusing and slows down the review. 4.) Page 1-3 of installation manual indicates maximum Pout can be +5.8 dBm. This would exceed maximum permitted power using +28dBi gain antenna, change MPE report and listing on Grant. Please address. 5.) Also se Page 2-2 of same document: Pout does not match Any questions please call or email. Bill William H. Graff Examining Engineer President and Director of Engineering mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

April 18, 2001 American Telecommunications Certification Body Inc. William Graff 6731 Whittier Ave, McLean, VA 22101 Bill - Thanks for getting back to us so promptly. In response to your questions: 1.) External photographs can never be held Confidential. Internal photographs can be held confidential only in very rare or unusual circumstances (i.e. protecting a unique manufacturing operation). Please justify how the photographs can be Confidential or change the Request for Confidentiality letter. I will have BitRage update the letter to either provide justification or remove the internal photographs form the scope of the confidentiality agreement. Once I have these we will upload them to you. 2.) Page 12 of the test report specifies the RF power output was measured using broadband instrumentation. Please identify the meter and sensor. Sorry - it appears that our equipment calibration list was not provided to you. We will upload that information to you for both applications, but here is the information: Power Meter: Rohde & Schwarz NRVD Power Sensor: Rohde & Schwarz NRV- Z51 (1uW- 100mW, DC- 18 GHz, 50ohm) We actually measured the output power in two ways - the first used the power meter and the second used the spectrum analyzer and we added up the output power in each 1MHz band across the bandwidth of the signal. The results were within 1dB of each other so we used the power meter results. 3.) FYI: In the future, please do not make one MPE report to cover multiple products. This is confusing and slows down the review. Duly noted. Filenamer file here 4.) Page 1-3 of installation manual indicates maximum Pout can be +5.8 dBm. This would exceed maximum permitted power using +28dBi gain antenna, change MPE report and listing on Grant. Please address. 5.) Also se Page 2-2 of same document: Pout does not match This power is referencing the power level for the digital signals and is not related to the rf output power. The rf output power is as detailed in the 731 and Table 2-1 of the installation manual Sincerely, Mark Briggs Director Of Engineering

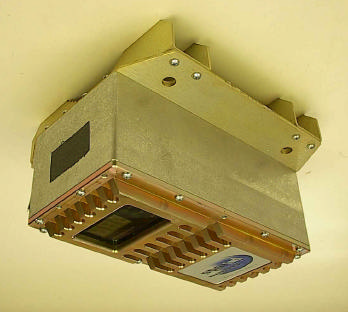

External Photographs

BITRAGE FCC COMPLIANCE LABEL, DS3 5.3 Tx MARCH 24 2001 LBL-0001-01 NOTES: 1. MATERIAL: METALIZED POLYESTER, (COLOR: SILVER), WITH ACRYLIC PRESSURE-SENSITIVE ADHESIVE (3M 9671 OR EQUIVALENT). 2. CHARACTER COLOR: ON TOP PORTION "FCC Compliant Equipment" TO BE SILVER WITH BLACK BACKGROUND. CHARACTERS ON BOTTOM PORTION TO BE BLACK WITH SLIVER BACKGROUND. 3. CHARACTER HEIGHT: TOP PORTION - .090" BOTTOM PORTION - .070" R.060(4X) 1.125 3.500 FCC Compliant Equipment FCC ID: PJK-CR45-A-53 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 1.125 3.500 FCC COMPLIANCE LABEL .25 .90 FCC COMPLIANCE LABEL BITRAGE PLACEMENT DRAWING FCC COMPLIANCE LABEL MARCH 24, 2001 NOTES: 1. USE LABEL LBL-0001-01 FOR DS3 5.3 TX 2. USE LABEL LBL-0002-01 FOR DS3 5.8 TX

Internal Photographs The device enclosure consists of two parts, a rear section in which the digital interface circuits, and baseband circuits are housed and a front section containing the LCD and rf circuits. The photographs have been split into two sections. The first shows the assembly and detail of the boards in the front section. The second shows the assembly and detail of the boards in the rear section. Internal Photographs – Front Section Top removed showing RF absorber RF absorber removed revealing Diplexer Filter and RF module Diplexer filter removed RF Module shield removed RF Circuit Board Shield (Bottom View) RF Circuit Board, bottom view RF Circuit Board, top view Display Circuit Board – Front View Display Circuit Board – Rear View Internal Photographs – Rear Section Digital Section – Assembly Top View Digital Section – Assembly Top View with Digital Processor Board removed Digital Processor Board – Top View With Shield Removed Digital Processor Board – Bottom View With Shield Digital Processor Board– Bottom View With Shield Removed Baseband Board– Top View Baseband Board – Bottom View

MPE Calculations FCC part 1.1310, Table 1 limits the power density for uncontrolled exposure to 1mW/ cm 2 for systems operating in the UNII bands. The distance, d(cm) from the antenna at which the power density, P d (mW/cm 2 ) is below this limit is calculated from the maximum EIRP, P t (mW) using the equation: P d = P t  G 2 ) Re-arranging for the distance at which the power density is 1mW/cm2 gives: d = √ (P t   The BitRage model CR45-A-53 is designed to use a 2’ dish antenna with a gain of 28dBi. The maximum output power is 1.3dBm, giving an EIRP of 29.3 dBm (851 mW): d = √ (851    8.2 cm (3.2”) For the 5.8 GHz system the maximum output power is +6.5dBm when using 2’ or 3’ dish antennas of gains 28dBi and 31 dBi respectively. The EIRP with the 2’ antenna is 34.5 dBm (2818mW) and with the 3’ antenna the EIRP is 37.5dBm (5623 mW). The 5.8 GHz radio can also use a 6’ dish antenna with a gain of 37 dBi when the output power is reduced +1.8dBm. This combination has an EIRP of 38.8dBm (7585mW). The distance from the antenna that the power density is 1mW/ cm 2 for all of the systems is given in the table below. The last column shows the calculated power density 1.5m form the antenna. Frequency Maximum output power (dBm) Antenna Antenna gain EIRP (mW) 1mW/ cm 2 distance Power density at 1.5m 5.3 GHz +1.3 Radio Waves Inc. SP2-5.2 2’ dish 28 dBi 851 8.2 cm 0.003 mW/cm 2 5.8 GHz +6.4 Radio Waves Inc. SP2-5.2 2’ dish 28 dBi 2754 14.8 cm 0.010 mW/cm 2 5.8 GHz +6.4 Radio Waves Inc. SP3-5.2 3’ dish 31 dBi 5623 20.9 cm 0.020 mW/cm 2 5.8 GHz +1.7 Radio Waves Inc. SP6-5.2 6’ dish 37 dBi 7585 24.3 cm 0.027 mW/cm 2 The installation manual requires that the antenna be mounted such that it is a distance of 1.5m from areas of uncontrolled Additional Warnings are also placed in the User Guide. The relevant text from the two manuals has been extracted and is shown on the following pages. Relevant text from the “Installation and Set-Up Guide” RF Exposure Limits The CR45-A-53, CR45-A-58, and CR45-A-58L transceivers, used in conjunction with 28, 31 and 37 dBi gain antennas, are to be used in point-to- point applications only. The transceivers can be provided with or without an integral antenna. If the transceiver is provided without an integral antenna, then antennas used for these transmitters shall be professionally installed on permanent structures for outdoor operations. The installer is responsible for ensuring that the systems using high-gain, directional antennas are used exclusively for fixed, point-to-point operations. The installer shall mount all transmit antennas so as to comply with the limits for human exposure to radio frequency (RF) fields per paragraph 1.1307 of the Federal Communications Commission (FCC) Regulations. The FCC requirements incorporate limits for Maximum Permissible Exposure (MPE) in terms of electric field strength, magnetic field strength, and power density. The CR45A transceivers are to be installed on customers’ rooftops and towers designated for fixed wireless applications. Table 1 specifies the minimum distance that must be maintained between the antenna and any areas where persons may have access, such as rooftop walkways and sidewalks, as well as through windows and other RF-transparent areas behind which persons may be located. Table 2-1 Antenna Radiation Hazard Radio Frequency Power Output, dBm Antenna Gain, DBi MPE Distance CR45-A-53 5.3 GHz +2.5 dBm 28 dBi 1.5m (5 ft) CR45-A-58 5.8 GHz 5.8GHz +6.5 dBm +6.5 dBm 31 dBi 28 dBi 1.5m (5 ft) CR45-A-58L 5.8 GHz +1.8dBm 37 dBi 1.5m (5 ft) Antenna Warning Label The following label wording must be placed on the antenna and visible from at least 1.5 meters (5 feet) away: CAUTION: To comply with FCC RF exposure requirements, antennas used for this device must be installed to provide a separation distance of at least 15m(5 feet) from all persons to satisfy RF exposure compliance. Additional Responsibilities In addition to meeting these requirements, the antenna system installer is responsible for installing antennas so that they comply with FCC RF exposure requirements. The FCC RF exposure requirements at a given location are based on the sum total of contributions from all radio sources. For BitRage antennas placed in close proximity to other transmitters, installers must ensure that MPE guidelines in 1.1307 of the FCC Rules can still be met, after including the contribution from the new antenna. Further information and guidance is available in FCC Bulletin OET 65, www.fcc.gov/oet/rfsafety . Persons operating the equipment must ensure that it does not cause interference. Specifications must be followed for any special cables (for example, shielded cables) that are required for the unit to meet the EMC standards to which compliance is declared. The user must not make any modifications to the unit, unless expressly approved by the party responsible for compliance. Failure to comply with this rule could void the user’s authority to operate the equipment. Relevant text from the User Guide Hazard Warnings Warning: The CR45-A products should only be installed by professional installers. RF Exposure Compliance Installation of the CR45A and its antenna must be performed by qualified personnel who are following the procedures and guidelines given in the CR45A Installation and Setup Guide. To comply with FCC radio frequency exposure requirements, the antennas used for this device must be installed to provide a separation distance at least 1.5 meters (5 feet) from all persons. Under no circumstances should you or anyone get closer than 1.5 m to the antenna without first ensuring that the system is powered off. User Requirements Persons operating the equipment must ensure that it does not cause interference. Specifications must be followed for any special cables (for example, shielded cables) that are required for the unit to meet the EMC standards to which compliance is declared. The user must not make any modifications to the uni…

Text truncated - open the document above for the full version.

File: R42555 March 19, 2001 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA. 22101 Gentlemen: The enclosed documents constitute a formal submittal and application for a Grant of Equipment Authorization pursuant to Subpart C of Part 15 of FCC Rules (CFR 47) regarding intentional radiators. Data within this report demonstrates that the equipment tested complies with the FCC limits for intentional radiators. Elliott Laboratories, as duly authorized agent prepared this submittal. A copy of the letter of our appointment as agent is enclosed. If there are any questions or if further information is needed, please contact Elliott Laboratories for assistance. Sincerely, Mark R. Briggs Director of Engineering MRB/dmg Enclosures: Agent Authorization Letter Emissions Test Report with Exhibits File: R42555 Page 1 of 17 Electromagnetic Emissions Test Report and Application for Grant of Equipment Authorization pursuant to FCC Part 15, Subpart E Specifications for Unlicensed National Information Infrastructure Devices on the BitRage Model: CR45-A-53 FCC ID: PJK-CR45-A-53 GRANTEE: BitRage 796 E. Pacific Dr., American Fork, UT 84003 TEST SITE: Elliott Laboratories, Inc. 684 W. Maude Avenue Sunnyvale, CA 94086 REPORT DATE: March 19, 2001 FINAL TEST DATE: March 14, 2001 AUTHORIZED SIGNATORY: ______________________________ Mark R. Briggs Director of Engineering This report shall not be reproduced, except in its entirety, without the written approval of Elliott Laboratories, Inc. Elliott Laboratories, Inc. -- EMC Department Test Report Report Date: March 19, 2001 File: R42555 Page 2 of 19 pages TABLE OF CONTENTS COVER PAGE.....................................................................................................................................................1 TABLE OF CONTENTS...................................................................................................................................2 SCOPE...............................................................................................................................................................4 OBJECTIVE......................................................................................................................................................4 STATEMENT OF COMPLIANCE..................................................................................................................4 EMISSION TEST RESULTS............................................................................................................................5 CONDUCTED INTERFERENCE VOLTAGE – AC POWER PORTS............................................................5 OUTPUT POWER AND POWER SPECTRAL DENSITY - 15.407 (A)..........................................................5 PEAK EXCURSION RATIO - 15.407 (A) (6).................................................................................................5 UNDESIRABLE EMISSIONS (SPURIOUS EMISSIONS) - 15.407 (B)..........................................................5 AUTOMATIC DISCONTINUATION - 15.407 (C).........................................................................................6 ANTENNA REQUIREMENTS.......................................................................................................................6 INTERFERENCE TO CO-CHANNEL MSS OPERATIONS – 15.407(E)........................................................6 RADIO FREQUENCY RADIATION EXPOSURE REQUIREMENTS – 15.407(F)........................................6 FREQUENCY STABILITY – 15.407(G).........................................................................................................6 MEASUREMENT UNCERTAINTIES............................................................................................................7 EQUIPMENT UNDER TEST (EUT) DETAILS..............................................................................................8 GENERAL......................................................................................................................................................8 OTHER EUT DETAILS..................................................................................................................................8 ENCLOSURE.................................................................................................................................................8 MODIFICATIONS..........................................................................................................................................8 SUPPORT EQUIPMENT................................................................................................................................9 EUT INTERFACE PORTS.............................................................................................................................9 EUT OPERATION..........................................................................................................................................9 TEST SITE...........…

Text truncated - open the document above for the full version.
