FCC ID: PJMLRU1000 FEIG ELECTRONIC GmbH1/1 Modular Approval requests ID ISC.LRMU1000 / ID ISC.LRU1000 The requirements of Public Notice DA 00-1407 are met as follows: 1. The UHF circuitry of the reader module has its own RF shielding. The RF shielding is shown in the photographs of the Test Report. 2. The ID ISC.LRMU1000 or the ID ISC.LRU1000 have buffered data inputs 3. The ID ISC.LRMU1000 or the ID ISC.LRU1000 have their own voltage regulators. 4. A unique SMA-connector provides connection between the ID ISC.LRMU1000 or the ID ISC.LRU1000 and an external antenna as shown in the photographs of the Test Report. 5. The EUTs were tested in a standalone type configuration as described below: The reader was set in the buffered read mode. In this mode the reader buffers all read data of transponders till the buffers are read out of a host. 6. A label with the FCC ID is stuck on the module an a copy of this label has been included in the Installation Manual for this product. The Installation also includes instructions how to label the end product. 7. The ID ISC.LRMU1000 or the ID ISC.LRU1000 are compliant with all applicable FCC rules. Instructions for maintaining compliance are given in the Installation Manual. 8. The ID ISC.LRMU1000 or the ID ISC.LRU1000 are compliant with all applicable RF exposure requirements for devices intended for mobile operation.

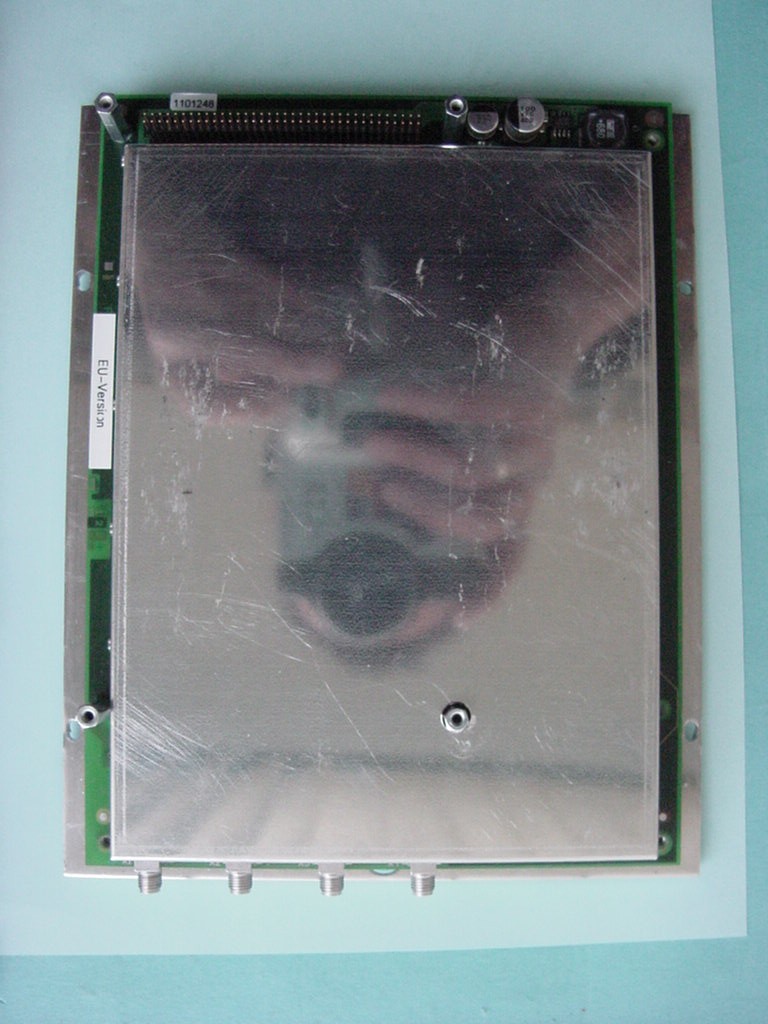

SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3628-01-03/04 Date: 2004-11-04 Page 40 of 50 Photograph No.: 1 SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3628-01-03/04 Date: 2004-11-04 Page 41 of 50 Photograph No.: 2 SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3628-01-03/04 Date: 2004-11-04 Page 42 of 50 Photograph No.: 3 SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3628-01-03/04 Date: 2004-11-04 Page 43 of 50 Photograph No.: 4 SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3628-01-03/04 Date: 2004-11-04 Page 44 of 50 Photograph No.: 5

FCC ID: PJMLRU1000 FEIG ELECTRONIC GmbH1/1 Labels ID ISC.LRMU1000 / ID ISC.LRU1000 ID ISC.LRMU1000: 25 x 16 mm 2 ID ISC.LRU1000: 25 x 16 mm 2 Position of the Label: The label position on the ID ISC.LRU1000 and the ID ISC.LRMU1000 is the same.

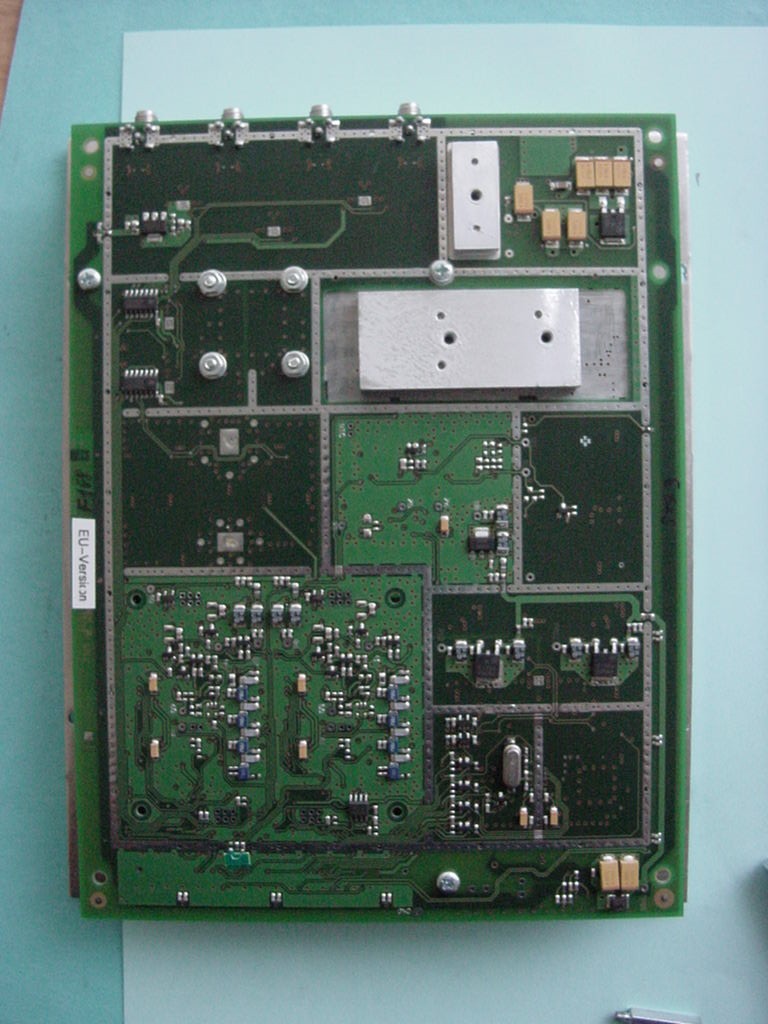

SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3628-01-03/04 Date: 2004-11-04 Page 45 of 50 Photograph No.: 6 SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3628-01-03/04 Date: 2004-11-04 Page 46 of 50 Photograph No.: 7 SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3628-01-03/04 Date: 2004-11-04 Page 47 of 50 Photograph No.: 8 SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3628-01-03/04 Date: 2004-11-04 Page 48 of 50 Photograph No.: 9 SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3628-01-03/04 Date: 2004-11-04 Page 49 of 50 Photograph No.: 10 SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3628-01-03/04 Date: 2004-11-04 Page 50 of 50 Photograph No.: 11

FCC ID: PJMLRU1000 FEIG ELECTRONIC GmbH1/1 RF Exposure Compliance Requirement ID ISC.LRMU1000 / ID ISC.LRU1000 The maximum permissible exposure (MPE) for general population is defined as 0.6mW/cm 2 ( f / 1500, FCC OET Bulletin 65, Supplement B). The distance from the transmitting antenna where the exposure level reaches the maximum permitted level is calculated using equation (1): 2 4R EIRP S ⋅⋅ = π (1) where: S = Power density 0.6mW/cm 2 EIRP = Power output of an isotropic antenna 4W R = Distance to the centre of the radiation of the antenna Solving equation (1) the minimum distance at which a person must keep away in a uncontrolled exposure is R = 23cm The maximum permissible exposure (MPE) for controlled exposure is defined as 3mW/cm 2 ( f / 300, FCC OET Bulletin 65, Supplement B). Solving equation (1) where S = 3mW/cm 2 the minimum distance at which a person must keep away in a uncontrolled exposure is R = 10,3cm

G:\2_RSC\PROJEKTE\04\3628_1 Feig\Ergebnisse\2_3628-01-03_04 RFID-FCC.doc Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: 3463 (IC) TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 081/94-DO Independent ETSI compliance test house ETSI Accredited Bluetooth® Test Facility (BQTF) Test report no.: 2-3628-01-03/04 FCC Part 15.247 / CANADA RSS-210 FCC ID: PJMLRU1000 / IC: ID ISC.LRU1000 / ID ISC.LRMU1000 CETECOM – ICT Services GmbH Untertürkheimerstr. 6-10 D-66117 Saarbrücken, Germany Telephone: + 49 (0) 681 / 598-0 Fax: + 49 (0) 681 / 9075 BLUETOOTH is a trademark owned by Bluetooth SIG, Inc. and licensed to Cetecom SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3628-01-03/04 Date: 2004-11-04 Page 2 of 50 Table of contents 1. ADMINISTRATIVE DATA ...................................................................................................................................... 3 1.1. ADMINISTRATIVE DATA OF THE TEST FACILITY..................................................................................................... 3 1.1.1 Identification of the testing laboratory ......................................................................................................... 3 1.1.2 Organizational items..................................................................................................................................... 3 1.1.3 Applicant ́s details ........................................................................................................................................ 4 1.2 ADMINISTRATIVE DATA OF MANUFACTURER / MEMBER........................................................................................ 4 1.3 DESCRIPTION OF THE EQUIPMENT UNDER TEST (EUT) .......................................................................................... 5 1.3.1 EUT: Type, S/N etc. ...................................................................................................................................... 5 1.3.2 If RF component testing only, describtion of additional used HW/SW ......................................................... 5 1.3.3 Additional EUT information For IC Canada (appendix 2)...........................................................................6 1.3.4 EUT operating modes ................................................................................................................................... 7 1.3.5 Extreme conditions testing values................................................................................................................. 7 2. TESTSTANDARD & SUMMARY LIST OF ALL PERFORMED TEST CASES .............................................. 8 3. RF MEASUREMENT TESTING ............................................................................................................................. 9 3.1 DESCRIPTION OF TEST SET-UP................................................................................................................................9 3.1.1 Radiated measurements ................................................................................................................................ 9 3.1.2 Conducted measurements ............................................................................................................................. 9 3.2 REFERENCED DOCUMENTS................................................................................................................................... 10 3.3 ADDITIONAL COMMENTS..................................................................................................................................... 10 3.4 ANTENNA GAIN................................................................................................................................................... 10 3.5 CARRIER FREQUENCY SEPARATION §15.247(A1)................................................................................................. 11 3.6 NUMBER OF HOPPING CHANNELS §15.247(A1) .................................................................................................... 12 3.7 TIME OF OCCUPANCY (DWELL TIME) §15.247(A1 III).......................................................................................... 13 3.8 POWER SPECTRAL DENSITY (HYBRID SYSTEM IN INQUIRY MODE/PAGE SCAN) §15.247(D) ................................. 15 3.9 SPECTRUM BANDWIDTH OF A FHSS SYSTEM / 20DB BANDWITH §15.247(A1)................................................... 16 3.10 MAXIMUM OUTPUT POWER (CONDUCTED) § 15.247 (B) (1) ................................................................................ 18 3.11 MAX. PEAK OUTPUT POWER (RADIATED) § 15.247 (B) (1)................................................................................... 20 3.12 BAND-EDGE COMPLIANCE OF CONDUCTED EMISSIONS §15.247 (C) ..................................................................... 21 3.13 BAND-EDGE COMPLIANCE OF RADIATED EMISSIONS §15.205 .............................................................................. 24 3.14 SPURIOUS EMISSIONS - CONDUCTED (TRANSMITTER) § 15.247 (C) (1) ............................................................... 25 3.15 SPURIOUS EMISSIONS - RADIATED (TRANSMITTER) § 15.247 (C) (1)................................................................... 27 3.16 SPURIOUS EMISSIONS - RADIATED (RECEIVER) § 15.109..................................................................................... 31 3.17 SPURIOUS EMISSIONS - RADIATED <30 MHZ § 15.109 ........................................................................................ 33 3.18 CONDUCTED EMISSIONS <30 MHZ § 15.107/207 ................................................................................................ 34 4 PHOTOGRAPHS ....................................................................................................................…

Text truncated - open the document above for the full version.

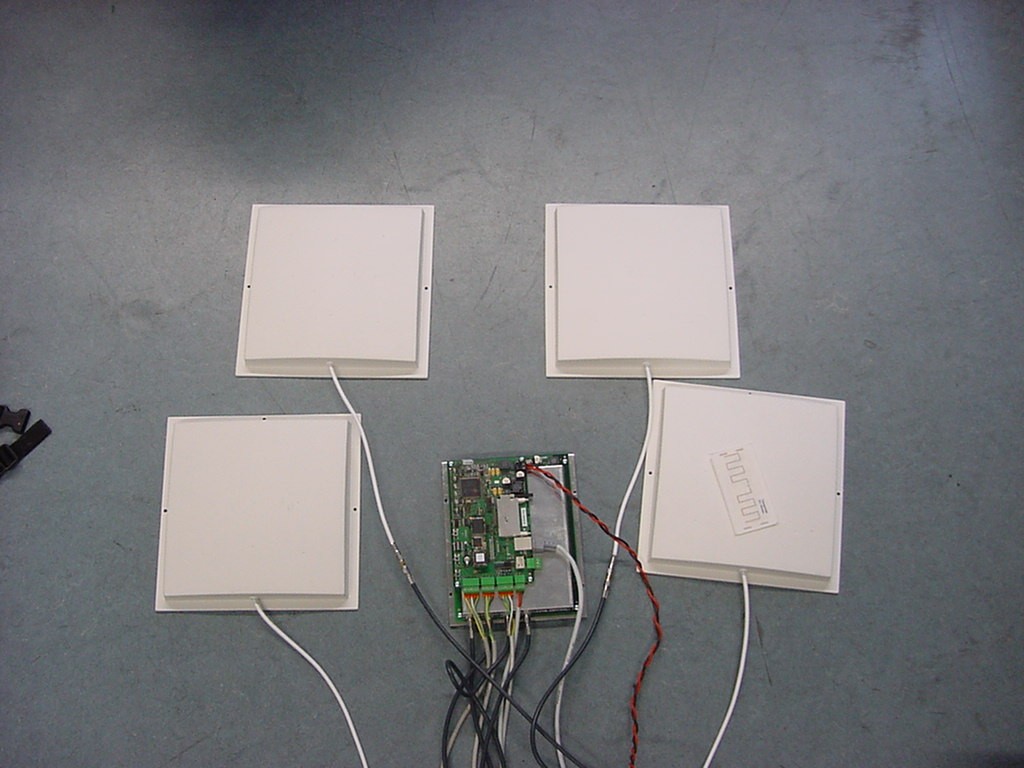

SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3628-01-03/04 Date: 2004-11-04 Page 37 of 50 4 Photographs 4.1 Test set-up (radiated emissions) SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3628-01-03/04 Date: 2004-11-04 Page 38 of 50 SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 2-3628-01-03/04 Date: 2004-11-04 Page 39 of 50 4.1 Test set-up (conducted emissions)
