INSTALLATION final – public (B) 2014-03-18 – M31010-1e-ID-B.docx ID ISC.LRU1002 UHF Long Range Reader OBID i-scan ® UHF Installation ID ISC.LRU1002 FEIG ELECTRONIC GmbH Page 2 of 29 M31010-1e-ID-B.docx Note Copyright 2013-14 by FEIG ELECTRONIC GmbH Lange Strasse 4 D-35781 Weilburg Tel.: +49 6471 3109-0 http://www.feig.de With the edition of this document, all previous editions become void. Indications made in this manual may be changed without previous notice. Copying of this document, and giving it to others and the use or communication of the contents thereof are forbidden without express authority. Offenders are liable to the payment of damages. All rights are reserved in the event of the grant of a patent or the registration of a utility model or design. Composition of the information in this document has been done to the best of our knowledge. FEIG ELECTRONIC GmbH does not guarantee the correctness and completeness of the details given in this manual and may not be held liable for damages ensuing from incorrect or incomplete information. Since, despite all our efforts, errors may not be completely avoided, we are always grateful for your useful tips. The instructions given in this manual are based on advantageous boundary conditions. FEIG ELECTRONIC GmbH does not give any guarantee promise for perfect function in cross environments and does not give any guaranty for the functionality of the complete system which incorporates the subject of this document. FEIG ELECTRONIC call explicit attention that devices which are subject of this document are not designed with components and testing methods for a level of reliability suitable for use in or in connection with surgical implants or as critical components in any life support systems whose failure to perform can reasonably be expected to cause significant injury to a human. To avoid damage, injury, or death, the user or application designer must take reasonably prudent steps to protect against system failures. Use Exclusion in Transportation Market: Devices which are subject of this document may NOT be sold, used, leased, offer for sale, or otherwise transferred, exported, and imported by anyone in the Transportation Market. “Transportation Market” means (i) Electronic Toll and Traffic Management (ETTM), (ii) Public Sector Vehicle Registration, Inspection and Licensing Programs, (iii) Railroad Locomotive and Wagon tracking, (iv) airport based ground transportation management systems (GTMS) and taxi dispatch, (v) revenue based parking, and (vi) vehicle initiated mobile payment applications, where the RFID sticker/tag is initially attached to the vehicle but not incorporated at the point of vehicle manufacture. FEIG ELECTRONIC GmbH assumes no responsibility for the use of any information contained in this docu- ment and makes no representation that they free of patent infringement. FEIG ELECTRONIC GmbH does not convey any license under its patent rights nor the rights of others. OBID ® and OBID i-scan ® are registered trademarks of FEIG ELECTRONIC GmbH. OBID i-scan ® UHF Installation ID ISC.LRU1002 FEIG ELECTRONIC GmbH Page 3 of 29 M31010-1e-ID-B.docx Contents 1. Safety Instructions / Warning - Read before start-up ! 5 2. Performance Features of Reader Family ID ISC.LRU1002 6 2.1. Performance features ........................................................................................................ 6 2.2. Available Reader types ..................................................................................................... 6 2.3. Available Accessories ....................................................................................................... 6 3. Installation 7 4. Terminals 8 4.1. Antenna Connection ......................................................................................................... 9 4.2. Power Supply ................................................................................................................... 10 4.2.1. Power Supply via connection X2 ................................................................................ 10 4.3. Interfaces ......................................................................................................................... 11 4.3.1. Ethernet Interface on connector X1 ............................................................................ 11 4.3.2. USB Interface on connector X3 .................................................................................. 11 4.3.3. RS232 Interface on connector X4 .............................................................................. 12 4.3.4. Data-Clock Interface on connector X4 ........................................................................ 13 4.4. Digital Input on connector X4 ......................................................................................... 15 4.5. Outputs on connector X4 ................................................................................................ 16 4.5.1. Digital outputs on connector X4 ................................................................................. 16 4.5.2. Relay output on connector X4 .................................................................................... 18 5. Operating and Display Elements 19 5.1. Status LEDs ..................................................................................................................... 19 5.2. Reset Push Buttons ........................................................................................................ 20 5.3. Reader Power adjustment ............................................................................................... 21 5.3.1. EU-Reader according to EN302 208 .......................................................................... 21 5.3.2. FCC-Reader according to FCC 47 Part 15 ................................................................. 22 OBID i-scan ® UHF Installation ID ISC.LRU1002 FEIG ELECTRONIC GmbH Page 4 of 29 M31010-1e-…
Text truncated - open the document above for the full version.
Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Annex no. 12 Antenna description Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920

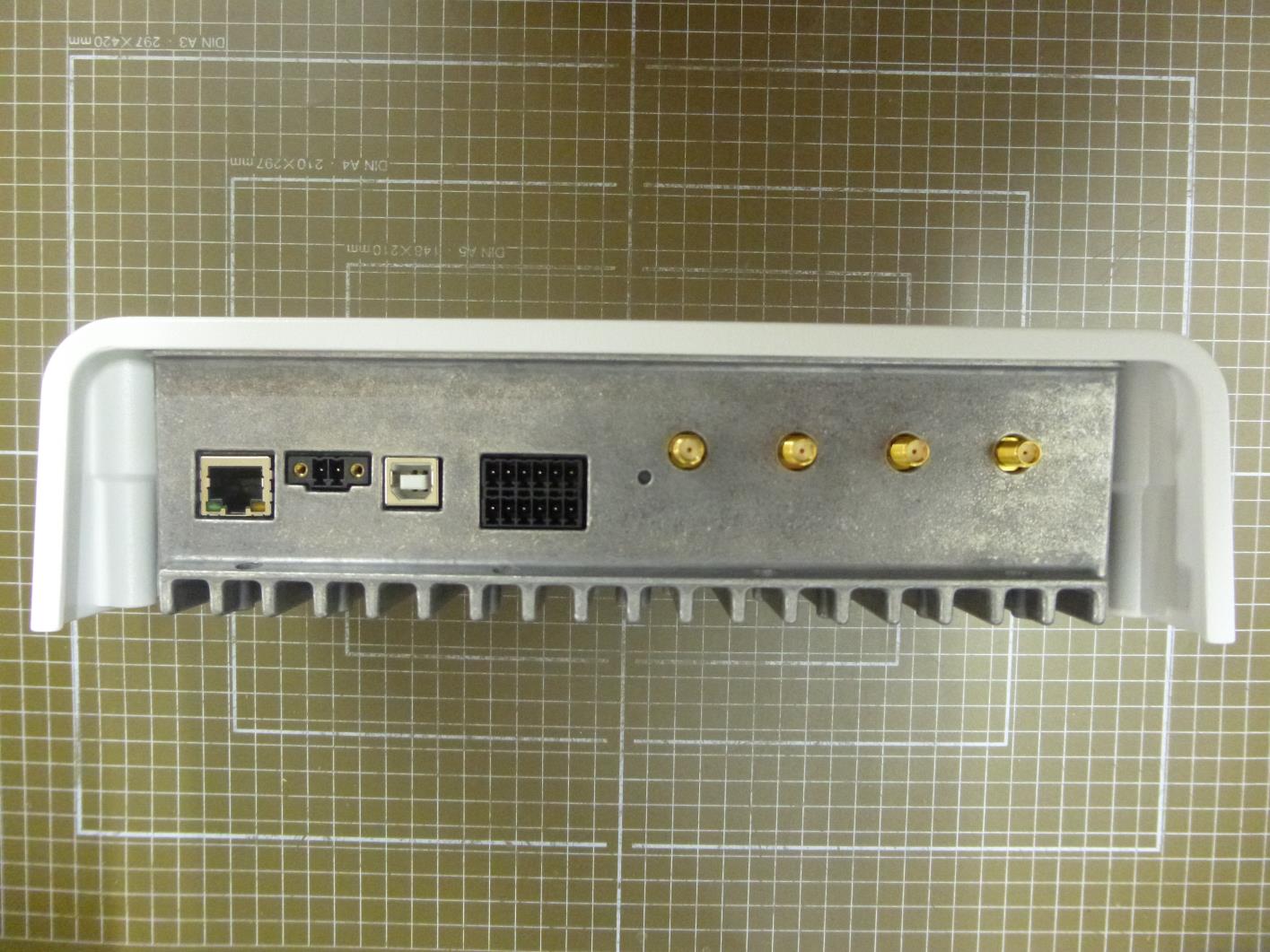

Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Annex no. 1 External Photographs Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920

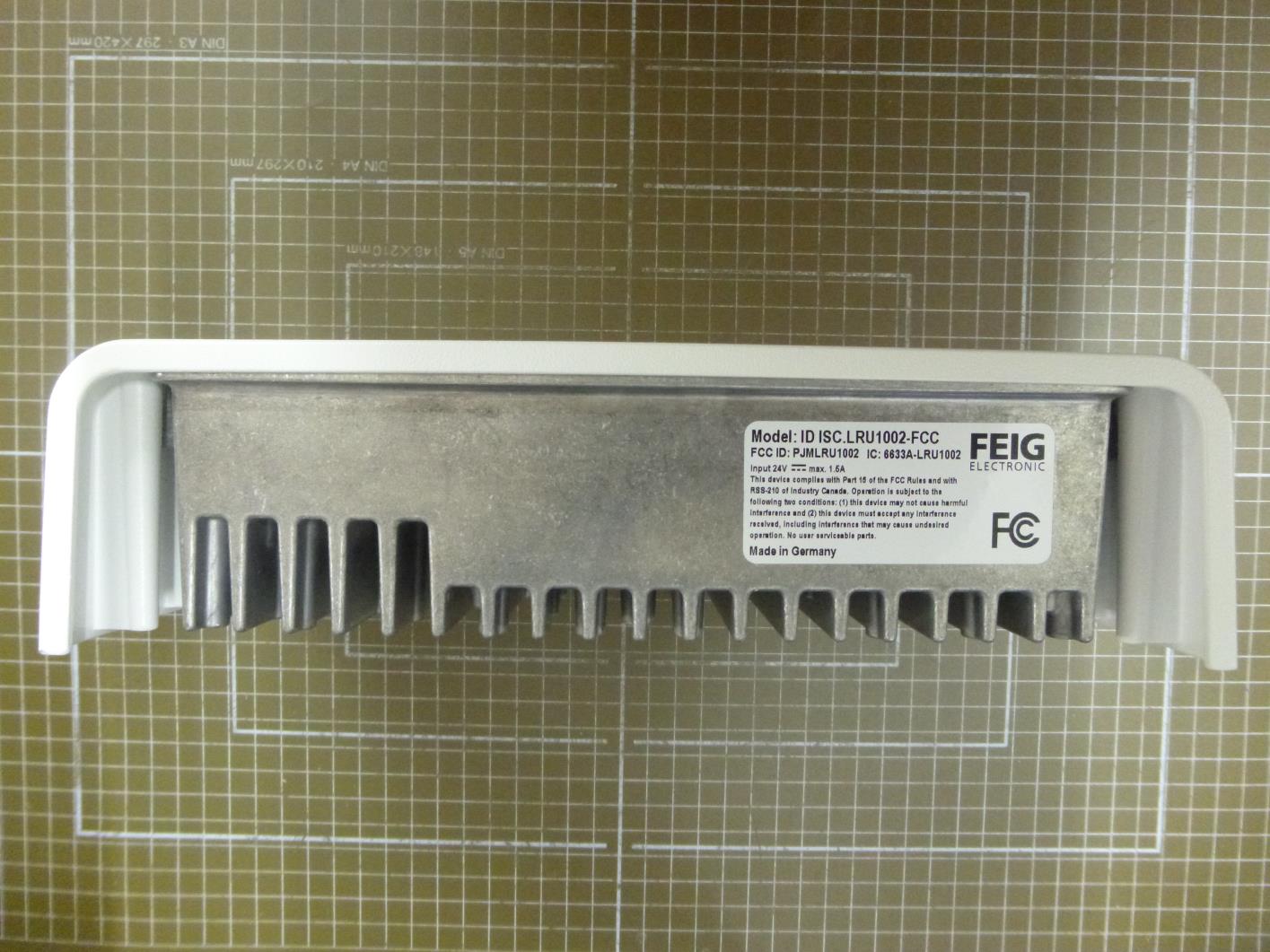

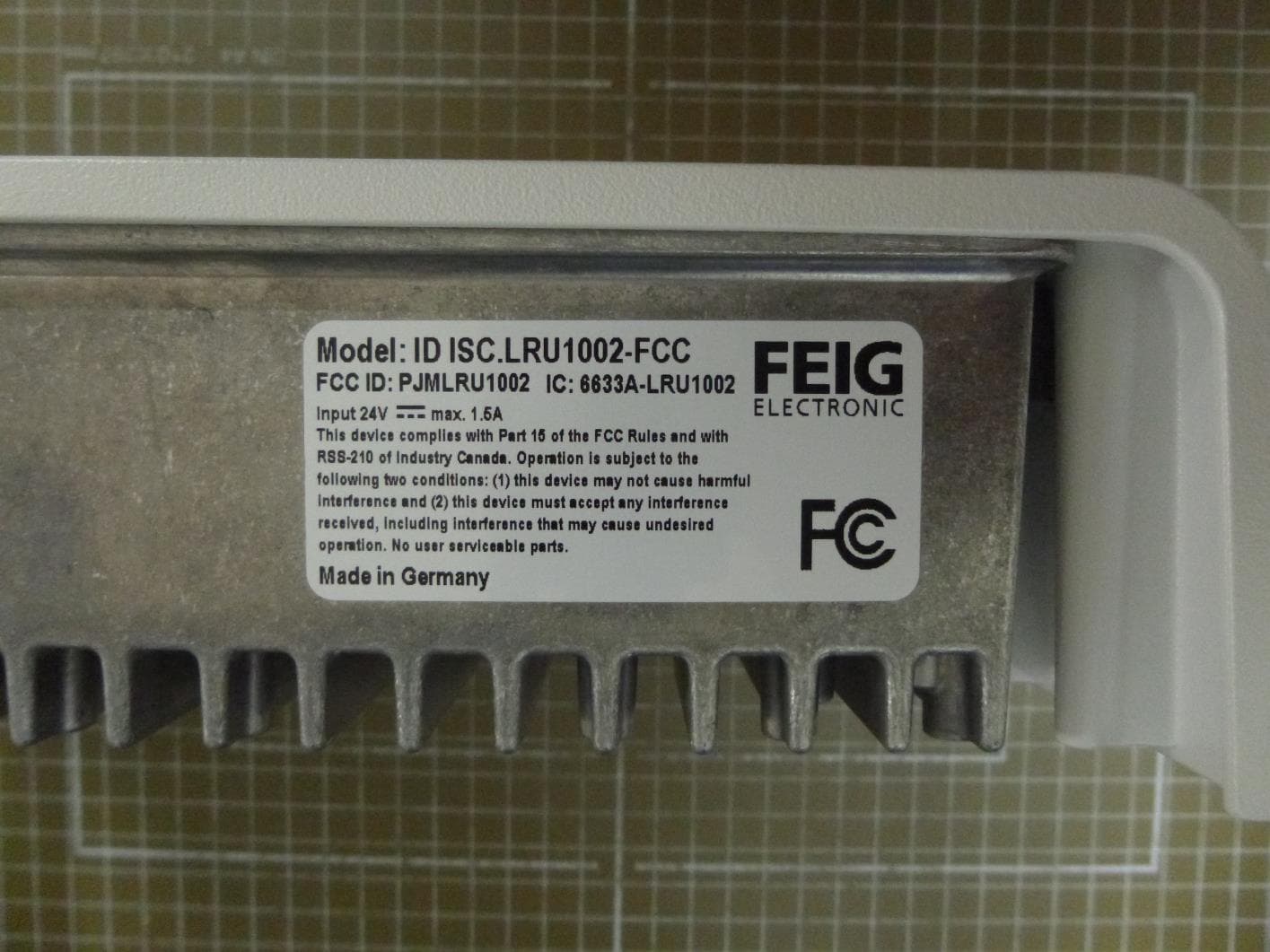

Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Annex no. 4 Label Sample Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Position of the label on the case:
Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Annex no. 2 Internal Photographs Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920
RF exposure calculation Regulation Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. MPE calculation to FCC ID: PLMLRU1002 & IC no.: 6633-LRU1002 These equations are generally accurate in the far field of an antenna but will over predict power density in the near field, where they could be used for making a “worst case” prediction. S = PG/4πR 2 where S = power density ( in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units e.g. mW) G = power gain of the antenna in the direction of interest relative to the isotropic radiator R = distance to the center of radiation of the antenna (appropriate units e.g. cm) Or S = EIRP/(4πR 2 ) where EIRP = equivalent isotropically radiated power Calculation: (Calculated for max. EIRP) EIRP: 35.9 dBm = 3890.5 mW calculated at distance of 20 cm: power density = 3890.5 mW /(4*π*20 2 ) = 0.774 mW/ cm 2 Attention: The minimum distance to fulfil the exposure requirements is 22.7 cm! Limit: ± 0.61 mW/ cm 2 is the reference level for general public exposure according to the OET Bulletin 65, Edition 97-01 Table 1.
Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Annex no. 3 Occupied Bandwidth Plot Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 20 dB bandwidth Lowest channel Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 20 dB bandwidth Middle channel Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 20 dB bandwidth Highest channel Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 99 % bandwidth Lowest channel Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 99 % bandwidth Middle channel Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 99 % bandwidth Highest channel Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Hopping Channels Channel spacing
Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Annex no. 11 Transmission Times Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Transmission times (worst case) 902.750 MHz Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Transmission times (worst case) 914.750 MHz Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Transmission times (worst case) 927.250 MHz There are 50 hopping frequencies in use, the maximum 20 dB bandwidth is 72.4 kHz and the average time of occupancy is 393.3 msec. In addition the average time of occupancy on any frequency shall not exceed 400 milliseconds in any 20 second period. Using a spectrum analyser with a Zero span, the “on frequency time” was determined to be maximal 295 msec. With the spectrum analyser still operating with a Zero span the transmitter was observed to be “on frequency”, on average, 1 time in any 15 second period. Therefore 295.0 msec * 4/3 time = 393.3 msec.
Test report no. 14009033 Page 1 of 43 EUT: ID ISC.LRU1002-FCC FCC ID: PJMLRU1002 Date of issue: 2014-03-04 Date: 2012-08-08 Vers. no. 1.13 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Test Report acc. to FCC Title 47 CFR Part 15 relating to FEIG ELECTRONIC GmbH ID ISC.LRU1002-FCC Title 47 - Telecommunication Part 15 - Radio Frequency Devices Subpart C – Intentional Radiators Measurement Procedure: ANSI C63.4-2009 Test report no. 14009033 Page 2 of 43 EUT: ID ISC.LRU1002-FCC FCC ID: PJMLRU1002 Date of issue: 2014-03-04 Date: 2012-08-08 Vers. no. 1.13 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Manufacturer’s details Manufacturer FEIG ELECTRONIC GmbH Manufacturer’s grantee code PJM Manufacturer’s address FEIG ELECTRONIC GmbH Lange Str. 4 35781 Weilburg Germany Phone: +49 (0) 6471 3109 0 Fax: +49 (0) 6471 3109 99 Email: [email protected] Relevant standard used 47 CFR Part 15C - Intentional Radiators ANSI C63.4-2009 Test Report prepared by Technical engineer Ralf Trepper m. dudde hochfrequenz-technik (laboratory) Rottland 5a 51429 Bergisch Gladbach Germany Phone: +49 2207 96890 Fax: +49 2207 968920 Email: [email protected] Equipment Under Test (EUT) Equipment category FHSS Transceiver Trade name FEIG Type designation ID ISC.LRU1002-FCC Serial no. --- Variants --- Antennas: ID ISC.ANT.U170/170-FCC ID ISC.ANT.U270/270-FCC ID ISC.ANT.U600/270-FCC Test report no. 14009033 Page 3 of 43 EUT: ID ISC.LRU1002-FCC FCC ID: PJMLRU1002 Date of issue: 2014-03-04 Date: 2012-08-08 Vers. no. 1.13 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 1. Test result summary Clause Requirements headline Test result Report page number 8.1 Antenna requirement Pass Fail N.t.* 10 8.2 Conducted limits Pass Fail N.t.* 11 to 15 8.3 Restricted bands of operation Pass Fail N.t.* 15 to 18 8.4 Radiated emission limits, general requirements Pass Fail N.t.* 19 to 26 8.5 Bandwidth Pass Fail N.t.* 27 8.6 Peak output power Pass Fail N.t.* 28 to 33 8.7 Out of band emissions Pass Fail N.t.* 34 to 39 8.8 Power spectral density Pass Fail N.t.* 40 to 42 8.9 Radio frequency hazard Pass Fail N.t.* 43 * Not tested The equipment passed the conducted tests Yes No Signature: ............................. Signature: ...................................... (Technician) (Laboratory Manager) Test report no. 14009033 Page 4 of 43 EUT: ID ISC.LRU1002-FCC FCC ID: PJMLRU1002 Date of issue: 2014-03-04 Date: 2012-08-08 Vers. no. 1.13 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Table of contents 1. Test result summary .......................................................................................................................................... 3 2. Introduction ...................................................................................................................................................... 6 3. Testing laboratory ............................................................................................................................................ 6 4. Applicant .......................................................................................................................................................... 7 5. Product and product documentation ................................................................................................................ 7 6. Conclusions, observations and comments ........................................................................................................ 8 7. Operational description ...................................................................................................................................... 9 8.1 Antenna requirement ....................................................................................................................................... 10 8.1.1 Regulation ............................................................................................................................................. 10 8.1.2 Result .................................................................................................................................................... 10 8.2 Conducted limits ............................................................................................................................................ 11 8.2.1 Regulation ............................................................................................................................................. 11 8.1.2 Test equipment ...................................................................................................................................... 12 8.2.3 Test procedures ..................................................................................................................................... 12 8.2.4 Result .................................................................................................................................................... 13 8.3 Restricted bands of operation ........................................................................................................................... 16 8.3.1 Regulation ............................................................................................................................................. 16 8.3.2 Result .................................................................................................................................................... 18 8.4 Radiated emission limits, general requirements ................................................................................................ 19 8.4.1 Regulation .............................................................................................................................................…
Text truncated - open the document above for the full version.
Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Annex no. 6 Test Setup Photographs Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920
