PJMPRH102RFID Reader

INSTALLATION final public (B) 2010-01-18 PRH102 - Manual.doc OBID i-scan ® ID ISC.PRH102 ID ISC.PRHD102 OBID i-scan ® InstallationID ISC.PRH(D)102-B / -USB FEIG ELECTRONIC GmbHPage 2 of 12PRH102 - Manual.doc Note © Copyright 2008-2009 by FEIG ELECTRONIC GmbH Lange Strasse 4 D-35781 Weilburg-Waldhausen Tel.: +49 6471 3109-0 http://www.feig.de With the edition of this document, all previous editions become void. Indications made in this manual may be changed without previous notice. Copying of this document, and giving it to others and the use or communication of the contents thereof are forbidden without express authority. Offenders are liable to the payment of damages. All rights are reserved in the event of the grant of a patent or the registration of a utility model or design. Composition of the information in this document has been done to the best of our knowledge. FEIG ELECTRONIC GmbH does not guarantee the correctness and completeness of the details given in this manual and may not be held liable for damages ensuing from incorrect or incomplete information. Since, despite all our efforts, errors may not be completely avoided, we are always grateful for your useful tips. The instructions given in this manual are based on advan tageous boundary conditions. FEIG ELECTRONIC GmbH does not give any guarantee promise for perfect function in cross environments and does not give any guaranty for the functionality of the complete system which incorporates the subject of this document. FEIG ELECTRONIC call explicit attention that devices which are subje ct of this document are not designed with components and testing methods for a level of reliability suitable for use in or in connection with surgical implants or as critical components in any life support systems whose failure to perform can reasonably be expected to cause significant injury to a human. To avoid damage, injury, or death, the user or application designer must take reasonably prudent steps to protect against system failures. FEIG ELECTRONIC GmbH assumes no responsibility for the use of any information contai ned in this docu- ment and makes no representation that they free of patent infringement. FEIG ELECTRONIC GmbH does not convey any license under its patent rights nor the rights of others. OBID ® and OBID i-scan ® are registered trademarks of FEIG ELECTRONIC GmbH. OBID i-scan ® InstallationID ISC.PRH(D)102-B / -USB FEIG ELECTRONIC GmbHPage 3 of 12PRH102 - Manual.doc Contents 1. Safety Instructions / Warning - Read before start-up !4 2. Performance Features of the Readers5 2.1. Performance features .........................................................................................................5 2.2. Available Reader-Types......................................................................................................6 3. Control and Display Elements7 3.1. Signal buzzer .......................................................................................................................7 3.2. Scan - button ....................................................................................................................... 7 3.3. LED .......................................................................................................................................8 4. Assembly and Wiring9 4.1. Reader with asynchronous serial interface ID ISC.PRH102-B / ID ISC.PRHD102-B......9 4.2. Reader with USB interface ID ISC.PRH102-USB / ID ISC.PRHD102-USB.......................9 5. Technical Data10 6. Approvals12 6.1. Europe (CE).......................................................................................................................12 6.2. USA and Canada (FCC).....................................................................................................12 OBID i-scan ® InstallationID ISC.PRH(D)102-B / -USB FEIG ELECTRONIC GmbHPage 4 of 12PRH102 - Manual.doc 1. Safety Instructions / Warning - Read before start-up ! • The device may only be used for the intended purpose designed by for the manufacturer. • When installing the device in areas covered under FCC 47 CFR Part 15 a minimum separation of 20 cm between antenna and the human body must be maintained. • The operation manual should be conveniently kept available at all times for each user. • Unauthorized changes and the use o f spare parts and additional devices which have not been sold or recommended by the manufacturer ma y cause fire, electric shocks or injur ies. Such unauthorized measures shall exclude any liability by the manufacturer. • The liability-prescriptions of the manufacturer in the issue valid at the time of purchase are valid for the device. The manufacturer shall not be held legally responsible for inaccuracies, errors, or omissions in the manual or automatically set parameters for a device or for an incorrect application of a device. • Repairs may only be executed by the manufacturer. • Installation, operation, and maintenance procedure s shou ld only be carried out by qualified personnel. • Use of the device and its installation must be in accordance with national legal requirements and local electrical codes . • When working on devices the valid safety regulations must be observed. • Special advice for carriers of cardiac pacemakers: Although this device doesn't exceed the valid limits for electromagnetic fields you should keep a minimum distance of 25 cm (10 inch) between the device and your cardiac pacemaker. OBID i-scan ® InstallationID ISC.PRH(D)102-B / -USB FEIG ELECTRONIC GmbHPage 5 of 12PRH102 - Manual.doc 2. Performance Features of the Readers 2.1. Performance features The ID ISC.PRH102 and the ID ISC.PRHD102 have been developed for reading passive data car- riers, so-called „Smart Labels“, using operating frequencies either in the HF range or in the HF and UHF range. The readers have internal antennas and will be delivered ready for connection. The device is designed as a handheld. An anti-collision function enables …

Text truncated - open the document above for the full version.

AngebRequest for Confidentiality PHOENIX TESTLAB GmbH Date: April 27, 2010 Product Certification Königswinkel 10 D 32825 Blomberg RE: Certification Application FCC ID: PJMPRH102 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rule, the applicant hereby requests confidential treatment of information accompanying this application as outlined below: • Schematics • Block Diagram • Technical Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to rule 0.457, disclosure od this application and all accompanying documentation will not be made before the date of the GRANT for this application ́. Thank you for your attention in this matter. Applicant’s Company : TÜV SÜD SENTON GmbH address : Auessere Fruehlingstrasse 45, D-94315 Straubing Signature : Johann Roidt Job Title and Dept. : Technical Director

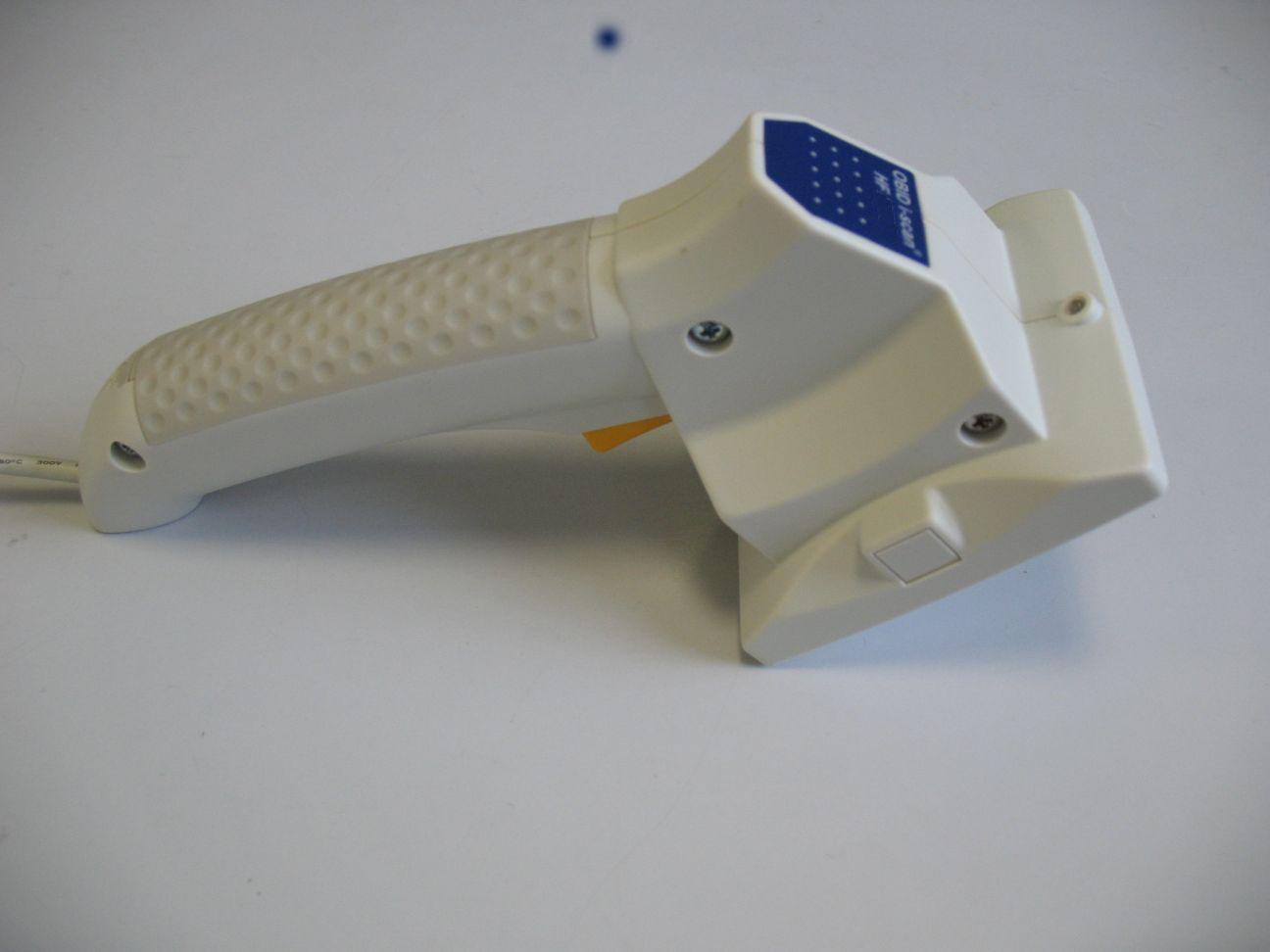

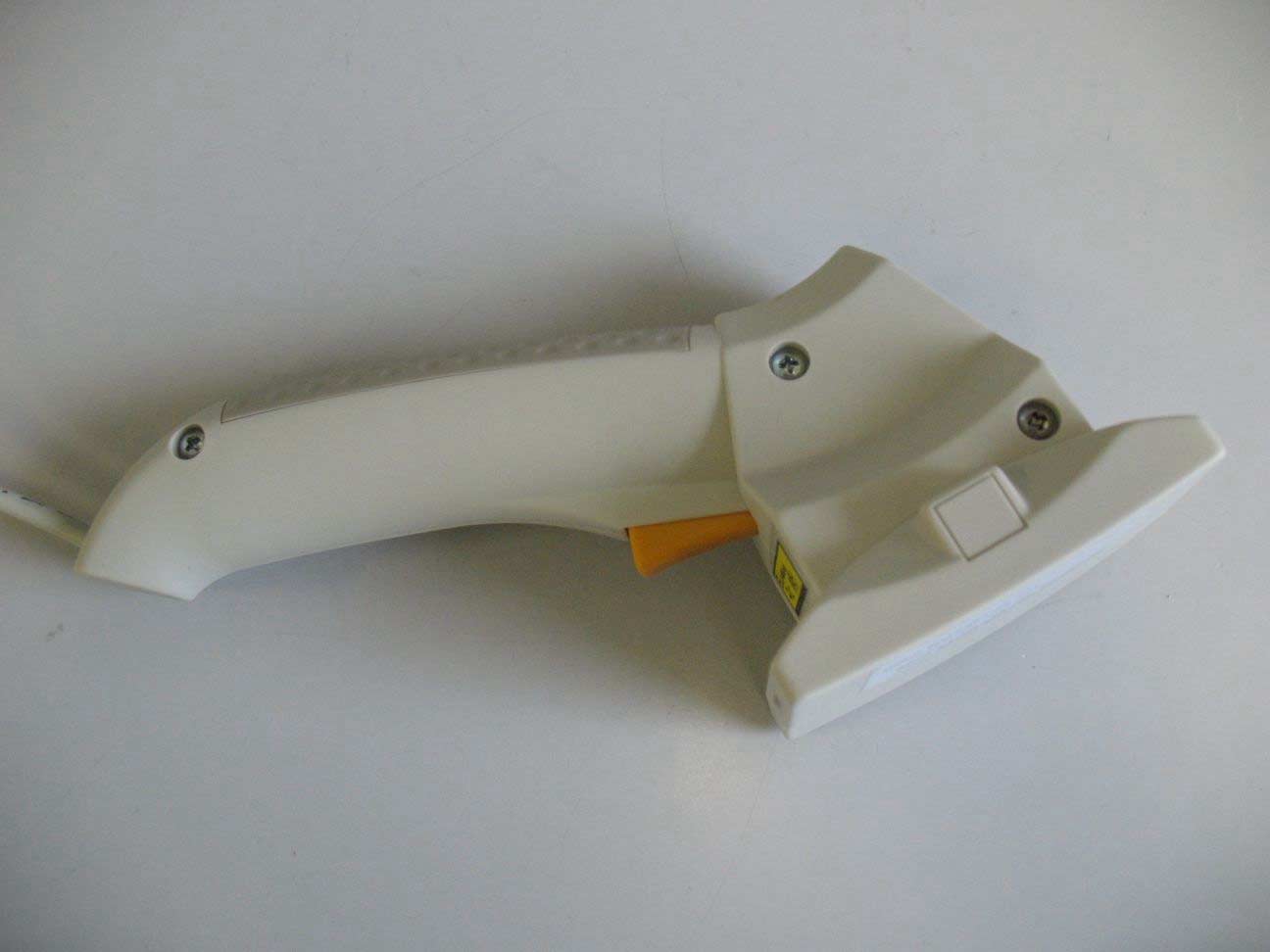

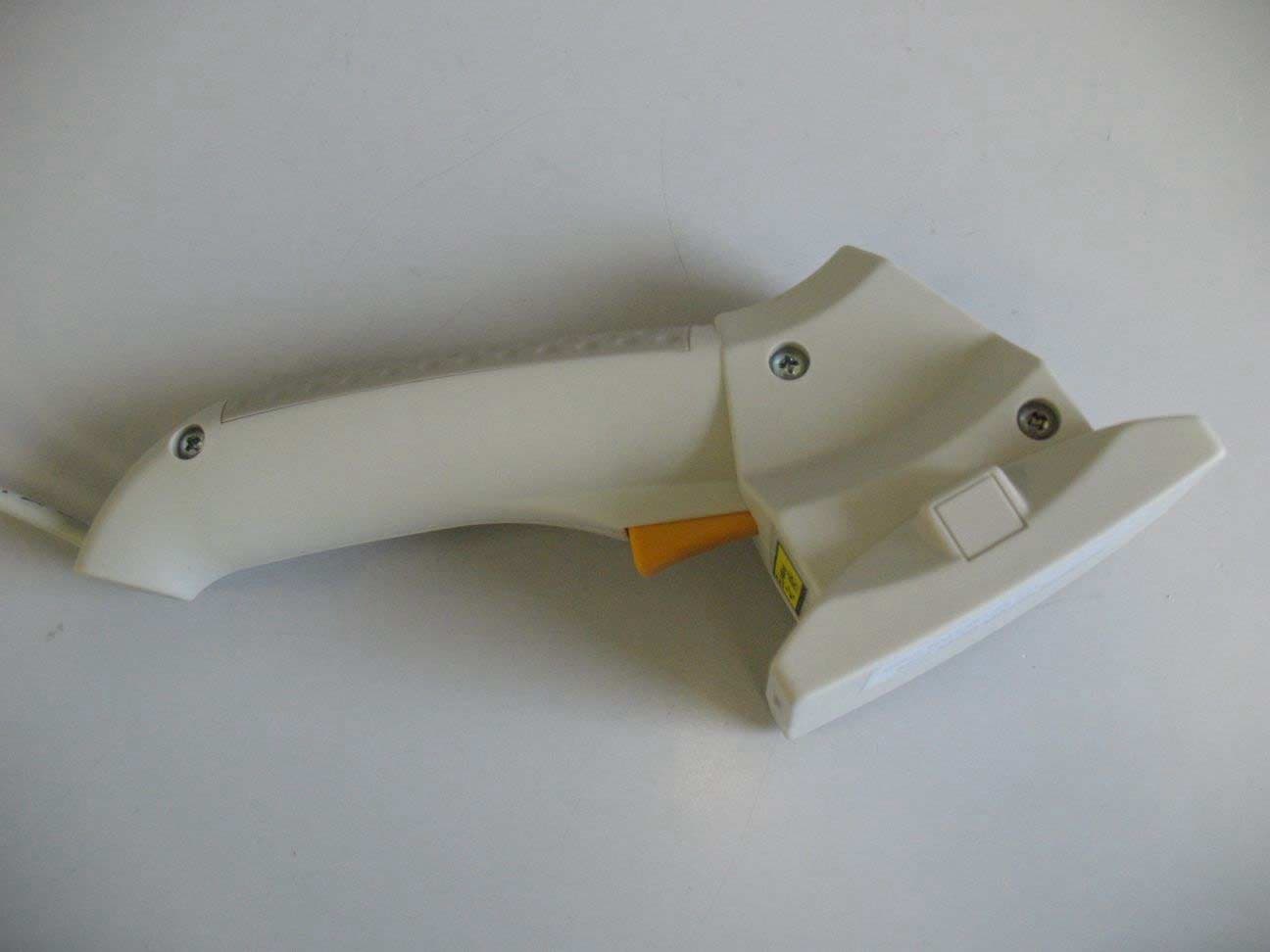

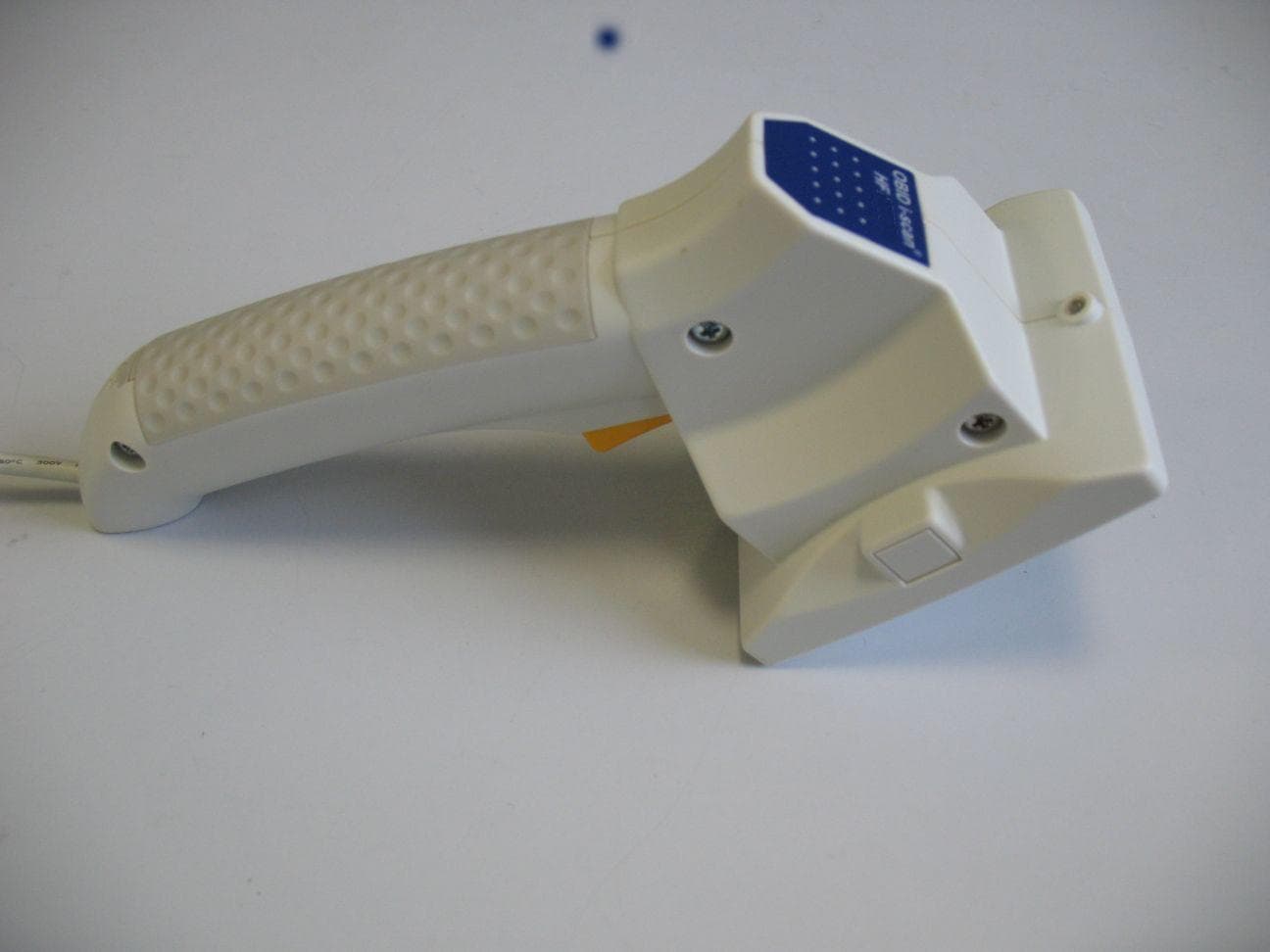

FCC ID PJMPRH102 FCC ID PJMPRH102 FCC ID PJMPRH102 FCC ID PJMPRH102 FCC ID PJMPRH102 FCC ID PJMPRH102

FCC ID: PJMPRH102 FEIG ELECTRONIC GmbH1/2 Labels ID ISC.PRH102 / ID ISC.PRHD102 Position of the Label on the Housing: LABEL LOCATION FEIG ELECTRONIC GmbH2/2 Labels (53,5 x 14,7 mm 2 ):

FCC ID PJMPRH102 FCC ID PJMPRH102

Test Equipment List with Calibration Data Seite 1 von 2 Test report number(s): Date of test: 50784-01176-1/-2 12/2009 Date of Calibration Type Inv.-No. Type Designation Serial Number Manufacturer Calibration Organization Last Next Test receiver 1028 ESHS10 860043/016 Rohde & Schwarz Rohde & Schwarz 02/2009 08/2010 EMI Test receiver 1569 ESMI 839379/013 Rohde & Schwarz Rohde & Schwarz 09/2009 12/2011 EMI test receiver 1711 ESPI7 836914/0002 Rohde & Schwarz Rohde & Schwarz 09/2009 03/2011 EMI test receiver 1863 ESCI 100008 Rohde & Schwarz Rohde & Schwarz 06/2008 06/2010 EMI test receiver 2010 ESPI7 101018 Rohde & Schwarz Rohde & Schwarz 03/2008 03/2010 Test receiver 2031 ESVP 891846/003 Rohde & Schwarz Rohde & Schwarz 10/2008 04/2010 Test receiver 2044 ESU8 100232 Rohde & Schwarz Rohde & Schwarz 05/2009 11/2010 Spectrum analyser 1666 FSP30 100063 Rohde & Schwarz Rohde & Schwarz 11/2009 05/2011 Spectrum analyser 2034 ZVL 6 100377 Rohde & Schwarz Rohde /& Schwarz 09/2008 03/2010 Preamplifier 1142 R14601 13120026 Advantest TÜV SÜD SENTON 04/2008 04/2010 Preamplifier 1484 ACO/180-3530 32641 CTT TÜV SÜD SENTON 05/2008 02/2010 Preamplifier 1651 CPA9231A 3393 Schaffner Electrotest TÜV SÜD SENTON 05/2008 02/2010 Preamplifier 1684 AFS3-00100800-32-LN 847743 MITEQ TÜV SÜD SENTON 05/2008 02/2010 V-network 1059 ESH3-Z5 894785/005 Rohde & Schwarz Rohde & Schwarz 05/2009 05/2012 V-network 1060 ESH3-Z5 862770/021 Rohde & Schwarz Rohde & Schwarz 01/2007 01/2010 V-network 1218 ESH3-Z5 830952/025 Rohde & Schwarz Rohde & Schwarz 07/2008 07/2011 Loop antenna 1016 HFH2-Z2 882964/0001 Rohde & Schwarz Rohde & Schwarz 09/2009 03/2011 Double ridged waveguide horn antenna 1516 3115 9508-4553 EMCO Elektronik ARC 05/2008 05/2011 Biconical antenna 1518 HK116 842204/01 Rohde & Schwarz Rohde & Schwaqrz 06/2008 12/2009 Logarithmic-periodic antenna 1519 HL223 841516/23 Rohde & Schwarz Rohde & Schwarz 06/2008 12/2009 TRILOG broadband antenna 1722 VULB 9163 9163-188 Schwarzbeck Schwarzbeck 04/2008 01/2010 Note: Date of next calibration contains maximum tolerance if applicable. Test Equipment List with Calibration Data Seite 2 von 2 Test report number(s): Date of test: 50784-01176-1/-2 12/2009 Date of Calibration Type Inv.-No. Type Designation Serial Number Manufacturer Calibration Organization Last Next Multimeter 1653 21 III 76530546 Fluke ZMK 05/2008 02/2011 Multimeter 1654 21 III 76381229 Fluke ZMK 03/2008 12/2010 Multimeter 1975 Fluke 77 III 92370108 Fluke ZMK 09/2008 06/2011 Multimeter 1976 Fluke 77 IV 93090238 Fluke ZMK 09/2008 06/2011 Digital multimeter 2025 Fluke 177 96720024 Fluke ZMK 09/2008 06/2011 Digital multimeter 2026 Fluke 177 96720025 Fluke ZMK 09/2008 06/2011 EMI test receiver 2044 ESU 100232 Rohde & Schwarz Rohde & Schwarz 05/2009 11/2010 Power meter 1264 NRVS 836856/015 Rohde & Schwarz Rohde & Schwarz 05/2008 05/2011 Signal generator 2027 SMB 100A 100112 Rohde & Schwarz Rohde & Schwarz 08/2008 08/2011 Attenuator 1638 4776-10 9412 Narda TÜV SÜD SENTON 04/2008 04/2010 Horn antenna 3160-03 9112-1003 EMCO Elektronik Note 2 Horn antenna 3160-04 9112-1001 EMCO Elektronik Note 2 Horn antenna 1012 3160-05 9112-1001 EMCO Elektronik Note 2 Horn antenna 1013 3160-06 9112-1001 EMCO Elektronik Note 2 Horn antenna 1014 3160-07 9112-1008 EMCO Elektronik Note 2 Horn antenna 3160-08 9112-1002 EMCO Elektronik Note 2 Horn antenna 3160-09 9403-1025 EMCO Elektronik Note 2 Horn antenna 3160-10 399185 EMCO Elektronik Note 2 Note 1: Date of next calibration contains maximum tolerance if applicable. Note 2: According to manufacturer's specifications no calibration is required but mechanical check only. This check is perform ed before every test sequence.

Note: The test data of this report is related only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. Test Report No. 50784-01176-4 (Edition 1) Page 1 of 64 Pages Prüfbericht / Test Report Nr. / No. 50784-01176-4 (Edition 1) Applicant: FEIG ELECTRONIC GmbH Type of equipment: RFID Reader Type designation: ID ISC.PRH102 Order No.: EB206490/16483 Test standards: FCC Code of Federal Regulations, CFR 47, Part 15, Sections 15.205, 15.207, 15.215 and 15.225 Industry Canada Radio Standards Specifications RSS-Gen Issue 2, Section 7.2.2 and RSS-210 Issue 7, Sections 2.2, 2.6, A2.6 (Category I Equipment) May 3, 2010 TÜV SÜD SENTON GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.com/senton eMail: [email protected] Test Report No. 50784-01176-4 (Edition 1) Page 2 of 64 Pages Table of Contents 1 Description of the Equipment Under Test (EUT)............................................................ 3 2 Administrative Data ........................................................................................................ 4 3 Identification of the Test Laboratory............................................................................... 5 4 Summary........................................................................................................................6 5 Operation Mode and Configuration of EUT .................................................................... 7 6 Measurement Procedures .............................................................................................. 8 6.1 Bandwidth Measurements ....................................................................................... 8 6.2 Conducted AC Powerline Emission ......................................................................... 9 6.3 Radiated Emission Measurement 9 kHz to 30 MHz............................................... 11 6.4 Radiated Emission in Fully or Semi Anechoic Room ............................................. 13 6.5 Radiated Emission at Open Field Test Site ........................................................... 15 6.6 Carrier Frequency Stability..................................................................................... 17 7 Photographs Taken During Testing.............................................................................. 19 8 Test Results ................................................................................................................. 27 8.1 Occupied Bandwidth .............................................................................................. 29 8.2 Bandwidth of the Emission..................................................................................... 33 8.3 Designation of Emissions....................................................................................... 35 8.4 Conducted Powerline Emission Measurement 150 kHz to 30 MHz ...................... 36 8.5 Spectrum Mask ...................................................................................................... 38 8.6 Radiated Emission Measurement 9 kHz to 30 MHz.............................................. 40 8.7 Radiated Emission Measurement 30 MHz to 1 GHz............................................. 41 8.8 Carrier Frequency Stability..................................................................................... 43 8.9 Exposure of Humans to RF Fields ......................................................................... 46 9 Referenced Regulations............................................................................................... 48 10 Revision History ........................................................................................................... 50 11 Charts taken during testing .......................................................................................... 51 TÜV SÜD SENTON GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.com/senton eMail: [email protected] Test Report No. 50784-01176-4 (Edition 1) Page 3 of 64 Pages 1 Description of the Equipment Under Test (EUT) General data of EUT Type designation 1 : ID ISC.PRH102 with USB interface tests performed with this variant (worst case procedure) Variants covered by this test report: ID ISC.PRH102 with RS-232 interface Parts 2 : Serial number(s): Manufacturer: FEIG ELECTRONIC GmbH Type of equipment: RFID Reader Version: As received FCC ID: Additional parts/accessories: Technical data of EUT Application frequency range: 13.110 - 14.010 MHz Frequency range: 13.56 MHz Operating frequency: 13.56 MHz Type of modulation: ASK Pulse train: --- Pulse width: --- Number of RF-channels: 1 Channel spacing: --- Designation of emissions 3 : 10K0A1D Type of antenna: Integrated on printed board Size/length of antenna: 6 x 7 cm Connection of antenna: detachable not detachable Type of power supply: DC supply over USB interface Specifications for power supply: nominal voltage: 5.00 V minimum voltage: 4.25 V maximum voltage: 5.75 V 1 Type designation of the system if EUT consists of more than one part. 2 Type designations of the parts of the system, if applicable. 3 Also known as "Class of Emission". TÜV SÜD SENTON GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.com/senton eMail: [email protected] Test Report No. 50784-01176-4 (Edition 1) Page 4 of 64 Pages 2 Administrative Data Application details Applicant (full address): FEIG ELECTRONIC GmbH Lange Straße 4 D-35781 Weilburg-Waldhausen Contact person: Mr. Manuel Haertlé Order number: EB206490/16483 Receipt of EUT: November 13, 2009 Date(s) of test: November - December 2009 Note(s): Report details Report number: 50784-01176-4 Edition: 1 Issue date: May 3, 2010 TÜV SÜD SENTON GmbH Äußere Frühlingstraße 45 94315 Straubin…

Text truncated - open the document above for the full version.

TÜV SÜD SENTON GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.com/senton eMail: [email protected] Test Report No. 50784-01176-1 (Edition 1) Page 20 of 64 Pages Test setup for conducted AC powerline emission measurement TÜV SÜD SENTON GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.com/senton eMail: [email protected] Test Report No. 50784-01176-1 (Edition 1) Page 21 of 64 Pages Test setup for radiated emission measurement 9 kHz – 30 MHz TÜV SÜD SENTON GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.com/senton eMail: [email protected] Test Report No. 50784-01176-1 (Edition 1) Page 22 of 64 Pages Test setup for radiated emission measurement 9 kHz – 30 MHz - continued - TÜV SÜD SENTON GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.com/senton eMail: [email protected] Test Report No. 50784-01176-1 (Edition 1) Page 23 of 64 Pages Test setup for radiated emission measurement (fully anechoic room) TÜV SÜD SENTON GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.com/senton eMail: [email protected] Test Report No. 50784-01176-1 (Edition 1) Page 24 of 64 Pages Test setup for radiated emission measurement (fully anechoic room) - continued - TÜV SÜD SENTON GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.com/senton eMail: [email protected] Test Report No. 50784-01176-1 (Edition 1) Page 25 of 64 Pages Test setup for radiated emission measurement (open field test site) TÜV SÜD SENTON GmbH Äußere Frühlingstraße 45 94315 Straubing Germany Phone: +49 9421 5522-0 Fax: +49 9421 5522-99 Web: www.tuev-sued.com/senton eMail: [email protected] Test Report No. 50784-01176-1 (Edition 1) Page 26 of 64 Pages Test setup for radiated emission measurement (open field test site) - continued -
