PK46700Radio Controlled Car

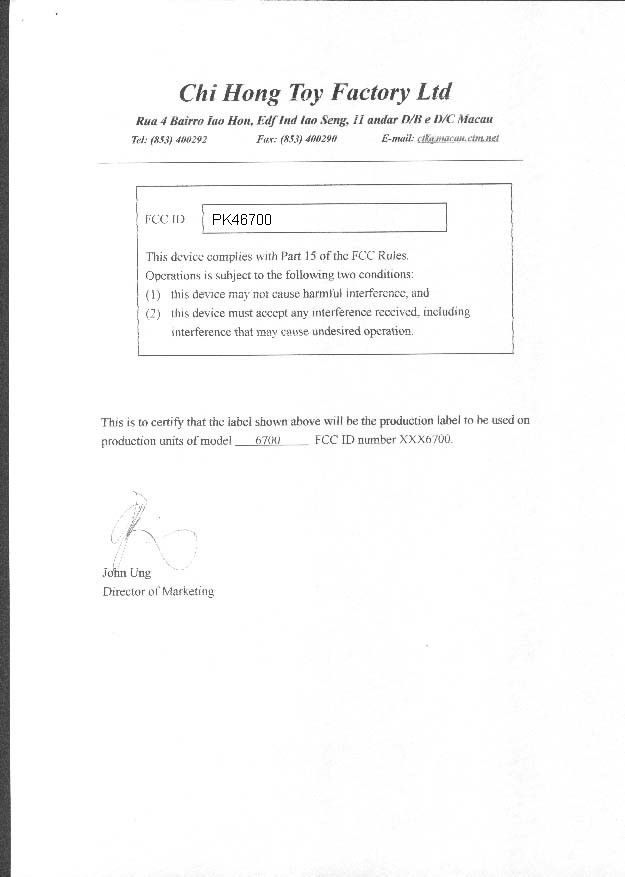

Label Location

F F C C C C - - T T E E S S T T R R E E P P O O R R T T REPORT NO.: 24731/0/400F FCC – Test Report No. 24731/0/400F Date: 2001-03-27 Page 2 of 12 FCC listed testlab acc. to Section 2.948 of the FCC - Rules in compliance with the requirements of ANSI C63.4 - 1992 Product: Radio Controlled Car -- 27 MHz Transmitter Model: 6697 Applicant: CHI HONG TOY FACTORY LIMITED Manufacturer : CHI HONG TOY FACTORY LIMITED FCC – Test Report No. 24731/0/400F Date: 2001-03-27 Page 3 of 12 TABLE OF CONTENTS 1. Cover sheet 2. Introduction 3. Table of Contents 4. Laboratory Report 5. Summary of Testresults 6. Test Equipment List 7. Radiated Emission Testprocedure 8. Radiated Emission Testprocedure 9. Interference Radiation (Datasheet) 10. Notes for Radiation Measurement (acc. to ANSI C63.4 - 1992) 11. Measurement of Emissions within Band Edges (Datasheet) 12. Notes for Measurement of Emissions within Band Edges FCC – Test Report No. 24731/0/400F Date: 2001-03-27 Page 4 of 12 LABORATORY - REPORT APPLICANT: ADDRESS: CHI HONG TOY FACTORY LIMITED Rua 4 Bairro Iao Hon Edf Ind Iao Seng 11 Andar DB/DC MACAU DATE OF SAMPLE RECEIVED:2000-11-20 DATE OF TESTING:2001-03-27 DESCRIPTION OF SAMPLE: Product:Radio Controlled Car -- 27 MHz Transmitter Manufacturer:CHI HONG TOY FACTORY LIMITED Model number:6697 Additonal model number:6700 Rating:DC 9V ('6F22' Size Battery x 1) Country of Origin:P.R. CHINA INVESTIGATIONS REQUESTED: Measurements to the relevant clauses of F.C.C. Rules and Regulations Part 15 Subpart C - Intentional Radiators RESULTS:See the attached test sheets CONCLUSIONS From the measurement data obtained, the tested sample was considered to have COMPLIED with the requirements for the relevant clauses of Federal Communications Commission Rules as specified above. _____________________________ Authorized Signature Remark: Purpose of those tests in this report is to provide the applicant with the necessary test data of their device for the submission to FCC with application for Equipment Authorization under the FCC Equipment Authorization Program. The tests themselves are not Approval Tests FCC – Test Report No. 24731/0/400F Date: 2001-03-27 Page 5 of 12 Summary of Test Results Interference Radiation: Test result:O.K. Test data:See attached data sheet Interference Voltage: Test result:N.A. Test data:N.A. Measurement of Emissions within Band Edges Test result:O.K. Test data:See attached data sheet PHOTOGRAPH OF THE SAMPLE FCC – Test Report No. 24731/0/400F Date: 2001-03-27 Page 6 of 12 TEST EQUIPMENT LIST EquipmentManufacturerModelSerial No.Remark Test ReceiverRohde & Schwarz ESH 3863497/01510KHz – 30MHz Test ReceiverRohde & Schwarz ESVP860688/02225MHz – 1,300 MHz Artificial Mains Network (LISN) SchwarzbeckNSLK 8127-- 2 x 10A, 50Ω, 50μH 10KHz-30MHz Antenna SystemSchwarzbeckBBA 9106 / UHALP 9107 --30MHz – 1000MHz Antenna Mast System SchwarzbeckAM9104--Max. 4 meters height Spectrum Analyzer with Q. Peak Tektronix2712B0230069KHz – 1.8GHz Interface for Spectrum 2712 TektronixTD3F14A-- Test ReceiverRohde & Schwarz ESH 3892580/00610KHz – 30MHz Test ReceiverRohde & Schwarz ESVP863512/01225MHz – 1,300 MHz Impulse LimiterRohde & Schwarz ESH-3-Z2-- Artificial Mains Network (LISN) SchwarzbeckNSLK 8127-- 2 x 10A, 50Ω, 50μH 10KHz-30MHz Antenna SystemSchwarzbeckBBA 9106 / UHALP 9107 --30MHz – 1000MHz Signal GeneratorRohde & Schwarz SWS 2879113/42100KHz – 1040 MHz Digital MultimeterTektronixDM2510GDM- 2510GTW10555 10KHz – 30MHz Turntable with Controller DrehtischDT312-- φ120 cm FCC – Test Report No. 24731/0/400F Date: 2001-03-27 Page 7 of 12 Radiated Emission Test Procedure Equipment under test (on turntable) Test receiver ESVP R & S Required test distance: 3m Antenna system Schwarzbeck BBA 9106/ UHALP 9107 FCC – Test Report No. 24731/0/400F Date: 2001-03-27 Page 8 of 12 Radiated Emission Test Procedure ( < 30 MHz) Test distance : 3 m Loop antenna HFH2-Z2 Rohde & Schwarz Equipment under test (on turntable) Test Receiver ESH3 Rohde & Schwarz 92Interference Radiation Measurement of Radiated Emissions (27MHz-1000MHz) Acc:FCC Part 15 Subpart C IECC Ref:24731/0/400FTest Equipment Model:6697Receiver: ESVP Rohde & Schwarz Applicant:CHI HONG TOY FACTORY LIMITEDAntenna: Schwarzbeck BBA 9106 and UHALP 9107 Ser.Nr.:1 Set under test:Radio Controlled Car Connected sets: - Operating mode:Power "On" Frequency (MHz) Horz. Reading dB(μV) Vert. Reading dB(μV) Antenna Factor (dB) Horiz. Test Result (μV/m) Vert. Test Result (μV/m) Limit (μV/m) Harm.254.28162510.2 2058 100 Harm.381.42<16207.1< 1423 100 Harm.4108.56162011.6 2438 150 Harm.5135.7<16<1614.3< 33 < 33 150 Harm.6162.84<16<1615.6< 38 < 38 150 Harm.7189.98<16<1616.3< 41 < 41 150 Harm.8217.12<16<1616.9< 44 < 44 200 Harm.9244.26<16<1617.6< 48 < 48 200 Harm.10271.4<16<1618.5< 53 < 53 200 Harm.11298.54<16<1619.9< 62 < 62 200 Harm.12325.68<16<1616.8< 44 < 44 200 Harm.13352.82<16<1617.5< 47 < 47 200 Harm.14379.96<16<1618.0< 50 < 50 200 Harm.15407.1<16<1618.4< 53 < 53 200 Harm.16434.24<16<1618.8< 55 < 55 200 Harm.17461.38<16<1619.2< 57 < 57 200 Harm.18488.52<16<1619.5< 60 < 60 200 Harm.19515.66<16<1619.9< 62 < 62 200 Harm.20542.8<16<1620.1< 64 < 64 200 Harm.21569.94<16<1620.5< 67 < 67 200 Harm.22597.08<16<1620.9< 70 < 70 200 Harm.23624.22<16<1621.2< 73 < 73 200 Harm.24651.36<16<1621.6< 76 < 76 200 Harm.25678.5<16<1622.1< 80 < 80 200 Harm.26705.64<16<1622.5< 84 < 84 200 Harm.27732.78<16<1622.8< 88 < 88 200 Harm.28759.92<16<1623.2< 91 < 91 200 Harm.29787.06<16<1623.5< 95 < 95 200 Harm.30814.2<16<1623.9< 99 < 99 200 Harm.31841.34<16<1624.3< 103 < 103 200 Harm.32868.48<16<1624.6< 107 < 107 200 Harm.33895.62<16<1624.9< 112 < 112 200 Harm.34922.76<16<1625.4< 117 < 117 200 Harm.35949.9<16<1625.8< 123 < 123 200 Harm.36977.04<16<1626.2< 128 < 128 500 Radiation Measurement below 30 MHz (using loop antenna) : Frequency (MHz) Maximum Test Result (dB(μV/m))Limit (dB(μV/m)) PeakAveragePeakAverage 27.14525010080 Test result: ̋ ̋ O.K. Date: _______________ Operator: _______________ FCC – Test Report No. 24731/0/4…

Text truncated - open the document above for the full version.
