PK8KT-113MHRWireless Karaoke Microphone

KORI Tech Co., Ltd.

Click to zoom

Application Details

Equipment Class: DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant: Feb 25, 2003
Application Purpose: Original Equipment
Date of Application: Feb 25, 2003
Equipment Note: Wireless Karaoke Microphone
Frequency Range: 104.00000000 - 108.00000000
Company: KORI Tech Co., Ltd.
Country: South Korea

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Appendix G. User Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 1 of 27 FCC ID : PK8KT-113MHR Report No:E03.0219.FCC.083N Date of Test : February 19, 2003 KORI TECH Co., Ltd. Wireless Karaoke Microphone Model : KT-113MHR Appendix G. User Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 2 of 27 FCC ID : PK8KT-113MHR Report No:E03.0219.FCC.083N Date of Test : February 19, 2003 KORI TECH Co., Ltd. Wireless Karaoke Microphone Model : KT-113MHR Appendix G. User Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 3 of 27 FCC ID : PK8KT-113MHR Report No:E03.0219.FCC.083N Date of Test : February 19, 2003 KORI TECH Co., Ltd. Wireless Karaoke Microphone Model : KT-113MHR Appendix G. User Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 4 of 27 FCC ID : PK8KT-113MHR Report No:E03.0219.FCC.083N Date of Test : February 19, 2003 KORI TECH Co., Ltd. Wireless Karaoke Microphone Model : KT-113MHR Appendix G. User Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 5 of 27 FCC ID : PK8KT-113MHR Report No:E03.0219.FCC.083N Date of Test : February 19, 2003 KORI TECH Co., Ltd. Wireless Karaoke Microphone Model : KT-113MHR Appendix G. User Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 6 of 27 FCC ID : PK8KT-113MHR Report No:E03.0219.FCC.083N Date of Test : February 19, 2003 KORI TECH Co., Ltd. Wireless Karaoke Microphone Model : KT-113MHR Appendix G. User Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 7 of 27 FCC ID : PK8KT-113MHR Report No:E03.0219.FCC.083N Date of Test : February 19, 2003 KORI TECH Co., Ltd. Wireless Karaoke Microphone Model : KT-113MHR Appendix G. User Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 8 of 27 FCC ID : PK8KT-113MHR Report No:E03.0219.FCC.083N Date of Test : February 19, 2003 KORI TECH Co., Ltd. Wireless Karaoke Microphone Model : KT-113MHR Appendix G. User Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 9 of 27 FCC ID : PK8KT-113MHR Report No:E03.0219.FCC.083N Date of Test : February 19, 2003 KORI TECH Co., Ltd. Wireless Karaoke Microphone Model : KT-113MHR Appendix G. User Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 10 of 27 FCC ID : PK8KT-113MHR Report No:E03.0219.FCC.083N Date of Test : February 19, 2003 KORI TECH Co., Ltd. Wireless Karaoke Microphone Model : KT-113MHR Appendix G. User Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 11 of 27 FCC ID : PK8KT-113MHR Report No:E03.0219.FCC.083N Date of Test : February 19, 2003 KORI TECH Co., Ltd. Wireless Karaoke Microphone Model : KT-113MHR Appendix G. User Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 12 of 27 FCC ID : PK8KT-113MHR Report No:E03.0219.FCC.083N Date of Test : February 19, 2003 KORI TECH Co., Ltd. Wireless Karaoke Microphone Model : KT-113MHR Appendix G. User Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 13 of 27 FCC ID : PK8KT-113MHR Report No:E03.0219.FCC.083N Date of Test : February 19, 2003 KORI TECH Co., Ltd. Wireless Karaoke Microphone Model : KT-113MHR Appendix G. User Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 14 of 27 FCC ID : PK8KT-113MHR Report No:E03.0219.FCC.083N Date of Test : February 19, 2003 KORI TECH Co., Ltd. Wireless Karaoke Microphone Model : KT-113MHR Appendix G. User Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 15 of 27 FCC ID : PK8KT-113MHR Report No:E03.0219.FCC.083N Date of Test : February 19, 2003 KORI TECH Co., Ltd. Wireless Karaoke Microphone Model : KT-113MHR Appendix G. User Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 16 of 27 FCC ID : PK8KT-113MHR Report No:E03.0219.FCC.083N Date of Test : February 19, 2003 KORI TECH Co., Ltd. Wireless Karaoke Microphone Model : KT-113MHR Appendix G. User Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 17 of 27 FCC ID : PK8KT-113MHR Report No:E03.0219.FCC.083N Date of Test : February 19, 2003 KORI TECH Co., Ltd. Wireless Karaoke Microphone Model : KT-113MHR Appendix G. User Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 18 of 27 FCC ID : PK8KT-113MHR Report No:E03.0219.FCC.083N Date of Test : February 19, 2003 KORI TECH Co., Ltd. Wireless Karaoke Microphone Model : KT-113MHR Appendix G. User Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 19 of 27 FCC ID : PK8KT-113MHR Report No:E03.0219.FCC.083N Date of Test : February 19, 2003 KORI TECH Co., Ltd. Wireless Karaoke Microphone Model : KT-113MHR Appendix G. User Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 20 of 27 FCC ID : PK8KT-113MHR Report No:E03.0219.FCC.083N Date of Test : February 19, 2003 KORI TECH Co., Ltd. Wireless Karaoke Microphone Model : KT-113MHR Appendix G. User Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 21 of 27 FCC ID : PK8KT-113MHR Report No:E03.0219.FCC.083N Date of Test : February 19, 2003 KORI TECH Co., Ltd. Wireless Karaoke Microphone Model : KT-113MHR Appendix G. User Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 22 of 27 FCC ID : PK8KT-113MHR Report No:E03.0219.FCC.083N Date of Test : February 19, 2003 KORI TECH Co., Ltd. Wireless Karaoke Microphone Model : KT-113MHR Appendix G. User Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea 23 of 27 FCC ID : PK8KT-113MHR Report No:E03.0219.FCC.083N Date of Test : February 19, 2003 KORI TECH Co., Ltd. Wireless Karaoke Microphone Model : KT-113MHR Appendix G. User Manual ETL Inc. #584 Sangwhal-ri, K…

Text truncated - open the document above for the full version.

Block Diagram

Appendix E. Block Diagram ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880,Korea 1 of 1 FCC ID : PK8KT-113MHR Report No: E03.0219.FCC.083N Date of Issue : February 19, 2003 KORI TECH Co., Ltd. Wireless Karaoke Microphone Model : KT-113MHR X - Tal 14.31818MHz

External Photos

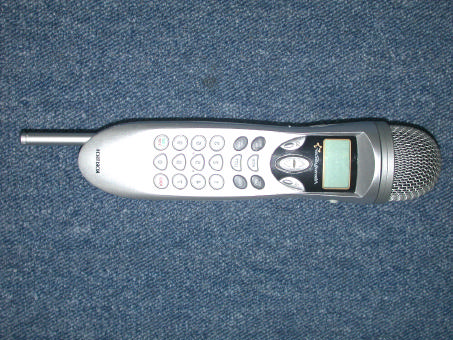

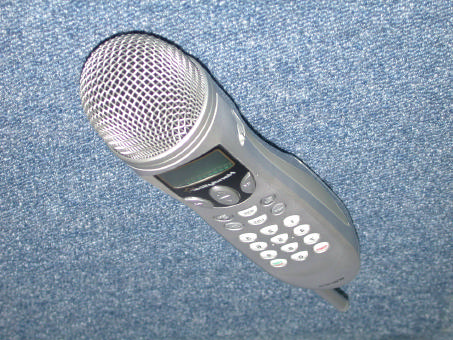

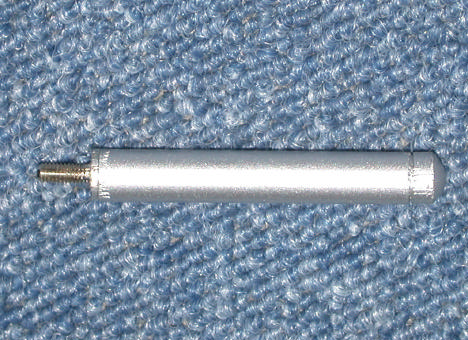

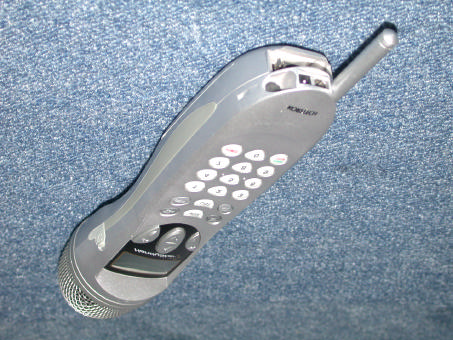

Appendix C. External Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880,Korea 1 of 4 FCC ID : PK8KT-113MHR Report No: E03.0219.FCC.083N Date of Issue : February 19, 2003 KORI TECH Co., Ltd. Wireless Karaoke Microphone Model : KT-113MHR Top Side View of EUT Bottom Side View of EUT Appendix C. External Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880,Korea 2 of 4 FCC ID : PK8KT-113MHR Report No: E03.0219.FCC.083N Date of Issue : February 19, 2003 KORI TECH Co., Ltd. Wireless Karaoke Microphone Model : KT-113MHR View of EUT View of EUT Appendix C. External Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880,Korea 3 of 4 FCC ID : PK8KT-113MHR Report No: E03.0219.FCC.083N Date of Issue : February 19, 2003 KORI TECH Co., Ltd. Wireless Karaoke Microphone Model : KT-113MHR View of Cover View of Cover Appendix C. External Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880,Korea 4 of 4 FCC ID : PK8KT-113MHR Report No: E03.0219.FCC.083N Date of Issue : February 19, 2003 KORI TECH Co., Ltd. Wireless Karaoke Microphone Model : KT-113MHR View of Cover View of Antenna

ID Label/Location Info

Appendix A. FCC ID Label and Location ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880,Korea 1 of 1 FCC ID : PK8KT-113MHR Report No: E03.0219.FCC.083N Date of Issue : February 19, 2003 KORI TECH Co., Ltd. Wireless Karaoke Microphone Model : KT-113MHR Product Label Sample with FCC ID Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC Identifier (FCC ID :PK8KT-113MHR) and compliance statement are marked in the product label. The user notice and warning statement are described in the user manual. Wireless Karaoke Microphone FCC ID : PK8KT-113MHR Model NO : KT-113MHR POWER : DC 5.7V, 1.2A, Max 1.5W(From the AC/DC Adaptor) Serial No : N/A This device complies with Part 15 of the FCC Rules. Operation is Subject to the following two conditions: (1) this device may not Cause harmful interference, and(2) this device must accept any Interference received, including interference that may cause undesired Operation. Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Label Here

Internal Photos

Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880,Korea 1 of 5 FCC ID : PK8KT-113MHR Report No: E03.0219.FCC.083N Date of Issue : February 19, 2003 KORI TECH Co., Ltd. Wireless Karaoke Microphone Model : KT-113MHR Inside View of EUT Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880,Korea 2 of 5 FCC ID : PK8KT-113MHR Report No: E03.0219.FCC.083N Date of Issue : February 19, 2003 KORI TECH Co., Ltd. Wireless Karaoke Microphone Model : KT-113MHR Top Side View of Main 1 ] Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880,Korea 3 of 5 FCC ID : PK8KT-113MHR Report No: E03.0219.FCC.083N Date of Issue : February 19, 2003 KORI TECH Co., Ltd. Wireless Karaoke Microphone Model : KT-113MHR Bottom Side View of Main 1 Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880,Korea 4 of 5 FCC ID : PK8KT-113MHR Report No: E03.0219.FCC.083N Date of Issue : February 19, 2003 KORI TECH Co., Ltd. Wireless Karaoke Microphone Model : KT-113MHR Top Side View of Main 2 Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880,Korea 5 of 5 FCC ID : PK8KT-113MHR Report No: E03.0219.FCC.083N Date of Issue : February 19, 2003 KORI TECH Co., Ltd. Wireless Karaoke Microphone Model : KT-113MHR Bottom Side View of Main2

Operational Description

ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880,Korea 5 of 22 FCC ID : PK8KT-113MHR Report No: E03.0219.FCC.083N Date of Issue : February 19, 2003 KORI TECH Co., Ltd. Wireless Karaoke Microphone Model : KT-113MHR 2. PRODUCT INFORMATION 2.1 Equipment Description The Equipment Under Test(EUT) is the KORI TECH Co., Ltd. Wireless karaoke microphone Model:KT- 113MHR(FCC ID : PK8KT-113MHR). This microphone is supply powered by AC/DC Adaptor and Battery. This equipment is low power transmitter intended for wireless microphone with audio data stored in the karaoke DSP chip. And transmit video and audio to CCTV Monitor. The wireless is support with audio source for FM frequency band of 104.0 ~ 108.0 MHz and Voice support with dynamic microphone. 2.2 General Specification - Chassis Type Plastic ( Internal copper coating) - List of Each OSC. Or X-Tal. Freq.(>=1MHz) X-TAL:11.2896 MHz, 27 MHz, 9.6 MHz, OSC:48 MHz - Chipset Nomber SAM9703 / dream, KT-9703cw32-1 / hynix, 39VF400A / SST HY57V641620HG / hynix, K9F5608UCB / Samsung TMS320DSC21 / DSP, D7225GB / NEC - RF Frequency Out 104.0 MHz – 108.0 MHz - Antenna Type Herix Antenna tunned to 106MHz - I/O Cable(s) Unshielded - Power Requirement Internal : Lithium Ion Battery (3.7V, 900mA) AC/DC Adapter : DC 5.7 V, 1.2A - Electric Power 1.5W - Dimension(LxD) 215 x 48 mm - Sound source SAM9703 - Weight 240g - Image method NTSC(Standard signal method used in Japan and the U.S.) - Memory built in 48Mbyte - SD Card Available to use 64mbyte at maximum - Method for PC communication USB V1.1

Schematics

Appendix F. Schematics ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 1 of 20 KORI TECH Co., Ltd. Wireless Karaoke Microphone MODEL : KT-113MHR FCC ID : PK8KT-113MHR Report No : E03.0219.FCC.083N Date of Issue : February 19, 2003 Appendix F. Schematics ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 2 of 20 KORI TECH Co., Ltd. Wireless Karaoke Microphone MODEL : KT-113MHR FCC ID : PK8KT-113MHR Report No : E03.0219.FCC.083N Date of Issue : February 19, 2003 Appendix F. Schematics ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 3 of 20 KORI TECH Co., Ltd. Wireless Karaoke Microphone MODEL : KT-113MHR FCC ID : PK8KT-113MHR Report No : E03.0219.FCC.083N Date of Issue : February 19, 2003 Appendix F. Schematics ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 4 of 20 KORI TECH Co., Ltd. Wireless Karaoke Microphone MODEL : KT-113MHR FCC ID : PK8KT-113MHR Report No : E03.0219.FCC.083N Date of Issue : February 19, 2003 Appendix F. Schematics ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 5 of 20 KORI TECH Co., Ltd. Wireless Karaoke Microphone MODEL : KT-113MHR FCC ID : PK8KT-113MHR Report No : E03.0219.FCC.083N Date of Issue : February 19, 2003 Appendix F. Schematics ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 6 of 20 KORI TECH Co., Ltd. Wireless Karaoke Microphone MODEL : KT-113MHR FCC ID : PK8KT-113MHR Report No : E03.0219.FCC.083N Date of Issue : February 19, 2003 Appendix F. Schematics ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 7 of 20 KORI TECH Co., Ltd. Wireless Karaoke Microphone MODEL : KT-113MHR FCC ID : PK8KT-113MHR Report No : E03.0219.FCC.083N Date of Issue : February 19, 2003 Appendix F. Schematics ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 8 of 20 KORI TECH Co., Ltd. Wireless Karaoke Microphone MODEL : KT-113MHR FCC ID : PK8KT-113MHR Report No : E03.0219.FCC.083N Date of Issue : February 19, 2003 Appendix F. Schematics ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 9 of 20 KORI TECH Co., Ltd. Wireless Karaoke Microphone MODEL : KT-113MHR FCC ID : PK8KT-113MHR Report No : E03.0219.FCC.083N Date of Issue : February 19, 2003 Appendix F. Schematics ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 10 of 20 KORI TECH Co., Ltd. Wireless Karaoke Microphone MODEL : KT-113MHR FCC ID : PK8KT-113MHR Report No : E03.0219.FCC.083N Date of Issue : February 19, 2003 Appendix F. Schematics ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 11 of 20 KORI TECH Co., Ltd. Wireless Karaoke Microphone MODEL : KT-113MHR FCC ID : PK8KT-113MHR Report No : E03.0219.FCC.083N Date of Issue : February 19, 2003 Appendix F. Schematics ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 12 of 20 KORI TECH Co., Ltd. Wireless Karaoke Microphone MODEL : KT-113MHR FCC ID : PK8KT-113MHR Report No : E03.0219.FCC.083N Date of Issue : February 19, 2003 Appendix F. Schematics ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 13 of 20 KORI TECH Co., Ltd. Wireless Karaoke Microphone MODEL : KT-113MHR FCC ID : PK8KT-113MHR Report No : E03.0219.FCC.083N Date of Issue : February 19, 2003 Appendix F. Schematics ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 14 of 20 KORI TECH Co., Ltd. Wireless Karaoke Microphone MODEL : KT-113MHR FCC ID : PK8KT-113MHR Report No : E03.0219.FCC.083N Date of Issue : February 19, 2003 Appendix F. Schematics ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 15 of 20 KORI TECH Co., Ltd. Wireless Karaoke Microphone MODEL : KT-113MHR FCC ID : PK8KT-113MHR Report No : E03.0219.FCC.083N Date of Issue : February 19, 2003 Appendix F. Schematics ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 16 of 20 KORI TECH Co., Ltd. Wireless Karaoke Microphone MODEL : KT-113MHR FCC ID : PK8KT-113MHR Report No : E03.0219.FCC.083N Date of Issue : February 19, 2003 Appendix F. Schematics ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 17 of 20 KORI TECH Co., Ltd. Wireless Karaoke Microphone MODEL : KT-113MHR FCC ID : PK8KT-113MHR Report No : E03.0219.FCC.083N Date of Issue : February 19, 2003 Appendix F. Schematics ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 18 of 20 KORI TECH Co., Ltd. Wireless Karaoke Microphone MODEL : KT-113MHR FCC ID : PK8KT-113MHR Report No : E03.0219.FCC.083N Date of Issue : February 19, 2003 Appendix F. Schematics ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 19 of 20 KORI TECH Co., Ltd. Wireless Karaoke Microphone MODEL : KT-113MHR FCC ID : PK8KT-113MHR Report No : E03.0219.FCC.083N Date of Issue : February 19, 2003 Appendix F. Schematics ETL Inc. 371-51 Gasan-Dong, Geumcheon-Gu, Seoul, 153-023, Korea 20 of 20 KORI TECH Co., Ltd. Wireless Karaoke Microphone MODEL : KT-113MHR FCC ID : PK8KT-113MHR Report No : E03.0219.FCC.083N Date of Issue : February 19, 2003

Test Report

www.etl.re.kr E-RAE Testing Laboratory This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the ETL,Inc. Electromagnetic Emission FCC MEASUREMENT REPORT CERTIFICATION OF COMPLIANCE FCC Part 15 Certification Measurement PRODUCT : Wireless Karaoke Microphone MODEL/TYPE NO : KT-113MHR FCC ID : PK8KT-113MHR APPLICANT : KORI TECH Co., Ltd. Rm .407, Daeryung Techno 2nd Town, 569-21 Kasan-Dong, Keumcheon-Ku, Seoul, Korea, Attn. : Kim, Kwang Yeoul / President of Company FCC CLASSIFICATION : Low Power Communication Device Transmitter : Intentional Radiator Part 15 Class B Unintentional Radiators Computing Device Peripheral (JBP) FCC RULE PART(S) : FCC Part 15 Subpart B & Subpart C 15.239 FCC PROCEDURE : Certification TRADE NAME : Koritech TEST REPORT No. : E03.0219.FCC.083N DATES OF TEST : February 13 ~ 14, 2003 DATES OF ISSUE : February 19, 2003 TEST LAB. : ETL Inc ( FCC Registration Number : 95422) #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea Tel : +82-31-885-0072 Fax : +82-31-885-0074 This wireless karaoke microphone, KT-113MHR has been tested in accordance with the measurement procedures specified in ANSI C63.4-1992 at the ETL/EMC Test Laboratory and has been shown to be complied with the electromagnetic radiated emission limits specified in FCC Rule Part 15 Subpart B & Subpart C section15.239. I attest to the accuracy of data. All measurement herein performed by me or made under my supervision and correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Name : Yo Han, Park Title : Chief Engineer E-RAE Testing Laboratory Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-885, Korea ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880,Korea 2 of 22 FCC ID : PK8KT-113MHR Report No: E03.0219.FCC.083N Date of Issue : February 19, 2003 KORI TECH Co., Ltd. Wireless Karaoke Microphone Model : KT-113MHR Table of Contents ATTACHMENT A: COVER LETTER(S) FCC Measurement Report 1. Introduction 2. Product Information 3. Description of Tests 4. Test Condition 5. Test Results 5.1 Summary of Test Results 5.2 Conducted Emission 5.3 Radiated Emission 5.4 Radiated Emissions of RF Carrier frequency 5.5 Out-of-band Radiated Emissions 5.6 Emission Bandwidth Measurement 6. Antenna Requirement 7. Sample Calculations 8. List of test Equipment used for Measurement Appendix A. FCC ID Label and Location Appendix B. Test Setup Photographs Appendix C. External Photographs Appendix D. Internal Photographs Appendix E. Block Diagram Appendix F. Schematics Appendix G. User Manual ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880,Korea 3 of 22 FCC ID : PK8KT-113MHR Report No: E03.0219.FCC.083N Date of Issue : February 19, 2003 KORI TECH Co., Ltd. Wireless Karaoke Microphone Model : KT-113MHR FCC MEASUREMENT REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information l EUT Type : Wireless Karaoke Microphone l Model Number : KT-113MHR l FCC Identifier : PK8KT-113MHR l S/N : Prototype l Freq. Range : 104.0 MHz – 108.0 MHz l FCC Rule Part(s) : FCC Part 15 Subpart B & Subpart C 15.239 l Test Procedure : ANSI C63.4-1992 l FCC Classification : DXX - Low Power Communication Device Transmitter : Intentional Radiator & Part 15 Class B Unintentional Radiators Computing Device Peripheral (JBP) l Dates of Tests : February 14, 2003 l Place of Tests : ETL Inc EMC Testing Lab (FCC Registration Number : 95422) 584, Sangwhal-Ri, Kanam-Myun, Yoju-Kun, Kyounggi-Do, 469-885 Korea. Tel : (031) 885-0072 Fax : (031) 885-0074 l Test Report No. : E03.0219.FCC.083N Applicant Name : KORI TECH Co., Ltd. Address : Rm .407, Daeryung Techno 2nd Town, 569-21 Kasan-Dong, Keumcheon-Ku, Seoul, Korea Attention :Kim, Kwang Yeoul / President of Company ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880,Korea 4 of 22 FCC ID : PK8KT-113MHR Report No: E03.0219.FCC.083N Date of Issue : February 19, 2003 KORI TECH Co., Ltd. Wireless Karaoke Microphone Model : KT-113MHR 1. INTRODUCTION The measurement test for radiated and conducted emission test were conducted at the open area test site of E-RAE Testing Laboratory Inc. facility located at 584, Sangwhal-ri, Ganam-myun, Youju-kun, Kyoungki- do, Korea. The site is constructed in conformance with the requirements of the ANSI C63.4-1992 and CISPR Publication 16. The ETL has site descriptions on file with the FCC for 3 and 10 meter site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-1992 and registered to the Federal Communications Commission(Registration Number : 95422 ). The measurement procedure described in American National Standard for Method of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C.63.4-1992) was used in determining radiated and conducted emissions from the KORI TECH Co.,Ltd. Wireless karaoke microphone Model : KT-113MHR. ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880,Korea 5 of 22 FCC ID : PK8KT-113MHR Report No: E03.0219.FCC.083N Date of Issue : February 19, 2003 KORI TECH Co., Ltd. Wireless Karaoke Microphone Model : KT-113MHR 2. PRODUCT INFORMATION 2.1 Equipment Description The Equipment Under Test(EUT) is the KORI TECH Co., Ltd. Wireless karaoke microphone Model:KT- 113MHR(FCC…

Text truncated - open the document above for the full version.

Test Setup Photos

Appendix B. Test Setup Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880,Korea1 of 4 FCC ID : PK8KT-113MHR Report No: E03.0219.FCC.083N Date of Issue : February 19, 2003 KORI TECH Co., Ltd. Wireless Karaoke Microphone Model : KT-113MHR Radiated Emission Test Setup Appendix B. Test Setup Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880,Korea2 of 4 FCC ID : PK8KT-113MHR Report No: E03.0219.FCC.083N Date of Issue : February 19, 2003 KORI TECH Co., Ltd. Wireless Karaoke Microphone Model : KT-113MHR Conducted Emission Test Setup Appendix B. Test Setup Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880,Korea3 of 4 FCC ID : PK8KT-113MHR Report No: E03.0219.FCC.083N Date of Issue : February 19, 2003 KORI TECH Co., Ltd. Wireless Karaoke Microphone Model : KT-113MHR Out-of-band Radiated Emissions Test Setup Appendix B. Test Setup Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880,Korea4 of 4 FCC ID : PK8KT-113MHR Report No: E03.0219.FCC.083N Date of Issue : February 19, 2003 KORI TECH Co., Ltd. Wireless Karaoke Microphone Model : KT-113MHR Radiated Emissions of RF Carrier frequency Test Setup
