PKDKBH-240RBluetooth Headset

ETC Report No.: ET92S-05-015-02Page A1 of A3 FCC ID: PKDKBH_240R ANNEX A: EXTERNAL CONSTRUCTION PHOTOS OF EUT 1. Outside view 1 of EUT 2. Outside view 2 of EUT ETC Report No.: ET92S-05-015-02Page A2 of A3 FCC ID: PKDKBH_240R 3. Outside view 3 of EUT 4. Outside view 4 of EUT ETC Report No.: ET92S-05-015-02Page A3 of A3 FCC ID: PKDKBH_240R 5. Outside view 5 of EUT 6. Outside view 6 of EUT

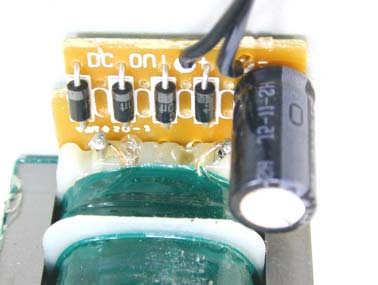

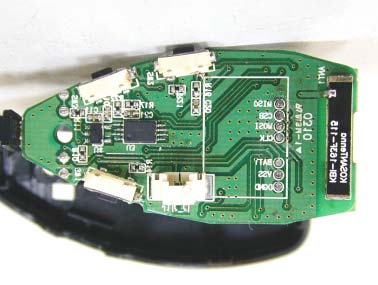

ETC Report No.: ET92S-05-015-02Page B1 of B7 FCC ID: PKDKBH_240R ANNEX B: INTERNAL CONSTRUCTION PHOTOS OF EUT 1. Inside View 1 of EUT 2. Inside View 2 of EUT ETC Report No.: ET92S-05-015-02Page B2 of B7 FCC ID: PKDKBH_240R 3. Inside View 3 of EUT 4. Inside View 4 of EUT ETC Report No.: ET92S-05-015-02Page B3 of B7 FCC ID: PKDKBH_240R 5. Inside View 5 of EUT 6. Inside View 6 of EUT ETC Report No.: ET92S-05-015-02Page B4 of B7 FCC ID: PKDKBH_240R 7. Inside View 7 of EUT 8. Front View of PCB1 ETC Report No.: ET92S-05-015-02Page B5 of B7 FCC ID: PKDKBH_240R 9. Rear View of PCB1 10. Front View of PCB2 ETC Report No.: ET92S-05-015-02Page B6 of B7 FCC ID: PKDKBH_240R 11. Rear View of PCB2 12. Front View of PCB3 ETC Report No.: ET92S-05-015-02Page B7 of B7 FCC ID: PKDKBH_240R 13. Rear View of PCB3

Operation Principle The Bluetooth Headset designed with a transmitting method of Frequency Hopping spread spectrum is for local area network operation, which operates at 2.4GHz ISM band and data rate up to 11Mbps. The rated output power is -1.92dBm. The channel is represented by a pseudo-random hopping sequence through the 79 channels. The channel is divided into time slots, with a nominal slot length where each slot corresponds to different RF hop frequencies. The nominal hop rate is 1600 hops/s. Any device that you want to use with the Bluetooth Headset has to be compatible with Bluetooth wireless technology and support the Headset Profile. To be able to use the Headset together with a mobile phone, the mobile phone must built-in Bluetooth capability.

Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : Bluetooth headset MODEL : KBH-240R FCC ID. : PKDKBH-240R for APPLICANT : K-WON C&C CO., LTD ADDRESS: 6th F, Daeryung Technotown 1, 327-24, Gasandong Gumcheongu, Seoul R.O.K. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 8 LANE 29, WENMIMG ROAD, LOSHAN TSUN, KWEISHAN HSIANG, TAOYUAN, TAIWAN, R.O.C. Tel:(03)3280026#570~576 Fax:(03)3276188 Report Number : ET92S-05-015-02 ETC Report No. : ET92S-05-015-02FCC ID. : PKDKBH-240R Rev. No 1.0 TEST REPORT CERTIFICATION Applicant: K-WON C&C CO., LTD 6th F, Daeryung Technotown 1, 327-24, Gasandong Gumcheongu, Seoul R.O.K. Manufacturer: K-WON C&C CO., LTD 6th F, Daeryung Technotown 1, 327-24, Gasandong Gumcheongu, Seoul R.O.K. Description of EUT: a) Type of EUT: Bluetooth headset b) Trade Name: Aeropath c) Model No.: KBH-240R d) Power Supply: 3.85VDC (Rechargeable Battery) AC Adaptor (DREAM/DR-12300U) Input: AC 120V, 60Hz ; Output: DC 12V, 300mA Regulation Applied: FCC Rules and Regulations Part 15 Subpart B & C (2002) I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Issued Date :May 22, 2003 Test Engineer : Approve & Authorized Signer : Signature Win-Po Tsai Manager of EMC Testing Department Electronics Testing Center, Taiwan ETC Report No. : ET92S-05-015-02FCC ID. : PKDKBH-240R Rev. No 1.0 Table of ContentsPage 1 GENERAL INFORMATION .........................................................................................................................1 1.1 Product Description ........................................................................................................................................1 1.2 Characteristics of Device ................................................................................................................................1 1.3 Test Methodology ...........................................................................................................................................1 1.4 Modifiction List of EUT .................................................................................................................................1 1.5 Test Facility ....................................................................................................................................................1 2 PROVISIONS APPLICABLE ........................................................................................................................2 2.1 Definition ........................................................................................................................................................2 2.2 Requirement for Compliance ..........................................................................................................................3 2.3 Restricted Bands of Operation ........................................................................................................................5 2.4 Labeling Requirement.....................................................................................................................................5 2.5 User Information .............................................................................................................................................6 3. SYSTEM TEST CONFIGURATION ............................................................................................................7 3.1 Justification .....................................................................................................................................................7 3.2 Devices for Tested System..............................................................................................................................7 4 RADIATED EMISSION MEASUREMENT ................................................................................................8 4.1 Applicable Standard........................................................................................................................................8 4.2 Measurement Procedure .................................................................................................................................8 4.3 Measuring Instrument ...................................................................................................................................10 4.4 Radiated Emission Data ................................................................................................................................11 4.4.1 RF Portion............................................................................................................................................................. 11 4.4.2 Other Emission ..................................................................................................................................................... 14 4.5 Field Strength Calculation ............................................................................................................................15 4.6 Photos of Radiation Measuring Setup ..........................................................................................................16 5 CONDUCTED EMISSION MEASUREMENT ..........................................................................................17 5.1 Applicable Standard......................................................................................................................................17 5.2 Measurement Procedure ...............................................................................................................................17 5.3 Conducted Emission Data....…

Text truncated - open the document above for the full version.

5.6 Photos of Conduction Measuring Setup 4.6 Photos of Radiation Measuring Setup
