PKFEB329294ABallast for circular fluorescent lamp

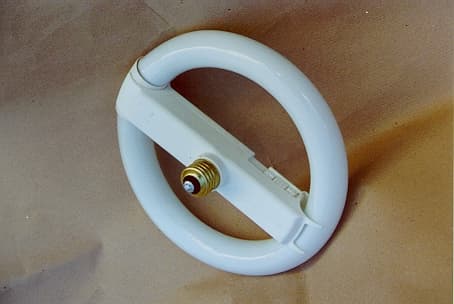

External pictures Equipment under test top view Equipment under test top view

FCC ID PKFEB329294A

CiaoLAB Standard Compliance ServicesTest report form: RP-01/E 01/00 FCC CFR 47 PART 18 Subpart C RF Lightning Devices E.M.I. TEST REPORT Test report No................ :01NM001EM-R01 Prepared by.................... :C. CarùSignature .................................... Approved by...................:G. BaroniSignature .................................... Date of issue................... :March 26, 2001 Number of pages............ :23 Test Laboratory Name.............................. :CiaoLAB Technologies S.p.A. - Standard Compliance Services Address.......................... :Via ai Laboratori Olivetti, 79 - 20010 Pregnana Milanese (MI) - I Applicant for the test Name................................................ :OSRAM S.p.A. Equipment under test Model................................................ :CF30EL/CIRC/830/MED Serial Number................................... :001_Proto Trade Mark....................................... :OSRAM SYLVANIA Manufacturer.....................................:OSRAM SUD S.p.A. Via delle Ortensie,16 70026 Modugno (Bari) -Italy- Rating’s............................................. :120 VAC / 60Hz Operating temperature range............ :From 0°C to +40°C Equipment information Equipment category.......................... :RF Lightning Devices Classification of the equipment........ :Consumer Equipment Weight............................................... :218g Tested for IT power system.............. :No Test specification Applicable standard.......................... :FCC CFR 47 - Part 18 - Subpart C Additional installation requirements :No Test results Summary of test results..................... : COMPLIANT Legend:..............................................:NA: Not Applicable - P: Pass - F: Fail Date: March 26, 2001Test report No: 01NM001EM-R01 Page 2 of 16 CiaoLAB eTechnologies Standard Compliance ServicesTest report form: RP-01/E 01/00 General Remarks The test results presented in this report related only to the item tested. This test report shall not be reproduced except in full without the written approval of the testing laboratory. As stated in FCC §2.902: Verification attaches to all items subsequently marketed by the manufacturer or importer which are identical as defined in §2.908 to the sample tested and found acceptable by the manufacturer. In order to clarify the identical concept the §2.908 states: As used in this subpart the term identical means identical within the variation that can be expected to arise as a result of quantity production techniques. General Information of the Appliance Manufacturer OSRAM S.p.A.Via Castagnole, 65/A 31100 Treviso - Italy - Applicant for Certification OSRAM SUD S.p.A.Via delle Ortensie, 16 70026 Modugno (Bari) - Italy - FCC ID PKFEB329924A Official of the Responsible Party for Certification NameLorenzo Baldo Product Development Engineer Signature.............................. Description of the Appliance The appliance is a ballast forcircular fluorescent lamp, the power is 30W and it is powered from the standard 120V / 60Hz AC mains, due to its characteristics it is sold to the general public. The appliance is shown in the following pictures Date: March 26, 2001Test report No: 01NM001EM-R01 Page 3 of 16 CiaoLAB eTechnologies Standard Compliance ServicesTest report form: RP-01/E 01/00 General Consideration of the Test The appliance is classified under the FCC Part 18 INDUSTRIAL, SCIENTIFIC AND MEDICAL EQUIPMENT - Subpart C - RF Lightning Devices - Consumer Equipment, and in conformity to the requirements of the table reported in FCC Part 18 Subpart B §18.203, it is subject to “CERTIFICATION” procedure. As defined in FCC Part 18 Subpart C §18.307 the frequency range for conducted noise measurement is from 450KHz to 30MHz and the Maximum RF line voltage measured specified for RF Lightning Devices - Consumer Equipment is reported in the following table. 0.45MHz ÷ 2.51MHz250μV48dbμV 2.51MHz ÷ 3MHz3000μV69.5dbμV 3MHz ÷ 30MHz250μV48dbμV In accordance to FCC Part 18 Subpart C §18.305 the limits for RF Lightning Devices classified as Consumer Equipment are reported in the following table: FrequencyLimit in μV/m at a distance of 30m Limit in dbμV/m at a distance of 30m Limit in dbμV/m at a distance of 10m 30MHz ÷ 88MHz30μV/m20dbμV/m29.5dbμV/m 88MHz ÷ 216MHz50μV/m23.5dbμV/m33dbμV/m 216 MHz ÷1000 MHz70μV/m26dbμV/m35.5dbμV/m The measurement have been performed at a distance of 10m due to the extremely low signals generated from the EUT and according to NOTE 2 of §18.305 the field strength limits have been adjusted using the attenuation factor of 1/d A unit of product “CF30EL/CIRC/830/MED” representative of the production was subjected to the test program. During the radiated and conducted emission test, the appliance was powered from a standard 120V / 60Hz AC main. Date of Test The test started on January 30, 2001 and concluded on February1, 2001. Reference Documents FCC CFR 47 Code of Federal Regulations, Title 47 Part 18, Subpart C, RF Lightning Devices, Consumer Equipments. FCC/OST MP-5FCC Methods of measurement of radio noise emission from Industrial, Scientific and Medical Equipment EMC Test Site N.2 description report Code QRD-RQ-0660. Date: March 26, 2001Test report No: 01NM001EM-R01 Page 4 of 16 CiaoLAB eTechnologies Standard Compliance ServicesTest report form: RP-01/E 01/00 Test Laboratory Information Radiated and conducted measurements was performed at the CiaoLAB Technologies EMI Measurement Test Site (Open Area Test Site and Shielded Room) denominated “EMC Test Site N. 2” and located at the following address: CiaoLab eTechnologies S.p.A. Via ai Laboratori Olivetti, 79 20010 Pregnana Milanese Milano - ITALY The “EMC Test Site N. 2” is compliant with the requirements of section 9.248 of the FCC rules. The CiaoLAB test facility is in the Commission’s list whose measurement data will be accepted in conjunction with application for certification or notification under part 15 and 18 of the FCC Rules. The “EM…

Text truncated - open the document above for the full version.

April 05,2001 Subject: Test setup photographs FCC ID:PKFEB329294A Applicant:OSRAM SUD S.p.A. Correspondence reference Nr.18663 731 ConfirmaTION Nr.EA100425 As requested you will find hereafter the photographs of the test setup for radiated and conducted EMI measurements. Conducted noise measurements test setup Radiated noise measurements test setup
