PKI701001BHANDS FREE BASE

L.P. FILTER MIXER RX OSC IF AMP. DEMOD. CIRCUIT TX OSC SP. AMP. RF POWER SAW FILTER POWER CIRCUIT VOLT. DET. DISPLAY CIRCUIT TX MUTE PLL CIRCUIT PLL CIRCUIT MUTE CIRCUIT MIC AMP. MCU ID. ENC. CIRCUIT ID. DEC. CIRCUIT ANT. Microphone ) ( Mobil Phone MIC. SP. ( Mobil Phone Speaker ) Rx. Circuit Tx. Circuit Zu Yih Precision Ind. Co., Ltd. ZY-701A(Earphone) ZY-701B(Base) AMP BUFFER LNA

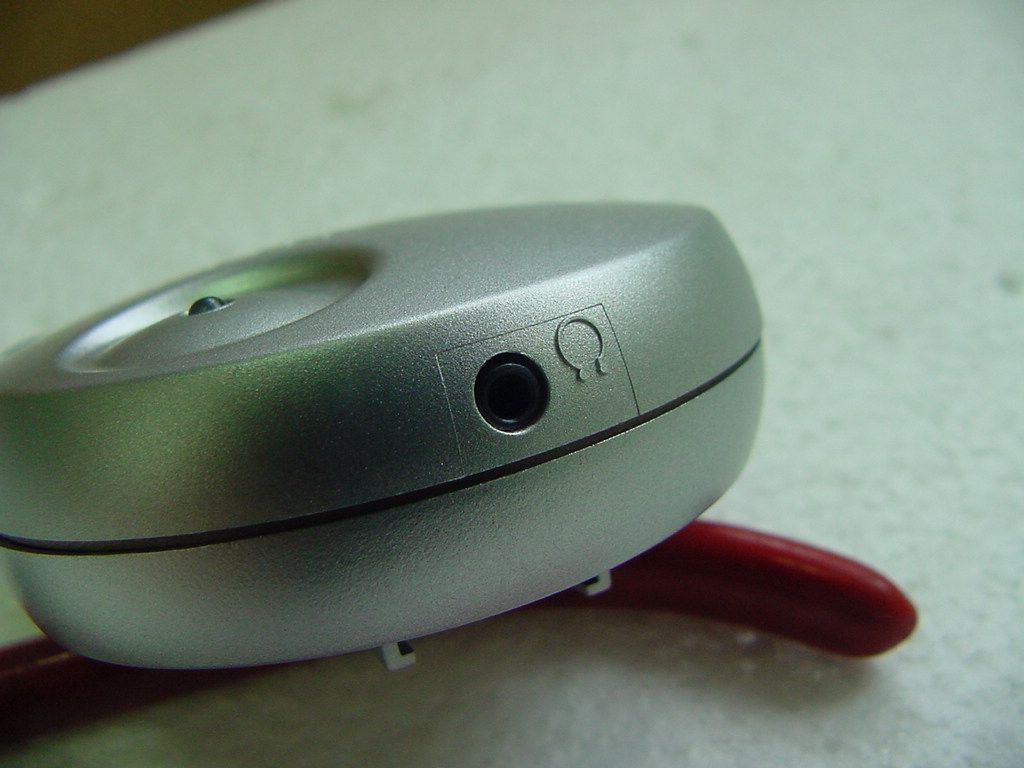

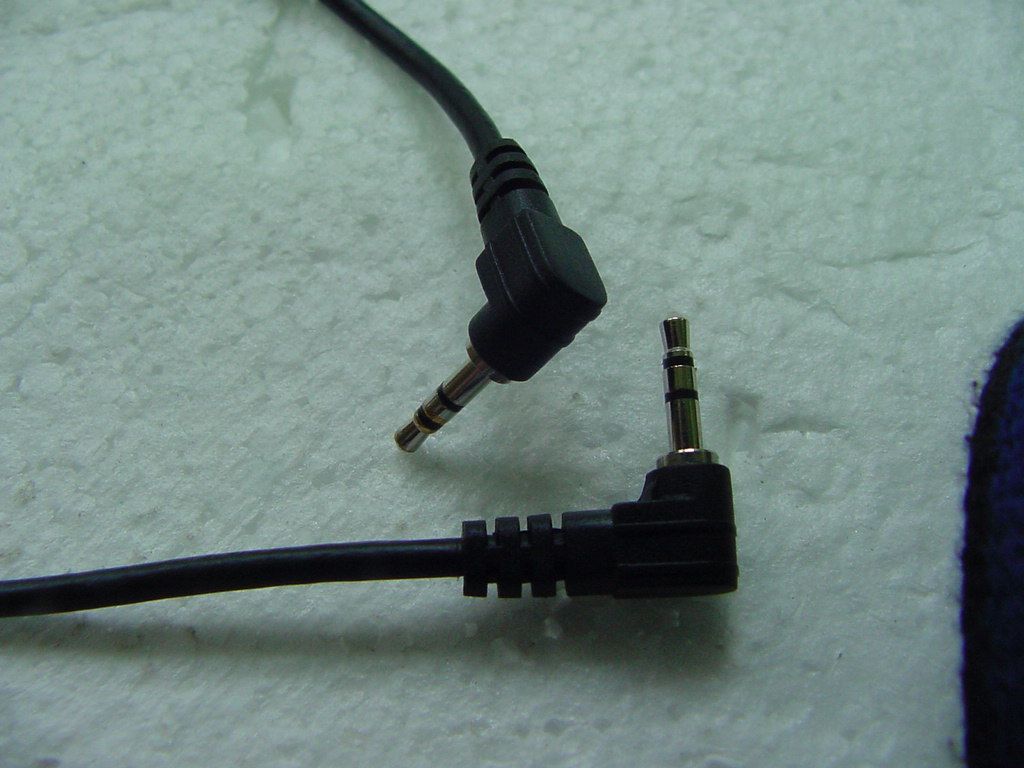

From: etcemi [[email protected]] Sent: Friday, June 01, 2001 1:10 AM To: Barbara Judge Subject: Re: FCC ID application of Zu Yih Prescision Ind. Co., Ltd. Dear Ms. Judge, Thanks for your help on above mattter. Regarding the phone jack you mentioned, it is just a general phone jack of 2.5 mm in diameter. Attached please find the photos for the special view of jack and the head of associated cable. If you have any further questions, please infrom me. Regards, K. C. Chen ETC/EMC Department ----- Original Message ----- From: "Barbara Judge" <[email protected]> To: "'etcemi'" <[email protected]> Cc: "Mike Kuo" <[email protected]> Sent: Thursday, May 31, 2001 8:12 AM Subject: RE: FCC ID application of Zu Yih Prescision Ind. Co., Ltd. > Dear K.C., > > I need your help. The User's Manual indicates that this device has a "Phone > Jack". It looks as though it is really an audio jack that can connect to a > PDA, a PC, a CD Player, MP3, or even radio. It looks as though a special > adaptor is required to connect this device to a standard telephone. It is > not clear in the pictures as to just what type of connector it really is. > Please clarify. The application granted yesterday is a companion to this > one which means that we have very little time to get the second application > completed, therefore I need an answer to this question within 36 hours. > Thank you for your cooperation. > > Best Regards, > Barbara > > -----Original Message----- > From: etcemi [mailto:[email protected]] > Sent: Tuesday, May 29, 2001 8:10 PM > To: Barbara Judge > Subject: Re: FCC ID application of Zu Yih Prescision Ind. Co., Ltd. > > > Dear Ms. Judge, > > Many thanks for your help on above matter. But there is still another > application of FCC ID "PKI701001B", would you help to expedite it? Thank you > again for your kind help. > > Regards, > > K. C. Chen > ETC/EMC Department > > > ----- Original Message ----- > From: "Barbara Judge" <[email protected]> > To: "'etcemi'" <[email protected]>; "Barbara Judge" <[email protected]> > Cc: "CERTADM" <[email protected]>; "Mike Kuo" <[email protected]> > Sent: Wednesday, May 30, 2001 4:26 AM > Subject: RE: FCC ID application of Zu Yih Prescision Ind. Co., Ltd. > > > > Dear K.C., > > > > Attached please find copy of FCC Grant issued today. > > > > Best Regards, > > Barbara > > > > -----Original Message----- > > From: etcemi [mailto:[email protected]] > > Sent: Sunday, May 27, 2001 6:35 PM > > To: Ms. Barbara Judge > > Cc: certadm > > Subject: Fw: FCC ID application of Zu Yih Prescision Ind. Co., Ltd. > > > > > > Dear Ms. Judge, > > > > Regarding above application, Ms. Taube has fix the problem of Grantee > code. > > So, would you send me the FCC ID grant letter as soon as possible? > > > > Regards, > > > > K. C. Chen > > ETC/EMC Department > > > > > >

ETC Report No.:ET90R-04-018-02 Sheet 1 of 2 Sheets FCC ID.: PKI701001B Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 1. Front View of EUT 2. Rea View of EUT ETC Report No.:ET90R-04-018-02 Sheet 2 of 2 Sheets FCC ID.: PKI701001B Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 3. Front View of Adaptor 4. Rear View of Adaptor

FCC ID LABEL THIS STATEMENT WILL BE PRINTED IN USER’S MANUAL THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. MODEL:ZY701B FCC ID.: PKI701001B 16mm 4mm

ETC Report No.:ET90R-04-018-02 Sheet 1 of 4 Sheets FCC ID.: PKI701001B Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 1. Internal View of EUT 2. Internal View of EUT ETC Report No.:ET90R-04-018-02 Sheet 2 of 4 Sheets FCC ID.: PKI701001B Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 3. Component View of Main Board 4. Solder View of Main Board ETC Report No.:ET90R-04-018-02 Sheet 3 of 4 Sheets FCC ID.: PKI701001B Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 5. Internal View of Adaptor 6. Component View of Adaptor’s PCB ETC Report No.:ET90R-04-018-02 Sheet 4 of 4 Sheets FCC ID.: PKI701001B Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 7. Solder View of Adaptor’s PCB

This product’s portable (ZY701B) will connect with our personal hand phone by extension line. One plug into ZY701B portable and the other one plug into personal hand phone and it could start to talk.

Rev. No 1.0 FCC Part 15 Subpart C EMI TEST REPORT of E.U.T. : Hands Free_Base FCC ID. : PKI701001B MODEL : ZY701B Working Frequency : 49.856MHz for APPLICANT : Zu Yih Prescision Ind. Co., Ltd. ADDRESS : 1, Shin-Leh Rd., An-Ping Ind. Park, Tainan 702, Taiwan, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 8 LANE 29, WENMIMG ROAD, LOSHAN TSUN, KWEISHAN HSIANG, TAOYUAN, TAIWAN, R.O.C. Tel:(03)3280026-32 Fax:(03)3280034 Report Number : ET90R-04-018-02 ETC Report No.:ET90R-04-018-02 FCC ID.: PKI701001B Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : Zu Yih Prescision Ind. Co., Ltd. 1, Shin-Leh Rd., An-Ping Ind. Park, Tainan 702, Taiwan, R.O.C. Manufacturer : Zu Yih Prescision Ind. Co., Ltd. 1, Shin-Leh Rd., An-Ping Ind. Park, Tainan 702, Taiwan, R.O.C. Description of EUT : a) Type of EUT : Hands Free_Base b) Trade Name : ---- c) Model No. : ZY701B d) FCC ID : PKI701001B e) Working Frequency : 49.856MHz f) Power Supply : DC 2.9V - DC 4.2V Regulation Applied : FCC Rules and Regulations Part 15 Subpart C (1999) I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Issued Date : Apr. 16, 2001 Test Engineer : ( Jeff Chuang ) Approve & Authorized Signer : Will Yauo, Supervisor EMI Test Site of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:ET90R-04-018-02 FCC ID.: PKI701001B Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION......................................................................................................................................................1 1.1 PRODUCT DESCRIPTION...........................................................................................................................................................1 1.2 CHARACTERISTICS OF DEVICE:...............................................................................................................................................1 1.3 TEST METHODOLOGY..............................................................................................................................................................1 1.4 TEST FACILITY..........................................................................................................................................................................1 2. DEFINITION AND LIMITS........................................................................................................................................................2 2.1 DEFINITION................................................................................................................................................................................2 2.2 RESTRICTED BANDS OF OPERATION.....................................................................................................................................2 2.3 LIMITATION...............................................................................................................................................................................2 2.4 LABELING REQUIREMENT.......................................................................................................................................................3 2.5 USER INFORMATION.................................................................................................................................................................3 3. RADIATED EMISSION MEASUREMENT..............................................................................................................................4 3.1 APPLICABLE STANDARD.........................................................................................................................................................4 3.2 MEASUREMENT PROCEDURE..................................................................................................................................................4 3.3 TEST DATA.................................................................................................................................................................................6 3.4 FIELD STRENGTH CALCULATION..........................................................................................................................................7 3.5 RADIATED TEST EQUIPMENT.................................................................................................................................................7 3.6 MEASURING INSTRUMENT SETUP.........................................................................................................................................7 3.7 RADIATED MEASUREMENT PHOTOS.....................................................................................................................................8 4 CONDUCTED EMISSION MEASUREMENT.........................................................................................................................9 4.1 STANDARD APPLICABLE.........................................................................................................................................................9 4.2 MEASUREMENT PROCEDURE..................................................................................................................................................9 4.3 CONDUCTED EMISSION DATA...............................................................................................................................................10 4.4 RESULT DATA CALCULATION..............................................................................................................................................10 4.5 CONDUCTED MEASUREMENT EQUIPMENT.......................................................................................................................10 4.6 PHOTOS OF CONDUCTION MEASURING SETUP...................…

Text truncated - open the document above for the full version.

ETC Report No.:ET90R-04-018-02 FCC ID.: PKI701001B Rev. No 1.0 3.7 Radiated Measurement Photos ETC Report No.:ET90R-04-018-02 FCC ID.: PKI701001B Rev. No 1.0 4.6 Photos of Conduction Measuring Setup
