PKM-503BMist fountain with metal stand

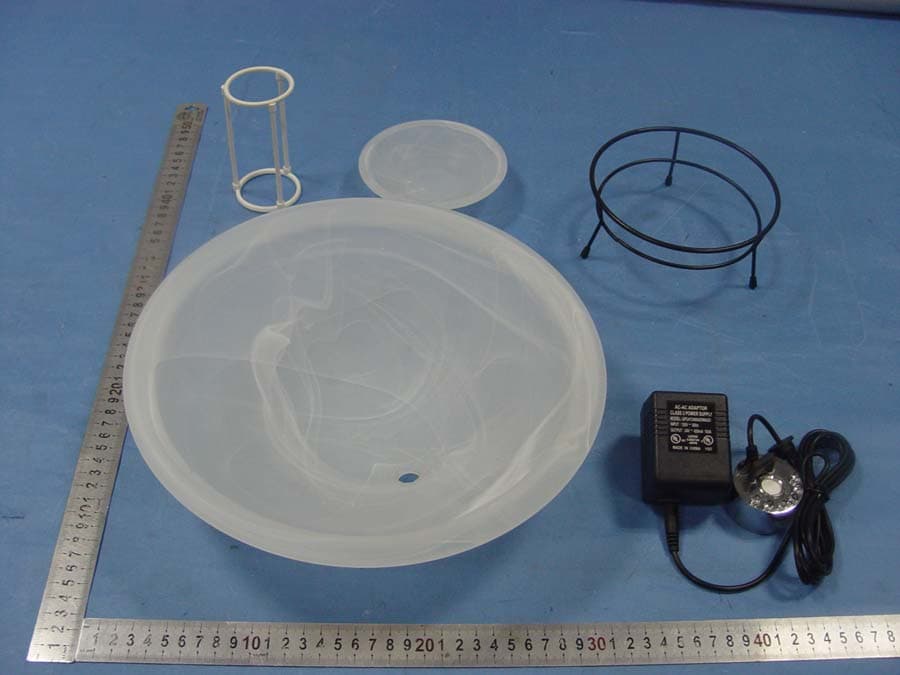

ULTRASONIC FOGGER INSTRUCTION Product Description: Mist fountain with metal stand Model name: HY-ACF-503B FCC ID: PKM-503B This product atomizes water to produce and water spray by ultrasonic ceramic disk at normal temperature,which can add humidity to room and produces negative ion to freshen air,if the production is used in artware,shuch as miniature garden or fountain etc,it will make a dramatic and artistic effect. Operation Specifications: 1. place the mist maker into a water container flatly,and pour clean water into the container until the water level is 20mm to 40mm above the ceramic disk. 2. connect the power cable leading from the mist maker to the transformaer,and plug the transformer into A/C power socket,the fogger starts to produce mist and water spay,at the same time the LED lights will open. Notes: 1. please don’t turn over the fogger after connecting the power supply,which will damage the fogger. 2. please don’t let the fogger work more than 10 hours per day. 3. please don’t touch the ceramic disk of fogger while it’s working. 4. using clean water is recommended,dirty water will affect the usage period. 5. please disconnect the power supply before moving or maintenance. 6. the ceramic disk is a consumable,the life time is approximately 2000 hours,if you notice a decrease in the amount of mist produced,please clecn the ceramic disk with cotton swab(don’t use any detergent) and keep the ceramic clean,if you still find less amount of mist produced after doing above process,please replace a new ceramic disk. 7. when you replace the ceramic,please disassemble and reinstall refer to exploded view iof fogger as the attachment,pay attention to keep the inside area of the unit cavity completely dry,and be sure to install ceramic disk with correct side(non-black loop side) facing up. Parameters of the fogger: Input voltage:AC 100-240V Output voltage:AC 24V Cable:1.9m Mist output:about 200ml/h Working temperature:+5-+45°C The best depth of water:2.5-3.5cm above the ceramic FCC STATEMENT 1.This device complies with Part 18 of the FCC Rules. (a) The interference potential of the device or system (b) Maintenance of the system (c) Simple measures that can be taken by the user to correct interference. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

DongGuan Sinoway Hardware Manufacture Co., Ltd. August 20, 2012 To: SIEMIC, INC. 775 Montague Expressway Milpitas , CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, ______ DongGuan Sinoway Hardware Manufacture Co., Ltd.___hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product Description: Mist fountain with metal stand Model name: HY-ACF-503B FCC ID: PKM-503B We affirm that between SIEMIC and __ DongGuan Sinoway Hardware Manufacture Co., Ltd.___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature: Client’s name / title: William Lee / General Engineer Contact information / address: Jingshan Industrial Zone, Chashan Town, Dong Guan City, Guangdong Province, China

SCS-F19: Confidentiality Request Letter Page 1 of 1 Rev 2.0 DongGuan Sinoway Hardware Manufacture Co., Ltd. August 20, 2012 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: PKM-503B We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Operational Description - Schematic The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Client’s signature: Client’s name / title: William Lee / General Engineer Contact information / address: Jingshan Industrial Zone, Chashan Town, Dong Guan City, Guangdong Province, China

FCC Certification label Sample Product Description: Mist fountain with metal stand Model name: HY-ACF-503B FCC ID: PKM-503B FCC ID: PKM-503B

Label Location Sample Product Description: Mist fountain with metal stand Model name: HY-ACF-503B FCC ID: PKM-503B Label location

Page 1 of 22 FCC ID: PKM-503B ACCURATE TECHNOLOGY CO., LTD Report No.:ATE20121710 FCC TEST REPORT for DongGuan Sinoway Hardware Manufacture Co., Ltd. Mist fountain with metal stand Model No: HY-ACF-503B FCC ID: PKM-503B Prepared for : DongGuan Sinoway Hardware Manufacture Co., Ltd. Address : Jingshan Industrial Zone, Chashan Town, Dong Guan City, Guangdong Province, China Prepared by : Accurate Technology Co., Ltd. Address : F1, Bldg. A&D, Changyuan New Material Port, Keyuan Rd., Science & Industry Park, Nanshan District, Shenzhen 518057, P.R. China Tel: +86-755-26503290 Fax: +86-755-26503396 Report Number : ATE20121710 Date of Test : July 26-27, 2012 Date of Report : August 14, 2012 Page 2 of 22 FCC ID: PKM-503B ACCURATE TECHNOLOGY CO., LTD Report No.:ATE20121710 TABLE OF CONTENTS Description Page Test Report 1. TEST RESULTS SUMMARY.........................................................................................4 2. GENERAL INFORMATION ...........................................................................................5 2.1. Description of Device (EUT)................................................................................................ 5 2.2. Accessory and Auxiliary Equipment .................................................................................... 5 2.3. Test Facility ......................................................................................................................... 6 2.4. Measurement Uncertainty ................................................................................................... 6 3. POWER LINE CONDUCTED MEASUREMENT............................................................7 3.1. Test Equipment ................................................................................................................... 7 3.2. Block Diagram of Test Setup .............................................................................................. 8 3.3. Power Line Conducted Emission Measurement Limits ....................................................... 8 3.4. Configuration of EUT on Measurement............................................................................... 8 3.5. Operating Condition of EUT ................................................................................................ 8 3.6. Test Procedure.................................................................................................................... 9 3.7. Power Line Conducted Emission Measurement Results .................................................. 10 4. RADIATED EMISSION MEASUREMENT...................................................................13 4.1. Test Equipment .................................................................................................................13 4.2. Block Diagram of Test Setup ............................................................................................ 14 4.3. Radiated Emission Limit.................................................................................................... 14 4.4. EUT Configuration on Measurement................................................................................. 15 4.5. Operating Condition of EUT .............................................................................................. 15 4.6. Test Procedure..................................................................................................................15 4.7. Radiated Emission Noise Measurement Result ................................................................ 16 Page 3 of 22 FCC ID: PKM-503B ACCURATE TECHNOLOGY CO., LTD Report No.:ATE20121710 TEST REPORT Applicant : DongGuan Sinoway Hardware Manufacture Co., Ltd. Manufacturer : DongGuan Sinoway Hardware Manufacture Co., Ltd. Product : Mist fountain with metal stand Model No. : HY-ACF-503B Measurement Procedure Used: FCC Rules and Regulations Part 18 ANSI C63.4: 2009 The device described above is tested by Accurate Technology Co., Ltd. To determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 18 ultrasonic equipment limits both radiated and conducted emissions. The measurement results are contained in this test report and Accurate Technology Co., Ltd. Is assumed full responsibility for the accuracy and completeness of these measurements. Also this report shows that the Equipment Under Test (EUT) is to be technically compliant with the FCC official limits. This report applies to above tested sample only. This report shall not be reproduced in part without written approval of Accurate Technology Co., Ltd. Date of Test : July 26-27, 2012 Prepared by : (Kitty Chen, Engineer) Approved & Authorized Signer : (Sean Liu, Manager) Page 4 of 22 FCC ID: PKM-503B ACCURATE TECHNOLOGY CO., LTD Report No.:ATE20121710 1. TEST RESULTS SUMMARY Test Items Test Standard Test Results Power Line Conducted Emission FCC Part 18 Pass Radiated Emission FCC Part 18 Pass Page 5 of 22 FCC ID: PKM-503B ACCURATE TECHNOLOGY CO., LTD Report No.:ATE20121710 2. GENERAL INFORMATION 2.1.Description of Device (EUT) Product : Mist fountain with metal stand Model No. : HY-ACF-503B Rating : AC 24V (Adaptor input) Adaptor : Model: GPU412400420WAOO Input: AC 120V/60Hz Output: AC 24V 420mA 10VA The Highest Operation Frequency of EUT : 1.75MHz Applicant : DongGuan Sinoway Hardware Manufacture Co., Ltd. Address : Jingshan Industrial Zone, Chashan Town, Dong Guan City, Guangdong Province, China Manufacturer : DongGuan Sinoway Hardware Manufacture Co., Ltd. Address : Jingshan Industrial Zone, Chashan Town, Dong Guan City, Guangdong Province, China Date of sample received : July 25, 2012 Date of Test : July 26-27, 2012 2.2.Accessory and Auxiliary Equipment n.a. Page 6 of 22 FCC ID: PKM-503B ACCURATE TECHNOLOGY CO., LTD Report No.:ATE20121710 2.3.Test Facility EMC Lab Accredited by TUV Rheinland Shenzhen : Listed by FCC The Registration Number is 253065 The Registration Number is 752051 …
