PMI-SIBTSSHARPER IMAGE BT SPEAKER

Federal Communications Commission (FCC) Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generate, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. RF exposure warning This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment must not be collocated or operating in conjunction with any other antenna or transmitter.

Southern Telecom 14C 53rd Street, Brooklyn, NY 11232 --------------------------------------------------------------------------------------------------------------------- Date: March 4, 2015 Federal Communications Commission Authorization and Evaluation Division FCC ID: PMI-SIBTS Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: 1. Block Diagram 2. Schematics 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Southern Telecom Victor Kung, Director

Southern Telecom 14C 53rd Street, Brooklyn, NY 11232 ----------------------------------------------------------------------------------------------------------------------------------- Declaration of Authorization We Name: Southern Telecom Address: 14C 53rd Street, Brooklyn, NY 11232 Manufacturer: Creative Game Accessories Co., LTD Address: 2/F, Block A , No.1 Industrial Park, Phoenix No.3 Industrial Zone, Fuyong Street, Bao'an District, Shenzhen, China Declare that: Name Representative of agent: Wu Jian Agent Company name: MRT Technology (Suzhou) Co., Ltd Address: D8 Building, Youxin Industrial Park, No.2 Tian'edang Rd., Wuzhong Economic Development Zone, Suzhou, China is authorized to apply for Certification of the following product(s): Product description:SHARPER IMAGE BT SPEAKER FCC ID:PMI-SIBTS Model:SBT614BK Brand:N/A on our behalf. Victor Kung, Director Date: 2015-03-04

Southern Telecom 14C 53rd Street, Brooklyn, NY 11232 --------------------------------------------------------------------------------------------------------------------- Date: March 24, 2015 Federal Communications Commission Authorization and Evaluation Division FCC ID: PMI-SIBTS USB function explanation Part 15B testing is not necessary for this device because the USB port is for charge only, no data transmission function. End users are not able to connect to PC for data transmission via USB port. Due to above reasons, this device didn’t perform Part 15B testing, and FCC logo shouldn’t be on the label. Your understanding will be highly appreciated. Sincerely, Southern Telecom Signature: Victor Kung, Manager

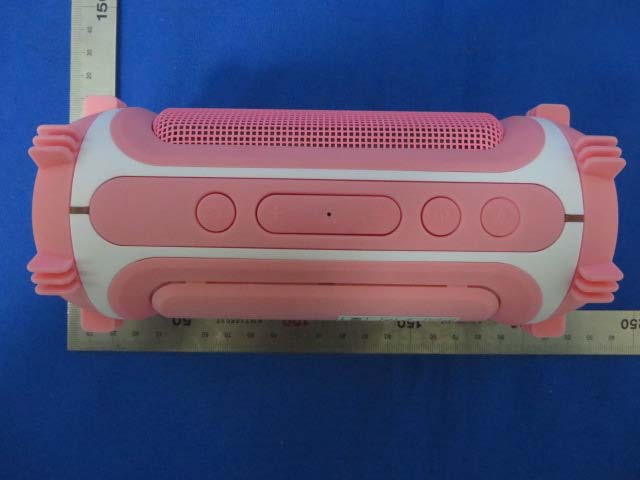

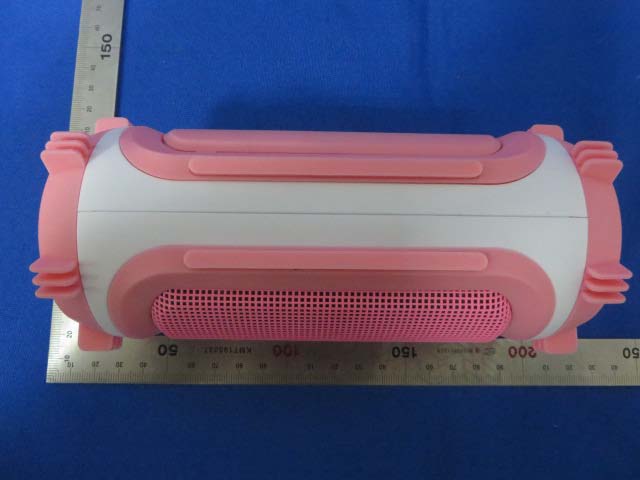

External Photo (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo

Label Label Location FCC ID: PMI-SIBTS

Internal Photo (1) EUT Photo (2) EUT Photo (3) EUT Photo (4) EUT Photo (5) EUT Photo (6) EUT Photo (7) EUT Photo (8) EUT Photo (9) EUT Photo (10) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 1503RSU00202 Phone: +86-512-66308358 Report Version: V01 Fax: +86-512-66308368 Issue Date: 03-20-2015 Web: www.mrt-cert.com FCC ID: PMI-SIBTS Page Number: 1 of 5 RF Exposure Evaluation Declaration FCC ID: PMI-SIBTS APPLICANT: Southern Telecom Application Type: Certification Product: SHARPER IMAGE BT SPEAKER Model No.: SBT614BK FCC Classification: FCC Part 15 Spread Spectrum Transmitter(DSS) Test Date: Mar. 17 ~ 20, 2015 Reviewed By : ( Robin Wu ) Approved By : ( Marlin Chen ) The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1503RSU00202 FCC ID: PMI-SIBTS Page Number: 2 of 5 Revision History Report No. Version Description Issue Date 1503RSU00202 Rev. 01 Initial report 03-20-2015 Report No.: 1503RSU00202 FCC ID: PMI-SIBTS Page Number: 3 of 5 1. RF Exposure Evaluation 1.1. Limits SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The equation and threshold in Note 1 must be applied to determine SAR test exclusion. MHz 5 10 15 20 25 mm 150 39 77 116 155 194 SAR Test Exclusion Threshold (mW) 300 27 55 82 110 137 450 22 45 67 89 112 835 16 33 49 66 82 900 16 32 47 63 79 1500 12 24 37 49 61 1900 11 22 33 44 54 2450 10 19 29 38 48 3600 8 16 24 32 40 5200 7 13 20 26 33 5400 6 13 19 26 32 5800 6 12 19 25 31 MHz 30 35 40 45 50 mm 150 232 271 310 349 387 SAR Test Exclusion Threshold (mW) 300 164 192 219 246 274 450 134 157 179 201 224 835 98 115 131 148 164 900 95 111 126 142 158 1500 73 86 98 110 122 1900 65 76 87 98 109 2450 57 67 77 86 96 3600 47 55 63 71 79 5200 39 46 53 59 66 5400 39 45 52 58 65 5800 37 44 50 56 62 Report No.: 1503RSU00202 FCC ID: PMI-SIBTS Page Number: 4 of 5 Note: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  The result is rounded to one decimal place for comparison  3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°C and 78% RH. Report No.: 1503RSU00202 FCC ID: PMI-SIBTS Page Number: 5 of 5 1.3. Test Result of RF Exposure Evaluation Product SHARPER IMAGE BT SPEAKER Test Item RF Exposure Evaluation Antenna Gain: The maximum gain measured in fully anechoic chamber is 0dBi for 2.4GHz in logarithm scale. Output Power into Antenna: Test Mode Frequency Band (MHz) Maximum output power to antenna (mW) SAR Test Exclusion Threshold (mW) BT v2.1 + EDR 2402 ~ 2480 3.820 10 Per FCC KDB 447498 D01v05r02, the SAR exclusion threshold for distances<50mm is defined by the following equation: Based on the maximum conducted power of Bluetooth and the antenna to use separation distance, Bluetooth SAR was not required; [(3.820mW/5)* √2.480] = 1.203 < 3.0 Note: When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. The End

MRT Technology (Suzhou) Co., Ltd Report No.: 1503RSU00201 Phone: +86-512-66308358 Report Version: V01 Fax: +86-512-66308368 Issue Date: 03-20-2015 Web: www.mrt-cert.com FCC ID: PMI-SIBTS Page Number: 1 of 72 FCC ID: PMI-SIBTS APPLICANT: Southern Telecom Application Type: Certification Product: SHARPER IMAGE BT SPEAKER Model No.: SBT614BK FCC Classification: FCC Part 15 Spread Spectrum Transmitter(DSS) FCC Rule Part(s): Part 15.247 Test Procedure(s): ANSI C63.10-2009, DA 00-705 Test Date: Mar. 17 ~ 20, 2015 MEASUREMENT REPORT FCC PART 15.247 Bluetooth v2.1 + EDR Reviewed By : ( Robin Wu ) Approved By : ( Marlin Chen ) The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.10-2009 and DA 00-705. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 1503RSU00201 FCC ID: PMI-SIBTS Page Number: 2 of 72 Revision History Report No. Version Description Issue Date 1503RSU00201 Rev. 01 Initial report 03-20-2015 Report No.: 1503RSU00201 FCC ID: PMI-SIBTS Page Number: 3 of 72 CONTENTS Description Page 1. INTRODUCTION ..................................................................................................................... 7 1.1. Scope ........................................................................................................................... 7 1.2. MRT Test Location ....................................................................................................... 7 2. PRODUCT INFORMATION ..................................................................................................... 8 2.1. Equipment Description .................................................................................................. 8 2.2. Operation Frequency / Channel List ............................................................................. 9 2.3. Pseudorandom Frequency Hopping Sequence ........................................................... 10 2.4. Device Capabilities ..................................................................................................... 10 2.5. Test Configuration ...................................................................................................... 10 2.6. Description of Support Units ....................................................................................... 10 2.7. Test Software .............................................................................................................. 11 2.8. EMI Suppression Device(s)/Modifications .................................................................... 11 2.9. Labeling Requirements ................................................................................................ 11 3. DESCRIPTION of TEST ........................................................................................................ 12 3.1. Evaluation Procedure ................................................................................................. 12 3.2. AC Line Conducted Emissions ................................................................................... 12 3.3. Radiated Emissions .................................................................................................... 13 4. ANTENNA REQUIREMENTS ................................................................................................ 14 5. TEST EQUIPMENT CALIBRATION DATE ............................................................................ 15 6. MEASUREMENT UNCERTAINTY ......................................................................................... 16 7. TEST RESULT ...................................................................................................................... 17 7.1. Summary .................................................................................................................... 17 7.2. 20dB Bandwidth Measurement ................................................................................... 18 7.2.1. Test Limit ................................................................................................................ 18 7.2.2. Te s t Procedure used ............................................................................................... 18 7.2.3. Te s t Setting ............................................................................................................. 18 7.2.4. Te s t Setup ............................................................................................................... 19 7.2.5. Te s t Result .............................................................................................................. 20 7.3. Output Power Measurement ....................................................................................... 23 7.3.1. Te s t Limit ................................................................................................................ 23 7.3.2. Te s t Procedure Used .............................................................................................. 23 7.3.3. Te s t Setting ............................................................................................................. 23 7.3.4. Te s t Setup ............................................................................................................... 24 Report No.: 1503RSU00201 FCC ID: PMI-SIBTS Page Number: 4 of 72 7.3.5. Te s t Result .............................................................................................................. 25 7.4. Carrier Frequency Separation Measurement .............................................................. 28 7.4.1. Te s t Limit ..................................................................................…

Text truncated - open the document above for the full version.

1 of 3 Test Setup Photo Description: Front view of Conducted Emission Test Setup Description: Back view of Conducted Emission Test Setup Description: Radiated Emission Test Setup for 9kHz ~ 30MHz Description: Radiated Emission Test Setup for 30MHz ~ 1GHz Description: Radiated Emission Test Setup for 1GHz ~ 18GHz Description: Radiated Emission Test Setup for 18GHz ~ 40GHz
