PN3Y72140-1Low Power Transmitter

Radiometrics Midwest Corporation (815) 293-0772 – [email protected] Users Manual Equipment Tested (Company, Model)FCC ID: DCSI, Y72140-1PN3Y72140-1 Instructions for Transmitters 1. Mount RF transmitter module on side of structure with the cable going out the bottom of the unit. The battery should already be connected from the factory. 2. Connect dial encoder. 3. The RF module will “wake up” and detect the dial encoder within one hour and start to transmit information once an hour thereafter. 4. Each transmission will take approx 0.48 seconds. NOTE: The RF transmitter module will not start transmitting data until the dial encoder is detected. NOTE: The RF module will transmit an internally generated dial encoder number once an hour as soon as the battery is connected. NOTE: Changes not expressly approved by DCSI could void the user's authority to operate this equipment.

Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] Block Diagram Equipment Tested (Company, Model)FCC ID: DCSI, Y72140-1PN3Y72140-1

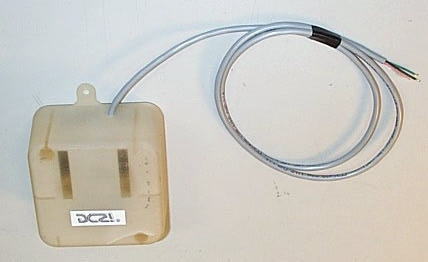

Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] External EUT Photographs Equipment Tested (Company, Model)FCC ID: DCSI, Y72140-1PN3Y72140-1 Top View of EUT Bottom View of EUT

Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] ID Label/Location Equipment Tested (Company, Model) FCC ID: DCSI, Y72140-1PN3Y72140-1 • Material Specification: o Face Sheet: Gloss white polyester 0.002” thick o Text to be black o Adhesive: acrylic, pressure sensitive o Liner: silicon release 0.0026” thick (nom) o Temperature range: -40 degree F to +250 degree F o Label Stock: Face out • Environmental Specification: o Face sheet, Acrylic adhesive, and ink material shall be resistant to degradation from ultraviolet light and humidity as specified in UL 969 (Marking and Labeling Systems) outdoor exposure test • Size to be 2.00x1.25 inches not to Scale View of EUT showing Label Placement

Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] Internal EUT Photographs Equipment Tested (Company, Model)FCC ID: DCSI, Y72140-1PN3Y72140-1 Foil side of PC Board Component Side of PC Board Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] Component Side of PC Board Internal Components

Radiometrics Midwest Corporation (815) 293-0772 – [email protected] OPERATIONAL DESCRIPTION Equipment Tested (Company, Model)FCC ID: DCSI, Y72140-1PN3Y72140-1 1 OPERATIONAL DESCRIPTION: Y72140-1 Where Used: The device will be placed in residential areas on the sides of houses/buildings. Connection: Once the unit is connected to the service (dial encoder or pulser), the transmissions will begin. Frequency of Transmitter: 916.5MHz Frequency of Transmissions: The transmitter sends a packet of information once every hour. Transmission Length: Each packet is approximately 0.48 seconds. General: The transmitter unit reads the dial encoder or pulser from a residential gas or water meter. Then transmits the information to the receiver for billing. The service the customer is subscribing is: water and gas utility service meters. The transmitted dial encoder reading or pulser count is used by the utility to bill customers. The device is battery operated. It does not have provisions to be connected to a battery charger.

Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] Parts List Equipment Tested (Company, Model)FCC ID: DCSI, Y72140-1PN3Y72140-1 ItemReferenceQtyPart NumberDCSI P.N.ManufactureDescription 1U11PIC16LF870-I/SOMicrochipIC, 8 Bit Microcontroller, 28 pin, SMT 2U21REG711EA-5TI (Bur-Brown)IC, Charge Pump, SMT 3U30TC54VC2602ECBXXX220-028TELCOM SEMICONDUCTOR IC, Reset Circuit, 2.6V 4Y11CSTC4.00MGA-TC235-054MURATA-ERIEIC, 4MHz Ceramic Resonator 5Y21TF-30 Series, T3279BTekmarkIC, 32.768KHz Tuning Fork Crystal 6D2-D70BAV99L231-045MOTOROLADiode, Dual 7FB1-FB402743007111755-006FAIR-RITE PRODUCTSFerrite Bead Axial 8D10197-156LumexLED, Red, 0805 9R8, R11 - R1439C08052A1002JL008-505PHILIPSResistor, 10K, 1/10W, 5%, 0805 10R2009C08052A1001JL008-504PHILIPSResistor, 1K, 1/10W, 5%, 0805 11R28, R5, R2, R719C08052A4701JL008-521PHILIPSResistor, 4.7K, 1/10W, 5%, 0805 12R1, R409C08052A27J0JL008-520PHILIPSResistor, 27, 1/10W, 5%, 0805 13R3, R609C08052A1962FK008-620PHILIPSResistor, 19.6K, 1/10W, 5%, 0805 14J21103186-5252-705AmpHeader, 5x2 15P1, P20931-FST/03-G05257-036WecoHeader, 3 Position 16C7108053A473KAT050MAVXCap, 0.047uF, 25V, 10%, 0805 17C610805YC224KAT2A058-237AVXCap, 0.22uF, 16V, 10%, 0805 18C11LLA6.3VB153M18X35LLUnited Chemi-ComCap, 15000uF, 6.5V 19C2-C5008055A102JAT_A058-244AVXCap, 1000pF, 50V, 5%, 0805 20C8, C1120805YC103KAT2A058-223AVXCap, 0.01uF, 16V, 10%, 0805 21BT11TL-5920TadiranBattery, Lithium, Inorganic, 3.6V, Size C 22U41TX6000RFMIC, Transmitter, 900MHz 23C9, C10208055A150KAT_AAVXCap, 15pF, 50V, 5%, 0805 24R1009C08052A5100JL008-503PHILIPSResistor, 510 Ohm, 1/10W, 5%, 0805 25L210805 HT-10NCoilCraftInductor, 10nH, 0805 LWN21A10NJ04MURATA-ERIE 0805LC-010N0JSMD 26L110805CS-101XKBCCoilCraftInductor, 100nH, 0805 0805HS-101TKBCCoilCraft 0805CS-101EKPSDelta 27Q11MMBT2222Diodes IncTransistor, NPN, SOT-23 28R241Resistor, 47K, 1/10W, 5%, 0603 Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] ItemReferenceQtyPart NumberDCSI P.N.ManufactureDescription 29R161Resistor, 8.06K, 1/10W, 5%, 0603 30R171Resistor, 470K, 1/10W, 5%, 0603 31R18, R192Resistor, 330K, 1/10W, 5%, 0603 32R211Resistor, 100K, 1/10W, 5%, 0603 33R221Resistor, 3.3K, 1/10W, 5%, 0603 34R231Resistor, 270K, 1/10W, 5%, 0603 35R150Resistor, 0, 1/10W, 1%, 0603 36C121Cap, 27pF, 0603 37C131Cap, 0.12uF, 0603 38C141Cap, 100pF, 0603 39C151Cap, 10uF, 6V, Tant, Case Size A 40FB51LI0603G221R-00StewardFB, 0603 41Antenna, E11#14 AWG wire 42PCB1Printed Circuit Board, ESTIMATED COST! 43Enclosure1Enclosure for the transmitter, Plus Hardware 44P1, P22930-FL/03-CN-G05257-037WecoConnector, 3 Position, Plugs into a 3 pin Header 45R919C08052A12R1FK008-627PhilipsResistor, 12.1, 1/10W, 1%, 0805

Radiometrics Midwest Corporation (815) 293-0772 – www.radiomet.com Page 1 of 9 Electromagnetic Compatibility Test Report Tests Performed on a Distribution Control Systems, Inc. 916.5 MHz Transmitter, Model Y72140-1 FCC ID: PN3Y72140-1 FCC Part 15 CFR Title 47: 1999 This report concerns: Original Grant Equipment type: 916.5 MHz Low-Power, Transmitter Radiometrics Document RP-4550 Tests Performed For:Test Facility: Distribution Control Systems Inc. 5657 Campus Parkway Hazelwood, MO 63042 Phone: (314) 895-6400 Fax: (314) 895-6545 Radiometrics Midwest Corporation 12 East Devonwood Romeoville, IL 60446 PHONE: (815) 293-0772 FAX: (815) 293-0820 Test Report Written ByTest Report Approved By Joseph Strzelecki Senior EMC Engineer NARTE EMC-000877-NE Chris W. Carlson Director of Engineering NARTE EMC-000921-NE Test Date(s): (Month-Day-Year) 5/30/2001 RP-4550-FCC Revisions: Rev.Issue DateAffected PagesRevised ByAuthorized Signature for Revision 0June 12, 2001 1June 22, 2001AllJoseph Strzelecki 2June 23, 2001AllJoseph Strzelecki RADIOMETRICS MIDWEST CORPORATION - EMC Test Report Equipment Tested (Company, Model, Product Name):Document No.:Page: DCSI, Y72140-1, Transmitter RP-4550-FCC Rev. 0 2 of 9 Table of Contents 1 TEST SUMMARY AND RESULTS.........................................................................................................3 2 EQUIPMENT UNDER TEST (EUT) DETAILS.......................................................................................3 2.1 EUT Description..............................................................................................................................3 2.1.1 Duty Cycle of Transmitter.........................................................................................................3 2.2 Tested System Configuration..........................................................................................................3 2.3 Operating Conditions of EUT...........................................................................................................4 2.4 EUT Modifications............................................................................................................................4 3 GENERAL INFORMATION.....................................................................................................................4 4 TEST SPECIFICATIONS AND RELATED DOCUMENTS....................................................................4 5 RADIOMETRICS’ TEST FACILITIES.....................................................................................................4 6 DEVIATIONS AND EXCLUSIONS FROM THE TEST SPECIFICATIONS............................................5 7 TEST PROCEDURES...........................................................................................................................5 7.1 RF Emissions Measurement Procedures.......................................................................................5 7.1.1 Radiated Emission Measurement Procedures........................................................................5 8 CERTIFICATION....................................................................................................................................6 9 TEST EQUIPMENT TABLE...................................................................................................................6 10 TEST SETUP DOCUMENTATION......................................................................................................6 Figure 1. Drawing of Emissions Test Setups....................................................................................7 11 DETAILED TEST RESULTS...............................................................................................................8 11.1 Radiated Emissions Test Results.................................................................................................8 11.2 Occupied Bandwidth Data.............................................................................................................9 Figure 2. Occupied Bandwidth Plot...................................................................................................9 This report must not be reproduced (except in full) without the written approval of Radiometrics Midwest Corporation. The Results in this report apply only to the equipment tested. RADIOMETRICS MIDWEST CORPORATION - EMC Test Report Equipment Tested (Company, Model, Product Name):Document No.:Page: DCSI, Y72140-1, Transmitter RP-4550-FCC Rev. 0 3 of 9 1 TEST SUMMARY AND RESULTS The EUT (Equipment Under Test) is a 916.5 MHz Transmitter, Model Y72140-1, manufactured by Distribution Control Systems, Inc. The detailed test results are presented in a separate section. The following is a summary of the test results. Emissions Tests Results Environmental PhenomenaFrequency RangeBasic StandardTest Result RF Radiated Emissions30-9200 MHzFCC Part 15.249Pass 2 EQUIPMENT UNDER TEST (EUT) DETAILS 2.1 EUT Description The EUT is a 916.5 MHz Transmitter, Model Y72140-1, manufactured by Distribution Control Systems, Inc. The EUT was in good working condition during the test, with no known defects. In order to fully test the EUT, the device was modified by the manufacturer to provide a transmission once a second instead of once an hour, as soon as it is powered. The EUT transmission is otherwise not changed. 2.1.1 Duty Cycle of Transmitter Frequency of Transmissions: The transmitter sends a packet of information once every hour. Transmission Length: Each packet is approximately 0.48 seconds. Baud Rate: Each packet is sent at 2400 bps. Duty Cycle of Each Packet: Each packet is Manchester encoded. Which means every “1” is encoded to “10” and every “0” is encoded to “01”. Therefore, the duty cycle of each packet is 50/50. Conclusion: A 50% duty cycle. 50% = 6 dB Peak to Average factor 2.2 Tested System Configuration The system was configured for testing in a typical fashion. The EUT was placed on an 80-cm high, nonconductive te…

Text truncated - open the document above for the full version.

Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] Test Setup Photograph Equipment Tested (Company, Model)FCC ID: DCSI, Y72140-1PN3Y72140-1 Photograph of Radiated Emissions Test Setup Since the EUT is wall mounted, it was placed in an upright configuration during the tests mounted on a nonconductive stand.
