PNL84070704Digital Video Camera

From: Mike Kuo Sent: Friday, July 13, 2001 6:48 PM To: '[email protected]' Subject: RE: HOME LUCK COMPANY, FCC ID:PNL84070704, AN01T1355 -----Original Message----- From: CERTADM Sent: Friday, July 13, 2001 6:47 PM To: '[email protected]' Cc: Mike Kuo Subject: HOME LUCK COMPANY, FCC ID:PNL84070704, AN01T1355 Notice_content ------------- Question #1: As indicated in product specification sheet. EUT is capable of operating between 2416 - 2464MHz. In accordance to Section 15.31(m) of FCC rules, Frequency opeates over the 10 MHz in range, three fundemental frequencies ( Top, Mid and Bottom ) needs to be investigated. In the test report, only one fundemental frequency was investigated ( 2414.63MHz ) but which is outside the product specification. Please explain why 2414.63MHz was used and provide additional test data per 15.31(m) requirements. Question #2: Since this device can be used as hand-held device, in accordance to ANSI C63.4 section 13.1.4.1, three orthogonal axes test configuration needs to be investigated. There is no description in the test report to indicate this procedure has been followed during the preliminary tests. Please explain. Question #3: Please provide functional block diagram and make sure the local osc. Values are indicated on the block. Best Regards Mike Kuo / TCB Certifier The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

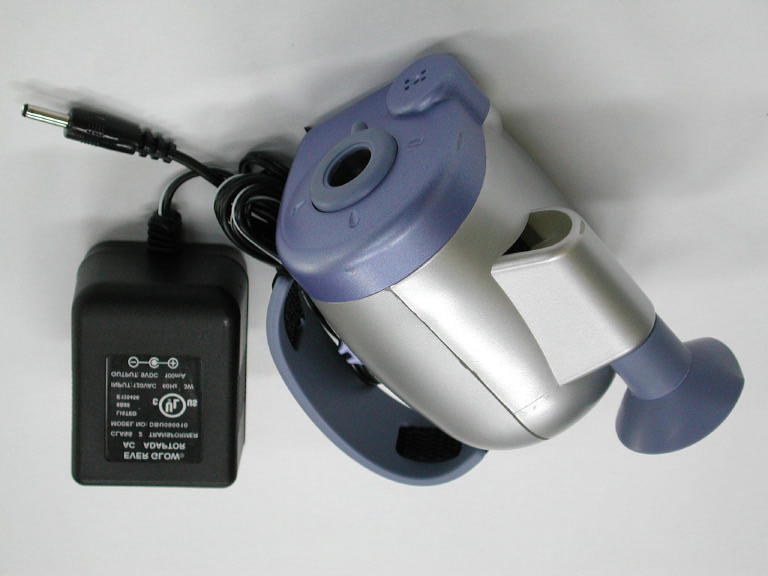

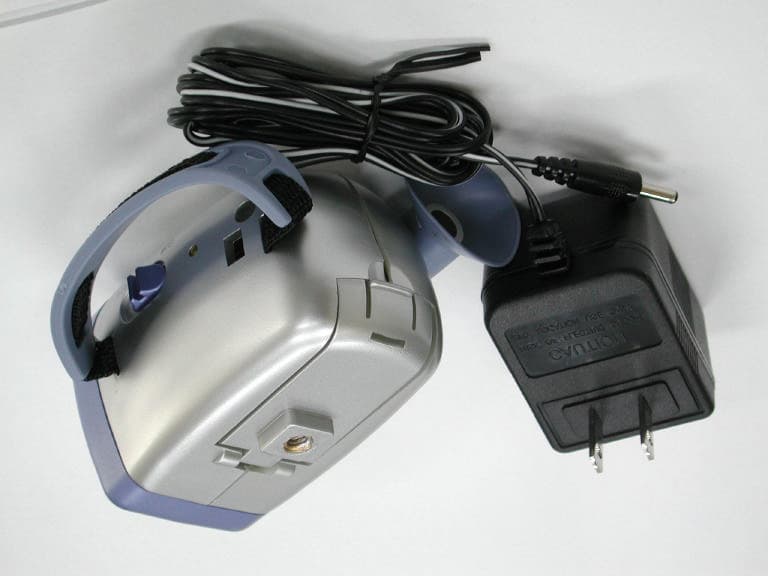

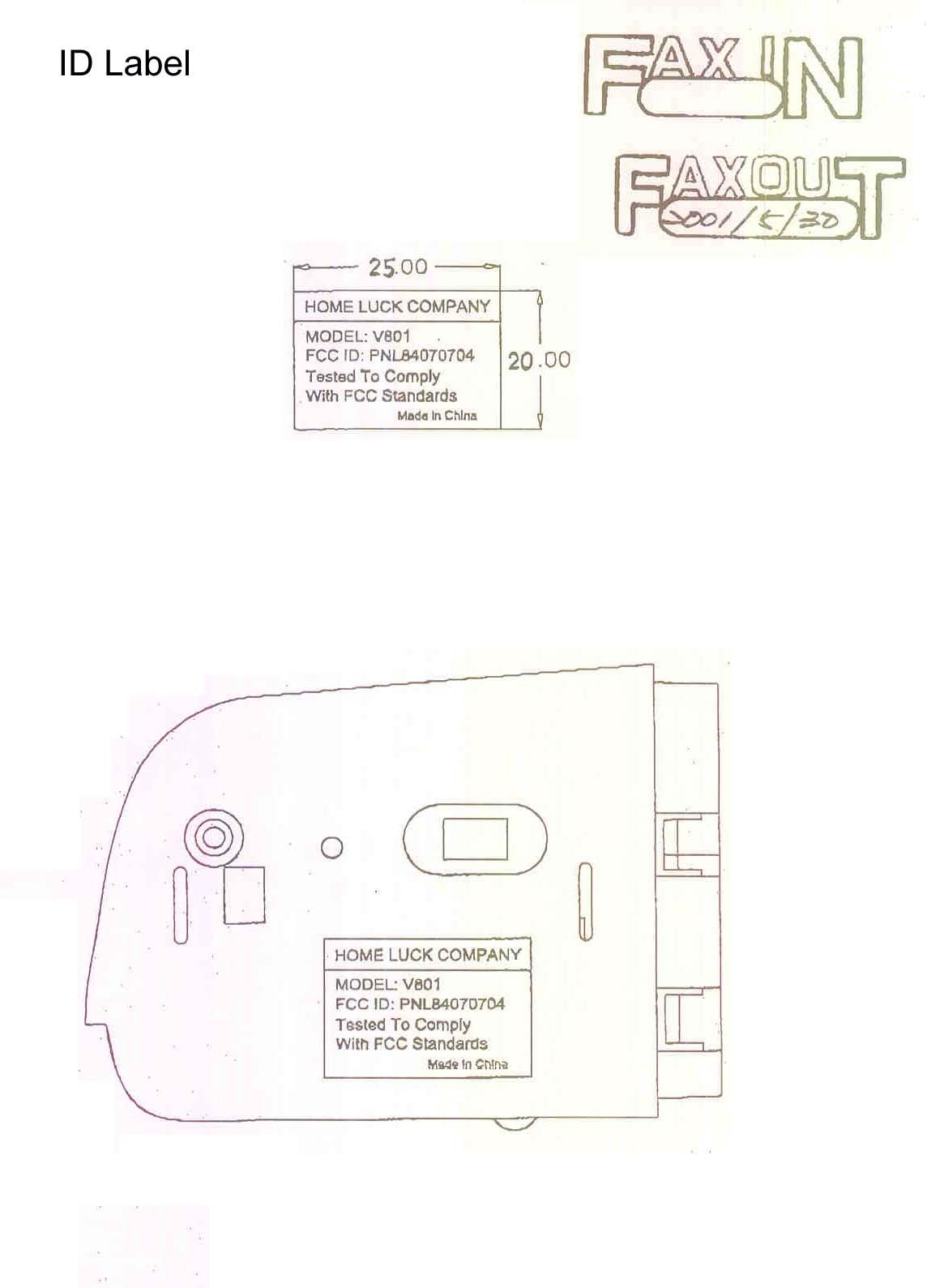

FCC ID.:PNL84070704 Rev. No 1.0 FCC Part 15 Subpart C EMI TEST REPORT of E.U.T. : Digital Video Camera FCC ID. : PNL84070704 MODEL : V801 Working Frequency : 2400-2483.5MHz for APPLICANT: Home Luck Company ADDRESS: 11-2Th Fl., No. 65, Sung The Road, Taipei 110, Taiwan, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 8 LANE 29, WENMIMG ROAD, LOSHAN TSUN, KWEISHAN HSIANG, TAOYUAN, TAIWAN, R.O.C. Tel:(03)3276170-3276174 Fax:(03)3276188 Report Number : ET90S-05-005-01 ETC Report No.:ET90S-05-005-01FCC ID.: PNL84070704 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant: Home Luck Company 11-2Th Fl., No. 65, Sung The Road, Taipei 110, Taiwan,R.O.C. Manufacturer: Front Winner Co., Ltd. He Dong Industrial Area, Qin Xia Mananging District, Chang An Town, Dong Guan City, Guang Dong, China Description of EUT: a) Type of EUT: Digital Video Camera b) Trade Name: HSL c) Model No.: V801 d) FCC ID: PNL84070704 e) Working Frequency: 2400-2483.5MHz f) Power Supply: Adapter I/P AC 120V/60Hz, O/P DC 9V, 100mA Regulation Applied: FCC Rules and Regulations Part 15 Subpart C (1996) I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note : 1. The results of the testing report relate only to the items tested. 2. The testing report shall not be reproduced except in full, without the written approval of ETC. Test Date : Aug. 08, 2001 Test Engineer : Approve & Authorized Signer : Win-Po Tsai, Manager, NVLAP Signatory EMC Dept. I of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:ET90S-05-005-01FCC ID.: PNL84070704 Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION............................................................................................................................................................1 1.1 PRODUCT DESCRIPTION...................................................................................................................................................................1 1.2 CHARACTERISTICS OF DEVICE:.......................................................................................................................................................1 1.3 TEST METHODOLOGY......................................................................................................................................................................1 1.4 TEST FACILITY..................................................................................................................................................................................1 2. DEFINITION AND LIMITS..............................................................................................................................................................2 2.1 DEFINITION........................................................................................................................................................................................2 2.2 RESTRICTED BANDS OF OPERATION.............................................................................................................................................2 2.3 LIMITATION.......................................................................................................................................................................................2 2.4 LABELING REQUIREMENT...............................................................................................................................................................4 2.5 USER INFORMATION.........................................................................................................................................................................4 3. RADIATED EMISSION MEASUREMENT....................................................................................................................................5 3.1 APPLICABLE STANDARD.................................................................................................................................................................5 3.2 MEASUREMENT PROCEDURE..........................................................................................................................................................5 3.3 TEST DATA.........................................................................................................................................................................................7 3.4 FIELD STRENGTH CALCULATION................................................................................................................................................10 3.5 RADIATED TEST EQUIPMENT.......................................................................................................................................................10 3.6 MEASURING INSTRUMENT SETUP...............................................................................................................................................11 3.7 RADIATED MEASUREMENT PHOTOS...........................................................................................................................................11 4. CONDUCTED EMISSION MEASUREMENT.............................................................................................................................12 4.1 APPLICABLE STANDARD...............................................................................................................................................................12 4.2 MEASUREMENT PROCEDURE........................................................................................................................................................12 4.3 CONDUCTED EMISSION DATA.....................................................................................................................................................…

Text truncated - open the document above for the full version.

ETC Report No.:E90S-05-005-01Page A1 of A3 FCC ID.: PNL84070704 Rev. No 1.0 Photos of Radiation Measuring Setup (X-Y axes) RE01 RE02 ETC Report No.:E90S-05-005-01Page A2 of A3 FCC ID.: PNL84070704 Rev. No 1.0 Photos of Radiation Measuring Setup (X-Z axes) RE03 RE04 ETC Report No.:E90S-05-005-01Page A3 of A3 FCC ID.: PNL84070704 Rev. No 1.0 Photos of Conduction Measuring Setup
