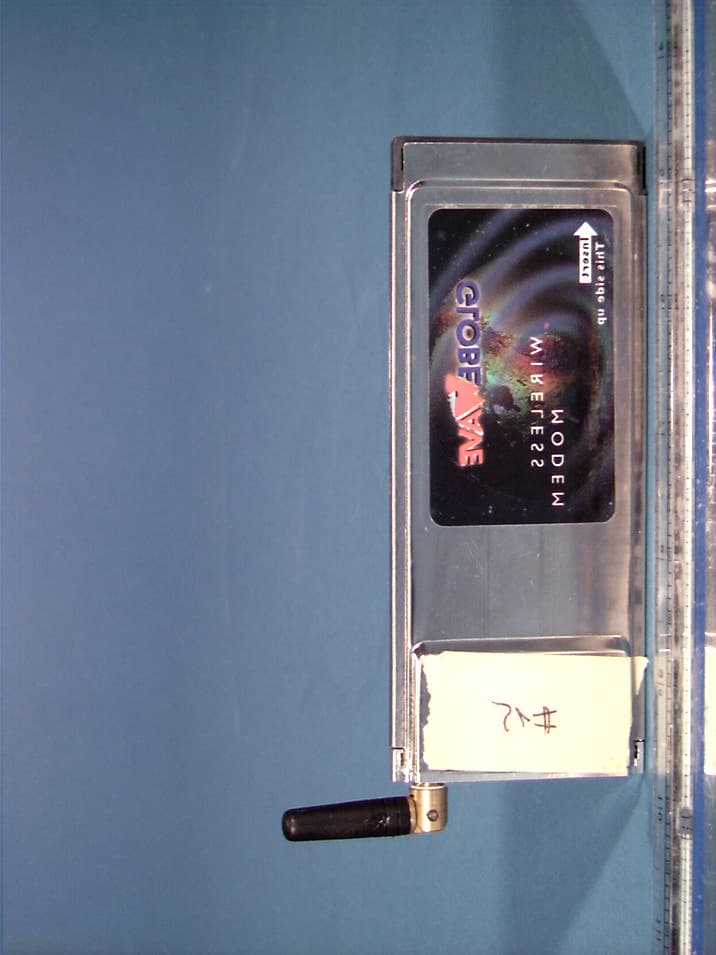

PNN-CELL5000-3CDMA Wireless Modem PC Card (PCMCIA)

Important Notice Cell Data LTD. makes no representation or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose. Further Cell Data™ reserves the right to revise this documentation and to make changes in the contents hereof without obligation of Cell Data to notify any person of such revision changes. Copyright © Cell Data LTD. 2001 All Rights Reserved GlobeWave wireless modem is a trademark of Cell Data LTD, Windows is a trade mark of Microsoft Corporation, TX-CEL is a trademark of Celeritas, AT is a trademark of Hays Microcomputer Products, EarSet is a trademark of Jabra and all other trade marks are owned by their respective companies. For more information about RF exposure, please visit the FCC website at www.fcc.gov FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Operating Requirements This device was tested in a notebook computer with the significant source of emissions (antenna) kept 2.0 cm. from the body. Please maintain a minimum of 2.0 cm separation distance between the user’s body and the device to comply with FCC RF exposure requirements. WARNING! Read this information before using your phone b Table of Contents Introducing the “ CDMA wireless modem ” ....................................2 P RODUCT F EATURE S UMMARY :...................................................................... 3 Important Safety Information.........................................................4 Getting Started - Setting Up the CDMA wireless modem ™ PC Card................................................................................................5 Requirements: ............................................................................................ 5 What is in the package:.............................................................................. 5 Optional :................................................................................................... 5 I NSTALLING THE “ CDMA WIRELESS MODEM ” H ARDWARE AND D RIVERS ...... 6 Installing the “ CDMA wireless modem ” Windows 98/ME Drivers............ 6 Installing Your “ CDMA wireless modem ” Windows NT Drivers ............... 8 L OADING THE “ CDMA WIRELESS MODEM ” U SER S OFTWARE : ..................... 14 Using Windows 98/ME and Windows NT: ............................................... 14 R UNNING AND U SING D IALER ....................................................................... 19 Task Bar Icons ......................................................................................... 21 Using the Dialer ...........................................................................22 M AKING A C ALL ........................................................................................... 22 A NSWERING AN I NCOMING C ALL .................................................................. 22 S ETTING THE C OMMUNICATION O PTIONS ...................................................... 22 S ETTING THE D IALER O PTIONS ..................................................................... 24 S ETTING THE A UDIO O PTIONS ....................................................................... 25 Important Operational Information ..............................................26 A UTO -M ODE S WITCHING C APABILITY : ......................................................... 26 C ELLULAR R ECEPTION :................................................................................. 27 Cellular Data Connections with Dial-Up Networking ..........28 S ETTING U P D IAL -U P N ETWORKING FOR C ELLULAR D ATA C ONNECTIONS :.. 29 Sending Faxes with Your “ CDMA wireless modem ” ..................30 Sending a Cellular Fax Using your “ CDMA wireless modem ” :.............. 30 Cellular Voice Calls:....................................................................31 M AKING A VOICE C ALL ................................................................................. 31 U SING AT C OMMANDS TO D IAL ................................................................... 31 c Limited One-Year Warranty ........................................................32 APPENDIX A: FDA Consumer Update ......................................33 2 Introducing the “CDMA wireless modem” A fully integrated solution from GlobeWave The CDMA wireless modem™ PC Card is a unique, state-of-the-art, fully integrated, single Type II PC Card module for sending and receiving data, fax and voice communications over the Code Division multiple Access (CDMA) and Advanced Mobile Phone System (AMPS) cellular networks as well as over conventional land-based phone network. The cellular phone and fax/modem are optimally matched and integrated into a single PC Card, which means there is no need to connect the “CDMA wireless modem” to any external device, it is a cellular phone . The result is an elimination of the compatibility problems, which usually arise with cable, connected cellular phone-to-modem combinations. Your “CDMA wireless modem” is enabled to perform both cellular and land-based voice, data and fax communications using standard communication software packages. Mode selection is fully automatic. This manual contains important information about setting up, using, and caring for your “CDMA wireless modem” . It assumes that you are familiar with the computer (hardware and software) which will be used. Before using the product, you should read this manual carefully as it provides important information and setup tips. 3 Product Feature Summary: …

Text truncated - open the document above for the full version.

__________________________________________________________________________________ 57 Ben Zion Gelis St., Petach Tikva 49100, Israel Tel: 972-3-9115125 Fax: 972-3-9300059 May 20, 2001 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize PCTEST to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 862. Sincerely, Yehuda Mark V.P. R & D Cell Data Ltd. __________________________________________________________________________________ 57 Ben Zion Gelis St., Petach Tikva 49100, Israel Tel: 972-3-9115125 Fax: 972-3-9300059 AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the Cellular Modem FCC ID: PNN-CELL5000-3 is so designed that it complies with all the requirements for ESN protection specified in Section 22.919 of the FCC Rules. a) The transmitter in service has a unique ESN. b) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. C) The ESN is factory-set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. Sincerely, Yehuda Mark V.P. R & D Cell Data Ltd __________________________________________________________________________________ 57 Ben Zion Gelis St., Petach Tikva 49100, Israel Tel: 972-3-9115125 Fax: 972-3-9300059 May 20, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: Cell Data Ltd FCC ID: PNN-CELL5000-3 Users Manual RF Exposure Warning Statement Gentlemen: Cell Data Ltd, hereby confirms that the attached RF exposure warning page will be readily visible to the user, and will be placed at a prominent location in the front section of the users manual. If you have any further questions regarding this matter, please do not hesitate to contact me or PCTEST. Sincerely, Yehuda Mark V.P. R & D Cell Data Ltd.

June 1, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: Cell Data Ltd. FCC ID: PNN-CELL5000-3 Part 22 Certification Gentlemen: Submitted herewith, on behalf of Cell Data Ltd., is an application for Part 22 Certification of the following CDMA Wireless Modem PC Card (PCMCIA): FCC ID: PNN-CELL5000-3 TRADE/MODEL(s): 1CD-5000-3 EUT TYPE: CDMA Wireless Modem PC Card (PCMCIA) Tx Freq. Range(s): 824.04 — 848.97 MHz (AMPS) 824.70 — 848.31 MHz (CDMA) Max. RF Output Power: 0.464W ERP AMPS (26.673 dBm) / 0.280W ERP CDMA (24.473 dBm) Max. SAR Measurement: 1.3578 W/kg (Body SAR) Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Cell Data Ltd.

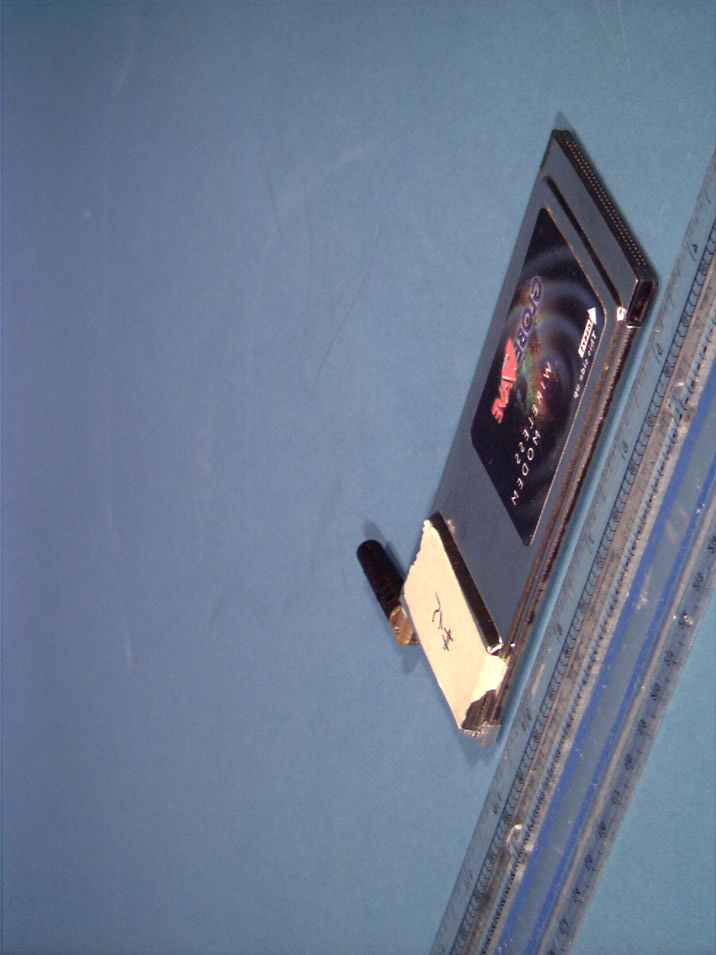

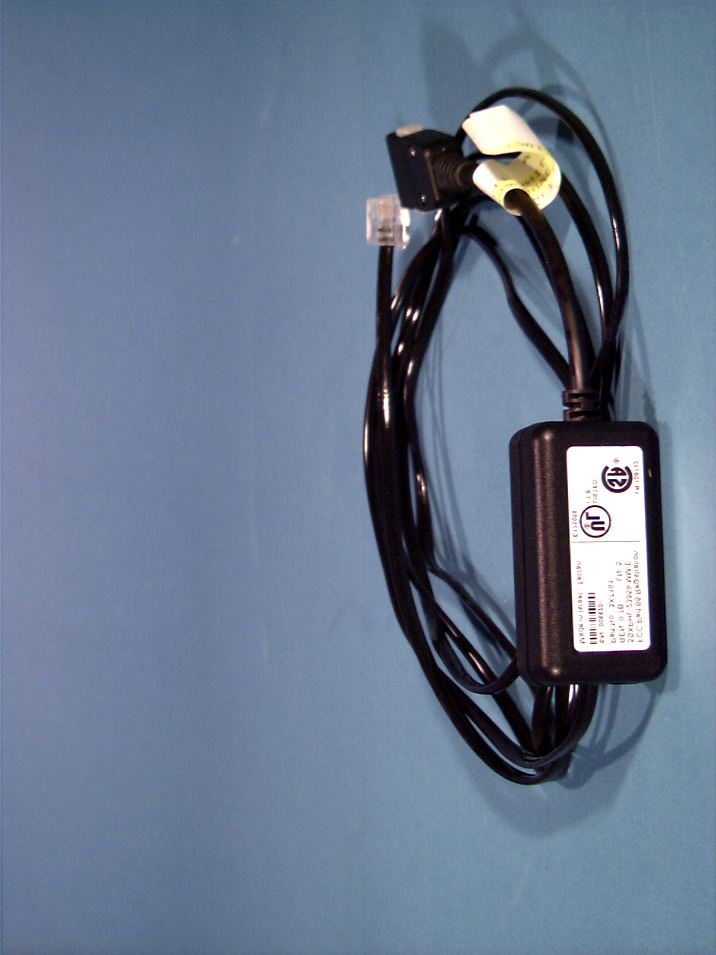

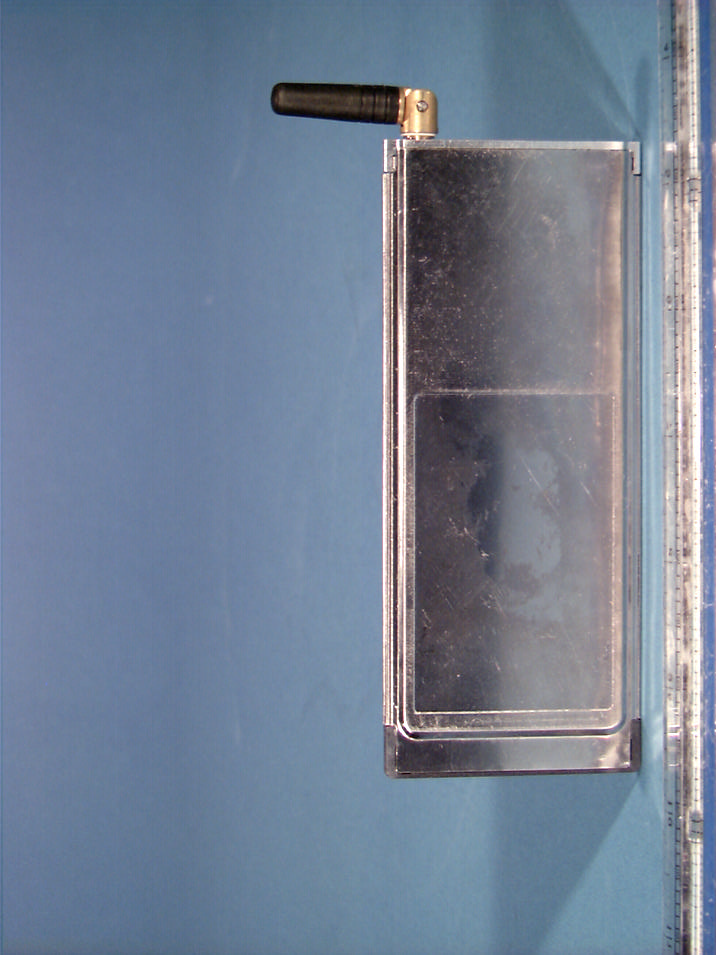

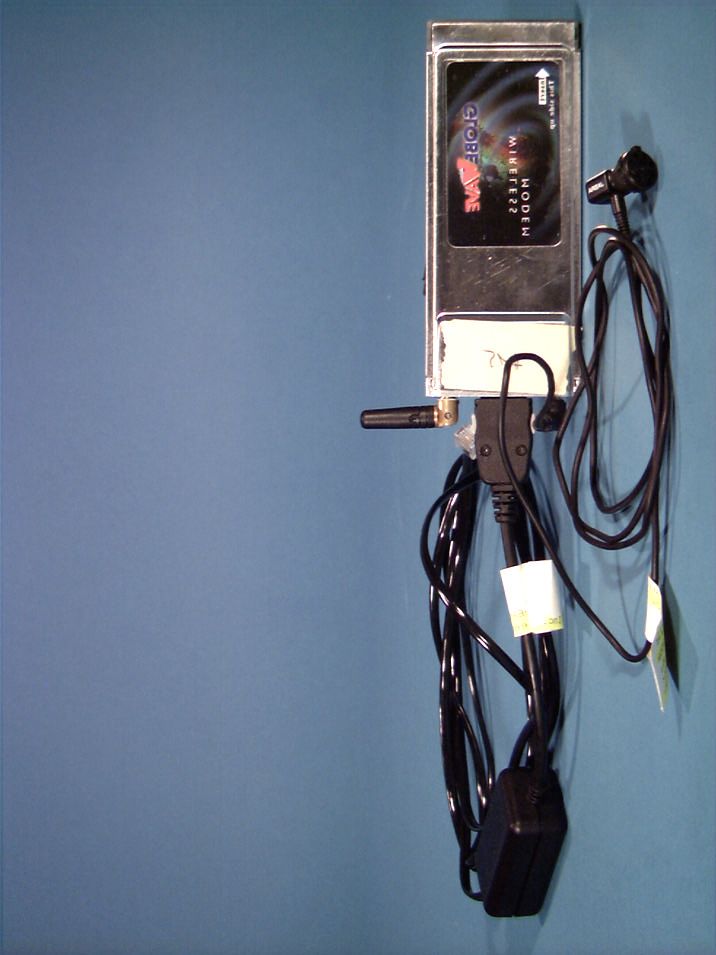

© 2001 PCTEST Lab FCC ID: PNN-CELL5000-3 (Model: ICD-5000-0003) NVLAP Lab Code: 100431-0 CDMA Wireless Modem PC Card (PCMCIA) © 2001 PCTEST Lab FCC ID: PNN-CELL5000-3 (Model: ICD-5000-0003) NVLAP Lab Code: 100431-0 CDMA Wireless Modem PC Card (PCMCIA) © 2001 PCTEST Lab FCC ID: PNN-CELL5000-3 (Model: ICD-5000-0003) NVLAP Lab Code: 100431-0 CDMA Wireless Modem PC Card (PCMCIA) © 2001 PCTEST Lab FCC ID: PNN-CELL5000-3 (Model: ICD-5000-0003) NVLAP Lab Code: 100431-0 CDMA Wireless Modem PC Card (PCMCIA) © 2001 PCTEST Lab FCC ID: PNN-CELL5000-3 (Model: ICD-5000-0003) NVLAP Lab Code: 100431-0 CDMA Wireless Modem PC Card (PCMCIA) © 2001 PCTEST Lab FCC ID: PNN-CELL5000-3 (Model: ICD-5000-0003) NVLAP Lab Code: 100431-0 CDMA Wireless Modem PC Card (PCMCIA)

© 2001 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.This device complies with Part 22 and Part 68 of the FCC Rules. FCC ID: PNN-CELL5000-3 FCC TXID: FCC Registration: _________________REN: LN: RF Output: Antenna DAA Voice

© 2001 PCTEST Lab FCC ID: PNN-CELL5000-3 (Model: ICD-5000-0003) NVLAP Lab Code: 100431-0 CDMA Wireless Modem PC Card (PCMCIA) © 2001 PCTEST Lab FCC ID: PNN-CELL5000-3 (Model: ICD-5000-0003) NVLAP Lab Code: 100431-0 CDMA Wireless Modem PC Card (PCMCIA) © 2001 PCTEST Lab FCC ID: PNN-CELL5000-3 (Model: ICD-5000-0003) NVLAP Lab Code: 100431-0 CDMA Wireless Modem PC Card (PCMCIA) © 2001 PCTEST Lab FCC ID: PNN-CELL5000-3 (Model: ICD-5000-0003) NVLAP Lab Code: 100431-0 CDMA Wireless Modem PC Card (PCMCIA) © 2001 PCTEST Lab FCC ID: PNN-CELL5000-3 (Model: ICD-5000-0003) NVLAP Lab Code: 100431-0 CDMA Wireless Modem PC Card (PCMCIA) © 2001 PCTEST Lab FCC ID: PNN-CELL5000-3 (Model: ICD-5000-0003) NVLAP Lab Code: 100431-0 CDMA Wireless Modem PC Card (PCMCIA) © 2001 PCTEST Lab FCC ID: PNN-CELL5000-3 (Model: ICD-5000-0003) NVLAP Lab Code: 100431-0 CDMA Wireless Modem PC Card (PCMCIA) © 2001 PCTEST Lab FCC ID: PNN-CELL5000-3 (Model: ICD-5000-0003) NVLAP Lab Code: 100431-0 CDMA Wireless Modem PC Card (PCMCIA) © 2001 PCTEST Lab FCC ID: PNN-CELL5000-3 (Model: ICD-5000-0003) NVLAP Lab Code: 100431-0 CDMA Wireless Modem PC Card (PCMCIA)

© 2001 PCTEST Engineering Lab., Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Cell Data Ltd. Dates of Tests: May 29-30, 2001 57 Ben Zion Gelis St. Test Report S/N: SAR.210423241.PNN Petach Tikva 49100, Israel Test Site: PCTEST Lab, Columbia, MD USA Attn: Yehuda Mark, V.P. R & D FCC ID PNN-CELL5000-3 APPLICANT Cell Data Ltd. EUT Type: CDMA Wireless Modem PC Card (PCMCIA) Tx Frequency: 824.04 ~ 848.97MHz (AMPS) 824.70 — 848.31 MHz (CDMA) Rx Frequency: 869.04 ~ 893.31MHz (AMPS) 869.70 — 893.31 MHz (CDMA) Max. RF Output Power: 0.464W ERP AMPS (26.673 dBm) 0.280W ERP CDMA (24.473 dBm) Trade Name/Model(s): GLOBE WAVE / 1CD-5000-0003 FCC Classification: Non-Broadcast Station Transmitter (TNB) Application Type: Certification FCC Rule Part(s): §2.1093; ET Docket 96.326 Maximum SAR: 1.3578 W/kg (Body SAR) This wireless portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report) I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 210423241.PNN Test Report S/N: SAR.210423241.PNN SAR Measurement Report Test Dates: MAY 29-30, 2001 FCC Part 22 Certification Table of Contents 1.1 SCOPE ........................................................................................................... 1 2.1 INTRODUCTION ............................................................................................ 2 2.2 SAR Definition.....................................................................................................2 3.1 SAR MEASUREMENT SET-UP .................................................................... 3 4.1 ISOTROPIC E-FIELD PROBE SYSTEM....................................................... 4 5.1 E-field PROBE CALIBRATION PROCESS .................................................. 5 6.1 PHANTOM AND EQUIVALENT TISSUES.................................................... 7 7.1 SYSTEM SPECIFICATIONS ......................................................................... 8 8.1 MEASUREMENT PROCESS ........................................................................ 9 9.1 TEST POSITION OF THE EUT ................................................................... 10 10.1 ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS ..................................... 11 11.1 MEASUREMENT UNCERTAINTIES.......................................................... 12 12.1 SAR TEST DATA SUMMARY....................................................................13 13.1 SAR TEST EQUIPMENT............................................................................ 14 14.1 CONCLUSION............................................................................................ 15 Test Report S/N: SAR.210206067.OBA SAR Measurement Report Test Dates: May 29-30, 2001 FCC Part 22 Certification FCC ID: PNN-CELL5000-3 (Model: 1CD-5000-0003) © 2001 PCTEST Lab CDMA Wireless Modem PC Card (PCMCIA) 1 SAR MEASUREMENT REPORT 1.1 SCOPE Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Company Name: Cell Data Ltd. Address: 57 Ben Zion Gelis St. Petach Tikva 49100, Israel Attention: Yehuda Mark, V.P. R & D • EUT Type: Wireless PCMCIA Network Adapter Card • Trade Name: GLOBE WAVE • FCC ID: PNN-CELL5000-3 • Model: 1CD-5000-0003 • Tx Frequency Range: 824.04 ~ 848.97MHz (AMPS) 824.70 ~ 848.31 MHz (CDMA) • Rx Frequency Range: 869.04 ~ 893.31MHz (AMPS) 869.70 ~ 893.31 MHz (CDMA) • Application Type: Certification • FCC Classification: Non-Broadcast Station Transmitter (TNB) • FCC Rule Part(s): §2.1093; ET Docket 96.326 • Modulation(s): AMPS / CDMA • Max RF. Output Power: 0.464W ERP AMPS (26.673 dBm) 0.280W ERP CDMA (24.473 dBm) • Date(s) of Tests: May 29-30, 2001 • Place of Tests: PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.: SAR.210423241.PNN 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.210206067.OBA SAR Measurement Report Test Dates: May 29-30, 2001 FCC Part 22 Certification FCC ID: PNN-CELL5000-3 (Model: 1CD-5000-0003) © 2001 PCTEST Lab CDMA Wireless Modem PC Card (PCMCIA) 2 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, In…

Text truncated - open the document above for the full version.

File : 01051001_AREA Start : 10-May-101 08:43:39 am End : 10-May-101 08:54:10 am CELL DATA/1CD-5000-0003/1;848.97MHz;W;Helical/Internal; Body/Abdomen;AREA;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 1.14 1.01 0.89 0.77 0.64 0.52 0.40 0.27 0.15 0.02 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01051003_ZOOM.VLT Start : 10-May-101 09:05:06 am End : 10-May-101 09:14:37 am Radio Type : CELL DATA Model Number : 1CD-5000-0003 Serial Number : 1 Frequency : 848.97MHz Peak Trans. Pwr : 0.600 W Start Trans. Pwr: 0.600 W Antenna Type : Helical Antenna Posn. : Internal Phantom Type : Body Phantom Posn. : Abdomen Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 51.700 Mixture Conductivity = 1.100 Comment : CDMA PC CARD CELLULAR MODEM CH 0799 27.80 dBm CONDUCTED BODY SAR Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.894 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = -2.250, Y = 0.250, Z = 0.000 (cm) Value = 18.296 Measured Values (volts) = 1.830E-002 1.442E-002 1.212E-002 9.948E-003 8.041E-003 6.488E-003 5.292E-003 4.870E-003 4.822E-003 4.810E-003 4.534E-003 4.180E-003 3.470E-003 2.743E-003 1.791E-003 1.065E-003 7.282E-004 7.608E-004 1.087E-003 1.555E-003 1.899E-003 Calc. Voltage @ Surface (Vs) = 0.0225 Voltage @ 1.00 cm (Vt) = 0.0099 Ave. Voltage (Vs+Vt)/2 = 0.0162 Ave. SAR over 1 g (mW/g) = 1.3429 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 mW/g -1012345 Z centimeters SAR Scan File : 01051003_ZOOM Start : 10-May-101 09:05:06 am End : 10-May-101 09:14:37 am CELL DATA/1CD-5000-0003/1;848.97MHz;W;Helical/Internal; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 File : 01051003_ZOOM Start : 10-May-101 09:05:06 am End : 10-May-101 09:14:37 am CELL DATA/1CD-5000-0003/1;848.97MHz;W;Helical/Internal; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 1.515 1.462 1.410 1.358 1.306 1.254 1.202 1.150 1.098 1.046 File : 01051003_ZOOM Start : 10-May-101 09:05:06 am End : 10-May-101 09:14:37 am CELL DATA/1CD-5000-0003/1;848.97MHz;W;Helical/Internal; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 1.515 1.462 1.410 1.358 1.306 1.254 1.202 1.150 1.098 1.046 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01051004_ZOOM.VLT Start : 10-May-101 09:15:27 am End : 10-May-101 09:25:22 am Radio Type : CELL DATA Model Number : 1CD-5000-0003 Serial Number : 1 Frequency : 824.04 MHz Peak Trans. Pwr : 0.600 W Start Trans. Pwr: 0.600 W Antenna Type : Helical Antenna Posn. : Internal Phantom Type : Body Phantom Posn. : Abdomen Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 51.700 Mixture Conductivity = 1.100 Comment : CDMA PC CARD CELLULAR MODEM CH 0991 27.8 dBm CONDUCTED BODY SAR 2 cm spacing Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.894 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = -2.250, Y = 0.250, Z = 0.000 (cm) Value = 18.208 Measured Values (volts) = 1.863E-002 1.479E-002 1.237E-002 9.939E-003 8.083E-003 6.468E-003 5.433E-003 4.867E-003 4.618E-003 4.620E-003 4.502E-003 4.212E-003 3.636E-003 2.842E-003 1.858E-003 1.131E-003 7.581E-004 7.107E-004 1.003E-003 1.456E-003 1.840E-003 Calc. Voltage @ Surface (Vs) = 0.0229 Voltage @ 1.00 cm (Vt) = 0.0099 Ave. Voltage (Vs+Vt)/2 = 0.0164 Ave. SAR over 1 g (mW/g) = 1.3578 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01051003_ZOOM.VLT Start : 10-May-101 09:05:06 am End : 10-May-101 09:14:37 am Radio Type : CELL DATA Model Number : 1CD-5000-0003 Serial Number : 1 Frequency : 848.97MHz Peak Trans. Pwr : 0.600 W Start Trans. Pwr: 0.600 W Antenna Type : Helical Antenna Posn. : Internal Phantom Type : Body Phantom Posn. : Abdomen Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 51.700 Mixture Conductivity = 1.100 Comment : CDMA PC CARD CELLULAR MODEM CH 0799 27.80 dBm CONDUCTED BODY SAR 2.0 cm spacing Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.894 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = -2.250, Y = 0.250, Z = 0.000 (cm) Value = 18.296 Measured Values (volts) = 1.830E-002 1.442E-002 1.212E-002 9.948E-003 8.041E-003 6.488E-003 5.292E-003 4.870E-003 4.822E-003 4.810E-003 4.534E-003 4.180E-003 3.470E-003 2.743E-003 1.791E-003 1.065E-003 7.282E-004 7.608E-004 1.087E-003 1.555E-003 1.899E-003 Calc. Voltage @ Surface (Vs) = 0.0225 Voltage @ 1.00 cm (Vt) = 0.0099 Ave. Voltage (Vs+Vt)/2 = 0.0162 Ave. SAR over 1 g (mW/g) = 1.3429 File : 01051004_ZOOM Start : 10-May-101 09:15:27 am End : 10-May-101 09:25:22 am CELL DATA/1CD-5000-0003/1;824.04MHz;W;Helical/Internal; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 1.507 1.455 1.404 1.352 1.300 1.248 1.196 1.144 1.092 1.041 File : 01051004_ZOOM Start : 10-May-101 09:15:27 am End : 10-May-101 09:25:22 am CELL DATA/1CD-5000-0003/1;824.04MHz;W;Helical/Internal; Body/Abdomen;ZOOM/SAR;PCTEST/E Field/0 DegreesMuscle/51.700/1.100 1.507 1.455 1.404 1.352 1.300 1.248 1.196 1.144 1.092 1.041 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/01051005_ZOOM.VLT Start : 10-May-101 09:36:13 am End : 10-May-101 09:43:29 am Radio Type : CELL DATA Model Number : 1CD-5000-0003 Serial Number : 1 Frequency : 836.49 MHz Peak Trans. Pwr : 0.600 W Start Trans. Pwr: 0.600 W Antenna Type : Helical Antenna Posn. : Internal Phantom Type : Body Phantom Posn. : Abdomen Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Muscle Mixture Dielectric Constant = 51.700 Mixture Conductivity = 1.100 Comment : CDMA PC CARD CELLULAR MODEM CH 0383 27.80 dBm CONDUCTED BODY SAR 2.0 cm spacing Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.894 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 …

Text truncated - open the document above for the full version.

© 2001 PCTEST Lab FCC ID: PNN-CELL5000-3 (Model: ICD-5000-0003) NVLAP Lab Code: 100431-0 CDMA Wireless Modem PC Card (PCMCIA) © 2001 PCTEST Lab FCC ID: PNN-CELL5000-3 (Model: ICD-5000-0003) NVLAP Lab Code: 100431-0 CDMA Wireless Modem PC Card (PCMCIA) © 2001 PCTEST Lab FCC ID: PNN-CELL5000-3 (Model: ICD-5000-0003) NVLAP Lab Code: 100431-0 CDMA Wireless Modem PC Card (PCMCIA)

© 2001 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 22 Certification Cell Data Ltd. Dates of Tests: May 29-30, 2001 57 Ben Zion Gelis St. Test Report S/N: 22.210423240.PNN Petach Tikva 49100, Israel Test Site: PCTEST Lab, Columbia MD Attn: Yehuda Mark, V.P. R & D FCC ID PNN-CELL5000-3 APPLICANT Cell Data Ltd. Classification: Non-Broadcast Station Transmitter (TNB) FCC Rule Part(s): §22(H), §22.901(d), §2 EUT Type: CDMA Wireless Modem PC Card (PCMCIA) Trade Name/Model(s): GLOBE WAVE/ 1CD-5000-0003 Tx Frequency Range: 824.04 ~ 848.97MHz (AMPS) 824.70 ~ 848.31 MHz (CDMA) Rx Frequency Range: 869.04 ~ 893.31MHz (AMPS) 869.70 ~ 893.31 MHz (CDMA) Max. RF Output Power: 0.464W ERP AMPS (26.673 dBm) / 0.280W ERP CDMA (24.473 dBm) Frequency Tolerance: 0.00025% (2.5 ppm) Emission Designator: 40K0F8W, 40K0F1D, 1M25F9W This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 210423240.PNN Certification © 2001 PCTEST Engineering Laboratory, Inc. FCC Part 22 TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 1 2.1 INTRODUCTION 2 3.1 INSERTS PER § 2.1033(d) 3 4.1 DESCRIPTION OF TESTS 4-6 5.1 EFFECTIVE RADIATED POWER OUTPUT 7-8 6.1 RADIATED MEASUREMENTS 9-14 7.1 FREQUENCY STABILITY 15-16 8.1 PLOTS OF EMISSIONS 17 9.1 LIST OF TEST EQUIPMENT 18 10.1 SAMPLE CALCULATIONS 19 11.1 CONCLUSION 20 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: CIRCUIT DIAGRAMS & DESCRIPTION ATTACHMENT K: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT L: OPERATIONAL DESCRIPTION ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS Test Report S/N: 22.210423240.PNN FCC Part 22 Test Dates: May 29-30, 2001 Certification © 2001 PCTEST Lab FCC ID: PNN-CELL5000-3 (Model: 1CD-5000-0003) 1 CDMA Wireless Modem PC Card (PCMCIA) MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. § 2.1033(a) General Information Applicant Name: Cell Data Ltd. Address: 57 Ben Zion Gelis St. Petach Tikva 49100, Israel Attention: Yehuda Mark, V.P. R & D • FCC ID: PNN-CELL5000-3 • Trade Name/Model(s): GLOBE WAVE/ 1CD-5000-0003 • Quantity: Quantity production is planned • Emission Designator: 40K0F8W, 40K0F1D, 1M25F9W • Tx Frequency Range: 824.04 ~ 848.97MHz (AMPS) 824.70 ~ 848.31 MHz (CDMA) • Rx Frequency Range: 869.04 ~ 893.31MHz (AMPS) 869.70 ~ 893.31 MHz (CDMA) • Equipment Class: Non-Broadcast Station Transmitter (TNB) • Equipment Type: CDMA Wireless Modem PC Card (PCMCIA) • Modulation: AMPS / CDMA • Frequency Tolerance: ± 0.00025% (2.5 ppm) • Max. RF Output Power: 0.464W ERP AMPS (26.673 dBm) 0.280W ERP CDMA (24.473 dBm) • FCC Rule Part(s): §22(H), §22.901(d), §2 • Power Source: From Host Computer • Dates of Tests: May 29-30, 2001 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N: 22.210423240.PNN Test Report S/N: 22.210423240.PNN FCC Part 22 Test Dates: May 29-30, 2001 Certification © 2001 PCTEST Lab FCC ID: PNN-CELL5000-3 (Model: 1CD-5000-0003) 2 CDMA Wireless Modem PC Card (PCMCIA) 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 accor…
