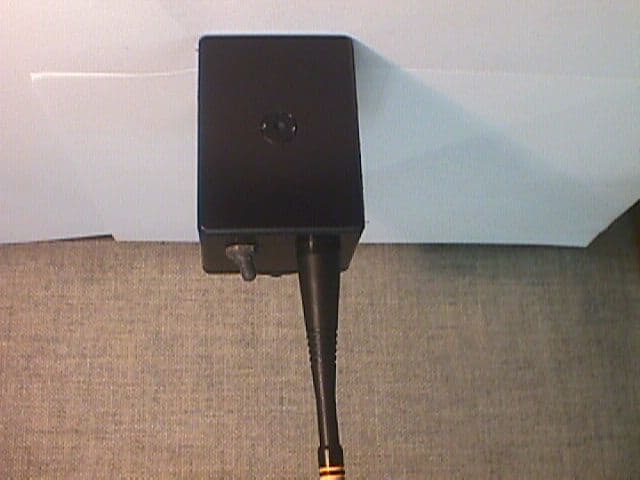

PO28188029988Wireless Video Transmitter

CE-T001 Users Guide Chang Industry, Inc. ©July 2, 2001 Revision 0.01 ii Contents 1 Description 1 1.1 FCC Statement . . . . . . . . . . . . . . . . . 1 1.2 Introduction . . . . . . . . . . . . . . . . . 1 2 Power Management 3 2.1 Battery Selection . . . . . . . . . . . . . . . . . 3 2.2 Battery Installation . . . . . . . . . . . . . . . . . 3 3 Operation 5 3.1 Turn ON/OFF . . . . . . . . . . . . . . . . . 5 3.2 Trouble Shooting . . . . . . . . . . . . . . . . . 5 iv CONTENTS Chapter 1 Description 1.1 FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference in which case the user will be required to correct the interference at his own expense. 1.2 Introduction The CE-T001 is a battery-powered module of a wireless system that makes use of a miniature video camera and a tiny transmitter. It is one sensor in a set of remote surveillance tools that have been tailored to the specific requirements of the law enforcement community. These tools will increase operational efficiency and enhance situational awareness by providing remote observation. 2 CHAPTER 1. DESCRIPTION Chapter 2 Power Management 2.1 Battery Selection The CE-T001 video transmitter uses three standard 1.5-volt AA size batteries. The following types of batteries are acceptable: 1. Alkaline 2. Nickel-cadmium rechargeable 3. Nickel-metal hydride rechargeable 4. Lithium For longest and best performance, we recommend Energizer lithium batteries (No. L91BP-2). 2.2 Battery Installation * Warning! Make sure that unit is turned off before opening battery compartment. * 1. Remove battery compartment cover by undoing screws and lifting off the cover. 2. Remove dead batteries and install new ones. Be sure to observe proper polarity (+ and -) as marked on the battery holder. See figure 1. 3. Replace the battery compartment cover and screws. 4 CHAPTER 2. POWER MANAGEMENT Figure 1 Rear profile of CE-T001 Chapter 3 Operation 3.1 Turn ON/OFF 1. Turn on the power by toggling the switch to the ON position and vice versa for turning the unit off. 2. Position the CE-T001 video transmitter as desired. 3.2 Trouble Shooting If the CE-T001 video transmitter fails to operate check the following: 1. Inspect batteries to substantiate if they have been installed properly. 2. Verify whether batteries have a charge. 3. Confirm unit is switched on. Return unit to the manufacturer if difficulty persists. 6 CHAPTER 3. OPERATION

FCC ID: PO28188029988 FCC ID: PO28188029988


         !!#" $%&'(*)!)+, - ..0/132547698 :<;7:: =98 >>::

Label position

FCC ID: PO28188029988 FCC ID: PO28188029988 FCC ID: PO28188029988

CE-T001 Transmitter – Description of Circuit Diagram and Antenna The video camera used in the transmitter is powered via a step up DC-DC converter, which transforms the 4.5-volt DC source voltage to a 9-volt DC source. The NTSC video signal from the camera is amplified using a video amplifier and linked to the VCO (voltage controlled oscillator) by means of the modulation coupling. The VCO is modulated with the video signal and controlled by way of the PLL (phase lock loop). The PLL uses a reference oscillator (crystal) and a micro controller to monitor the VCO’s frequency through a feedback network. The feedback network compares the phases of both the crystal and the VCO at a lower loop frequency and ultimately biases the VCO via a loop filter and a buffer amplifier to the correct fundamental frequency. The fundamental frequency passes through an attenuator and a filter to ensure signal integrity and proper broadcast level. Further, the fundamental frequency is amplified and filtered before connected to the antenna. Lastly, the unity gain omni-directional antenna is permanently attached with an electrical connection (soldered) for transmittal.

FCC Part 15.249 Test Report For Chang Industry, Inc. on the Wireless Video Transmitter Model: CE-T001 FCC ID: PO28188029988 Test Report #: J20048852-02 Date of Report: 05/30/01 Job #: J20048852 Date of Test: 5/21/01 Total No. of Pages Contained in this Report: 27 Lab Code 200297-0 This report shall not be reproduced except in full, without written approval of Intertek Testing Services. This report must not be used to claim product endorsement by NVLAP or any agency of the U.S. Government. The results contained in this report were derived from measurements performed on the identified test samples. Any implied performance of other samples on this report is dependent on the representative of the samples tested. FCC Part 15.249 Tx Cert, Ver 3/00 A 27611 La Paz Rd., Suite C, Laguna Niguel, CA 92677 Chang Industry, Inc. CE-T001Date of Test: 5/30/01 File: test_reportVersion 1.0Page 2 Table of Contents 1.0Summary of Test Results ...............................................................................................................3 2.0General Description........................................................................................................................3 2.1Product Description .............................................................................................................4 2.2Related Submittal(s) Grants.................................................................................................5 2.3Test Methodology................................................................................................................5 2.4Test Facility .........................................................................................................................5 3.0System Test Configuration ............................................................................................................6 3.1Justification .........................................................................................................................6 3.2EUT Exercising Software ....................................................................................................6 3.3System Test Configuration ..................................................................................................6 3.3.1Support Equipment.................................................................................................6 3.3.2Block Diagram of Test Setup .................................................................................7 3.4Equipment Modification......................................................................................................7 3.5Mode(s) of operation ...........................................................................................................7 4.0Field Strength of Emission.............................................................................................................8 4.1Test Description...................................................................................................................8 4.2Test Procedure .....................................................................................................................8 4.3Field Strength Calculation ...................................................................................................8 4.4 Radiated Emission ata................................................................................10 5.0Out of Band Emission Plot ..........................................................................................................16 5.1 Test Description........................ ...... .....................................................16 5.2Test Procedure.......................................................................................16 5.3Test Results........................................................................ ................16 6.0Antenna Requirement ..................................................................................................................24 6.1Test Description............................................................ .......................24 6.3Test Result............................................................................................24 7.0Test Equipment........................ ....................................................................25 8.0Setup Photograph............................................................................................26 A 27611 La Paz Rd., Suite C, Laguna Niguel, CA 92677 Chang Industry, Inc. CE-T001Date of Test: 5/30/01 File: test_reportVersion 1.0Page 3 1.0Summary of Test Results MODEL: CE-T001 FCC ID: PO28188029988 FCC RULE DESCRIPTION OF TESTRESULTPAGE 15.249aField Strength of fundamentalWorst case: 92.1 dB(uV/m) Margin: -1.9 dB 8 15.249aField Strength of harmonicsWorst case: 49.0 dB(uV/m) @ 5454 MHz. Margin: -5.0 dB 8 15.249cRadiated emissions outside the band, except harmonics. Worst case: 51.0 dB below the fundamental Margin: -1.0 dB 14 15.207Line Conducted EmissionsN/A 15.203Antenna requirementComplies26 We confirm that the product tested and our review of the above numbered report without reasonable doubt will fulfill the requirements concerning electromagnetic compatibility according to the above-mentioned standard. A 27611 La Paz Rd., Suite C, Laguna Niguel, CA 92677 Chang Industry, Inc. CE-T001Date of Test: 5/30/01 File: test_reportVersion 1.0Page 4 2.0General Description 2.1Product Description EQUIPMENT UNDER TEST Type of equipment Video Camera / RF Transmitter Combination. Type/Model CE-T001 EUT description Video Camera : • 1/3-inch CCD Image Sensor • Resolution: Horizontal 420 TV lines • Sensitivity: 0.05 LUX • Automatic Exposure Control • Pinhole Lens, 90 Field of View RF Transmitter: • Type of Emission: F3F • Frequency: 900 MHz ISM Band. Can be configured to operate on one of four fixed frequencies: 909, 914, 919, 924 MHz • Output Power: 0 dBm • Modulation: FM • Antennas: ¼ Wave Vertical Antenna (permanently attach…

Text truncated - open the document above for the full version.

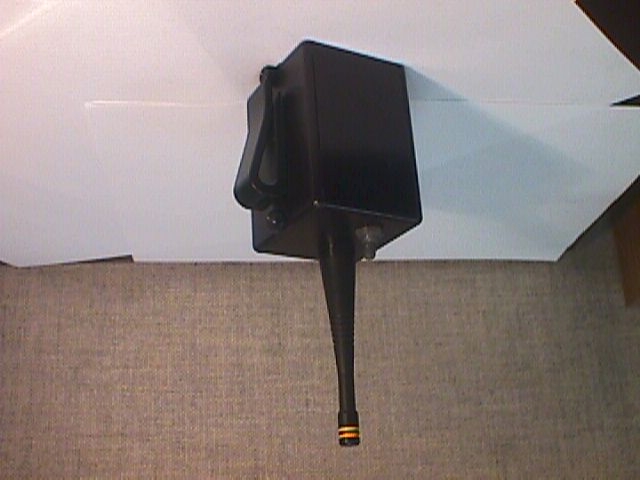

A 27611 La Paz Rd., Suite C, Laguna Niguel, CA 92677 Chang Industry, Inc. CE-T001Date of Test: 5/30/01 File: test_reportVersion 1.0Page 26 8.0 Setup Photograph Picture of EUT A 27611 La Paz Rd., Suite C, Laguna Niguel, CA 92677 Chang Industry, Inc. CE-T001Date of Test: 5/30/01 File: test_reportVersion 1.0Page 27 Field Strength of Emissions
