PO5WU5108Wireless LAN Module

- 1 - WU5108 802.11 b/g/n Wireless LAN USB2.0 Module User’s Manual - 2 - REGULATORY STATEMENTS FCC Certification The United States Federal Communication Commission (FCC) and Canadian Department of Communications have established certain rules governing the use of electronic equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interface, and (2) this device must accept any interference received, including interference that may cause undesired operation. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. - 3 - CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Federal Communication Commission (FCC) Radiation Exposure Statement This EUT is compliance with SAR for general population/uncontrolled exposure limits in ANSI/IEEE C95.1-1999 and had been tested in accordance with the measurement methods and procedures specified in OET Bulletin 65 Supplement C. This equipment should be installed and operated with minimum distance 2.5cm between the radiator & your body. CE Statement: Hereby, AboCom, declares that this device is in compliance with the essential requirement and other relevant provisions of the R&TTE Driective 1999/5/EC. - 4 - 1. Introduction The WU5108 is an IEEE802.11b/g/n mini-size USB module that can connect the BP300 printer equipped with a USB Pin Connecter (Figure 2-1). The module has a core WiFi chipset, AR9271 which is produced by Atheros Communications, Inc. The WU5108 delivers reliable, cost-effective, feature rich wireless connectivity at high throughput from an extended distance. It supports WMM and WMM-PS (IEEE802.11e QoS standard); also has an innovative built-in WPS (Wi-Fi Protected Setup) function which can build a connection between an AP and synchronize the encryption settings. 2. Features The WU5108 Module supports various Operating Systems and several Network Environments. Table2-1 explains the types for the systems. <Table 2-1> WU5108 Specification Standard IEEE 802.11b/g/n standards compliant Antenna Internal Antenna Supported OS Windows 2000, XP, Vista, WIN7, RTOS(ThreadX) Interface with External PCB USB2.0/1.1 Security WEP 64/128 WPA, WPA2 Frequency Range 802.11b/g/n USA(FCC): 2.412GHz ~ 2.462GHz Europe(ETSI): 2.412GHz ~ 2.472GHz Japan(TELEC): 2.412GHz ~ 2.472GHz Number of Selectable Channels 802.11b/g/n: USA(FCC) 11 Channels EU(ETSI) 13 Channels Japan(TELEC) 13 Channels Data Rate 802.11b: 1,2, 5.5, 11Mbps 802.11g: 6,9,12,18,24,36,48,54Mbps 802.11n: up to 150Mbps - 5 - Transmit Power 802.11b : 16 +/-1 dBm(Typical) 802.11g : 13 +/-1 dBm(Typical) Wireless-N : 13 +/-1 dBm(Typical) Physical Specifications Weight : 2.5g Dimension : 32.4(L)*16.6(W)*2.9(H) Environment Specification Operating Temp : 0 to 40 (Celsius Degree) Storage Temp : -20 to 70 (Celsius Degree) Operating Humidity : 10% to 90% Non-Condensing Storage Humidity P : 10% to 95% Non-Condensing Power Requirement Standard USB Power DC 5V Power Input Method Printer Type : Soldering with a connector between the module and the Printer(BP300)  Figure2-1 <Figure 2-1> Connection between WU5108 and Main PCB - 6 - <Information> Applicant : Prinics Co., Ltd Address : E-1101, Digital Empire B/D, 980-3, Youngtong-Dong, Youngtong-Gu, Suwon-Si, Korea Manufacturer : AboCom System, Inc. Address : No.77, Yu-Yih Rd., Chu- Nan, Miao-Lih Country 35059, Taiwan R.O.C FCC ID : PO5WU5108 If the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label shall be: "Contains FCC ID: PO5WU5108” 3. Block Diagram The WU5108 module consists of Main Chipset, AR9271 and peripheral parts (Fiqure3-1). It communicates with an external Main Printer PCB by using standard USB2.0 interface (Fiqure2-1). When the adopter power is applied to the printer, it will be supplied to WU5108 via USB 2.0 Power Pin (5V Pin in the USB2.0). <Figure 3-1> WU5108 Block Diagram - 7 - 4. Installation The BP300 Printer has an ARM926EJ CPU and 4MByte Flash Memory for a program execution file. The Module driver is already embedded in the file. The execution file is produced from compiling the ARM based codes, and then it is flashed in the flash memory using a flash memory writing equipment. When the printer has Power-ON, the module has 5V power from the printer PCB via USB connector (Figure4-1). <Figure 4-1> BP300 Printer System Block Diagram WU5108 Module Main PCB DC1250 (ARM9Core) Flash(4MB) DDRII(128MB) Step Motor IC DC Motor IC USB2.0 Conne…

Text truncated - open the document above for the full version.

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0073 EMC compliance Ltd. Page: 1 of 1 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. Appendix 4. Block Diagram WU5108 Block Diagram Flash64Mbit DC-DC REG ANTENNA 5V SUPPLY ANTENNA 1.2V/3.3V TX/RX 1.2V USB CONNECTOR TX/RX XTAL40MHZ DISCRETE BALUN EEPROM LEDS DISCRETE BALUN RX AR9271 3.3V RX

MODULAR APPROVAL LETTER OR LIMITED MODULAR APPROVAL LETTER FCC ID: PO5WU5108 Item Requirements EUT 1 The modular transmitter must have its own RF shielding No, it doesn’t have own RF shielding. Because, it’s limited module approval. 2 The modular transmitter must have buffered modulation/data inputs. The modular transmitter has buffered modulation/data inputs. 3 The modular transmitter must have its own power supply regulation. Yes. 4 The modular transmitter must comply with the antenna and transmission system requirements of sections 15.203, 15.204(b) and 15.204(c) The modular transmitter use PCB antenna. It complied requirements of15.203, 15.204(b), 15.204(c). 5 The modular transmitter must be tested in a stand- alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. It tested in a stand-alone configuration. 6 The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: "Contains Transmitter Module FCC ID: XYZMODEL1" or "Contains FCC ID: XYZMODEL1." Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization Module is labeled with its own FCC ID: PO5WU5108 (Add the following information in the user manual of FCC ID: PO5WU5108) If the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label shall be: "Contains FCC ID: XXXYYYYYYY 7 The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. The information include the User manual. Reference number :Page 4_ Table 2-1 and Page 6_Information. 8 The modular transmitter must comply with any applicable RF exposure requirements. Yes. Sign : Jeong-Bok, Kim

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0073 EMC compliance Ltd. Page: 1 of 3 480-5 SHIN-DONG, YEONGTONG-GU, SUWON-CITY, GYEONGGI-DO, KOREA 443-390 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. Appendix 2. External photo of EUT

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R073 EMC compliance Ltd. 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. Label Location

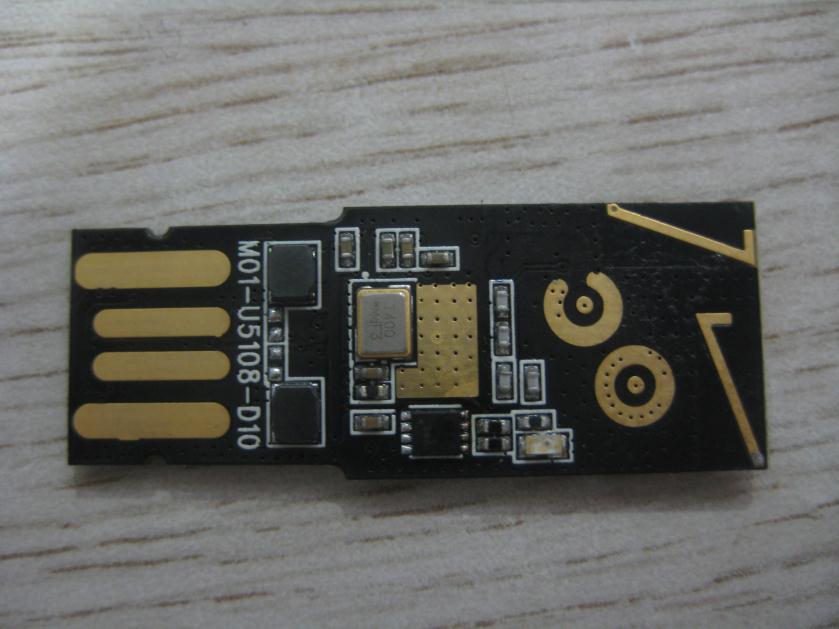

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0073 EMC compliance Ltd. 480-5 SHIN-DONG, YEONGTONG-GU, SUWON-CITY, GYEONGGI-DO, KOREA 443-390 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. Appendix 3. Internal photo of EUT

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0073 EMC compliance Ltd. Page: 1 of 1 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. Appendix 9. Antenna specification Antenna Test Report C442-USB ANTENNA Aristotle Enterprises Inc. Jingjing Hu Antenna Photo Test Environment Test Environment Antenna VSWR -Right Antenna VSWR -Left Antenna Pattern-Right 2400 Theta_H Plane(XY) -40-35-30-25-20-15-10 -5 05 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Theta_HPlane(XY) Theta_E1 Plane(XZ) -40-35-30-25-20-15-10 -5 05 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Theta_E1 Plane(XZ) Theta_E2 Plane(YZ) -40-35-30-25-20-15-10 -5 05 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Theta_E2 Plane(YZ) Antenna Pattern-Right 2450 Theta_H Plane(XY) -40-35-30-25-20-15-10 -5 05 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Theta_HPlane(XY) Theta_E1 Plane(XZ) -40-35-30-25-20-15-10 -5 05 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Theta_E1 Plane(XZ) Theta_E2 Plane(YZ) -40-35-30-25-20-15-10 -5 05 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Theta_E2 Plane(YZ) Antenna Pattern-Right 2500 Theta_H Plane(XY) -40-35-30-25-20-15-10 -5 05 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Theta_HPlane(XY) Theta_E1 Plane(XZ) -40-35-30-25-20-15-10 -5 05 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Theta_E1 Plane(XZ) Theta_E2 Plane(YZ) -40-35-30-25-20-15-10 -5 05 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Theta_E2 Plane(YZ) Antenna Pattern-Right 2400 Phi_H Plane(XY) -40-35-30-25-20-15-10 -5 05 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Phi_H Plane(XY) Phi_E1 Plane(XZ) -40-35-30-25-20-15-10 -5 05 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Phi_E1 Plane(XZ) Phi_E2 Plane(YZ) -40-35-30-25-20-15-10 -5 05 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Phi_E2 Plane(YZ) Antenna Pattern-Right 2450 Phi_H Plane(XY) -40-35-30-25-20-15-10 -5 05 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Phi_H Plane(XY) Phi_E1 Plane(XZ) -40-35-30-25-20-15-10 -5 05 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Phi_E1 Plane(XZ) Phi_E2 Plane(YZ) -40-35-30-25-20-15-10 -5 05 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Phi_E2 Plane(YZ) Antenna Pattern-Right 2500 Phi_H Plane(XY) -40-35-30-25-20-15-10 -5 05 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Phi_H Plane(XY) Phi_E1 Plane(XZ) -40-35-30-25-20-15-10 -5 05 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Phi_E1 Plane(XZ) Phi_E2 Plane(YZ) -40-35-30-25-20-15-10 -5 05 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Phi_E2 Plane(YZ) Antenna Pattern-Left 2400 Theta_H Plane(XY) -40-35-30-25-20-15-10 -5 05 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Theta_HPlane(XY) Theta_E1 Plane(XZ) -40-35-30-25-20-15-10 -5 05 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Theta_E1 Plane(XZ) Theta_E2 Plane(YZ) -40-35-30-25-20-15-10 -5 05 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Theta_E2 Plane(YZ) Antenna Pattern-Left 2450 Theta_H Plane(XY) -40-35-30-25-20-15-10 -5 05 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Theta_HPlane(XY) Theta_E1 Plane(XZ) -40-35-30-25-20-15-10 -5 05 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Theta_E1 Plane(XZ) Theta_E2 Plane(YZ) -40-35-30-25-20-15-10 -5 05 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Theta_E2 Plane(YZ) Antenna Pattern-Left 2500 Theta_H Plane(XY) -40-35-30-25-20-15-10 -5 05 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Theta_H Plane(XY) Theta_E1 Plane(XZ) -40-35-30-25-20-15-10 -5 05 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Theta_E1 Plane(XZ) Theta_E2 Plane(YZ) -40-35-30-25-20-15-10 -5 05 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Theta_E2 Plane(YZ) Antenna Pattern-Left 2400 Phi_H Plane(XY) -40-35-30-25-20-15-10 -5 05 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Phi_H Plane(XY) Phi_E1 Plane(XZ) -40-35-30-25-20-15-10 -5 05 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Phi_E1 Plane(XZ) Phi_E2 Plane(YZ) -40-35-30-25-20-15-10 -5 05 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Phi_E2 Plane(YZ) Antenna Pattern-Left 2450 Phi_H Plane(XY) -40-35-30-25-20-15-10 -5 05 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Phi_H Plane(XY) Phi_E1 Plane(XZ) -40-35-30-25-20-15-10 -5 05 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Phi_E1 Plane(XZ) Phi_E2 Plane(YZ) -40-35-30-25-20-15-10 -5 05 10 0 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 Phi_E2 Plane(YZ) Antenna Pattern-Left 2500 Phi_H Plane(XY) -40-35-30-25-20-15-10 -5 05 10 0 15 30 45 60 75 90 105 120 135 150 165 180 …

Text truncated - open the document above for the full version.

1. WU5108 HW Block Diagram 2. WU5108 HW Operation Description 2.1 WiFi Chipset The module, WU5108 uses AR9271 which is produced by Atheros Communications, INC. <Functional Block Diagram> The chipset consists of five major functional blocks : CPU, USB2.0, MAC, Digital PHY, and Radio 2.1.1 CPU Block The CPU block includes five major parts: CPU, Memory Controller, AHB Arbiter, internal memory and the AHB process. - Main Clock is 117MHz - Memory controller provides MAC DMA and USB DMA - Two internal memories(ROM-24KB, and RAM-160KB) - AHB is to access the external Flash memory 2.1.2 Medium Access Control(MAC) The MAC consists of the following major functional blocks: 10 queue control units(QCUs), 10 distributed coordination function(DCF) control units(DCUs), a single DMA Rx unit(DRU) and a single protocol control unit (PCU) - Tx frame data transfer from the host to the radio block using the USB interface - Rx frame data transfer from the radio block to host using the USB interface - Registers access to all AR9271 registers - Interrupt generation and reporting - Sleep-mode(power-down) sequencing 2.1.3 Digital PHY Block - A half-duplex, OFDM, CCK, DSSS baseband processor compatible with IEEE 802.11n and 802.11b/g. - PHY data rates up to 72.2Mbps in 20MHz Channel mode - All data rates defined by the IEEE802.11b/g standard(1-54Mbps) <Tx Path digital PHY 802.11n block> <Rx Path digital PHY 802.11n block> 2.1.4 Radio Block - Two LNAs – LNA1 and LNA2 - The Receiver converts an RF signal to baseband I and Q outputs - It operates 2.4GHz bands to support CCK and OFDM signals for 802.11 b/g/n - The I and Q signals are low-pass filtered and amplified by a baseband gain filter. 2.1.5 USB2.0 - USB standard 2.0 Host interface 2.1.6 Antenna - Two Internal Antennas - RF signal : 2.4GHz 2.1.7 Power Supply - Main power is from Host USB : 5V - DC-DC converter : 3.3V and 1.2V for WIFI chipset AR9271 2.1.8 Reference Clock - Crystal 40MHz reference clock for WiFi Chipset AR9271

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0073 EMC compliance Ltd. Page: 1 of 1 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. Appendix 7. Part list Line Item NoComponent PartPart Description(Full)Qty Per AssemblyOperation NoNote Text 1M01-U5108-E10PCB FOR WU5108 REV:E10 0.8mm +/-0.08mm 4L LF110 2M16-24016-070C 24pF 5% 0402 50V SMD MC NPO LF220C3,C4 3M16-10596-011C 1uF 10% 0402 10V SMD MC X5R LF410C5,C6,C47,C56 4M16-8+218-010C 8.2pF +/-0.25pF 0201 25V SMD MC NPO LF220C8,C12, 5M16-10118-080C 100pF 5% 0201 50V SMD MC NPO LF120R6 6M16-10018-070C 10pF 5% 0402 50V SMD CC NPO LF310C44,C45,R20 7M16-2+218-000C 2.2pF +/-0.25pF 0201 25V SMD MC NPO LF120C11 8M16-2+098-050C 2pF +/-0.25pF 0201 25V SMD MC NPO LF520C13,C14,C15,C16,R18 9M16-4+798-050C 4.7pF +/-0.25pF 0201 25V SMD MC NPO LF220C19,C20 10M16-1+598-050C 1.5pF +/-0.25pF 0201 25V SMD MC NPO LF320C21,C22,C23 11M16-1+598-072C 1.5pF +/-0.25pF 0402 50V SMD MC NPO LF120R19 12M16-47520-000C 4.7uF 10% 0603 6.3V SMD CC X5R LF120C17 13M16-01098-050C 1pF +/-0.25pF 0201 25V SMD MC NPO LF120C52 14M16-22018-070C 22pF 5% 0402 50V SMD MC NPO LF220C28,C31 15M16-10690-001C 10uF 20% 0603 6.3V SMD MC X5R LF220C29,C30 16G16-10426-030C 100nF 10% 0402 16V SMD CC X5R LF110C40 17G16-10426-030C 100nF 10% 0402 16V SMD CC X5R LF920C10,C18,C36,C37,C38,C39,C41,C42,C43 18M16-10116-071C 100pF 5% 0402 50V SMD MC NPO LF110C46 19M16-10316-030C 10nF 5% 0402 16V SMD MC X7R LF110C48 20M16-10228-070C 1nF 10% 0402 50V SMD MC X7R LF220C50,C51 21M07-00002-030LED SMD 19-21UYC/S530-A2/TR8 YELLOW 0603 EVERLIGHT LF110DS1 22M17-51+02-710R 51ohm 1% 0402 1/16W CER SMD LF110R1 23M17-10022-710R 10K 1% 0402 1/16W CER SMD LF320R4,R5,R11 24M17-10022-710R 10K 1% 0402 1/16W CER SMD LF210R2,R3 25G17-61912-410R 6.19K 1% 0402 1/16W CER SMD LF120R7 26M17-31632-710R 316K 1% 0402 1/16W CER SMD LF120R9 27M17-69822-710R 69.8K 1% 0402 1/16W CER SMD LF320R10,R24,R25 28M17-10002-710R 100ohm 1% 0402 1/16W CER SMD LF110R13 29M17-10012-500R 1K 1% 0201 1/20W CER SMD LF120R12 30M17-10032-710R 100K 1% 0402 1/16W CER SMD LF120R8 31M05-8020+-001LIN RT8020GQW ADJ/1A DC-DC CONVERTER WDFN-12L RICHTEK LF120VR2 32M15-22298-060L 2.2nH +/-0.1nH 0201 SMD 0.15ohm CI 600mA LF220L3,L5 33M03-24088-005EEPROM S-24C08CI-I8T1U 8Kbit 1.6~5.5V SNT-8A SEIKO LF110U1 34M02-9271+-024ASIC AR9271L-AL3A 1.2V/3.3V LPCC-68 ATHEROS FOR VIA LF120U2 35M15-2+278-020L 2.2uH 20% 2.5X2.0X1.2mm SMD 0.17ohm PC 1.3A LF210L4,L6 36M12-24000-300X'TAL 40MHZ 10PPM 12pF 25ohm 3.2X2.5mm 7M40000005 TXC LF110Y1 37M15-20298-010L 2.0nH +/-0.1nH 0201 SMD 0.15ohm CI 600mA LF320L1,L2,C26 38M15-15298-00TL 1.5nH +/-0.3nH 0402 SMD 0.13ohm CI 500mA LL1005-FHL1N5S TOKO LF120C24 39M07-21321-000PIN Diodes SMP1321-079LF SC-79 SKYWORKS LF120D1 40M15-33298-00TL 3.3nH +/-0.3nH 0402 SMD 0.16ohm CI 500mA LF120L7 41M15-39298-00TL 3.9nH +/-0.3nH 0402 SMD 0.18ohm CI 500mA LF120L8

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0073 EMC compliance Ltd. Page: 1 of 1 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. Appendix 5. Schematics REVISION NUMBER INITIALS DESCRIPTION DATE 2010/06/13 Initial release. WU5108-X1 CASH WU5108 1T1R 802.11b/g/n USB WLAN WU5108-X2 2010/06/28 For Antenna match (TOKO Only)L7 4.3nH change to 3.3nHC24 2.0nH change to 1.5nHL8 4.3nH change to 3.9nH 2010/06/28 WU5108-D1 CASHCASH For TX/RX EVM C8 8.2pF change to 10pFC12 8.2pF change to 10pFL1 2.0nH change to 1.8nHL2 2.0nH change to 1.8nHFor RX Sensitivity C19 4.7pF change to 10pFC20 4.7pF change to 10pFC23 1.5pF change to 1.0pF 1.Cover D10 WU5108 802.11b/g/n USB WLAN AboCom Systems, Inc B 14 Monday, April 18, 2011 TitleSize Document Number Rev Date: Sheet of DC-DC REG 5V SUPPLY 1.2V/3.3V USB CONNECTOR EEPROM AR9271 1.2V XTAL40MHZ 3.3V ANTENNA TX/RX TX/RX DISCRETE BALUNDISCRETE BALUN RX RX ANTENNA LEDS 2.Block Diagram D10 WU5108 802.11b/g/n USB WLAN AboCom Systems, Inc B 24 Monday, April 18, 2011 TitleSize Document Number Rev Date: Sheet of EEPROM REFERENCE USB2.0 PCB LAYOUT GUIDELINES 90 ohm of differential impedance close pin17 close pin26 close pin33 close pin41 close pin47 close pin11 close pin27 close pin42,43,46 close pin1 close pin4close pin59,61 close pin60 close pin22 close pin37 close pin57close pin9 3.AR9271 D10 WU5108 802.11b/g/n USB WLAN AboCom Systems, Inc B 34 Monday, April 18, 2011 TitleSize Document Number Rev Date: Sheet of RF2INP AVDD33 AVDD12 XTALO XTALI XTALO RF2INN USB_D- RF2OUTP AVDD12 AVDD33RF2OUTNAVDD33 XTALI AVDD33 CTRL1 DVDD12 USB_D+ 5V DVDD12 DVDD33 DVDD12 AVDD12 AVDD33 DVDD33 AVDD33 DVDD33 DVDD12 5V DVDD33 C1No Load C424pF50V+/-5% GREEN DS1C190GKT 21 C100.1uF L4 2.2uH L6 2.2uH C2822pF C2910uF R9316K C324pF50V+/-5% R1069.8K IS24C04A U1IS24C04A 1234 5678 A0A1A2GND SDA SCL WP VCC C410.1uF10V+/-10% C360.1uF10V+/-10% R410K+/-5%1/16W C46100pF50V+/-5% C390.1uF10V+/-10% C370.1uF10V+/-10% C61uF6.3V+/-10% Y1 40MHz-7M 40000005 1 3 VR2 RT8020 1 23 4 5 67 89 10 11 12 13 VIN2 LX2 GND FB1 NC EN1VIN1 LX1 GND FB2 NC EN2 GND R210K J1CON USB PLUG 1234 5V D- D+ GND R1110K C4410pF50V+/-5% R8100K+/-5%1/16W C3010uF C174.7uF +/-10%6.3V C31 22pF C420.1uF10V+/-10% C180.1uF +/-10%10V U2 AR9271 2345678912111315141016 29 25 28 27 24 26 23 30 31 32 33 35363938 22 37 20 18 19 40 21 41454647495048 52 53 55 56 57 58 59 60 61 62 54 63 65 66 444243 64 17 34 51 67 68 1 69 RF2INN RF2INP PABIAS2P SUPMOD RF2OUTN RF2OUTP SUPMOD PABIAS2N GPIO11/XLNA CONTROL DVDD12 SWCOM0SWCOM2SWCOM1 RST_B SWCOM3 GPIO1/TDI EPRM_SCK GPIO0/TMS DVDD12 EPRM_SDA VDDP33 GPIO3/EPRM_WP GPIO2/TCK GPIO4/TDO CMODE1 VDDP33 GPIO12/SPIBOOTGPIO15TXRTUNEDP DVDD12 VDD33 GPIO7/SPISCK GPIO5/SPISDO GPIO6/SPICS DM GPIO8/SPISDI VDD33GPIO13DVDD12VDDP33GPIO10/URRXD/JTAGSELCLKOBSGPIO9/URTXD BT_CLK_EN AVDD33_XTAL XTALI AVDD12_XTAL CTRL2 CTRL1 AVDD12ADC AVDD33_BB_SYNTH AVDD12_BB_SYNTH BIASREF XTALO TESTQN_0 TESTIN_0 TESTIP_0 GPIO14DVDDDVDD12 TESTQP_0 VDDP33 CMODE0 CLK_BT XPABIAS PDET AVD33_RX GND C501000pF50V+/-10% C480.01uF25V+/-10% R76.19K R151 +/-5%1/16W 12 C4510pF50V+/-5% C561uF6.3V+/-10% C400.1uF10V+/-10% C380.1uF10V+/-10% C51uF 6.3V +/-10% R310K R510K+/-5%1/16W 12 R24 69.8K R25 69.8K C430.1uF10V+/-10% C471uF6.3V+/-10% C2No Load R13100+/-1%1/16W C511000pF50V+/-10% RF2OUTPRF2OUTNRF2INPRF2INN SWCOM3 RX TX/RX 4.RF D10 WU5108 802.11b/g/n USB WLAN AboCom Systems, Inc B 44 Monday, April 18, 2011 TitleSize Document Number Rev Date: Sheet of RF2INN RF2OUTPRF2OUTN RF2INP R191.5pF+/-5%1/16W C204.7pF 50V+/-0.25PF C211.5pF50V+/-0.25PF R6100pF 50V+/-0.25PF L32.2nH+/-0.1NH R2010pF R12 1K C112.2pF 50V+/-0.25PF D1 SMP1321 12 12 C9 Test Pin 21 R182.0pF +/-5%1/16W L7 3.3nH C142.0pF50V+/-0.25PF C162.0pF50V+/-0.25PF L52.2nH+/-0.1NH C128.2pF50V+/-5% L8 3.9nH L12.0nH+/-0.1NH C231.5pF50V+/-0.25PF C262.0nH C7 Test pin 21 L22.0nH+/-0.1NH C132.0pF50V+/-0.25PF C810pF50V+/-5% C521.0pF50V+/-0.25PF C221.5pF50V+/-0.25PF PCB ANT1A2 213 C194.7pF50V+/-0.25PF A4No Load A3No Load C152.0pF50V+/-0.25PF PCB ANT0A1 213 C241.5nH RF2OUTPRF2OUTN RF2INPRF2INN SWCOM3

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0073 EMC compliance Ltd. Page: 1 of 47 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. FCC TEST REPORT Test report No: EMC- FCC- R0073 FCC ID: PO5WU5108 Type of Equipment: Wi-Fi USB Module Model Name: WU5108 Applicant: Prinics Co., Ltd FCC Rule Part(s): FCC Part 15 Subpart C Section 15.203, Section 15.209 Section 15.207, Section 15.247 Frequency Range: 2 412 MHz ~ 2 462 MHz Test result: Complied The above equipment was tested by EMC compliance Testing Laboratory for compliance with the requirements of FCC Rules and Regulations. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Date of test: August 10, 2012 ~ August 17, 2012 Issued date: August 17, 2012 Tested by: Approved by: . SON, MIN GI KIM, CHANG MIN http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0073 EMC compliance Ltd. Page: 2 of 47 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. [ Contents ] 1. Client information .................................................................................................. 3 2. Laboratory information ........................................................................................... 4 3. Description of E.U.T. ............................................................................................... 5 3.1 Basic description .............................................................................................. 5 3.2 General description ........................................................................................... 5 3.3 Test frequency ................................................................................................. 6 3.4 Test Voltage .................................................................................................... 6 4. Summary of test results ............................................................................................ 7 4.1 Standards & results ............................................................................................ 7 4.2 Uncertainty .................................................................................................... 7 5. Test results .......................................................................................................... 8 5.1 Antenna Requirement ......................................................................................... 8 5.2 Maximum Peak Output Power ................................................................................ 9 5.3 Peak Power Spectral Density ................................................................................ 14 5.4 6 dB Bandwidth ............................................................................................. 19 5.5 SPURIOUS EMISSION, BAND EDGE, AND RESTRICTED BANDS ................................. 24 5.6 Conducted Emission ......................................................................................... 45 5.7 RF Exposure ................................................................................................. 46 6. Test equipment used for test .................................................................................... 47 Appendix 1 Test setup photos Appendix 2 External photos of EUT Appendix 3 Internal photos of EUT Appendix 4 Block diagram Appendix 5 Schematics Appendix 6 User manual Appendix 7 Part list Appendix 8 Layout diagram Appendix 9 Antenna Specification http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0073 EMC compliance Ltd. Page: 3 of 47 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82 31 336 9919 (Main) 82 31 336 4767 (Fax) This test report shall not be reproduced except in full, Without the written approval. 1. Client information Applicant: Prinics Co., Ltd Address: E-1101, Digital Empire B/D, 980-3, Youngtong-Dong, Youngtong-Gu, Suwon-Si,Korea Telephone number: +82-31-303-5991 Facsimile number : +82-31-303-5994 Contact person: Jeong-Bok Kim/ Chief Engineer Manufacturer : AboCom System, Inc. Address: No.77, Yu-Yih Rd., Chu- Nan, Miao-Lih Country 35059, Taiwan R.O.C http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0073 EMC compliance Ltd. Page: 4 of 47 480-5 Shin-dong,…
