PPATOCHANGEL2Mobile Phone

1 Thank you for purchasing this mobile. For the best performance, we recommend that you read the manual carefully. Menu Phonebook You have 2 phonebooks in this mobile phone: SIM card and the mobile. View: View the information of current record Send text message: send text messages to the current record Call: Make a call of current number. Edit: Edit the items of current number. Delete: Delete the current record Copy: Provide two ways of copying: from SIM card to mobile, and from mobile to SIM card. Add to Blacklist: Add the contact to blacklist Phonebook settings [Memory status]：Check the storage capacity of the SIM card and phonebook. Messaging 1.Enter Messaging-Write message. 2.Input/Select the destination number（you can input/Select the multi-number） and then Press LSK/Options-Send to send the message. 3. Select Inbox to view message received Select Drafts to view the draft you saved Select Outbox to view the unsent message Select Sent messages to view the sent message Select Message settings to set the message configuration Call center Call history Missed calls: Display the missed calls about the latest time and date, caller‟s number and calling times. [Dialled calls] Display the dialed calls about the latest time and date, caller‟s number and calling times. 2 [Received Calls] Display the answered calls about the latest time and date, caller‟s number and calling times. Press the right soft key to enter the options menu can be more than the number of call records in the following: View: See the current record Call: Call the current number. Send text message: send text messages to the current record Save to Phonebook: Save the record to phonebook Add to Blacklist: Add the contact to blacklist Delete: choose to delete the current record [Delete call logs] Delete the call log Call settings Call waiting：Select the functions of open, close or inquire call waiting. Call divert：Choose to open, close or enquire the call forwarding function. Call barring：Select to restrict some talking function. Note: network support is required. Line switching：Select line 1 or line 2. Note: If the line 1 is selected it may lead to failure to dial out and the menu will decide the display because the different categories of the SIM card used. Advance settings Blacklist：Edit the blacklist Auto redial：Choose whether automatic redial will be implemented when the called party is in the busy or have no response. Call time reminder: Choose display the call time or not when calling Answer mode: Choose answer mode. Settings Phone settings [Time and date]: ◆ Set home city: Choose the home city. ◆ Set time/date: Set the display date and time. ◆ Set format: Choose the time and date format. [Language]：Display Language for your mobile. [Pref. input method]Can the Pref. input method. 3 [Display] ◆ Wallpaper：Set the stand-by wallpaper. ◆ Power On display：Set switch-on animation. ◆ Power Off display：Set switch-off animation. ◆ Show date and time: Activate or deactivate displaying time and date in the stand-by screen. [Flight mode]: Set the flight mode or normal mode. [Misc.settings]: Set the time limit for the back light of main screen to be off when there is no operation. Network settings：Choose setup SIM card network [GPRS transfer pref]：Set the priority network. Security settings： [SIM Security ] ◆ PIN Lock：Activate or deactivate the PIN lock. ◆ Change PIN/PIN 2： Change the PIN. Note：Please remember your password firmly in time after changing. [Phone Security]：Activate or deactivate the phone lock and Change password. [Screen auto lock]: choose the keypad lock for 5 sec.,30 sec.,1 min.,5 min. and choose “Off”. [Phone settings] ◆ Phone Lock：Activate or deactivate the Phone lock. ◆ Change password：Change mobile phone password. [Screen auto lock] Set auto lock screen time. Connectivity： [Bluetooth] ◆ Power： Active the Bluetooth function. ◆ Visibility： Activity /Deactivate this function. ◆ My device：Display the connected Bluetooth. ◆ My name：View the Bluetooth name and can be edit the Bluetooth name. [Data accounts] Can be view or edit the Date account. 4 Restore factory settings：Restore the default setting of the phone. You need to enter the phone lock password, and the default password is „1122‟. Multimedia Camera：Take the picture via press CSK Switch to video recorder: you can be Switch to video recorder Photos：View the photos that you saved. Camera setting：Set related parameters of the camera. Image settings：Set the size and quality of the photos. White balance: Choose the mode to keep white balance. Scene mode: Choose the Auto or Night mode . Restore default：Restore the camera settings to default. Image viewer：View or modify photos saved in the album. View: View the selected images. Send: you can send the image by Bluetooth. Use as: use the phone as wallpaper, Power on/off display. Rename: Rename the current picture. Delete: Delete the picture Image information: view the image information. Video Recorder On the video interface, press up and down navigation keys to tune the focal length; press left and right navigation keys to tune exposure compensation. Note: Because the mobile memory capacity is limited, a T-flash card has to be inserted before you can save the video. Switch to camera： Can be switch to camera. Camcorder settings：Set the related parameters for the video camera. Video settings：Set related parameters for the video clip. Video player： Lets you open different types of video file (As MP4) Sound Recorder New record：Start recording. Play：Play a selected record. 5 Rename：Rename a selected record. Note：Renaming a record which has been set as incoming ring will make the settings back to defaults. Delete：Delete a selected record. Use as：Use the record in a situation mode. Send: send the record by Bluetooth Note：The recording time depends on the memory capacity of the mobile. Audio player The audio player can be play mp3 file, let‟s you listen to audio files through headset or loudspeaker. [Play]: play the music. [Det…

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2013/11/15 SUBJECT: FCC Application for ( FCCID: PPATOCHANGEL2) To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite device. We understand that devices subject to the DoC procedure are required to be tested to show compliance with the FCC technical regulations by a recognized accredited testing laboratory. The testing laboratory must be accredited by a Commission approved accreditation body or designated under the terms of a government-to-government Mutual Recognition Agreement (MRA). A listing of those accredited testing laboratories that have been recognized by the Commission is published on the FCC Webpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm Select the "accredited" option to search for FCC recognized accredited test firms. Test facilities located in countries, where the U.S. does not have an operational Telcom MRA are not recognized by the FCC to test for the DoC procedure. Regards, Signature Name: MOISES CARDONA Title: GENERAL MANAGER Company Name: TOCH MOBILE INTERNACIONAL S.A. Address: RES. LA LILLIANA 2 ETAPA, # 88 SN. FCO., HEREDIA, COSTA RICA, HEREDIA, 40103 Costa Rica Tel No:+ (506)86711880 Email: [email protected]

TOCH MOBILE INTERNACIONAL S.A. SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 TOCH MOBILE INTERNACIONAL S.A. SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 2013/11/13 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _____ _ TOCH MOBILE INTERNACIONAL S.A.____hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product： Mobile phone Trade Name： TOCH Model Name： ANGEL II Serial Model： N/A FCC ID： PPATOCHANGEL2 We affirm that between SIEMIC and ___ TOCH MOBILE INTERNACIONAL S.A. ___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature Signature Name: MOISES CARDONA Title: GENERAL MANAGER Company Name: TOCH MOBILE INTERNACIONAL S.A. Address: RES. LA LILLIANA 2 ETAPA, # 88 SN. FCO., HEREDIA, COSTA RICA, HEREDIA, 40103 Costa Rica Tel No:+ (506)86711880 Email: [email protected]

TOCH MOBILE INTERNACIONAL S.A. SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 TOCH MOBILE INTERNACIONAL S.A. SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 2013/11/23 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: PPATOCHANGEL2 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description - Tune up and Bom list The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature Name: MOISES CARDONA Title: GENERAL MANAGER Company Name: TOCH MOBILE INTERNACIONAL S.A. Address: RES. LA LILLIANA 2 ETAPA, # 88 SN. FCO., HEREDIA, COSTA RICA, HEREDIA, 40103 Costa Rica Tel No:+ (506)86711880 Email: [email protected]

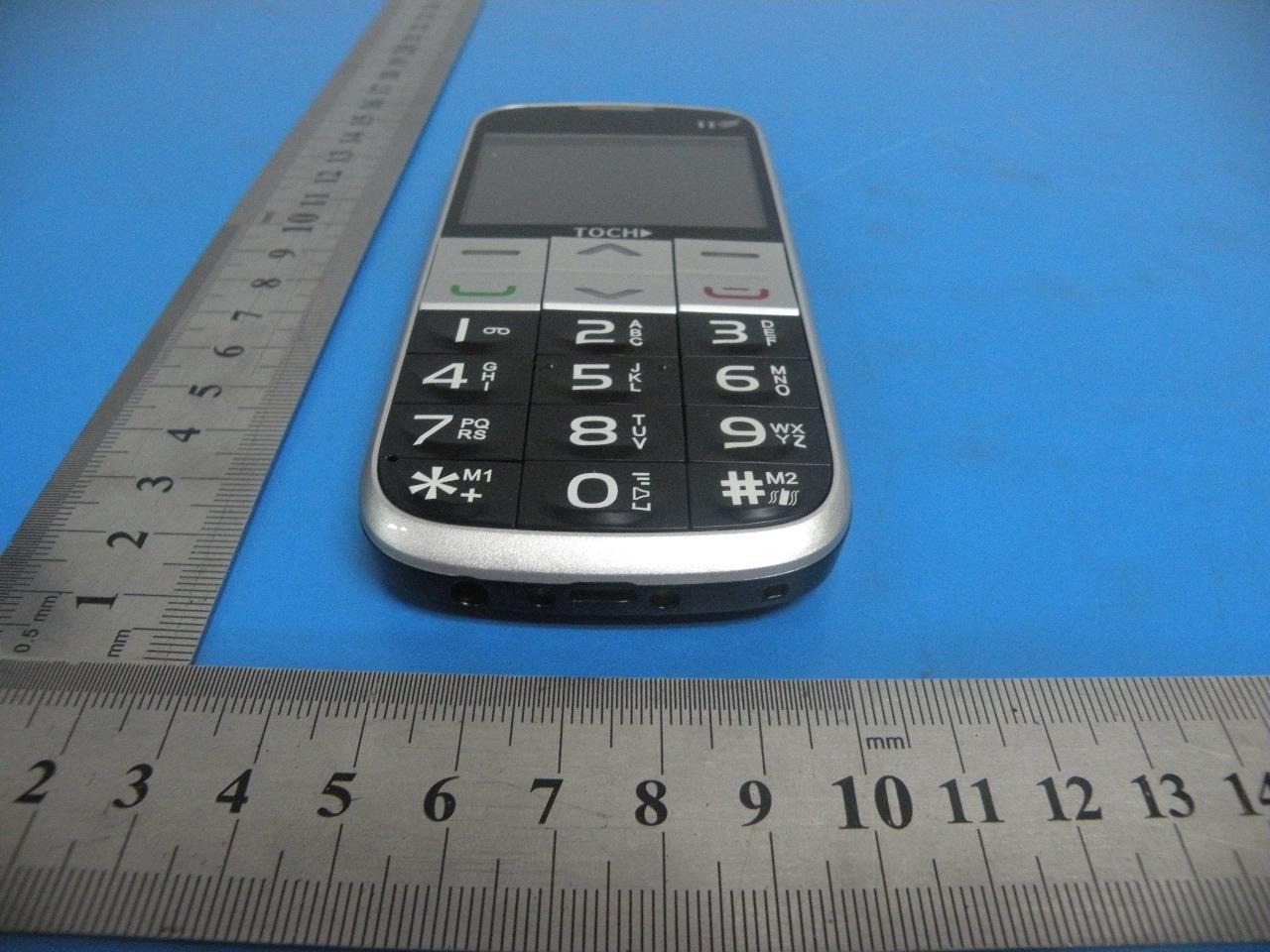

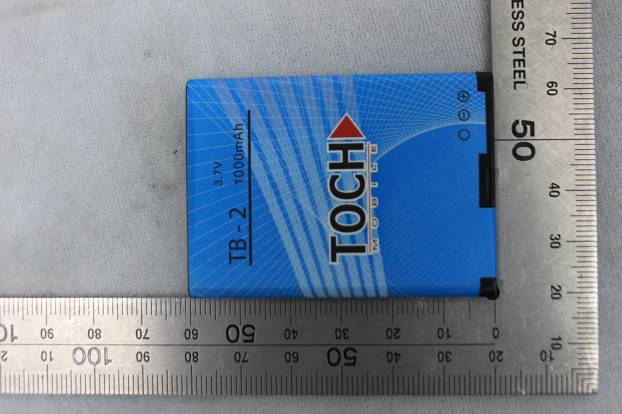

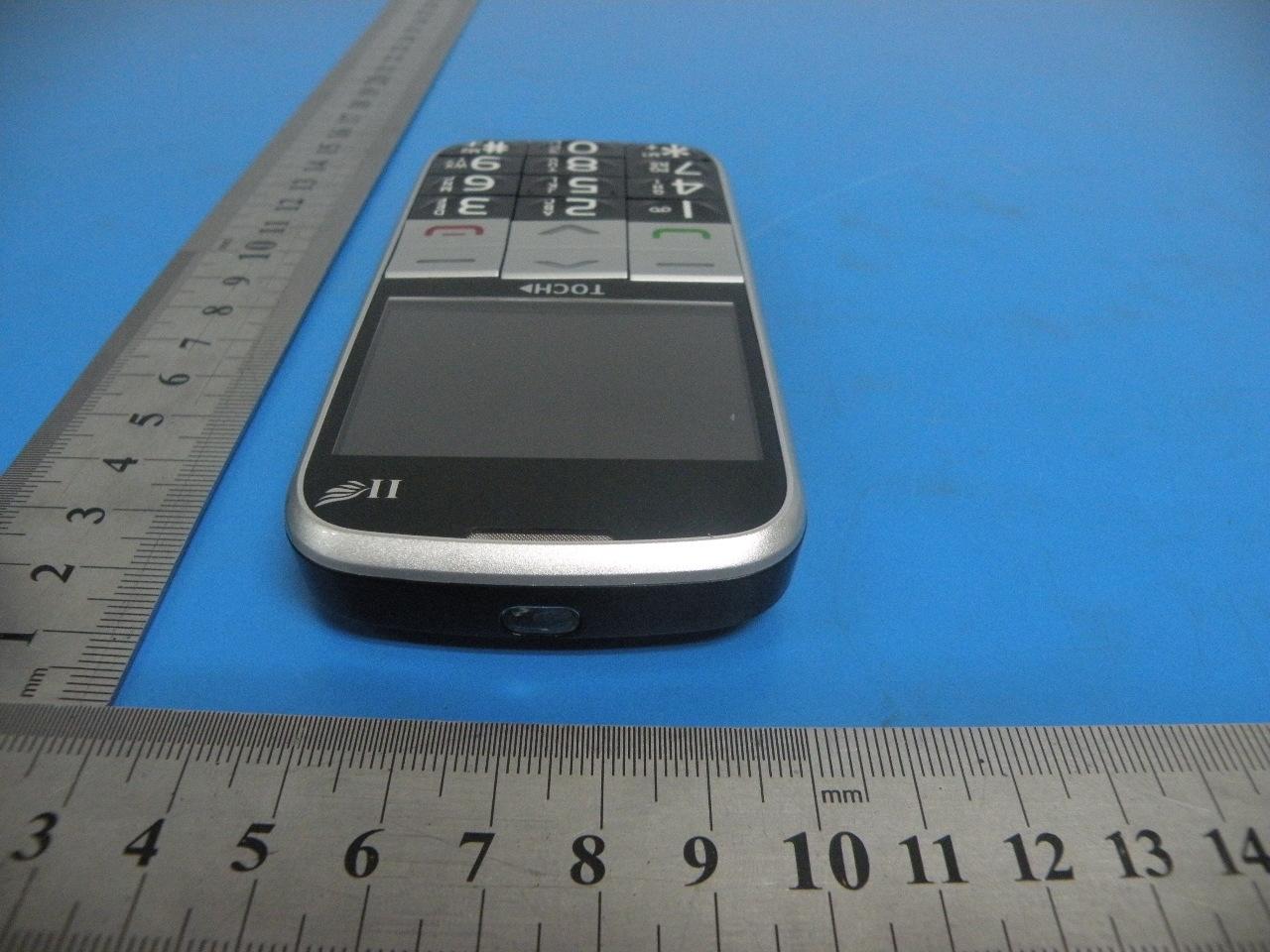

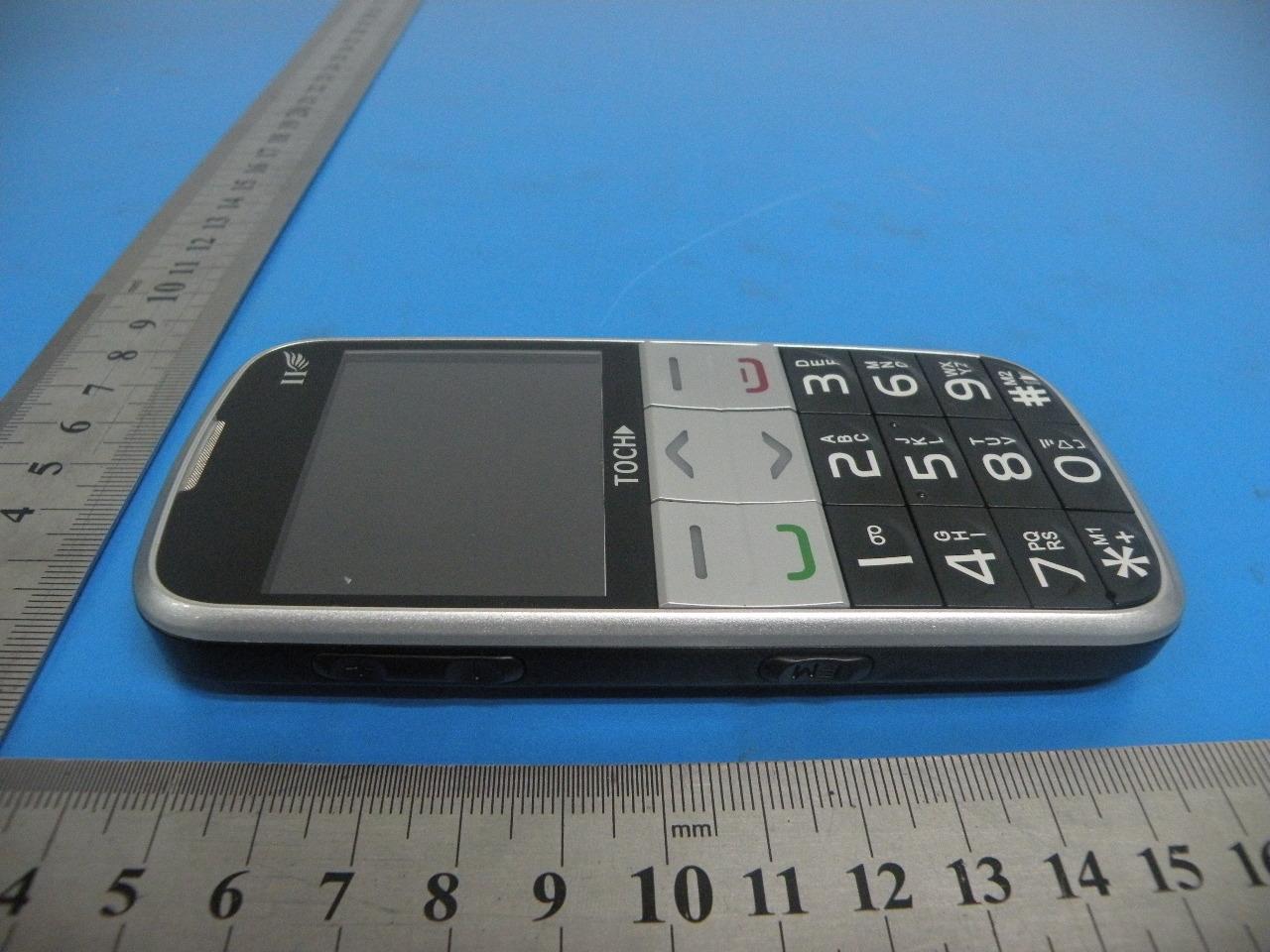

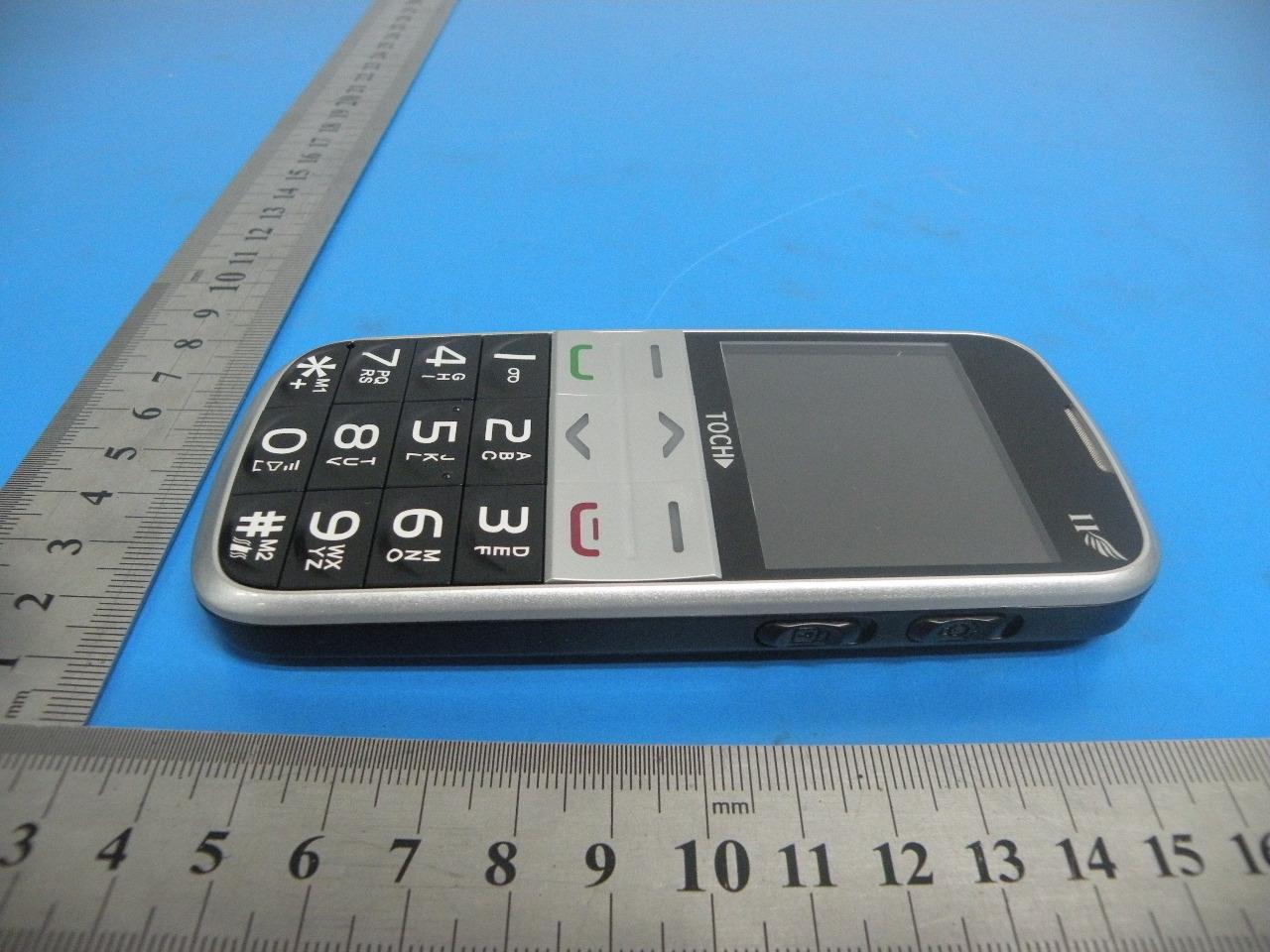

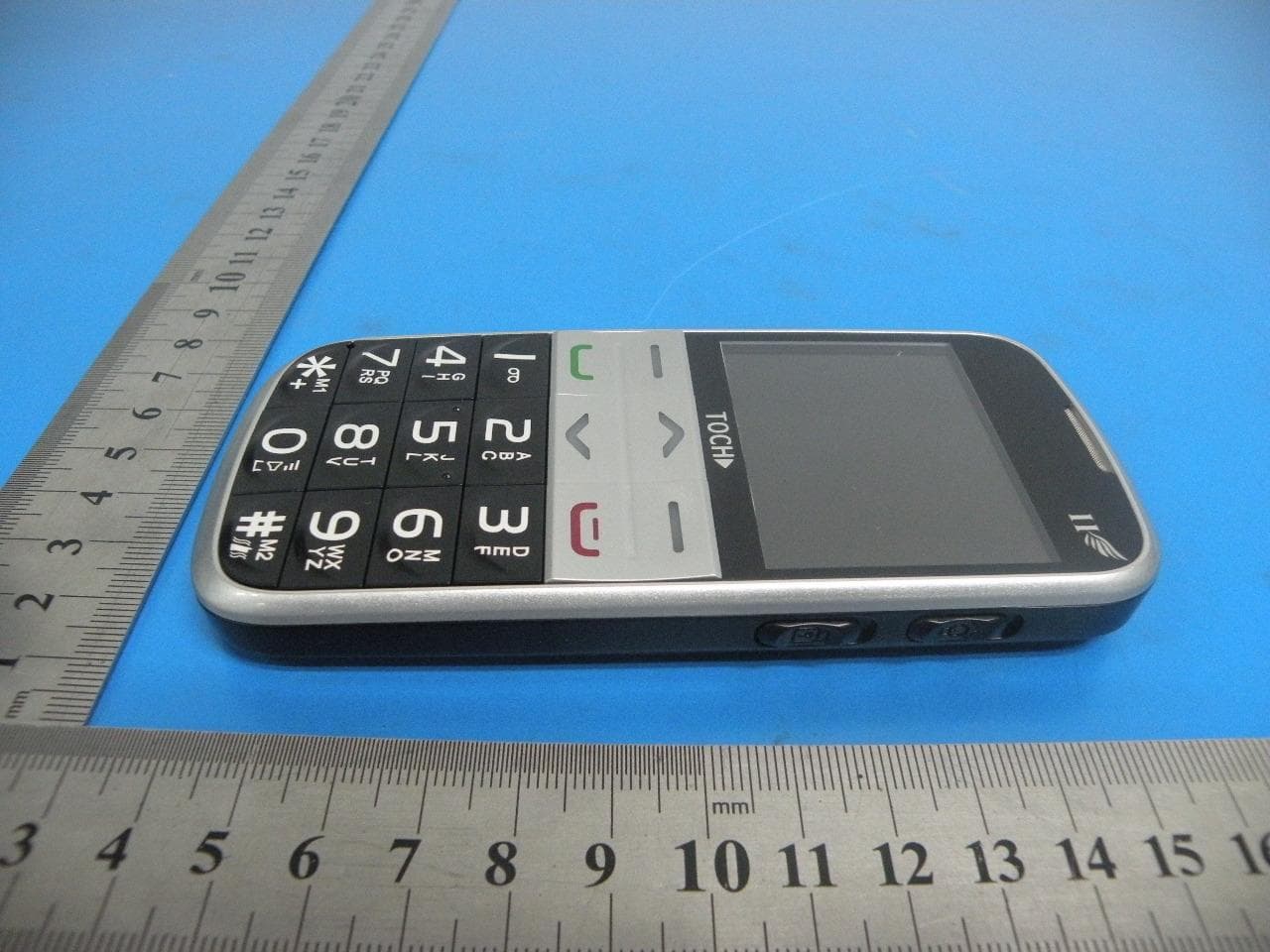

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8

FCC ID: PPATOCHANGEL2 Model No.: ANGEL II

Photo 9 Photo 10 Photo 11 Photo 12 Photo 13 Photo 14

TEST REPORT Report Reference No. ..................... : FCC ID. ............................................. : TRE1309000102 R/C: 83385 PPATOCHANGEL2 Compiled by ( position+printed name+signature) .. : File administrators Supervised by ( position+printed name+signature) .. : Test Engineer Approved by ( position+printed name+signature) .. : Manager Date of issue ..................................... : Nov 12, 2013 Testing Laboratory Name .............. : Shenzhen Huatongwei International Inspection Co., Ltd Address ....................................: Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China ............................: TOCH MOBILE INTERNACIONAL S.A. Address ............................................ : RES. LA LILLIANA 2 ETAPA, # 88 SN. FCO., HEREDIA, COSTA RICA, HEREDIA, 40103 Costa Rica Test specification: Standard ........................................... : ANSI C95.11999 47CFR 2.1093 TRF Originator .................................. : Shenzhen Huatongwei International Inspection CO., Ltd Master TRF ....................................... : Dated 2006-06 Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: Mobile phone Trade Mark ....................................... : TOCH Manufacturer .................................... : Smalt Industry Co., Ltd. Model/Type reference....................... : ANGEL II Listed Models .................................. : / Operation Frequency ......................... GSM850/PCS1900 Modulation Type ................................ GSM(GMSK),Bluetooth(GFSK) Ratings ............................................. : DC 3.70V Result................................................ : Positive Report No.: TRE1309000102 Page 2 of 92 Issued:2013-11-12 T E S T R E P O R T Test Report No. : TRE1309000102 Nov 11, 2013 ______________________________________________________________________________________________ Date of issue Equipment under Test : Mobile phone Model /Type : ANGEL II Listed Models : / Applicant : TOCH MOBILE INTERNACIONAL S.A. Address : RES. LA LILLIANA 2 ETAPA, # 88 SN. FCO., HEREDIA, COSTA RICA, HEREDIA, 40103 Costa Rica Manufacturer : Smalt Industry Co., Ltd. Address : 3CD,Jinsong Building, Tairan 4th Rd, Chegongmiao, Futian District, Shenzhen, China Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TRE1309000102 Page 3 of 92 Issued:2013-11-12 Contents 1. TEST STANDARDS 4 2. SUMMARY 5 2.1. General Remarks 5 2.2. Product Description 5 2.3. Statement of Compliance 5 2.4. Equipment under Test 6 2.5. Short description of the Equipment under Test (EUT) 6 2.6. EUT configuration 6 2.7. Internal Identification of AE used during the test 6 2.8. Note 7 3. TEST ENVIRONMENT 8 3.1. Address of the test laboratory 8 3.2. Test Facility 8 3.3. Environmental conditions 9 3.4. SAR Limits 9 3.5. Equipments Used during the Test 9 4. SAR MEASUREMENTS SYSTEM CONFIGURATION 10 4.1. SAR Measurement Set-up 10 4.2. DASY5 E-field Probe System 11 4.3. Phantoms 12 4.4. Device Holder 12 4.5. Scanning Procedure 13 4.6. Data Storage and Evaluation 13 4.7. Tissue Dielectric Parameters for Head and Body Phantoms 15 4.8. Tissue equivalent liquid properties 15 4.9. System Check 15 4.10. SAR measurement procedure 17 5. TEST CONDITIONS AND RESULTS 21 5.1. Conducted Power Results 21 5.2. Simultaneous TX SAR Considerations 22 5.3. SAR Measurement Results 25 5.4. SAR Measurement Variability 26 5.5. Measurement Uncertainty (300MHz-3GHz) 26 5.6. System Check Results 28 5.7. SAR Test Graph Results 32 6. CALIBRATION CERTIFICATE 52 6.1. Probe Calibration Ceriticate 52 6.2. D835V2 Dipole Calibration Ceriticate 63 6.3. D1900V2 Dipole Calibration Ceriticate 71 6.4. DAE4 Calibration Ceriticate 79 7. TEST SETUP PHOTOS 84 8. EXTERNAL PHOTOS OF THE EUT 91 Report No.: TRE1309000102 Page 4 of 92 Issued:2013-11-12 1. TEST STANDARDS The tests were performed according to following standards: IEEE Std C95.1, 1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 KHz to 300 GHz. It specifies the maximum exposure limit of 1.6 W/kg as averaged over any 1 gram of tissue for portable devices being used within 20 cm of the user in the uncontrolled environment. -2003: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. KDB 447498 D01 Mobile Portable RF Exposure v05r01: Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies KDB865664 D01 SAR measurement 100 MHz to 6 GHz v01: SAR Measurement Requirements for 100 MHz to 6 GHz KDB865664 D02 SAR Reporting v01: RF Exposure Compliance Reporting and Documentation Considerations FCC Part 2.1093 Radiofrequency Radiation Exposure Evaluation: Portable Devices KDB648474 D04 SAR Handsets Multi Xmiter and Ant v01: SAR Evaluation Considerations for Wireless Handsets. KDB941225 D03 Test Reduction GSM_GPRS_EDGE V01 : Recommended SAR Test Reduction Procedures for GSM/GPRS/EDGE Report No.: TRE1309000102 Page 5 of 92 Issued:2013-11-12 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : Sep 24, 2013 Testing commenced on : Nov 06, 2013 Testing concluded on : Nov 06, 2013 2.2. Product Description The TOCH MOBILE INTERNACIONAL S.A. s Model: ANGEL II ; more general information as follows, f Name …
