PPFHB025BLUETOOTH KEYBOARD

Bluetooth Keyboard Packing Contents: ● Cordless keyboard ● User manual ● Cable ● Foopad 1. Bluetooth Keyboard Specification: ● Built-in Bluetooth 3.0 keyboard ● Ultra - thin aluminum case ● MICRO interface, easy to charge ● Suitable for Iphone ● Built-in rechargeable lithium battery, last for approximately 100 hours per charge ● Special [home] screen key for one touch access to variety of application. ● Light weight, quiet keystrokes, water-proof, dust-proof ● Energy saving keyboard sleep mode Bluetooth Keyboard Specification and Pairing Instruction: 2. Bluetooth Keyboard Specification ● Bluetooth 3.0 interface standard ● Operating Distance to 10 meters ● Modulating System: GFSK ● Operation Voltage: 1.8-3.6V ● Working Current: <2.0mA ● Standby Current: 0.3-0.5mA ● Sleeping Current：<25uA ● Charging Current ≥ 100mA ● Standby Time: 90days ● Charging Time: 4-5hours ● Lithium Battery Capacity: 280mA ● Uninterrupted Working Time: 100hours ● Lithium Battery Life: 3year ● Lithium Battery Specification: 382035mm ● Key Strength: 80±10g ● Key life: 5 million strokes ● Operating Temperature: -10-+55 C 3. Bluetooth Keyboard Pairing Step 1: Turn on the power toggle switch. The state indicator light will be on for 4 seconds, and then the light will go off. Step 2: Press on the [connect]button, the [Bluetooth] indicator light will be blinking and the [Power]indicator will be on, the keyboard is now ready to be connect to Ipad. Step 3: Turn on and unlock Ipad,Click on the Ipad[setting] icon. Step 4: On the setting menu,select item[general] to access [Bluetooth] settings. Click on [Bluetooth] to turn on the connection. Ipad will automatically search for a Bluetooth-enabled device. Step 5: Wireless Keyboard is found, Click on the device to connect. Step 6: Enter the password code as displayed on screen. Step 7: Wireless Keyboard connected successfully. [Power] indicator light will stay on until the keyboard is switched off. Special Note: For other Bluetooth enabled device, please verify the Bluetooth Standard&compatibility before attempting to connect to the keyboard. 4. Battery The long-lasting rechargeable battery can service you for several weeks With no memory effect, the lithium battery can be charged at any time. In order to extend service life, we recommend you turn the keyboard off when there is long time with no interactive. 5. Charging When the battery power is low, the [power] indicator light will start blinking,it is time to recharge the keyboard. Step 1: Connect USB-B of the native USB power cable to the keyboard charging interface. Step 2: Connect USB-A to the power adapter or computer's USB interface. Step 3: the [charge] red indicator light will stay on when the keyboard is charging. Once it finished charging the [charge] indicator light will turn off. 6. Energy Saving Sleep Mode The keyboard will kick into sleep mode when it is inactive for 15 minutes and the keyboard [power] indicator or light will go off. To activate from sleep mode, just press any key and wait 3seconds, the keyboard will come back on. 7. Safety Caution ● Keep the item away from sharp objects. ● Do not place heavy object on top of the keyboard. ● Do not Microwave the item. ● Do not force or distorted the keyboard ● Keep away from oil, chemical or any other organic liquid. 8. Cleaning Clean the keyboard with water, alcohol or alcohol based disinfectant 9. Troubleshooting A. Unable to connect ● Make sure the power switch is on. ● Make sure the keyboard is within the operating distance. ● Make sure the battery is charged. ● Make sure Ipad Bluetooth setting is on. ● Make sure wireless keyboard is connected to Ipad. ● Make sure wireless keyboard has been paired with the Ipad. B. Unable to Charge Keyboard ● Make sure the USB power cable is connected properly to the keyboard and the power source. ● Make sure the wall charger is plug into the power outlet. 10. Special Keys Description Long press [Fn] and combination with [F1-F12] and [insert] keys to the shift multimedia keys, and mainly be used in the operation of Ipad multimedia. 11. Special Features and Options Please note that the Keyboard Case is made from aircraft aluminum with a high grade finish similar to the finish on many popular devices. Options: A set of four rubber feet is included, which you can place on each corner of the Keyboard Case bottom to help prevent scratching high-grade finish of the Keyboard Case. What do you think about our Bluetooth keyboards? Please take a minute to tell us. Thanks for purchasing our product. www.haskey.com.cn 12. Product End of Life: Keyboard battery disposal ● Insert screwdriver between plastic top and metal case at keyboard top or bottom ● Pry up plastic top and remove it completely.This action destroys keyboard ● Turn top over and remove tape from battery. ● Separate battery from circuit board ● Dispose of battery according to local laws.Recycle remaining keyboard parts. Table of Toxic and Hazardous Substance / Elements and Their Content FCC Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

BCM 20730 Ant 2402-2480 MHz 24MHz Crystal USB Charger Li-ion Battery Key Matrix Pairing Switch

Shenzhen HASKEY Technology Co., Ltd. G-BLDG, Democracy West Industry Park, shajing town, Baoan District, Shenzhen, China (FCC ID: PPFHB025) Date: November 22, 2012 Attestation Letter Gentlemen: We, Shenzhen HASKEY Technology Co., Ltd. declare the device of FCC ID: PPFHB025, Model Name: HB025, the USB port supports only charging function, it does not support that any information is exchanged between device and PC or laptop. Sincerely, Shenzhen HASKEY Technology Co., Ltd.

Shenzhen HASKEY Technology Co., Ltd Model: HB025 REPORT NO.: STR12118167I FCC PART 15.247 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Shenzhen HASKEY Technology Co., Ltd Model: HB025 REPORT NO.: STR12118167I FCC PART 15.247 EUT View 3 EUT View 4 Shenzhen HASKEY Technology Co., Ltd Model: HB025 REPORT NO.: STR12118167I FCC PART 15.247 EUT View 5 EUT View 6

Shenzhen HASKEY Technology Co., Ltd Model: HB025 REPORT NO.: STR12118167I FCC PART 15.247 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: PPFHB025 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Shenzhen HASKEY Technology Co., Ltd Model: HB025 REPORT NO.: STR12118167I FCC PART 15.247 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: PPFHB025 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

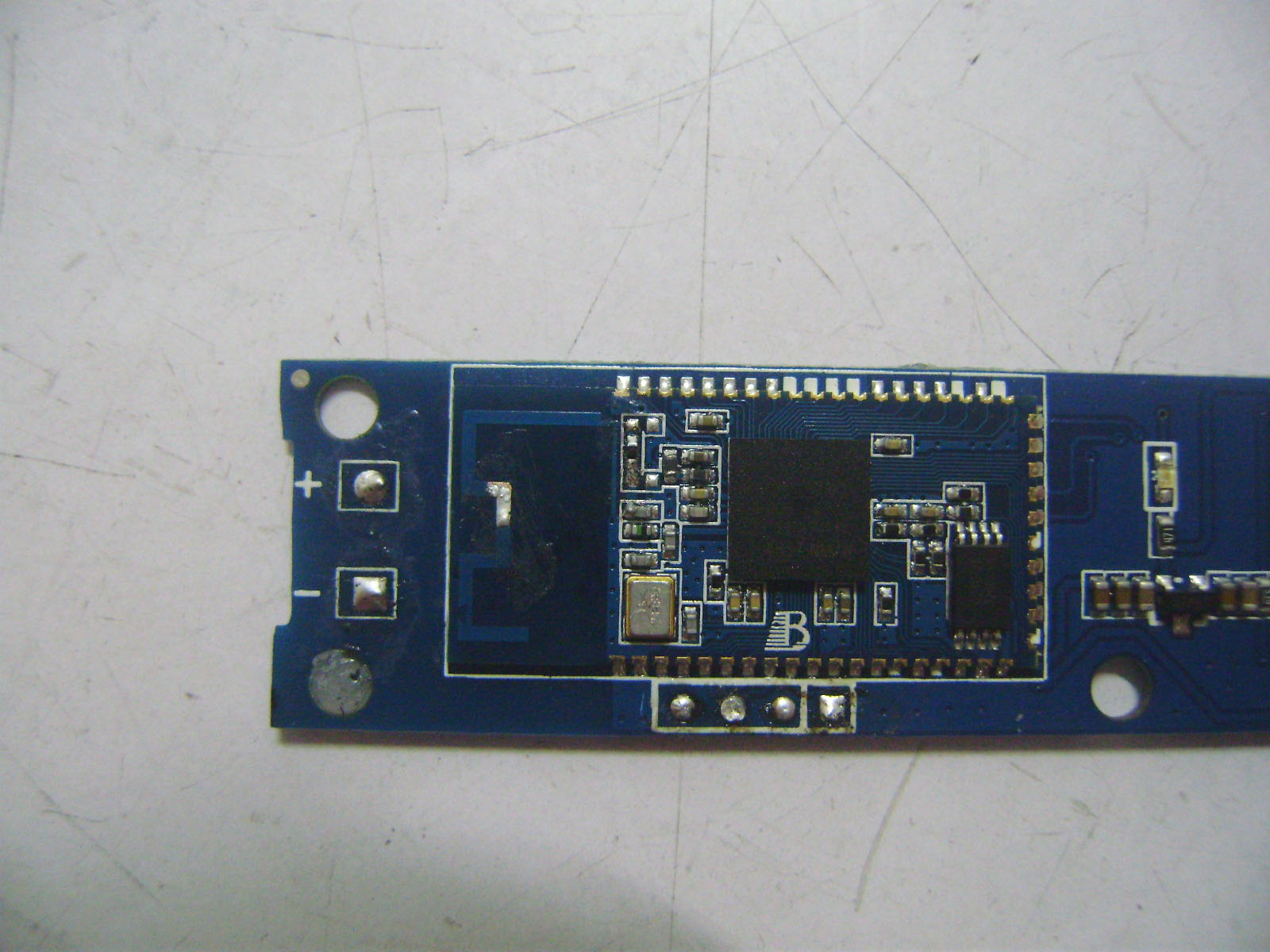

Shenzhen HASKEY Technology Co., Ltd Model: HB025 REPORT NO.: STR12118167I FCC PART 15.247 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View Solder Board-Component View 1 Shenzhen HASKEY Technology Co., Ltd Model: HB025 REPORT NO.: STR12118167I FCC PART 15.247 Solder Board-Component View 2 Antenna View: BT Ant. 2402~2480MHz

BT Keyboard Operation Principle 1. Controller Side Radio The BT keyboard system is mainly composed of three parts: radio modem, frequency synthesizer and baseband microprocessor. The radio modem is a GFSK modem running at 1Mbps. The antenna is an embedded PCB antenna matching is done by using lumped inductors and capacitors. The microcontroller scans keystrokes on the BT keyb oard, then packs the data by adding preambles, frame information, and error checking bytes. The radio system uses one of 79 channels (the frequency range is 2.402-2.480GHz) to send signal in random. The BT keyb oard is powered by 3.7V Li-ion batteries and regulated to 2.8V. The power consumption of RF module is about 1.8mA, the total power consumption of the BT keyb oard is about 2mA in normal working mode. It will enter sleep mode if no key be pressed after 8 minutes, in this mode the total power consumption of BT keyb oard is only about 35uA*.

RF Exposure Requirements Product Description: Bluetooth Headset Model No.: HB025 FCC ID: PPFHB025 Acorrding to the KDB-447498, the following RF exposure evaluation shall to demonstrate RF exposure compliance. Tx frequency range: 2402~2480MHz Device category: Portable device Maximum Conducted Output Power: 0.334 mW (-4.768 dBm) Maximum Antenna Gain: 0dBi Maximum EIRP Output Power: 0.334 mW (-4.768 dBm) Limit: 60/f(GHz) mW = 24.98 mW Source-based time-averaged EIRP output power is 0.334 mW =< 60/f So the transmitter complies with the RF exposure requirements and the SAR is not required.

55 44 33 22 11 D D C C B B A A Broadcom Proprietary & Confidential 824-119932-0000 REVISION HISTORY:Rev -0000P11) Initial release, BCM20730, 7x7, 64pin QFN on a 2 Layer FR4 pcb with pcb antenna on boardRev -0000P21) Change C14 and C15 to 15pF2) Change R7 to 2.7nH, C13 and C16 to 1.8pF TitleSize Document Number Rev Date: Sheet of P2 Tuesday, September 28, 2010 BCM920730MD_B64 --- cover page 14 TitleSize Document Number Rev Date: Sheet of P2 Tuesday, September 28, 2010 BCM920730MD_B64 --- cover page 14 TitleSize Document Number Rev Date: Sheet of P2 Tuesday, September 28, 2010 BCM920730MD_B64 --- cover page 14 55 44 33 22 11 D D C C B B A A Broadcom Proprietary & Confidential 824-119932-0000 DNI R4 and R5 when serialflash is used DNI SDASCL VDD_EEPROM SDA SCL 1P2VC VDDIO VDDIO VDDIO VBAT VDDIO P3P1P4P25P2P26P5P24P6P7P10P27P8P0 SCL SDA RESET_N UP_TXUP_RX P31 P9P13P14P15P11P12P19P20P17P18P16P21P22P23 P28P29P30P31P34P35P36P37 SDASCL WP P32P33 TitleSize Document Number Rev Date: Sheet of P2 Tuesday, September 28, 2010 BCM920730MD_B64 --- BASEBAND &PMU 24 TitleSize Document Number Rev Date: Sheet of P2 Tuesday, September 28, 2010 BCM920730MD_B64 --- BASEBAND &PMU 24 TitleSize Document Number Rev Date: Sheet of P2 Tuesday, September 28, 2010 BCM920730MD_B64 --- BASEBAND &PMU 24 U224LC128-I/MSTSSOP8 WP 7 SCLK 6 A0 1 SDA 5 VCC 8 A1 2 A2 3 GND 4 R4 10K R10 U3XCL206B303AR-GQFN8+EP VSS 5 VSS 2 CE/MODE 4 HS-GND H VIN 6 LX 1 VOUT 3 L2 8 L1 7 C30.1uF R5 10K C21uF R9 0 C10.1uF C2210uF C40.01uF U1A BCM20730 64 PIN VDDO1 D7 VDDC H6 P10 D2 P36 C4 P37 C3 P13 F3 P14 D3 P15 A2 P34 B6 P35 D5 P8 F4 P9 A1 P32 D6 P33 D8 P0 F6 P1 G6 P2 H8 P3 F8 P4 H7 P5 E6 P6 F5 P7 C5 SCL E8 SDA F7 TMC G7 RST_N G8 UART_RXD H5 UART_TXD G5 VSS1 E5 VSS D4 VDDO A6 P11 C2 P12 B2 P16 C8 P17 H4 P18 C7 P19 B8 P20 A8 P21 C6 P22 G4 P23 E3 P24 A7 P25 B7 P26 A4 P27 B4 P28 B5 P29 A5 P30 E4 P31 E7 R210K C50.1uF R310K R80 R610K C214.7uF 55 44 33 22 11 D D C C B B A A Broadcom Proprietary & Confidential Note: Antenna matching network.Please note that thevalue on those componentsmay vary by differentlayout and differenthousing design. Note:"Pi" harmonic filterfor 2nd and 3rdharmonic +/- 0.1pF +/- 0.1pF 824-119932-0000 1P2V 1P2VC VDDIO 1P2VRF LDOIN VBAT XIN_32 XOUT_32 TitleSize Document Number Rev Date: Sheet of P2 Tuesday, September 28, 2010 BCM920730MD_B64 --- RF 34 TitleSize Document Number Rev Date: Sheet of P2 Tuesday, September 28, 2010 BCM920730MD_B64 --- RF 34 TitleSize Document Number Rev Date: Sheet of P2 Tuesday, September 28, 2010 BCM920730MD_B64 --- RF 34 C111uF C18 1.8pF (DNI) RD10 INSTALL POSITION A A B C R13 0 FB2 120@100MHz Y124.000MHz 1 3 2 4 U1B BCM20730 64 PIN VDDFE E1 VDDVCO H1 RF F1 XTALI H3 XTALO G3 LDOOUT C1 LDOIN B1 XTALO32K B3 XTALI32K A3 VDDIF D1 VDDPLL H2 VSS3 G1 VSS4 G2 VSS5 F2 VSS2 E2 C810pF C62.2uF C90.01uF C190.01uF C1515pF C161.8pF R10 0 FB1120@100MHz R72.7nH A1 INV_F_ANTENNA_3 1 2 C70.01uF C1415pF C20 1.8pF (DNI) C131.8pF 55 44 33 22 11 D D C C B B A A Broadcom Proprietary & Confidential 824-119932-0000 VDDIOVBATLDOIN P8P9P10P11 P12P13P14P16P15P17 P3P1P2P0P4P5P6P7 UP_TXUP_RXRESET_N SDA SCL WP XIN_32XOUT_32 P18P19P20P22P21P23 P24P25P26P28P27P29P30P31P32P34P33P35 P36P37 TitleSize Document Number Rev Date: Sheet of P2 Tuesday, September 28, 2010 BCM920730MD_B64 --- MODULE I/O 44 TitleSize Document Number Rev Date: Sheet of P2 Tuesday, September 28, 2010 BCM920730MD_B64 --- MODULE I/O 44 TitleSize Document Number Rev Date: Sheet of P2 Tuesday, September 28, 2010 BCM920730MD_B64 --- MODULE I/O 44 TP24TP_0.8X0.5R_BOT_8mil_DRILL 1 TP47TP_0.8X0.5R_BOT_8mil_DRILL 1 TP52TP_0.8X0.5R_BOT_8mil_DRILL 1 TP14TP_0.8X0.5R_BOT_8mil_DRILL 1 TP53TP_0.8X0.5R_BOT_8mil_DRILL 1 TP44TP_0.8X0.5R_BOT_8mil_DRILL 1 TP1TP_0.8X0.5R_BOT_8mil_DRILL 1 TP6TP_0.8X0.5R_BOT_8mil_DRILL 1 TP31TP_0.8X0.5R_BOT_8mil_DRILL 1 TP51TP_0.8X0.5R_BOT_8mil_DRILL 1 TP23TP_0.8X0.5R_BOT_8mil_DRILL 1 TP37TP_0.8X0.5R_BOT_8mil_DRILL 1 TP41TP_0.8X0.5R_BOT_8mil_DRILL 1 TP13TP_0.8X0.5R_BOT_8mil_DRILL 1 TP55TP_0.8X0.5R_BOT_8mil_DRILL 1 TP28TP_0.8X0.5R_BOT_8mil_DRILL 1 TP5TP_0.8X0.5R_BOT_8mil_DRILL 1 TP48TP_0.8X0.5R_BOT_8mil_DRILL 1 TP30TP_0.8X0.5R_BOT_8mil_DRILL 1 TP21TP_0.8X0.5R_BOT_8mil_DRILL 1 TP20TP_0.8X0.5R_BOT_8mil_DRILL 1 TP22TP_0.8X0.5R_BOT_8mil_DRILL 1 TP12TP_0.8X0.5R_BOT_8mil_DRILL 1 TP45TP_0.8X0.5R_BOT_8mil_DRILL 1 TP27TP_0.8X0.5R_BOT_8mil_DRILL 1 TP4TP_0.8X0.5R_BOT_8mil_DRILL 1 TP29TP_0.8X0.5R_BOT_8mil_DRILL 1 TP19TP_0.8X0.5R_BOT_8mil_DRILL 1 TP38TP_0.8X0.5R_BOT_8mil_DRILL 1 TP42TP_0.8X0.5R_BOT_8mil_DRILL 1 TP49TP_0.8X0.5R_BOT_8mil_DRILL 1 TP34TP_0.8X0.5R_BOT_8mil_DRILL 1 TP54TP_0.8X0.5R_BOT_8mil_DRILL 1 TP26TP_0.8X0.5R_BOT_8mil_DRILL 1 TP3TP_0.8X0.5R_BOT_8mil_DRILL 1 TP35TP_0.8X0.5R_BOT_8mil_DRILL 1 TP56TP_0.8X0.5R_BOT_8mil_DRILL 1 TP16TP_0.8X0.5R_BOT_8mil_DRILL 1 TP46TP_0.8X0.5R_BOT_8mil_DRILL 1 TP18TP_0.8X0.5R_BOT_8mil_DRILL 1 TP8TP_0.8X0.5R_BOT_8mil_DRILL 1 TP33TP_0.8X0.5R_BOT_8mil_DRILL 1 TP39TP_0.8X0.5R_BOT_8mil_DRILL 1 TP25TP_0.8X0.5R_BOT_8mil_DRILL 1 TP43TP_0.8X0.5R_BOT_8mil_DRILL 1 TP2TP_0.8X0.5R_BOT_8mil_DRILL 1 TP17TP_0.8X0.5R_BOT_8mil_DRILL 1 TP50TP_0.8X0.5R_BOT_8mil_DRILL 1 TP15TP_0.8X0.5R_BOT_8mil_DRILL 1 TP7TP_0.8X0.5R_BOT_8mil_DRILL 1 TP32TP_0.8X0.5R_BOT_8mil_DRILL 1 TP36TP_0.8X0.5R_BOT_8mil_DRILL 1 TP9TP_0.8X0.5R_BOT_8mil_DRILL 1 TP40TP_0.8X0.5R_BOT_8mil_DRILL 1 TP57TP_0.8X0.5R_BOT_8mil_DRILL 1

Shenzhen HASKEY Technology Co., Ltd Model: HB025 FCC Part 15C Measurement and Test Report For Shenzhen HASKEY Technology Co., Ltd G-BLDG, Democracy West Industry Park, shajing town, Baoan District, Shenzhen, China FCC ID: PPFHB025 FCC Rules: FCC Part 15.247 Product Description: Bluetooth keyboard Tested Model: HB025 Report No.: STR12118167I Tested Date: 2012-11-14 to 2012-11-22 Issued Date: 2012-11-22 Tested By: Vigoss Xiong / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: SEM.Test Compliance Service Co., Ltd 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd REPORT NO.: STR12118167I PAGE 1 OF 48 FCC PART 15.247 Shenzhen HASKEY Technology Co., Ltd Model: HB025 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................4 1.2 TEST STANDARDS...................................................................................................................................................5 1.3 TEST METHODOLOGY.............................................................................................................................................5 1.4 TEST FACILITY.......................................................................................................................................................5 1.5 EUT SETUP AND TEST MODE.................................................................................................................................6 2. SUMMARY OF TEST RESULTS ...........................................................................................................................7 3. ANTENNA REQUIREMENT ..................................................................................................................................8 3.1 STANDARD APPLICABLE.........................................................................................................................................8 3.2 EVALUATION INFORMATION..................................................................................................................................8 4. FREQUENCY HOPPING SYSTEM REQUIREMENTS .....................................................................................9 4.1 STANDARD APPLICABLE.........................................................................................................................................9 4.2 EUT PSEUDORANDOM FREQUENCY HOPPING SEQUENCE......................................................................................9 4.3 FREQUENCY HOPPING SYSTEM.............................................................................................................................10 5. QUANTITY OF HOPPING CHANNELS AND CHANNEL SEPARATION ...................................................11 5.1 STANDARD APPLICABLE.......................................................................................................................................11 5.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................11 5.3 TEST PROCEDURE.................................................................................................................................................11 5.4 ENVIRONMENTAL CONDITIONS............................................................................................................................11 5.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................12 6. DWELL TIME OF HOPPING CHANNEL ..........................................................................................................14 6.1 STANDARD APPLICABLE.......................................................................................................................................14 6.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................14 6.3 TEST PROCEDURE.................................................................................................................................................14 6.4 ENVIRONMENTAL CONDITIONS............................................................................................................................14 6.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................15 7. 20DB BANDWIDTH ...............................................................................................................................................21 7.1 STANDARD APPLICABLE.......................................................................................................................................21 7.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................21 7.3 TEST PROCEDURE.................................................................................................................................................21 7.4 ENVIRONMENTAL CONDITIONS............................................................................................................................21 7.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................21 8. RF OUTPUT POWER ....…

Text truncated - open the document above for the full version.

Shenzhen HASKEY Technology Co., Ltd Model: HB025 REPORT NO.: STR12118167I FCC PART 15.247 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup Radiation Emission Test Setup (Below 30MHz) Shenzhen HASKEY Technology Co., Ltd Model: HB025 REPORT NO.: STR12118167I FCC PART 15.247 Radiation Emission Test Setup (30MHz to 1GHz) Radiation Emission Test Setup (Above 1GHz)
