PPXWT-200WUWireless Charger

RFTECH Co., Ltd.
Wireless Charger - FCC ID PPXWT-200WU - RFTECH Co., Ltd.
Click to zoom

Application Details

Equipment Class
DCD - Part 15 Low Power Transmitter Below 1705 kHz
Date of Grant
Sep 23, 2015
Application Purpose
Original Equipment
Date of Application
Sep 23, 2015
Equipment Note
Wireless Charger
Frequency Range
0.11000000 - 0.20500000
Company
RFTECH Co., Ltd.
Country
South Korea

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Place your mobile appliance at the center of the charging pad. Connect power to wireless charging pad. The LED indicator will display charger status. If the charger does not work or is not registering power input, try disconnecting and reconnecting the charger. 2345 When the charging is complete, disconnect the power adaptor from the charging pad. Status indicator lamp Wireless charging area Charging connector connection port Indicator lamp Reset/battery level check button Charger connector connection port USB connector connection port 6 The Charger uses magnetic induction technology. The charger may not charge properly if the appliance is not placed correctly or if a foreign object is lodged between the appliance and the charging pad. Use the product with a smartphone that supports wireless charging or a smartphone equipped with wireless charger (cover, patch) Wireless charging devices : Galaxy S6, S6 edge, NOTE5 Check the charging icon on the screen of your mobile appliance to make sure it is charging properly. The DMB (Digital Multimedia Broadcasting) cannot be used while charging wirelessly. Charging speed could be slower if music or video is being played. If the wireless charging pad is combined with Power Bank, the device can be wireless charged even though the power is not on (Power Bank should be already charged) If wireless charging is used while Power Bank is powered off, the internal battery charging is lowered and you cannot charge the mobile phone through Power Bank. If the wireless charging pad is powered on, Power Bank will not be charged. If a metal or thick protective phone cover is used, wireless charging may not be possible. <Wireless charging pad & Power Bank> <Product manual><Charging cable> Charger status Charger idle Power connected Red → Green → Orange → licker and then turn off Off Indicator lamp status Not enough current to charge Green flicker ChargingGreen Protection mode on Orange flicker 7 The product has a built-in magnet at the bottom. It is safely connected by a hook. (Refer to the following illustration when you connect it) ① Match the guide (hook) with the product. ② Mount the product. ① Push the pad to the right in the direction of the arrows. If you use too much force, you may damage the charging port of the wireless pad. You can disconnect the wireless charging pad from Power Bank to use it independently. Customer support center phone number Customer support center website address Customer support center address Product Warranty Certificate 09/2015 Rev.1.0 The RFT Wireless Charging Pad is WPC Qi-certified. It is compatible with Qi-compliant mobile appliances. The following provides information to ensure user safety and to prevent the loss of, or damage to property. Please read these instructions carefully before use and use the product appropriately. RTF Co., Ltd. shall not liable for any personal injury or property damage caused by a failure to follow these safety instructions. A failure to follow the safety instructions can cause fire, …

Text truncated - open the document above for the full version.

Cover Letter(s)

RFTECH 60, Jugyangdaero 1763Beon-gil, Wonsam-myeon, Cheoin-gu, Yong-in-si, Gyeonggi-do, Korea Date: September 16, 2015 SIEMIC 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Letter of Authorization We, the undersigned, hereby authorize Harvey Sung of DT&C Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization for FCCID: PPXWT-200WU including signing of all documents relating to these matters. Any and all acts carried out by Harvey Sung of DT&C Co., Ltd. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from RFTECH “I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a).” Sincerely, Dong-Hyuk Hwang / Assistant Manager RFTECH

Cover Letter(s)

Declaration Of Equivalence We, the undersigned, hereby declare that the product, WT-200WU, WT-200MU, WT- 200RU, WT-200GU, WT-200SU is identical in construction including schematics, PCB layout and electronic components to the model WT-200WU model Model Name : WT-200WU Derived Model Name : WT-200MU, WT-200RU, WT-200GU, WT-200SU Addition family models due to marketing RFTECH --------------------------------------------------------------------------------------------------------------------------- Representative Signature --------------------------------------------------------------------------------------------------------------------------- Assistant Manager Dong-Hyuk Hwang --------------------------------------------------------------------------------------------------------------------------- Printed name and title 08 September 2015 Date

Cover Letter(s)

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 September 16, 2015 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, RFTECH hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (Wireless Charger, WT-200WU) FCC ID: PPXWT-200WU Sincerely, Client’s signature: Client’s name / title Dong-Hyuk Hwang / Assistant Manager Contact information / address RFTECH / 60, Jugyangdaero 1763Beon-gil, Wonsam-myeon, Cheoin-gu, Yong-in-si, Gyeonggi-do, Korea

Cover Letter(s)

SCS-F19: Confidentiality Request Letter Page 1 of 3 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (current) 3.0 4.0 March-26-2015 SCS-F19: Confidentiality Request Letter Page 2 of 3 Rev 4.0 September 16, 2015 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: PPXWT-200WU We hereby request confidential treatment of information accompanying this application as outlined below: - e.g. Block Diagram - e.g. Schematics - e.g. Operational Description - e.g. Part List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature: Client’s name / title Dong-Hyuk Hwang / Assistant Manager Contact information / address RFTECH / 60, Jugyangdaero 1763Beon-gil, Wonsam-myeon, Cheoin-gu, Yong-in-si, Gyeonggi-do, Korea SCS-F19: Confidentiality Request Letter Page 3 of 3 Rev 4.0 September 16, 2015 To: Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Short Term Confidentiality Request for FCC ID: PPXWT-200WU To Whom It May Concern: Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 45 or 180 days (please check one). - e.g. User Manual - e.g. Ext Photo - e.g. Int Photo - e.g. Test Photo The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, Client’s signature: Client’s name / title Dong-Hyuk Hwang / Assistant Manager Contact information / address RFTECH / 60, Jugyangdaero 1763Beon-gil, Wonsam-myeon, Cheoin-gu, Yong-in-si, Gyeonggi-do, Korea

Cover Letter(s)

RFTech Co., LTD. To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD FCC ID: PPXWT-200WU To Whom It May Concern: This letter is to ascertain that RFTECH. Product Wireless Charger, PPXWT-200WU, has been the units used for conducting FCC compliance testing, and it meets KDB 680106 Clause 5(2) all 6 conditions as stated below hence PBA is not required. 1 Power transfer frequency is less that 1 MHz  The power transfer frequency is set from 110kHz to 205kHz. Therefore the frequency specification is satisfied with the device. 2 Output power from each primary coil is less than 5 watts  The maximum output power of each coil is 5 watts. 3 The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils  The DUT(Device Under Test) includes only one coil in transmitter. A secondary coil is detected and coupled by transmitter. 4 Client device is inserted in or placed directly in contact with the transmitter  When the client device is placed directly in contact with transmitter, then charging is able to start. 5 The maximum coupling surface area of the transmit (charging) device is between 60 cm2 and 400 cm2.  The maximum coupling surface area of the transmitter is 87.52Cm2. Maximum coupling surface area(6.37 Cm X 13.74 Cm) 6 Aggregate leakage fields at 10 cm surrounding the device from all simultaneous transmitting coils are demonstrated to be less than 30% of the MPE limit.  The highest leakage filed is less than 30 % of the MPE(Maximum Permissible Exposure) limit. If you have any question or concerns, pls. contact us. Sincerely, Client’s signature Name: Dong-Hyuk Hwang Address: 60, Jugyangdaero 1763Beon-gil, Wonsam-myeon, Cheoin-gu, Yong-in-si, Gyeonggi- do, Korea

External Photos

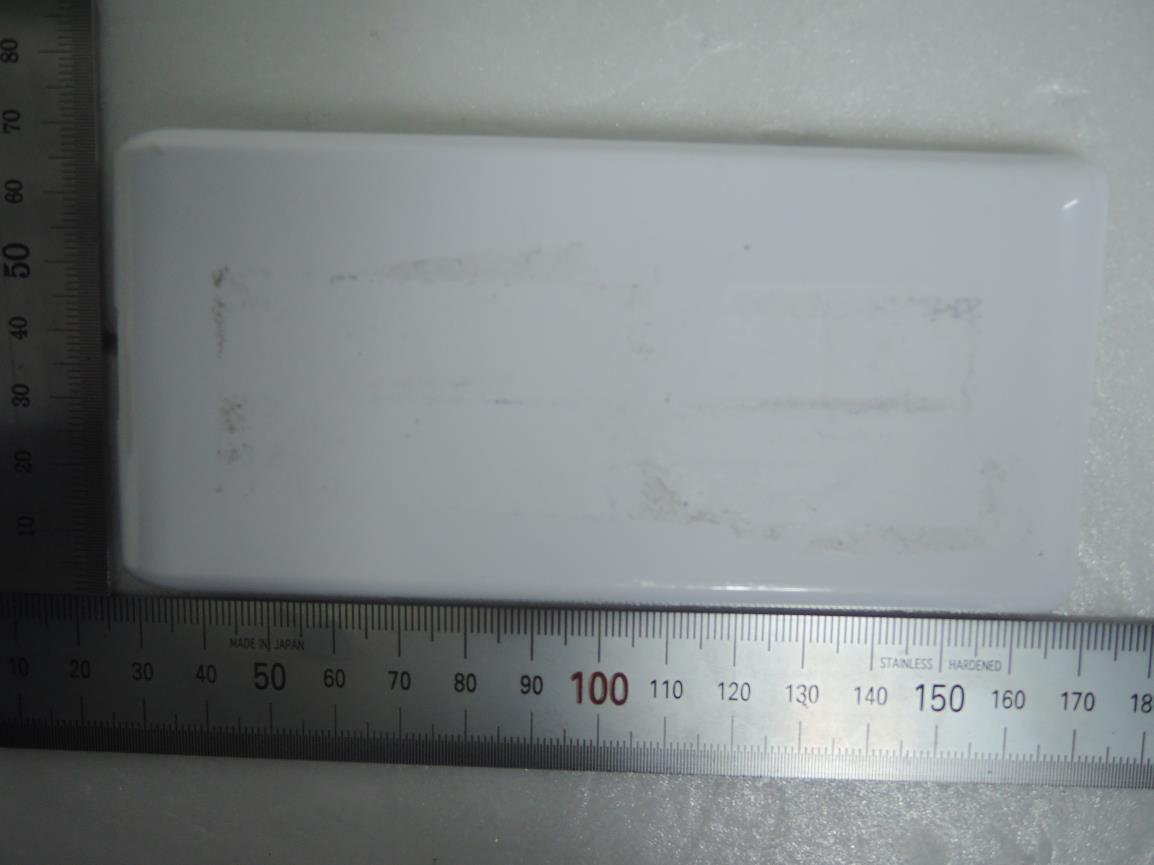

FCCID: PPXWT-200WU Copyright Ⓒ 2015, DT&C Co., Ltd. Page 1 / 3 View 1 FCCID: PPXWT-200WU Copyright Ⓒ 2015, DT&C Co., Ltd. Page 2 / 3 View 2 FCCID: PPXWT-200WU Copyright Ⓒ 2015, DT&C Co., Ltd. Page 3 / 3 View 3
