Dynamic Technology Inc. www.dynamictek.com User Manual FMWireless Home Security Alarm System -SpeedCop TM 2000- User Manual FMWireless Home Security Alarm System -SpeedCop TM 2000- Index SpeedCop TM 2000 1 Standard Scope of Supply2 Option3 Layout -Front4 Siren ON/OFF20 Layout -Rear6 Input(Overall)21 Layout Arming & Disarming22 Operating flow8Special Function Installation GuideBypass & Delay Time23 Order of installation9 Chime Function24 Power and Sensors10 ARS Structure Main Body, PIR/Door Sensors11Remote Control25 Input Remote Control Code26 Remote Controller13 Guide of emergency meeting27 Sensors14 Power & Tel.Line cut off28 Telephone Number15 Sensor Feature Emergency Call16 PIR Sensor & Remote Controller29 Password17 RF Transmitter & Door Sensor30 WARNING Notice: Please Read Carefully 31 Exit19 Description Page(s) DescriptionPage(s) Attention & Request12 Voice Recording18 Dynamic Technology Inc. 2 Dynamic Technology Inc. ITEMAppearanceSpecification Division Main Body Power Supply Unit : DC9V Battery, 600mA Power Consumption : Disarms(150mA), Arms(300mA) Max. Sensor No. : 7 Wireless + 2 Wire Max. Remote control No. : 7 units Max. recording No. of Telephone : 7 Demodulation Method : Frequency Demodulation Dimensions : 47D x 144H x 222W B A S I C I T E M PIR Sensor Power : DC 9V Battery Transmission & Reception Method : Radio Frequency Modulation Method : Frequency Modulation Detection Method : Passive Infrared Angle : Vertical(45), Wide(110) Communication Distance : Max. 1000M Detection Range : Max.30M Dimension : 32D x 97H x 65W Door Sensor Composition : 2 Magnetic Bars + 1 RF Transmitter Detection Method : Magnetic Remote controller Composition : 2 Buttons(ON + OFF) Communication Method : Radio Frequency(FM Wave) Utility Range : 50M Dimensions : 30mm x 11mm x 55mm Battery Power : DC 12V(A23 Alkaline Battery) Adapter Power supply unit to main body at DC 9V A C C E S S O R Y T -Hanger When the main body is hanging on the wall Warning Decals Sticking an invasion route for warning Battery Supply ; the power to PIR sensor & RF transmitter User Manual Utility Guide for SpeedCop2000 Phone cable Connector between the main body and local telephone Standard Scope of Supply SpeedCop TM 2000 Gas DetectorGas ControllerGas Shut off Devise Detection Method : Contact Combustion Response Speed: Within 20 Sec. Detects LNG & LPG, Butane/Methane Gas Power : AV 220V, 50/60Hz Power Consumption : 2.7W Dimensions : 46D x 116H x 66W Power : AV 110/220V(60Hz) Power Consumption : 1.3W Output Voltage : DC12V Operating Temperature : -10~+40 Relative Humidity : 20 ~ 95% RH Dimensions : 44D x 145H x 100W Valve : Screw Type(Ball Valve) Power : DC12V Power Consumption : 2.5W Shut-off Speed : 5 Sec. Dimensions : 118D x 167H x 60W Fire DetectorRF ModuleInfrared Detector Modulation : Frequency Modulation Frequency Bandwidth : 447.275MHz Power : DC 9V Application Field : Gas, Door & Fire Detector dimensions : PIR Sensor(Ceiling style)Pet DetectorLight Detection technology : Dual Element PIR Current Consumption : 15mA at DC 12V Power : DC 9~16V regulated Alarm Contact : DC 24V, 50mA Pulse Count : Selectable 1~3 RF Immunity : 3-V/m. up to 1GHz Current Consumption : 25mA at DC 12V 45MA at DC 16V Voltage Requirements : DC 9-16V regulated Alarm Contacts : DC 24V, 50mA Temper Contacts : DC 24V, 0.1A Power Supply : DC12V Power Consumption : 120mA Natural Gifts : Cover -Acrylic Base -ABS Dimensions : 26mm x 167mm x 96mm Option SpeedCop TM 2000 3 Dynamic Technology Inc. Layout -Front 1234567 ARMPOWER Army DisArm Bypass Alarm 911 AmbulancePolice 123 456 789 * 0 # Front Cover LCD(Liquid Crystal Display) 9V Alkaline Battery Cover : Close / Open 1617 Antenna 18 Main Body(Front) SpeedCop TM 2000 If the main power is cut off, the main body can operate itself by DC 9V alkaline battery continuously. Power LED changes to a green color and other LED’s are off if the main body is supplied with power by the backupbattery. In this case, user may be confused that each sensor does not operate as the back light of LCD can not operate. But, sensors are normally operated due to save the battery. * You must use DC 9V alkaline battery as a backup battery * Max. time : 6 hours The front cover is opened 4 Dynamic Technology Inc. 1. Front Cover : Main body cover of SpeedCop TM 2000 2. Arming LED : Per each sensors Red light shows when the sensoris armed 3. Antenna : Receiving the FM signal of each sensors 4. Arming LED : Classification of Arming or Disarming 5. Power : Checking of power ON/OFF(Yellow light) 6. LCD(Liquid Crystal Display) : Showing the order or input texton the LCD 7. Arm : Arming of all the sensors. 8. Disarm : Disarming of all the sensors. 9. Bypass : Bypass the selected sensors by user’s requirement. 10. Chime : Automatic alarm notice is arming if the door is not completely closed and chime bell sound when Disarming mode of the main door sensor. 11. 911(Emergency call) : Automatic call to 911 by one-touch button 12. Key : Cancellation Key 13. Ambulance : Emergency calling function to memorized hospitalby one-touch button 14. Cover Open/Close : SpeedCop 2000 cover open/close 15. Police : Emergency calling function to memorized police station by one-touch button 16. Key : Enter Key 17. DC 9V battery : Spare battery when the main power is cut off 18. MIC. : Tapping or dual-communication function through MIC. from the outside SpeedCop TM 2000 5 * # Layout -Front Dynamic Technology Inc. 6 Dynamic Technology Inc. X X X X X X X X X X Main Body(Rear) Layout -Rear SpeedCop TM 2000 Rear Terminal You can use wire sensors usually.==> You may use additional wiresensors. 1. External Lamp : Notice emergency to outside by light 2. External Siren : Notice emergency to outside by siren 3. Impact Detector : Install at windows for detecting intruder 4. Infrared Detector : Installing both sides of intruding route and detector sensing when intruder passes through this route 5. Fire Detector : Detecting fire and smoke 6. Gas Detector & Shut-off Device : Ga…

Text truncated - open the document above for the full version.

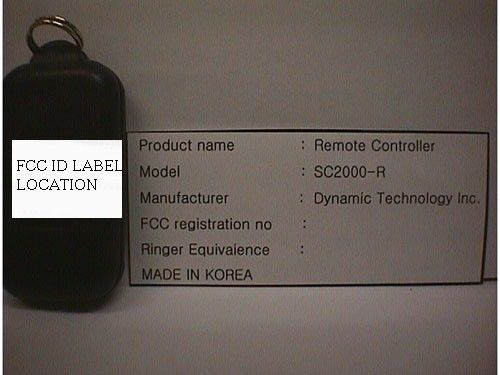

FCC ID LABEL SAMPLE: FCC ID: PQLSC2000-R THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

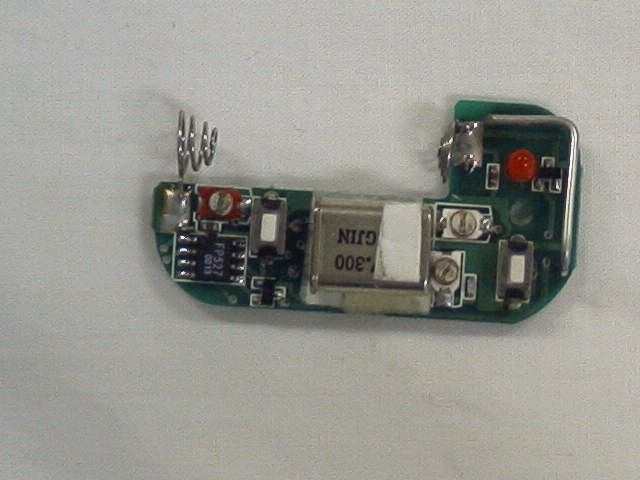

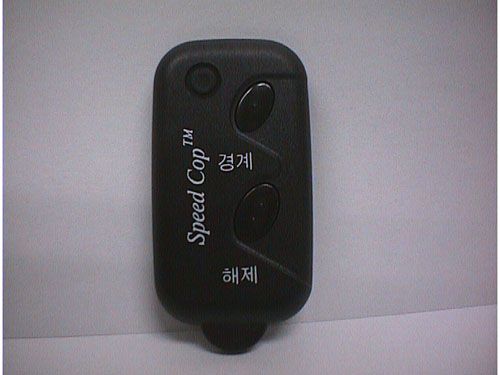

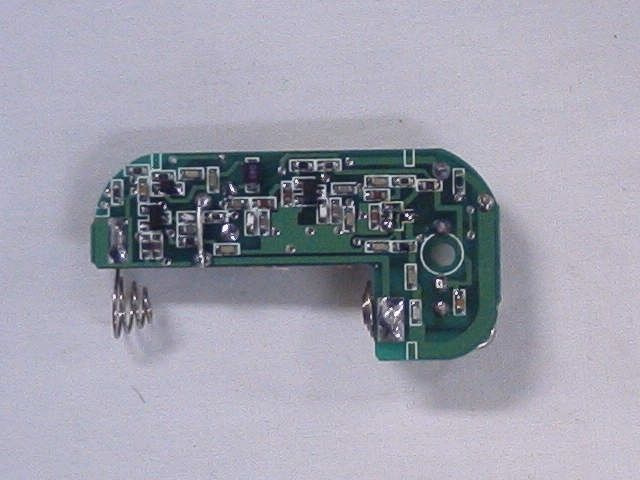

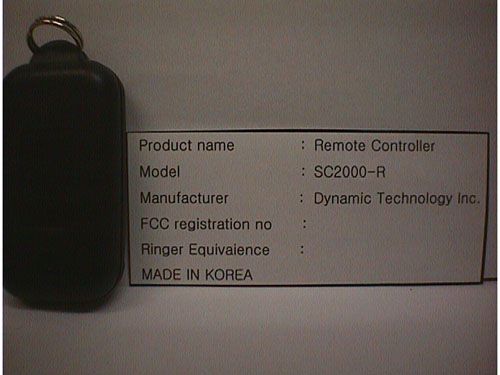

TABLE OF CONTENTS APPLICANT: DYNAMIC TECHNOLOGY INC FCC ID: PQLSC2000-R TEST REPORT CONTAINING: PAGE 1.............TEST EQUIPMENT LIST PAGE 2.............TEST PROCEDURES PAGE 3-4...........RADIATION INTERFERENCE TEST DATA PAGE 5.............CALCULATION OF DUTY CYCLE PAGE 6.............DUTY CYCLE PLOT PAGE 7.............OCCUPIED BANDWIDTH PAGE 8.............OCCUPIED BANDWIDTH PLOT EXHIBIT ATTACHMENTS: EXHIBIT 1...........BLOCK DIAGRAM EXHIBIT 2...........SCHEMATIC EXHIBIT 3...........INSTRUCTION MANUAL EXHIBIT 4...........FCC ID LABEL SAMPLE EXHIBIT 5...........SKETCH OF FCC ID LABEL LOCATION EXHIBIT 6...........FRONT VIEW EXTERNAL PHOTO EXHIBIT 7...........REAR VIEW EXTERNAL PHOTO EXHIBIT 8...........COMPONENT SIDE INTERNAL PHOTO EXHIBIT 9...........COPPER SIDE INTERNAL PHOTO EXHIBIT 10..........TEST SET UP PHOTO EXHIBIT 11A-B.......CIRCUIT DESCRIPTION APPLICANT: DYNAMIC TECHNOLOGY INC FCC ID: PQLSC2000-R REPORT #: D\DYN\676YK1\676YK1RPT.doc PAGE: TABLE OF CONTENTS LIST APPLICANT: DYNAMIC TECHNOLOGY INC FCC ID: PQLSC2000-R TEST EQUIPMENT LIST 1._X_Spectrum Analyzer: HP 8566B-Opt 462, S/N 3138A07786, w/ preselector HP 85685A, S/N 3221A01400, Quasi-Peak Adapter HP 8565OA, S/N 3303A01690 & Preamplifier HP 8449B-OPT H02, S/N 3008A00372 Cal. 8/31/01 Due 8/31/02 2._X_Biconnical Antenna: Eaton Model 94455-1, S/N 1057, Cal. 10/1/01 Due 10/1/02 3.__ Biconnical Antenna: Electro-Metrics Model BIA-25, S/N 1171 Cal. 4/26/01 Due 4/26/03 4._X_Log-Periodic Antenna: Electro-Metrics Model EM-6950, S/N 632 Char. 3/15/00 Due 3/15/01 5.__ Log-Periodic Antenna: Electro-Metrics Model LPA-30, S/N 409 Char. 3/15/00 Due 3/15/01 6._X_Double-Ridged Horn Antenna: Electro-Metrics Model RGA-180, 1-18 GHz, S/N 2319 Cal. 4/27/99 Due 4/27/00 7.__ 18-26.3GHz Systron Donner Standard Gain Horn #DBE-520-20 No Cal Required 8.__ Horn 40-60GHz: ATM Part #19-443-6R No Cal Required 9.__ Line Impedance Stabilization Network: Electro-Metrics Model EM-7820, w/NEMA Adapter S/N 2682 Cal. 3/16/01 Due 3/16/02 10.__ Temperature Chamber: Tenney Engineering Model TTRC, S/N 11717-7 Char. 1/27/01 Due 1/27/02 11.__ Frequency Counter: HP Model 5385A, S/N 3242A07460 Char. 11/20/00 Due 11/20/01 12.__ Peak Power Meter: HP Model 8900C, S/N 2131A00545 Char. 1/26/01 Due 1/26/02 13._X_Open Area Test Site #1-3meters Cal. 12/22/99 14.__ Signal Generator: HP 8640B, S/N 2308A21464 Cal. 11/15/01 Due 11/15/02 15.__ Passive Loop Antenna: EMCO Model 6512, 9KHz to 30MHz, S/N 9706-1211 Char. 6/10/00 Due 6/10/01 16.__ Dipole Antenna Kit: Electro-Metrics Model TDA-30/1-4, S/N 153 Char. 11/24/00 Due 11/24/01 17.__ AC Voltmeter: HP Model 400FL, S/N 2213A14499 Cal. 10/9/01 Due 10/09/02 18._X_Digital Multimeter: Fluke Model 77, S/N 43850817 Cal. 11/16/00 Due 11/16/01 19.__ Oscilloscope: Tektronix Model 2230, S/N 300572 Char. 2/1/01 Due 2/1/02 APPLICANT: DYNAMIC TECHNOLOGY INC FCC ID: PQLSC2000-R REPORT #: D\DYN\676YK1\676YK1RPT.doc PAGE #: 1 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a prese- lector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100KHz and the video bandwidth was 300KHz. The ambient temperature of the UUT was 82ºF with a humidity of 34%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was estab- lished by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor sup- plied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI STANDARD C63.4-1992 10.1.7 MEASUREMENT PROCEDURES: The UUT was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The UUT was placed in the center of the table. The table used for radiat- ed measurements is capable of continuous rotation. The spectrum was scanned from 30 MHz to 10th harmonic of the fundamental. Peak readings were taken in three (3) orthogonal planes and the high- est readings were converted to average readings based on the duration of "ON" time. Measurements were made by TIMCO ENGINEERING INC. at the registered open field test site located at 849 N.W. State Road 45, Newberry, Fl 32669. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. APPLICANT: DYNAMIC TECHNOLOGY INC FCC ID: PQLSC2000-R REPORT #: D\DYN\676YK1\676YK1RPT.doc PAGE #: 2 APPLICANT: DYNAMIC TECHNOLOGY INC FCC ID: PQLSC2000-R NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.231 REQUIREMENTS: Fundamental Field Strength Field Strength of Frequency of Fundamental Harmonics and Spurious MHz dBuV Emissions (dBuV/m @ 3m) 40.66 to 40.70 67.04 47.04 70 to 130 61.94 41.94 130 to 174 61.94 to 71.48 41.94 to 51.48 174 to 260 71.48 51.48 260 to 470 71.48 to 81.94 51.48 to 61.94 470 and above 81.94 61.94 THE LIMIT FOR AVERAGE FIELD STRENGTH dBuV/m FOR THE FUNDAMENTAL FREQUENCY= 81.25 dBuV/m. NO FUNDAMENTAL IS ALLOWED IN THE RESTRICTED BANDS. THE LIMIT FOR AVERAGE FIELD STRENGTH dBuV/m FOR THE HARMONICS AND SPURIOUS FREQUENCIES = 61.25 dBuV/m. SPURIOUS IN THE RESTRICTED BANDS MUST BE LESS THAN 54dBuV/m OR 15.209. TEST DATA: Emission Frequency MHz Meter Reading dBuv Ant. Polarity Coax Loss dB Correction Factor dB Duty Cycle Factor dB Field Strength dBuv/m Margin dB 447.30 50.3 V 2.94 16.93 0.00 70.17 11.08 497.00 24.0 V 3.09 19.32 0.00 46.41 14.84 547.00 14.2 V 3.24 22.60 0.00 40.04 21.21 596.00 12.4 V 3.39 21.59 0.00 37.38 23.88 646.00 20.6 V …
