PQZDPD-4200AK42 inch Plasma Display Monitor

P L A S M A P P L L A A S S M M A A D I S P P L A Y M o n i t o r D D I I S S P L L A A Y Y M M o o n n i i t t o o r r It’s the creative world of plasma display Manual Contents Features and Package ° I/O Definitions Front and Rear Controls . Remote Control Remote Control Remote Control Basic Operation Basic Operation Basic Operation Basic Operation TV Channel Memory c d e f g h i TV Channel Memory c d e f g h i j Picture c d e f g Picture c d e f g Picture c d e f g Picture c d e f g Audio : c d e f g Audio c d e f g Picture in Picture c d e f g h i Picture in Picture Video Signal Format c d e f g Color Temperature c d e f g Specifications Troubleshooting Symptom Cause Possible Solution FCC Compliance Statements

Report No: BWS-03-EF-0051 FCC ID : PQZDPD-4200AK Date of Test : November 11, 2003 Appendix 5. Block Diagram Digital Device Inc. 42” PLASMA DISPLAY MONITOR DPD-4200AK

Report No: BWS-03-EF-0051 FCC ID : PQZDPD-4200AK Date of Test : November 11, 2003 Appendix 3. External Photographs Digital Device Inc. 42” PLASMA DISPLAY MONITOR DPD-4200AK

Report No: BWS-03-EF-0051 FCC ID : PQZDPD-4200AK Date of Test : November 11, 2003 Appendix 2. FCC ID Label and location A Class B digital equipment subject to certification by the FCC shall carry a warning label which includes the following statements: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This statement should be stuck in a conspicuous location on the device. If impossible, this warning label should be placed in a prominent location in the user’s manual. Label Drawing : This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: (1) This devices may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation. Model No : DPD-4200AK FCC ID : PQZDPD-4200AK Made in Korea Digital Device Co.,Ltd. Label Location The label shown above shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) FCC LABEL Digital Device Inc. 42” PLASMA DISPLAY MONITOR DPD-4200AK

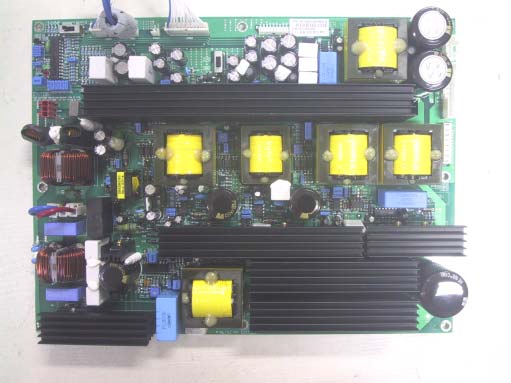

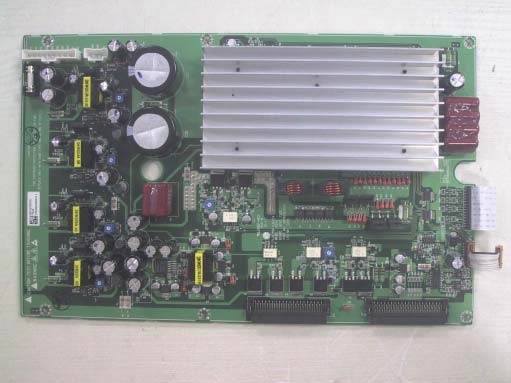

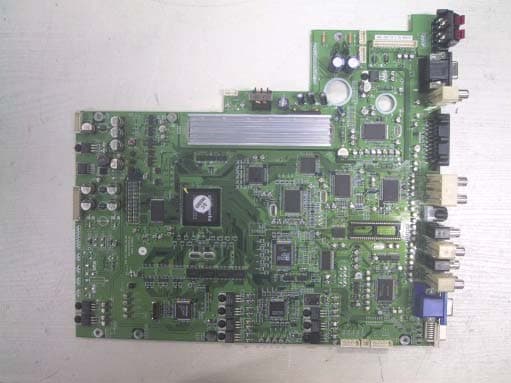

Report No: BWS-03-EF-0051 FCC ID : PQZDPD-4200AK Date of Test : November 11, 2003 Appendix 4. Internal Photographs of EUT Control Board - Top side Digital Device Inc. 42” PLASMA DISPLAY MONITOR DPD-4200AK Report No: BWS-03-EF-0051 FCC ID : PQZDPD-4200AK Date of Test : November 11, 2003 Control Board - Bottom side Digital Device Inc. 42” PLASMA DISPLAY MONITOR DPD-4200AK Report No: BWS-03-EF-0051 FCC ID : PQZDPD-4200AK Date of Test : November 11, 2003 Turner Board – Top side Digital Device Inc. 42” PLASMA DISPLAY MONITOR DPD-4200AK Report No: BWS-03-EF-0051 FCC ID : PQZDPD-4200AK Date of Test : November 11, 2003 Turner Board – Bottom side Digital Device Inc. 42” PLASMA DISPLAY MONITOR DPD-4200AK Report No: BWS-03-EF-0051 FCC ID : PQZDPD-4200AK Date of Test : November 11, 2003 Power supply Board – Top side Digital Device Inc. 42” PLASMA DISPLAY MONITOR DPD-4200AK Report No: BWS-03-EF-0051 FCC ID : PQZDPD-4200AK Date of Test : November 11, 2003 Power supply Board – Bottom side Digital Device Inc. 42” PLASMA DISPLAY MONITOR DPD-4200AK Report No: BWS-03-EF-0051 FCC ID : PQZDPD-4200AK Date of Test : November 11, 2003 PDP Module Power Board – Top side Digital Device Inc. 42” PLASMA DISPLAY MONITOR DPD-4200AK Report No: BWS-03-EF-0051 FCC ID : PQZDPD-4200AK Date of Test : November 11, 2003 PDP Module Power Board – Bottom side Digital Device Inc. 42” PLASMA DISPLAY MONITOR DPD-4200AK Report No: BWS-03-EF-0051 FCC ID : PQZDPD-4200AK Date of Test : November 11, 2003 PDP Module Power Board – Top side Digital Device Inc. 42” PLASMA DISPLAY MONITOR DPD-4200AK Report No: BWS-03-EF-0051 FCC ID : PQZDPD-4200AK Date of Test : November 11, 2003 PDP Module Power Board – Bottom side Digital Device Inc. 42” PLASMA DISPLAY MONITOR DPD-4200AK Report No: BWS-03-EF-0051 FCC ID : PQZDPD-4200AK Date of Test : November 11, 2003 PDP Module Control Board – Top side Digital Device Inc. 42” PLASMA DISPLAY MONITOR DPD-4200AK Report No: BWS-03-EF-0051 FCC ID : PQZDPD-4200AK Date of Test : November 11, 2003 PDP Module Control Board – Bottom side Digital Device Inc. 42” PLASMA DISPLAY MONITOR DPD-4200AK Report No: BWS-03-EF-0051 FCC ID : PQZDPD-4200AK Date of Test : November 11, 2003 PDP Module Connector Board – Top side Digital Device Inc. 42” PLASMA DISPLAY MONITOR DPD-4200AK Report No: BWS-03-EF-0051 FCC ID : PQZDPD-4200AK Date of Test : November 11, 2003 PDP Module Connector Board – Bottom side Digital Device Inc. 42” PLASMA DISPLAY MONITOR DPD-4200AK

5of 17 pages 3. Product Information 3.1 Equipment Description The Equipment Under Test(EUT) is the Digital Device Inc. 42PLASMA DISPLAY MONITOR model : DPD-4200AK(FCC ID : PQZDPD-4200AK). This 42PLASMA DISPLAY MONITOR is powered by the 100~240 VAC. 3.2 General Specification - Chassis Type : Metal - List of Each OSC. Or X-Tal. Freq.(>=1MHz) : X1:18.5625 MHz - Operation Condition : Temp, 0 ~ 40 , Humidity 20 ~ 80 % - Power Source : AC100 ~ 240 VAC, 50/60 Hz - Power Consumption : Typ. < 340 Watts - Interface : Video, DVI, S-Video, SCART,RF-in, Sound - Display Mode : Normal, Zoom out - Screen Size : 921(H) x 518(W) ,106cm(Diagonal) - Screen rate : 16:9 - Brightness : 1000 cd/ - Color : 16,770,000 Colors - Size : 1080(W) x 700(H) x 99.5(D)mm (without stand) - Weight : 37kg (without stand) - RF Input a formula : NTSC, PAL, SECAM - Video Input a formula : NTSC, PAL, SECAM, Sub Standard Digital Device Inc. 42” PLASMA DISPLAY MONITOR DPD-4200AK

This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the BWS TECH,Inc. Electromagnetic Emission FCC MEASUREMENT REPORT VERIFICATION OF COMPLIANCE FCC PART15 CERTIFICATION PRODUCT : 42PLASMA DISPLAY MONITOR MODEL/TYPE NO : DPD-4200AK FCC ID : PQZDPD-4200AK TRADE NAME : Digital Device APPLICANT : Digital Device Inc. 5 TH /15 TH FL, Hyowon B/D 99-5, Karak-dong, Songpa-gu, Seoul, Korea Attn. : Jong Guk Lee / General Manager FCC CLASSIFICATION : JBP : Part 15 Class B Computing Device Peripheral FCC RULE PART(S) : FCC Part 15 Subpart B FCC PROCEDURE : Certification DATES OF TEST : November 11, 2003 DATES OF ISSUE : November 11, 2003 TEST REPORT No. : BWS-03-EF-0051 TEST LAB. BWS Tech., Inc. (Registration No. : 553281) This 42PLASMA DISPLAY MONITOR has been tested in accordance with the measurement procedures specified in ANSI C63.4-2000 at the BWS TECH/EMC Test Laboratory and has been shown to be complied with the electromagnetic emission limits specified in FCC Rule Part15 Subpart B Section15.107 and 15.109 I attest to the accuracy of data. All measurement herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Taehyun Nam Chief of Laboratory Division BWS TECH Inc. BWS TECH Inc. www.bws.co.kr 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do, 464-080, Korea TEL: +82 31 762 0124 FAX: +82 31 762 0126 2of 17 pages TABLE OF CONTENTS Pages 1. General Information 3 2. Description of Test Facility 4 3. Product Information 5 4. Description of Tests 6~7 5. Test Condition 8~9 6. Test Results 10~14 7. Sample Calculation and Other Information 15 8. Test Equipment List 16 Appendix 1. Test Setup Photos Appendix 2. FCC ID Label and location Appendix 3. External Photos of EUT Appendix 4. Internal Photos of EUT Appendix 5. Block Diagram Appendix 6. User Manual Digital Device Inc. 42” PLASMA DISPLAY MONITOR DPD-4200AK 3of 17 pages FCC TEST REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) 1. General Information Applicant Information Manufacturer Information Company Name : Digital Device Inc. Company Address : 5 TH /15 TH FL, Hyowon B/D 99-5, Karak-dong, Songpa-gu, Seoul, Korea Phone/Fax : Phone : +82 2 431 8471 Fax : +82 2 431 8472 Company Name : Digital Device Inc. Company Address : 5 TH /15 TH FL, Hyowon B/D 99-5, Karak-dong, Songpa-gu, Seoul, Korea Phone/Fax : Phone : +82 2 431 8471 Fax : +82 2 431 8472 z EUT Type : 42 PLASMA DISPLAY MONITOR z Model Number : DPD-4200AK z FCC Identifier : PQZDPD-4200AK z S/N : Prototype z Freq. Range : N/A z FCC Rule Part(s) : Part 15 Subpart B z Test Procedure : ANSI C63.4-2000 z FCC Classification : JBP : Part 15 Class B Computing Device Peripheral z Dates of Tests : November 11, 2003 z Place of Tests : BWS TECH Inc. EMC Testing Lab (FCC Registration Number : 553281) 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do, 464-080, Korea TEL: +82 31 762 0124 FAX: +82 31 762 0126 z Test Report No. : BWS-03-EF-0051 Digital Device Inc. 42” PLASMA DISPLAY MONITOR DPD-4200AK 4of 17 pages 2. Description of Test Facility The measurement test for radiated and conducted emission test were conducted at the open area test site of BWS TECH Inc. facility located at 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do, Korea. The site is constructed in conformance with the requirements of the ANSI C63.4-2000 and CISPR Publication 16. The BWS TECH measurement facility has been filed to the Commission with the FCC for 3 and 10 meter site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-2000 and registered to the Federal Communications Commission(Registration Number : 553281 ). The measurement procedure described in American National Standard for Method of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C.63.4-2000) was used in determining radiated and conducted emissions from the Digital Device Inc. 42PLASMA DISPLAY MONITOR Model : DPD-4200AK. Digital Device Inc. 42” PLASMA DISPLAY MONITOR DPD-4200AK 5of 17 pages 3. Product Information 3.1 Equipment Description The Equipment Under Test(EUT) is the Digital Device Inc. 42PLASMA DISPLAY MONITOR model : DPD-4200AK(FCC ID : PQZDPD-4200AK). This 42PLASMA DISPLAY MONITOR is powered by the 100~240 VAC. 3.2 General Specification - Chassis Type : Metal - List of Each OSC. Or X-Tal. Freq.(>=1MHz) : X1:18.5625 MHz - Operation Condition : Temp, 0 ~ 40 , Humidity 20 ~ 80 % - Power Source : AC100 ~ 240 VAC, 50/60 Hz - Power Consumption : Typ. < 340 Watts - Interface : Video, DVI, S-Video, SCART,RF-in, Sound - Display Mode : Normal, Zoom out - Screen Size : 921(H) x 518(W) ,106cm(Diagonal) - Screen rate : 16:9 - Brightness : 1000 cd/ - Color : 16,770,000 Colors - Size : 1080(W) x 700(H) x 99.5(D)mm (without stand) - Weight : 37kg (without stand) - RF Input a formula : NTSC, PAL, SECAM - Video Input a formula : NTSC, PAL, SECAM, Sub Standard Digital Device Inc. 42” PLASMA DISPLAY MONITOR DPD-4200AK 6of 17 pages 3.3 Variations covered by this report Technical Deviation : No electrical and system layout changes have been made to the basic model tested. Just front cover design is slightly changed for the marketing purpose. DPD-4200AK DPD-4210 DPD-4220 DPD-4230 DPD-4240 HPT-4210 : Buyer model 3.4 Additional Info…

Text truncated - open the document above for the full version.

Report No: BWS-03-EF-0051 FCC ID : PQZDPD-4200AK Date of Test : November 11, 2003 Appendix 1. Test Setup Photographs Conducted Emission Test Setup Digital Device Inc. 42” PLASMA DISPLAY MONITOR DPD-4200AK Report No: BWS-03-EF-0051 FCC ID : PQZDPD-4200AK Date of Test : November 11, 2003 Radiated Emission Test Setup Digital Device Inc. 42” PLASMA DISPLAY MONITOR DPD-4200AK
