Internal Photos of EUT Model No. : DPD-4210 Test Report No.:BWS-03-EF-0005 A2-1 External Photo of EUT( ) A2-2 External Photo of EUT() BWS Tech., Inc. Page Number : 2 of 6 pages http://www.bws.co.kr FCC ID : PQZDPD-4210 Issue Date : Feb. 06, 2003

ID Label and Location Model No. : DPD-4210 Test Report No.:BWS-03-EF-0005 Appendix 4. FCC ID Label and Location BWS Tech., Inc. Page Number : 1 of 2 pages http://www.bws.co.kr FCC ID : PQZDPD-4210 Issue Date : Feb. 06, 2003 ID Label and Location Model No. : DPD-4210 Test Report No.:BWS-03-EF-0005 A4-1 Label Requirements A Class B digital equipment subject to certification by the FCC shall carry a warning label which includes the following statements: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This statement should be stuck in a conspicuous location on the device. If impossible, this warning label should be placed in a prominent location in the user’s manual. A4-2 Label Drawing : A4-3 Label Location : Rear enclosure of the EUT This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: (1) This devices may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation. Model No : DPD-4210 FCC ID : PQZDPD-4210 Made in Korea Digital Device Inc. BWS Tech., Inc. Page Number : 2 of 2 pages http://www.bws.co.kr FCC ID : PQZDPD-4210 Issue Date : Feb. 06, 2003

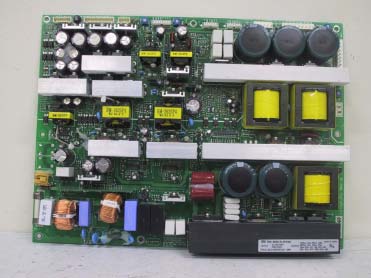

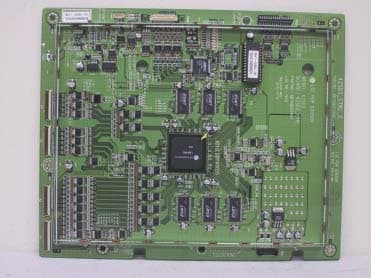

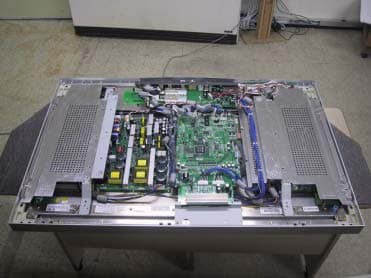

Internal Photos of EUT Model No. : DPD-4210 Test Report No.:BWS-03-EF-0005 Appendix 2. Internal Photos of EUT BWS Tech., Inc. Page Number : 1 of 6 pages http://www.bws.co.kr FCC ID : PQZDPD-4210 Issue Date : Feb. 06, 2003 Internal Photos of EUT Model No. : DPD-4210 Test Report No.:BWS-03-EF-0005 A2-1 External Photo of EUT( ) A2-2 External Photo of EUT() BWS Tech., Inc. Page Number : 2 of 6 pages http://www.bws.co.kr FCC ID : PQZDPD-4210 Issue Date : Feb. 06, 2003 Internal Photos of EUT Model No. : DPD-4210 Test Report No.:BWS-03-EF-0005 A2-3 Photo of Internal Side A2-4 Photo of Control Board 1 BWS Tech., Inc. Page Number : 3 of 6 pages http://www.bws.co.kr FCC ID : PQZDPD-4210 Issue Date : Feb. 06, 2003 Internal Photos of EUT Model No. : DPD-4210 Test Report No.:BWS-03-EF-0005 A2-5 Photo of Control Board 2 A2-6 Photo of Interface Board BWS Tech., Inc. Page Number : 4 of 6 pages http://www.bws.co.kr FCC ID : PQZDPD-4210 Issue Date : Feb. 06, 2003 Internal Photos of EUT Model No. : DPD-4210 Test Report No.:BWS-03-EF-0005 A2-7 Photo of PDP Converter Board A2-8 Photo of Tuner Board BWS Tech., Inc. Page Number : 5 of 6 pages http://www.bws.co.kr FCC ID : PQZDPD-4210 Issue Date : Feb. 06, 2003 Internal Photos of EUT Model No. : DPD-4210 Test Report No.:BWS-03-EF-0005 A2-9 Photo of Power Board BWS Tech., Inc. Page Number : 6 of 6 pages http://www.bws.co.kr FCC ID : PQZDPD-4210 Issue Date : Feb. 06, 2003

FCC TEST REPORT Model No. : DPD-4210 Test Report No. : BWS-03-EF-0005 1. DESCRIPTION OF DEVICE 1.1 General Applicant Digital Device Inc. 4 th FL. Hanhwa B/D, 78-1 Karakbon-Dong, Songpa-Gu, Seoul, Korea. Contact Person InHO, Cheong Tel No. : 82-2-431-8471 Fax No. : 82-2-431-8472 • Trade name Digital Device Inc. • Model name DPD-4210 • EUT Type 42 inch Plasma Display Monitor • Classification Part 15 Class B Computing Device Peripheral (JBP) • Clock Speed 20.2 MHz, 12 MHz • Rule Part(s) FCC Part 2 & Part 15 Subpart B Class B • Test Procedure(s) ANSI C63.4-2000 • Date of Tests February 06, 2003 • Test Lab BWS Tech, Inc. 1.2 EUT Descriptions This equipment is the PDP Monitor with its ultra slim design, PDP can be placed anywhere to let you enjoy multimedia contents. It is the perfect multimedia display terminal with direct connections to PCs, Terrestrial / CABLE / Satellite receivers, DVD players, TV RF, Camcorders, and more. 5 Note. This report may be reproduced in full pages. Partial reproduction may only be made with the written permission of BWS Tech laboratory. The test results in this report are only applied to the sample(s) tested. 5 Note. Please refer to the duties and responsibilities of the Responsible Party attached. BWS Tech., Inc. Page Number : 3 of 14 pages http://www.bws.co.kr FCC ID : PQZLD-700T Issue Date : Feb. 06, 2003

FCC TEST REPORT Model No. : DPD-4210 Test Report No. : BWS-03-EF-0005 EMI TEST REPORT BWS Tech, Inc. 294-9, Jungdae-Dong, Gwangju-City, Gyeoeonggi-Do 464-080 Korea TEL: 82 31 764 0125 FAX: 82 31 764 0126 Date of Test : February 06, 2002 Test Report No. : BWS-03-EF-0005 Test Site : BWS Tech., Inc. (Registration No. : 553281) Trade Name : N/A Applicant : Digital Device Inc. Address : 4 th FL. Hanhwa B/D, 78-1 Karakbon-Dong, Songpa-Gu, Seoul, Korea. Contact Person : InHO, Cheong Tel No. : 82-2-431-8471 Fax No. : 82-2-431-8472 Product Name : 42 inch Plasma Display Monitor Model Name : DPD-4210 FCC ID : PQZDPD-4210 FCC Rule Part(s) : FCC Part 15 Subpart B Class B Classification : Part 15 Class B Computing Device Peripheral (JBP) The device bearing the trade name and model specified above has been complied with the applicable technical standards as described in this test report and was tested in accordance with the measurement procedures specified in ANSI C.63.4-2000. I attest to the accuracy of data and all measurement reported herein were performed by our test personnel were made under my supervision. I assume the responsibility for the completeness of these measurements and for the qualification of all our personnel conducting this testing. Feb. 06, 2003 K.Young Kim Chief Engineer Laboratory Division BWS Tech., Inc. Page Number : 1 of 14 pages http://www.bws.co.kr FCC ID : PQZLD-700T Issue Date : Feb. 06, 2003 FCC TEST REPORT Model No. : DPD-4210 Test Report No. : BWS-03-EF-0005 TABLE OF CONTENTS Pages 1. Description of Device 3 1.1 General 3 1.2 EUT Description 3 2. Test facility 4 3. Summary of results 4 3.1 Electromagnetic Emission 4 3.2 Modifications to the EUT 4 4. Tested system details 5 4.1 Peripherals and Others 5 4.2 Type of Cables Used 5 4.3 System layout on EUT and peripherals 6 5. Test result 7 5.1 RFI Voltage Measurement 7~10 5.2 RFI Field Strength Measurement 11~1 2 5.3 Minimum Margin 13 5.4 Sample Calculations 13 6. Test Equipments 14 Appendix 1. External Photos of EUT Appendix 2. Internal Photos of EUT Appendix 3. Test Setup Photos Appendix 4. FCC ID Label and location Appendix 5. Block Diagram Appendix 6. User Manual BWS Tech., Inc. Page Number : 2 of 14 pages http://www.bws.co.kr FCC ID : PQZLD-700T Issue Date : Feb. 06, 2003 FCC TEST REPORT Model No. : DPD-4210 Test Report No. : BWS-03-EF-0005 1. DESCRIPTION OF DEVICE 1.1 General Applicant Digital Device Inc. 4 th FL. Hanhwa B/D, 78-1 Karakbon-Dong, Songpa-Gu, Seoul, Korea. Contact Person InHO, Cheong Tel No. : 82-2-431-8471 Fax No. : 82-2-431-8472 • Trade name Digital Device Inc. • Model name DPD-4210 • EUT Type 42 inch Plasma Display Monitor • Classification Part 15 Class B Computing Device Peripheral (JBP) • Clock Speed 20.2 MHz, 12 MHz • Rule Part(s) FCC Part 2 & Part 15 Subpart B Class B • Test Procedure(s) ANSI C63.4-2000 • Date of Tests February 06, 2003 • Test Lab BWS Tech, Inc. 1.2 EUT Descriptions This equipment is the PDP Monitor with its ultra slim design, PDP can be placed anywhere to let you enjoy multimedia contents. It is the perfect multimedia display terminal with direct connections to PCs, Terrestrial / CABLE / Satellite receivers, DVD players, TV RF, Camcorders, and more. 5 Note. This report may be reproduced in full pages. Partial reproduction may only be made with the written permission of BWS Tech laboratory. The test results in this report are only applied to the sample(s) tested. 5 Note. Please refer to the duties and responsibilities of the Responsible Party attached. BWS Tech., Inc. Page Number : 3 of 14 pages http://www.bws.co.kr FCC ID : PQZLD-700T Issue Date : Feb. 06, 2003 FCC TEST REPORT Model No. : DPD-4210 Test Report No. : BWS-03-EF-0005 2. TEST FACILITY The open field test site and conducted measurement facility used for this measurement, is located following address. This site was fully described in a report dated Dec. 26, 2001 that was submitted to the FCC. Our site and facility had been accepted in a letter dated Dec. 26, 2001(Registration No. : 553281) : BWS Tech, Inc. Address : 294-9, Jungdae-Dong, Gwangju-City, Gyeonggi-Do 464-080 Korea The detailed description of the measurement facility was found to be in compliance with the requirements of 2.948 according to ANSI C63.4 on Dec. 08, 2000. 3. SUMMARY OF RESULTS 3.1 Electromagnetic Emission RFI Voltage Measurement PASS RFI Field Strength Measurement PASS Although the measured emissions indicate that the EUT complies with the required limits, some measurement s are close to these limits. When the uncertainty of measurement is considered, there is a possibility that the EUT may not be compliant. 3.2 Modifications to the EUT : None BWS Tech., Inc. Page Number : 4 of 14 pages http://www.bws.co.kr FCC ID : PQZLD-700T Issue Date : Feb. 06, 2003 FCC TEST REPORT Model No. : DPD-4210 Test Report No. : BWS-03-EF-0005 4. TESTED SYSTEM DETAILS 4.1 Peripherals and Others : Description Model Name Serial No. Manufacturer FCC ID Computer(Test 7) VDHM(Optiplex GX240) - Dell DoC 42 inch Plasma Display Monitor DPD-4210 - Digital Device Inc EUT Keyboard SK-8110 04N730 SILITEK AQ6-22K15 PS2 Mouse M-SAW34 LZE21070672 SUZHOU DZL211029 Serial Mouse #1 OK-720 - A4 TECH DoC Serial Mouse #2 OK-520 - A4 TECH FSUGMZC7 Joystick - - Microsoft DoC 4.2 Type of Cables Used: Device from Device to Type of Cable Length Type of shield Computer PS/2 (Keyboard) Signal cable 1.0 Shielded Computer PS/2 (Mouse) Signal cable 1.0 Shielded Computer SERIAL (Mouse #1, #2) Signal cable 1.0 Shielded Computer MIDI (Joystick) Signal cable 1.2 Shielded EUT VIDEO (Computer) Signal cable 1.0 Shielded Power Cable Power - 1.5 Unshielded BWS Tech., Inc. Page Number : 5 of 14 pages http://www.bws.co.kr FCC ID : PQZLD-700T Issue Date : Feb. 06, 2003 FCC TEST REPORT Model No. : DPD-4210 Test Report No. : BWS-03-EF-0005 4.3 System layout on EUT and peripherals Interface cable Power cable Monitor EUT PC MouseJoystick Keyboard Mouse Mouse <Figure 4-1 System layout> BWS Tech., Inc. Page Number :…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOS Model No. : DPD-4210 Test Report No.:BWS-03-EF-0005 Appendix 3. Test Setup Photos BWS Tech., Inc. Page Number : 1 of 3 pages http://www.bws.co.kr FCC ID : PQZDPD-4210 Issue Date : Feb.06, 2003 TEST SETUP PHOTOS Model No. : DPD-4210 Test Report No.:BWS-03-EF-0005 A3-1. Conducted Emission Test Setup (Front Side) A3-2. Conducted Emission Test Setup (Rear Side) BWS Tech., Inc. Page Number : 2 of 3 pages http://www.bws.co.kr FCC ID : PQZDPD-4210 Issue Date : Feb.06, 2003 TEST SETUP PHOTOS Model No. : DPD-4210 Test Report No.:BWS-03-EF-0005 A3-3 RFI Field Strength Emission Test Setup (Front Side) A3-3 RFI Field Strength Emission Test Setup (Rear Side) BWS Tech., Inc. Page Number : 3 of 3 pages http://www.bws.co.kr FCC ID : PQZDPD-4210 Issue Date : Feb.06, 2003
