PQZLD-700T17 inch TFT LCD Monitor

Appendix 6. User Manual User Manual TFT LCD Monitor LD – 700T DIGITAL DEVICE FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment dose cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio /television technician for help. Warning : You are cautioned that any changes or modifications to the equipment not expressly approved by the party responsible for compliance could void your authority to operate such equipment. ó NOTE: This unit was tested with shielded interface cables for the connection to the host PC. The shielded interface cable must be used with the unit to insure compliance DOC CLASS B NOTICE This digital apparatus does not exceed Class limits for radio noise emission for a digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications. MAIN FEATURES Thank you for purchasing our high resolution TFT LCD monitor. We recommend that you thoroughly read through this user's guide before using the product. It is also recommended to safely store the guide in times of immediate need in the course of using the product. FRONT OF MONITOR Uesd in turning on/off the screen. The power light shows regular and safe mode functions with colors. ’ ’ ” –––– “” ’

Block Diagram Model No. : LD-700T Test Report No.:BWS-03-EF-0004 BWS Tech., Inc. Page Number : 1 of 2 pages http://www.bws.co.kr FCC ID : PQZLD-700T Issue Date : Feb.06, 2003 Appendix 5. Block Diagram Block Diagram Model No. : LD-700T Test Report No.:BWS-03-EF-0004 BWS Tech., Inc. Page Number : 2 of 2 pages http://www.bws.co.kr FCC ID : PQZLD-700T Issue Date : Feb.06, 2003

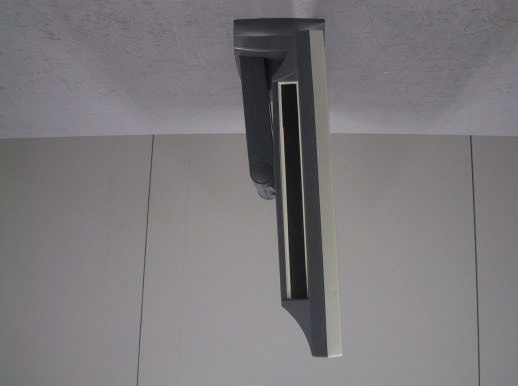

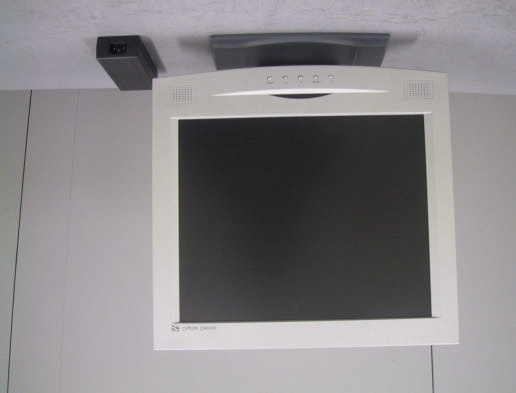

External Photos of EUT Model No. : LD-700T Test Report No.:BWS-03-EF-0004 BWS Tech., Inc. Page Number : 1 of 3 pages http://www.bws.co.kr FCC ID : PQZLD-700T Issue Date : Jan. 03, 2003 Appendix 1. Photos of EUT (External) External Photos of EUT Model No. : LD-700T Test Report No.:BWS-03-EF-0004 BWS Tech., Inc. Page Number : 2 of 3 pages http://www.bws.co.kr FCC ID : PQZLD-700T Issue Date : Jan. 03, 2003 A1-1 Front view A1-2 Rear view External Photos of EUT Model No. : LD-700T Test Report No.:BWS-03-EF-0004 BWS Tech., Inc. Page Number : 3 of 3 pages http://www.bws.co.kr FCC ID : PQZLD-700T Issue Date : Jan. 03, 2003 A1-3 Right side A1-4 Left side

ID Label and Location Model No. : LD-700T Test Report No.:BWS-03-EF-0004 BWS Tech., Inc. Page Number : 1 of 2 pages http://www.bws.co.kr FCC ID : PQZLD-700T Issue Date : Feb. 03, 2003 Appendix 4. FCC ID Label and Location ID Label and Location Model No. : LD-700T Test Report No.:BWS-03-EF-0004 BWS Tech., Inc. Page Number : 2 of 2 pages http://www.bws.co.kr FCC ID : PQZLD-700T Issue Date : Feb. 03, 2003 A4-1 Label Requirements A Class B digital equipment subject to certification by the FCC shall carry a warning label which includes the following statements: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This statement should be stuck in a conspicuous location on the device. If impossible, this warning label should be placed in a prominent location in the user’s manual. A4-2 Label Drawing : A4-3 Label Location : Rear enclosure of the EUT This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: (1) This devices may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation. Model No : LD-700T FCC ID : PQZLD-700T Digital Device Inc. Made in Korea

Internal Photos of EUT Model No. : LD-700T Test Report No.:BWS-03-EF-0004 BWS Tech., Inc. Page Number : 1 of 4 pages http://www.bws.co.kr FCC ID : PQZLD-700T Issue Date : Jan. 03, 2003 Appendix 2. Internal Photos of EUT Internal Photos of EUT Model No. : LD-700T Test Report No.:BWS-03-EF-0004 BWS Tech., Inc. Page Number : 2 of 4 pages http://www.bws.co.kr FCC ID : PQZLD-700T Issue Date : Jan. 03, 2003 A2-1 Inside view A2-2 Component side of Main board Internal Photos of EUT Model No. : LD-700T Test Report No.:BWS-03-EF-0004 BWS Tech., Inc. Page Number : 3 of 4 pages http://www.bws.co.kr FCC ID : PQZLD-700T Issue Date : Jan. 03, 2003 A2-3 Solder side of Main board A2-4 Component side of Inverter board Internal Photos of EUT Model No. : LD-700T Test Report No.:BWS-03-EF-0004 BWS Tech., Inc. Page Number : 4 of 4 pages http://www.bws.co.kr FCC ID : PQZLD-700T Issue Date : Jan. 03, 2003 A2-5 Solder side of Inverter board A2-6 AC Adapter

FCC TEST REPORT Model No. : LD-700T Test Report No. : BWS-03-EF-0004 BWS Tech., Inc. Page Number : 3 of 14 pages http://www.bws.co.kr FCC ID : PQZLD-700T Issue Date : Feb. 06, 2003 1. DESCRIPTION OF DEVICE 1.1 General Applicant Digital Device Inc. #274-5, Seohyun-Dong, Bundang-Gu, Seongnam-City, Gyeonggi-Do, Korea Contact Person Kim, Yeong-Uk Tel No. : 82-31-788-5200 Fax No. : 82-31-708-3477 • Trade name Digital Device Inc. • Model name LD-700T • EUT Type 17 inch TFT LCD Monitor • Classification Part 15 Class B Computing Device Peripheral (JBP) • Clock Speed 8.000 MHz • Rule Part(s) FCC Part 2 & Part 15 Subpart B Class B • Test Procedure(s) ANSI C63.4-2000 • Date of Tests February 06, 2003 • Test Lab BWS Tech, Inc. 1.2 EUT Descriptions This equipment is the TFT LCD Monitor based on a Flat Panel Display technology, and is originally used only for laptops PCs. Now it is used for desktops and laptops alike, opening a world of conveniences and quality to those ardent PC users. The following functions are provided. 1. Convenient and easy to handle Control Button. 2. From PC function . 3. A slim and space reducing monitor 4. Monitor transferable for wall hanging. 5. Industrial robot and VESA install able. 6. Liberal angle control.(+30 ~ -5) 7. Low energy consumption.

FCC TEST REPORT Model No. : LD-700T Test Report No. : BWS-03-EF-0004 BWS Tech., Inc. Page Number : 1 of 14 pages http://www.bws.co.kr FCC ID : PQZLD-700T Issue Date : Feb. 06, 2003 EMI TEST REPORT BWS Tech, Inc. 294-9, Jungdae-Dong, Gwangju-City, Gyeoeonggi-Do 464-080 Korea TEL: 82 31 764 0125 FAX: 82 31 764 0126 Date of Test : February 06, 2002 Test Report No. : BWS-03-EF-0004 Test Site : BWS Tech., Inc. (Registration No. : 553281) Trade Name : N/A Applicant : Digital Device Inc. Address : 4 th FL. Hanhwa B/D, 78-1 Karakbon-Dong, Songpa-Gu, Seoul, Korea. Contact Person : Kim, Yeong-Uk Tel No. : 82-31-788-5270 Fax No. : 82-31-708-3477 Product Name : 17 inch TFT LCD Monitor Model Name : LD-700T FCC ID : PQZLD-700T FCC Rule Part(s) : FCC Part 15 Subpart B Class B Classification : Part 15 Class B Computing Device Peripheral (JBP) The device bearing the trade name and model specified above has been complied with the applicable technical standards as described in this test report and was tested in accordance with the measurement procedures specified in ANSI C.63.4-2000. I attest to the accuracy of data and all measurement reported herein were performed by our test personnel were made under my supervision. I assume the responsibility for the completeness of these measurements and for the qualification of all our personnel conducting this testing. Feb. 06, 2003 K.Young Kim Chief Engineer Laboratory Division FCC TEST REPORT Model No. : LD-700T Test Report No. : BWS-03-EF-0004 BWS Tech., Inc. Page Number : 2 of 14 pages http://www.bws.co.kr FCC ID : PQZLD-700T Issue Date : Feb. 06, 2003 TABLE OF CONTENTS Pages 1. Description of Device 3 1.1 General 3 1.2 EUT Description 3 2. Test facility 4 3. Summary of results 4 3.1 Electromagnetic Emission 4 3.2 Modifications to the EUT 4 4. Tested system details 5 4.1 Peripherals and Others 5 4.2 Type of Cables Used 5 4.3 System layout on EUT and peripherals 6 5. Test result 7 5.1 RFI Voltage Measurement 7~10 5.2 RFI Field Strength Measurement 11~1 2 5.3 Minimum Margin 13 5.4 Sample Calculations 13 6. Test Equipments 14 Appendix 1. External Photos of EUT Appendix 2. Internal Photos of EUT Appendix 3. Test Setup Photos Appendix 4. FCC ID Label and location Appendix 5. Block Diagram Appendix 6. User Manual FCC TEST REPORT Model No. : LD-700T Test Report No. : BWS-03-EF-0004 BWS Tech., Inc. Page Number : 3 of 14 pages http://www.bws.co.kr FCC ID : PQZLD-700T Issue Date : Feb. 06, 2003 1. DESCRIPTION OF DEVICE 1.1 General Applicant Digital Device Inc. #274-5, Seohyun-Dong, Bundang-Gu, Seongnam-City, Gyeonggi-Do, Korea Contact Person Kim, Yeong-Uk Tel No. : 82-31-788-5200 Fax No. : 82-31-708-3477 • Trade name Digital Device Inc. • Model name LD-700T • EUT Type 17 inch TFT LCD Monitor • Classification Part 15 Class B Computing Device Peripheral (JBP) • Clock Speed 8.000 MHz • Rule Part(s) FCC Part 2 & Part 15 Subpart B Class B • Test Procedure(s) ANSI C63.4-2000 • Date of Tests February 06, 2003 • Test Lab BWS Tech, Inc. 1.2 EUT Descriptions This equipment is the TFT LCD Monitor based on a Flat Panel Display technology, and is originally used only for laptops PCs. Now it is used for desktops and laptops alike, opening a world of conveniences and quality to those ardent PC users. The following functions are provided. 1. Convenient and easy to handle Control Button. 2. From PC function . 3. A slim and space reducing monitor 4. Monitor transferable for wall hanging. 5. Industrial robot and VESA install able. 6. Liberal angle control.(+30 ~ -5) 7. Low energy consumption. FCC TEST REPORT Model No. : LD-700T Test Report No. : BWS-03-EF-0004 BWS Tech., Inc. Page Number : 4 of 14 pages http://www.bws.co.kr FCC ID : PQZLD-700T Issue Date : Feb. 06, 2003 R Note. This report may be reproduced in full pages. Partial reproduction may only be made with the written permission of BWS Tech laboratory. The test results in this report are only applied to the sample(s) tested. R Note. Please refer to the duties and responsibilities of the Responsible Party attached. 2. TEST FACILITY The open field test site and conducted measurement facility used for this measurement, is located following address. This site was fully described in a report dated Dec. 26, 2001 that was submitted to the FCC. Our site and facility had been accepted in a letter dated Dec. 26, 2001(Registration No. : 553281) : BWS Tech, Inc. Address : 294-9, Jungdae-Dong, Gwangju-City, Gyeonggi-Do 464-080 Korea The detailed description of the measurement facility was found to be in compliance with the requirements of 2.948 according to ANSI C63.4 on Dec. 08, 2000. 3. SUMMARY OF RESULTS 3.1 Electromagnetic Emission RFI Voltage Measurement PASS RFI Field Strength Measurement PASS Although the measured emissions indicate that the EUT complies with the required limits, some measurement s are close to these limits. When the uncertainty of measurement is considered, there is a possibility that the EUT may not be compliant. 3.2 Modifications to the EUT : None FCC TEST REPORT Model No. : LD-700T Test Report No. : BWS-03-EF-0004 BWS Tech., Inc. Page Number : 5 of 14 pages http://www.bws.co.kr FCC ID : PQZLD-700T Issue Date : Feb. 06, 2003 4. TESTED SYSTEM DETAILS 4.1 Peripherals and Others : Description Model Name Serial No. Manufacturer FCC ID Computer(Test 7) VDHM(Optiplex GX240) - Dell - LCD Monitor LD-700T - Digital Device Inc EUT Printer C6464C TH11RH70Q7 Calcomp Elec - Keyboard SK-8110 04N730 SILITEK AQ6-22K15 PS2 Mouse M-SAW34 LZE21070672 SUZHOU DZL211029 Serial Mouse #1 OK-720 - A4 TECH DoC Serial Mouse #2 OK-520 - A4 TECH FSUGMZC7 Joystick - - Microsoft DoC 4.2 Type of Cables Used: Device from Device to Type of Cable Length Type of shield Computer PS/2 (Keyboard) Signal cable 1.0 Shielded Computer PS/2 (Mouse) Signal cable 1.0 Shielded Computer SERIAL (Mouse #1, #2) Signal cable 1.0 Shielded Computer MIDI (Joystick) Signal cable 1.2 Shielded Computer PARALLEL (Printer) Signal cable 1.5 Shielded EUT VIDEO (Computer) Signal c…

Text truncated - open the document above for the full version.

TEST SET UP PHOTOS Model No. : PSD-1GN Test Report No.:BWS-03-EF-0001 BWS Tech., Inc. Page Number : 1 of 2 pages http://www.bws.co.kr FCC ID : PQZLD-700T Issue Date : Feb.06, 2003 Appendix 3. Test Setup Photos TEST SET UP PHOTOS Model No. : PSD-1GN Test Report No.:BWS-03-EF-0001 BWS Tech., Inc. Page Number : 2 of 2 pages http://www.bws.co.kr FCC ID : PQZLD-700T Issue Date : Feb.06, 2003 A3-1. Conducted Emission Test Setup A3-2 RFI Field Strength Emission Test Setup
