Speed Cook Oven Use & Care Guide Combinación Microondas Campana Manual de uso y cuidado Models/Modelos 665.63792 665.63793 665.63794 665.63799 8183959/4619-652-60651 Sears Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. www.sears.com ® TM 2 TABLE OF CONTENTS WARRANTY.....................................................................................3 PROTECTION AGREEMENTS.......................................................3 MICROWAVE OVEN SAFETY ........................................................4 Electrical Requirements................................................................6 PARTS AND FEATURES ................................................................6 Oven Cavity Coating ....................................................................6 Ultra Heatwave Technology .........................................................6 Turntable.......................................................................................7 Cooking Rack ...............................................................................7 Skillette Pan and Handle ..............................................................7 Grill Rack ......................................................................................8 OVEN CONTROL ............................................................................8 Dial Control ...................................................................................8 Display/Touch Screen ..................................................................8 Progress Bar.................................................................................9 Start ..............................................................................................9 Off/Cancel.................................................................................. 10 Clock.......................................................................................... 10 Tones ......................................................................................... 10 Kitchen Timer............................................................................. 10 Exhaust Fan ............................................................................... 10 Cooktop/Countertop Light ........................................................ 10 Options ...................................................................................... 11 Child Lock.................................................................................. 11 Night Light ................................................................................. 11 Display Brightness and Contrast .............................................. 11 Learning Mode........................................................................... 12 Demo Mode ............................................................................... 12 MICROWAVE OVEN USE............................................................ 12 Food Characteristics ................................................................. 12 Cooking Guidelines ................................................................... 13 Cookware and Dinnerware........................................................ 13 Aluminum Foil and Metal........................................................... 13 Cooking Power .......................................................................... 14 Cooking ..................................................................................... 14 Doneness................................................................................... 14 Prepare ...................................................................................... 14 Pre-Set Cooking ........................................................................ 14 Add One Minute ........................................................................ 15 Popcorn ..................................................................................... 15 Cooking in Stages ..................................................................... 15 Reheating................................................................................... 16 ULTRA DEFROST™ .................................................................. 16 Baked Goods............................................................................. 17 Grill............................................................................................. 17 Sure Simmer .............................................................................. 18 Skillette Feature ......................................................................... 19 Soften & Melt ............................................................................. 19 Hold Warm................................................................................. 20 MICROWAVE OVEN CARE ......................................................... 20 General Cleaning ....................................................................... 20 Replacing Filters (Charcoal Odor and Grease Filters) .............. 21 Replacing Cooktop Light........................................................... 21 Replacing Oven Light ................................................................ 22 Replacement Parts .................................................................... 22 TROUBLESHOOTING.................................................................. 23 SERVICE NUMBERS ................................................................... 24 3 SPEED COOK OVEN WARRANTY FULL ONE-YEAR WARRANTY ON SPEED COOK OVEN For one year from the date of purchase, if this Kenmore Elite ® speed cook oven fails due to a defect in material or workmanship, Sears will repair it, free of charge. LIMITED FIVE-YEAR WARRANTY ON THE MAGNETRON For five years from the date of purchase, if the magnetron in this Kenmore Elite speed cook oven fails due to a defect in material or workmanship, Sears will repair it free of charge. The above warranty coverage applies only to speed cook ovens which are us…

Text truncated - open the document above for the full version.

TECH SHEET - DO NOT DISCARDPAGE 1 FOR SERVICE TECHNICIAN'S USE ONLYPART NO. 8183969/4619-651-97951 PRECAUTIONS TO BE OBSERVED BEFORE AND DURING SERVICING TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY a.Do not operate or allow the oven to be operated with the door open. b.Make the following safety checks on all ovens to be serviced before activating the magnetron or other microwave source, and make repairs as necessary: 1. Interlock Operation 2. Proper Door Closing 3. Seal and Sealing Surfaces (Arcing, Wear & Other Damage) 4. Damage to or Loosening of Hinges & Latches 5. Evidence of Dropping or Abuse c.Before turning on microwave power for any service test or inspection within the microwave generating compartments, check the magnetron, waveguide or transmission line and cavity for proper alignment, integrity and connections. d.Any defective or misadjusted components in the interlock, monitor, door seal, and microwave generation, and transmission systems shall be repaired, replaced, or adjusted by procedures described in service manual before the oven is released to the owner. e.Amicrowave leakage check to verify compliance with the Federal performance standard should be performed on each oven prior to release to the owner. f.Do not attempt to operate the oven if the window area of the door is broken. Electrical Shock Hazard Disconnect power before servicing. Replace all parts and panels before operating. Failure to do so can result in death or electrical shock. DisplayLikely Failure ConditionRecommended Repair Procedure F0 No errornone F2K Key or Foil pressed more than one minute Replace membrane switch. If problem persists, replace control assembly. F2T Touch Panel pressed more than one minute Replace the display module. If problem persists, replace control assembly. F3H Humidity Sensor out of range Connect a new sensor to the board (at P3). If problem persists, replace control assembly. F3T Temperature Sensor out of range Replace the control assembly. F7 1100W Inverter failure 1. Unplug the oven for at least 40 seconds. Check to see if this solves the problem. (Possible reason: Over temperature protection for the magnetron operated earlier.) 2. Check the resistance of the magnetron thermostat. It should be close to 0ohms. 3. Check wiring to the 1100W inverter and control system. 4. Replace 1100W inverter. 5. If problem persists, replace control assembly. f9M E2PROM missingReplace the control assembly. F9E E2PROM emptyReplace the control assembly. F9C E2PROM CheckSum error Replace the control assembly. F9W E2PROM Write errorReplace the control assembly. F10 Display error Check that the ribbon cables between the display module and the microcomputer board at P11 and P21 are securely connected. If problem persists, replace control assembly. NOTE:If lights work, but cooling fan does not, 40W inverter may have failed. See “Checking Inverters” on page 12. FAILURE CODES/INDICATIONS Models: 665.63792300 665.63793300 665.63794300 665.63799300 PAGE 2TECH SHEET - DO NOT DISCARD PART NO. 8183969/4619-651-97951FOR SERVICE TECHNICIAN'S USE ONLY Orange 1 2 MW Relay 4903 INV RELAY 4916 TT RELAY 4906 EXHAUST FANTHERMOSTAT Y ellow Brown P11 P21 P11 P21 HUMIDITY SENSOR 40W INVERTER 1100W INVERTER DISPLAY PCB POWER PCB RIBBON CABLE/3C RIBBON CABLE/3C Red Green MCU MAGNETRONTHERMOSTAT QUARTZHEATER SOFTSTARTQUARTZ TUBE Blue Red Red 1 P14 1 P7 RIBBON CABLE/4C 1 2 Heater Relay 4904 1 2 Grill Relay 4914 1 2 Softstart Relay 4915 TURNTABLE MOTOR INTERLOCK SECONDARY SWITCH 1100W INVERTER STIRRER MOTOR Black Black White FUSE 4 AMP White 40W INVERTER TURNTABLEMOTOR Red Blue Brown INTERLOCKSECONDARYSWITCH Orange P26 1 P27 CN153 1 DC FAN RELAY 4917 1 40W INVERTER DC FAN MOTOR 1 1 1 1 P25 1 P7 1 LCD MODULE RIBBON CABLE/3C RIBBON CABLE/2C Red Black P6 TOUCH PANEL (MEMBRANE SWITCH) EXTERNAL KEYBOARD A K VLCD LCD MODULE 1 J3 J2 P8 P9 LCD MODULE 1 1 CN151 7001 7000 P4 1 P2 1 P3 Red White Black CN701 ENCODER LIGHT SENSOR 1 1 1 1 P12 P13 P26 P25 Y/G P22 DWG. NO. L-M1-061 Y/G PICTORIAL DIAGRAM TECH SHEET - DO NOT DISCARDPAGE 3 FOR SERVICE TECHNICIAN'S USE ONLYPART NO. 8183969/4619-651-97951 SYMBOL NOTES B: BLACK BL: BLUE R: RED W: WHITE G: GREEN Y: YELLOW 1BR WIRE COLOR - BROWN WIRE NO. - 1 CONDITION: DOOR OPEN MAGNETRON FUSE CF TT 8OR 10 BR 13 W 52 BR 12 Y 28 R 25 BL 5P11 26 BL 6P11 L1 TT Relay 4906 W R B 2BL 18 BL INTERLOCK SECONDAR Y DISPLA Y PCB & POWER PCB INTERLOCK PRIMAR Y CF TT HF CAVITY LAMP COOLING F AN MOT OR (DC FAN MOT OR) TURNT ABLE MOT OR HOOD EXHAUST F AN MOT OR P2/P3/P4/P14/P26/P27/CN1/CN151/CN152/ CN153/CN701/CN702/CN703: WIRE T O PCB CONNECT ORS INV Relay 4916 SM SM STIRRER MOT OR HF HOOD LAMP (COOKT OP LAMP) HF HL CL 9Y 7R Cavity Thermostat-1 50 W 49 W BR: BROWN OR: ORANGE Motor Capacitor P14 Exhaust Fan Thermostat HUMIDITY SENSOR 1 B R W 9Y 7911 TR: TRANSP ARENT N1 19 BL 17 B CN702 1 CL Y TR TR R P P 1P11 B P: PINK CN701 1 P4 1P10 2P10 3P10 1 1BR 20 Amp 15 R 14 W 16 G 58 GR Y P0/P10/P1 1: WIRE T O WIRE CONNECT ORS 1 1 HL HL 21 W 22 Y 2P11 41 Y/G 43 Y/G GND 42 Y/G CN1 CN152 CN151 GR: GRA Y P3 1 P2 MW Relay 4903 1 2 1 CN703 E701 45 W/3C 46 W/3C 1 100W INVERTER 40W INVERTER 40 W 39 BL INTERLOCK MONITOR Magnetron Thermostat 38 BL 57 GR 23 W 24 W L G N 2P0 1P0 G B W 120V / 60Hz 45 W/3C RIBBON CABL E/3 Core 55 R Filter Capacitor 54 R 1 2 1 2 1 2 Heater Relay 4904 Grill Relay 4914 Softstart Relay 4915 Grill Thermostat 31 B 33 B 20 R 27 OR 36 B 29 B 30 BL 37 W 53 B 32 BR 34 W INV TT 1 P27 48 W/2C CN153 P26 15R 19 BL 5OR DOOR 5OR FUSE 4 Amp FUSE 4 Amp 51 G 11 BR 35 R Control Inverter Cavity Thermostat-2 Cavity Thermostat-3 3BL 4BL 11 32 BR 56 GR Softstart Quartz tube Halogen Grill Element Quartz Heater DC Fan Relay 4917 28 R 27 OR DWG. NO. MU-064 GND Y/G SCHEMATIC DIAGRAM PAGE 4TECH SHEET - DO NOT DISCARD PART NO. 8183969/4619-651-97951FOR SERVICE TECHNICIAN'S USE ONLY HUMIDITY SENSOR Y/G MOTOR CAPACITOR MAGNETRON MOTOR STIRRER MAGNETRON THERMOST AT HOOD EXHAUST FAN M OTOR WHITE RED THERMOSTAT EXHAUST FA…

Text truncated - open the document above for the full version.

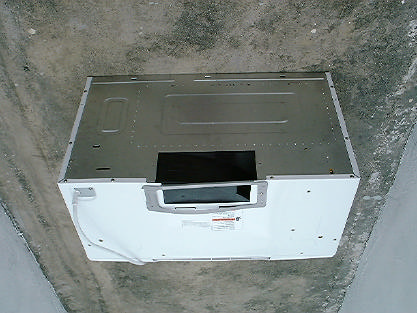

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT

FCC ID: PR4GH9177 MADE IN CHINA This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

LABEL LOCATION BOTTOM VIEW OF THE DEVICE WITH FCC ID LABEL FCC Label

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT VIEW 1 INNER CIRCUIT VIEW 2 INNER CIRCUIT VIEW 3 INNER CIRCUIT VIEW 4 INNER CIRCUIT VIEW 5 INNER CIRCUIT VIEW 6 INNER CIRCUIT VIEW 7 INNER CIRCUIT VIEW 8 INNER CIRCUIT VIEW 9 INNER CIRCUIT VIEW 10 INNER CIRCUIT VIEW 11 INNER CIRCUIT VIEW 12 INNER CIRCUIT VIEW 13 INNER CIRCUIT VIEW 14 INNER CIRCUIT VIEW 15 INNER CIRCUIT VIEW 16

UPDATE DWG.UPDATE DWG. REFERENCEREFERENCE MODIFICATIONMODIFICATION PURCHASINGPURCHASING TOOL MAKINGTOOL MAKING RELEASE FOR:RELEASE FOR: QUOTATIONQUOTATION REQ. QTY.REQ. QTY.PCSPCS REQ. QTY.REQ. QTY.PCSPCS PCSPCSREQ. QTY.REQ. QTY. APP. BYAPP. BY DATEDATE 3rd PROJ3rd PROJ A4A4 SHEET OFSHEET OF UNIT:UNIT: SCALE: SCALE: DWG. NO.DWG. NO. TITLE:TITLE: GENERAL TOLERANCES:GENERAL TOLERANCES: ASSEMBLE TO: ASSEMBLE TO: FIRST USE MODEL NO:FIRST USE MODEL NO: DATE:DATE: DESIGNER:DESIGNER: Appliances Co. , Ltd.Appliances Co. , Ltd. hh iirrll ppoo ooll HOMEHOME APPLIANCESAPPLIANCES Shunde Whirlpool ElectricalShunde Whirlpool Electrical SYMBOL NOTESSYMBOL NOTES B: BLACKB: BLACK BL: BLUEBL: BLUE R: REDR: RED W: WHITEW: WHITE G: GREENG: GREEN Y: YELLOWY: YELLOW 1 BR161 BR16 WIRE SIZE - AWG16WIRE SIZE - AWG16 WIRE COLOUR - BROWNWIRE COLOUR - BROWN WIRE NO. - 1WIRE NO. - 1 CONDITION: DOOR OPENCONDITION: DOOR OPEN SCHEMATIC DIAGRAMSCHEMATIC DIAGRAM MU-064A (with filter board)MU-064A (with filter board) VENUS IIVENUS II M A G N E T R O N M A G N E T R O N SIGNSIGN DESCRIPTION OF CHANGEDESCRIPTION OF CHANGECHANGE DATECHANGE DATE CHANGE NO.CHANGE NO. REV REV FUSEFUSE CFCF TTTT 8 OR168 OR16 10 BR2210 BR22 13 W2213 W22 52 BR2252 BR22 1 2 Y 2 2 1 2 Y 2 2 28 R1628 R16 2 5 B L 1 8 2 5 B L 1 8 5P115P11 2 6 B L 1 8 2 6 B L 1 8 6P116P11 L1L1 B20B20 B20B20 B20B20 2 B L 1 6 2 B L 1 6 18 BL1618 BL16 INTERLOCK SECONDARY INTERLOCK SECONDARY DISPLAY PCBA & POWER PCBA DISPLAY PCBA & POWER PCBA INTERLOCK PRIMARY INTERLOCK PRIMARY CFCF TTTT HFHF CAVITY LAMPCAVITY LAMP COOLING FAN MOTOR (DC FAN MOTOR) COOLING FAN MOTOR (DC FAN MOTOR) TURNTABLE MOTORTURNTABLE MOTOR HOOD EXHAUST FAN MOTORHOOD EXHAUST FAN MOTOR P1/P2/P3/P4/P5/P14/P26/P27/CN1/CN151/CN152 /CN153/CN701/CN702/CN703: WIRE TO PCB CONNECTORS P1/P2/P3/P4/P5/P14/P26/P27/CN1/CN151/CN152 /CN153/CN701/CN702/CN703: WIRE TO PCB CONNECTORS SMSM SMSM STIRRER MOTORSTIRRER MOTOR HFHF HOOD LAMP (COOKTOP LAMP) HOOD LAMP (COOKTOP LAMP) HFHF HLHL CLCL 9 Y 1 6 9 Y 1 6 Cavity Thermostat-1 Cavity Thermostat-1 5 0 W 1 8 5 0 W 1 8 4 9 W 1 8 4 9 W 1 8 BR: BROWNBR: BROWN OR: ORANGEOR: ORANGE Motor Capacitor Motor Capacitor P14P14 Exhaust Fan Thermostat Exhaust Fan Thermostat HUMIDITY SENSOR HUMIDITY SENSOR 11 BB RR WW 9 Y169 Y16 79117911 TR: TRANSPARENTTR: TRANSPARENT N1N1 19 BL2019 BL20 17 B2217 B22 Dai, Xu LeiDai, Xu Lei CN702CN702 11 CLCL Y 2 2 Y 2 2 T R 2 2 T R 2 2 T R 2 2 T R 2 2 R 24R 24 P22P22 P22P22 1P111P11 B 24 B 24 P: PINKP: PINK CN701CN701 11 P4P4 1P101P10 2P102P10 3P103P10 11 1 BR161 BR16 20Amp.20Amp. 15 R2215 R22 14 W2214 W22 16 G2216 G22 5 8 G R 2 0 5 8 G R 2 0 Y 2 2 Y 2 2 P0/P10/P11: WIRE TO WIRE CONNECTORSP0/P10/P11: WIRE TO WIRE CONNECTORS 11 11 HLHL HLHL 2 1 W 2 0 2 1 W 2 0 2 2 Y 2 0 2 2 Y 2 0 2P112P11 4 1 Y / G 1 8 4 1 Y / G 1 8 43 Y/G1843 Y/G18 GNDGND 4 2 Y / G 1 8 4 2 Y / G 1 8 CN1CN1 CN152CN152 CN151CN151 GR: GREYGR: GREY P3P3 11 P2P2 11 22 11 CN703CN703 E701E701 45 W26/3C45 W26/3C 46 W26/3C46 W26/3C 1100W INVERTER 1100W INVERTER 40W INVERTER 40W INVERTER 40 W1640 W16 39 BL1639 BL16 INTERLOCK MONITOR INTERLOCK MONITOR Magnetron Thermostat Magnetron Thermostat 3 8 B L 1 6 3 8 B L 1 6 5 7 G R 1 6 5 7 G R 1 6 2 3 W 2 2 2 3 W 2 2 2 4 W 2 2 2 4 W 2 2 LL EE NN 2P02P0 1P01P0 GG B14B14 W14W14 120V / 60Hz120V / 60Hz 45 W26/3C RIBBON CABLE / 3 Core45 W26/3C RIBBON CABLE / 3 Core 55 R2255 R22 5 6 G R 2 2 5 6 G R 2 2 Filter Capacitor Filter Capacitor 54 R1654 R16 11 22 11 22 11 22 Softstart Quartz tubeSoftstart Quartz tube Halogen Grill ElementHalogen Grill Element Quartz Heater Quartz Heater Grill ThermostatGrill Thermostat 31B1631B16 33B1633B16 20 R2020 R20 27 OR2027 OR20 29 B1629 B16 30 BL1630 BL16 5 3 B 2 0 5 3 B 2 0 32 BR1632 BR16 34 W1634 W16 INVINVTTTT 11 P27P27 48 W26/2C48 W26/2C CN153CN153 P26P26 1 5 R 1 5 R 19 BL2219 BL22 5 OR225 OR22 DOORDOOR 5 O R 2 2 5 O R 2 2 FUSEFUSE 4Amp.4Amp. FUSEFUSE 4Amp.4Amp. 51 G2251 G22 1 1 B R 2 2 1 1 B R 2 2 3 5 R 1 6 3 5 R 1 6 Control Inverter Control Inverter Cavity Thermostat-2 Cavity Thermostat-2 Cavity Thermostat-3 Cavity Thermostat-3 3 B L 1 6 3 B L 1 6 4 B L 1 6 4 B L 1 6 11 11 32 BR1632 BR16 36 B1836 B18 37 W1837 W18 TT Relay 4906 TT Relay 4906 INV Relay 4916 INV Relay 4916 SEP. 6, 2002SEP. 6, 2002 MW Relay 4903 MW Relay 4903 Heater Relay 4904 Heater Relay 4904 Grill Relay 4914 Grill Relay 4914 Softstart Relay 4915 Softstart Relay 4915 DC Fan Relay 4917 DC Fan Relay 4917 2 8 R 1 6 2 8 R 1 6 27 Or2027 Or20 30023002 30013001 P5P5 Y/G18Y/G18 P1P1 Filter BoardFilter Board 6 GR186 GR18 7 R207 R20 Y/G18Y/G18 GNDGND

Date: 2002-11-06 TEST REPORT Page 1 of 29 No.: HM108865 FCC PART 18 CERTIFICATION REPORT FOR LOW POWER DEVICE TEST REPORT No.:HM108865 Equipment Under Test [EUT]:Microwave oven Model Number:63792 Applicant:Whirlpool Microwave Products Development Ltd. FCC ID :PR4GH9177 Date: 2002-11-06 TEST REPORT Page 2 of 25 No.: HM108865 CONTENT: Cover Page 1 of 25 Content Page 2-3 of 25 Conclusion Page 4 of 25 1.0 General Details 1.1Test Laboratory Page 5 of 25 1.2Applicant Details Page 5 of 25 Applicant HKSTC Code Number for Applicant Manufacturer 1.3Equipment Under Test [EUT] Page 6 of 25 Description of EUT operation 1.4Date of Order Page 6 of 25 1.5Submitted Sample Page 6 of 25 1.6Test Duration Page 6 of 25 1.7Country of Origin Page 6 of 25 1.8 Additional Information of EUT Page 7 of 25 2.0Technical Details 2.1Investigations Requested Page 8 of 25 2.2Test Standards and Results Summary Page 8 of 25 3.0Test Results 3.1Emission Page 9-19 of 25 Date: 2002-11-06 TEST REPORT Page 3 of 25 No.: HM108865 Appendix A List of Measurement Equipment Page 20 of 25 Appendix B Photographs Page 21-25 of 25 Date: 2002-11-06 TEST REPORT Page 4 of 25 No.: HM108865 CONCLUSION The submitted product was deemed to have COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15 & Part 18. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Verify byPatrick Wong for Chief Executive Date: 2002-11-06 TEST REPORT Page 5 of 25 No.: HM108865 1.0 General Details 1.1Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone:852 2666 1888 Fax:852 2664 4353 1.2Applicant Details Applicant Whirlpool Microwave Products Development Ltd. 16/F., Paliburg Plaza, 68 Yee Wo Street, Causeway Bay, Hong Kong Telephone:86 755 3433891 Fax:86 755 3433906 HKSTC Code Number for ApplicantWHM001 Manufacturer Shunde Whirlpool Electrical Appliances Co., Ltd. No. 2 Gong Ye Road, Beijiao, Shunde, Guangdong, China Telephone:86 765 6656922 Fax:86 765 6656931 Date: 2002-11-06 TEST REPORT Page 6 of 25 No.: HM108865 1.3Equipment Under Test [EUT] Description of Sample Product:Microwave Oven Manufacturer:Shunde Whirlpool Electrical Appliances Co., Ltd. Brand Name:Kenmore Model Number:63792 Input Voltage:120Va.c. 15A 1800W 60Hz Additional Model No./Brand Name:6379x series/Kenmore, GH9177XLQ/Whirlpool, KHMS17x series/Kitchenaid 1.3.1Description of EUT Operation The Equipment Under Test (EUT) is a Whirlpool Microwave Products Development Ltd. Microwave Oven. 1.4Date of Order 2002-09-16 1.5Submitted Sample(s): 1 Sample per model 1.6Test Duration 2002-11-05 1.7Country of Origin China Date: 2002-11-06 TEST REPORT Page 7 of 25 No.: HM108865 1.8Additional Information of EUT SubmittedNot Available User Manual Part List Circuit Diagram Printed Circuit Board [PCB] Layout Block diagram FCC ID Label Date: 2002-11-06 TEST REPORT Page 8 of 25 No.: HM108865 2.0Technical Details 2.1Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC Part 15 for FCC Certification. 2.2Test Standards and Results Summary Tables EMISSION Results Summary Test ConditionTest RequirementTest MethodClass /Test Result Severit y PassFailedN/A Radiated Emission, 1000MHz to 18GHz FCC Part 18 Subpart C FCC / OST MP-5N/A Input Power Measurement FCC Part 18 Subpart C FCC / OST MP-5N/A Output Power Measurement FCC Part 18 Subpart C FCC / OST MP-5N/A Measurement of Output Frequency FCC Part 18 Subpart C FCC / OST MP-5N/A Output Frequency Stability FCC Part 18 Subpart C FCC / OST MP-5N/A Note: N/A - Not Applicable Date: 2002-11-06 TEST REPORT Page 9 of 25 No.: HM108865 3.0 Test Results 3.1Emission 3.1.1Radiated Emissions Test Requirement:FCC Part 18 Subpart C Test Method:FCC / OST MP-5 Test Date:2002-11-05 Mode of Operation:On mode (max. power) Test Method: The sample was placed 0.8m above the ground plane on the OATS *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigate all operating modes, rotated about all 3 axis (X, Y & Z) to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. *:OATS [Open Area Test Site] located at HKSTC with a metal ground plane on filed with the FCC pursuant to section 2.948 of the FCC rules, with Registration Number: 90657. Test Setup: EUT distance = 3m Pre -Amplifier Receiver Turn Table Computer Ground plane Date: 2002-11-06 TEST REPORT Page 10 of 25 No.: HM108865 Radiated Emissions Test Requirement:FCC Part 18 Subpart C Test Method:FCC / OST MP-5 Test Date:2002-11-05 Mode of Operation:On mode Results: CorrectionLimit @3mAntenna FactorPolarity dB μ V/mdB μ V/m 4898.60<1.027.60<70.45Vertical 7347.90<1.033.60<70.45Vertical 9797.20<1.033.90<70.45Vertical 12246.50<1.034.60<70.45Vertical 14695.80<1.039.90<70.45Vertical 17145.10<1.035.20<70.45Vertical dB μ V/m 28.6 36.2 34.6 34.9 35.6 40.9 MHzdB μ V/m Measured Field Strength of Spurious Emissions Peak Value Frequency Level @3m Field Strength Remarks: Correction Factor included Antenna Factor and Cable Attenuation. Calculated measurement uncertainty=30MHz to 300MHz±3.7dB 300MHz to 1GHz+3.0dB / -2.7dB Date: 2002-11-06 TEST REPORT Page 11 of 25 No.: HM108865 Input Power Measurement Test Requirement:FCC Part 18 Subpart C Test Method:FCC / OST MP-5 Test Date:2002-11-05 Mode of Operation:On mode Test Method: Input power was measured using a Wattmeter. A 1000ml water load was located at the center of the oven. The oven was operated at full output power. Results: Input MeasurementManufacturer’s Rating Voltage (Vac)Current (A)Input Power (W) Current (A)Input Power (W) 12015.171835151800 Date: 2002-11-06 TE…

Text truncated - open the document above for the full version.

TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
