PR4RED199YMicrowave Oven

MICROWAVE HOOD COMBINATION Use & Care Guide In Canada, for assistance, installation and service, call: 1-800-807-6777 or visit our website at www.whirlpool.ca ENSEMBLE FOUR À MICRO-ONDES/HOTTE Guide d’utilisation et d’entretien Au Canada, pour assistance, installation ou service composez le 1-800-807-6777 ou visitez notre site web à www.whirlpool.ca Table of Contents/Table des matières ........ 2 W10112530 ® Model/ModèleYWMH31017  TABLE OF CONTENTS MICROWAVE HOOD COMBINATION SAFETY ...........................3 Electrical Requirements ...............................................................4 PARTS AND FEATURES ................................................................5 Turntable ......................................................................................5 Cooking Rack...............................................................................5 MICROWAVE OVEN CONTROL....................................................6 Display ..........................................................................................6 Start ..............................................................................................6 Cancel Off.....................................................................................6 Add 30 Seconds...........................................................................6 Clock ............................................................................................6 Tones............................................................................................7 Timer.............................................................................................7 Control Lock.................................................................................7 Vent Fan .......................................................................................7 Cooktop Light...............................................................................7 Demo Mode..................................................................................7 MICROWAVE OVEN USE ..............................................................8 Food Characteristics ....................................................................8 Cooking Guidelines ......................................................................8 Cookware and Dinnerware ..........................................................9 Aluminum Foil and Metal .............................................................9 Microwave Cooking Power ..........................................................9 Manual Cooking .........................................................................10 Cooking in Stages (or steps) ......................................................10 Doneness ...................................................................................10 Quick Touch Cooking (sensor and non-sensor) ........................10 Preset Cooking...........................................................................12 Reheating ...................................................................................12 Defrosting ...................................................................................13 Warm Hold .................................................................................13 MICROWAVE OVEN CARE..........................................................14 General Cleaning........................................................................14 Replacing Filters.........................................................................15 Replacing Cooktop Light ...........................................................15 Replacing Microwave Oven Light ..............................................15 TROUBLESHOOTING ..................................................................16 ASSISTANCE OR SERVICE.........................................................17 Replacement Parts.....................................................................17 WARRANTY ..................................................................................18 TABLE DES MATIÈRES SÉCURITÉ DE L’ENSEMBLE FOUR À MICRO-ONDES/HOTTE....19 Spécifications électriques ..........................................................21 PIÈCES ET CARACTÉRISTIQUES ..............................................21 Plateau rotatif .............................................................................21 Grille de cuisson .........................................................................22 TABLEAU DE COMMANDE DU FOUR À MICRO-ONDES .......22 Affichage.....................................................................................22 Start (mise en marche) ...............................................................23 Cancel Off (annulation arrêt) ......................................................23 Add 30 Seconds (ajouter 30 secondes).....................................23 Horloge .......................................................................................23 Signaux sonores.........................................................................23 Minuterie .....................................................................................23 Control Lock (verrouillage des commandes) .............................24 Ventilateur d'évacuation.............................................................24 Lampe de la table de cuisson ....................................................24 Mode de démonstration.............................................................24 UTILISATION DU FOUR À MICRO-ONDES ...............................24 Caractéristiques des aliments....................................................25 Guide de cuisson........................................................................25 Ustensiles de cuisson et vaisselle..............................................25 Papier d’aluminium et métal.......................................................26 Puissance de cuisson pour micro-ondes ..................................26 Cuisson manuelle .…

Text truncated - open the document above for the full version.

Whirlpool Microwave Products Development Limited Add: 16/F, Paliburg Plaza 68 Yee Woo Street, Causeway Bay, Hong Kong Tel: 0085228810882 Fax: 0058228811018 FCC Confidential Authorization Date: 2012-5-16 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Confidentiality Request regarding application for certification of FCC ID: PR4RED199Y Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Detailed Circuit Schematics of EUT--- (Long term) ƒ Block Diagram--- (Long term) ƒ Circuit Description--- (Long term) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely Yours, Johnny Cheung Approbation Manager ƒ

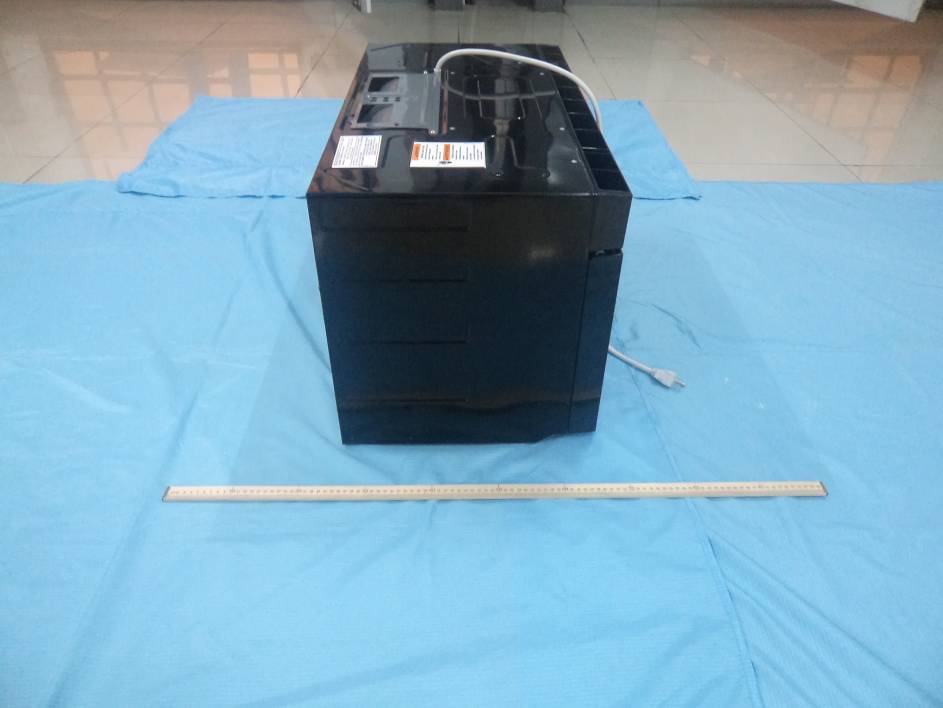

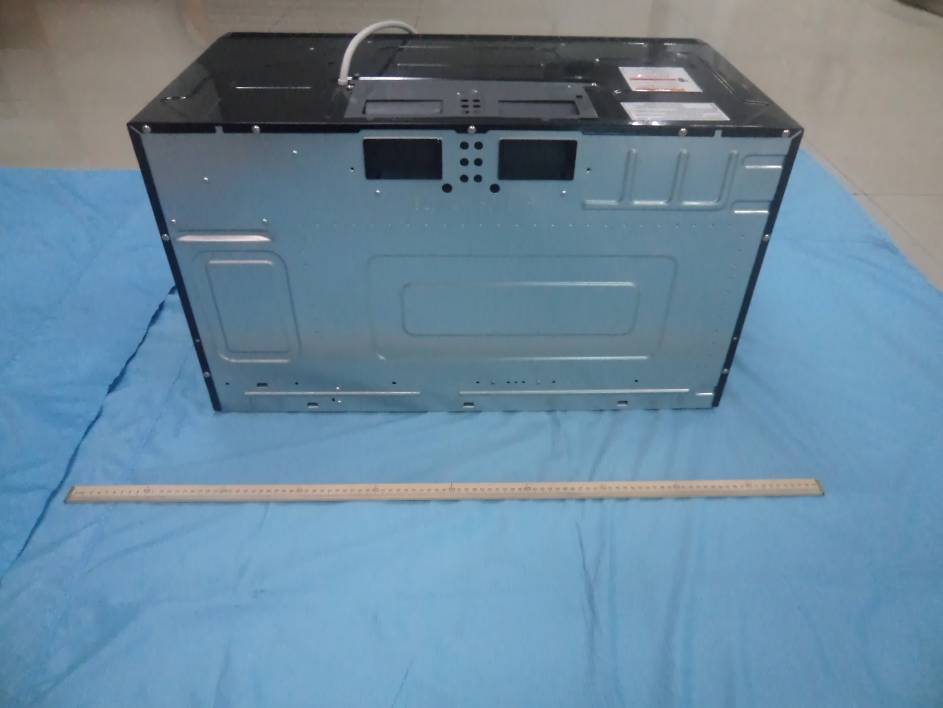

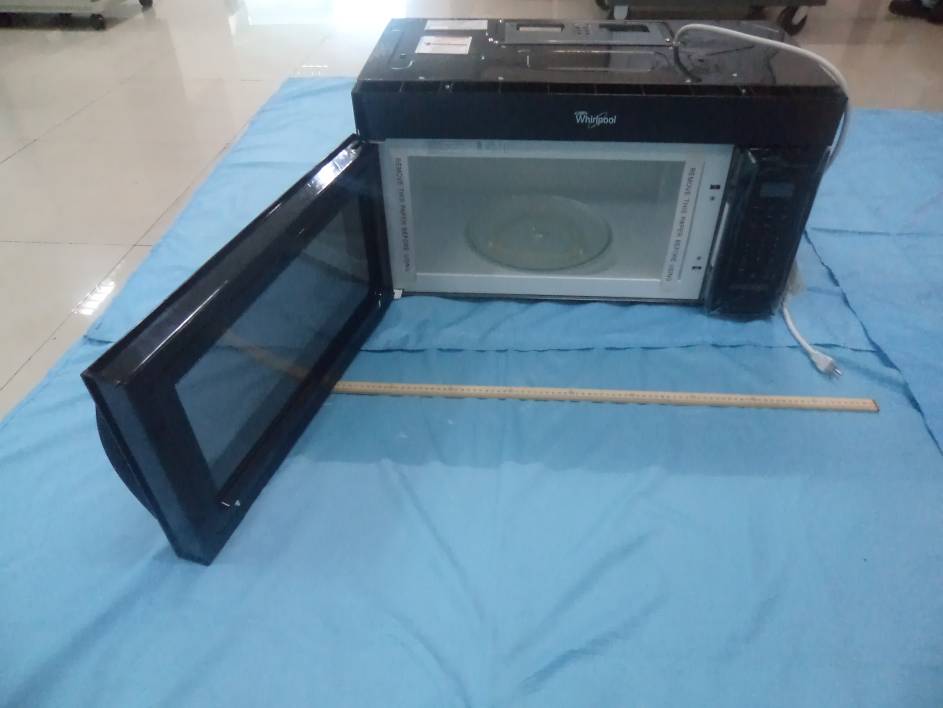

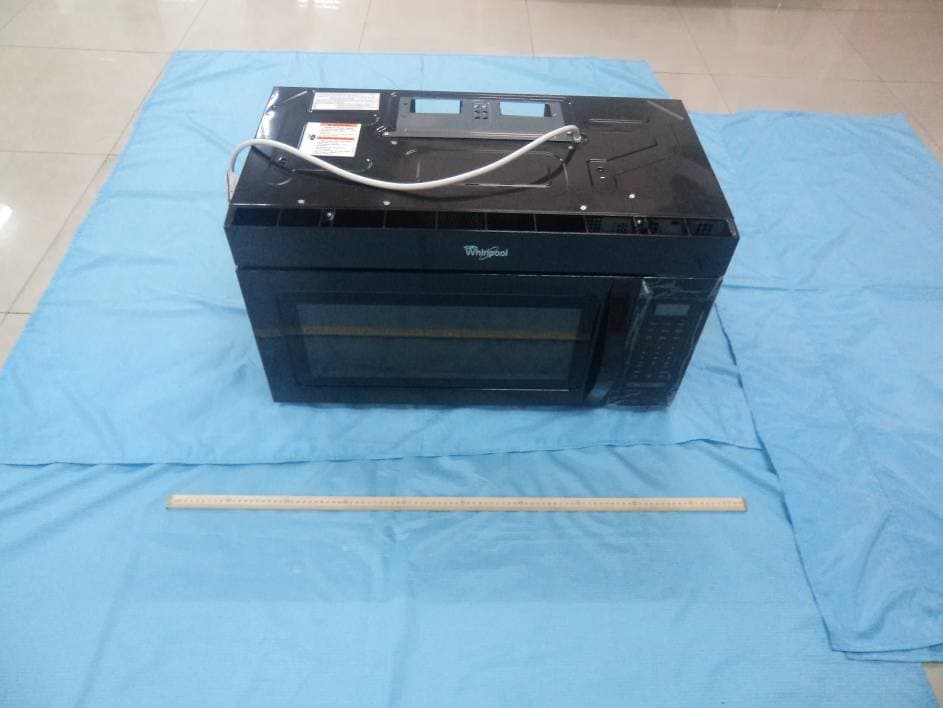

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Front View EUT – Open View EUT – Rear View EUT – Side View

EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information Specifications : Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Label here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover off View EUT – Main Board Top View EUT – Main Board Bottom View EUT – Filter Board Top View EUT – Filter Board Bottom View EUT – H.V. Capacitor View EUT – Power Transformer View EUT –Magnetron View EUT –Magnetron Logo View EUT – Electromoto View EUT –CBB61 View EUT – HRG203 View

mba PCBA Part List for 2 speed |part number |descripti o Description Paremeters Supplier Part No. 2 speed 3 speed PCB FR-1 1.6mm,220*98mm single side LT 461964702121 1 1 4600 LED Display ZDP-275626G-21 ZBOE 461964702191 1 1 4901 Relay 3A,G5NB omron 461964881151 1 1 4902 Relay 12V, G5RL omron 461964702171 1 1 4903 Relay G5GN-1A,12V omron 461964883771 1 1 4905 Relay OJ-SS-112LMHF omron New 1 1 4906 Relay 3A,G5NB omron 461964881151 0 1 4911 Relay 3A,G5NB omron 461964881151 1 1 4912 Relay 3A,G5NB omron 461964881151 1 1 5200 LVT EI35 MDB_197 jin meijia 461964886371 1 1 7950 BT136-600A BT136-600D Philips 4619-646-99811 0 1 7109 OPC TIL 3023 TEXAS MOC3023 sktyshine 4619-646-98891 0 1 7100 MCU STM8S105S4T6C 461964702161 1 1 P3 RAST5_2_HEADER 3552, 2Pin Lumberg 461964881971 1 1 door P2 Rast5_7_HEADER 3552, 7Pin Lumberg 461964881821 1 1 P6 SMK W-D1114#01 FPC CONNECTOR 14 PIN SMK or CWB 241903100012 1 1 P4 JST_XASK_B02B JST, 2Pin, BO2B JST or CWB 461964882461 1 1 2230 Cap_Triac 100n,275V,Cap MKT X2 telestar 461964655622 0 1 2100 ECAP_100u 100uF / 16V / 20% Fenghua 461964654811R 1 1 2101 C0603 10n Fenghua New SMD part 1 1 2107 C0603 100n Fenghua New SMD part 1 1 2108 C0603 0603B474K160NT Fenghua New SMD part 1 1 2109 C0604 100n Fenghua New SMD part 1 1 2200 ECAP 470u,50V,20% Fenghua 461964655641 1 1 2201 ECAP 1000u,16V,20% Fenghua 461964654771R 1 1 2202 C0603 560PF Fenghua New SMD part 1 1 2203 C0603 560PF Fenghua New SMD part 1 1 2204 C0603 560PF Fenghua New SMD part 1 1 2205 C0603 100nf Fenghua New SMD part 1 1 2206 ECAP 10uF/50V Fenghua 461964655541 1 1 2207 C0603 100nf Fenghua New SMD part 1 1 2208 ECAP_100u 100uF / 16V / 20% Fenghua 461964654811R 1 1 3101 0603 2k2 Sintech New SMD part 1 1 3102 0603 39K Sintech New SMD part 1 1 3103 0603 2k2 Sintech New SMD part 1 1 3104 0603 3R3 Sintech New SMD part 1 1 3105 0603 1k Sintech New SMD part 1 1 3106 0603 3R3 Sintech New SMD part 1 1 3107 0603 1k Sintech New SMD part 1 1 3108 0603 3R3 Sintech New SMD part 1 1 3117 0603 220 Sintech New SMD part 1 1 3119 0603 220 Sintech New SMD part 1 1 3120 0603 220 Sintech New SMD part 1 1 3121 0603 220 Sintech New SMD part 1 1 Quantity 4911&4912 on l y 1 works every time 3122 0603 2K2 Sintech New SMD part 1 1 3123 0603 2K2 Sintech New SMD part 1 1 3124 0603 2K2 Sintech New SMD part 1 1 3125 0603 2K2 Sintech New SMD part 1 1 3126 0603 2K2 Sintech New SMD part 1 1 3127 0603 2K2 Sintech New SMD part 1 1 3130 0603 2K2 Sintech New SMD part 1 1 3131 0603 2K2 Sintech New SMD part 1 1 3132 0603 2K2 Sintech New SMD part 1 1 3133 0603 2K2 Sintech New SMD part 1 1 3134 0603 2K2 Sintech New SMD part 1 1 3135 0603 2K2 Sintech New SMD part 1 1 3136 0603 2K2 Sintech New SMD part 1 1 3137 0603 2K2 Sintech New SMD part 1 1 3138 0603 2K2 Sintech New SMD part 1 1 3139 0603 2K2 Sintech New SMD part 1 1 3140 0603 2K2 Sintech New SMD part 1 1 3141 0603 2K2 Sintech New SMD part 1 1 3142 0603 2K2 Sintech New SMD part 1 1 3143 0603 2K2 Sintech New SMD part 1 1 3144 0603 2K2 Sintech New SMD part 1 1 3145 CF 47R,1/4W Sintech 461964604002R 1 1 3146 0603 390 Sintech New SMD part 1 1 3147 0603 39K Sintech New SMD part 1 1 3148 0603 10K Sintech New SMD part 1 1 3151 0603 10k Sintech New SMD part 1 1 3152 0603 150R Sintech New SMD part 1 1 3153 0603 2K7 Sintech New SMD part 1 1 3154 0603 2K2 Sintech New SMD part 1 1 3156 0603 3R3 Sintech New SMD part 1 1 3158 0603 220K Sintech New SMD part 1 1 3159 0603 220K Sintech New SMD part 1 1 3160 0603 220K Sintech New SMD part 1 1 3161 0603 220K Sintech New SMD part 1 1 3162 0603 220K Sintech New SMD part 1 1 3163 0603 220K Sintech New SMD part 1 1 3164 0603 220K Sintech New SMD part 1 1 3165 0603 220K Sintech New SMD part 1 1 3166 0603 1k5 Sintech New SMD part 0 1 3167 0603 3K9, 1% Sintech New SMD part 1 1 3200 0603 100K Sintech New SMD part 1 1 3201 0603 100K Sintech New SMD part 1 1 3203 0603 2K2 Sintech New SMD part 1 1 3204 0603 4K7 Sintech New SMD part 1 1 3205 0603 1K Sintech New SMD part 1 1 3206 0603 10K Sintech New SMD part 1 1 3207 0603 100K Sintech New SMD part 1 1 3208 0603 2K2 Sintech New SMD part 1 1 3210 0603 10K Sintech New SMD part 1 1 3211 0603 3R3 Sintech New SMD part 1 1 3212 0603 3R3 Sintech New SMD part 1 1 3213 0603 3R3 Sintech New SMD part 1 1 3214 0603 1K Sintech New SMD part 1 1 3215 0603 1K Sintech New SMD part 1 1 3216 0603 1K Sintech New SMD part 1 1 3217 0603 1K Sintech New SMD part 1 1 3218 0603 10K Sintech New SMD part 1 1 3219 0603 100K Sintech New SMD part 1 1 3220 0603 560R Sintech New SMD part 1 1 3221 0603 10K Sintech New SMD part 1 1 3234 VDR 275V RMS telestar 461964607231 1 1 3235 Resistor 470R sintech 461964606671 0 1 3236 Resistor 47R skyshine 212010126479 0 1 3901 0603 2K2 Sintech New SMD part 1 1 3902 0603 220 Sintech New SMD part 1 1 3903 0603 220 Sintech New SMD part 1 1 3905 0603 220 Sintech New SMD part 1 1 3906 0603 220 Sintech New SMD part 1 1 3911 0603 2K2 Sintech New SMD part 1 1 3912 0603 2K2 Sintech New SMD part 1 1 4150 Buzzer KPM-G1205A11-2375 KEPO 461964700491 1 1 4600 LED ZDP275626T-21 ZBOE 461964702191 1 1 6100 Zener_8mm_axial EDOZ zener BZX79B4V7 933166800113R 1 1 6118 Zener_8mm_axial EDOZ zener BZX79B6V8 241926000007 1 1 6118 Zener_8mm_axial EDOZ zener BZX79C5V6 new 1 1 6101 Diode, SMD 1N4148, SOD80 先科 (ST) New SMD part 1 1 6102 Diode, SMD 1N4148, SOD80 先科 (ST) New SMD part 1 1 6103 Diode, SMD 1N4148, SOD80 先科 (ST) New SMD part 1 1 6104 Diode, SMD 1N4148, SOD80 先科 (ST) New SMD part 1 1 6105 Diode, SMD 1N4148, SOD80 先科 (ST) New SMD part 1 1 6106 Diode, SMD 1N4148, SOD80 先科 (ST) New SMD part 1 1 6107 Diode, SMD 1N4148, SOD80 先科 (ST) New SMD part 1 1 6108 Diode, SMD 1N4148, SOD80 先科 (ST) New SMD part 1 1 6109 Diode, SMD 1N4148, SOD80 先科 (ST) New SMD part 1 1 6110 Diode, SMD 1N4148, SOD80 先科 (ST) New SMD part 1 1 6111 Diode, SMD 1N4148, SOD80 先科 (ST) New SMD part 1 1 6112 Diode, SMD 1N4148, SOD80 先科 (ST) New SMD part 1 1 6113 Diode, SMD 1N4148, SOD80 先科 (ST) New SMD part 1 1 6114 Diode, SMD 1N4148, SOD80 先科 (ST) New SMD part 1 1 6200 Diode, TH 1N40…

Text truncated - open the document above for the full version.

Note: This test report is prepared for the customer shown above and for the equipment described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Shenzhen). This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, or any agency of the Federal Government. * This report contains data that are not covered by the NVLAP accreditation and are marked with an asterisk “★” (Rev.2) FCC PART 18 TEST REPORT For Whirlpool Microwave Products Development Limited. 16/F, Paliburg Plaza, 68 Yee Woo Street, Causeway Bay, Hong Kong FCC ID: PR4RED199Y Report Type: Original Report Product Type: Microwave Oven Test Engineer: Lebron Wang Report Number: RSZ120417550-00 Report Date: 2012-05-11 Reviewed By: Lisa Zhu EMC Engineer Test Laboratory: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ120417550-00 FCC Part 18 Page 2 of 19 TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 OPERATING CONDITION/TEST CONFIGURATION..........................................................................................5 JUSTIFICATION.............................................................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 EXTERNAL CABLE LIST AND DETAILS.........................................................................................................................5 CONFIGURATION OF TEST SETUP.................................................................................................................................5 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................5 CONDUCTED EMISSIONS ........................................................................................................................................6 APPLICABLE STANDARD..............................................................................................................................................6 MEASUREMENT UNCERTAINTY....................................................................................................................................6 EUT SETUP..................................................................................................................................................................6 EMI TEST RECEIVER SETUP.........................................................................................................................................7 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................7 TEST PROCEDURE........................................................................................................................................................7 TEST RESULTS SUMMARY............................................................................................................................................7 TEST DATA..................................................................................................................................................................8 RADIATION HAZARD MEASUREMENT .............................................................................................................10 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................10 ENVIRONMENTAL CONDITIONS..................................................................................................................................10 RADIATION HAZARD MEASUREMENT........................................................................................................................10 INPUT POWER.............................................................................................................................................................10 LOAD FOR MICROWAVE OVENS.................................................................................................................................11 RF OUTPUT POWER MEASUREMENT..........................................................................................................................11 OPERATING FREQUENCY MEASUREMENT..................................................................................................................12 RADIATED EMISSIONS...........................................................................................................................................16 MEASUREMENT UNCERTAINTY..................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conduction Emissions - Front View Conduction Emissions - Side View Radiated Emissions - Front View (Below 1 GHz) Radiated Emissions - Rear View (Below 1 GHz) Radiated Emissions - Front View (Above 1 GHz) Radiated Emissions - Rear View (Above 1 GHz)
