User Guide Microwave Hood Combination THANK YOU for purchasing this high-quality product. Register your microwave oven at www.whirlpool.ca. For future reference, please make a note of your model and serial number located on the front facing of the microwave oven opening, behind the door. Model Number _________________________________________Serial Number __________________________________________ MICROWAVE HOOD COMBINATION SAFETY You can be killed or seriously injured if you don't immediately You can be killed or seriously injured if you don't follow All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed. Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.” These words mean: follow instructions. instructions. DANGER WARNING When using electrical appliances basic safety precautions should be followed, including the following: IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS WARNING: To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy:  Read all instructions before using the microwave oven.  Read and follow the specific “PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY” found in this section.  The microwave oven must be grounded. Connect only to properly grounded outlet. See “GROUNDING INSTRUCTIONS” found in this section and in the provided Installation Instructions.  Install or locate the microwave oven only in accordance with the provided Installation Instructions.  Some products such as whole eggs in the shell and sealed containers - for example, closed glass jars - are able to explode and should not be heated in the microwave oven. W10918339A 2 IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS  Use the microwave oven only for its intended use as described in the manual. Do not use corrosive chemicals or vapors in the microwave oven. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use.  As with any appliance, close supervision is necessary when used by children.  Do not operate the microwave oven if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped.  The microwave oven should be serviced only by qualified service personnel. Call an authorized service company for examination, repair, or adjustment.  Do not cover or block any openings on the microwave oven.  Do not store this microwave oven outdoors. Do not use the microwave oven near water - for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar locations.  Do not immerse cord or plug in water.  Keep cord away from heated surfaces.  Do not let cord hang over edge of table or counter.  See door surface cleaning instructions in the “Microwave Oven Care” section.  To reduce the risk of fire in the oven cavity: – Do not overcook food. Carefully attend the microwave oven when paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking. – Remove wire twist-ties from paper or plastic bags before placing bags in oven. – If materials inside the oven ignite, keep oven door closed, turn oven off, and disconnect the power cord, or shut off power at the fuse or circuit breaker panel. – Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use.  Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID. To reduce the risk of injury to persons: – Do not overheat the liquid. – Stir the liquid both before and halfway through heating it. – Do not use straight-sided containers with narrow necks. – After heating, allow the container to stand in the microwave oven for a short time before removing the container. – Use extreme care when inserting a spoon or other utensil into the container.  Do not mount over a sink.  Do not store anything directly on top of the microwave oven when the microwave oven is in operation.  Clean Ventilating Hoods Frequently - Grease should not be allowed to accumulate on hood or filter.  When flambéing foods under the hood, turn the fan on.  Suitable for use above both gas and electric cooking equipment.  Intended to be used above ranges with maximum width of 36" (91.44 cm).  Use care when cleaning the vent-hood filter. Corrosive cleaning agents, such as lye-based oven cleaners, may damage the filter. PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: (1) Door (bent), (2) Hinges and latches (broken or loosened), (3) Door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. State of California Proposition 65 Warnings: WARNING: T…

Text truncated - open the document above for the full version.

MICROWAVE HOOD COMBINATION INSTALLATION INSTRUCTIONS This product is suitable for use above electric or gas cooking products up to and including 36" (91.4 cm) wide. See the “Installation Requirements” section for further notes. These installation instructions cover different models. The appearance of your particular model may differ slightly from the illustration in these installation instructions. INSTRUCTIONS D’INSTALLATION DE L’ENSEMBLE FOUR À MICRO-ONDES/HOTTE Ce produit est conçu pour l’utilisation au-dessus d’appareils de cuisson électriques ou à gaz de 36 po (91,4 cm) de largeur ou moins. Voir la section « Exigences d’installation » pour d’autres remarques. Ces instructions d’installation sont valables pour plusieurs modèles. Il se peut que l’apparence de votre propre modèle soit légèrement différente de celle montrée sur les illustrations dans ce document. Table of Contents/Table des matières W11496339A MICROWAVE HOOD COMBINATION SAFETY ............................2 INSTALLATION REQUIREMENTS .................................................2 Tools and Parts .............................................................................2 Separate Cardboard Template .....................................................3 Location Requirements ................................................................3 Product Dimensions .....................................................................3 Electrical Requirements ...............................................................4 INSTALLATION INSTRUCTIONS ...................................................5 Remove Mounting Plate ...............................................................5 Rotate Blower Motor ....................................................................5 Locate Wall Stud(s) ......................................................................8 Mark Rear Wall .............................................................................9 Drill Holes in Rear Wall ...............................................................10 Attach Mounting Plate to Wall ...................................................10 Prepare Upper Cabinet ..............................................................11 Install Damper Assembly (for wall venting only) ..................................................................11 Install the Microwave Oven ........................................................12 Complete Installation .................................................................13 VENTING DESIGN SPECIFICATIONS ........................................14 ASSISTANCE ................................................................................15 Replacement Parts .....................................................................15 Accessories ................................................................................15 SÉCURITÉ DE L’ENSEMBLE FOUR À MICRO-ONDES/HOTTE...............................................................16 EXIGENCES D’INSTALLATION ...................................................16 Outillage et pièces ......................................................................16 Gabarit en carton séparé ...........................................................17 Exigences d’emplacement .........................................................17 Dimensions du produit ...............................................................18 Spécifi cations électriques ..........................................................18 INSTRUCTIONS D’INSTALLATION .............................................19 Dépose de la plaque de montage ..............................................19 Réorientation du moteur du ventilateur .....................................19 Identifi er la position du/des poteau(x) du colombage mural .....22 Tracé sur le mur arrière ..............................................................23 Perçage de trous dans le mur arrière .........................................24 Fixation de la plaque de montage sur le mur ............................24 Préparation du placard supérieur ..............................................25 Installation du module du clapet anti-refl ux (pour décharge à travers le mur uniquement) ............................25 Installation du four à micro-ondes .............................................26 Achever l’installation ..................................................................28 SPÉCIFICATIONS/CONCEPTION DU CIRCUIT D’ÉVACUATION ...........................................................................28 ASSISTANCE ................................................................................30 Pièces de rechange ....................................................................30 Accessoires ................................................................................30 2 MICROWAVE HOOD COMBINATION SAFETY INSTALLATION REQUIREMENTS Tools and Parts Tools Needed Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here. ■Measuring tape ■Pencil ■Masking tape or thumbtacks ■Scissors ■No. 2 Phillips screwdriver ■No. 3 Phillips screwdriver for 1/4-20 x 3" (7.6 cm) bolts ■Drill ■3/16" (5 mm), 3/8" (1 cm), 5/8" (1.6 cm) drill bits ■3/4" (1.9 cm) hole saw ■Diagonal wire cutting pliers ■Stud fi nder ■7⁄16" (1.1 cm) socket wrench (or box wrench) for 1/4" x 2" (6.4 mm x 5.1 cm) lag screws ■1 1 / 2 " (3.8 cm) diameter hole drill bit for wood or metal cabinet ■Keyhole saw ■Caulking gun and weatherproof caulking compound ■Duct tape Parts Needed For information on reordering, see the “Replacement Parts” section. NOTE: The hardware items listed here are for wood studs. For other types of wall structures, be sure to use appropriate fasteners. NOTE: Depending on model, aluminum grease fi lter and charcoal fi lter may be combined. Materials Needed Standard fi ttings for wall or roof venting. See the “Venting Design Specifi cations” section. A B C DEF G H A. 3/16-24 …

Text truncated - open the document above for the full version.

Date: 9/16/2025 Federal Communications Commissions Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 RE: CFR 47 §2.911 (d)(5) Attestation FCC ID: PR4RED199Y2 Grantee FRN: 0012635595 1. Whirlpool Microwave Products Development Limited. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. 2. Whirlpool Microwave Products Development Limited. (“the applicant”) certifies that, the device does not have cybersecurity and / or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, identified on the Covered List installed on the device, nor will it be installed by the applicant anytime after certification. 3. Whirlpool Microwave Products Development Limited. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment and is not an affiliate or subsidiary of an entity identified on the Covered List. Sincerely yours, Name: Bobo Lin Job Title: Approbation Manager Company Name: Whirlpool Microwave Products Development Limited.

Date: 9/16/2025 Federal Communications Commissions Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 RE: CFR 47 §2.911 (d)(7) FCC US Agent Letter of Attestation FCC ID: PR4RED199Y2 Grantee FRN: 0012635595 To whom it may concern: FCC US Agent Contact Person: Cammie Rhodes Company Name: Whirlpool Corporation Company Address: 2000 M63 North Benton Harbor, MI 49022 United States Email: cammie_k_rhodes@whirlpool. Com FRN: 0011042405 This letter is to confirm that we have accepted the responsibility to act as US Agent on behalf of Whirlpool Microwave Products Development Limited. (“the applicant”) for the above referenced FCC ID. We are aware of the requirements and responsibilities of the applicant’s agent for service of process as outlined in the FCC section 2.911(d)(7) and Report and Order FCC 22-84 paragraph 63. Sincerely, Authorized Agent Contact Person Name: Cammie Rhodes Agent Company name: Whirlpool Corporation

Date: 9/16/2025 Federal Communications Commissions Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 RE: CFR 47 §2.911 (d)(7) Agent Designation Attestation FCC ID: PR4RED199Y2 Grantee FRN: 0012635595 Whirlpool Microwave Products Development Limited. (“the applicant”) as required by section 2.911(d)(7), designates the following agent, located in the United States, for purposes of acting as the applicant’s agent for service of process. The applicant acknowledges that they will maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility under CFR 47 §2.929(c) to inform the FCC whenever the agent information changes. U.S. Agent Information: Contact Person: Cammie Rhodes Company Name: Whirlpool Corporation Company Address: 2000 M63 North Benton Harbor, MI 49022 United States Email: cammie_k_rhodes@whirlpool. Com FRN: 0011042405 Sincerely yours, Name: Bobo Lin Job Title: Approbation Manager Company Name: Whirlpool Microwave Products Development Limited.

Whirlpool Microwave Products Development Limited. Date: 2025/9/16 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signed by: Company Name: Whirlpool Microwave Products Development Limited. Contact Name: Approbation Manager Title of Person：Bobo Lin Address: 17th Fl, Elite Centre 22 Hung To Rd Kwun Tong 852 Hong Kong

Whirlpool Microwave Products Development Limited. Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: PR4RED199Y2 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Bom List Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Company Name: Whirlpool Microwave Products Development Limited. Contact Name: Approbation Manager Title of Person：Bobo Lin Address: 17th Fl, Elite Centre 22 Hung To Rd Kwun Tong 852 Hong Kong Date:2025/9/16

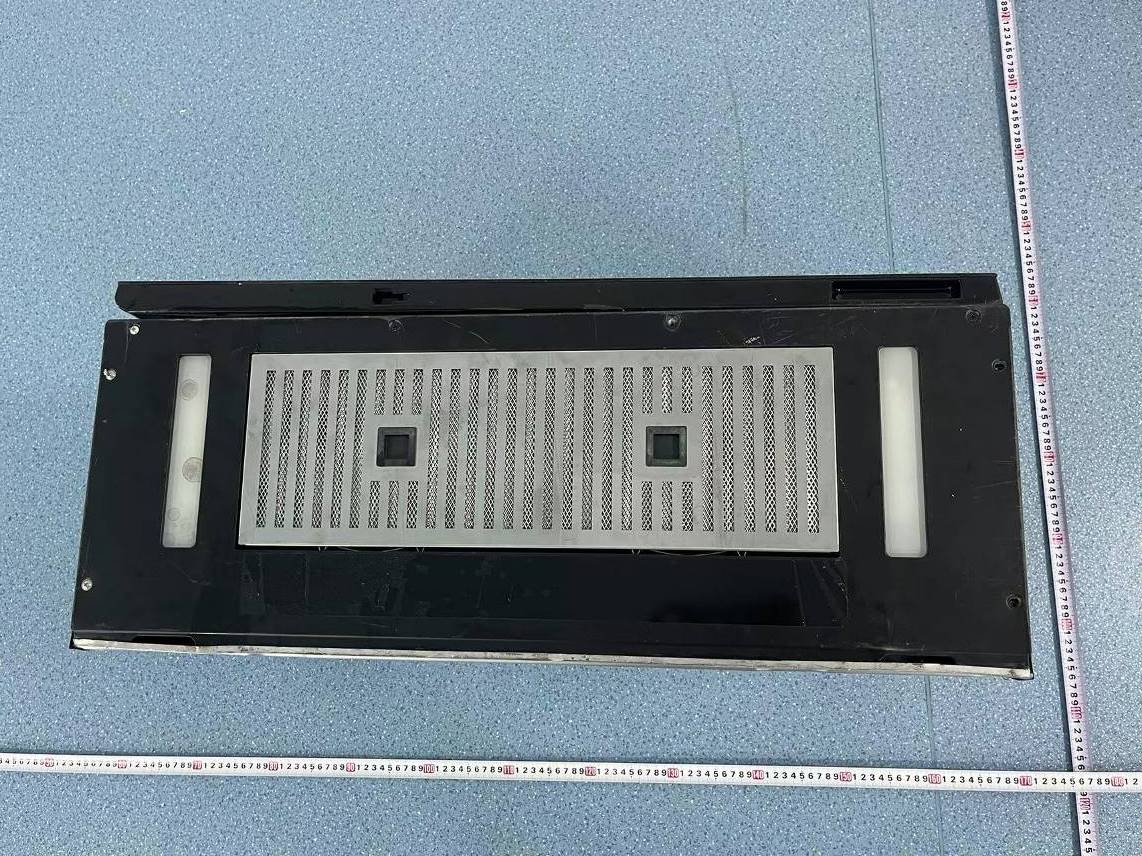

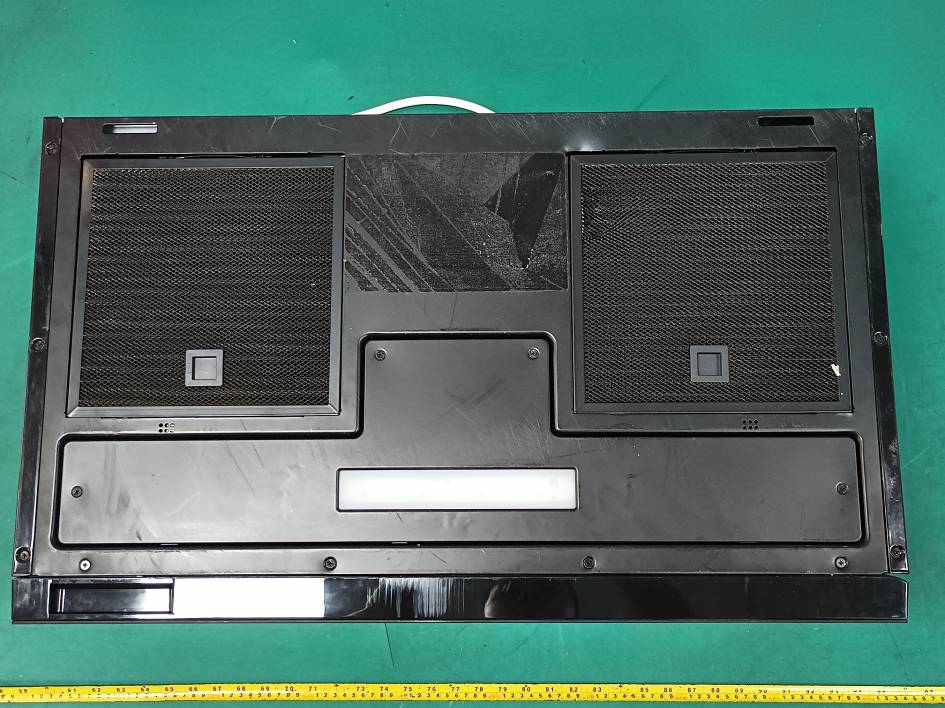

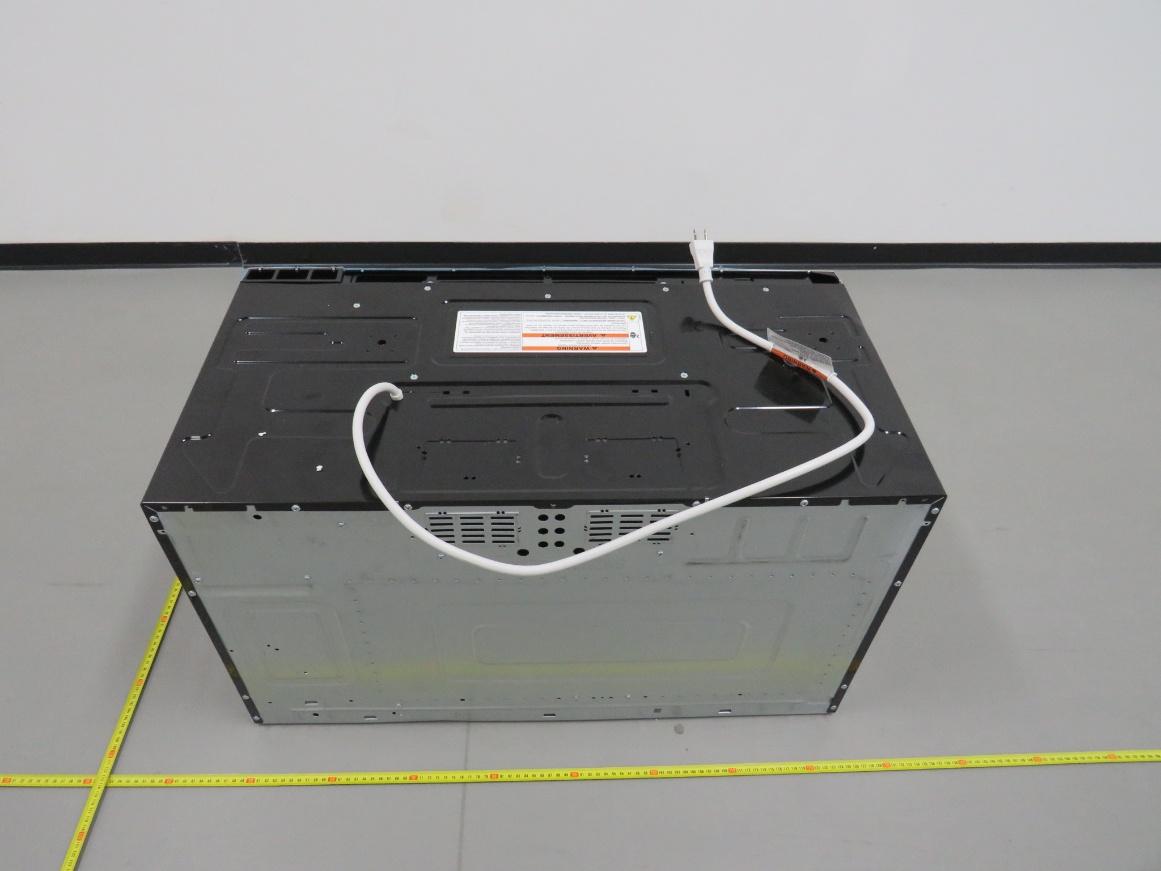

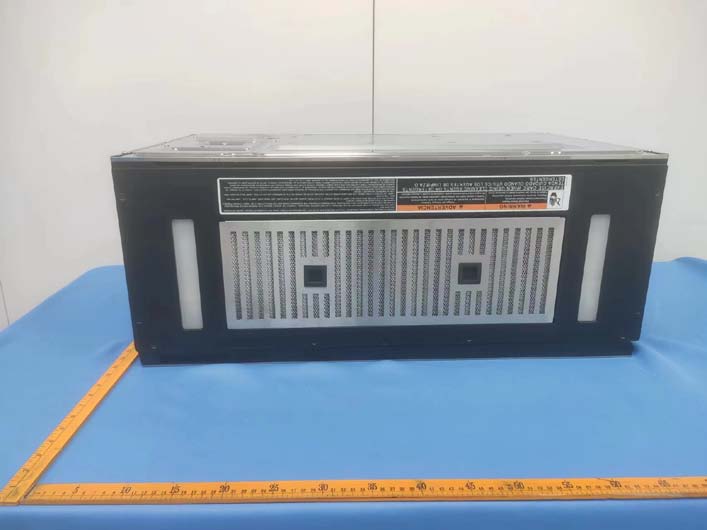

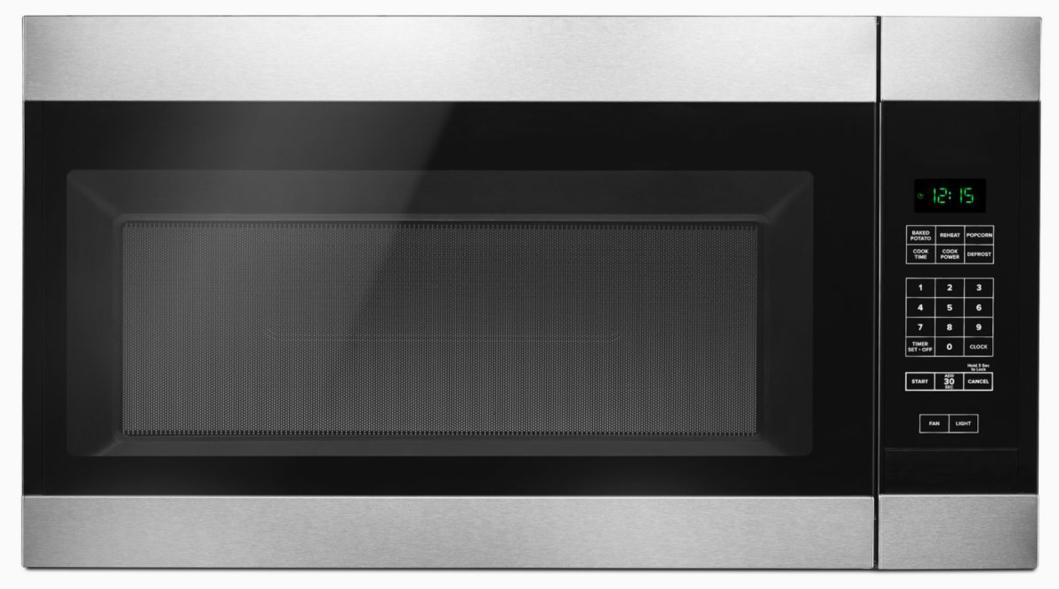

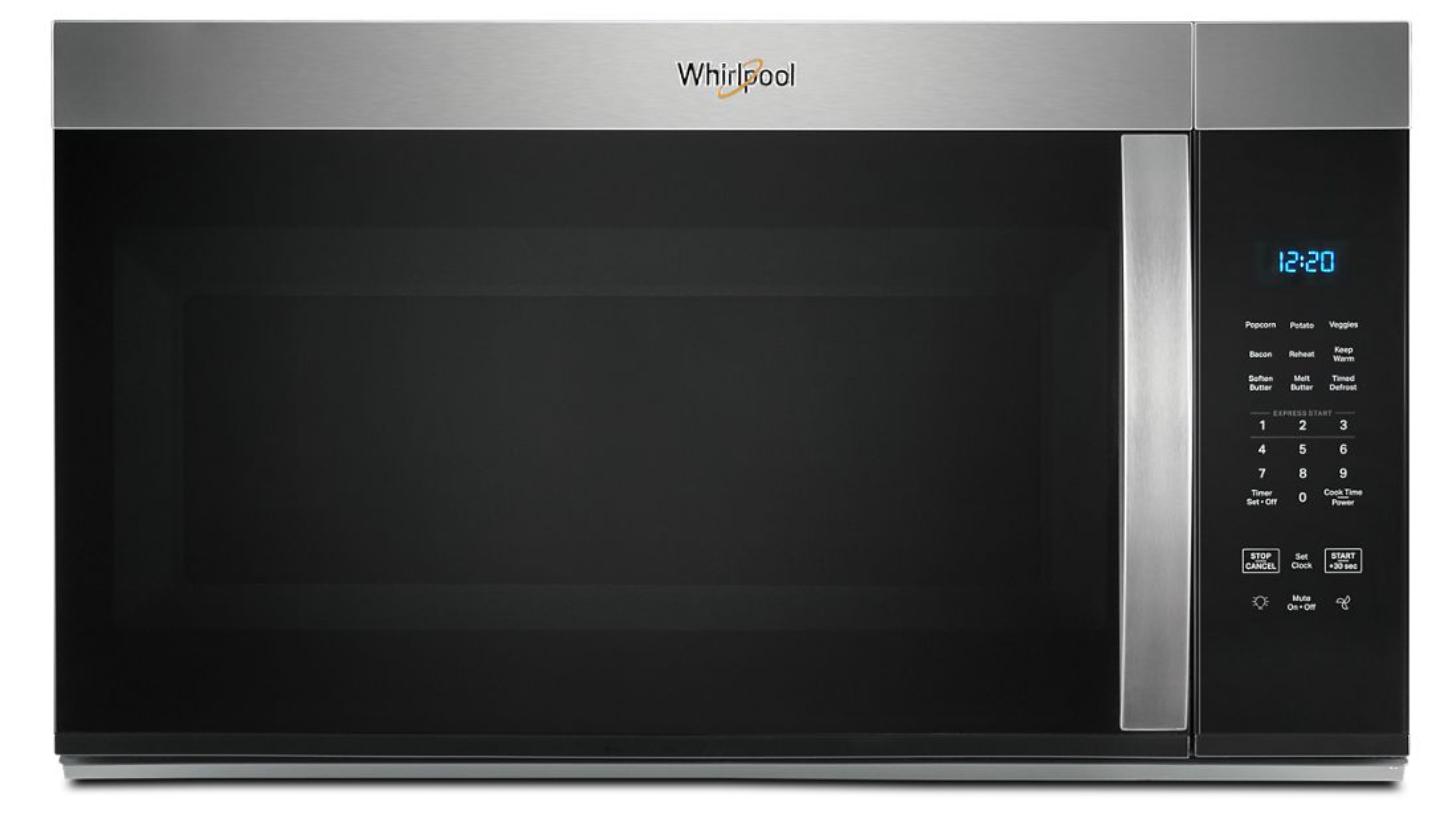

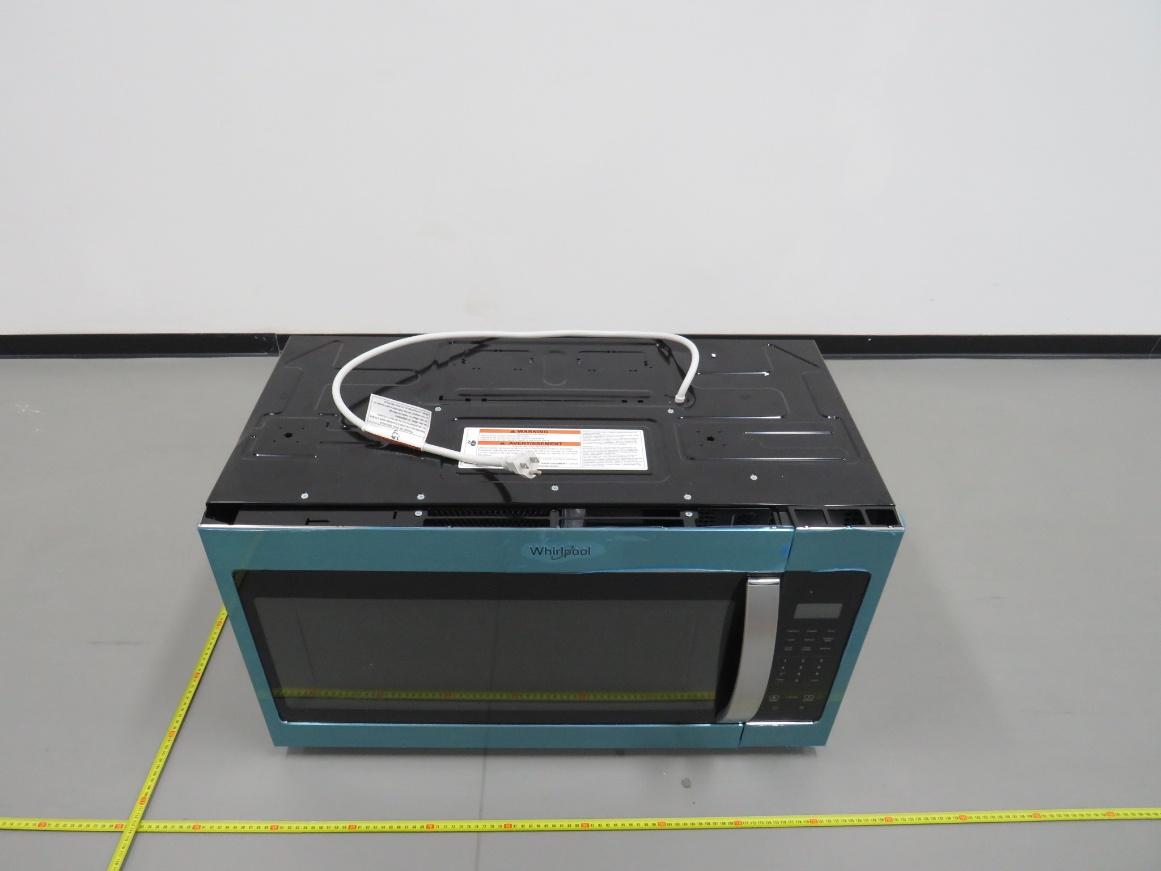

Appendix I External Photographs Page 2 of 6 External YWMH31017 Page 3 of 6 Page 4 of 6 Page 5 of 6 YAMV2307 Page 6 of 6 YMMMS4230P YWMMS3130R

Label: Note: This would be a plastic label with a permanent adhesive. PR4RED199Y2 2 Label Location

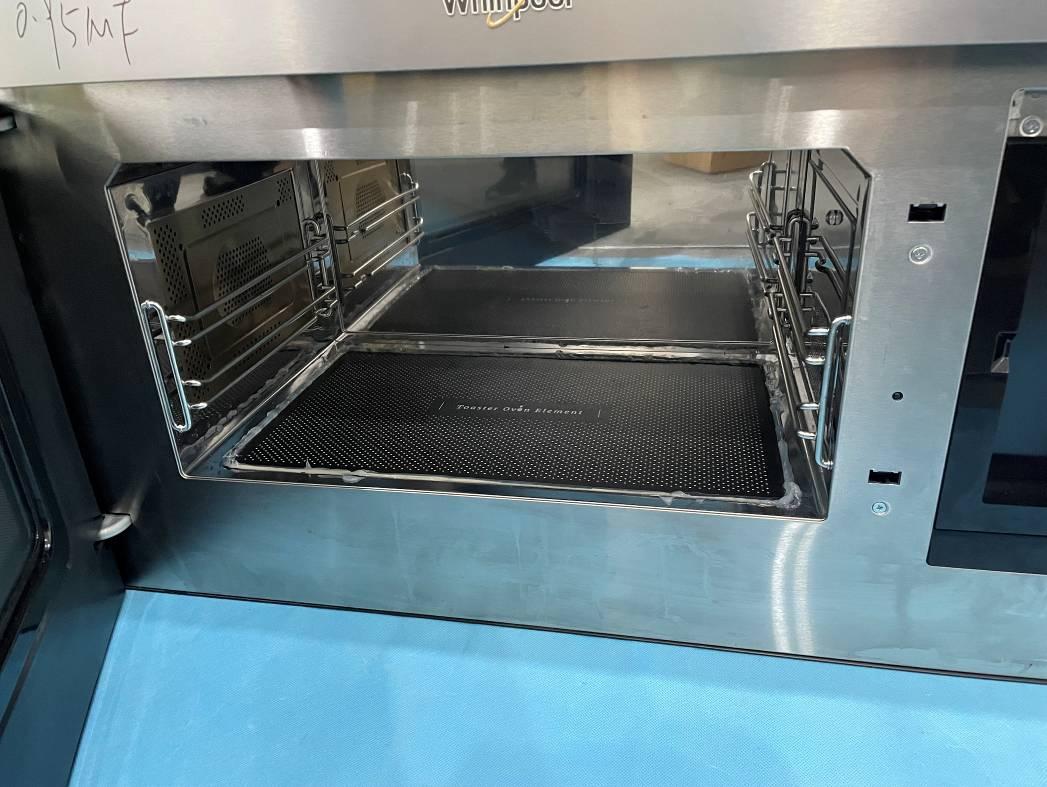

Appendix II Internal Photographs Page 2 of 7 Internal Page 3 of 7 Page 4 of 7 magnetron type Page 5 of 7 Page 6 of 7 Page 7 of 7 END OF REPORT

FCC ID: PR4RED199Y2 1.1. RADIATION HAZARD LIMITS Maximum Emission (mW/cm 2) 1.00 TEST PROCEDURE 1) The EUT was set-up according to the FCC MP-5 and Part 18 for Radiation Hazard Measurement. 2) The measurement was using a microwave leakage meter to measure the Radiation leakage in the as-received condition with the oven door closed. 3) For ovens rated at 1000 watts or less power output, the beaker shall contain quantities of water as listed inthe following subparagraphs, For ovens rated at more than 1000 watts output,each quantity shall be increased by 50% for each 500 watts or fraction thereofin excess of 1000 watts, A 700ml water load in a beaker was located in the center of the oven and the Household Microwave Combi Oven was set to maximum power. 4) While the oven operating, the microwave survey meter probe was moved slowly around the door seams the check for maximum leakage. TEST SETUP TEST ENVIRONMENT Temperature 24.5°C Relative Humidity 54.1% Atmosphere Pressure 101kPa TEST DATE / ENGINEER Test Date September 8, 2025 Test By Wite Chen TEST MODE Pre-test Mode: Maximum power + 700mL water load + beaker located in the center of the oven Final Test Mode: Maximum power + 700mL water load + beaker located in the center of the oven TEST RESULTS Maximum expose value (mW/cm 2 ) Limit (mW/cm 2 ) Result A 0.423 1.00 Pass B 0.015 1.00 Pass C 0.01 1.00 Pass D 0.016 1.00 Pass E 0.038 1.00 Pass END OF REPORT
