MICROWAVE HOOD COMBINATION INSTALLATION INSTRUCTIONS COMBINACIÓN DE MICROONDAS Y CAMPANA INSTRUCCIONES DE INSTALACIÓN This product is suitable for use above electric or gas cooking products up to and including 36" (91.4 cm) wide. See the “Installation Requirements” section for further notes. These installation instructions cover different models. The appearance of your particular model may differ slightly from the illustration in these installation instructions. Esta unidad puede usarse encima de productos para cocción eléctricos o a gas de hasta 36" (91,4 cm) de ancho. Vea la sección “Requisitos de instalación” para obtener más detalles. Estas instrucciones de instalación abarcan modelos diferentes. La apariencia de su modelo en particular puede ser ligeramente diferente de las imágenes de estas instrucciones de instalación. Table of Contents / Ìndice W11417679B MICROWAVE HOOD COMBINATION SAFETY ............................2 INSTALLATION REQUIREMENTS .................................................3 Tools and Parts .............................................................................3 Location Requirements ................................................................3 Product Dimensions .....................................................................4 Electrical Requirements ...............................................................4 INSTALLATION INSTRUCTIONS ...................................................5 Wall Venting Installation Only .......................................................5 Install Damper Assembly (for wall venting only) ..........................5 Roof Venting Installation Only ......................................................5 Install Damper Assembly (for roof venting only) ..........................6 Vent Cover Installation (for both wall and upper vent installation) .................................................................6 Locate Wall Stud(s) ......................................................................6 Prepare Upper Cabinet ................................................................8 Mark Rear Wall .............................................................................9 Drill Holes in Rear Wall .................................................................9 Attach Mounting Plate to Wall ...................................................10 Install the Microwave Oven ........................................................10 Complete Installation .................................................................11 VENTING DESIGN SPECIFICATIONS .........................................12 ASSISTANCE ................................................................................14 Replacement Parts .....................................................................14 SEGURIDAD DE LA COMBINACIÓN DE MICROONDAS Y CAMPANA ..................................................................................15 REQUISITOS DE INSTALACIÓN .................................................16 Herramientas y piezas ................................................................16 Requisitos de ubicación .............................................................16 Dimensiones del producto .........................................................17 Requisitos eléctricos ..................................................................17 INSTRUCCIONES DE INSTALACIÓN .........................................18 Solamente para la instalación con ventilación en la pared .......18 Instalación del conjunto de la compuerta de tiro (para ventilación por la pared solamente) ..................................18 Solamente para la instalación con ventilación en el techo .......18 Instalación del conjunto de la compuerta de tiro (para ventilación en el techo solamente) ...................................19 Instalación de la cubierta de ventilación (para instalación de ventilación superior y ventilación por la pared) ....................19 Ubique la(s) viga(s) de pared ......................................................19 Preparación del gabinete superior .............................................21 Marque la pared posterior ..........................................................22 Taladre orificios en la pared posterior ........................................22 Fije la placa de montaje a la pared ............................................23 Instalación del horno de microondas ........................................23 Finalización de la instalación .....................................................24 ESPECIFICACIONES PARA EL DISEÑO DE LA VENTILACIÓN ...............................................................................25 ASISTENCIA..................................................................................27 Piezas de repuesto .....................................................................27 2 MICROWAVE HOOD COMBINATION SAFETY You can be killed or seriously injured if you don't immediately You can be killed or seriously injured if you don't follow All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed. Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.” These words mean: follow instructions. instructions. DANGER WARNING 3 INSTALLATION REQUIREMENTS Tools and Parts Tools needed Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here. ■ Measuring tape ■ Pencil ■ Masking tape or thumbtacks ■ Scissors ■No. 3 Phillips screwdriver for 1/4 - 20 x 3" (7.6 cm) bolts …

Text truncated - open the document above for the full version.

Whirlpool Microwave Products Development Limited. Address: 17th Fl, Elite Centre,22 Hung To Rd,Kwun Tong, Hong Kong Email: [email protected] Tel: +8675583811688 CFR 47 §2.911(d)(5)(i) Attestation Letter Attestation Letter Date: 2026-5- 25 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i) Filing FCC ID: PR4TANGO35011X Whirlpool Microwave Products Development Limited. certifies that the equipment for which authorization is sought, is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Signature: Printed Name: Bobo Lin Title: Approbation Manager

Whirlpool Microwave Products Development Limited. Address: 17th Fl, Elite Centre,22 Hung To Rd,Kwun Tong, Hong Kong Email: [email protected] Tel: +8675583811688 CFR 47 §2.911 (d)(5)(ii) Attestation Letter Attestation Letter Date: 2026-5- 25 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(ii) Filing FCC ID: PR4TANGO35011X Whirlpool Microwave Products Development Limited. certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. We also certify that, as of the date of the filing of the application, the equipment does not utilize cyber-security or anti-virus software from Kaspersky Lab, Inc, or any of its successors and assignees, which is also on the “covered list”. Sincerely, Signature: Printed Name: Bobo Lin Title: Approbation Manager

U.S. AGENT LETTER OF ATTESTATION Date: 2026-5- 25 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(7) Filing FCC ID: PR4TANGO35011X Whirlpool Microwave Products Development Limited. certifies that, as of the date of the filing of the application, Whirlpool Corporation is our designated U.S. agent for service of process for the above referenced FCC ID. Whirlpool Microwave Products Development Limited. accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Whirlpool Corporation accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Name: Whirlpool Corporation Address: 2000 M63 North Benton Harbor, MI 49022 United States FRN: 0011042405 Tel.: 001(269) 923-5068 Email: [email protected] Signed by (printed name): Paul Friis Signature: Applicant: Whirlpool Microwave Products Development Limited. Address: 17th Fl, Elite Centre,22 Hung To Rd,Kwun Tong, Hong Kong FRN: 0012635595 Tel: +86 75583811688 Email: [email protected] Signed by (printed name): B obo Lin Signature:

WhirlpoolMicrowaveProductsDevelopmentLimited. Address:17thFl,EliteCentre,22HungToRd,KwunTong,HongKong Email:[email protected] Tel:+8675583811688 QA-FR-170-B7/29/2014 FCCAuthorization Date:2026-5-25 FEDERALCOMMUNICATIONSCOMMISSIONS AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 Subject:AgentAuthorization Towhomitmayconcern: We,WhirlpoolMicrowaveProductsDevelopmentLimited.theundersigned,hereby authorizesBayAreaComplianceLaboratoriesCorp.(Shenzhen).toactonitsbehalfin allmattersrelatingtoapplicationforEquipmentauthorization,includingthesigningof alldocumentsrelatingtothesematters.AllactscarriedoutbyBayAreaCompliance LaboratoriesCorp.(Shenzhen)onourbehalfshallhavethesameeffectasourown action. We,theundersigned,herebycertifythatwearenotsubjecttoadenialoffederalbenefits, thatincludesFCCbenefits,pursuanttoSection5301oftheAnti-DrugAbuseActof1988, 21U.S.C.862. Thisauthorizationisvaliduntilfurtherwrittennoticefromtheapplicant. Sincerely, Signature: PrintedName:BoboLin Title:ApprobationManager

Whirlpool Microwave Products Development Limited. Address: 17th Fl, Elite Centre,22 Hung To Rd,Kwun Tong, Hong Kong Email: [email protected] Tel: +8675583811688 QA-FR-171-A Date: 2026-5- 25 FCC Confidential Authorization FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: PR4TANGO35011X In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Whirlpool Microwave Products Development Limited. hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature: Printed Name: Bobo Lin Title: Approbation Manager

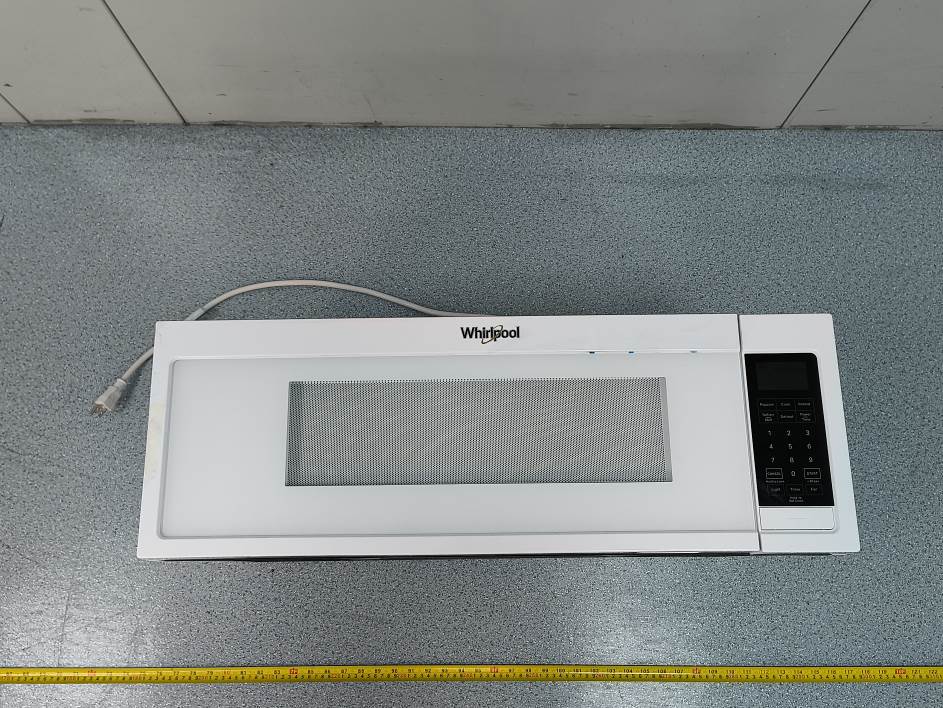

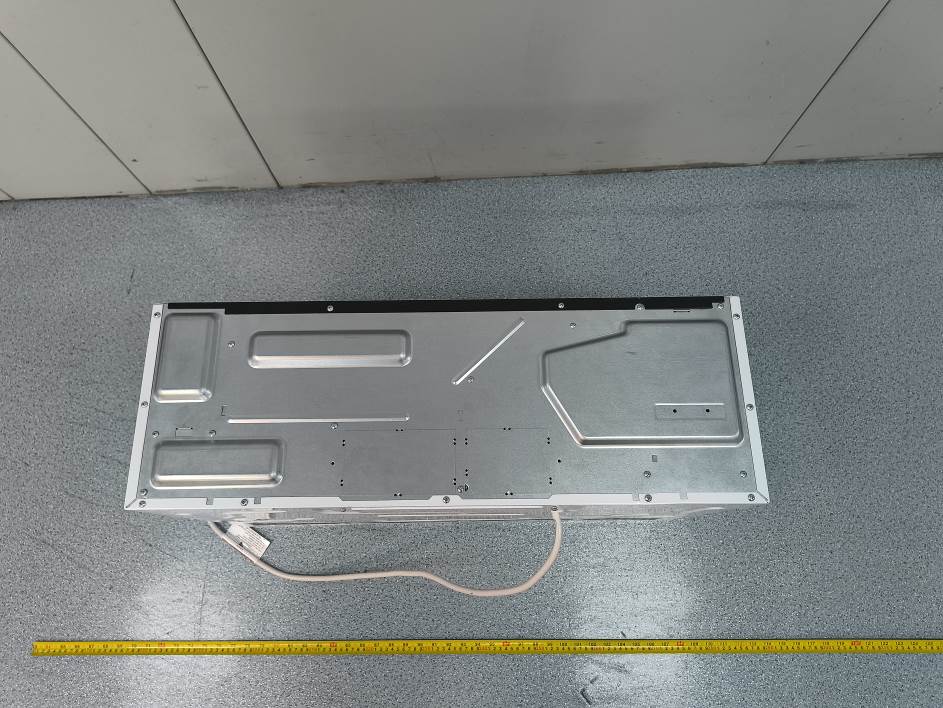

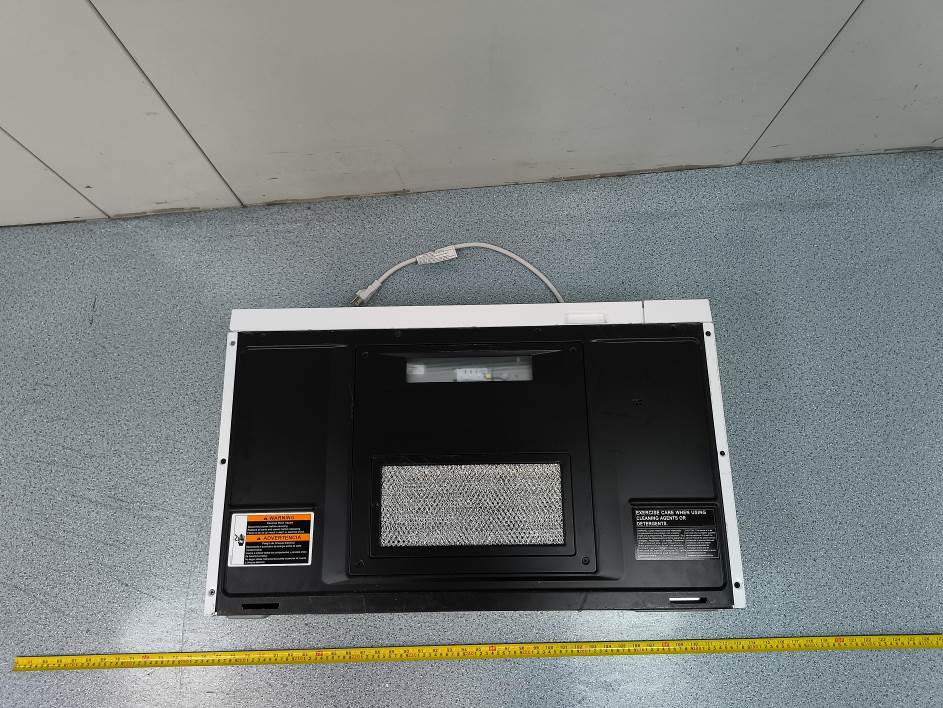

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601R02854E-EM-EXP Page 1 of 4 EUT EXTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601R02854E-EM-EXP Page 2 of 4 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601R02854E-EM-EXP Page 3 of 4 Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2601R02854E-EM-EXP Page 4 of 4
