PRFPPS20-1Self-Ballasted Lamp

DESCRIPTION OF CIRCUIT FUNCTION NAME OF APPLICANT : Phoenix Industrial Co., Ltd. NAME OF PRODUCT : SELF-BALLASTED LAMP MODEL NO: PPS13/1 PPS20/1 PPS25/1 1. AC POWER SUPPLIED THOUGH BASE OF DEVICE IS RECTIFIED AND BOOSTED TO DC BY PASSING BOTH OF THE RECTIFYING CIRCUIT AND THE ELEVTROLYTIC CONDENSER AT THIS TIME ,ALL OF THE HARMFUL NOISE INCLUDING HIGH PREQUENCY NOISE OCCURRED IN SWITICHING CIRCUIT IS ELEMINATED WHEN THIS RECTIFIED DC IS PASSED THROUGH LINE FILTER 2. THE TRANSISTOR HALF BRIDGE INVERTER GENERATES THE 40KHz-50KHz HIGH FREQUENCY VOLTAGE POWER BY SWITICHING OPERATION OF THE TRANSISTORS WITH THE RECTIFIED DC POWER IN RECTIFYING CIRCUIT,AND THIS GENERATED HIGH PREQUENCY VOLATAGE POWER LIGHTS THE FLUORESCENT LAMP. 3.AT THIS TIME, LAMP IS LIGHTED AS TWO STEPS WHICH IS MAIN POWER IS PASSED TO FILAMENT AFTER PREHEATING OF PTC IN PRDER TO EXTEND LAMP LIFE BY AVOIDING THE RAPLDLY SCTTERING OF EMISSION MATERIAL ON FILAMENT 4.WHEN SWITCHING OPERATION OF ELECTRONIC BALLAST IS MADE UP,ACTION OF THE DIAC STOPS AS DISCHARGING THE CONDENSATED POWER IN CONDENSOR BY BOTH OF THE DIODE AND THE TRANSISTOR. . USER’S GUIDE THE TEXT OF THIS INSTRUCTIONS WILL BE PRINTED ON THE SURFACE OF THE INDIVIDUAL BOX AT THE TIME OF MASS PRODUCTION. 1.PRODUCT SPECIFICATION 1)COMMODITY : SELF – BALLASTED LAMP 2)MODEL NO :PPS20/1 3)CONSUMPTION POWER 20W 4)INPUT VOLTAGE : AC 120 V 5)PREQUENCY OF INPUT LINE : 60 Hz 6)LIFE : 10,000 Hrs 2.USER’S GUIDE ELECTRONIC BALLAST INSTANT ON, FLICKER-FREE AND LIGHT WEIGHT RELIABLE OPERATING TEMPERATUER RANGE : -10 TO 40 1) CAUTION DO NOT WITH DIMMING CIRCUITS, ELECTRONIC TIMERS OR PHOTOCELL DEVICE. DO NOT USE IN TOTALLY ENCLOSED FIXTURES, WHERE EXPOSED TO WEATHER, EMERGENCY EXIT FIXTURES OR LIGHTS. NEVER DISASSEMBLE OR MODIIFY THE LAMP. USE ONLY 120V 60 Hz CIRCUITS. RISK OF ELECTRIC SHOCK – USE IN DRY LOCATIONS ONLY. DO NOT USE MORE THEN 25 LAMPS PER 20 Amp. BRANCH CIRCUIT INSTALL AND REMOVE LAMP FROM FIXTURE BY GRASPING THE PLASTIC BODY. 2)MOTE THIS PRODUCT MAY CAUSE RADIO INTERFERENCE WITH RADIOS,CORDLESS PHONES OR REMOTE CINTROL DEVICE IF INTERFERENCE OCCURS, RELOCATED THIS PREDUCT AWAY FROM THE DEVICE OR REMOVE THIS PRODUCT OUT OF THE OF SIGHT WITH THE REMOTE CONTROL RECEIVER DO NOT TOUCH THE LAMP AS SOON AS TURN OFF BECAUSE IT IS VERY HOT.

KTI01E-F0627 FCC ID : PRFPPS20/1 Korea Technology Institute Co., Ltd. Page 1 of 1 External photo

Korea Technology Institute Co., Ltd. Page 1 of 1 FCC ID Sample Label Model Number: PPS20/1 FCC ID : PRFPPS20-1 Phoenix Industrial Co., Ltd. Made in Korea

Korea Technology Institute Co., Ltd. Page 1 of 1 Label location

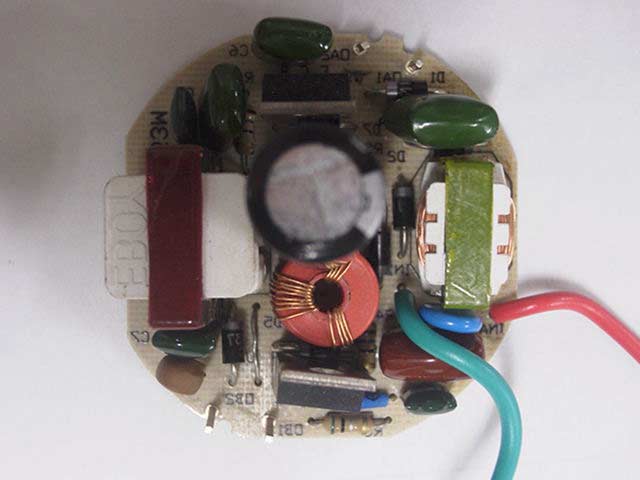

KTI01E-F0627 FCC ID : PRFPPS20/1 Korea Technology Institute Co., Ltd. Page 1 of 2 Internal photo KTI01E-F0627 FCC ID : PRFPPS20/1 Korea Technology Institute Co., Ltd. Page 2 of 2 Internal photo

KTI01E-F0627 FCC ID : PRFPPS20/1 Korea Technology Institute Co., Ltd. Page 1 of 13 Certificate of Compliance Test Report No.: KTI01E-F0627 Registration No.: 99058 Applicant: PHOENIX INDUSTRIAL CO., LTD. Applicant Address: RM2C-59,COEX, Kangnam-Ku, Seoul, 135-731 Korea Product: SELF-BALLASTED LAMP FCC ID: PRFPPS20/1 Model No. PPS20/1 Receipt No.: KTI20010614-2 Date of receipt: June, 14, 2001 Date of Issue: June, 15, 2001 Testing location Korea Technology Institute Co., Ltd. 51-19, Sanglim3-Ri, Docheok-Myeun, Gwangju-Shi, Gyeungki-Do, Korea Test Standards: FCC/OET MP-5 Rule Parts: FCC Part 18, Subpart B Equipment Class: RF lighting devices (Consumer Equipment) Test Result: The above mentioned product has been tested and passed. Prepare by: J. H. Lee Tested by: S. B. Kim/ Engineer Approved by: G. C. Min/ President Signature Date Signature Date Signature Date Other Aspects : Abbreviations : OK, Pass=passed Fail=failed N/A=not applicable This test report is not permitted to copy partly without our permission. This test result is dependent on only equipment to be used. This test result is based on a single evaluation of one sample of the above mentioned. This test report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S Government. We certify this test report has been based on the measurement standards that is traceable to the national or international standards. KTI01E-F0627 FCC ID : PRFPPS20/1 Korea Technology Institute Co., Ltd. Page 2 of 13 Contents 1. 2. 3. 4. 5. 6. Annex1 Annex2 Contents List of Tables List of Figures List of Photographs General Test Site 2.1 Location 2.2 List of Test and Measurement Instruments 2.3 Test Data 2.4 Test Environment Description of the tested samples 3.1 Rating and Physical characteristics 3.2 Submitted documents Measurement conditions 4.1 Modes of operation 4.2 Additional equipments 4.3 Uncertainty 4.4 Test Setup Emission Test 5.1 Conducted Emissions 5.2 Radiated Emissions Photographs of the Test Set-up Label Photographs of EUT 2 2 2 3 3 3 4 4 4 5 5 5 6 6 6 6 6 7 8 11 12 14 15 16~19 List of Tables Table 1 List of test and measurement equipment Table 2 Test Data. Conducted Emissions Table 3 Test Data. Radiated Emissions List of Figures Figure 1 Spectral Diagram, LINE-PE Figure 2 Spectral Diagram, Neutral-PE List of Photographs Photograph 1 Setup for Conducted Emissions Photograph 2 Setup for Radiated Emissions 4 11 13 9 10 16 17 KTI01E-F0627 FCC ID : PRFPPS20/1 Korea Technology Institute Co., Ltd. Page 3 of 13 1. General This equipment has been shown to be capable of compliance with the applicable technical standards and was tested in accordance with the measurement procedures as indicated in this report. We attest to the accuracy of data. All measurements reported herein were performed by Korea Technology Institute Co., LTD. And were made under Chief Engineer’s supervision. We assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 2. Test Site Korea Technology Institute Co., LTD 2.1 Location 51-19, Sanglim3-Ri, Docheok-Myeun, Gwangju-Shi, Gyeungki-Do, Korea The Test Site is in compliance with ANSI C63.4/1992 for measurement of radio Interference. KTI01E-F0627 FCC ID : PRFPPS20/1 Korea Technology Institute Co., Ltd. Page 4 of 13 2.2 List of Test and Measurement Instruments Table 1 : List of Test and Measurement Equipment Conducted Emissions Kind of Equipment Type S/N Calibrated until Spectrum Analyzer R3261C 61720427 11.2001 Field Strength Meter ESPC 832827/011 11.2001 LISN ESH3-Z5 8254601019 5.2002 LISN KNW407 8-1097-7 11.2001 Pulse limiter ESH3Z2 357.8810.52 11.2001 Conducted Cable N/A N/A 11.2001 Radiated Emissions Kind of Equipment Type S/N Calibrated until Field Strength Meter ESPC 832827/011 11.2001 Spectrum Analyzer R3261C 61720427 11.2001 Pre Amplifier 8447D 2944A06874 11.2001 Log Periodic Antenna 3146 9105-1343 11.2001 Biconical Antenna 3110 9105-3100 11.2001 Open Site Cable N/A N/A 11.2001 Antenna Mast DETT-03 N/A N/A Antenna & Turntable controller DETT-03 91X519 N/A 2.3 Test Date Date of Application : June. 15, 2001 Date of Test : Jun. 27, 2001 2.4 Test Environment See each test item’s description. KTI01E-F0627 FCC ID : PRFPPS20/1 Korea Technology Institute Co., Ltd. Page 5 of 13 3. Description of the tested samples The EUT is SELF-BALLASTED LAMP 3.1 Rating and Physical Characteristics Consumption Power: 20W Input Voltage: AC 120V Frequency of input line: 60Hz Life: 10,000Hrs 3.2 Submitted Documents User’s Guide Block Diagram KTI01E-F0627 FCC ID : PRFPPS20/1 Korea Technology Institute Co., Ltd. Page 6 of 13 4. Measurement Conditions Testing Input Voltage: AC 120V. 4.1 Modes of Operation The EUT was in the following operation mode during all testing; 4.2 Additional Equipment DEVICE TYPE Manufacturer M/N S/N FCC ID 4.3 Uncertainty 1) Radiated disturbance UC (Combined standard Uncertainty) = 1.8dB Expanded uncertainty U=Kuc K = 2 U = 3.6dB 2) Conducted disturbance UC = 0.88dB U = Kuc=2xUc = 1.8dB KTI01E-F0627 FCC ID : PRFPPS20/1 Korea Technology Institute Co., Ltd. Page 7 of 13 4.4 Test setup KTI01E-F0627 FCC ID : PRFPPS20/1 Korea Technology Institute Co., Ltd. Page 8 of 13 5. EMISSION Test 5.1 Conducted Emissions Result : Pass The line-conducted facility is located inside a 2.3M x 3.5M x 5.5M shielded closure. The shielding effectiveness of the shielded room is in accordance with MIL-Std-285 or NSA 605-05. A 1m x 1.5m wooden table 80cm high is placed 80cm away from the conducting ground plane and 40cm away from the sidewall of the shielded room. Kyoritsu Model KNW-407 (10kHz-30MHz) 50ohm/50 uH Line-Impedance Stabilization Networks (LISN) are bonded to the shielded room. The EUT is powered from the R&S LISN and the support equipment is powered from the Kyoritsu LISN. Power to the LISN are filtered by a high-current high-insertion loss shield enclosures power line filters (100dB 14kHz-1GHz). The purpose of the filter is to attenuate …

Text truncated - open the document above for the full version.

Korea Technology Institute Co., Ltd. Page 1 of 1 6. Photograph of the Test Set-Up Photograph 1 : Setup for radiated Emissions Korea Technology Institute Co., Ltd. Page 2 of 2 Photograph 2 : Setup for Conducted Emissions
