FCC Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter.

SMARTBEL LTD Model: 76278235 REPORT NO.: STRD1208016 FCC PART 22H&24E EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 (Indoor unit) SMARTBEL LTD Model: 76278235 REPORT NO.: STRD1208016 FCC PART 22H&24E EUT View 3 EUT View 4 SMARTBEL LTD Model: 76278235 REPORT NO.: STRD1208016 FCC PART 22H&24E EUT View 5 EUT View 6 SMARTBEL LTD Model: 76278235 REPORT NO.: STRD1208016 FCC PART 22H&24E EUT View 7 Antenna View SMARTBEL LTD Model: 76278235 REPORT NO.: STRD1208016 FCC PART 22H&24E EUT View 1 (Outdoor unit) EUT View 2

SMARTBEL LTD Model: 76278235 REPORT NO.: STRD1208016 FCC PART 22H&24E EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: PRN76278235 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

SMARTBEL LTD Model: 76278235 REPORT NO.: STRD1208016 FCC PART 22H&24E EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: PRN76278235 Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

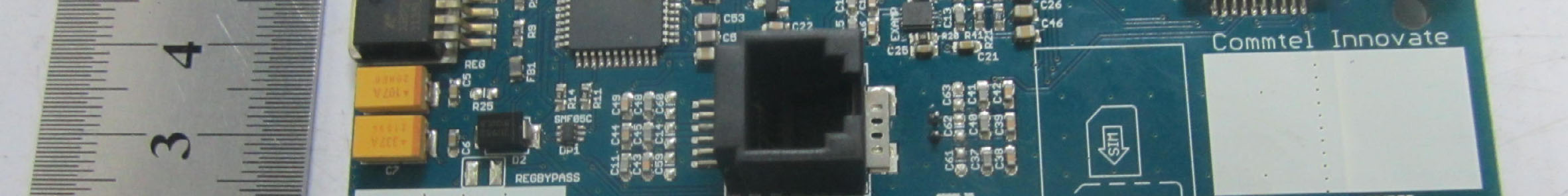

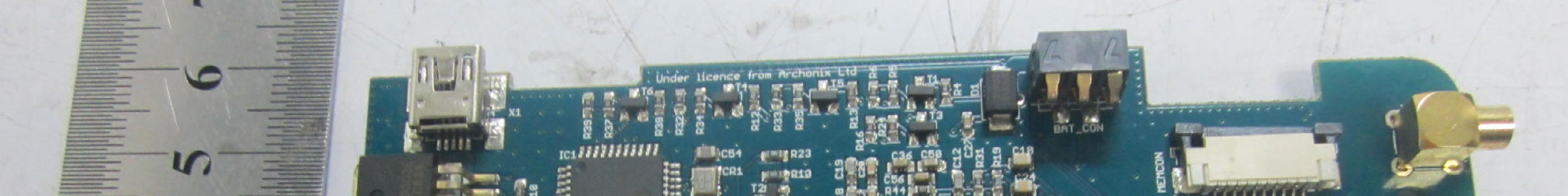

SMARTBEL LTD Model: 76278235 REPORT NO.: STRD1208016 FCC PART 22H&24E EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1(Indoor unit) EUT Housing and Board View 2 SMARTBEL LTD Model: 76278235 REPORT NO.: STRD1208016 FCC PART 22H&24E Solder Board-Component View 1 Solder Board-Component View 2 SMARTBEL LTD Model: 76278235 REPORT NO.: STRD1208016 FCC PART 22H&24E Solder Board-Component View 3 EUT Housing and Board View 1 (Outdoor unit) SMARTBEL LTD Model: 76278235 REPORT NO.: STRD1208016 FCC PART 22H&24E Solder Board-Component View 4 Solder Board-Component View 5

1. MAXIMUM PERMISSIBLE EXPOSURE (MPE) 1.1 Standard Applicable According to §1.1307(b)(1), system operating under the provisions of this section shall be operating in a manner that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. (a) Limits for Occupational / Controlled Exposure Frequency range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times | E | 2 , | H | 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 / / F/300 6 1500-100000 / / 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times | E | 2 , | H | 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 / / F/1500 30 1500-100000 / / 1 30 Note: f = frequency in MHz: * = Plane-wave equivalents power density 1.2 MPE Calculation Method S = (30*P*G) / (377*R 2 ) S = power density (in appropriate units, e.g., mw/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mw) G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor is normally numeric gain. R = distance to the center of radiation of the antenna (in appropriate units, e.g., cm) 1.3 MPE Calculation Result Since the maximum eirp power is used as the output power to antenna, so the Gain of the antenna can be assumed as 0dBi. Maximum peak output power: 31.85 (dBm) Maximum peak output power at antenna input terminal: 1531.09 (mW) Prediction distance: >20 (cm) Prediction frequency: 848.8 (MHz) Antenna gain (typical): 0 (dBi) Antenna gain (typical): 1 (numeric) The worst case is power density at prediction frequency at 20cm: 0.3046 (mw/cm 2 ) MPE limit for general population exposure at prediction frequency: 0.5659 (mw/cm 2 ) 0.3046 (mw/cm 2 ) < 0.5659 (mw/cm 2 ) Result: Pass

SMARTBEL LTD. Model: 76278235 FCC Part 22H & 24E Measurement and Test Report For SMARTBEL LTD. 10 Cheyne Walk, Northampton, NN1 5PT, UK FCC ID: PRN76278235 FCC Rules: FCC Part 22H, FCC Part 24E Product Description: SMARTBEL Tested Model: 76278235 Report No.: STR1208016-1 Tested Date: 2012-08-26 to 2012-09-10 Issued Date: 2012-09-12 Tested By: Susan Su / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: SEM.Test Compliance Service Co., Ltd 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd REPORT NO.: STR1208016 PAGE 1 OF 50 FCC PART 22H&24E SMARTBEL LTD. Model: 76278235 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................4 1.2 TEST STANDARDS...................................................................................................................................................5 1.3 TEST METHODOLOGY.............................................................................................................................................5 1.4 TEST FACILITY.......................................................................................................................................................5 1.5 EUT SETUP AND TEST MODE.................................................................................................................................6 2. SUMMARY OF TEST RESULTS ...........................................................................................................................7 3. RF EXPOSURE .........................................................................................................................................................8 3.1 STANDARD APPLICABLE.........................................................................................................................................8 3.2 TEST RESULT..........................................................................................................................................................8 4. RF OUTPUT POWER ..............................................................................................................................................9 4.1 STANDARD APPLICABLE.........................................................................................................................................9 4.2 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................9 4.3 TEST PROCEDURE...................................................................................................................................................9 4.4 ENVIRONMENTAL CONDITIONS............................................................................................................................10 4.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................10 5. EMISSION BANDWIDTH .....................................................................................................................................12 5.1 STANDARD APPLICABLE.......................................................................................................................................12 5.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................12 5.3 TEST PROCEDURE.................................................................................................................................................12 5.4 ENVIRONMENTAL CONDITIONS............................................................................................................................12 5.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................13 6. OUT OF BAND EMISSIONS AT ANTENNA TERMINAL...............................................................................17 6.1 STANDARD APPLICABLE.......................................................................................................................................17 6.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................17 6.3 TEST PROCEDURE.................................................................................................................................................17 6.4 ENVIRONMENTAL CONDITIONS............................................................................................................................17 6.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................18 7. SPURIOUS RADIATED EMISSIONS..................................................................................................................26 7.1 MEASUREMENT UNCERTAINTY............................................................................................................................26 7.2 STANDARD APPLICABLE.......................................................................................................................................26 7.3 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................26 7.4 TEST PROCEDURE...…

Text truncated - open the document above for the full version.

SMARTBEL LTD. Model: 76278235 REPORT NO.: STRD1208016 FCC PART 22H&24E EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Spurious Radiation Test Setup (Below 1G) Spurious Radiation Test Setup (Above1G) SMARTBEL LTD. Model: 76278235 REPORT NO.: STRD1208016 FCC PART 22H&24E Extreme Condition Test Setup Mobile Communication Test Setup SMARTBEL LTD. Model: 76278235 REPORT NO.: STRD1208016 FCC PART 22H&24E Conducted Emission Test Setup Radiation Emission Test Setup (30MHz to 1GHz)
