PRRNI-1201PC Interface Card

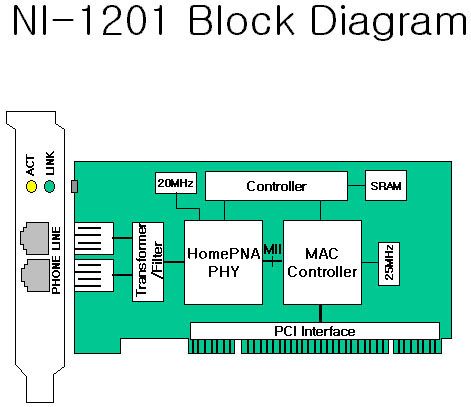

Product Manual (NI-1201) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, theuser is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. CAUTION: Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user's authority to operate the equipment FCC Information NI1201 This is a PC internal type interface card that enables users to enjoy internet service at the speed of 1.2Mbps within the distance of 1Km by connecting with central unit(NH-1216, NH- 12104) over existing telephone lines. <How to install NI-1201> 1. Check your package to make sure that it includes the following items. a. NI-1201(Internal type interface card) b. Telephone connection cord (RJ-11 to RJ-11) c. 4-pin connection cord d. Product manual e. Install CD 2. Product specifications ACT LED (Light when communication with central unit is made) LINK LED (Lights when central unit is connected) Connection cord for 4-pin consent (RJ-11) adcbe Telephone connection cord(RJ-11 to RJ-11) 3. Product Specification Interface PCIBus width*length*height26*120*20mmDimensions Windows95,98,2000, NT OS 66gWeight 1for telephone line connection 1for telephone set connection RJ-11*2 RemarkSpecifications Item 4. How to install 1. Correctly insert the NI-1201 into the PCI slot of the PC. 2. Connect the 4-Pin consent cord provided along with NI-1201 to the 4-Pin wall outlet and then insert RJ-11 into the LINE terminal of NI-1201 3. To use telephone, office line should be used for installation and in this case connect the telephone connection cord(RJ-11 to RJ-11) to the Phone jack of the NI-1201. 4. Setup the NI-1201 driver in PC by using the installation CD after confirming the light on LINK LED of NI-1201 is on. NI1201 Driver Setup 1. Insert the card(NI-1201) into PCI slot and turn on the PC. Then, search new hardware. At the following screen, please click ‘Next’to move to next setup. Window 98 Version 2. Please select ‘Search for the best driver for your device (recommended)’and then click ‘Next’. 3. Please insert install CD into CD-ROM driver, and click ‘Browse’. Then, select ‘win32drv’in D driver and click ‘OK’. 4. You will see the screen as below and click ‘Next’for the search. 5. Please click ‘Next’to continue the installation. 6. Please click ‘Finish’to complete the installation process. 7. Restart the system by clicking ‘Yes’. NI1201 Driver Setup 1. Insert the card(NI-1201) into PCI slot and turn on the PC. Then you can see the message for hardware installation. Window 2000 Version 2. In the following screen, please click ‘Next’to move to next setup. 3. Please select ‘Search for a suitable driver for my device (recommended)’and click ‘Next’ 4. Please insert install CD into CD-rom driver and click ‘Next’ 5. Please click ‘Yes’to continue the installation. 6. Please click ‘Finish’to complete the installation process. •For more information, refer to the Installation Manual and use the system with the default values. Quality Warrant Name Customer Address Name Seller Address 1 yearWarrant Period (date)Manufactured on NeonHome-LAN(NI-1201)Model Name Warranty Period 1. The product is warranted for one year from the date when the equipment is purchased. 2. Free-charging repair service will be provided within the period of warranty when the product is out of order in normal operation and use. 3. In the following cases, the customer will be charged when receiving repair services based on the ‘Regulations for the Warrant’. A. Malfunction caused not by the product itself but other external reasons. B. Malfunction caused by disassembly conducted by the customer on its own decision. C. Malfunction caused by natural disaster (fire, flood, lightning, etc ) D. Malfunction or damage caused by failure of customer during transportation. 4. For the case above No.3 actual cost shall be charged for repair services. °ÿFree repair service will be provided by regulations for the warrant only when the product is out of order in normal operation and use. Repair Application Form (In detail) Configuration Address :Address : Contact : Person in charge : Purchased at : Details of defect Symptom Contact : Model Name Manufacturing number Person in charge : Sales shop : Date : (Remark) °ÿFill out and submit this form when the malfunction is found during the period of product warranty. NEON GATE INC. Address : Yu-il B/D 4F, #411-14 Dogok-dong, Gangnam-gu, Seoul, Korea (zip : 135-270) Homepage : http://www.neongate.com Customer conseling / Product sales Tel : 82-2-576-9730 (Ext. 230,241,243) Fax : 82-2-576-6418,9 e-mail : [email protected] Technical Support Tel : 82-2-576-6418 (Ext. 221,204) Fax : 82-2-576-6418,9 e-mail : [email protected]

EUT Pictures CERTiTEK Standards Laboratory Co., Ltd. VCCI Registration No. R-948, C-986 FCC Registration No. 93250 Page 1 of 2 www.certitek.com CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyunggi-Do, KOREA 449-100

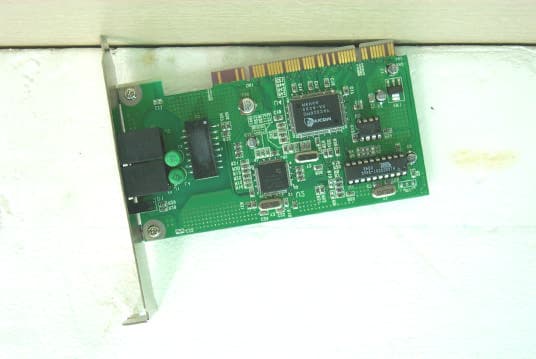

EUT Pictures CERTiTEK Standards Laboratory Co., Ltd. VCCI Registration No. R-948, C-986 FCC Registration No. 93250 Page 2 of 2 www.certitek.com CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyunggi-Do, KOREA 449-100

EUT Pictures CERTiTEK Standards Laboratory Co., Ltd. VCCI Registration No. R-948, C-986 FCC Registration No. 93250 Page 1 of 2 www.certitek.com CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyunggi-Do, KOREA 449-100

Test Report No. CTK01 – F113 CERTiTEK Standards Laboratory Co., Ltd. VCCI Registration No. R-948, C-986 FCC Registration No. 93250 Issue: August 3, 2001 Page 1 of 10 www.certitek.com CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyunggi-Do, KOREA 449-100 Model: NI-1201 Product type PC internal interface card Serial No. - Applicant NEON GATE INC. Address Yooil B/D 4F, 411-14, Dogok-dong, Gangnam-gu, Seoul, Korea. Manufacturer NEON GATE INC. Address Yooil B/D 4F, 411-14, Dogok-dong, Gangnam-gu, Seoul, Korea. Test specification (Standard) : FCC Part15 Subpart B Class B Test Result : In compliance Tested by (Test engineer) July 30, 2001 Michael Jang Date Name Signature Reviewed by (EMC Technical Manager) July 30, 2001 James, Hong Date Name Signature Definition : Applicable, : Not Applicable, N/A : Not Applicable, - : Not Applicable The test result only responds to the tested sample. No single part of this document may be reproduced without permission from Certitek Standards Laboratory Co., Ltd. Tel: +82-31-339-9970, Fax: +82-31-339-9972 E E E M M M C C C - - - T T T e e e s s s t t t R R R e e e p p p o o o r r r t t t Test Report No. CTK01 – F113 CERTiTEK Standards Laboratory Co., Ltd. VCCI Registration No. R-948, C-986 FCC Registration No. 93250 Issue: August 3, 2001 Page 2 of 10 www.certitek.com CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyunggi-Do, KOREA 449-100 Table of contents 1. EUT description..................................................................................................3 Introduction....................................................................................................................3 Identification...................................................................................................................3 Electrical rating................................................................................................................3 2. Test Set-up...........................................................................................................4 Test Mode.......................................................................................................................4 Cable configuration..........................................................................................................4 Cable description.............................................................................................................5 Auxiliary equipment.........................................................................................................5 Test software...................................................................................................................5 Measurement Procedures..................................................................................................6 3. Test Result.............................................................................................................7 Test summary..................................................................................................................7 Radiated emission............................................................................................................8 Conducted emission.........................................................................................................9 Test Report No. CTK01 – F113 CERTiTEK Standards Laboratory Co., Ltd. VCCI Registration No. R-948, C-986 FCC Registration No. 93250 Issue: August 3, 2001 Page 3 of 10 www.certitek.com CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyunggi-Do, KOREA 449-100 1. EUT description Introduction NI-1201 is PC internal interface card that enables users to use internet access at the speed of 1.2 Mbps up to the distance of 1 Km by connecting it to Shelf type unit. Identification Receipt date : June 27, 2001 Model : NI-1201 Manufacturer : NEON GATE INC. Address : Yooil B/D 4F, 411-14, Dogok-dong, Gangnam-gu, Seoul, Korea. Contact person : Mr. Y. M. Yang Telephone : +82-2-576-9730 (extension. : 241) Serial No : - EUT Size : 68 X 120 X 20mm (width X length X height) Peripheral Device Ports Port name Description Telephone connection RJ-11 Corporate line connection RJ-11 Electrical rating Input : Supply by personal computer Output : - Test Report No. CTK01 – F113 CERTiTEK Standards Laboratory Co., Ltd. VCCI Registration No. R-948, C-986 FCC Registration No. 93250 Issue: August 3, 2001 Page 4 of 10 www.certitek.com CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyunggi-Do, KOREA 449-100 2. Test Set-up Test Mode Normal load: Ping test Cable configuration AC POWER Personal computer Monitor Printer Telephone GAME PAD HEAD SET Keyboard Mouse (USB) Mouse(USB) Mouse(Serial) Mouse(PS/2) EUT A B C D E F G H I J K 1 4 5 6 7 8 9 10 11 12 13 14 15 2 3 Test Report No. CTK01 – F113 CERTiTEK Standards Laboratory Co., Ltd. VCCI Registration No. R-948, C-986 FCC Registration No. 93250 Issue: August 3, 2001 Page 5 of 10 www.certitek.com CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyunggi-Do, KOREA 449-100 Cable description Port name Type Length (m) Remark 1 PC Power cable Unshielded 2.0 - 2 Monitor Power cable Unshielded 2.0 - 3 Printer Power cable Unshielded 2.0 - 4 Video cable Shielded 1.6 - 5 Parallel cable Shielded 2.0 - 6 Telephone cable Unshielded 2.0 - 7 Game Pad cable Unshielded 2.0 - 8 Head Set cable Unshielded 2.0 - 9 Keyboard cable Unshielded 2.0 - 10 Mouse(USB) cable Unshielded 2.0 - 11 Mouse(USB) cable Unshielded 2.0 - 12 Mouse(Serial) cable Unshielded 2.0 - 13 Mouse(PS/2) cable Unshielded 2.0 - 14 Line in cable Unshielded 2.0 - 15 Corporate line cable Unshielded 2.0 Connected to corporate line Auxiliary equipment Description Model name Serial No. Manufacturer FCC ID or DoC Info A PC DTPC-17 G1703009 HEWLETT PACKARD DoC B Monitor PG17HS 301661 SAMSUNG DOC C Printer C4530A US7A91703J HEWLETT PACKARD DoC D Telephone - - - N/A E Game pad Side Winder 0342131…

Text truncated - open the document above for the full version.

TEST Setup Photos CERTiTEK Standards Laboratory Co., Ltd. VCCI Registration No. R-948, C-986 FCC Registration No. 93250 Page 1 of 4 www.certitek.com CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyunggi-Do, KOREA 449-100 Radiated Emission (Front) TEST Setup Photos CERTiTEK Standards Laboratory Co., Ltd. VCCI Registration No. R-948, C-986 FCC Registration No. 93250 Page 2 of 4 www.certitek.com CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyunggi-Do, KOREA 449-100 Radiated Emission (Rear) TEST Setup Photos CERTiTEK Standards Laboratory Co., Ltd. VCCI Registration No. R-948, C-986 FCC Registration No. 93250 Page 3 of 4 www.certitek.com CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyunggi-Do, KOREA 449-100 Conducted Emission (Front) TEST Setup Photos CERTiTEK Standards Laboratory Co., Ltd. VCCI Registration No. R-948, C-986 FCC Registration No. 93250 Page 4 of 4 www.certitek.com CERTiTEK Standards Laboratory Co., Ltd. 386-1, Ho-Dong, Yongin-City, Kyunggi-Do, KOREA 449-100 Conducted Emission (Rear)
