PRY088TXAutomobile Keyfob Security Transmitter

Registered in England & Wales No 3799048 Registered Office: 17 The Square, Kenilworth, Warwickshire User Manual information USA Approval The Manual must contain: FCC ID: PRY 88TX This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Canadian Approval The Manual must contain: ‘Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.’

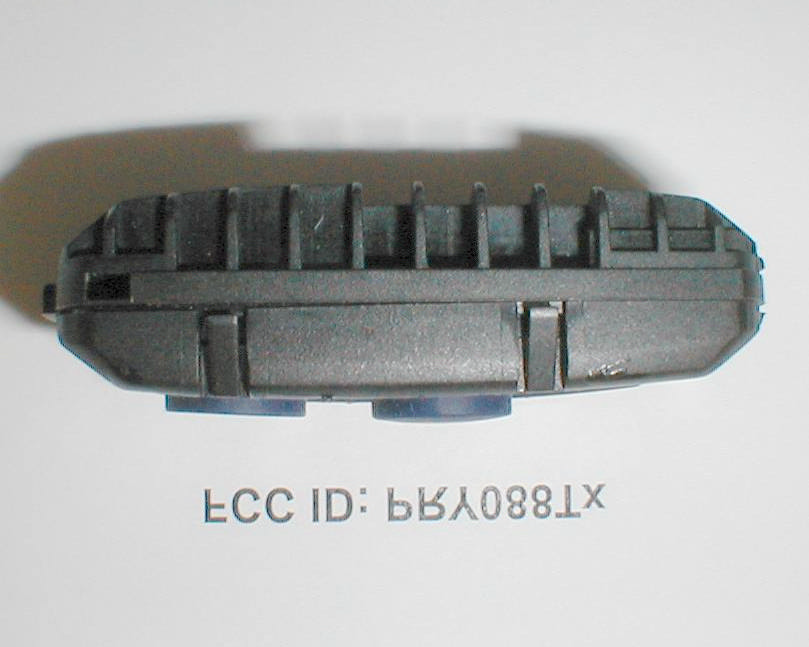

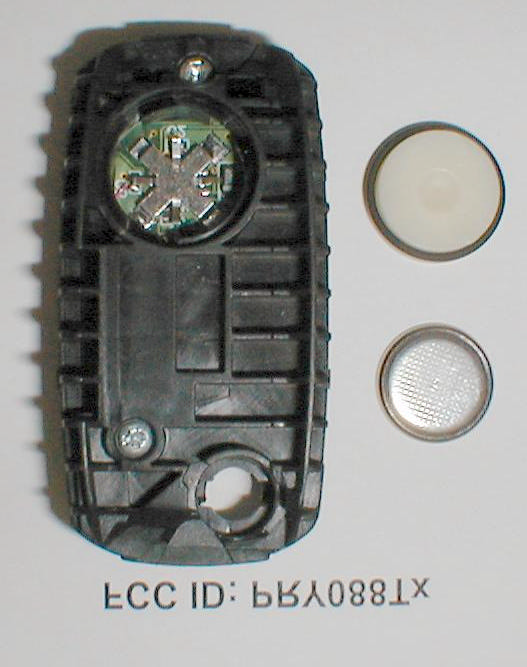

Top View Side View Bottom View Battery Removed

FCC ID: PRY088TX CAN xxxxxxxxxxxxxxxx

Cover Removed PCB Top View PCB Bottom View

Parts list for 315 MHz AM keyfob Date: 20 June 2001 Item Value Outline Tolerance Notes R1 100R 0603 10% R2 47k 0603 10% C1 10μF A Case 20% 6.3V tant C2, C3, C4 220pF 0603 20% COG C5 5.6pF 0603 10% COG C6 15pF 0603 10% COG C7 33pF 0603 10% COG C8 22pF 0603 10% COG C9 5.6pF 0603 10% COG C10 0.65-2.5P SM trimming capacitor L1 47nH 0603 10% Toko LL1608-FS series L2 8.2nH 0603 10% Toko LL1608-FS series Q1 BFS17A SOT23 X1 RO2073A RFM 315MHz surface mount saw device IC1 HCS300 SO-8 Keeloq chip

Document 6599-01, Rev. 0 FCC Certification Test Report Washington Laboratories, Ltd 9/5/01 FCC Certification Test Report for May & Scofield Limited FCC ID: PRY088TX August 24, 2001 Prepared for: May & Scofield Limited Stroudley Road, Daneshill Industrial Estate Basingstoke, Hampshire England RG24 8UG Prepared By: Washington Laboratories, Ltd. 7560 Lindbergh Drive Gaithersburg, Maryland 20879 FCC Certification Test Report Document 6599-01, Rev. 0 FCC Certification Test Report Washington Laboratories, Ltd 9/5/01 FCC Certification Test Program FCC Certification Test Report for the May & Scofield Limited 315 MHz Transmitter FCC ID: PRY088TX August 24, 2001 WLL JOB# 6599 Prepared by: Brian J. Dettling Documentation Specialist Reviewed by: Gregory M. Snyder Chief EMC Engineer Document 6599-01, Rev. 0 FCC ID: PRY088Tx FCC Certification Test Report Washington Laboratories, Ltd July 2001 ii Abstract This report has been prepared on behalf of May & Scofield Limited to support the attached Application for Equipment Authorization. The test report and application are submitted for a Periodic Intentional Radiator under Part 15.231 of the FCC Rules and Regulations. This Federal Communication Commission (FCC) Certification Test Report documents the test configuration and test results for a May & Scofield Limited Model 088Tx Transmitter. Testing was performed on an Open Area Test Site (OATS) of Washington Laboratories, Ltd, 7560 Lindbergh Drive, Gaithersburg, MD 20879. Site description and site attenuation data have been placed on file with the FCC's Sampling and Measurements Branch at the FCC laboratory in Columbia, MD. Washington Laboratories, Ltd. has been accepted by the FCC and approved by NIST NVLAP (NVLAP Lab Code: 200066-0) as an independent FCC test laboratory. The May & Scofield Limited 088Tx Transmitter complies with the limits for a Periodic Intentional Radiator device under Part 15.231 of the FCC Rules and Regulations. Document 6599-01, Rev. 0 FCC ID: PRY088Tx FCC Certification Test Report Washington Laboratories, Ltd July 2001 iii Table of Contents Abstract......................................................................................................ii 1 Introduction...................................................................................................................1 1.1 Compliance Statement..........................................................................................1 1.2 Test Scope..........................................................................................................1 1.3 Contract Information............................................................................................1 1.4 Test Dates...........................................................................................................1 1.5 Test Personnel.....................................................................................................1 1.6 Abbreviations.......................................................................................................1 2 Equipment Under Test....................................................................................................2 2.1 EUT Identification & Description..........................................................................2 2.2 Test Configuration................................................................................................3 2.3 Testing Algorithm.................................................................................................3 2.4 Test Location.......................................................................................................3 2.5 Measurements......................................................................................................3 2.5.1 References.......................................................................................................3 2.6 Measurement Uncertainty.....................................................................................3 3 Test Equipment..............................................................................................................4 4 Test Results...................................................................................................................4 4.1 Duty Cycle Correction.........................................................................................4 4.2 RF Power Output: (FCC Part §2.1046)...............................................................9 4.3 Modulation Characteristics: (FCC Part §2.1047); Audio Frequency Response......9 4.4 Occupied Bandwidth: (FCC Part §2.1049)..........................................................9 4.5 Spurious Emissions at Antenna Terminals (FCC Part §2.1051.............................12 4.6 Radiated Spurious Emissions: (FCC Part §2.1053).............................................12 4.6.1 Test Procedure............................................................................................12 4.7 Frequency Stability: (FCC Part §2.1055)...........................................................19 4.8 Transient Frequency Response (Part 90.214).....................................................19 5 Transmitter Environmental Assessment, Maximum Permissible Exposure (MPE)............19 5.1 SCOPE.............................................................................................................19 Document 6599-01, Rev. 0 FCC ID: PRY088Tx FCC Certification Test Report Washington Laboratories, Ltd July 2001 iv List of Tables Table 1. Device Summary....................................................................................................2 Table 2: Test Equipment List................................................................................................4 Table 3. Duty Cycle Correction............................................................................................9 Table 4. Occupied Bandwidth Results.......................................................................…

Text truncated - open the document above for the full version.

Radiated Emissions Test Setup X - Axis Y – Axis Z – Axis
