PSGRCWEBSTER19ZRemote Controlled Toy Spider

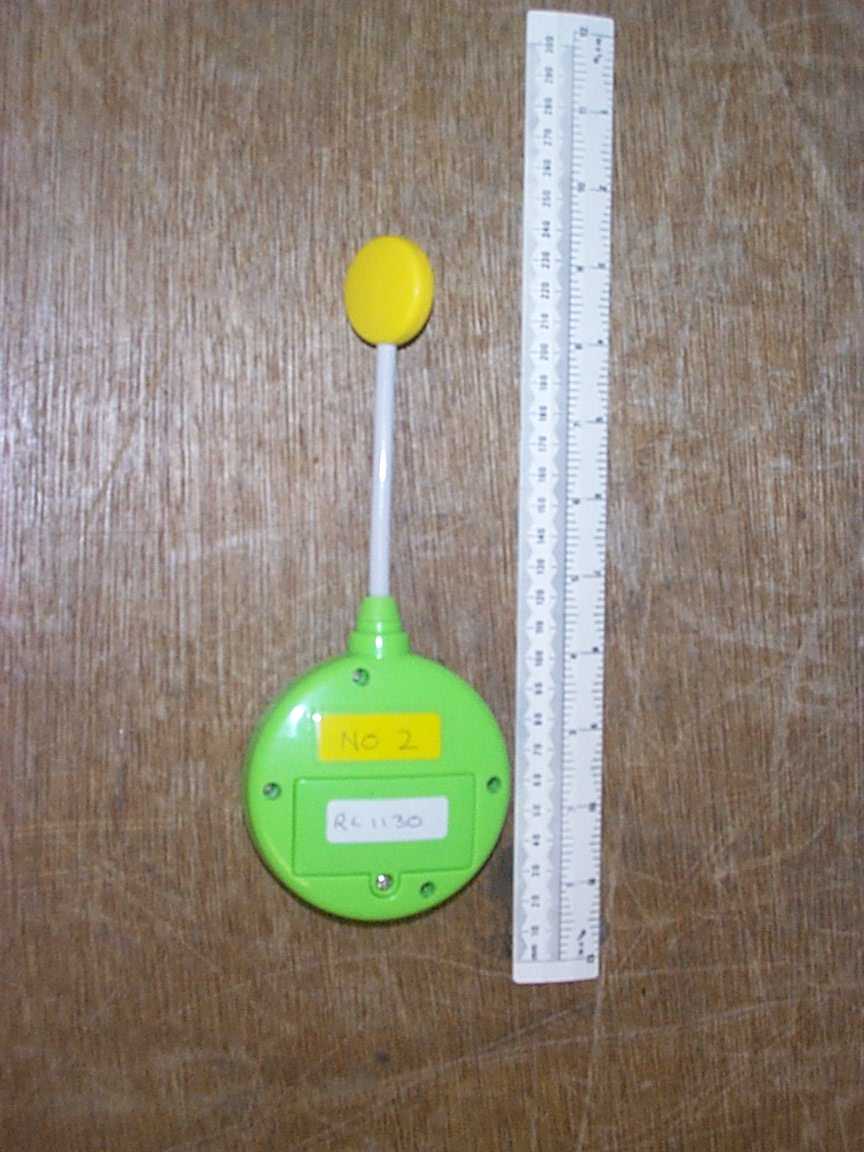

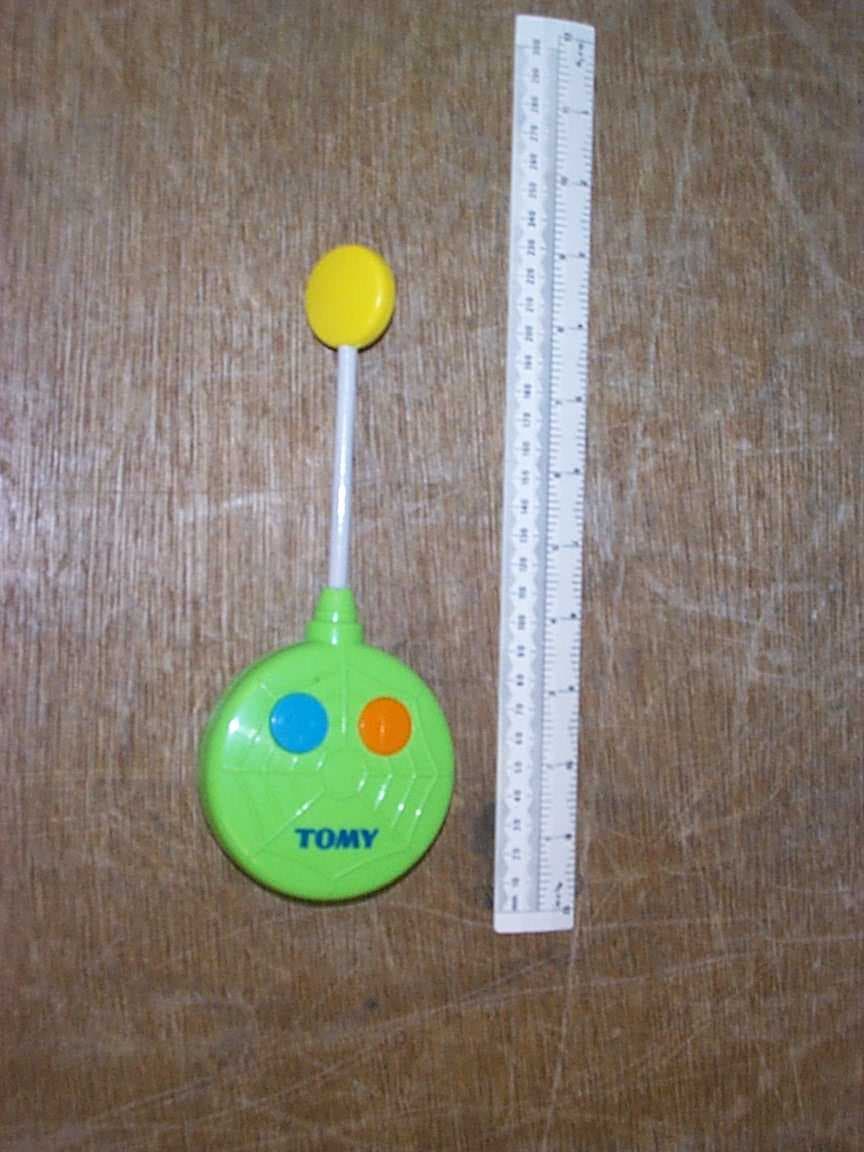

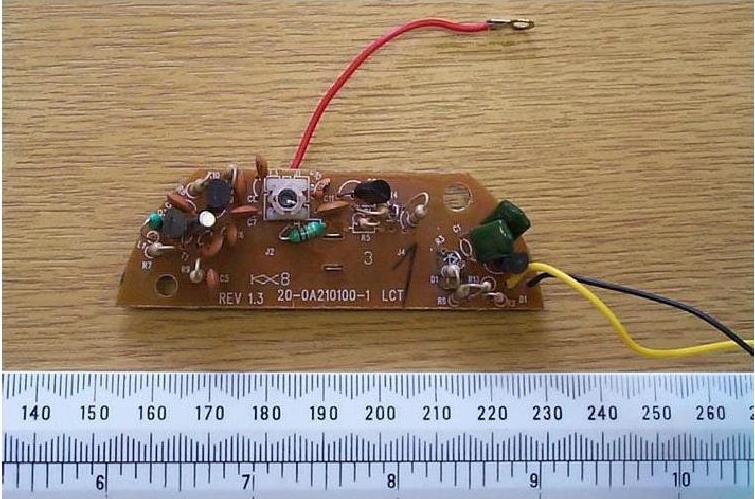

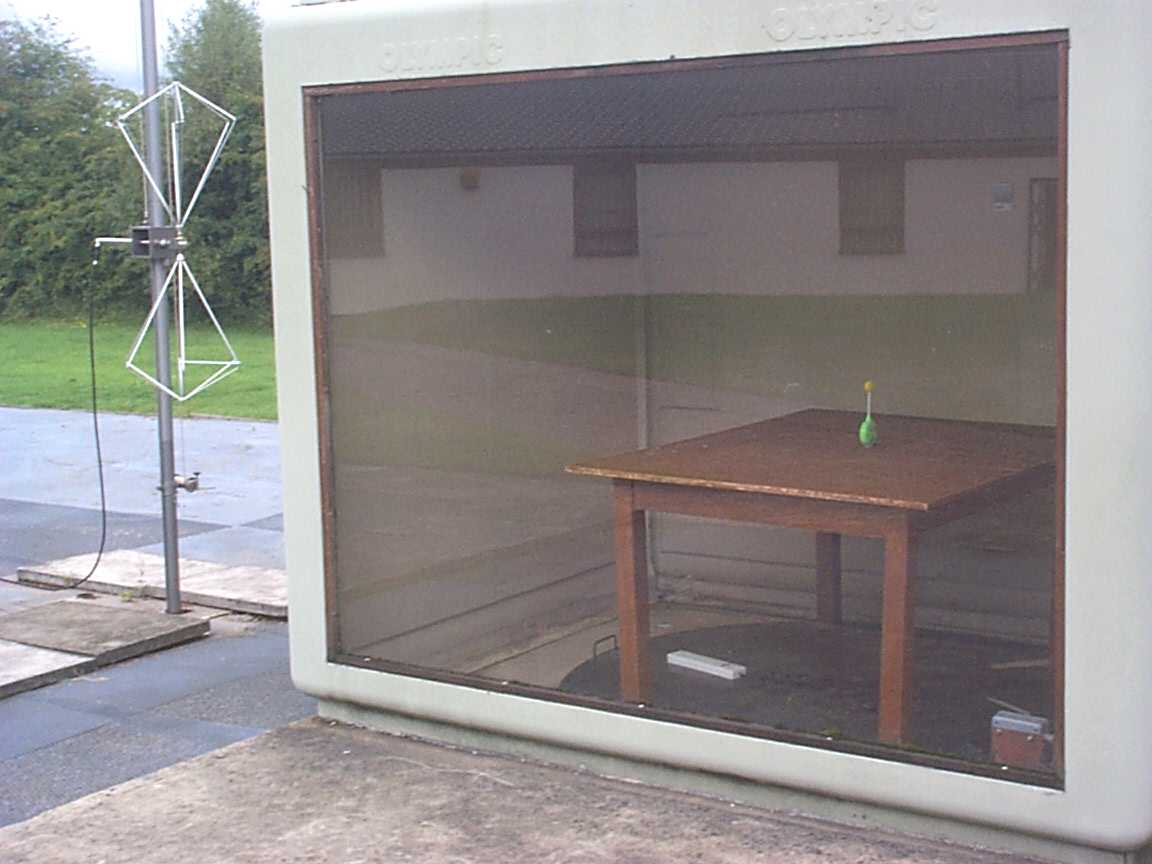

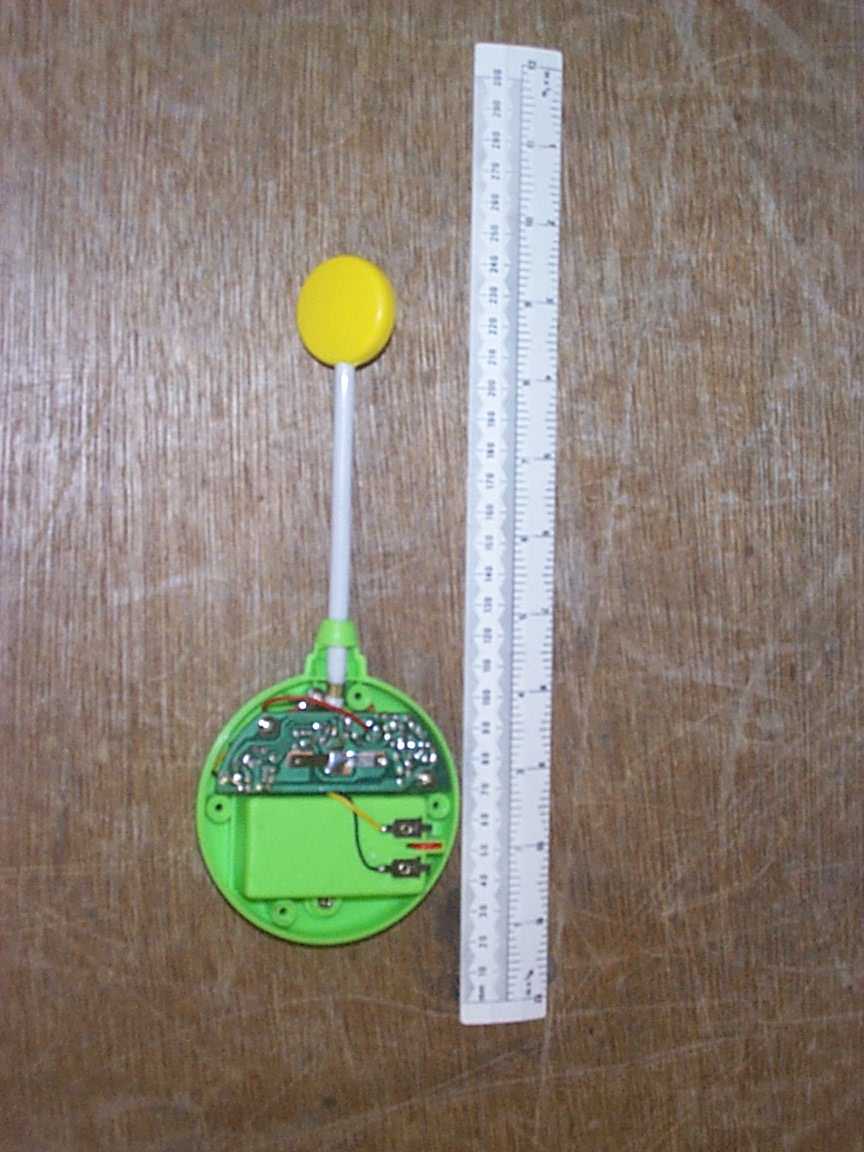

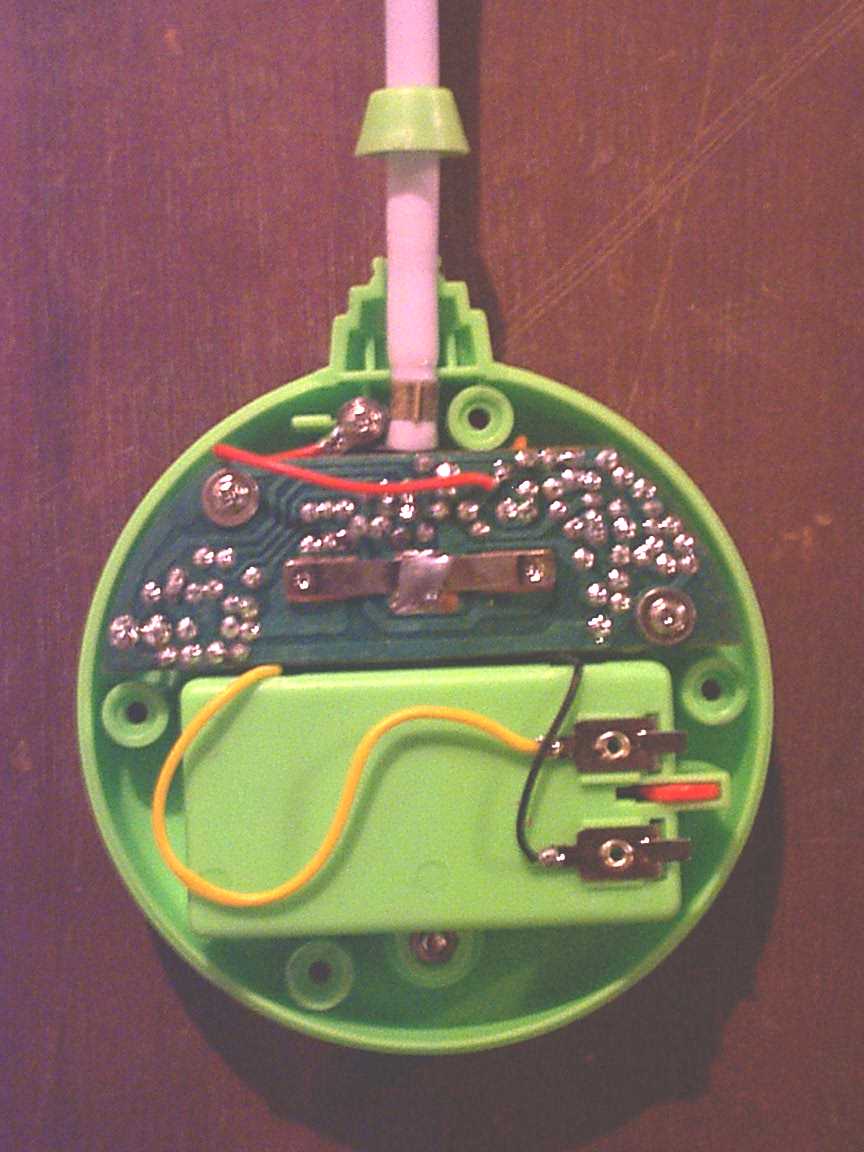

TRL COMPLIANCE SERVICES LTD EMC DIVISION LONG GREEN FORTHAMPTON GLOUCESTER GL19 4QH UNITED KINGDOM TELEPHONE +44 (0)1684 833818 FAX +44 (0)1684 833858 E-MAIL [email protected] www.trlcompliance.com 0728 TEST REPORT No:RL1130/6130 COPY NO:........... ISSUE NO:2 FCC ID:PSGRCWEBSTER19Z REPORT ON THE CERTIFICATION TESTING OF A RADIO CONTROLLED TOY SPIDER WITH RESPECT TO THE FCC RULES CFR 47, PT’S 15,209 & 15.227 INTENTIONAL RADIATOR SPECIFICATION ON BEHALF OF TRIGGERFISH INTERNATIONAL LTD TEST DATE: 24 & 25 JULY 2001 TESTED BY:I FORSHAW APPROVED BY: S P HAYES DATE:23 August 2001 Distribution: Copy Nos:1Triggerfish International Ltd 2 TRL Compliance Services Ltd 3TRL EMC THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE RF196 iss01RL1130/6130Page 2 of 19 CONTENTS Page APPLICANT’S SUMMARY3 CERTIFICATE OF CONFORMITY & COMPLIANCE4 EQUIPMENT TEST CONDITIONS5 TESTS REQUIRED6 SAMPLE CALCULATIONS6 TEST RESULTS7-8 BANDWIDTH PLOT9 PHOTOGRAPHSANNEX A[X] PHOTOGRAPH No. 1: Test site with Tx.ANNEX A1 PHOTOGRAPH No. 2:Tx, front view.ANNEX A2 PHOTOGRAPH No. 3:Tx, underside view.ANNEX A3 PHOTOGRAPH No. 4:Tx, PCB underside.ANNEX A4 PHOTOGRAPH No. 5:Tx, PCB component side.ANNEX A5 TEST EQUIPMENT LISTANNEX B[X] APPLICANT’S SUBMISSION OF DOCUMENTATION LISTANNEX C[X] Notes: 1.Component failure during test YES NO [ ] [X] 2.If Yes, details of failure: 3.The facilities used for the testing of the product contain in this report are FCC Listed. 4.The contents of the attached applicants declarations and other supplied information are not covered by the scope of this laboratory’s UKAS or FCC accreditations’ and is provided in good faith. RF196 iss01RL1130/6130Page 3 of 19 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT):RADIO CONTROLLED TOY SPIDER EQUIPMENT TYPE:19Z SERIAL NUMBER OF EUT:Not applicable PURPOSE OF TEST:FCC Certification TEST SPECIFICATION(s):FCC CFR 47 Pt’s15,209 & 15.227 TEST RESULT:COMPLIANTYes[X] No [ ] APPLICANT’S CATEGORY:(a)MANUFACTURER[ ] (b)IMPORTER[ ] (c)DISTRIBUTOR[X] (d)AGENT[ ] APPLICANT’S ORDER No(s):FAX APPLICANT’S CONTACT PERSON(s):MR PHILIP SAVAGE APPLICANT:TRIGGERFISH INTERNATIONAL LTD ADDRESS:KILVER COURT KILVER STREET SHEPTON MALLET SOMERSET BA4 5NF UNITED KINGDOM TEL:+44 1749 346393 FAX:+44 1749 346425 MANUFACTURER:LUNG CHEONG TOYS LTD ADDRESS:LUNG CHEONG BUILDING 1 LOK YIP ROAD ON LOK TSUEN FANLING N.T. HONG KONG TEL:+ 852 2677 6699 FAX:+ 852 2682 2161 EUT(s) COUNTRY OF ORIGIN:CHINA TEST LABORATORY:TRL EMC UKAS ACCREDITATION No:0728 TEST DATE(s)24 & 25 JULY 2001 TEST REPORT No:RL1130/6130 RF196 iss01RL1130/6130Page 4 of 19 CERTIFICATE OF CONFORMITY & COMPLIANCE FCC IDENTITY:PSGRCWEBSTER19Z PURPOSE OF TEST:FCC Certification TEST SPECIFICATION:FCC CFR 47 Pt’s15,209 & 15.227 TEST RESULT:Compliant to Specification EQUIPMENT UNDER TEST:Part No: 19Z EQUIPMENT SERIAL No:Not applicable ITU: EMISSION CODE:1K00A EQUIPMENT TYPE:Remote Control Transmitter UTILISATION:Control of Toy CARRIER EMISSION:2213μV/m@3m ANTENNA TYPE:Integral ALTERNATIVE AE:None, as per Part 15.203 BAND OF OPERATION:26.96 – 27.28 MHz CHANNEL SPACING:Not applicable NUMBER OF CHANNELS:1 (one) FREQUENCY GENERATION:SAW Resonator[ ]Crystal[X]Synthesizer [ ] MODULATION METHOD:Amplitude[ ]Digital[X]Angle [ ] POWER SOURCE(s):+9Vdc, integral battery powered only TEST DATE(s):24 & 25 July 2001 ORDER No(s):FAX APPLICANT:TRIGGERFISH INTERNATIONAL LTD ADDRESS:KILVER COURT KILVER STREET SHEPTON MALLET SOMERSET BA4 5NF UNITED KINGDOM TESTED BY:I FORSHAW APPROVED BY:S P HAYES EMC MANAGER RF196 iss01RL1130/6130Page 5 of 19 EQUIPMENT TEST CONDITIONS 1. EQUIPMENT SERIAL / MODEL IDENTITY CHANNEL NUMBER Tx NOMINAL FREQUENCY MHz Rx NOMINAL FREQUENCY MHz TESTS REQUIRED REMARKS Tx Radiated Spurious Pt .15.209 19Z127.14527.142 Tx Intentional Emission Pt. 15.227 2.Equipment category:Single channel[X] Two channel[ ] Multi-channel[ ] 3.Supply voltagesVnom=+9.0Vdc Note: Vnom voltages are as stated above unless otherwise shown on the test report page 4.Temperatures:AmbientTnom=25 o C 5.Transmitter maximum deviation or shift:kHz=N/A 6.Transmitter maximum bit or pulse rate & level:bps=500 b/s 7.Channel spacing:kHz=N/A Narrowband[ ] Wholeband[X] RF196 iss01RL1130/6130Page 6 of 19 TESTS REQUIRED TRANSMITTER TESTS Transmitter Spurious Emissions –Power line – Part 15.207N/A Transmitter Spurious Emissions –Power line – Part 15.209N/A Transmitter Intentional Emission – Field Strength – Part 15.227[X] Transmitter Intentional Emission – Frequency – Part 15.227[X] Notes: 1.Equipment tested for (mains ac) 110V Power line emissionsN/A 2.Equipment tested as (fixed) integral antenna configuration[X] 3.All tests were carried out with new batteries, as per Part 15.31.eN/A 4.Equipment tested for radiated emissions as per Part 15.209[X] 5.Equipment tested for radiated emissions as per Part 15.227[X] 6.Equipment tested for unintentional radiator digital device Class BN/A SAMPLE CALCULATIONS Parts 15.209 & 15.227 - Radiated Frequency (MHz) Rx Reading (dBμV/m) Detector Field Strength @ 3m (μV/m) 27.14269.90Average2213 μV/m 27.14270.00Peak3162 μV/m 54.30022.20Quasi Peak27μV/m 570.00038.24Quasi Peak31.6 μV/m Notes: 1.Unit under test (EUT) is to be integral battery powered when in commercial use. 2.Integral antenna RF196 iss01RL1130/6130Page 7 of 19 TRANSMITTER TESTS TRANSMITTER SPURIOUS EMISSIONS – RADIATED – PART 15.209 Ambient temperature=+25 o C(<1GHz),3m measurements <1GHz[X] Relative humidity=52% (<1GHz),1m measurements >1GHz[ ] Conditions=Open Area Test Site (OATS)3m extrapolated from 1m[ ] Supply voltage=Vnom Channel number=1 Frequency & Level 30MHz to 88MHz 543MHz27μV/m Frequency & Level 88MHz to 216MHz Nil emissions-29dB below limit Frequency & Level 216MHz to 960MHz 570.00MHz31.6μV/m Frequency & Level 960MHz to 1GHz Nil emissions-85dBm Frequency & Level 1GHz to 5MHz Nil emissions-50dBm 1.705MHz to 30MHz 30μV/m@ 30m 30MHz to 88MHz100μV/m@ 3m 88Mhz to 216MHz150μV/m@ 3m 216MHz to 960MHz200μV/m@ 3m 960MHz to 1GHz500μV/m@ 3m Limits 1GHz to 5GHz…
