PSIRI-37BTYImmobilizer

Immobilizer Model RI-37BTY FCC ID: PSIRI-37BTY INSTRUCTIONS The immobilizer is a theft prevention system. When you insert the Key in the cylinder, the transponder chip built in the key’s head transmits an electronic code to the vehicle. The vehicle allows the engine to start, only when the electronic code is identified. For vehicles sold in U.S.A.: NOTE This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. For vehicles sold in Canada: NOTE This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

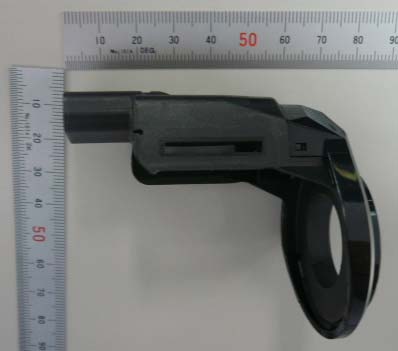

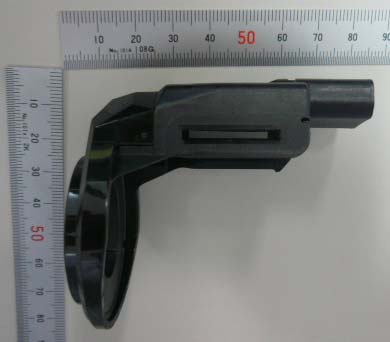

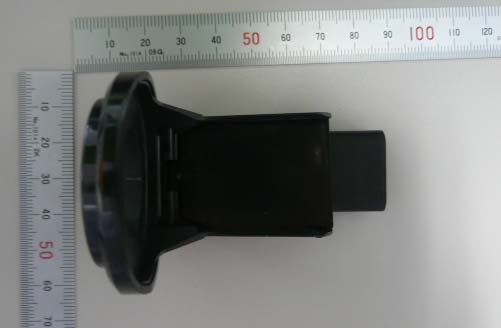

External Photograghs（Representative） Front View Rear View Top View Bottom View Side View Side View

Approval Label Immobilizer Model RI-37BTY

PC Board inside the case PC board（Front View） PC board（Rear View）

Test report No. : 33AE0006-HO-01-A Page : 1 of 18 Issued date : October 2, 2012 FCC ID : PSIRI-37BTY UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 RADIO TEST REPORT Test Report No. : 33AE0006-HO-01-A Applicant : TRCZ s.r.o. Type of Equipment : Immobilizer Model No. : RI-37BTY FCC ID : PSIRI-37BTY Test regulation : FCC Part 15 Subpart C: 2012 Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with above regulation. 4. The test results in this report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. Date of test: August 7 and 8, 2012 Representative test engineer: Satofumi Matsuyama Engineer of WiSE Japan, UL Verification Service Approved by: Shinya Watanabe Leader of WiSE Japan, UL Verification Service 13-EM-F0429 NVLAP LAB CODE: 200572-0 This laboratory is accredited by the NVLAP LAB CODE 200572-0, U.S.A. The tests reported herein have been performed in accordance with its terms of accreditation. *As for the range of Accreditation in NVLAP, you may refer to the WEB address, http://www.ul.com/japan/jpn/pages/services/emc/about/ma rk1/index.jsp#nvlap Test report No. : 33AE0006-HO-01-A Page : 2 of 18 Issued date : October 2, 2012 FCC ID : PSIRI-37BTY UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ..................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ........................................................................................ 3 SECTION 3: Test specification, procedures & results ........................................................................ 4 SECTION 4: Operation of E.U.T. during testing ................................................................................. 7 SECTION 5: Radiated emission (Fundamental and Spurious Emission) .......................................... 8 SECTION 6: -26dB Bandwidth ............................................................................................................ 10 SECTION 7: 99% Occupied Bandwidth ............................................................................................. 10 APPENDIX 1: Data of EMI test ........................................................................................................... 11 Radiated Emission below 30MHz (Fundamental and Spurious Emission) ................................. 11 Radiated Emission above 30MHz (Spurious Emission) ................................................................. 12 -26dB Bandwidth ............................................................................................................................... 13 99% Occupied Bandwidth ................................................................................................................ 14 APPENDIX 2: Test instruments .......................................................................................................... 15 APPENDIX 3: Photographs of test setup ............................................................................................ 16 Radiated Emission ............................................................................................................................. 16 Worst Case Position .......................................................................................................................... 17 Test report No. : 33AE0006-HO-01-A Page : 3 of 18 Issued date : October 2, 2012 FCC ID : PSIRI-37BTY UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : TRCZ s.r.o. Address : Prumyslova 1165, 410 02 Lovosice, CZ Telephone Number : +420-416-421-126 Facsimile Number : +420-416-421-555 Contact Person : Naohisa Goto SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Immobilizer Model No. : RI-37BTY Serial No. : Refer to Section 4, Clause 4.2 Rating : DC 5.0V Receipt Date of Sample : August 2, 2012 Country of Mass-production : Czech Republic Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description Radio type ： Transceiver Frequency of operation ： 134.2kHz Modulation ： ASK Antenna type ： coil antenna Test report No. : 33AE0006-HO-01-A Page : 4 of 18 Issued date : October 2, 2012 FCC ID : PSIRI-37BTY UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2012, final revised on August 13, 2012 and effective September 12, 2012 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted Emission Section 15.209 Radiated emission limits, general requirements * The revision on August 13, 2012 does not affect the test specification applied to the EUT. FCC 15.31 (e) The stable voltage (DC5.0V) is constantly provided to RF Part through the regulator regardless of voltage fluctuation of car battery (DC12V). Therefore, this EUT complies with the requirement. FCC Part 15.203 Antenna requirement It is impossible for end users to replace the antenna, because the antenna is mounted inside of the vehicle. Therefore, the equipment complies …

Text truncated - open the document above for the full version.

Test report No. : 33AE0006-HO-01-A Page : 16 of 18 Issued date : October 2, 2012 FCC ID : PSIRI-37BTY UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Radiated Emission Photo 1 Photo 2 Test report No. : 33AE0006-HO-01-A Page : 17 of 18 Issued date : October 2, 2012 FCC ID : PSIRI-37BTY UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst Case Position Below 30MHz (Controller: X-axis / Antenna: X-axis) Above 30MHz (Antenna: Horizontal: X-axis, Vertical: X-axis) X-axis Y-axis Z-axis Test report No. : 33AE0006-HO-01-A Page : 18 of 18 Issued date : October 2, 2012 FCC ID : PSIRI-37BTY UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst case position Mechanical Key (Inserted) Mechanical Key (Not Inserted)Worst End of Report
