PSMDATATAC002Artema DataTAC POS Terminal

March 2002 APREL Project No.: THLB-Artema 4432-051-3857 Consulting * Research * Training * Certification Testing Since 1981 FCC ID: PSMDATATAC002 Exhibit 9 User’s Manual July 24, 2001 E-TRANSACTIONS, INC. ARTEMA DataTAC Installation Manual Model P4432-054E - Credit & Debit Model P4432-056E - Credit Only Revision 1.0ARTEMA DataTAC1 Installation Manual THIS INFORMATION IS PROPRIETARY INFORMATION OF THALES e-TRANSACTIONS AND MAY NOT BE USED, COPIED, DISCLOSED OR DIVULGED, IN WHOLE OR IN PART, FOR ANY PURPOSE BY ANY PERSON WITHOUT THE WRITTEN APPROVAL OF THALES e-TRANSACTIONS INC. E-TRANSACTIONS, INC. Table of contents 1FCC STATEMENT.......................................................................................................................................................2 2SAFETY............................................................................................................................................................................3 2.1LITHIUM BATTERIES....................................................................................................................................................3 2.2SAFETY INFORMATION...............................................................................................................................................3 3ARTEMA OVERVIEW...............................................................................................................................................4 4INSTALLATION AND CONNECTIONS..............................................................................................................5 4.1ENVIRONMENT............................................................................................................................................................5 4.2BATTERY PACK INSTALLATION.................................................................................................................................6 4.3INSTALLING THE PAPER ROLL....................................................................................................................................6 4.4CONNECTING TO THE POWER SUPPLY......................................................................................................................8 4.5CHARGING THE ARTEMA........................................................................................................................................8 5TROUBLE SHOOTING & SPARE SPARTS.......................................................................................................9 6TECHNICAL SPECIFICATIONS.........................................................................................................................10 6.1HANDSET SPECIFICATIONS.......................................................................................................................................10 Revision 1.0ARTEMA DataTAC2 Installation Manual THIS INFORMATION IS PROPRIETARY INFORMATION OF THALES e-TRANSACTIONS AND MAY NOT BE USED, COPIED, DISCLOSED OR DIVULGED, IN WHOLE OR IN PART, FOR ANY PURPOSE BY ANY PERSON WITHOUT THE WRITTEN APPROVAL OF THALES e-TRANSACTIONS INC. E-TRANSACTIONS, INC. 1 FCC STATEMENT Warning: Changes or modifications to this unit not expressly approved by Thales e- Transactions could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Plug the equipment into an outlet on a circuit different from the one currently being used. - Consult the dealer or an experienced radio/TV technician for help. Warning: To prevent fire or shock hazard, and damage to your unit, do not expose this terminal to rain or moisture. WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. For your permanent records, we urge you to record the serial number of your terminal in the space provided below. The serial number is located on the label which can be found on the bottom of the unit. Terminal Serial Number: Revision 1.0ARTEMA DataTAC3 Installation Manual THIS INFORMATION IS PROPRIETARY INFORMATION OF THALES e-TRANSACTIONS AND MAY NOT BE USED, COPIED, DISCLOSED OR DIVULGED, IN WHOLE OR IN PART, FOR ANY PURPOSE BY ANY PERSON WITHOUT THE WRITTEN APPROVAL OF THALES e-TRANSACTIONS INC. E-TRANSACTIONS, INC. 2 SAFETY 2.1 Lithium batteries In addition to the battery pack that powers the handset, Artema uses Lithium batteries in order to backup internal data. The Lithium batteries in normal usage conditions have a 6 year life expectancy. These batteries should only be replaced by an approved service center. CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions. 2.2 Safety Information All Terminals: • Avoid immersing the device in water RF and DataTAC Terminals: • Turn off the terminal in any area where radio transmissions are prohibitted (such as fuel storage areas) • Not intended to be used in a movin…

Text truncated - open the document above for the full version.

March 2002 APREL Project No.: THLB-Artema 4432-051-3857 Consulting * Research * Training * Certification Testing Since 1981 FCC ID: PSMDATATAC002 Exhibit 10 Attestation Statements FCC Part 15, Subpart B Class B Certificate of Conformity FCC Part 2 & 90 Statement of Compliance March 2002 APREL Project No.: THLB-Artema 4432-051-3857 Consulting * Research * Training * Certification Testing Since 1981 Certificate of Compliance FCC ID: PSMDATATAC002 PRODUCT: Artema DataTAC POS Terminal MODEL: P4432-054E & -056E MANUFACTURER: THALES e-TRANSACTIONS, INC. We certify that the pertinent tests have been performed on the above-described equipment and that this equipment conforms to the applicable requirements of FCC Parts 2, 15 and 90. See Exhibit 2, Engineering Reports J J a a y y S S a a r r k k a a r r Jayanta (Jay) K. Sarkar Technical Director, Standards and Certification APREL Laboratories

March 2002 APREL Project No.: THLB-Artema 4432-051-3857 Consulting * Research * Training * Certification Testing Since 1981 FCC ID: PSMDATATAC002 Table of Contents List of Exhibits Submitted E E X X H H I I B B I I T T 1 1 : : C C O O V V E E R R L L E E T T T T E E R R S S a) Application overview b) Equipment Identification c) Authorization Letter /Agent Designated (Jay Sarkar) d) Request for confidentiality e) Authorization letter from Research In Motion allowing use of FCC approved radio modem (FCC ID: L6A802D-2-0) in the THALES e- TRANSACTIONS, INC.’s Artema DataTAC POS Terminal, P4432-054E & -056E Exhibit 2:Engineering Reports (Test Reports) a) ERP (2.1046) b) Radiated Spurious Emissions (2.1053) c) Bandwidth (2.1049) Modulation Characteristics (2.1047) d) Spurious Emissions at Antenna Terminal (2.1051) e) Frequency Stability (2.1055) Exhibit 3: Operational/Technical Description Exhibit 4: ID Label/Location Exhibit 5:External Photographs of the Equipment Internal Photographs of the equipment Exhibit 6:Block Diagram (Confidential) Exhibit 7: Schematic Diagram (Confidential) Exhibit 8:Parts List (Confidential), Tune–up Procedure Exhibit 9:User’s Manual Exhibit 10:a) Attestation Statement: FCC Part 15 Declaration of Conformance (DoC) certificate b) Attestation Statement: the equipment complies with Part 90 Exhibit 11:RF Exposure Information: SAR Report (Includes Test Set-up Photographs)

March 2002 APREL Project No.: THLB-Artema 4432-051-3857 Consulting * Research * Training * Certification Testing Since 1981 FCC ID: PSMDATATAC002 Exhibit 1 a) Application overview b) Equipment c) Authorization Letter /Agent Designated (Jay Sarkar) d) Request for confidentiality e) Authorization letter from Research In Motion allowing use of FCC approved radio modem (FCC ID: L6A802D-2-0) in the THALES e- TRANSACTIONS, INC.’s Artema POS Terminal, P4432-054E & -056E March 2002 APREL Project No.: THLB-Artema 4432-051-3857 Consulting * Research * Training * Certification Testing Since 1981 EXHIBIT 1b Equipment Identification FCC ID: PSMDATATAC002 MANUFACTURER: THALES e-TRANSACTIONS , INC. PRODUCT: Artema DataTAC POS Terminal MODEL: P4432-054E & -056E EUT TYPE: Licensed Non-Broadcast Station Transmitter (TNB) TX Frequency: 806-821 MHz MEASURED ERP: 1.70 W

March 2002 APREL Project No.: THLB-Artema 4432-051-3857 Consulting * Research * Training * Certification Testing Since 1981 FCC ID: PSMDATATAC002 Exhibit 4 FCC ID Label/Location March 2002 APREL Project No.: THLB-Artema 4432-051-3857 Consulting * Research * Training * Certification Testing Since 1981 March 2002 APREL Project No.: THLB-Artema 4432-051-3857 Consulting * Research * Training * Certification Testing Since 1981

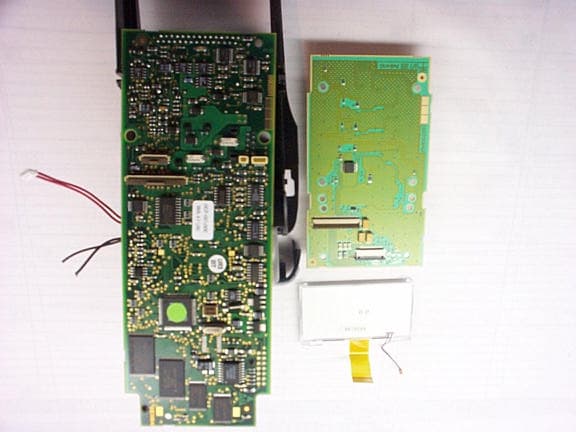

March 2002 APREL Project No.: THLB-Artema 4432-051-3857 Consulting * Research * Training * Certification Testing Since 1981 FCC ID: PSMDATATAC002 Exhibit 5 Photographs of the Equipment External Photos Internal Photos March 2002 APREL Project No.: THLB-Artema 4432-051-3857 Consulting * Research * Training * Certification Testing Since 1981 March 2002 APREL Project No.: THLB-Artema 4432-051-3857 Consulting * Research * Training * Certification Testing Since 1981 March 2002 APREL Project No.: THLB-Artema 4432-051-3857 Consulting * Research * Training * Certification Testing Since 1981 March 2002 APREL Project No.: THLB-Artema 4432-051-3857 Consulting * Research * Training * Certification Testing Since 1981 March 2002 APREL Project No.: THLB-Artema 4432-051-3857 Consulting * Research * Training * Certification Testing Since 1981 March 2002 APREL Project No.: THLB-Artema 4432-051-3857 Consulting * Research * Training * Certification Testing Since 1981 March 2002 APREL Project No.: THLB-Artema 4432-051-3857 Consulting * Research * Training * Certification Testing Since 1981 March 2002 APREL Project No.: THLB-Artema 4432-051-3857 Consulting * Research * Training * Certification Testing Since 1981 March 2002 APREL Project No.: THLB-Artema 4432-051-3857 Consulting * Research * Training * Certification Testing Since 1981

March 2002 APREL Project No.: THLB-Artema 4432-051-3857 Consulting * Research * Training * Certification Testing Since 1981 FCC ID: PSMDATATAC002 Exhibit 3 Operational/Technical Description E-TRANSACTIONS, INC. ARTEMA DataTAC Technical Description 1 Terminal Characteristics 1.1 Physical Characteristics The terminal case is made of ABS Plastic. The terminal houses the printer, the keyboard, the display, the magnetic card reader and, the smart card reader. This unit contains a rechargeable NICAD battery that allows for usage away from the base. There are two metal pads located on the underside of this unit that conduct current from the base to recharge the battery. The base is the section on which the terminal rests. There are also two metal pads located on the top of the base which conduct current from the power supply to the rechargeable battery located in the terminal. The dimensions of the unit are as follows: (8.57 inches x 3.2 inches x 2.3 inches) (243 mm x 90 mm x 65 mm) The weight of the unit is as follows: 23.9 oz(680 g) Operating Temperatures:+41 °F (+5 °C)to+104 °F (+40 °C) Storage Temperatures:-13 °F (-25 °C)to+131 °F (+55 °C) 1.2 System Processor and Memory The main system processor is a RISC 32 bits processor. The terminal has 256K of RAM standard (upgradable to 1M). It has 2M of Flash memory standard (upgradable to 8M). 1.3 Display The terminal Display is an LCD that can display 132 x 40 bit graphics (5 lines of 24 characters). The normal character size is .125 inch by .093 inch (3.175 mm x 2.362 mm). 1.4 Smart Card Interfaces The terminal supports a smart card interface accessed through a slot at the front of the terminal. The smart card reader is ISO7816, EMV compliant. 1.5 Magnetic Card Reader The magnetic stripe reader provided in the terminal is capable of reading ISO track 1, ISO track 2, ISO track 3 or a combination of these. The card must be inserted with the magnetic stripe facing the keypad of the terminal. It can be read (swiped) in either direction. 1.6 Printer The terminal uses a quiet and fast thermal printer for printing receipts and reports. It enables the printing of 24-character lines on a receipt at a speed of 11 lines per second. 1.7 Motient Radio This radio consists of a Research In Motion (RIM) OEM Radio Module 802D, manufactured by RIM to support the Motient network standard. The module supports a serial interface of 4.0Vdc with a data interface rate up to 9600 bauds. The transmitter delivers up to 2W to the antenna port. The transmit frequency band is 806 – 825 Mhz and receive band is 851 - 870 Mhz . 2 Battery Management The terminal is equipped with two batteries, a small 3 V Lithium cell that is used to protect data in the memory (ex : Store software and transactions in RAM), and a larger 7.2 V rechargeable NICAD battery that is used to provide power for the terminal when it is in use off of the base and when a receipt is being printed either on or off of the base. 2.1 Lithium Cell (3 V) If the battery pack is removed, a non rechargeable internal battery supplies power to the internal clock, ram, and PinPad keyboard in the terminal. This internal battery is a lithium replaceable cell. It is accessible only by opening the unit and therefor should only be replaced by an authorized service technician. 2.2 NICAD Battery (7.2 V) The terminal is equipped with a rechargeable NICAD battery to allow for operation of the handset unit when it is not resting on the base. The battery reaches full charge in 6 to 8 hours.

March 2002 APREL Project No.: THLB-Artema 4432-051-3857 Consulting * Research * Training * Certification Testing Since 1981 FCC ID: PSMDATATAC002 Exhibit 11 RF Exposure Information SAR Report Certification Report on Specific Absorption Rate (SAR) Experimental Analysis THALES e-Transactions Inc. Artema DataTAC POS Terminal Test Date: May 2002 51 Spectrum Way Nepean ON K2R 1E6 Tel: (613) 820-2730 Fax: (613) 820-4161 email: [email protected] This report shall not be reproduced, except in full, without the express written permission of APREL Laboratories THLB-Artema P4432-051-3857 P4432-054E & -056E Page 2 of 40Project # THLB-Artema P4432-051-3857 51 Spectrum WayTel. (613) 820-2730 Nepean, Ontario, K2R 1E6 Fax (613) 820 4161 e-mail: [email protected]© APREL 2002 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories. FCC ID:PSMDATATAC002 Applicant:THALES e-Transactions, Inc. Equipment:Artema DataTAC POS Terminal Model:P4432-054E & -056E Standard:FCC 96 –326, Guidelines for Evaluating the Environmental Effects of Radio-Frequency Radiation ENGINEERING SUMMARY This report contains the results of the engineering evaluation performed on the Artema DataTAC POS Terminal. The measurements were carried out in accordance with FCC 96-326. The Artema DataTAC POS Terminal was evaluated for its compliance with FCC RF exposure requirements at maximum power level of 32.3dBm (1.70W) ERP and 25% duty cycle. The Artema DataTAC POS Terminal is a handheld unit with an internal integrated antenna. There is no metallic belt-clip options. The Artema DataTAC POS Terminal was evaluated for body exposure and direct contact SAR (extremities) at low, middle and high channels for the frequency range 806MHz to 821MHz, with keyboard up, keyboard down, left and right sides up. The maximum 10g SAR (0.66W/kg) was found to coincide with the peak performance RF output power of channel 24B0-high (821.0MHz) for the front side of the device (keyboard up, Graph 1, the hot spot was found at 5.6cm from the top and 3.0cm from the right side of the device). At a separation distance of 15.0 mm from the front side of the device (keyboard up) the maximum 1g SAR was found to be 1.07W/kg. The operational manual will contain a warning stating that bystanders and parts of the user’s body other than extremities, must be at least 15.0mm away from the keyboard side of the device. Evaluation data and graphs are presented in this report. All measurements conducted and documented in this report were performed while the DUI was used in wireless mode. Based on the measured results and on how the device will be marketed and used, it is certified that the product meets the requirements as set forth in the above specifications, for the RF exposure environment. The results presented in this report relate only to the sample evaluated. Page 3 of 40Project # THLB-Artema P4432-051-3857 51 Spectrum WayTel. (613) 820-2730 Nepean, Ontario, K2R 1E6 Fax (613) 820 4161 e-mail: [email protected]© APREL 2002 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories. TABLE OF CONTENTS ENGINEERING SUMMARY.................................................................................................2 1.Introduction...................................................................................................................4 2.Applicable Documents................................................................................................4 3.Device Under Investigation........................................................................................5 4.Test Equipment............................................................................................................6 5.SET Up..........................................................................................................................7 6.Test Results...............................................................................................................14 6.1.TRANSMITTER CHARACTERISTICS..................................................................14 6.2.SAR MEASUREMENTS..........................................................................................15 6.3.DIRECT CONTACT SAR.........................................................................................16 6.4.BODY EXPOSURE...................................................................................................17 7.Conclusions................................................................................................................19 Appendix A: Graphic Plots FROM SAR Measurements..........................................20 Appendix B: Pictures of the evaluation setup............................................................24 Appendix C: Validation Scan.........................................................................................29 Appendix D: Uncertainty Budget..................................................................................30 Appendix E: Probe Calibration.....................................................................................31 Page 4 of 40Project # THLB-Artema P4432-051-3857 51 Spectrum WayTel. (613) 820-2730 Nepean, Ontario, K2R 1E6 Fax (613) 820 4161 e-mail: [email protected]© APREL 2002 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories. 1. INTRODUCTION Tests were conducted to determine the Specific Absorption Rate (SAR) for a sample Artema DataTAC POS Terminal. These tests were conducted at APREL Laboratories facility located at 51 Spectrum Way, Nepean, Ontario, Canada. A view of the SAR measurement setup can be seen in Appendix A Figure 1. This report describes the results obtained. 2. APPLICABLE DOCUMENTS The following documents are applicable to the work performed: 1) FCC 96-326, Guidelines for Evaluating the Environmental Effects of Radio- Frequency Radiation 2) ANSI/IEEE C95.1-1999, I…

Text truncated - open the document above for the full version.

March 2002 APREL Project No.: THLB-Artema 4432-051-3857 Consulting * Research * Training * Certification Testing Since 1981 FCC ID: PSMDATATAC002 Exhibit 2a Engineering Report on ERP (2.1046) Assessment of Compliance for Measurement of Effective Radiated Power (ERP) in accordance with the FCC Rules & Regulations Part 2.1046 and 90 of Artema DataTAC POS Terminal THALES e-TRANSACTIONS, INC 51 Spectrum Way Nepean ON K2R 1E6 Tel: (613) 820-2730 Fax: (613) 820-4161 email: [email protected] THLB ARTEMA 4432-051-3850 April 2002 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories  April 2002 Page 2 APREL Project No: THLB-ARTEMA 4432-051-3850 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories Consulting * Research * Training * Certification Testing Since 1981 FCC ID:PSMDATATAC002 Applicant:THALES e-TRANSACTIONS, Inc. Equipment:Artema DataTAC POS Terminal Model:P4432-054E & -056E Standard:FCC Rules and Regulations Part 2.1046 and 90 ENGINEERING SUMMARY This report contains the results of the effective radiated power (ERP) measurement performed on a Artema DataTAC POS Terminal of Thales e-TRANSACTIONS, Inc., model P4432-054E and –056E operating with a built-in Research in Motion ARDIS radio transmitter. The measurements were carried out in accordance with the FCC Rules and Regulations Part 2.1046 and 90. The product was evaluated for ERP when it was set at the maximum power level. Artema was tested for ERP at high, middle, and low frequencies with the maximum ERP obtained at channel No.: 24B0 with the frequency being 821.00 MHz. The test data is presented in this report under the section: Test Results. The measured ERP is 1.70 W. The results presented in this report relate only to the sample measured. Summary of the Results Test DescriptionPage No. Test Set-up Figure No. Results Summary RF Power Output as Radiated Ref. Paragraph 2.1046 and 9081Passed  April 2002 Page 3 APREL Project No: THLB-ARTEMA 4432-051-3850 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories Consulting * Research * Training * Certification Testing Since 1981 INTRODUCTION General This report describes the results of the effective radiated power (ERP) measurement conducted on a THALES e-TRANSACTIONS, Inc. Artema DataTAC POS Terminal operating with a built-in Research in Motion ARDIS radio transmitter. Test Facility The tests were performed for THALES e-TRANSACTIONS, Inc. by APREL Laboratories at APREL’s EMI facility located in Nepean, Ontario, Canada. The laboratory operates an (3m and 10m) Open Area Test Site (OATS). The measurement facility is calibrated in accordance with ANSI C63.4- 1992. A description of the measurement facility in accordance with the radiated and AC line conducted test site criteria per ANSI C63.4-1992 is on file with the Federal Communications Commission and is in compliance with the requirements of Section 2.948 of the Commissions rules and regulations. APREL’s registration number is: 90416 APREL is accredited by Standard Council of Canada. APREL is also accredited by Industry Canada and recognised by the Federal Communications Commissions (FCC). Standard The evaluation and analysis were conducted in accordance with FCC Rules and Regulations Parts 2.1046 and the appropriate limits (90). Test Equipment The test equipment used during the evaluation is listed in Appendix A with calibration due dates. Environmental Conditions Measurements were conducted in open area test site. Temperature: 20 °C ± 2; Relative Humidity: 30 - 50 %; Air Pressure:100 kPa ± 3  April 2002 Page 4 APREL Project No: THLB-ARTEMA 4432-051-3850 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories Consulting * Research * Training * Certification Testing Since 1981 Personnel: The measurements were performed by Y. Chen, and the report was written by Jay Sarkar. FCC SUBMISSION INFORMATION FCC ID:PSMDATATAC002 Equipment:Artema DataTAC POS Terminal Model:P4432-054E & -056E For:Certification Applicant:THALES e-TRANSACTIONS, Inc. 53 Perimeter Center East, Suite 175 Atlanta, GA 30346 U.S.A. Manufacturer: THALES e-Transactions S. A. 9, rue Elsa Triolet F-78370 Plaisir France Evaluated by:APREL Laboratories 51 Spectrum Way Nepean, Ontario Canada K2R 1E6  April 2002 Page 5 APREL Project No: THLB-ARTEMA 4432-051-3850 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories Consulting * Research * Training * Certification Testing Since 1981 Measurement: RF Power Output as Radiated (ERP) Ref.:FCC Part 2 paragraph 2.1046 and 90 Criteria:N/A Set-up:See Figure No. 1. Equipment:See Appendix A. Methodology:RF Power Measurement by Radiated Method (Substitution) Test site: The radiated RF power measurement was taken at APREL Laboratory’s open area test site (OATS). This open area test site is calibrated to ANSI C63.4 document and a description of the measurement facility is on file with the Federal Communications Commission and is in compliance with the requirement of Section 2.948 of the Commissions rules and regulations. (FCC File No.: 90416) The test was set-up as illustrated in Fig.1. The POS terminal was configured to operate at maximum power with carrier. The equipment under test was placed on a turntable positioned 3 m away from the calibrated receiving antenna, which in turn was connected to the spectrum analyzer. For each transmitter frequency, the received signal was maximised by rotating the turntable and adjusting the height of the receiving antenna. To obtain the actual ERP, the POS terminal was replaced by a vertically polarised half-wave dipole antenna resonant to that frequency and fed by a RF power amplifier and signal generator. The center of the dipole antenna was placed precisely in the same location as the POS terminal. It was ensured that the or…

Text truncated - open the document above for the full version.

March 2002 APREL Project No.: THLB-Artema 4432-051-3857 Consulting * Research * Training * Certification Testing Since 1981 FCC ID: PSMDATATAC002 Exhibit 2b Engineering Report on Radiated Spurious Emissions (2.1053) Assessment of Compliance for Measurement of Field Strength of Spurious Radiation in accordance with the FCC Rules & Regulations Part 2.1053 and 90 POS Terminal THALES e-TRANSACTIONS, INC. 51 Spectrum Way Nepean ON K2R 1E6 Tel: (613) 820-2730 Fax: (613) 820-4161 email: [email protected] April, 2002 APREL Project No.: THLB-Artema P4432-051-3850 April 2002 Page 3 APREL Project No: THLB - Artema 4432 – 051-3850 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories Consulting * Research * Training * Certification Testing Since 1981 FCC ID:PSMDATATAC002 Applicant:THALES e-TRANSACTIONS, INC. Equipment:Artema DataTAC POS Terminal Model:P4432-054E & -056E Standard:FCC Rules and Regulations Part 2.1053 and 90 ENGINEERING SUMMARY This report contains the results of Field Strength of Spurious Radiation measurement performed on a THALES e-TRANSACTIONS, INC. Artema DataTAC POS Terminal, model P4432-054E & - 056E in accordance with the FCC Rules and Regulations Part 2.1053 and 90. The product was evaluated for spurious radiation when it was set at the high, medium and low frequency channels. The measurements were carried out using 1) direct method and 2) substitution method both as radiated. The results for Direct Method are given in tables 1 to 6 and for Substitution Method in Tables 1A to 6A. The sample of the Artema P4432-054E & -056E with FCC IDENTIFIER PSMDATATAC002 covered by this report complies with the applicable requirements of the FCC Rules and Regulations Part 2.1053 and 90.210 The results presented in this report relate only to the sample tested. Summary of the Results Test DescriptionPage No. Test Set-up Figure No. Results Summary Field Strength of Spurious Radiation Ref. Paragraph 2.1053 and 9081Passed April 2002 Page 4 APREL Project No: THLB - Artema 4432 – 051-3850 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories Consulting * Research * Training * Certification Testing Since 1981 INTRODUCTION General This report describes the results of the Field Strength of Spurious Radiation measurement conducted on a THALES e-TRANSACTIONS, INC. Artema DataTAC POS Terminal, model P4432-054E & - 056E in accordance with the FCC Rules and Regulations Part 2.1053 and 90. Test Facility The tests were performed for THALES e-TRANSACTIONS, INC. by APREL Laboratories at APREL’s EMI facility located in Nepean, Ontario, Canada. The laboratory operates an (3m and 10m) Open Area Test Site (OATS). The measurement facility is calibrated in accordance with ANSI C63.4- 1992. A description of the measurement facility in accordance with the radiated and AC line conducted test site criteria per ANSI C63.4-1992 is on file with the Federal Communications Commission and is in compliance with the requirements of Section 2.948 of the Commissions rules and regulations. APREL’s registration number is 90416. APREL is accredited by Standard Council of Canada. APREL is also accredited by Industry Canada and recognised by the Federal Communications Commissions (FCC). Standard The evaluation and analysis were conducted in accordance with FCC Rules and Regulations Parts 2.1053 and the appropriate limits (90). Test Equipment The test equipment used during the evaluation is listed in Appendix A with …

Text truncated - open the document above for the full version.
