PTE1161181Wireless Walkie Talkie

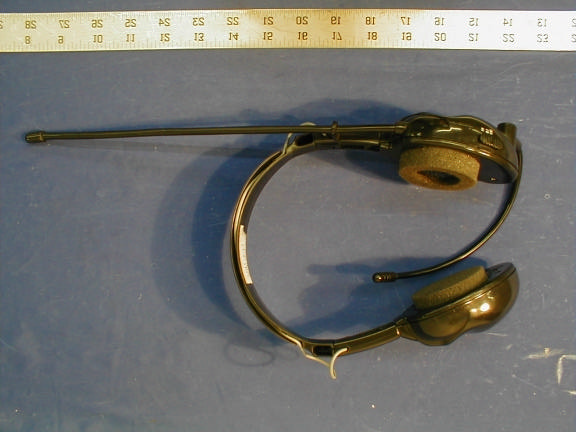

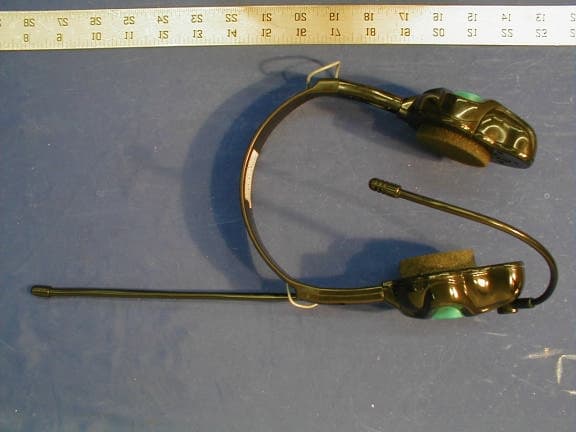

EUT -Top View EUT - Bottom View

FCC ID Label Specifications: Text is black or white in color and is left justified. Labels are silk-screened and shall be “permanently affixed” at a conspicuous location on the EUT. Proposed Label Location on EUT Left View of the EUT FCC Label Location FCC ID: PTE1161181 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harm- ful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 1.0" 2.1875 FCC ID: PTE1161181

EUT - Cover off View EUT - Antenna View EUT-PCB Component View EUT- PCB Solder View

TECHNICAL DESCRIPTION Model: 1161181 Name: Walkie Talkie A. CIRCUIT OPERATION 1. TX CIRCUIT 2. RX CIRCUIT 3. CYSTAL OSC CIRCUIT E. COMPONENT DESCRIPTION NOCATEGORYNUMBERNAMEDESCRIPTION 1TransistorQ1 C828High Frequency Transistor RX DEMODULATION TX MODULATION 2TransistorQ5 Q6 C1674Low Power RF Transistor RX TX AUDIO SIGNAL AMPLIFIER 3TransistorQ2 Q7 C9014Low Power RF Transistor RX TX AUDIO SIGNAL AMPLIFIER 4CrystalX1 49.860MHzCrystal 30PPMTX OSC

Note: This report may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. FCC PART 15 Subpart C EMI MEASUREMENT AND TEST REPORT FOR Sunrise Company Ltd. Huasheng Industrial Area, Dalang Shuiwei Village Longhua Town, Baoan District, Shenzhen, Guangdong, P.R. China FCC ID: PTE1161181 August 7, 2001 This Report Concerns: Original Report Equipment Type: Duplex Headset Walkie Talkie- ITE Test Engineer:Hien Pham Test Date:July 27, 2001 Reviewed By: John Y. Chan – Engineering Manager Prepared By:Bay Area Compliance Laboratory Corporation 230 Commercial Street, Suite 2 Sunnyvale, CA 94085 Tel (408) 732-9162 Fax (408) 732-9164 Sunrise Company Ltd. FCC ID: PTE1161181 Report # R0107263FCC Part 15 Subpart C Test Report Page 2 of 13 TABLE OF CONTENTS 1 - GENERAL INFORMATION........................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...................................................................................3 1.2 PURPOSE.........................................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 1.4 TEST METHODOLOGY....................................................................................................................................................3 1.5 TEST FACILITY...............................................................................................................................................................3 1.6 TEST EQUIPMENT LIST..................................................................................................................................................4 1.7 EQUIPMENT UNDER TEST (EUT)..................................................................................................................................4 2 - SYSTEM TEST CONFIGURATION...........................................................................................................................5 2.1 DESCRIPTION OF TEST CONFIGURATION......................................................................................................................5 2.2 EQUIPMENT MODIFICATIONS........................................................................................................................................5 2.3 CONFIGURATION OF TEST SYSTEM...............................................................................................................................6 2.4 CONFIGURATION OF TEST SYSTEM...............................................................................................................................7 3-CONDUCTED EMISSIONS TEST DATA...................................................................................................................8 4 - RADIATED EMISSION DATA....................................................................................................................................9 4.1 EUT SETUP....................................................................................................................................................................9 4.2 SPECTRUM ANALYZER SETUP.......................................................................................................................................9 4.3 TEST PROCEDURE........................................................................................................................................................10 4.4 CORRECTED AMPLITUDE & MARGIN CALCULATION................................................................................................10 4.5 SUMMARY OF TEST RESULTS......................................................................................................................................10 4.6 RADIATED EMISSIONS TEST RESULT DATA...............................................................................................................11 APPENDIX A...................................................................................................................................................................12 Sunrise Company Ltd. FCC ID: PTE1161181 Report # R0107263FCC Part 15 Subpart C Test Report Page 3 of 13 1 - GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) The Sunrise Company Ltd.’s product, model no.: 1161181 or "EUT" as referred to in this report is a Duplex Headset Walkie Talkie which measures 14.00”L x 6.25” W x 0.5” H. 1.2 Purpose This report is prepared on behalf of Sunrise Company Ltd. in accordance with Part 2, Subpart J, and Part 15, Subparts A and B of the Federal Communication Commissions Rules. The objective of the manufacturer is to demonstrate compliance with FCC rules, Part 15, section 235 for radiated margin. 1.3 Related Submittal(s)/Grant(s) No related submittals 1.4 Test Methodology All measurements contained in this report were conducted with ANSI C63.4 –1992, American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the range of 9 kHz to 40 GHz. All radiated and conducted emissions measurement was performed at Bay Area Compliance Laboratory, Corp. The radiated testing was performed at an antenna-to-EUT distance of 3 meters. 1.5 Test Facility The Open Area Test site used by Bay Area Compliance Laboratory Corporation to collect radiated and conducted emission measurement data is located in the back parking lot of the building at 230 Commercial Street, Suite 2, Sunnyvale, California, USA. Test sites at Bay Area Compliance Laboratory Corporation has been fully descr…

Text truncated - open the document above for the full version.

EUT Radiated Emission Photograph – Front View EUT Radiated Emission Photograph – Rear View
