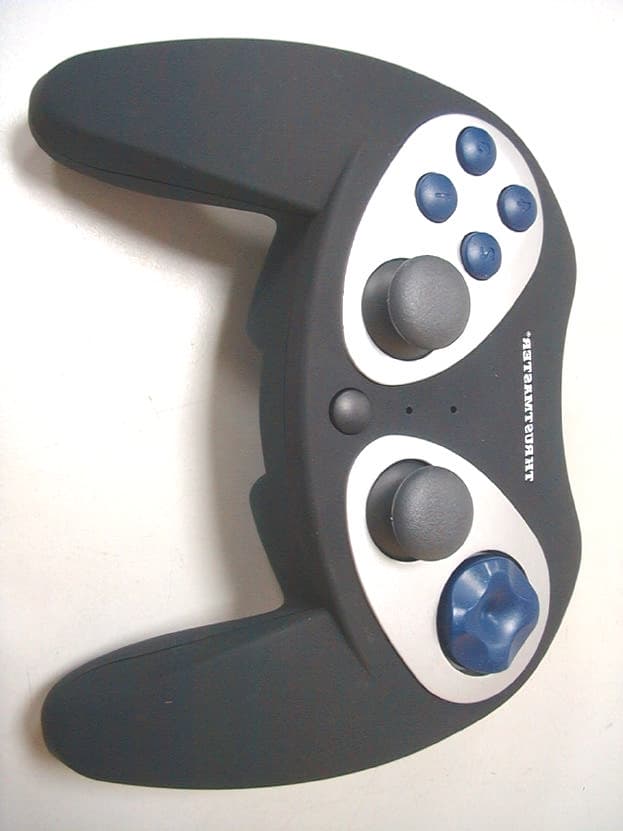

PU4FSWIRELESSFirestorm Wireless Gamepad

1234 A B C D 4321 D C B A 1 150 16 . ,235 , , , 2 A 22-Aug-200117:06:22D:\NEW_PROD\C-125\SCH\SCH0417\BLOCK-TX.SCH Title Size:Number: Date:File: Revision: Sheetof Time: A4 J-44 RF TX Chic ANTENNA 6MHz 2.2V RF TX MODULE ENABLE DATA X AXIS Y AXIS BUTTON R AXIS Z AXIS CONTROLLER MICRO S1 CHANNEL SW BATTERY 3V VCC VCC MODE 1234 A B C D 4321 D C B A 1 150 16 . ,235 , , , 2 A 22-Aug-200116:49:56D:\NEW_PROD\J-44\TEST\BLOCK-RX.SCH Title Size:Number: Date:File: Revision: Sheetof Time: A4 J-44 RX BLOCK Chic ANTENNA (RF RX MODULE) DATA S1 CHANNEL SW MICRO CONTROLLER RF LED USB CABLE USB USB PORT

LABEL Format: This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation Model No.:2969061 FCC ID:PU4FSWIRELESS LABEL Size: 38 x 16 mm LABEL Position:

RF GAMEPAD ACTION INTERPRETATION Transmitter 01. MCU will scan the key matrix. IF any signal changes come above mention. It will turn convert the data package with checking the low battery status data, and prepare for modulate to the VCO directly. 02. When MCU received the signal of any key, MCU will turn on the RF power, program the synethizer code of PLL(phase lock loop), PLL will lock the exact frequency.(e.g.433.358MHz) 03. The reference LO(local oscillator) will support the exact 5.12MHz to the PLL and VCO, to compare the phase to let VCO to lock the exact frequency (e.g.433.358MHz) 04. Buffer amplifier is to change the impedance between VCO (high imprudence) to low imprudence. 05. (PA)Power amplifier is to support enough current to crave the antenna. 06. Matching circuit is to match the imprudence between PA and antenna. Receiver 01. When the PC power on, the receiver will start the PnP process. No-matter the interface is USB. 02. MCU will program the synothizer code of PLL (phase lock loop), PLL will lock the exact frequency. (e.g.422.656MHz) Of VCO. 03. When the RF signal comes (e.g.433.358MHz), the low noise amplifier (LNA) will amplify the signal about 14 dB. 04. The adding signal to pass through mixer I will generate 10.7MHz intermediate frequency (IF). It means that the original signal (433.358MHz) will down convert to 10.7MHz. 05. IF1 filter is performing a filtering function of 10.7MHz (IF1). 06. Reference crystal not only performs the reference function, and also with the local oscillator (LO) functions. 07. After the IF1 amplifier will work for an AGC (auto gain control) function, and the signal more stable. 08. When the IF1 (10.7MHz) pall through discriminator, the demodulating signal will come out. We called it base band signal. 09. AF AMP will work as a data slicer, it amplify the signal to square wave digital signal. 10. This digital signal will send to MCU. MCU will sample the signal to check it is valid or not. 11. IF the signal it valid, MCU will convert the signal of the interface to PC. NO-matter is USB and let PC to do their exact activity. 12. MCU also scan the reset lock key to check user has to press this key or not.

5 5 4 4 3 3 2 2 1 1 DD CC BB AA 433MHz R14 680ohm 900MHz R14 3.3kohm J-44 GUILLEMOT RF GAME PAD 2.0 RF GAME PAD B 11Monday, August 06, 2001 Title SizeDocument NumberRev Date:Sheet of VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC VCC S13 B13 U1 MDT2020 1 6 7 8 9 10 11 12 1314 15 16 17 18 19 20 21 22 23 24 25 26 27 282 4 3 5 RTCC RA0 RA1 RA2 RA3 RB0 RB1 RB2 RB3RB4 RB5 RB6 RB7 RC0 RC1 RC2 RC3 RC4 RC5 RC6 RC7 OSC2/CLKOUT OSC1/CLKIN MCLR/VppVDD GND NC NC D1 BAV70 1 2 3 D2 BAV701 2 3 D7 BAV701 2 3 D3 BAV70 1 2 3 S-10 B10 C1 104 LED2 RED MAIN LED LED1 JOYSTICK RED LED S-9 B9 R8 680 S-3 B3 S4 KWR S1 KWU S2 KWD S-1 B1 S-7 B7 S-8 B8 S-12 B12 S-5 B5 S3 KWL C11 105 S-4 B4 S-11 B11 S-6 B6 S-2 B2 D14 BAV70 12 3 SW1 CHANL S.W 12 43 R11 10K C7 123 C8 123 C9 123 C10 123 R151K R161K R171K R18100K R19100K R20100K R21100K R71K C6 105 VR3 50K 12 VR4 50K 12 VR5 50K 12 VR6 50K 12 R10 100K D11 1N4148 C5 105 C2 33P C3 33P R2 10K R3 10K R4 10K R6 10K D131N4148 D81N4148 U22.2V 12 3 VOVI GND M1 BTC RF Module TX 1 2 3 4 5 6 Vcc GND DATA IN LE SDA SCL D61N4148 D41N4148 B2500 D51N4148 D101N4148 R14 3.3K D12 1N4148 R12 10K R510K Y1 6MHz R1 56k Q1 A733 R9 680 R13 5.1k D9 BAV701 2 3 U32.5V 12 3 VOVI GND BT1 +3.3V + C12 10uF/16V C4 105 MD VCC LE SDA SCL DATA MD VCC DATA LE SDA SCL AXES-R AXES-Z AXES-Y AXES-X 5 5 4 4 3 3 2 2 1 1 DD CC BB AA 27MHz 433MHz,900MHz,2.4GHz R16 OPEN 433 MHz R16 SHORT 900 MHz USB MODE R17 SHORT GAME PORT MODE R17 OPEN 2001/06/28 R13,R14,R15 USE 27MHz J-19 , J-23 , J-44 USE 1.0 RF GAME PAD RECEIVER B 11 Title SizeDocument NumberRev Date:Sheet of VCC VCCVCC VCC VCC VCC VCCVCC R57.5K U2 CY7C63001 1 2 3 4 20 19 18 17 5 16 6 15 7 8 9 1011 12 13 14 P0.0 P0.1 P0.2 P0.3 P0.4 P0.5 P0.6 P0.7 P1.0 P1.1 P1.2 P1.3 VSS VPP CEXT XTALINXTALOUT VCC D- D+ R2 1.5K R3 1.5K B3100MHz 200R B4100MHz 200R U13.3V 12 3 VOVI GND Y1 6MHz B5500 S1SW DIP-2 1 2 4 3 C3 104 + C2 4.7uF R160 Q2 C945 R8 100K R7 22K R9100K R4560D1LED 12 Q1LML5103 R1210K M1 RF Module RX 1 2 3 4 5 6 Vcc GND DATA OUT LE SDA SCL M2 RF Module RX Vcc GND DATA OUT NC NC NC GND ANT C1 105 C4 105 R60 R17NC ANT? ANTENNA L1 0.56uH R1010K R14 10K R15 10K R13 10K R1110K R1 10K B1100MHz 200R B2 100MHz 200R J1 CON8 1 2 3 4 5 6 7 8 X B0 B1 D- D+ B0 B1 D+ D- X

Test Report ----------------------------------------------------------------------------------- 1/23 Report No.: C3115525, FCC Part 15 Class B Training Research Co., Ltd., TEL:886-2-26935155, Fax:886-2-26934440 MEASUREMENT REPORT of FIRESTORM WIRELESS GAMEPAD Applicant: Thrustmaster S.A. Model No.:2970022, 2969061, 2969064 EUT:FIRESTORM WIRELESS GAMEPAD FCC ID:PU4FSWIRELESS Report No.:C3115525 Test by : Training Research Co., Ltd. TEL : 886-2-26935155 FAX : 886-2-26934440 2, Lane 194, Huan-Ho Street, Hsichih, Taipei Hsien 221, Taiwan, R.O.C. Test Report ----------------------------------------------------------------------------------- 3/23 Report No.: C3115525, FCC Part 15 Class B Training Research Co., Ltd., TEL:886-2-26935155, Fax:886-2-26934440 Tables of Contents I. GENERAL 1.1 Introduction ....................................................................................................................... 5 1.2 Description of EUT ............................................................................................................ 5 1.3 Description of Support Equipment ...................................................................................... 5 1.4 Configuration of System Under Test ................................................................................... 7 1.5 Test Procedure .................................................................................................................. 8 1.6 Location of the Test Site ..................................................................................................... 8 1.7 General Test Condition ....................................................................................................... 8 II. Conducted Emissions Measurements 2.1 Test Condition & Setup ..................................................................................................... 9 2.2 List of Test Instruments ...................................................................................................... 9 III. Radiated Emissions Measurements 3.1 Test Condition & Setup .................................................................................................... 10 3.2 List of Test Instruments ..................................................................................................... 11 3.3 Test Instruments Configuration .......................................................................................... 12 3.4 Test Configuration of Radiated Emission ........................................................................... 13 3.5 Test Result of Radiated Emissions ..................................................................................... 14 3.6 Test Result of Spurious Radiated Emissions ....................................................................... 15 . Verify Frequencies and Channels....................................................................................... 19 Appendix A 20 Appendix B 21 Test Report ----------------------------------------------------------------------------------- 4/23 Report No.: C3115525, FCC Part 15 Class B Training Research Co., Ltd., TEL:886-2-26935155, Fax:886-2-26934440 TABLES Table 1Radiated Emissions [Channel 1, Horizontal 30MHz 1GHz].............................................................. 15 Table 2Radiated Emissions [Channel 1, Vertical 30MHz 1GHz] ................................................................ 15 Table 3Radiated Emissions [Channel 2, Horizontal 30MHz 1GHz]............................................................. 16 Table 4Radiated Emissions [Channel 2, Vertical 30MHz 1GHz] ................................................................ 16 Table 5Radiated Emissions [Channel 1, Horizontal 1GHz 24GHz].............................................................. 17 Table 6 Radiated Emissions [Channel 1, Vertical 1GHz 24GHz] ................................................................. 17 Table 7Radiated Emissions [Channel 2, Horizontal 1GHz 24GHz].............................................................. 18 Table 8Radiated Emissions [Channel 2, Vertical 1GHz 24GHz] ................................................................. 18 Test Report ----------------------------------------------------------------------------------- 5/23 Report No.: C3115525, FCC Part 15 Class B Training Research Co., Ltd., TEL:886-2-26935155, Fax:886-2-26934440 I. GENERAL 1.1 Introduction The following measurement report is submitted on behalf of Applicant in support of a Cordless Telephone certification in accordance with Part 2 Subpart J and Part 15 Subpart A and C of the Commission's Rules and Regulations. 1.2 Description of EUT EUT:Firestorm Wireless Gamepad Model No.:2970022, 2969061, 2969064 FCC ID:PU4FSWIRELESS Frequency Range:910.20 – 912.70 MHz Support Channel:4 Channel Power Type:Powered by battery: AAA size, 1.5V * 2 Applicant:Thrustmaster S.A. BP2 – La Gacilly Cedex – 56204, FRANCE 1.3 Description of Support Equipment PC:HP Brio 85xx 6/350 Model No.:D6928A Serial No. :SG91801432 FCC ID:N/A (Doc Approved) :3872H013 Power type:100 ~ 230VAC / 50 ~ 60Hz, 5A, Switching Power cord :Non-shielded, 2.33m long, Plastic, No ferrite core Test Report ----------------------------------------------------------------------------------- 6/23 Report No.: C3115525, FCC Part 15 Class B Training Research Co., Ltd., TEL:886-2-26935155, Fax:886-2-26934440 Monitor :HP 15’ Color Monitor Model No.:D2827A Serial No. : KR91161719 FCC ID:C5F7NFCMC1518X :3872B039 Power type:110 ~ 240 VAC / 50 ~ 60 Hz, Switching Power cord:Shielded, 1.83m long, No ferrite core Data cable :Shielded, 1.46m long, with two ferrite cores Keyboard : HP Model No.:SK-2501K Serial No. : MR80700789 FCC ID:GYUR38SK :3862A621 Power type:By PC Data cable :Shielded, 1.73m long, with ferrite core Mouse:HP Model No.:M-S34 Serial No. : LZB90714106 FCC ID:DZL211029 :4862A011 Power type:By PC Power cord:Non-shielded, 1.88m long, No ferrite core Test Report ------------…

Text truncated - open the document above for the full version.

Test Report ----------------------------------------------------------------------------------- 13/23 Report No.: C3115525, FCC Part 15 Class B Training Research Co., Ltd., TEL:886-2-26935155, Fax:886-2-26934440 3.4 Test Configuration of Radiated Emission Picture 1 Front View of the Test Configuration Picture 2 Rear View of the Test Configuration The test configuration for frequency between 1GHz to 18GHz is same as above.
