PU5-TP00107BUC

Wistron Corporation

Notebook Computer

Click to zoom

Application Details

Equipment Class: PCB - PCS Licensed Transmitter
Date of Grant: Mar 23, 2020
Application Purpose: Original Equipment
Date of Application: Mar 18, 2020
Equipment Note: Notebook Computer
Frequency Range: 2310.00000000 - 2310.00000000
Company: Wistron Corporation
Country: Taiwan

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

External Photos

ID Label/Location Info

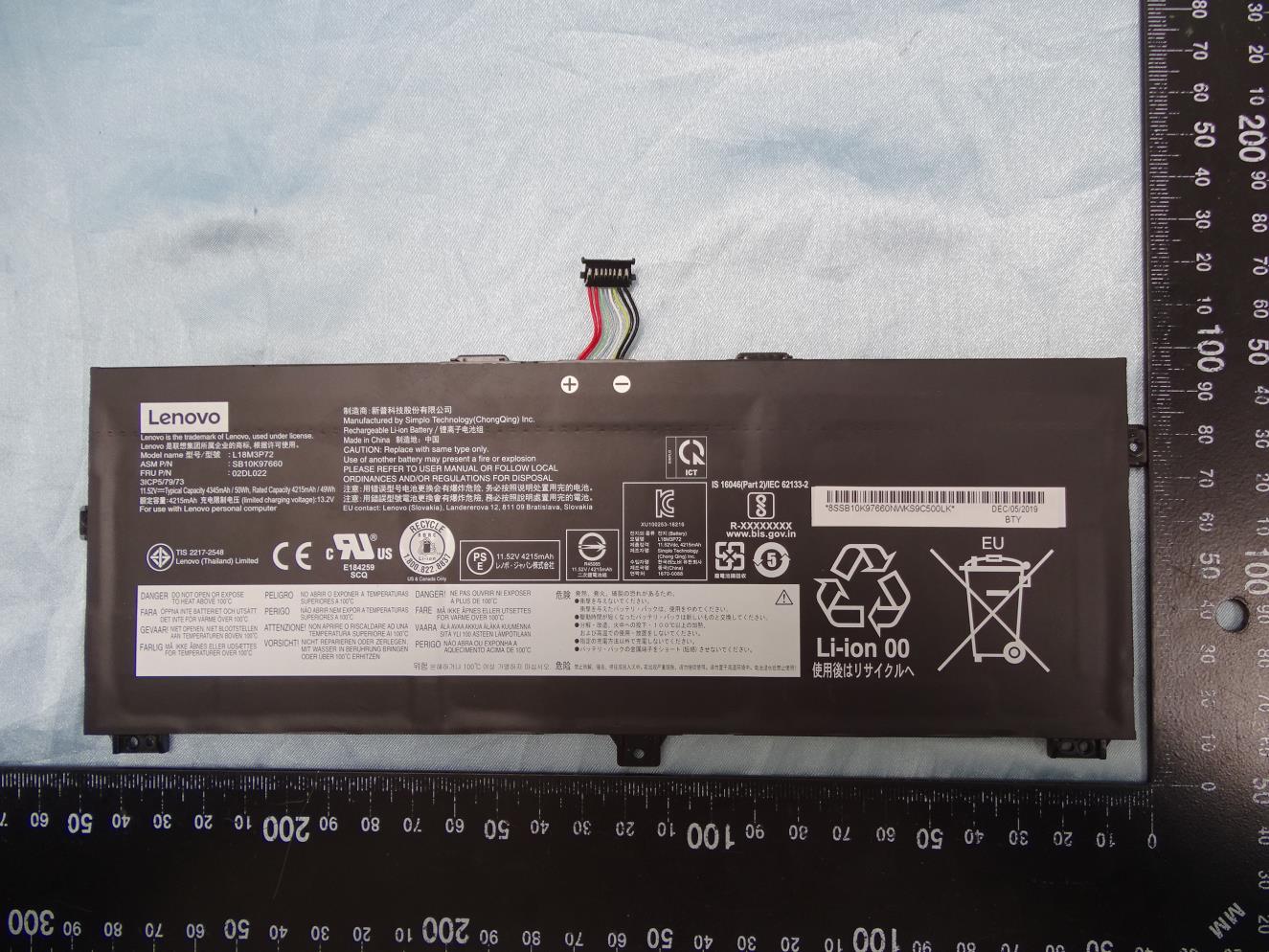

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
35	27	2.31 GHz - 2.31 GHz	147.90 mW	8M95W7D	0.1 ppm

Confidentiality

Long Term

Grant Notes

Output Power is EIRP and ERP for above and below 1 GHz, respectively, except for LTE Band 30 and Part 90 LTE 26 emissions, which are conducted. The highest reported SAR for use on the body and simultaneous transmission exposure conditions are 1.16 W/kg and 1.56 W/kg, respectively. This device supports LTE of 1.4, 3, 5, 10, 15, and 20 MHz bandwidth modes for FDD LTE Bands 2, 4, 25 and 66; LTE of 5, 10, 15, and 20 MHz bandwidth modes for FDD LTE Band 7; LTE of 1.4, 3, 5, and 10 MHz bandwidth modes for FDD LTE Bands 5 and 12; LTE of 5, and 10 MHz bandwidth modes for FDD LTE Bands 13, 14, 17, and 30; LTE of 1.4, 3, 5, 10, and 15 MHz bandwidth modes for FDD LTE Band 26; and LTE of 5, 10, 15, and 20 MHz bandwidth modes for TDD LTE Bands 38 and 41. This device contains functions that are not operational in U.S. Territories; this filing is applicable only for U.S. operations.
