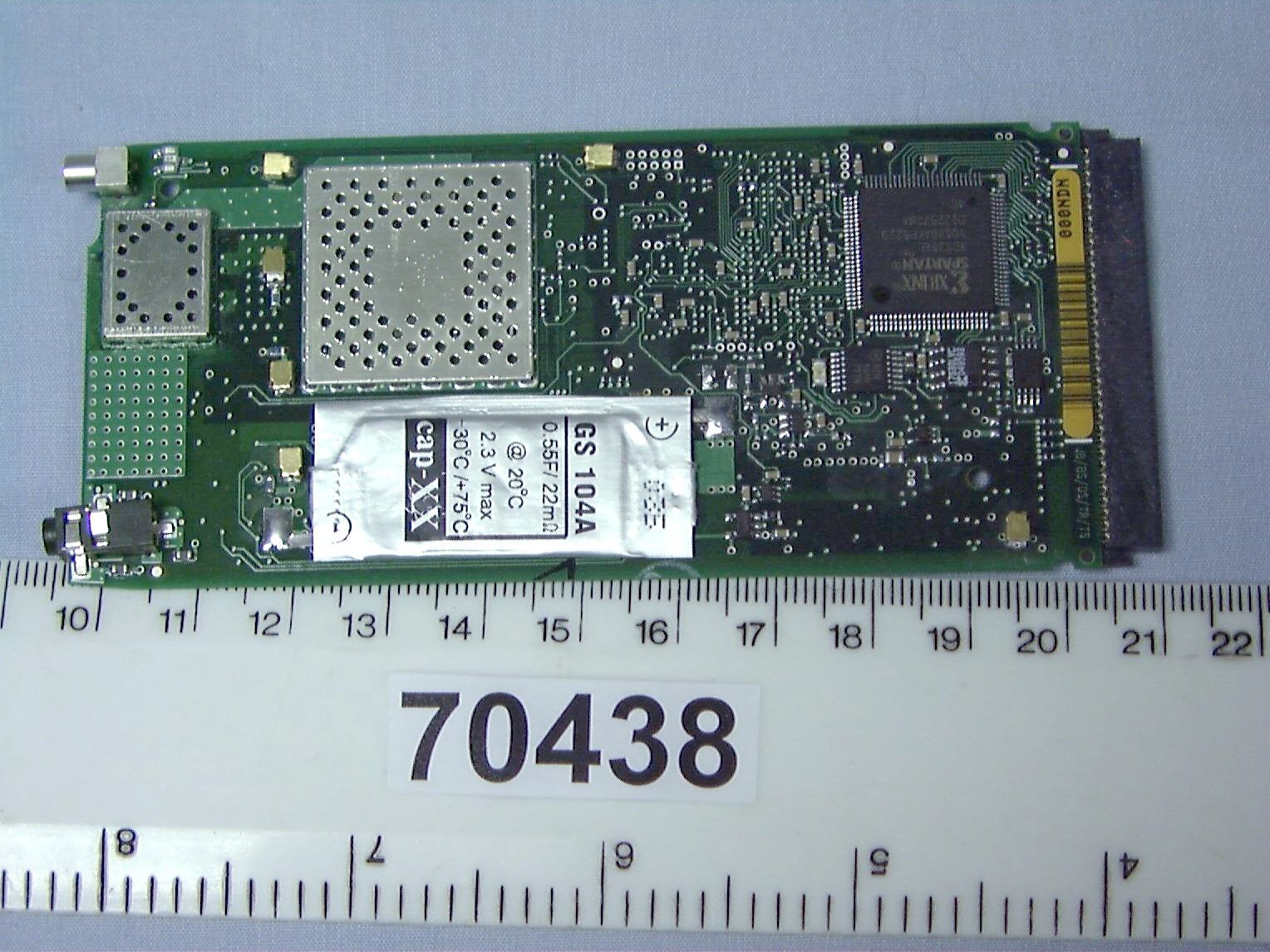

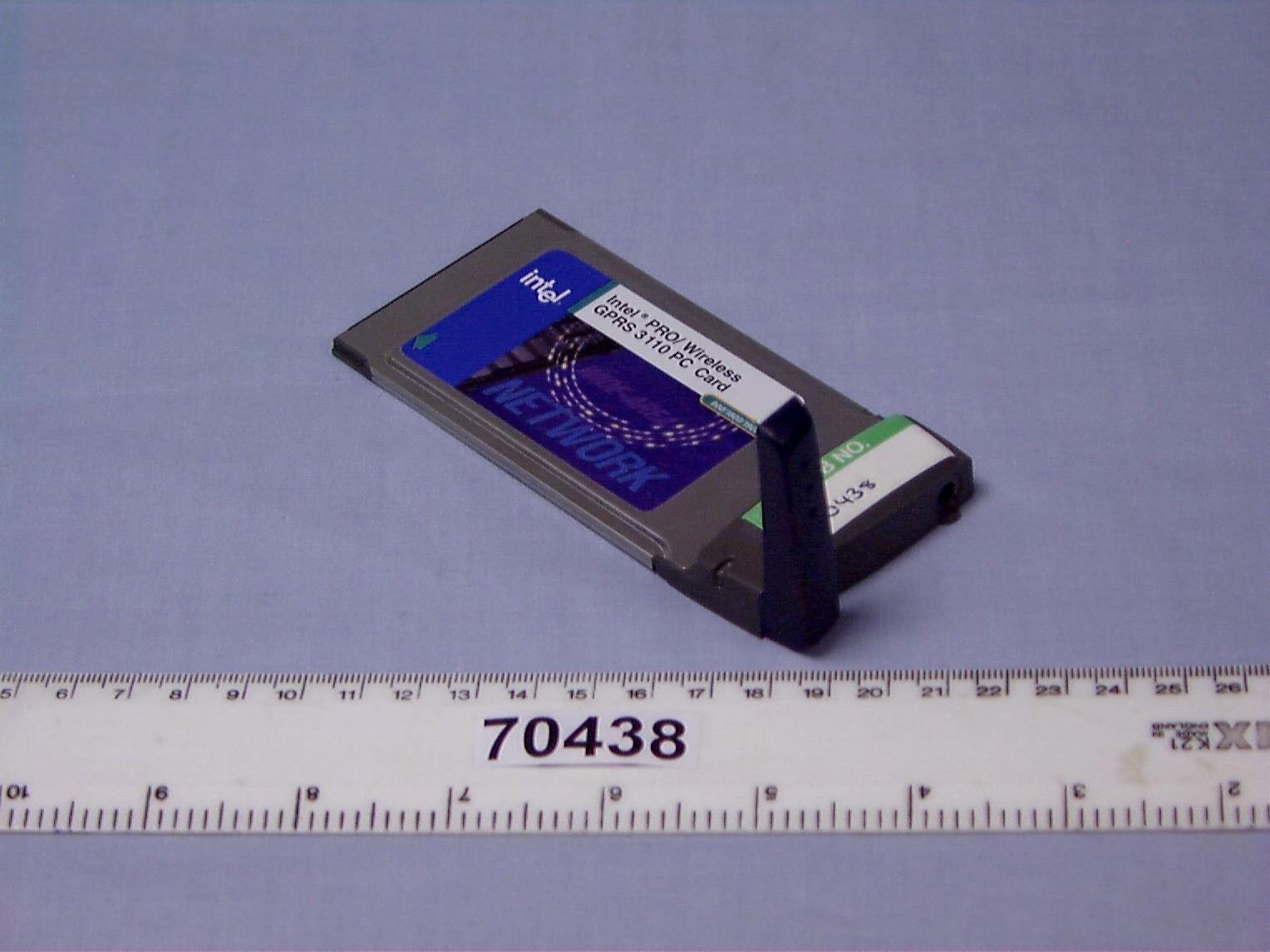

Intel Corporation Exhibit 2 FCC ID: PUKIG3110 Page 1 of 1 Intel Corporation EXHIBIT 2 PUKIG3110 USER’S MANUAL INCLUDING HUMAN EXPOSURE STATEMENT As required by § 2.1033(c)(3), provided with this filing is an electronic copy of the draft version of the PUKIG3110 User’s Manual. This manual provides the user with a complete set of installation and operation instructions, and conditions and restrictions on regarding the use of the PUKIG3110. Furthermore, as required by § 24.52 RF hazards, § 1.1307(b) and § 2.1093 Radiofrequency radiation exposure evaluation: portable devices: Intel Corporation. certifies that all emissions, both fundamental and unwanted, from the PRO/Wireless GRPS PC Card, Model IG3110 (FCC ID: PUKIG3110) comply with the RF hazard requirements applicable to broadband PCS equipment operating under the authority of 47 CFR Part 24, Subpart E of the FCC Rules and Regulations. This certification is contingent upon installation, operation and use of the PUKIG3110 in accordance with the instructions provided. This certification is based upon the results of localized specific absorption rate (SAR) testing performed with the PUKIG3110 installed in three representative host platforms and tested in accordance with FCC OET recommendations. Further details and test results are provided in the SAR test report included with this filing.

Users Manual

Safety guidelines Warning! The Intel ® PRO/Wireless GPRS 3110 series PC Card starts transmitting signals as soon as you insert the card and turn on the PC Card power . Turn OFF the PC Card power if you are located where radio signals from the card might interfere with the safe operation of machinery or vehicles. Medical equipment or devices such as pacemakers and hearing aids, inadequately shielded electronic systems in motor vehicles, along with navigation equipment in aircraft are among those sensitive to radio frequencies. Observe all posted warnings and manufacturer's safety guidelines regarding the use of equipment that transmits radio signals or equipment that is sensitive to radio signal transmissions. Failure to comply with these guidelines can be dangerous or illegal. This device has been designed and tested to perform in the Laptop PC environment. The current regulatory approvals have been obtained using this application and it is not recommended that it be used in other platforms such as PADs and PDAs. See also: Stop transmitting radio signals Exposure to radio frequency energy Product operation and care guidelines Safe operation of a wireless communication device *Other names and brands may be claimed as the property of others. Product overview The Intel ® PRO/Wireless GPRS 3110 PC Card and Intel ® PRO/Wireless Communication Manager provide mobile users with all-the-time, everywhere access to information at speeds up to that of traditional analog modems—without wires or the inconvenience of dial-up modem connections. The PC Card allows you to connect to your network service provider from anywhere within your coverage area. Once you are connected to your network service provider, you can: zConnect to the Internet or your workplace, so you can check email, surf the Web, and so on. You can maintain a constant connection at speeds up to 53.6 Kbps. zSend and receive instant text messages just like you can with a pager or mobile phone. zMake and receive voice calls just like you can with a mobile phone. Important : Once you insert the PC Card into your computer and turn on your PC Card power, the PC Card transmits radio signals. If you want to stop transmitting radio signals, for example, if you are traveling by airplane, turn off the PC Card power . You can also remove the PC Card from your computer. Note that if you close the Communication Manager software, it does not turn off the PC Card power. This device has been designed and tested to perform in the Laptop PC environment. The current regulatory approvals have been obtained using this application and it is not recommended that it be used in other platforms such as PADs and PDAs. *Other names and brands may be claimed as the property of others. Configure security settings To prevent others from using your GPRS PC Card, you may set a password or Personal Identification Number (PIN). Important : The card locks if you type the wrong PIN three times in a row. If you lock the card, you need the SIM PUK (Personal Unlock Key) from your service provider to unlock it. The GPRS PC Card can use the same SIM as your mobile phone. If your mobile phone and PC Card share the same SIM and you change the PIN, you must use the new PIN to unlock your phone when you transfer the SIM back to it. Page 1 of 2Safety Guidelines 23/01/2003file://C:\Documents%20and%20Settings\so\Local%20Settings\Temp\~hh91A5.htm To set a PIN for your PC Card 1. On the main screen, click Settings . 2. On the Intel ® PROSet dialog box, click the Providers tab. 3. In the Personal Identification Number section, click Configure . The PIN Settings dialog box appears. 4. In the Enable PIN Protection section, select On (PIN Required) . 5. If you do not want to type the PIN every time you turn on the card, in the Remember my PIN section, select the Remember my PIN check box. 6. In the Change my PIN section, click Change PIN . In the Change PIN dialog box, type your PIN, confirm it, and click OK . 7. Click OK to close the PIN Settings dialog box. 8. To close the Intel PROSet dialog box, click OK . Page 2 of 2Safety Guidelines 23/01/2003file://C:\Documents%20and%20Settings\so\Local%20Settings\Temp\~hh91A5.htm Connections overview Use the Connections tab to: zTurn on your PC Card power, which connects you to your network service provider (similar to turning on your mobile phone). Once you are connected to the network, you can make and receive voice calls, send and receive text messages, and connect to the Internet. zTurn off your PC Card power when you want to disconnect from your network service provider. At times you may be required to turn off the PC Card power (stop transmitting radio signals), for example, when traveling by airplane. However, most of the time you can leave your PC Card power on (just like your mobile phone) so you can quickly connect to the Internet, send and receive text messages, and make and receive phone calls. When your computer goes into a standby state, your GPRS PC Card will automatically turn off its power; the GPRS PC Card will turn on its power again when the computer "wakes up". zConnect to the Internet (establish a data connection) at speeds up to 53.6 Kbps. Once you insert the PC Card into your computer and connect to your network service provider, you can establish a data connection. The data connection works just like a typical dial-up modem connection, but the connection is wireless. You can connect to the Internet or to your workplace . Once you are connected, use your regular software to take advantage of your connection. For example, use your Internet browser to surf the Web or your email application to send email. zTrack the number of bytes you have transmitted and received over a certain period of time. This information is useful if your service plan permits you to send a certain number of bytes and you want to track your Internet usage for billing purposes. See also : Connect to the network Disconnect from the network Connect to the Inte…

Text truncated - open the document above for the full version.

Cover Letter(s)

Intel Corporation List of Exhibits FCC ID: PUKIG3110 Page 1 of 1 Intel Corporation LIST OF EXHIBITS EXHIBIT 47 CFR §§ CONTENTS 1: 2.1033(a) & (c) General Information for Certification 2: 2.1033(c)(3)/24.52 User’s Manual 3: 2.1033(c)(8) DC Voltages Applied to and Currents into Final Amplifying Device *4: 2.1033(c)(9) Tune-up Procedure *5: 2.1033(c)(10) Block and Schematic Diagrams 6: 2.1033(c)(10) Means for Determining and Stabilizing Frequency, Suppression of Spurious Radiation, Limiting Modulation, and Limiting Power 7: 2.1033(c)(11) FCC Labeling Information 8: 2.1033(c)(13) Detailed Description of Modulation System * = Exhibit filed confidentially with the FCC Intel Corporation Exhibit 1 FCC ID: PUKIG3110 Page 1 of 5 Intel Corporation EXHIBIT 1 GENERAL INFORMATION FOR CERTIFICATION The information provided in this exhibit is submitted in response to the requirements of § 2.1033 Application for a certification grant of equipment authorization. General Description of Equipment (Informative) NAME: Intel ® PRO/Wireless GPRS 3110 PC Card MODEL: IG3110 FCC ID: PUKIG3110 MANUFACTURER: Intel Corporation Intel Communications Group, Mobile Communications Division The PUKIG3110 is an RF transceiver in a PC Card form factor which operates under the authority of Part 24, Subpart E--Broadband PCS--of the FCC Rules and Regulations. Furthermore, the PUKIG3110 complies with all applicable national and international GSM standards including, for example, J-STD-007, PCS Air Interface Specification (PCS-1900), and the current family of ETSI (European Telecommunications Standards Institute) standards for GSM 900/1800/1900 MHz Phase 2+ GSM/GPRS terminals. As a wireless data terminal, the PUKIG3110 provides notebook computer users access to the Global System for Mobility, or GSM, network, and ultimately the Public Switched Telephone Network (PSTN) and the internet. Both circuit-switched (traditional GSM) and packet-switched (GSM Packet Radio Services, or GPRS) connectivity is afforded by the PUKIG3110, enabling a variety of mobile voice (using a headset) and wireless data applications including internet access for email and file transfers, GSM short-message service (SMS), and web browsing. The PUKIG3110 is an extended Type II PC Card and is supplied with both a removable RF antenna (utilizing a unique RF connector) and an audio headset. Operating power (3.3 VDC) is provided by the host notebook PC (IBM-compatible); communication with the host is via dual-serial ports for AT commands and user data. Host drivers and bundled applications (provide a variety of phone and data functionality) are provided for various Windows operating systems, including XP and 2000. Section 2.1033(a) Application for certification A completed FCC Form 731 “Application for Equipment Authorization” accompanies this document, both of which have been filed electronically. Intel Corporation Exhibit 1 FCC ID: PUKIG3110 Page 2 of 5 Intel Corporation Section 2.1033(c)(1) Name of Applicant Applicant: Intel Corporation 1357 Garden of the Gods Road Colorado Springs, CO 80907 Manufacturer: Jabil Circuit Sdn Bhd Plot 50 Bayan Lepas Industrial Zone Phase 4, 11900 Bayan Lepas Penang, MALAYSIA Jabil is a contract manufacturer and will be the final manufacturer of the equipment described in this application. Section 2.1033(c)(2) Equipment Identification and FCC Identifier Product Name: PRO/Wireless GPRS 3110 PC Card Model Number: IG3110 FCC ID: PUKIG3110 Section 2.1033(c)(3) User Documentation Refer to Exhibit 2. Included is a statement affirming that the PUKIG3110 complies with current FCC requirements addressing human exposure to radiofrequency radiation, pursuant to the requirements of § 24.52. Section 2.1033(c)(4) Type of Emission (Emissions Designator) Emissions Designator: 250KGXW The maximum measured occupied bandwidth of the signal transmitted by PUKIG3110 is 250 kHz and thus the sequence 250K was chosen as the first four characters of the emissions designator. The emissions classification of GXW was determined using the guidance presented in § 2.201. The PUKIG3110 transmits a Gaussian Minimal Shift Keying (GMSK) modulated carrier, a type of phase modulation. Per § 2.201(c), the first symbol of the emission classification, type of modulation of the main carrier, is therefore G. The second symbol describes the nature of the signal modulating the main carrier. In the PUKIG3110, a digital signal representing sampled, quantized voice or other audio information, or subscriber and control data, is used to modulate the main carrier. Time Division Multiple Access (TDMA) techniques are used to increase capacity. Per § 2.201(d), the symbol X is appropriate. Information transmitted by the PUKIG3110 is a combination of subscriber and control data. The third symbol of the emissions classification, which describes the type of information to be transmitted, is thus W as listed in § 2.201(e). Intel Corporation Exhibit 1 FCC ID: PUKIG3110 Page 3 of 5 Intel Corporation Section 2.1033(c)(5) Frequency Range The PUKIG3110 operates within the combined 1850–1910 MHz and 1930–1990 MHz frequency bands under the authority of Part 24, Subpart E—Broadband PCS. By established convention, broadband PCS terminals transmit in the lower and receive in the upper of the broadband PCS frequency block pairs defined in § 24.229. These blocks and the corresponding PUKIG3110 transmit and receive frequency ranges are listed in Table E1.1. Table E1.1. Broadband PCS blocks / PUKIG3110 frequencies of operation. PCS Block Transmit Frequency Range Receive Frequency Range A 1850 – 1865 MHz 1930 – 1945 MHz B 1870 – 1885 MHz 1950 – 1965 MHz C 1895 – 1910 MHz 1975 – 1990 MHz D 1865 – 1870 MHz 1945 – 1950 MHz E 1885 – 1890 MHz 1965 – 1970 MHz F 1890 – 1895 MHz 1970 – 1975 MHz Although the PUKIG3110 can operate in the GSM 900, DCS 1800 and PCS 1900 MHz frequency bands, it will only function when a valid GSM network is physically present, and then only under the control of the network. Because …

Text truncated - open the document above for the full version.

Cover Letter(s)

Intel Corporation 1357 Garden of the Gods Road Colorado Springs, CO 80907 An Equal Opportunity Employer 04 November 2002 Radio Frequency Investigation Ltd. ATTN: Nick Cobb, FCC Telecommunications Certification Body Ewhurst Park, Ramsdell, Basingstoke Hampshire RG26 5RQ ENGLAND RE: FCC ID: PUKIG3110 Certification Application and Confidentiality Request Dear Nick, In fulfillment of the requirements to obtain a CERTIFICATION grant of equipment authorization for equipment operating under 47 CFR Part 24, Subpart E--Broadband PCS, Intel Corporation, Internet Communications Group, Mobile Communications Division (Intel ICG / MCD) respectfully submits for your consideration the attached documentation for FCC ID: PUKIG3110. Included in this package are the documentation and technical information required by 47 CFR Part 2, Subpart J--Equipment Authorization Procedures, Section 2.1033 Application for Certification. Pursuant to Section 0.459 of the Federal Communications Commission's Rules, Intel Corporation respectfully requests confidentiality for the following exhibits and that they are withheld from public inspection at the conclusion of the authorization process: Exhibit 4 Tune-Up Procedure Exhibit 5 Block Diagram and Schematic Diagrams These exhibits contain material considered to be trade secrets of Intel Corporation and, as considerable effort has been expended in the development of this product, it is imperative that our competitors do not receive an unfair advantage in the marketplace at our expense. Should you require any further or additional information to process this application, please do not hesitate to contact me directly. I can be reached by any of the following means: Desk: +1 (719) 884 2751 Mobile: +1 (719) 351 7682 Fax: +1 (719) 884-2402 email: [email protected] Sincerely, /JAMES YOUNGMAN/ James Youngman FTA and Regulatory Activities Technical Lead

ID Label/Location Info

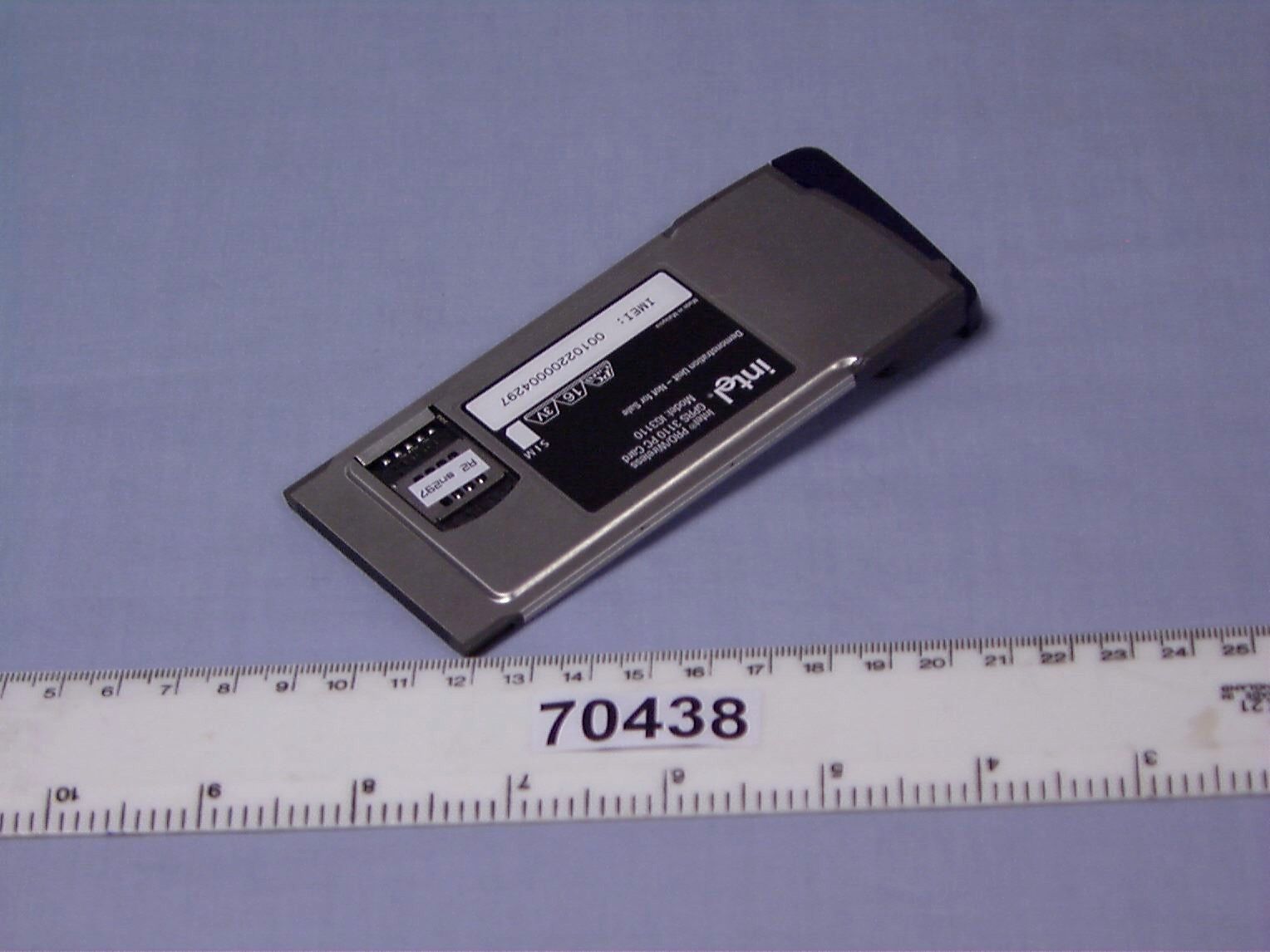

Intel Corporation Exhibit 7 FCC ID: PUKIG3110 Page 1 of 1 Intel Corporation EXHIBIT 7 FCC LABELING INFORMATION As required by § 2.1033(c)(11), this exhibit details the FCC Identifier label and its placement on the PUKIG3110. A drawing representative of the actual FCC Identifier is shown in Figure E7.1; this identifier will be printed on the prototype label as shown in Figure E7.2. The label itself will be affixed to the back side of the PUKIG3110 PC Card. Figure E7.1 PUKGEM3110 FCC Identifier. Figure E7.2. Sample PUKIG3110 label. FCCID: PUKIG3110

Parts List/Tune Up Info

textdata INTEL CONFIDENTIAL SPEED INDENTED SINGLE-LEVEL BILL OF MATE R -------------------------------------------------------------------------------------------------------- TYPE LINE ITEM RV ITEM DESCRIPTION STATUS ECO # NIC C12491-005 01 PBA,NIC,RTL,WLS,MINTURN,B PRELIMINARY 602099 -------------------------------------------------------------------------------------------------------- Find Item Component Item Description QTY QTY U CMP Item NO TYPE Item Number RV TYP M TYP Status RD ==== ==== =============== == ======================================== = ========= 000 000000 00 Notes: DO NOT INSTALL (DNI): C6,C8,C14,C15,C16,C17,C18,C28,C29,C93,C106,C116, C234,C244,C253,C256,C257,C265,C272,C290,C292,C298, C299,C306,C308,C309,C319,D3,D4,E4,E204,J1,Q5,R42,R46, R49,R51,R53,R56,R57,R58,R59,R60,R61,R64,R66,R67,R68, R69,R70,R91,R98,R128,R134,R157,R159,R167,R218,R227, R228,R246,R279,R280,R292,R343,TP1,U6 100 MCD_ 00300304-00 04 CAP,CERAMIC,0.01uF,+/-10%,16V, X7R,0402> 1 4.0000 EA 1 ACQ C12 C31 C32 C73 100 CERA A36096-008 01 CAPC,X7R,0402,0.010 UF,25.000V,+/- 10% 1 4.0000 EA 3 PRODN _ C12 C31 C32 C73 101 MCD_ 00300349-00 01 CAP,CERAMIC,0.022uF,+/-10%,16V ,X7R,040> 1 7.0000 EA 1 ACQ C291 C294 C295 C302 C303 C304 C307 101 CERA A36096-020 01 CAPC,X7R,0402,0.022 UF,16.000V,+/- 10% 1 7.0000 EA 3 PRODN _ C291 C294 C295 C302 C303 C304 C307 102 MCD_ 00300296-00 04 CAP,CERAMIC,0.033uF,+/-10%,16V ,X7R,040> 1 1.0000 EA 1 ACQ C7 102 CERA A36096-019 01 CAPC,X7R,0402,0.033 UF,16.000V,+/- 10% 1 1.0000 EA 3 PRODN _ C7 103 MCD_ 00300281-00 02 CAP,CERAMIC,0.047uF,+/-10%,16V ,X7R,060> 1 1.0000 EA 1 ACQ C119 103 CERA 602433-001 01 CAPC,X7R,0603,0.047 UF,16.000V,+/- 10% 1 1.0000 EA 3 PRODN _ C119 104 MCD_ 00300002-00 04 CAP,CERAMIC,0.1uF,+/-10%,16V,X 7R,0603 1 46.0000 EA 1 ACQ U C26 C38 C41 C42 C51 C53 C54 C61 C67 C69 C86 C112 C206 C207 C208 C209 C211 C213 C214 C216 C217 C219 C221 C223 C231 C232 C233 C236 C237 C238 C239 C241 C242 C243 C246 C247 C248 C249 C250 C252 C254 C262 C271 C273 C274 C275 104 CERA 602433-002 01 CAPC,X7R,0603,0.100 UF,16.000V,+/- 10% 1 46.0000 EA 3 PROD N C26 C38 C41 C42 C51 C53 C54 C61 C67 C69 C86 C112 C206 C207 C208 C209 C211 C213 C214 C216 C217 C219 C221 C223 C231 C232 C233 C236 C237 C238 C239 C241 C242 C243 C246 C247 C248 C249 C250 C252 C254 C262 C271 C273 C274 C275 105 MCD_ 00300280-00 02 CAP,CERAMIC,0.22uF,+80/-20%,16 V,Y5V,06> 1 2.0000 EA 1 ACQU C117 C218 105 CERA 202341-009 01 CAPC,Y5V,0603,0.220 UF,16.000V,+80/-20%> 1 2.0000 EA 3 PROD N C117 C218 106 MCD_ 00300397-00 01 CAP,CERAMIC,1.2pF,+/-0.25pF,50 V,NPO,04> 1 2.0000 EA 1 ACQ U C283 C284 106 CERA A36094-004 01 CAPC,C0G,0402,1.200 PF,50.000V,+/- 0.25> 1 2.0000 EA 3 PRODN _ C283 C284 107 MCD_ 00300394-00 01 CAP,CERAMIC,1.8pF,+/-0.25pF,50 V,NPO,04> 1 2.0000 EA 1 ACQ U C281 C282 107 CERA A36094-010 01 CAPC,C0G,0402,1.800 PF,50.000V,+/- 0.25> 1 2.0000 EA 3 PRODN _ C281 C282 108 MCD_ 00300311-00 04 CAP,CERAMIC,1000pF,+/-10%,25V, X7R,0402> 1 6.0000 EA 1 AC Q C9 C43 C89 C107 C108 C124 108 CERA A36096-004 01 CAPC,X7R,0402,1000.000 PF,50.000V,+/- 1> 1 6.0000 EA 3 PROD N C9 C43 C89 C107 C108 C124 109 MCD_ 00300320-00 04 CAP,CERAMIC,100pF,+/-5%,25V,NP O,0402 1 6.0000 EA 1 ACQ U C46 C68 C91 C264 C297 C301 109 CERA A36095-012 01 CAPC,C0G,0402,100.000 PF,50.000V,+/- 5%> 1 6.0000 EA 3 PROD N C46 C68 C91 C264 C297 C301 111 MCD_ 00300387-00 01 CAP,CERAMIC,10uF,+/-20%,6.3V,X 5R,0805 1 2.0000 EA 1 ACQ U C62 C109 111 CERA 644066-019 01 CAPC,X5R,0805,10.000 UF,6.300V,+/- 20% 1 2.0000 EA 3 CONDI T C62 C109 112 MCD_ 00300350-00 02 CAP,CERAMIC,1pF,+/-0.25pF,50V, C0G,0402> 1 4.0000 EA 1 ACQ U C98 C100 C286 C287 112 CERA C13464-001 01 CAPC,C0G,0402,1.000 PF,50.000V,+/- 0.25> 1 4.0000 EA 3 CONDI T C98 C100 C286 C287 113 MCD_ 00300343-00 01 CAP,CERAMIC,2.2pF,+/-0.25pF,50 V,NPO,04> 1 1.0000 EA 1 ACQ U C321 113 CERA C13464-004 01 CAPC,C0G,0402,2.200 PF,50.000V,+/- 0.25> 1 1.0000 EA 3 CONDI T C321 114 MCD_ 00300347-00 02 CAP,CERAMIC,2.2uF,+/-10%,6.3V, X5R,0805> 1 10.0000 EA 1 ACQ C11 C13 C27 C36 C37 C63 C64 C113 C118 C224 114 CERA 644066-011 01 CAPC,X5R,0805,2.200 UF,6.300V,+/- 10% 1 10.0000 EA 3 PRODN _ C11 C13 C27 C36 C37 C63 C64 C113 C118 C224 115 MCD_ 00300314-00 04 CAP,CERAMIC,22pF,+/-5%,25V,NPO ,0402 1 1.0000 EA 1 ACQU C44 115 CERA A36095-006 01 CAPC,C0G,0402,22.000 PF,50.000V,+/- 5% 1 1.0000 EA 3 PRODN _ C44 116 MCD_ 00300298-00 04 CAP,CERAMIC,33pF,+/-5%,25V,NPO ,0402 1 10.0000 EA 1 ACQ U C81 C82 C83 C84 C88 C96 C99 C111 C316 C318 116 CERA A36095-008 01 CAPC,C0G,0402,33.000 PF,50.000V,+/- 5% 1 10.0000 EA 3 PROD N C81 C82 C83 C84 C88 C96 C99 C111 C316 C318 117 MCD_ 00300267-00 02 CAP,CERAMIC,4700pF,+/-10%,50V, X7R,0603> 1 1.0000 EA 1 AC Q C121 117 CERA 603269-016 01 CAPC,X7R,0603,4700.000 PF,50.000V,+/- 1> 1 1.0000 EA 3 PRODN C121 118 MCD_ 00300323-00 04 CAP,CERAMIC,68pF,+/-5,25V,NPO, 0402 1 7.0000 EA 1 ACQUI S C87 C94 C95 C97 C263 C322 C323 118 CERA A36095-011 01 CAPC,C0G,0402,68.000 PF,50.000V,+/- 5% 1 7.0000 EA 3 PRODN _ C87 C94 C95 C97 C263 C322 C323 120 MCD_ 00300348-00 02 CAP,TANTALUM,10uF,+/-10%,10V,3 216 1 7.0000 EA 1 ACQUI S C39 C50 C52 C56 C66 C72 C123 120 TANT 202244-039 01 CAPT,A,10.000 UF,10.000V,+/- 10% 1 7.0000 EA 3 PRODN_AP P C39 C50 C52 C56 C66 C72 C123 121 FILM A98527-002 01 CAPF,FILM,7045,0.550 F,2.300V,+/- 20% 1 2.0000 EA 1 UN QUAL C74 C311 200 MCD_ 00100357-00 04 RES,THK FILM,0.0,1/16W,0402 1 30.0000 EA 1 ACQUISITIO R95 R117 R129 R135 R141 R231 R258 R259 R261 R266 R268 R269 R270 R276 R278 R293 R311 R312 R313 R314 R315 R317 R318 R319 R320 R322 R323 R324 R325 R338 200 RESI A36093-001 02 RES D,0402,0.00 OHM,5.00%,1/16W 1 30.0000 EA 3 PRODN_A R95 R117 R129 R135 R141 R231 R258 R259 R261 R266 R268 R269 R270 R276 R278 R293 R311 R312 R313 R314 R315 R317 R318 R319 R320 R322 R323 R324 R325 R338 201 MCD_ 00100368-00 02 RES,THK FILM,10,+/-5%,1/16W,04 02 1 12.0000 EA 1 ACQUISI T R93 R109 R132 R139 R256 R281 R286 R287 R306 R327 R336 R339 201 RESI A36093-002 02 RES D,0402,10.00 OHM,5.00%,1/16W 1 12.0000 EA 3 PRODN_ A R93 R109 R132 R139 R256 R281 R286 R2…

Text truncated - open the document above for the full version.

Parts List/Tune Up Info

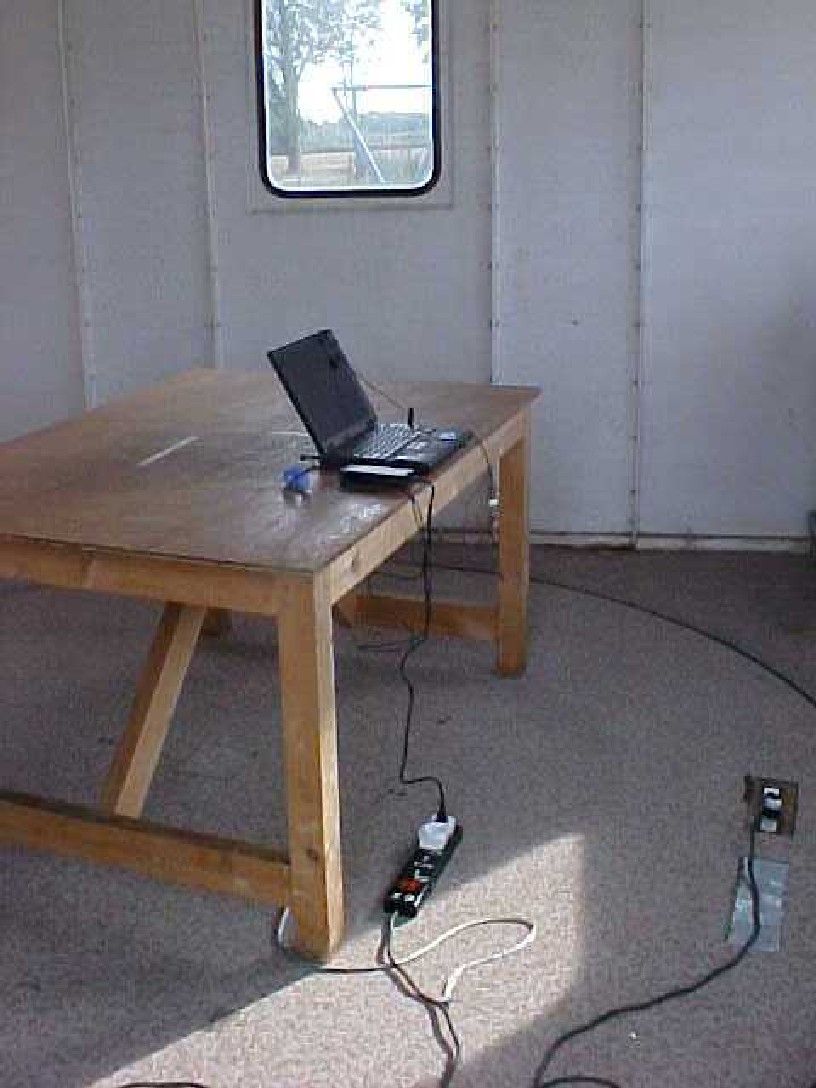

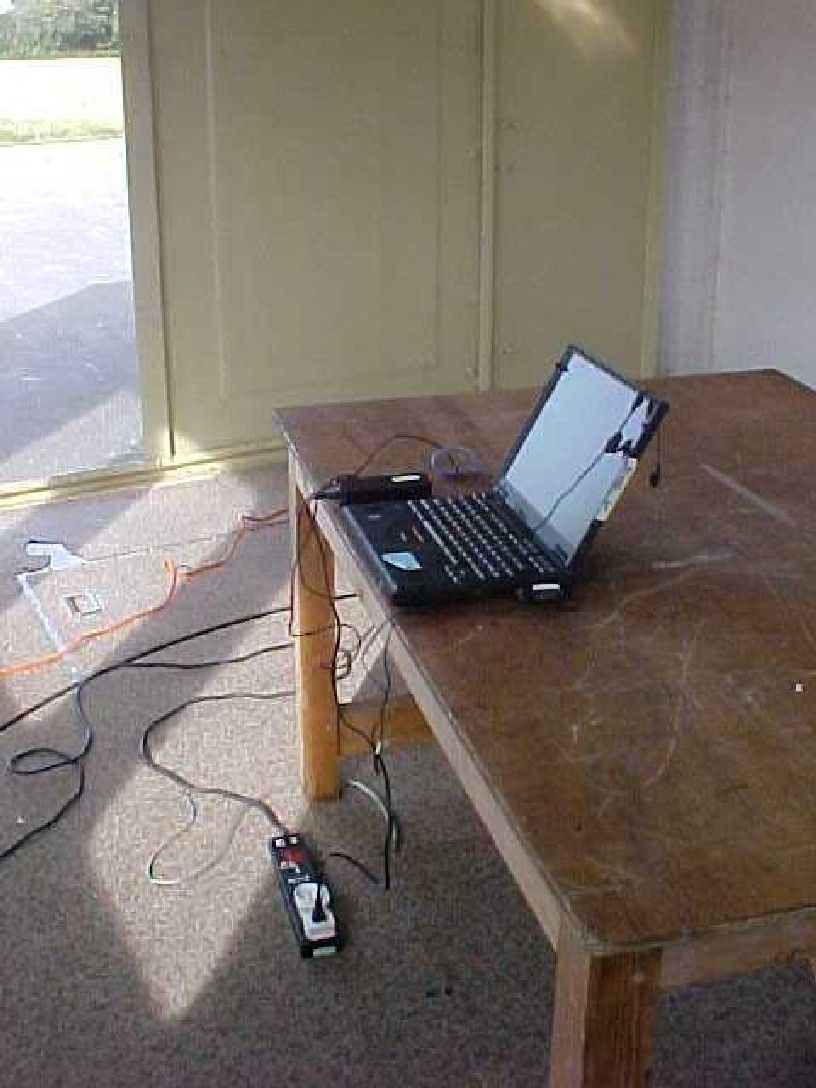

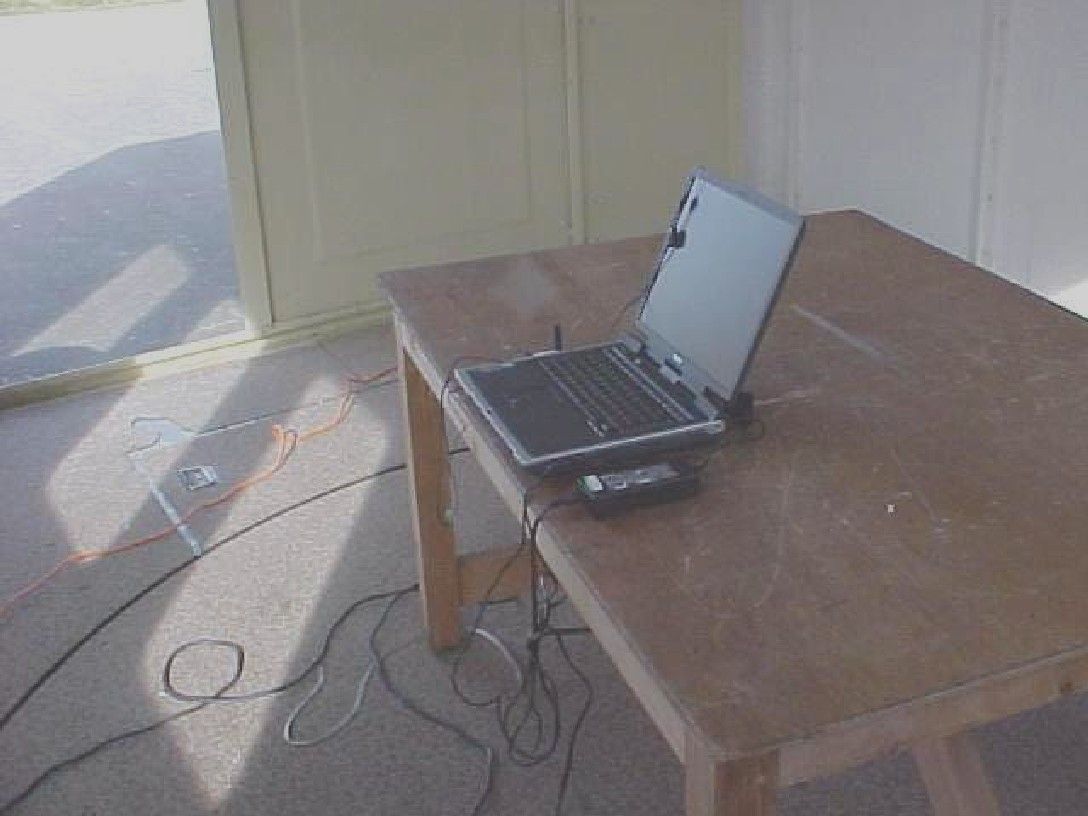

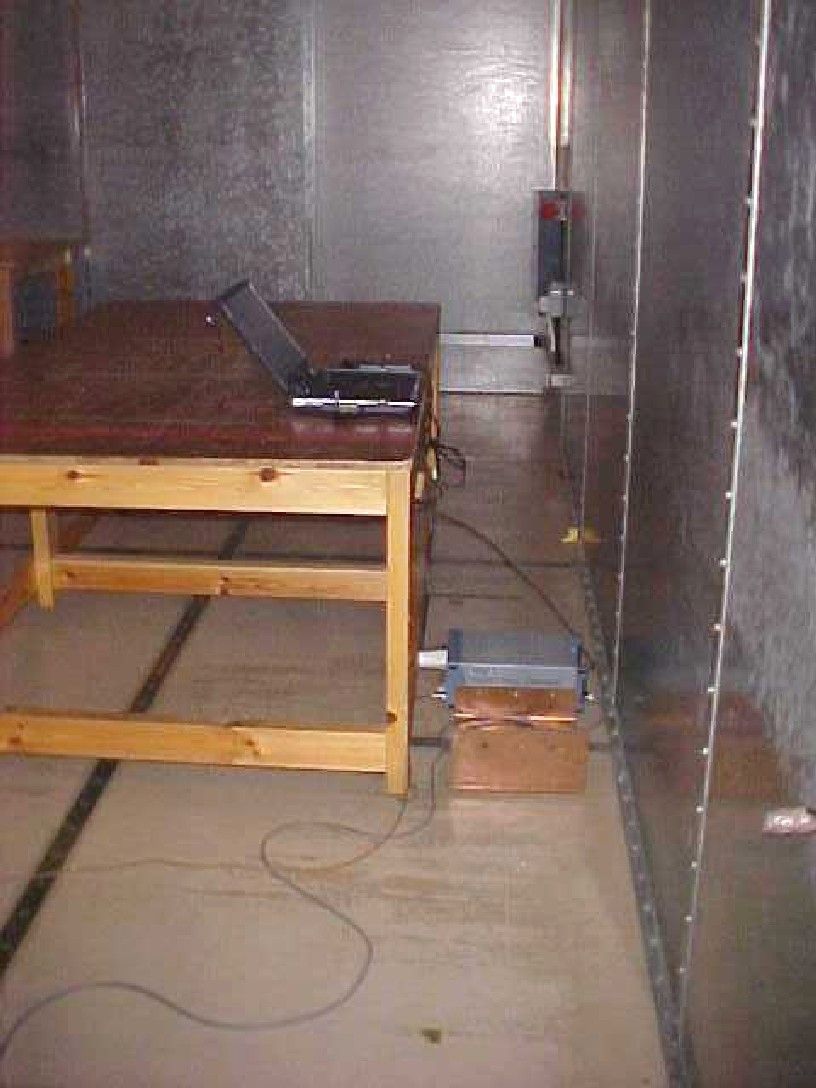

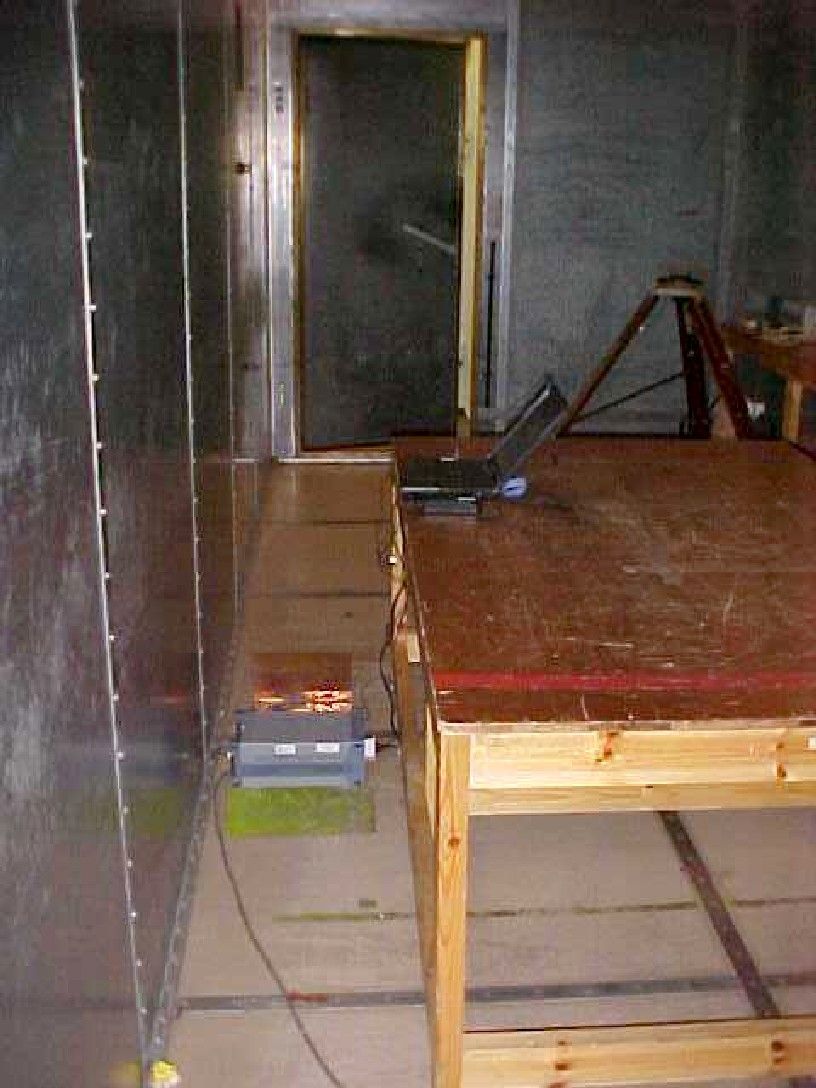

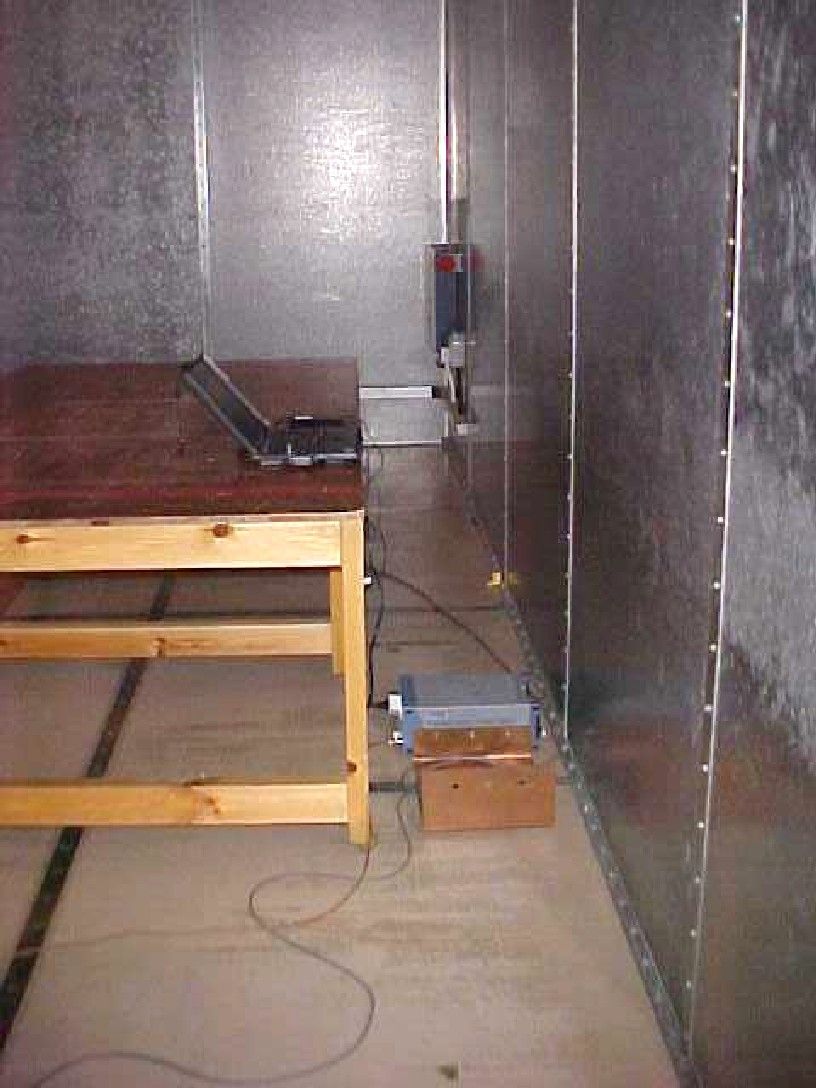

RF Exposure Info

Radio Frequency Investigation Ltd, Ewhurst Park, Ramsdell, Basingstoke, Hampshire, RG26 5RQ, ENGLAND. Tel: +44 (0) 1256 851193 Fax: +44 (0) 1256 851192 Registered in England, No. 211 7901. Registered Office: Ewhurst Park, Ramsdell, Basingstoke, Hampshire RG26 5RQ SAR DISTRIBUTION SCANS FOR RFI TEST REPORT SERIAL NO: RFI/SARB2/RP70438JD10A Test Of: Intel Corporation. Pro/Wireless GPRS 3110 PC Card To: OET Bulletin 65 Supplement C: (2001-01) RADIO FREQUENCY INVESTIGATION LTD. Distribution Scans S.No. RFI/SARB2/RP70438JD01A Operations Department Issue Date: 22 january 2003 Test Of: Intel Corporation. Pro/Wireless GPRS 3110 PC Card To: OET Bulletin 65 Supplement C: (2001-01) Distribution Scans This section contains the SAR Distribution Scans GPRS 2 Slot Uplink Body Position 0 Degrees to Phantom with Antenna Down Centre Channel (660) SAM Phantom; Flat Probe: ET3DV6 - SN1529; ConvF(4.70,4.70,4.70); Crest factor: 4.0; Body 1900MHz FCC: σ = 1.60 mho/m ε r = 54.1 ρ = 1.00 g/cm 3 Lab Temperature 21.5 deg C, Fluid Temperature 19.8 deg C SAR Drift 7.0% 10/11/02 SAR Tot [mW/g] 8.94E-2 1.79E-1 2.68E-1 3.58E-1 4.47E-1 5.36E-1 6.26E-1 7.15E-1 8.05E-1 8.94E-1 Radio Frequency Investigation Limited GPRS 2 Slot Uplink Body Position 0 Degrees to Phantom with Antenna Down Centre Channel (660) SAM Phantom; Flat Probe: ET3DV6 - SN1529; ConvF(4.70,4.70,4.70); Crest factor: 4.0; Body 1900MHz FCC: σ = 1.60 mho/m ε r = 54.1 ρ = 1.00 g/cm 3 Peak: 1.53 mW/g,SAR (1g): 0.826 mW/g Lab Temperature 21.5 deg C, Fluid Temperature 19.8 deg C SAR Drift 7.0% 10/11/02 SAR Tot [mW/g] 1.50E-1 3.00E-1 4.50E-1 6.00E-1 7.50E-1 9.00E-1 1.05E+0 1.20E+0 1.35E+0 1.50E+0 Radio Frequency Investigation Limited GPRS 2 Slot Uplink Body Position 0 Degrees to Phantom with Antenna Up Centre Channel (660) SAM Phantom; Flat Probe: ET3DV6 - SN1529; ConvF(4.70,4.70,4.70); Crest factor: 4.0; Body 1900MHz FCC: σ = 1.60 mho/m ε r = 54.1 ρ = 1.00 g/cm 3 Lab Temperature 21.5 deg C, Fluid Temperature 19.8 deg C SAR Drift 1.3% 10/11/02 SAR Tot [mW/g] 6.30E-2 1.26E-1 1.89E-1 2.52E-1 3.15E-1 3.78E-1 4.41E-1 5.04E-1 5.67E-1 6.30E-1 Radio Frequency Investigation Limited GPRS 2 Slot Uplink Body Position 0 Degrees to Phantom with Antenna Up Centre Channel (660) SAM Phantom; Flat Probe: ET3DV6 - SN1529; ConvF(4.70,4.70,4.70); Crest factor: 4.0; Body 1900MHz FCC: σ = 1.60 mho/m ε r = 54.1 ρ = 1.00 g/cm 3 Peak: 1.10 mW/g,SAR (1g): 0.613 mW/g Lab Temperature 21.5 deg C, Fluid Temperature 19.8 deg C SAR Drift 1.3% 10/11/02 SAR Tot [mW/g] 1.10E-1 2.20E-1 3.29E-1 4.39E-1 5.49E-1 6.59E-1 7.69E-1 8.78E-1 9.88E-1 1.10E+0 Radio Frequency Investigation Limited GPRS 2 Slot Uplink Body Position 90 Degrees to Phantom with Antenna Down Centre Channel (660) SAM Phantom; Flat Probe: ET3DV6 - SN1529; ConvF(4.70,4.70,4.70); Crest factor: 4.0; Body 1900MHz FCC: σ = 1.60 mho/m ε r = 54.1 ρ = 1.00 g/cm 3 Lab Temperature 21.5 deg C, Fluid Temperature 19.8 deg C SAR Drift 0.9% 10/11/02 SAR Tot [mW/g] 4.89E-2 9.78E-2 1.47E-1 1.96E-1 2.45E-1 2.93E-1 3.42E-1 3.91E-1 4.40E-1 4.89E-1 Radio Frequency Investigation Limited GPRS 2 Slot Uplink Body Position 90 Degrees to Phantom with Antenna Down Centre Channel (660) SAM Phantom; Flat Probe: ET3DV6 - SN1529; ConvF(4.70,4.70,4.70); Crest factor: 4.0; Body 1900MHz FCC: σ = 1.60 mho/m ε r = 54.1 ρ = 1.00 g/cm 3 Peak: 0.917 mW/g,SAR (1g): 0.520 mW/g Lab Temperature 21.5 deg C, Fluid Temperature 19.8 deg C SAR Drift 0.9% 10/11/02 SAR Tot [mW/g] 9.12E-2 1.82E-1 2.74E-1 3.65E-1 4.56E-1 5.47E-1 6.38E-1 7.30E-1 8.21E-1 9.12E-1 Radio Frequency Investigation Limited GPRS 2 Slot Uplink Body Position 90 Degrees to Phantom with Antenna Up Centre Channel (660) SAM Phantom; Flat Probe: ET3DV6 - SN1529; ConvF(4.70,4.70,4.70); Crest factor: 4.0; Body 1900MHz FCC: σ = 1.60 mho/m ε r = 54.1 ρ = 1.00 g/cm 3 Lab Temperature 21.5 deg C, Fluid Temperature 19.8 deg C SAR Drift 0.6% 10/11/02 SAR Tot [mW/g] 4.77E-2 9.54E-2 1.43E-1 1.91E-1 2.39E-1 2.86E-1 3.34E-1 3.82E-1 4.29E-1 4.77E-1 Radio Frequency Investigation Limited GPRS 2 Slot Uplink Body Position 90 Degrees to Phantom with Antenna Up Channel (660) SAM Phantom; Flat Probe: ET3DV6 - SN1529; ConvF(4.70,4.70,4.70); Crest factor: 4.0; Body 1900MHz FCC: σ = 1.60 mho/m ε r = 54.1 ρ = 1.00 g/cm 3 Peak: 0.731 mW/g,SAR (1g): 0.424 mW/g Lab Temperature 21.5 deg C, Fluid Temperature 19.8 deg C SAR Drift 0.6% 10/11/02 SAR Tot [mW/g] 7.26E-2 1.45E-1 2.18E-1 2.90E-1 3.63E-1 4.36E-1 5.08E-1 5.81E-1 6.53E-1 7.26E-1 Radio Frequency Investigation Limited GPRS 2 Slot Uplink Body Position 0 Degrees to Phantom with Antenna Down Bottom Channel (512) SAM Phantom; Flat Probe: ET3DV6 - SN1529; ConvF(4.70,4.70,4.70); Crest factor: 4.0; Body 1900MHz FCC: σ = 1.60 mho/m ε r = 54.1 ρ = 1.00 g/cm 3 Lab Temperature 21.5 deg C, Fluid Temperature 19.8 deg C SAR Drift 5.1% 10/11/02 SAR Tot [mW/g] 1.00E-1 2.00E-1 3.00E-1 4.00E-1 5.01E-1 6.01E-1 7.01E-1 8.01E-1 9.01E-1 1.00E+0 Radio Frequency Investigation Limited GPRS 2 Slot Uplink Body Position 0 Degrees to Phantom with Antenna Down Bottom Channel (512) SAM Phantom; Flat Probe: ET3DV6 - SN1529; ConvF(4.70,4.70,4.70); Crest factor: 4.0; Body 1900MHz FCC: σ = 1.60 mho/m ε r = 54.1 ρ = 1.00 g/cm 3 Peak: 1.79 mW/g,SAR (1g): 0.980 mW/g Lab Temperature 21.5 deg C, Fluid Temperature 19.8 deg C SAR Drift 5.1% 10/11/02 SAR Tot [mW/g] 1.79E-1 3.58E-1 5.37E-1 7.16E-1 8.95E-1 1.07E+0 1.25E+0 1.43E+0 1.61E+0 1.79E+0 Radio Frequency Investigation Limited GPRS 2 Slot Uplink Body Position 0 Degrees to Phantom with Antenna Down Top Channel (810) SAM Phantom; Flat Probe: ET3DV6 - SN1529; ConvF(4.70,4.70,4.70); Crest factor: 4.0; Body 1900MHz FCC: σ = 1.60 mho/m ε r = 54.1 ρ = 1.00 g/cm 3 Lab Temperature 21.5 deg C, Fluid Temperature 19.8 deg C SAR Dri…

Text truncated - open the document above for the full version.

Contact Information

Applicant

James A Youngman(Staff Engineer, Regulatory & Compliance)

[email protected]719-548-1200Fax: 719-548-1393

Technical Contact

Intel CorporationJames A Youngman

[email protected]719 884 2751

1357 Garden of the Gods Road · Colorado Springs, Colorado · United States

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
1	24E	1.85 GHz - 1.91 GHz	790.00 mW	298KGXW	1.0000000000 ppm

Confidentiality

Long Term

Grant Notes

Maximum measured conducted power is 28.6 dBm, Maximum measured EIRP power is 26.8 dBm. SAR compliance has been established in the laptop computers with PCMCIA slot configurations on the rear left hand side as tested in this filing, and can be used in laptop computers with substantially similar physical dimensions, construction, and electrical and RF characteristics. Compliance of this device in all the final host configurations is the responsibility of the Grantee. End users must be provided with specific information required to satisfy RF exposure compliance for all final host devices. This device contains 900/1800 MHz GSM functions that are not operational in US Territories. This filing is only applicable for 1900 MHz PCS operations. The highest reported SAR value was 1.3 W/kg at an integral antenna distance to the body of 10mm.
