PUSKP900XTPager

{Doc} 1 KP900XT A 11 Wednesday , August 29, 2001 Tit leSize Document Number Rev Date: Sheet of VCC FM discriminator DC Power ALARM SIG OUT LPF BS Q/C 1.5V SIG INBSQCGNDALARM GND MOTOR VC1 2'nd local oscillator ANTENNA Main C h X-Tal VC2 MMOTOR . . . . . . .. . LNA BPF1 1'stMixer BPF2 IFAMP POCSAG IF IC Buffer Frequency Multiplier RF BLOCK DIAGRAMANT1 Q1, Q2 SAW1 Q3 MCF Q4 U6 X1 Q7 Connector1 K-Tec.co {Doc} 1 KP900XT A 11 Wednesday , August 08, 2001 Tit leSize Document Number Rev Date: Sheet of VCC VCC 3V VCC 3V 1.5V SIG INBSQCGNDALARM GND MOTOR BATTERY Main 1MH z Sub 76.8KHz LAMP AUDIO SW PUSHBUTTON MMOTOR . . . . . . . LCD CPU DC Voltage Detector DC/DC Converter Mode Button SW2Read Button SW1 EEPROM AF BLOCK DIAGRAM U1 U2 U4 Connector1 U3 K-Tec.co

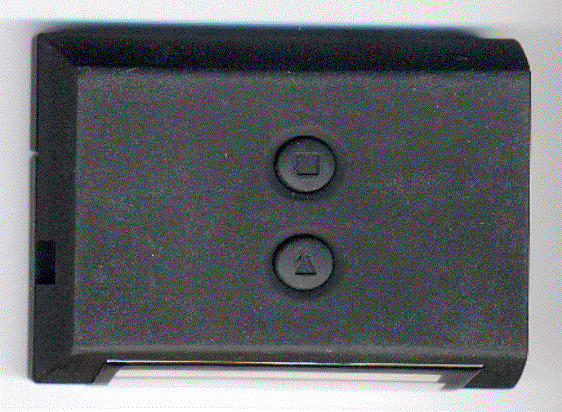

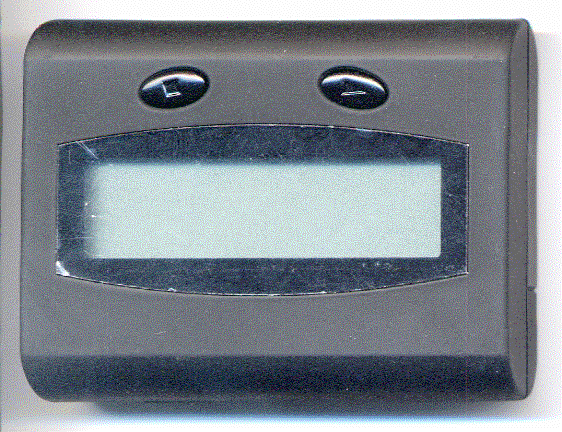

External Photos

ID Label

Internal Photos

KTL Korea Testing Laboratory Page 1 of 10 TEST REPORT This test report only responds to the tested sample and shall not be reproduced except in full without written approval of the Korea Testing Laboratory. Tested and reported by Reviewed by Jeong-Min Kim , Senior Engineer Won-Seo Cho , EMC Team Leader KOREA TESTING LABORATORY FG101-01-02-00 222-13, Guro-Dong Guro-Gu Seoul Korea 152-053 http://www.ktl.re.kr Ref. Report No. 01-341-046 Name and address of the applicant K-TEC Co., Ltd. 115Bl. 9Lt. Namdong Industrial Complex, 685-8, Gojan-dong, Namdong-ku, Inchon, 405-310, Korea Standard / Test regulation FCC Part 15, Subpart B Test result Pass Incoming date : September 13, 2001 Test item( s) ; Communicat ion Re ce ive r (Page r Re ce ive r) Model/type ref. ; KP900XT Manufacturer ; K-TEC Co., Ltd. Additional information ; -Re quire d Aut ho riz atio n : Ce rtificatio n -FCC ID. : PUSKP900XT Test date : September 24, 2001Issue date : September 27, 2001 Ref. Report No. 01-341 - 046 Page 2 of 10 TABLE O F CONTENTS I. GENERAL INFORMATION ............................................................................................................ 3 1. Grantee’s Name and Mailing Address 2. Manufacturer's Name and Mailing Address 3. Equipment Descriptions 4. Rules and Regulations 5. Measuring Procedure 6. Date of Measurement α. GENERAL REQUIREMENTS OF THE EUT .................................................................4 1. Labelling Requirement (Section 15.19) 2. Information to User (Sections 15.21) 3. Special Accessories (Section 15.27) β. RADIATED EMISSION MEASUREMENT (Section 15.109) ...........................................................5-9 1. Test Procedure 2. Photograph for the worst case configuration 3. Sample Calculation 4. Measurement Data χ. TEST EQUIPMENTS USED FOR MEASUREMENT..................................................................10 Ref. Report No. 01-341 - 046 Page 3 of 10 . GENERAL INFORMATION 1. Grantee’s Name and : K-TEC Co., Ltd. Mailing Address 115Bl. 9Lt. Namdong Industrial Complex, 685-8, Gojan-dong, Namdong-ku, Inchon, 405-310, Korea 2. Manufacturer's Name and: K-TEC Co., Ltd. Mailing Address 115Bl. 9Lt. Namdong Industrial Complex, 685-8, Gojan-dong, Namdong-ku, Inchon, 405-310, Korea 3. Equipment Descriptions 3.1 Operating Frequency : 929.0125 MHz ~ 931.9875 MHz 3.2 Detect Method : Superheterodyne Detector 3.3 Local Oscillator: 1st Local Osc. Frequency = Operating Frequency - 21.4 MHz (1st IF) 2nd Local Osc. Frequency = 20.945 MHz (2nd IF : 455 kHz) 3.4 Power Supply : DC 1.5 V (Battery) 4. Rules and Regulations: FCC Part 15, Subpart B 5. Measuring Procedure: ANSI C63.4-1992 6. Date of Measurement 6.1 Line Conducted: Not Applicable 6.2 Radiated Emission : September 10, 2001 Ref. Report No. 01-341 - 046 Page 4 of 10 . GENERAL REQUIREMENTS O F THE EUT 1. Labelling Requirement (Section 15.19) This device complies with Part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. 1.1 Location of Label : User’s Guide Manual 1.2 How Applied : Printing 2. Information to User (Section 15.21) The following or similar statements were provided in the manual for user instruction. Please refer page 15 of the attached manual for details. CA UT ION : A ny c ha nges or modifications i n cons truc tion o f this device w hich are not e xpressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 3. Special Accessories (Section 15.27) 3.1 Were the special Accessories provided? [ ] yes, [ x ] no 3.2 If yes, details for the special accessories are as follows : 3.3 If yes, were the appropriate instructions provided on the first page of the text concerned with the device? [ ] yes, [ ] no 3.4 Are these accessories provided of the type which can be readily obtained from multiple retail outlets ? [ ] yes, [ ] no And therefore does the manual specify what additional components or accessories are required to used in order to comply with the Rules? [ ] yes, [ ] no Ref. Report No. 01-341 - 046 Page 5 of 10 . RADIATED EMISSION MEASUREMENT (Section 15.109) 1. Test Procedure 1.1 Preliminary Testing for Reference This pager receiver (EUT) is designed to operate in the band 929.0125 MHz to 931.9875 MHz by changing a local oscillator’s frequency. According to section 15.31(m), the measurements were performed with three equipments which were selected as bottom, middle, and top frequency in the operating band. Preliminary testing was performed in a KTL absorber-lined room to determine the emission characteristics of the EUT. The EUT was placed on the wooden table which has dimensions of 0.8 meters in height, 1 meter in length and 1.5 meters in width. Receiving antenna (Biconical antenna : 30 to 300 MHz, Log-periodic antenna : 200 to 1000 MHz or Horn Antenna : 1 to 18 GHz) was placed at the distance of 1 meter from the EUT. An attempt was made to maximize the emission level with the various configurations of the EUT while rotating the table and varying antenna height. Emission levels from the EUT with various configurations were examined on a Spectrum Analyzer connected with a RF amplifier and graphed by a plotter. 1.2 Final Radiated Emission Test at an Absorber-Lined Room The final measurement of radiated field strength was carried out in a KTL Absorber-Lined Room that was listed up at FCC according to the "Radiated Emissions Testing" procedure specified by ANSI C63.4. Based on the test results in preliminary test, measurement was made in same test set up and configuration with 3 orthogonal planes which produce maximum emission level. Receiving antenna was installed at 3-meter distance from the EUT, and was connected to an EMI receiver or spectrum analyzer (for above 1GHz) with a RF amplifier. Turntable was rotated through 360 degrees and receiving antenna height was varied from 1 to 4 meters above the ground plane to read maximum emission level. If necessary, the radiated emission me…

Text truncated - open the document above for the full version.

Ref. Report No. 01-341 - 046 Page 6 of 10 2. Photograph for the worst case configuration 3. Sample Calculation The emission level measured in decibels above one microvolt (dB) was converted into microvolt per meter (/m) as shown in following sample calculation. For example : Measured Value at 378.18 MHz 9.4 dB/m + Antenna Factor 15.0 dB + Cable Loss 3.7 dB  Preamplifier 0.0 dB  Distance Correction Factor * 0.0 dB = Radiated Emission 28.1 dB/m ( = 25.4 /m) * Extrapolated from the measured distance to the specified distance by an inverse linear distance extrapolation.
