PV6LF-DISHTXDish IR-RF Remote Control Transmitter

Modifications not authorized by the manufacturer may void users authority to operate this device.

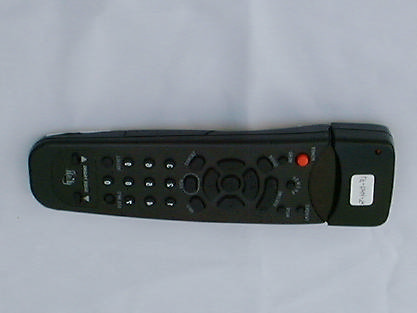

FCC ID: PV6LF-DISHTX PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT

FCC ID: PV6LF-DISHTX LABEL LOCATION BOTTOM VIEW OF THE DEVICE WITH FCC ID LABEL

FCC ID: PV6LF-DISHTX PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

FCC ID: PV6LF-DISHTX Circuit Description The 444MHz transistor oscillator drives the base of Q2 the final/buffer amplifier. The modulation provided by IR controller. The output of Q2 has the matching network consisting of C6 and C3 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source There is no external antenna, antenna build in on PCB. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 12Volt (“A23”) primary storage cell.

Date: 2001-09-08 TEST REPORT Page 1 of 22 No.: HM105684 FCC PART 15 SUBPART C CERTIFICATION REPORT FOR LOW POWER TRANSMITTER TEST REPORT No.:HM105684 Equipment Under Test [EUT]:Dish IR-RF 443MHz Transmitter Model Number:LF-DISH TX Applicant:Terk Technologies Corp. FCC ID :PV6LF-DISHTX Date: 2001-09-08 TEST REPORT Page 2 of 22 No.: HM105684 CONTENT: Cover Page 1 of 22 Content Page 2-3 of 22 Conclusion Page 4 of 22 1.0General Details 1.1Test Laboratory Page 5 of 22 1.2Applicant Details Page 5 of 22 Applicant HKSTC Code Number for Applicant Manufacturer 1.3Equipment Under Test [EUT] Page 6 of 22 Description of EUT operation 1.4Date of Order Page 6 of 22 1.5Submitted Sample Page 6 of 22 1.6Test Duration Page 6 of 22 1.7Country of Origin Page 6 of 22 1.8 Additional Information of EUT Page 7 of 22 2.0Technical Details 2.1Investigations Requested Page 8 of 22 2.2Test Standards and Results Summary Page 8 of 24 3.0Test Results 3.1Emission Page 9-14 of 22 3.2Bandwidth Measurement Page 15-16 of 22 Date: 2001-09-08 TEST REPORT Page 3 of 22 No.: HM105684 Appendix A List of Measurement Equipment Page 17 of 22 Appendix B Duty Cycle Correction During 100 msec Page 18-19 of 22 Appendix C Periodic Operation Page 20 of 22 Appendix D Photographs Page 21-22 of 22 Date: 2001-09-08 TEST REPORT Page 4 of 22 No.: HM105684 CONCLUSION The submitted product was deemed to have COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Law Man KitPatrick Wong Verify byPatrick Wong for Managing Director Date: 2001-09-08 TEST REPORT Page 5 of 22 No.: HM105684 1.0General Details 1.1Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone:852 2666 1888 Fax:852 2664 4353 1.2Applicant Details Applicant TERK TECHNOLOGIES CORP. Terk Technologies Corp. 63 Mall Drive Commack, NY 11725 Telephone:631.543.1900 (ext. 139) Fax:631 543 8088 HKSTC Code Number for ApplicantEWI001 Manufacturer EWIG INDUSTRIES CO., LTD. 13/F., Houtex Ind’l Bldg., 16 Hung To Road, Kwun Tong, Kowloon, Hong Telephone:852 2951 6879 Fax:852 2343 5799 Date: 2001-09-08 TEST REPORT Page 6 of 22 No.: HM105684 1.3Equipment Under Test [EUT] Description of Sample Product:Dish IR-RF 433MHz Transmitter Manufacturer:Ewig Industries Co., Ltd. Brand Name:Terk Technologies Corp. Model Number:LF-DISH TX Input Voltage:12Vd.c. (“A23” size battery x 1) 1.3.1Description of EUT Operation The Equipment Under Test (EUT) is a Terk Technologies Corp., 444.36MHz RF wireless remote control. The EUT is to transmit RF signal while each button is be pressed Modulation by Data Code. Tape is pulses modulation. 1.4Date of Order 2000-08-20 1.5Submitted Sample(s): 1 Set per model 1.6Test Duration 2001-09-05 1.7Country of Origin US Date: 2001-09-08 TEST REPORT Page 7 of 22 No.: HM105684 1.8Additional Information of EUT SubmittedNot Available User Manual Part List Circuit Diagram Printed Circuit Board [PCB] Layout Block diagram FCC ID Label Date: 2001-09-08 TEST REPORT Page 8 of 22 No.: HM105684 2.0Technical Details 2.1Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 and ANSI C63.4:1992 for FCC Certification. 2.2Test Standards and Results Summary Tables EMISSION Results Summary Test ConditionTest RequirementTest MethodClass /Test Result SeverityPassFailedN/A Field Strength of Fundamental Emissions & Spurious Emissions FCC 47CFR 15.231aANSI C63.4:1992N/A Radiated Emissions, 30MHz to 1GHz FCC 47CFR 15.209ANSI C63.4:1992Class B Conducted Emissions on AC, 0.45MHz to 30MHz FCC 47CFR 15.207ANSI C63.4:1992Class B Note: N/A - Not Applicable Date: 2001-09-08 TEST REPORT Page 9 of 22 No.: HM105684 3.0Test Results 3.1Emission 3.1.1Radiated Emissions Test Requirement:FCC 47CFR 15.231a Test Method:ANSI C63.4:1992 Test Date:2001-09-05 Mode of Operation:On mode Test Method: The sample was placed 0.8m above the ground plane on the OATS *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigate all operating modes, rotated about all 3 axis (X, Y & Z) to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. *:OATS [Open Area Test Site] located at HKSTC with a metal ground plane on filed with the FCC pursuant to section 2.948 of the FCC rules, with Registration Number: 90657. Test Setup: EUT distance = 3m Pre -Amplifier Receiver Computer Turn-table Ground Plane Date: 2001-09-08 TEST REPORT Page 10 of 22 No.: HM105684 Limits for Field Strength of Fundamental Emissions [FCC 47CFR 15.231a]: Frequency Range of Fundamental Field Strength of Fundamental Emissions Field Strength of Spurious Emissions [MHz][μV/m][μV/m] 40.66-40.702,250225 70-1301,250125 130-1741250 to 3,750 *125 to 375 * 174-2603,75075 260-4703,750 to 12,500 *375 to 1250 * Above 47012,5001250 ** Linear interpolations Where F is the frequency in MHz, the formula for calculating the maximum permitted fundamental field strengths are as follows: for the band 130-174 MHz, μV/m at meters=56.81818(F)-6136.3636; for the band 260-470 MHz, μV/m at 3 meters =41.6667(F)-7083.3333. The maximum permissible unwanted emission level is 20dB below the maximum fundamental level. Results: Field Strength of Fundamental Emissions Peak Value FrequencyLevel @3mCorrection Factor Field Strength Field Strength Limit ** @3m Antenna Polarity MHzdBμVdB/mdBμV/mμV/mμV/m 444.3667.522.489.931,260.79114,316.81Horizontal Field Strength of Spurious Emissions Peak Value FrequencyLevel @3m Correction Factor Field Strength Field Strength Limit @3m A…

Text truncated - open the document above for the full version.

FCC ID: PV6LF-DISHTX TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
