PVDPDWM-2600WIRELESS MICROPHONE

Applicant: Shen Zhen JWL Electronic Co., Ltd. FCC ID: PVDPDWM-2600

Applicant: Shen Zhen JWL Electronic Co., Ltd. FCC ID: PVDPDWM-2600 Tx EUT view

Applicant: Shen Zhen JWL Electronic Co., Ltd. FCC ID: PVDPDWM-2600 This device complies with Part 74 of the FCC Rules. Proposed Label Location on EUT EUT Bottom View/Proposed FCC ID Location FCC ID: PVDPDWM-2600

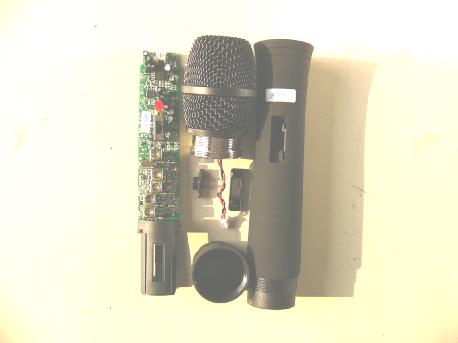

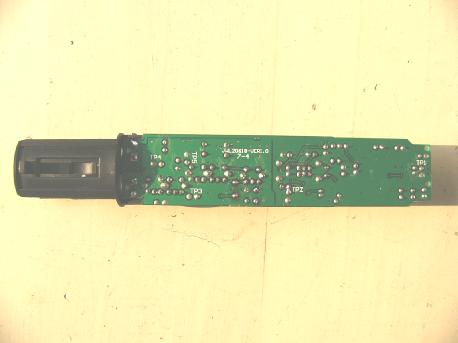

Applicant: Shen Zhen JWL Electronic Co., Ltd. FCC ID: PVDPDWM-2600 Tx EUT inside whole view Tx Main board component side Tx Main board solder side

Applicant: Shen Zhen JWL Electronic Co., Ltd. FCC ID: PVDPDWM-2600 Operational Description 1. Audio 1) MIC AMP(N1) This amplifiers the voice signal of 50Hz~15KHz by about 20dB and makes pre-emphasis features of 50us. 2) Regulator (N2) This makes standard voltage for MIC AMP and RF part being supplied power from 9V Battery. 2. RF 1) Oscillator (VT3) This is a transmitting carrier oscillator that modulates the voice signal supplied for Audio to frequency and then oscillates third-time overtone and becomes standard oscillation for RF Carrier. 2) MULTI (VT4) This multiplies the frequency oscillated from VT3(FREQ: 2 multiplied frequency) 3) MULTI (VT5) This also multiplies the frequency multiplied in VT4.(FREQ: 2 multiplied frequency) 4) Buffer This doesn’t make the antenna affect the internal circuit when connecting the antenna and final carrier multiplied from VT6.

Applicant: Shen Zhen JWL Electronic Co., Ltd. FCC ID: PVDPDWM-2600 COMPONENTS LIST OF PDWM-2600 TRANSMITTER R4 22kΩ/0603 chip resistor R6 15kΩ/0603 chip resistor R7 10kΩ/0603 chip resistor R8 1.5kΩ/0603 chip resistor R9 180kΩ/0603 chip resistor R10 15kΩ/0603 chip resistor R11 33kΩ/0603 chip resistor R13 22kΩ/0603 chip resistor R14 15kΩ/0603 chip resistor R15 220Ω/0603 chip resistor R16 680Ω/0603 chip resistor R17 22kΩ/0603 chip resistor R18 0Ω/0603 chip resistor R19 47kΩ/0603 chip resistor R20 75kΩ/0603 chip resistor R21 47kΩ/0603 chip resistor R22 510Ω/0603 chip resistor R23 5.6kΩ/0603 chip resistor R24 10kΩ/0603 chip resistor R25 2.2kΩ/0603 chip resistor R26 56kΩ/0603 chip resistor R27 10kΩ/0603 chip resistor R28 220Ω/0603 chip resistor R29 220Ω/0603 chip resistor R30 3.9kΩ/0603 chip resistor R31 680Ω/0603 chip resistor R32 100Ω/0603 chip resistor R33 47Ω/0603 chip resistor R34 2.2kΩ/0603 chip resistor R35 470Ω/0603 chip resistor R36 100Ω/0603 chip resistor R37 47Ω/0603 chip resistor R38 33kΩ/0603 chip resistor R39 100kΩ/0603 chip resistor R40 10kΩ/0603 chip resistor R41 100kΩ/0603 chip resistor R42 220kΩ/0603 chip resistor R43 10kΩ/0603 chip resistor R46 1kΩ/0603 chip resistor R47 10Ω/0603 chip resistor R48 10kΩ/0603 chip resistor R57 3.3kΩ/0603 chip resistor RP1 50kΩ chip potentiometer C2 2.2uF/25V4×7 electrolytic capacitor C3 51pF/0603 chip capacitor C4 0.1uF/0603 chip capacitor C5 100PF/0603 chip capacitor C6 4.7uF/25V4×7 electrolytic capacitor C7 10uF/25V5×7 electrolytic capacitor C8 1uF/0603 chip capacitor C9 3.3nF/0603 chip capacitor C10 51pF/0603 chip capacitor C11 4.7uF/25V4×7 electrolytic capacitor C12 1uF/50V4×7 electrolytic capacitor C13 2.2uF/25V4×7 electrolytic capacitor C14 10nF/0603 chip capacitor C15 4.7uF/25V4×7 electrolytic capacitor C16 4.7uF/25V4×7 electrolytic capacitor C17 10nF/0603 chip capacitor C18 10nF/0603 chip capacitor C19 33pF/0603 chip capacitor C20 51pF/0603 chip capacitor C21 120pF/0603 chip capacitor C22 2.2pF/0603 chip capacitor C23 120pF/0603 chip capacitor C24 22pF/0603 chip capacitor C25 10nF/0603 chip capacitor C26 10nF/0603 chip capacitor C27 10nF/0603 chip capacitor C28 table chip capacitor C29 1pF/0603 chip capacitor C32 1nF/0603 chip capacitor C33 10nF/0603 chip capacitor C34 1nF/0603 chip capacitor C35 table chip capacitor C36 0.5pF/0603 chip capacitor C37 10pF Trimmer capacitor C38 10pF Trimmer capacitor C39 1nF/0603 chip capacitor C40 100pF/0603 chip capacitor C41 100PF/0603 chip capacitor C42 10nF/0603 chip capacitor C43 10pF Trimmer capacitor C44 table trimmer capacitor C45 1pF/0603 chip capacitor C46 10pF Trimmer capacitor C47 5.1pF/0603 chip capacitor C50 10nF/0603 chip capacitor C51 1uF/50V4×7 electrolytic capacitor C52 100uF/16V6×7 electrolytic capacitor C53 47uF/25V5×7 electrolytic capacitor C54 100uF/16V6×7 electrolytic capacitor C56 1uF/0603 chip capacitor C61 220pF/0603 chip capacitor C67 10nF/0603 chip capacitor C70 table chip capacitor C71 table chip capacitor C72 table chip capacitor C73 table chip capacitor C74 table chip capacitor C75 6.2pF/0603 chip capacitor C76 1pF/0603 chip capacitor C77 10nF/0603 chip capacitor C78 10nF/0603 chip capacitor C80 1pF/0603 chip capacitor C81 1pF/0603 chip capacitor C82 1pF/0603 chip capacitor C83 1uF/0603 chip capacitor L1 SJ06(7×7) variable coil L2 table fixed inductor L3 SJ04(7×7) variable coil L4 SJ04(7×7) variable coil L5 SJ04T(7×7) variable coil L6 SJ04T(7×7) variable coil L7 3.0/0.6/1.5T coil L8 3.0/0.6/1.5T coil L9 3.0/0.6/1.0T coil L10 table coil L11 0Ω/0805 chip resistor L12 0Ω/0805 chip resistor L13 220nH/0805 chip inductor L14 220nH/0805 chip inductor L15 220nH/0805 chip inductor L16 220nH/0805 chip inductor L17 220nH/0805 chip inductor L18 220nH/0805 chip inductor VD1 MMBD4148(SOT-23) diode VD2 XC61CN37(SOT-23) voltage comparator VD3 BB134(SOD-323) diode VD5 LED5×2 LED red VT1 2SC1623(SOT-23) transistor VT2 2SC9012(SOT-23) transistor VT3 2SC2714(SOT-23) transistor VT4 2SC2714(SOT-23) transistor VT5 PBR951(SOT-23) transistor VT6 PBR951(SOT-23) transistor N1 BA4558F(SOP-8) operational amplifier N2 62PF/5002L(TO-92) regulator N3 SA571(SOL-16) voltage comparator X1 table crystal transmitter XS1 XH-2WA(2.0mm) jack SW1 SS-23D03-G5 switch Frequency Table Frequency X1 C28 C35 C44 C70 C71 C72 C73 C74 L2 L10 (MHz) (MHz) (pF) (pF) (pF) (pF) (pF) (pF) (pF) (pF) (uH) 710.4 T710.4 27 8.2 8.2 100 30 10 22 22 10 3/0.6/1.5T 734.6 T734.6 27 8.2 8.2 100 30 10 10 22 10 3/0.6/1.5T 802.525 T802.525 22 6.2 3 100 22 10 10 15 6.8 3/0.6/1T 805.9 T805.9 22 6.2 3 100 22 10 8.2 15 6.8 3/0.6/1T

Applicant: Shen Zhen JWL Electronic Co., Ltd. FCC ID: PVDPDWM-2600 Tune-UP Procedure 1. Input power to this device and check the voltage and the current consumption: 9V ±1V,30~50mA. 2. After connecting the Antenna terminal to spectrum Analyzer, adjust L3 and L4 for maximum power of the fundamental frequency and minimum power of the spurious frequency. 3. Adjust L5 and L6 for maximum power of 9 multiple frequency. 4. Adjust C37 and C38 for maximum power of 27 multiple frequency. 5. Adjust C43 and C46 for maximum power of 54 multiple frequency and output power. 6. Connect the Antenna terminal to Frequency Counter and then adjust L1 for the proper frequency . 7. Apply 100mVp-p of audio at 400Hz to terminal of this device with Audio signal Generator and adjust RP1 to modulate to 30KHz.

X1 table VD5LED(red) R39 100k R3833k R41 100k R40 10k R1947k C14 10n VT1 1623 L7 13nH C77 10n C19 33p C20 51p C21120p C28table C22 2.2p R21 47k R235.6k R25 2.2k VD3 BB134 L2table VT3 2SC2714 C47 100p R30 3.9k E1 9V SW1B SW C25 10n R36 10 R3347 R35 470 R31 680 R32 100 R29 220 R28 220 R26 56k R27 10k C29 1p C32 1n C78 10n C34 10n C48 1p VT2 9012 VT4 2SC2714 VT5 PBR951 VT6 PBR951 L12 33nH VD1 4148 R81.5k R4 22k R11 33k C49 1p C17 10n L9 3/0.6/1 R20 75k C23120p C2422p C41 100p PDWM-2600 Transmitter.sch C3710p R3747 1mA 2mA C5347u C47 5.1p L11 33nH L10 table C450.5p C43 10p C46 20p 144MHz 48MHz 432MHz 864MHz C33 10n L13220nH C132.2u R34 2.2k 3/0.6/1.5T C35 table C72table C360.5p C73 table C38 10p C75 6.2p C44table L8 3/0.6/1.5T C44 5.1p C76 0.5p C70 100p C71 table Vo 1 GND 2 Vi 3 N2XC61CN37 N3 5002L 48MHz : 55+10dB +16 : 3dB C42 10n R18510 C22.2u TP5 TP6 TP7 TP8 TP9 C514.7u SW1A SW MIC R16 680 C11 4.7u XS1 XH-2WA(2.0) RP151k C61 220p C15 4.7u C16 4.7u R6 15k R15 220 R48 10k R7 10k C54 100u RECT CAP1 1 RECT IN1 2 AG CELL IN1 3 GND 4 INV. IN1 5 RES. R3 1 6 OUTPUT1 7 THD TRIM1 8 THD TRIM 2 9 OUTPUT2 10 RES. R3 2 11 INV. IN 2 12 VCC 13 AG CELL IN2 14 RECT IN 2 15 RECT CAP 2 16 N4SA571 C64.7u C3 51p C121u 5 6 7 N1B4558 32 1 84 N1A 4558 R14 15k R10 15k R43 10k C8 1u C1051p C52100u R13 22k C9 3.3n C56 1u C7 10u C4 0.1u R46 2.2k R24 10k C81 1p C82 1p R42220k R9180k L18220nH L14200nH TP1 C54.7u C80 1p TP3 TP4 L15220nH TP5 TP2 C83 1u L16220nH R47 10 C27 10n L17 220nH C67 10n C5100P R172.2k C2610n DVCC C391U R57 3.3k DVCC DVCC 134 56 L4 SJ04 Fe 134 56 L3 SJ04 Fe 1 3 45 6 L1SJ04 Fe C18 10n R22510 134 56 L6 SJ04(Cu) 134 56 L5 SJ04(Cu) DVCC DVCC DVCC

The test report consists 26 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Ke Mei Ou Laboratory Corporation. The test result in the report only applied to the tested sample. FCC TEST REPORT Under FCC Part 74 Subpart H, Prepared For: Shen Zhen JWL Electronic Co., Ltd. Room B-OP, 27/F Window to Modernization Building N. Hua Qiang Road, Futian District Shenzhen, Guangdong, China April 12, 2005 FCC ID: PVDPDWM-2600 EUT: Wireless Microphone Model: PDWM-2600 Report Type: Original Report Test Engineer: Peter Lin Test Date: March 26, 2005 Review By: Apollo Liu / Manager Ke Mei Ou Laboratory Co., Ltd. 7A, Jiaxiangge, Jiahuixincheng, No.3027, Shennan Rd., Futian, Shenzhen, Guangdong, P.R.China. Zip Code: 518033 Tel: + 86 755 83642690 Fax: + 86 755 83297077 www.kmolab.com FEDERAL COMMUNICATIONS COMMISSION Registration Number: 125782 INDUSTRY CANADA Registration Number: IC4986 Shen Zhen JWL Electronic Co., Ltd. FCC ID: PVDPDWM-2600 FCC ID Report Report #: KSZ2005022802J01 Page 2 of 26 TABLE OF CONTENTS 1. General Information....................................................................................................................................................3 1. 1 Notes......................................................................................................................................................................3 1. 2 Testing Laboratory..................................................................................................................................................3 1. 3 Details of Applicant................................................................................................................................................3 1. 4 Application Details..................................................................................................................................................3 1. 5 Test Item.................................................................................................................................................................3 1. 6 Test Standards.........................................................................................................................................................3 2. Technical Test...............................................................................................................................................................4 2. 1 Summary of Test Results.........................................................................................................................................4 3. EUT Modifications.......................................................................................................................................................4 4. Conducted Power Line Test.........................................................................................................................................5 4. 1 Test Equipment.......................................................................................................................................................5 4. 2 Test Procedure........................................................................................................................................................5 4. 3 Test Setup...............................................................................................................................................................5 4. 4 Configuration of The EUT.......................................................................................................................................6 4. 5 EUT Operating Condition........................................................................................................................................7 4. 6 Conducted Power Line Emission Limits..................................................................................................................7 4. 7 Conducted Power Line Test Result...........................................................................................................................7 5. Output Power Measurement........................................................................................................................................8 5. 1 Test Equipment.......................................................................................................................................................8 5. 2 Test Procedure........................................................................................................................................................8 5. 3 Test Setup...............................................................................................................................................................8 5. 4 Configuration of The EUT.......................................................................................................................................9 5. 5 EUT Operating Condition........................................................................................................................................9 5. 6 Rules and Specification Limits................................................................................................................................9 5. 7 Output Power Test Result........................................................................................................................................9 5. 8 Result Calculation.................................................................................................................................................10 6. Modulation Characteristics........................................................................................................................................11 6. 1 Test Equipment.......................................................................................…
