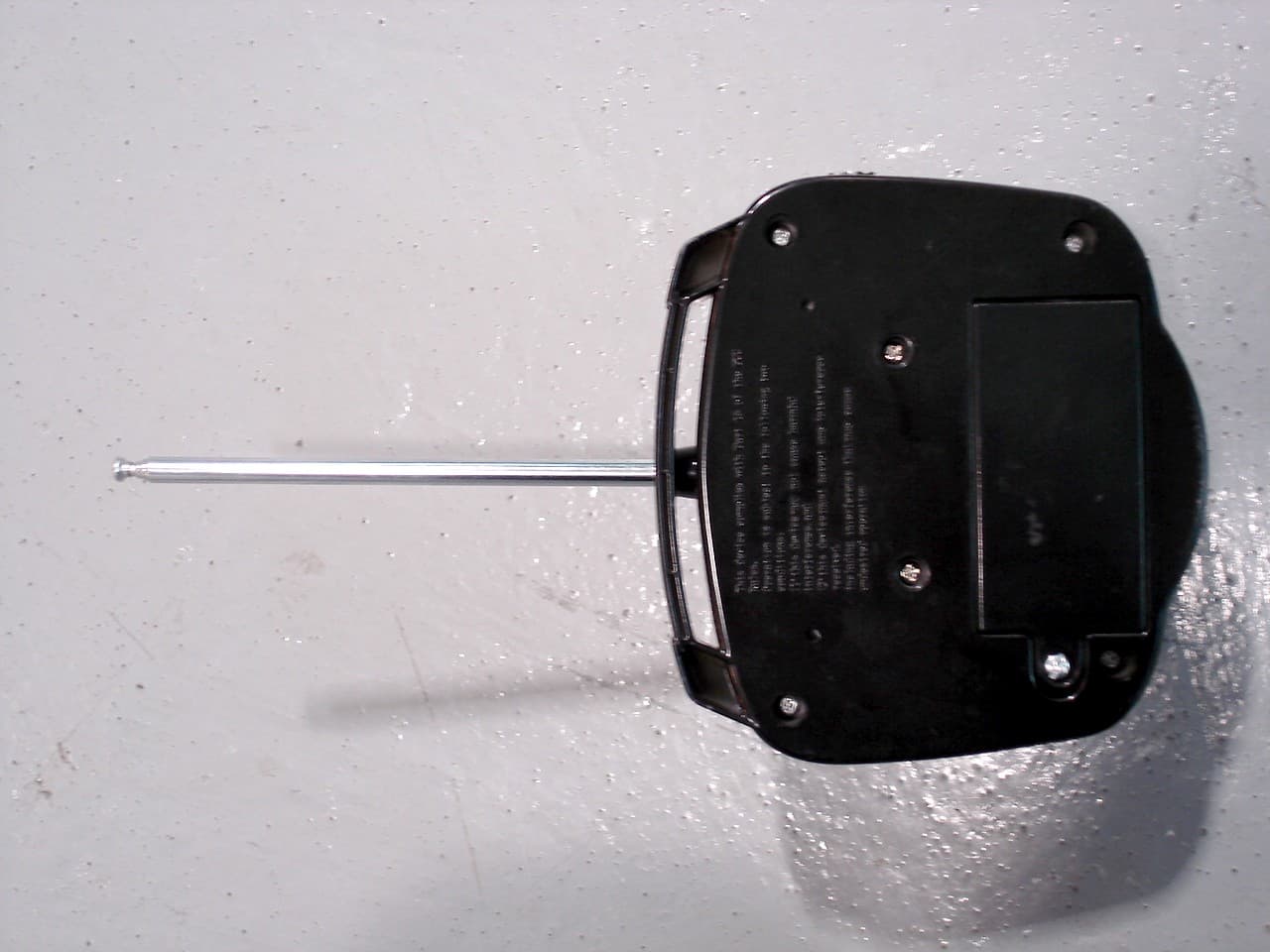

PWYJT27TX86000RC Car TX 27 MHz

Block Diagram---27.145MHZ TX 27.145MHZ Oscillator IC(TRS5TB07) Encoding signal output Channel control (A,B,C,D) Key control: (forward,backward,left,right) Modulate & High frequency amplify circuit Antenna

Operational Discription: RC Car Transmitter Schematic Circuit Description: The Transmitter IC is four channels with four functions. The IC encoding signal from pin SO and modulate with 27MHZ oscillator (Q1, XT1 combined 27MHZ oscillator), send to the high frequency amplify circuit (Q2 and other components combined high frequency circuit) then through the band filter and antenna send out. Power on will be light on for LED. RC Car Receiver Schematic Circuit Description: The Receiver is a device which receive carrier signal from Antenna and through the receive circuit to select 27MHZ carrier signal through rectify & amplify circuit (Q1, Q2, Q3, Q4) Then send to IC (TRS5TB07) to decode the carrier signal. The decode signal through the forward & backward and left & right control circuit to drive the motor!

Title Number Revision Size A4 Date: 10-May-2005 Sheet of File: E:\øÕªß\..\4.5CAR TX FCC.sch Drawn By: SLSFSBSR C4/33P C5/47P R3/10K C10/120 R2/100 C9/39 R5/100 R1/330 R4/300K C1/103 Q1/1815Y Q2/1815Y L2/1.5uH XT1 27.145MHz BT/9V ANT C8/103 C6/47P C7/47 L3/2.2UH L1/1uH SW2 DIP1 DIP0 R L BACK FOR VDD VSS VPS PWMP PWMN SO ZD1/2.4V C2/0.01UF C3/10UF SW1 TRS5TB07 0.8UH C11/24 C12/104 L4 R6/1K LED1

TEST REPORT Report No. : AF014415-001 Date : 2005 July 04 For and on behalf of CMA Testing and Certification Laboratories Authorized Signature : Page 1 of 11 Danny Chui EMC Engineer - EL. Division FCC ID : PWYJT27TX86000 This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Application No. : LF209309(1) Applicant : Jada Toys Co. Ltd Unit 901, 9/F., Energy Plaza, 92 Granville Road, TST East, Kowloon, Hong Kong. Sample Description : One(1) submitted sample stated to be 4.5 inch Chub City Radio Control Car of Model No. 83011 Rating : 1 x 9V size battery No. of submitted sample : Two (2) piece (s)*** Date Received : Test Period : Test Requested : Test Method : Test Result : Conclusion : 2005 May 25 2005 May 25 – 2005 June 10 FCC Part 15 Certification FCC Rules and Regulations Part 15 – July 2004 ANSI C63.4 – 2003 See attached sheet(s) from page 2 to 11. The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. TEST REPORT Report No. : AF014415-001 Date : 2005 July 04 Page 2 of 11 FCC ID : PWYJT27TX86000 This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Table of Contents 1 General Information .................................................................................................................................. 3 1.1 General Description ........................................................................................................................... 3 1.2 Location of the test site ...................................................................................................................... 4 1.3 List of measuring equipment.............................................................................................................. 5 2 Description of the radiated emission test .................................................................................................. 6 2.1 Test Procedure ................................................................................................................................... 6 2.2 Test Result ......................................................................................................................................... 6 2.3 Radiated Emission Measurement Data .............................................................................................. 7 3 Description of the Line-conducted Test .................................................................................................... 8 3.1 Test Procedure ................................................................................................................................... 8 3.2 Test Result ......................................................................................................................................... 8 3.3 Graph and Table of Conducted Emission Measurement Data ........................................................... 8 4 Photograph ................................................................................................................................................ 9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission............................. 9 4.2 Photographs of the External and Internal Configurations of the EUT............................................... 9 5 Supplementary document ......................................................................................................................... 10 5.1 Bandwidth ........................................................................................................................................ 10 5.2 Duty Cycle ....................................................................................................................................... 10 6 Appendices................................................................................................................................................ 11 TEST REPORT Report No. : AF014415-001 Date : 2005 July 04 Page 3 of 11 FCC ID : PWYJT27TX86000 This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for 4.5 inch Chub City Radio Control Car. Operating at 27.145MHz which is controlled by a crystal. The EUT is powered by a 9V battery. It has a switch to change from channel A to D. Channel A, B, C and D are using the same carrier frequency (27.145MHz) but with different coding to control the corresponding receiver. When the EUT is turn on, it can transmit forward, backward, turn left or turn right radio signal to the receiver. The brief circuit description is listed as follows : - XT1, Q1 and associated circuit act as oscillator. - TRS5TB07 and associated circuit act as signal encoder. - Q2 and associated circuit act as RF amplifier. - C9, C10, L4 and associated circuit act as low pass filter. TEST REPORT Report No. : AF014415-001 Date : 2005 July 04 Page 4 of 11 FCC ID : PWYJT27TX86000 This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-…

Text truncated - open the document above for the full version.

CMA Testing and Certification Laboratories Job No.: J00028421 WF-EL-EMC-15 Edition 3 2005 Mar 29 Page of Bandwidth Plot Bandwidth 1

CMA Testing and Certification Laboratories Job No.: J00028421 WF-EL-EMC-15 Edition 3 2005 Mar 29 Page of Duty Cycle Duty Cycle 1 Duty Cycle 2 CMA Testing and Certification Laboratories Job No.: J00028421 WF-EL-EMC-15 Edition 3 2005 Mar 29 Page of Duty Cycle 3 Duty Cycle 4 CMA Testing and Certification Laboratories Job No.: J00028421 WF-EL-EMC-15 Edition 3 2005 Mar 29 Page of Duty Cycle 5
