PWYJT27TX990045.5" TURBO SPIN RC

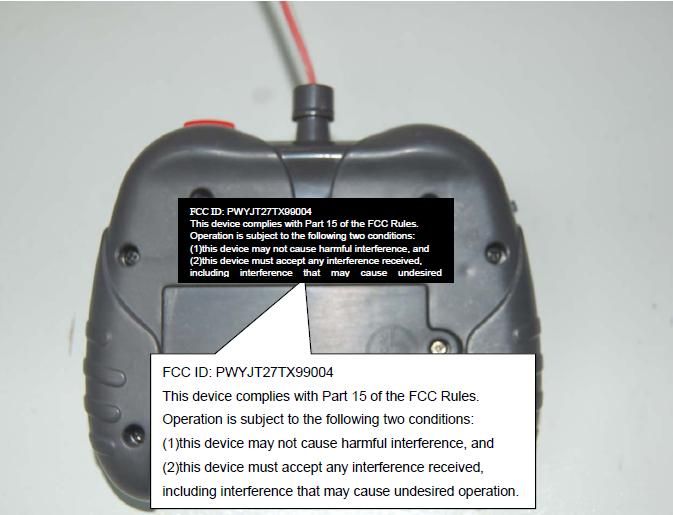

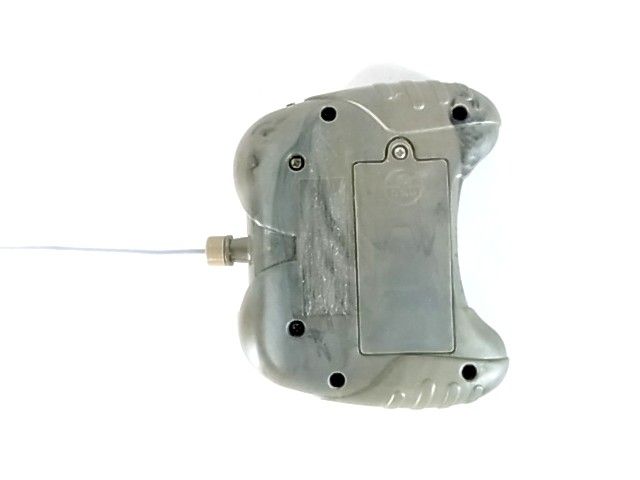

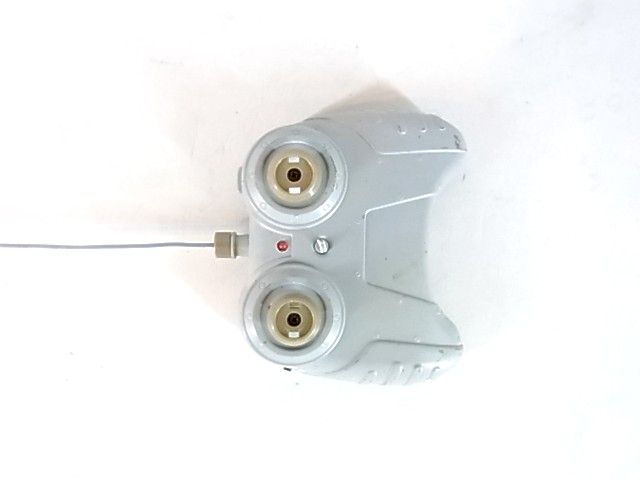

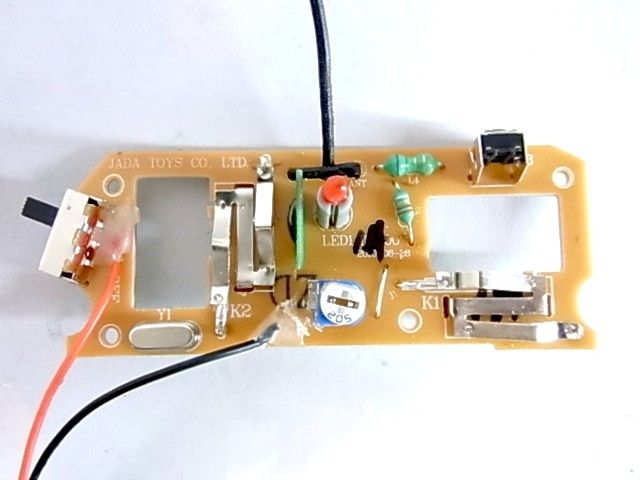

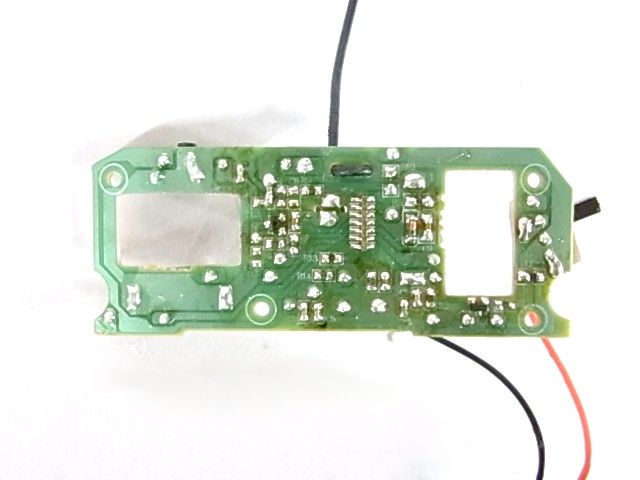

JADA TOYS CO., LTD Project No. : 96266 Model Name : 5.5 INCH TURBO SPIN RC (Single and Twin Pack) Transmitter and Receiver Circuitry Operating Description In Transmit Mode: Transmitter: When the power switch S1 turns to “ON”, Q1 and the Y1 crystal produce a carrier frequency, press one of the keys T, RIGHT, LEFT, FRONT, BACK, The Encode IC U1 P50 gives the signal out to Q2, and mixed the carrier frequency signal, after Q2 amplifier the signal and transmit from antenna. There are Two sets of modulation signal can be selected by Band Selecting Resistor R0. A 9V battery supplies energy.

D13.9V ANT 9VBATTERY C9104 C7120PL3100P C5 100P C247P C4104 C156P Y1 (49S) 27.145MHZ REDLED1 Q21815GR Q1C945 R1270K R104K7 R91K5 R8330 R210R R1133K L12.2UH L22.2UH RIGHTLETFBACKFRONT ON/OFFSS-12F23 R615K T VDD GND P62P67P66P65P64 RO( 0 ohm Resistor,0603)CODE(A/B) P53 P50P61P60 C12473 R13100 R1515K R147.5K VR5K(PMO65-502) 5.5" SPIN TRUO RC TX CIRCUIT JADA TOYS CO., LTDDROWN:DATE: George Lee2010/08/23 U1 TX GS451P12Q DICE L48.2UH

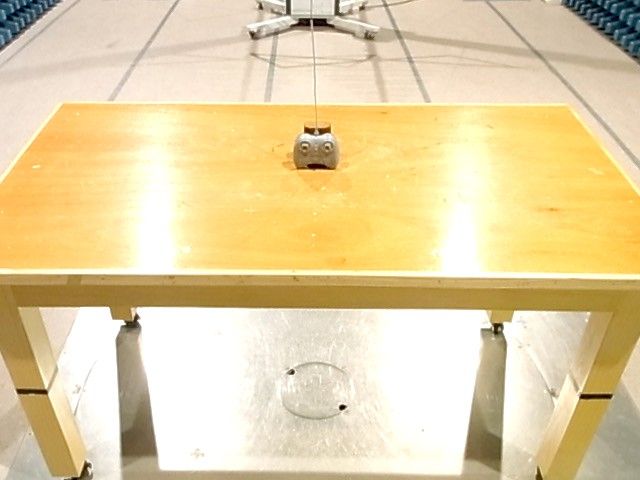

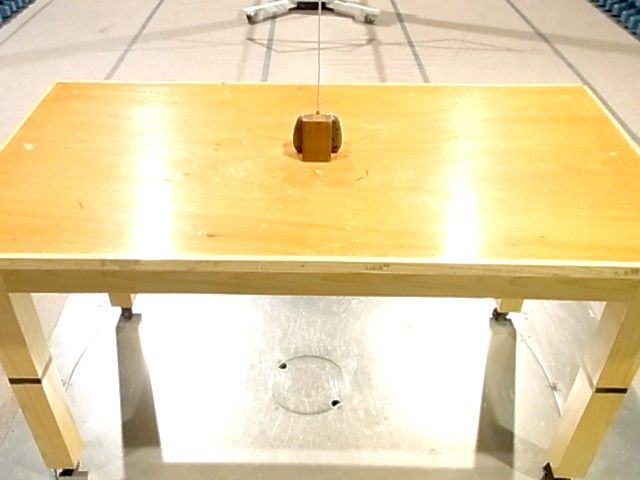

TEST REPORT Report No. : AM0047499(0) Date : 2010-09-27 For and on behalf of CMA Industrial Development Foundation Limited Authorized Signature : Page 1 of 11 Mr. WONG Lap-pong, Andrew Assistant Manager Electrical Division FCC ID: PWYJT27TX99004 This document is issued subject to the latest CMA Testing General Terms and Conditions of Testing and Inspection Services, available on request or accessible at website www.cmatcl.com. This document shall not be reproduced except in full or with written approval by CMA Testing. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St., Fo Tan, Shatin, N.T., Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Application No. : LM017234(6) Applicant : Jada Toys Co., Ltd. Unit 305-308, 3/F, Tower B, New Mandarin Plaza, 14 Science Museum Rd., T.S.T. East, Kowloon, Hong Kong Sample Description : One(1) submitted sample(s) stated to be 5.5” Turbo Spin RC of Model No. 84050 Radio Frequency : 27.145MHz Transmitter Rating : 1 x 9V size battery No. of submitted sample : Two (2) piece(s) Date Received : 2010-09-07. Test Period : 2010-09-20 to 2010-09-24. Test Requested : FCC Part 15 Certification. Test Method : 47 CFR Part 15 (10-1-09 Edition) ANSI C63.4 – 2003 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. TEST REPORT Report No. : AM0047499(0) Date : 2010-09-27 Page 2 of 11 FCC ID: PWYJT27TX99004 This document is issued subject to the latest CMA Testing General Terms and Conditions of Testing and Inspection Services, available on request or accessible at website www.cmatcl.com. This document shall not be reproduced except in full or with written approval by CMA Testing. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St., Fo Tan, Shatin, N.T., Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Table of Contents 1 General Information.............................................................................................................................. 3 1.1 General Description ..................................................................................................................... 3 1.2 Location of the test site ................................................................................................................ 4 1.3 List of measuring equipment........................................................................................................ 5 1.4 Measurement Uncertainty ............................................................................................................ 5 2 Description of the radiated emission test .............................................................................................. 6 2.1 Test Procedure ............................................................................................................................. 6 2.2 Test Result ................................................................................................................................... 6 2.3 Radiated Emission Measurement Data ........................................................................................ 7 3 Description of the Line-conducted Test ................................................................................................ 8 3.1 Test Procedure ............................................................................................................................. 8 3.2 Test Result ................................................................................................................................... 8 3.3 Graph and Table of Conducted Emission Measurement Data ..................................................... 8 4 Photograph ............................................................................................................................................ 9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission.......................9 4.2 Photographs of the External and Internal Configurations of the EUT ......................................... 9 5 Supplementary document.................................................................................................................... 10 5.1 Bandwidth .................................................................................................................................. 10 5.2 Duty Cycle Calculation.............................................................................................................. 10 5.3 Transmission time ...................................................................................................................... 10 6 Appendices.......................................................................................................................................... 11 TEST REPORT Report No. : AM0047499(0) Date : 2010-09-27 Page 3 of 11 FCC ID: PWYJT27TX99004 This document is issued subject to the latest CMA Testing General Terms and Conditions of Testing and Inspection Services, available on request or accessible at website www.cmatcl.com. This document shall not be reproduced except in full or with written approval by CMA Testing. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St., Fo Tan, Shatin, N.T., Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for 5.5” Turbo Spin RC. It operates at 27.145MHz and the oscillation of radio control is generated by a crystal. The EUT is powered by 1 x 9V size battery. There are two control triggers, one button and one "ON/OFF" switch on the EUT. When it switched “ON” and the control triggers …

Text truncated - open the document above for the full version.

Workform Job No. Document Ref No: WF-EL-EMC-15 Page of Issue Date: 2010-01-11 Edition: 1 (Amd 2) Bandwidth Plot Bandwidth 1

Workform Job No. Document Ref No: WF-EL-EMC-15 Page of Issue Date: 2010-01-11 Edition: 1 (Amd 2) Duty Cycle Duty Cycle 1 Duty Cycle 2 Workform Job No. Document Ref No: WF-EL-EMC-15 Page of Issue Date: 2010-01-11 Edition: 1 (Amd 2) Duty Cycle Duty Cycle 3 Duty Cycle 4 Workform Job No. Document Ref No: WF-EL-EMC-15 Page of Issue Date: 2010-01-11 Edition: 1 (Amd 2) Duty Cycle Duty Cycle 5
