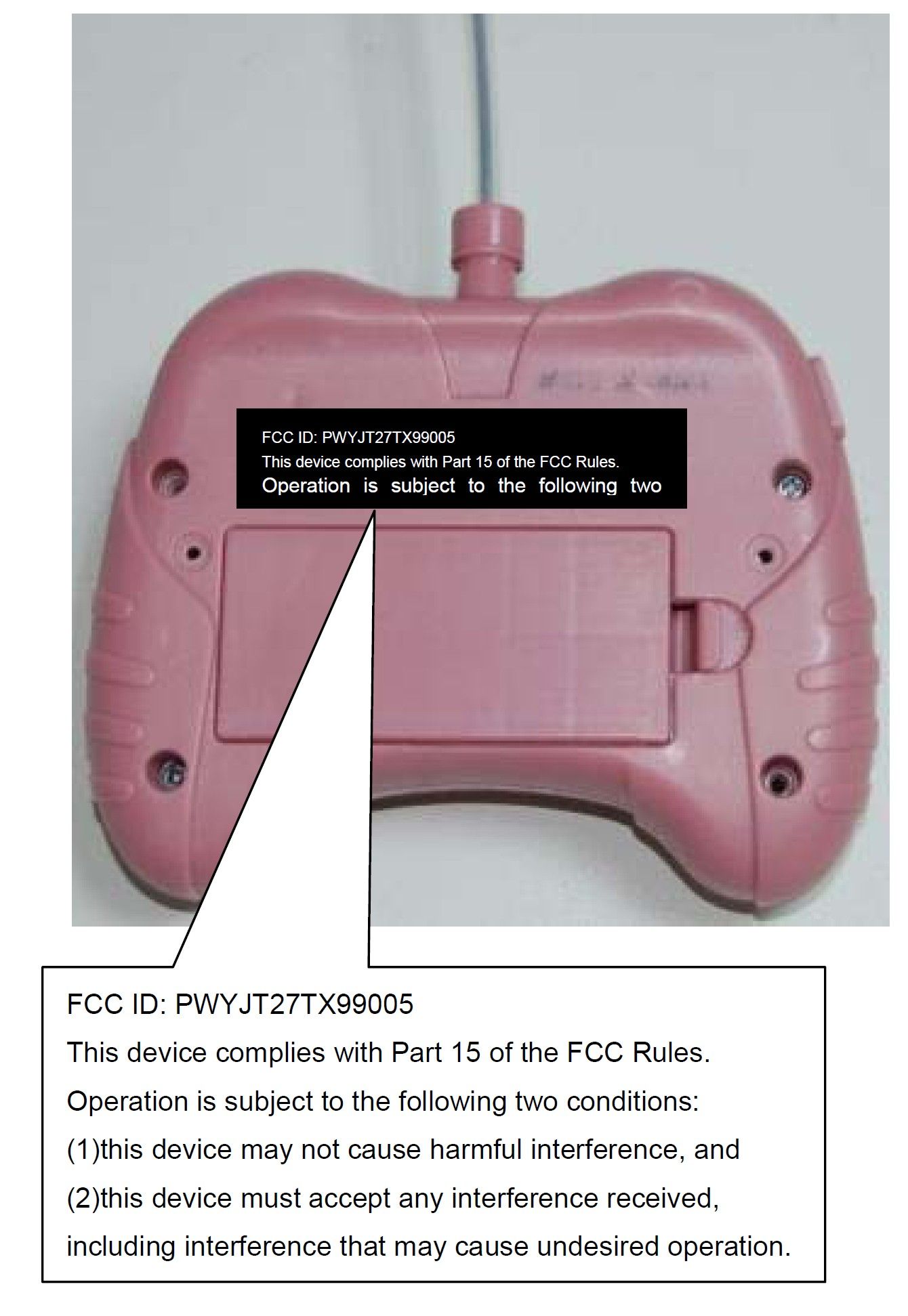

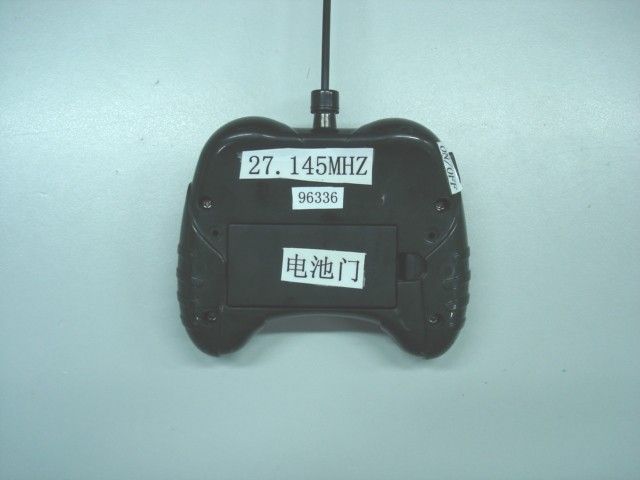

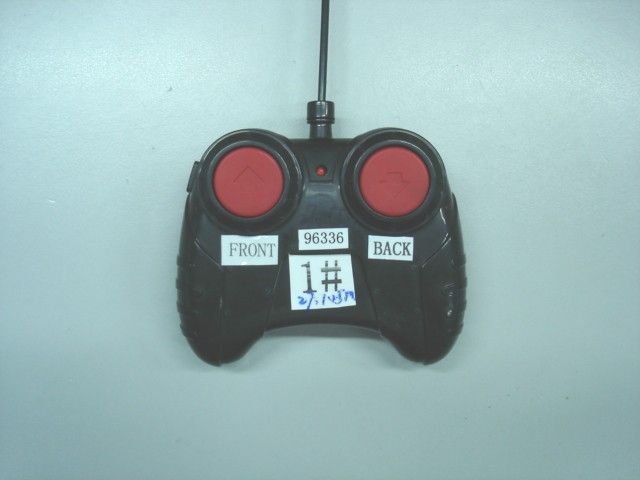

PWYJT27TX990059" TURBO FLIP RC (SINGLE PACK)

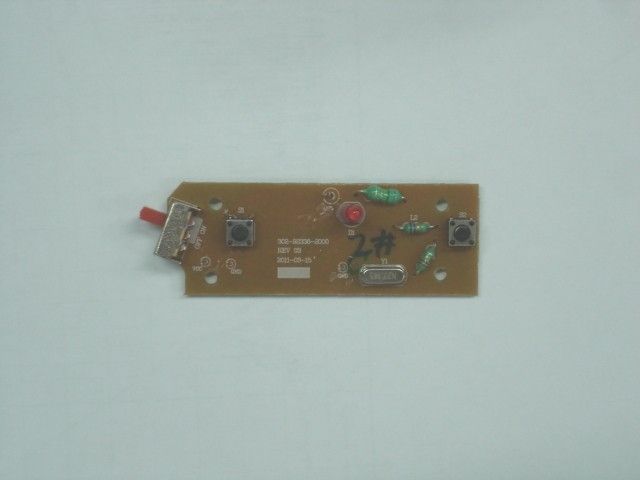

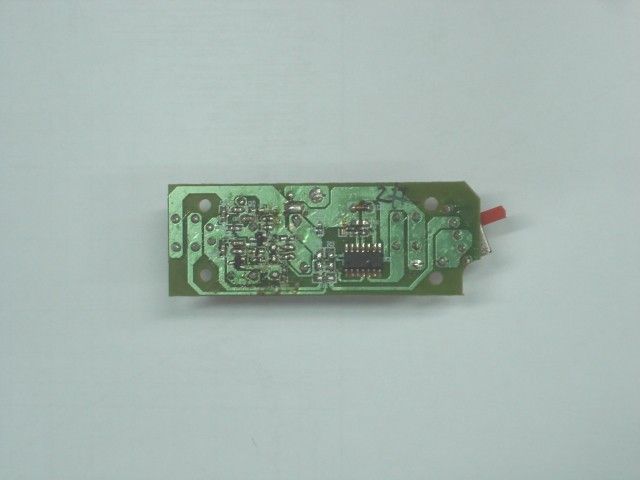

JADA TOYS CO., LTD Project No. : 96336 Model Name : 9” TURBO FLIP RC Transmitter and Receiver Circuitry Operating Description In Transmit Mode: Transmitter: When the power switch 61 turns to “ON”, Q1 and the Y1 crystal produce a carrier frequency, press one of the keys F, B, The Encode IC U1 RL-GSTX2 pin8 gives the signal out to Q2, and mixed the carrier frequency signal, after Q2 amplifier the signal and transmit to antenna. A 9V battery supplies energy. In Receive Mode: Receiver: When the power switch ON/OFF turns to “ON”, The modulation signal receive from the antenna and pass to local oscillation and demodulation from Q1, The encoding signal transfer to Encoding IC U1 GANP12B, after decoding the direct control signal go to the motor driver unit. The Q4~Q7 control motor M1 to control Forward and Backward function. The Q8 control motor M1 not function when over-current protection, until remove the control signal. On the other hand, IC U1 not function output to motor M1 when GANP12B PIN P61 detection battery low voltage less than 7.5v. Energy is supplied 9v by 6x AA size (1.5V) battery. .

D23.9V ANT 9VBATTERY C2 0.1uF C8100P C123P C912P C3 180P(0603) C5 0.01uF C4100P Y1 27.145MHZ D1LED1 Q2C1815 Q1C1815 R10200K R24K7(0603) R0 1K5(0603) R3330R 1/8W R610R R11NC R91R L1 2.2UH/0307 L22.7UH/0307 S1 POWER SW R747K 9" TURBO FLIP TX SCH JADA TOYS CO.,LTDDROWN:DATE: George Lee2011-03-26 L37.5uH C6NC C70.01uF C10 NC C110.01uF C147uF R8330K R10R RIG 1 TEST 2 GND 3 RW 4 FW 5 TU 6 SC 7 SO 8 VDD 9 PC 10 OSO0 11 OSC1 12 NC 13 LEFT 14 Q?RL GSTX2 C16NC C143P C153P S2. B F

TEST REPORT Report No. : AN0018339(2) Date : 2011-04-18 For and on behalf of CMA Industrial Development Foundation Limited Authorized Signature : Page 1 of 11 Mr. WONG Lap-pong, Andrew Assistant Manager Electrical Division FCC ID: PWYJT27TX99005 Application No. : LN007873(3) Applicant : Jada Toys Co., Ltd. Unit 305-308, 3/F., Tower B, New Mandarin Plaza, 14 Science Museum Road, Tsim Sha Tsui East, Kowloon, Hong Kong Sample Description : One(1) item of submitted sample stated to be 9" Turbo Flip RC (Single Pack) of Model No. 84055 Radio Frequency : 27.145MHz Transmitter Rating : 1 x 9V size battery No. of submitted sample : Two (2) piece(s) Date Received : 2011-03-22. Test Period : 2011-03-28 to 2011-03-31. Test Requested : FCC Part 15 Certification. Test Method : 47 CFR Part 15 (10-1-09 Edition) ANSI C63.4 – 2009 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. TEST REPORT Report No. : AN0018339(2) Date : 2011-04-18 Page 2 of 11 FCC ID: PWYJT27TX99005 Table of Contents 1 General Information ................................................................................................................................... 3 1.1 General Description ............................................................................................................................ 3 1.2 Location of the test site ....................................................................................................................... 4 1.3 List of measuring equipment............................................................................................................... 5 1.4 Measurement Uncertainty ................................................................................................................... 5 2 Description of the radiated emission test ................................................................................................... 6 2.1 Test Procedure .................................................................................................................................... 6 2.2 Test Result .......................................................................................................................................... 6 2.3 Radiated Emission Measurement Data ............................................................................................... 7 3 Description of the Line-conducted Test ..................................................................................................... 8 3.1 Test Procedure .................................................................................................................................... 8 3.2 Test Result .......................................................................................................................................... 8 3.3 Graph and Table of Conducted Emission Measurement Data ............................................................ 8 4 Photograph ................................................................................................................................................. 9 4.1 Photographs of the Test Setup for Radiated Emission and Conducted Emission ............................... 9 4.2 Photographs of the External and Internal Configurations of the EUT................................................ 9 5 Supplementary document ......................................................................................................................... 10 5.1 Bandwidth ......................................................................................................................................... 10 5.2 Duty cycle ......................................................................................................................................... 10 5.3 Transmission time ............................................................................................................................. 10 6 Appendices...............................................................................................................................................11 TEST REPORT Report No. : AN0018339(2) Date : 2011-04-18 Page 3 of 11 FCC ID: PWYJT27TX99005 1 General Information 1.1 General Description The equipment under test (EUT) is a transmitter for 9" Turbo Flip RC (Single Pack). It operates at 27.145MHz and the oscillation of radio control is generated by a crystal. The EUT is powered by 1 x 9V size battery. There are two butons on the EUT. When the button is pressed, the EUT will transmit control signal to the receiver. The antenna is permanently attached in EUT and the radio output power is unable to adjust. The brief circuit description is listed as follows: - D2 and its associated circuit act as a voltage regulator. - RL GSTX2 and its associated circuit act as an encoder. - Y1, Q1 and its associated circuit act as an oscillator. - Q2 and its associated circuit act as a RF amplifier. TEST REPORT Report No. : AN0018339(2) Date : 2011-04-18 Page 4 of 11 FCC ID: PWYJT27TX99005 1.2 Location of the test site Radiated emissions measurements are investigated and taken pursuant to the procedures of ANSI C63.4 – 2009. A Semi-Anechoic Chamber Testing Site is set up for investigation and located at: Ground Floor, Yan Hing Centre, 9 – 13 Wong Chuk Yeung Street, Fo Tan, Shatin, New Territories, Hong Kong. Conducted emissions measurements are investigated and also taken pursuant to the procedures of ANSI C63.4 – 2009. A shielded room is located at : Ground Floor, Yan Hing Centre, 9 – 13 Wong Chuk Yeung Street, Fo Tan, Shatin, New Territories, Hong Kong. TEST REPORT Report No. : AN0018339(2) Date : 2011-04-18 Page 5 of 11 FCC ID: PWYJT27TX99005 1.3 List of measuring equipment Equipment Manufacturer Model No. Serial No. Calibration Due Date EMI Test Receiver R&S ESCS30 100001 2011 Apr 23 Broadband Antenna Schaffner CBL6112B 2692 2011 May 31 Loop Antenna EMCO 6502 0…

Text truncated - open the document above for the full version.

Job No.: J
Assignment No.:
Reference No.:
Application No.:
Sample No.: R

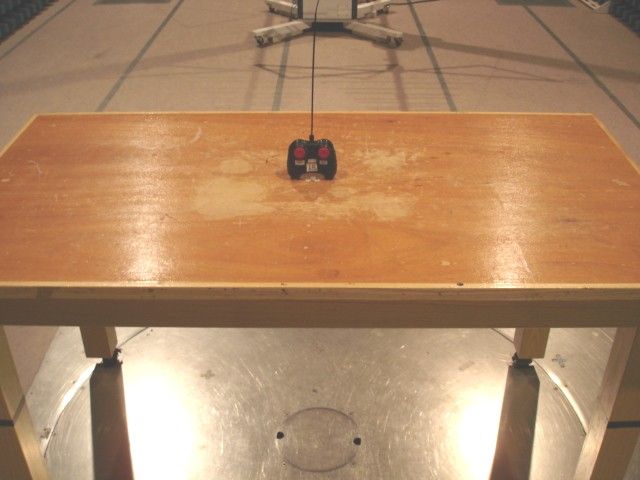

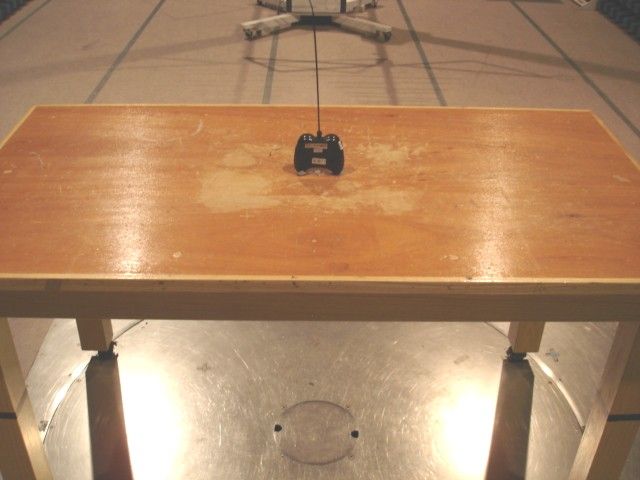

Retest.: File name: Test sheet of photo format for FCC Certification Document Ref No: WF-EL-EMC-15 Issue Date: 21 Feb 2011 Edition: 1 (Amd 3) Page of . Bandwidth Plot Bandwidth 1 Bandwidth 2
