PWYJT27TX9901810.25 inch Hello Kitty Walk With Me RC

Jada Toys Company Limited

Click to zoom

Application Details

Equipment Class: DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant: Apr 01, 2014
Application Purpose: Original Equipment
Date of Application: Apr 01, 2014
Equipment Note: 10.25 inch Hello Kitty Walk With Me RC
Frequency Range: 27.14500000 - 27.14500000
Company: Jada Toys Company Limited
Country: Hong Kong

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

¡IMPORTANTE! Problemas? ? ¡NO LO REGRESE A LA TIENDA DONDE LO COMPRÓ! Primero, llame a nuestros amigables técnicos al: 1-800-679-5232 De 9am a 5pm, Hora del Pacífico; Lunes - Viernes o visite nuestra página de internet: Garantía de 30 días con restricciones para los Productos de Jada Toys en E.U.A. y Canadá ALTO Jada Toys, Inc. warrants to the original consumer purchaser that this product will be free of defects in material and workmanship for thirty (30) days from the date of purchase. Jada Toys will repair or replace the product, at our sole option, in the event of such a defect within the warranty period. In the event of a defect covered under this warranty, first call the toll-free number listed below. Many problems can be solved in this manner. If necessary, you will be instructed to return the product (postage pre-paid and insured by the consumer) to the address below. Enclose your name, address, telephone number, copy of dated sales receipt, and a brief explanation of the defect. Repair or replacement, and return shipment, will be free of charge. Please return the defective part or unit, packed securely. This warranty does not cover damage resulting from unauthorized modification, accident, misuse or abuse. If the product is returned without a dated sales receipt, the product may be excluded from coverage under this warranty. Jada Toy’s liability for defects in material and workmanship under this warranty shall be limited to repair or replacement, at our sole option, and in no event shall we be responsible for incidental, consequential, or contingent damages (except in those states that do not allow this exclusion or limitation). This warranty is exclusive, and is made in lieu of any express or implied warranty. Valid only in U.S.A. and Canada. This warranty gives you specific legal rights and you may have other rights, which may vary from state to state. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusions or limitations may not apply to you. TOLL-FREE NUMBER: 1-800-679-JADA (5232) (valid only in U.S.A. and Canada) Hours: 9:00 A.M. – 5:00 P.M. Pacific Time; Monday – Friday. Expect some delay in January following the holiday season. Please be patient and keep trying the toll-free number. Address for Returns: Consumer Relations, Jada Toys, Inc. 938 Hatcher Ave. City of Industry, CA 91748, USA Jada Toys, Inc. garantit à l’acheteur original que ce produit sera exempt de défaut de matériau et fabrication pendant trente (30) jours à partir de la date d’achat. Jada Toys réparera ou remplacera le produit à son option, dans le cas d’un tel défaut durant la période de la garantie. Dans le cas d’un défaut couvert par cette garantie, appelez d’abord le numéro sans frais indiqué ci-dessous. Plusieurs problèmes peuvent être résolus de cette manière. Si nécessaire, l ́on vous indiquera de retourner le produit (expédition prépayée et assurée par le consommateur) à l ́adresse ci-dessous. Joignez-y vos nom, adresse, numéro de téléphone, copie de reçu de caisse daté et une brève explication du défaut. La réparation ou le remplacement ainsi que le port de retour seront payés. Veuillez retourner la pièce ou l’unité défectueuse bien emballée. Cette garantie ne couvre pas les dommages provenant d’une modification non autorisée, un accident, un mauvais usage ou un abus. Si le produit est retourné sans reçu de caisse daté, le produit peut être exclus de la garantie. La responsabilité de Jada Toys des défauts de matériau et fabrication en vertu de cette garantie sera limitée à la réparation ou au remplacement, à son option et en aucun cas ne sera-t-il responsable des dommages accessoires, indirects ou éventuels (sauf dans les états qui ne permettent pas cette exclusion ou limitation). Cette garantie est exclusive et elle remplace toute autre garantie expresse ou implicite. Valide uniquement aux É.-U. et au Canada. Cette garantie vous donne des droits légaux spécifiques et vous pourriez avoir d’autres droits qui varient d’un état à l’autre. Certains états ne permettent pas l’exclusion des dommages accessoires ou indirects, donc les exclusions ou limitations ci-dessus peuvent ne pas s’appliquer à votre cas. NUMÉRO SANS FRAIS 1-800-679-JADA (5232) Valide uniquement aux É.-U. et au Canada. Heures 9h à 17h Heure du Pacifique, lundi à vendredi. Prévoyez un temps d’attente en janvier suivant la période des fêtes. Veuillez patienter et continuez à composer le numéro sans frais. Adresse pour les Retours: Consumer Relations, Jada Toys, Inc. 938 Hatcher Ave. City of Industry, CA 91748, USA Industry Canada Warning: Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This Category II radiocommunication device complies with Industry Canada Standard RSS-310. COMPLIANCE WITH FCC REGULATIONS (VALID IN U.S. ONLY) THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1. THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND 2. THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. This device generates and uses radio frequency energy and if not used properly may cause interference to radio and television reception. It has been tested and found to comply with the limits set by the FCC which are designed to provide reasonable protection against such interference. FCC Warning: CAUTION: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are des…

Text truncated - open the document above for the full version.

Users Manual

F84194-0000-ISH-AA01A Carrier frequency and field strength Frequency Channel: 27.145MHZ Field Strength: 50.68dbμV/M@3M Fréquence porteuse et intensité de champ Canal de Fréquence: 27.145MHZ Intensité de champ: 50.68dbμV/M@3M Frecuencia portadora e intensidad de campo Canal de frecuencia: 27.145MHZ Intensidad de campo: 50.68dbμV/M@3M Keep these instructions for future reference: they contain important information. IMPORTANT: Please read all “Consumer Information” before operating your vehicle. ADULT SUPERVISION REQUIRED. Surfaces may become hot and cause burns if electronics get wet. Do not operate vehicle through water or snow. Consumer Information: Note to Adults: to ensure that the child’s play is both safe and fun, please review all operating instructions and safety rules with your child. CONTENTS: 1 Radio Control Figure, 1 Transmitter Controller, 2 Try Me Batteries Must replace with 3 X AA alkaline batteries (not included) to operate the figure. Safety Tips • NEVER drive your vehicle on streets! They’re for real cars! • DO NOT pick up vehicle while in motion. • Avoid collisions with wall or hard surfaces. • Keep fingers, hair and loose clothing away from tires and the wheel hubs while the vehicle is switched ON. • Adult supervision is recommended when this vehicle is being operated. • To avoid accidental operation, remove all batteries when not in use. • Be sure to rest your vehicle for at least 5 minutes after every 15 minutes of operation. • Please avoid unintended play with electric wire (soft antenna), as it may defect product or result in strangulation. • The toy is not to be connected to more than recommended 3 “AA” batteries of power supplies. • Any wires without connecting means should not insert into socket outlets. BEFORE BATTERY INSTALLATION Your new R/C is designed to work with standard 3 “AA” alkaline batteries, sold separately. Controller is designed to work with standard 2 “AA” alkaline batteries, sold separately. INSTALLING BATTERIES IN THE R/C (Diagram 1) 3 “AA” alkaline batteries (Not included) 1. Push the ON/OFF to “OFF” position on vehicle. 2. Remove battery cover (Use a screwdriver to remove screw - Not Included) and unclip. 3. Remove the used batteries (if any). 4. Insert the 3 “AA” alkaline batteries, with polarity (+/-) as shown inside battery compartment. 5. Snap the battery compartment door back into place and replace screw. INSTALLING BATTERIES IN THE TRANSMITTER CONTROLLER (Diagram 2) 2 “AA” alkaline batteries (Not included) 1. Push the ON/OFF to “OFF” position on controller. 2. Remove battery cover (Use a screwdriver to remove screw - Not Included) and unclip. 3. Remove the used batteries (if any). 4. Insert the 2 “AA” alkaline batteries, with polarity (+/-) as shown inside battery compartment. 5. Snap the battery compartment door back into place and replace screw. Battery Safety Information • Insure that battery polarity is correct. • Use only batteries of the type recommended (or equivalent). • Do not mix old and new batteries. • Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries. • Remove used-up batteries immediately. Remove batteries if vehicle will not be used for a long period of time to prevent possible leakage. • Do not recharge non-rechargeable batteries. • Do not short-circuit terminals. • Dispose of batteries safely. Do not dispose of batteries (or products containing non-replaceable batteries) in fire, as batteries may explode or leak. • Do not temper with “non-replaceable” batteries. QUICK TIPS • When your vehicle starts to lose power, it may lose functions or performance. It’s time for fresh batteries (or a recharge). Your vehicle’s running time may change depending on your driving style. • Radio interference can make your vehicle run badly. Interference can be caused by other R/C vehicles running on the same frequency; electrical wires, large buildings; or CB radios. Try to stay away from these! • Point your transmitter controller antenna up – not down toward your vehicle. If your vehicle gets too far away, it won’t work properly. • Don’t drive your vehicle in sand or through water or snow. • Don’t store your vehicle near heat or in direct sunlight. Always turn switches OFF and remove all batteries for storage. • If the vehicle resets automatically, that means the batteries are weak and need to be changed. Cleaning instruction: To clean, wipe excess dirt from toy. Remove batteries first. Wipe toy clean with wet cloth using plain water. Wipe dry. DO NOT IMMERSE IN WATER and DO NOT CLEAN VEHICLE WITH ANY CHEMICALS. Let the toy completely dry up before putting batteries back into clean, dry battery compartment. Gardez ces instructions pour consultation future; elles contiennent des renseignements importants. IMPORTANT: Veuillez lire tous les renseignements du consommateur avant de faire fonctionner votre véhicule. SURVEILLANCE ADULTE REQUISE. Les surfaces peuvent devenir chaudes et causer des brûlures si le mécanisme électronique devient mouillé. Renseignements du Consommateur: Remarque aux Adultes: pour assurer un jeu sans danger et amusant pour l’enfant, veuillez lire toutes les instructions de fonctionnement et règles de sécurité à votre enfant. CONTENU: 1 Figurine De Radiocommandé, 1 Télécommande, 2 Piles D'essai Elles doivent être remplacées par 3 piles alcalines AA (non incluses) pour faire fonctionner la figurine. Conseils de Sécurité • Ne roulez JAMAIS votre véhicule sur la rue! • Ne ramassez PAS le véhicule pendant qu’il est en mouvement. • Éviter les collisions avec le mur ou des surfaces dures. • Éloignez les doigts, les cheveux et les vêtements lâches des pneus et moyeux quand le véhicule est allumé. • La surveillance adulte est conseillée lors du fonctionnement de ce véhicule. • Pour éviter le fonctionnement accidentel, enlevez les piles en période de non-utilisation. • Assurez-vous de laisser reposer le véhicule pendant au moins 5 minutes après 15 minutes de fonctionnement. • Ne jouez pas ave…

Text truncated - open the document above for the full version.

External Photos

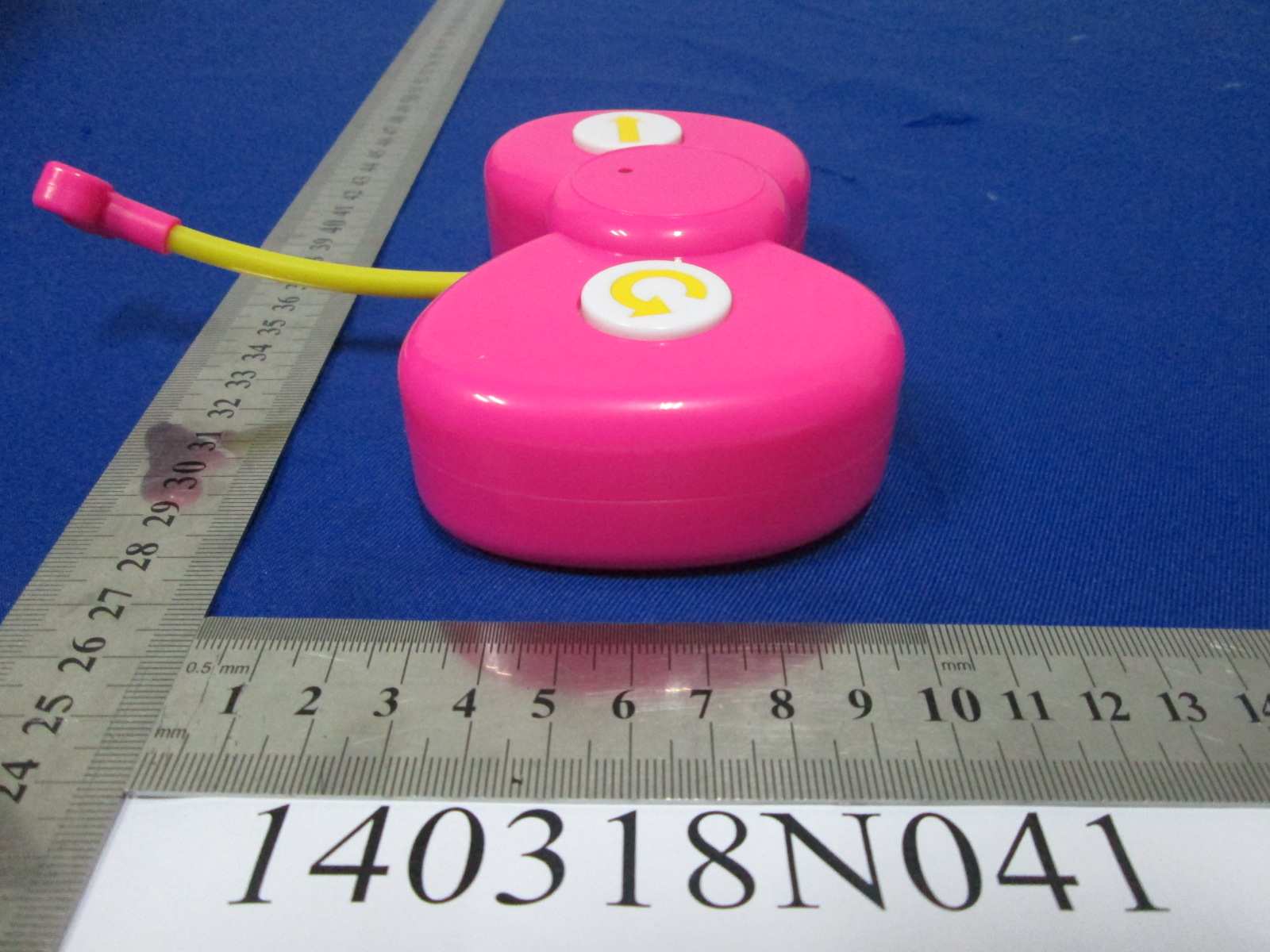

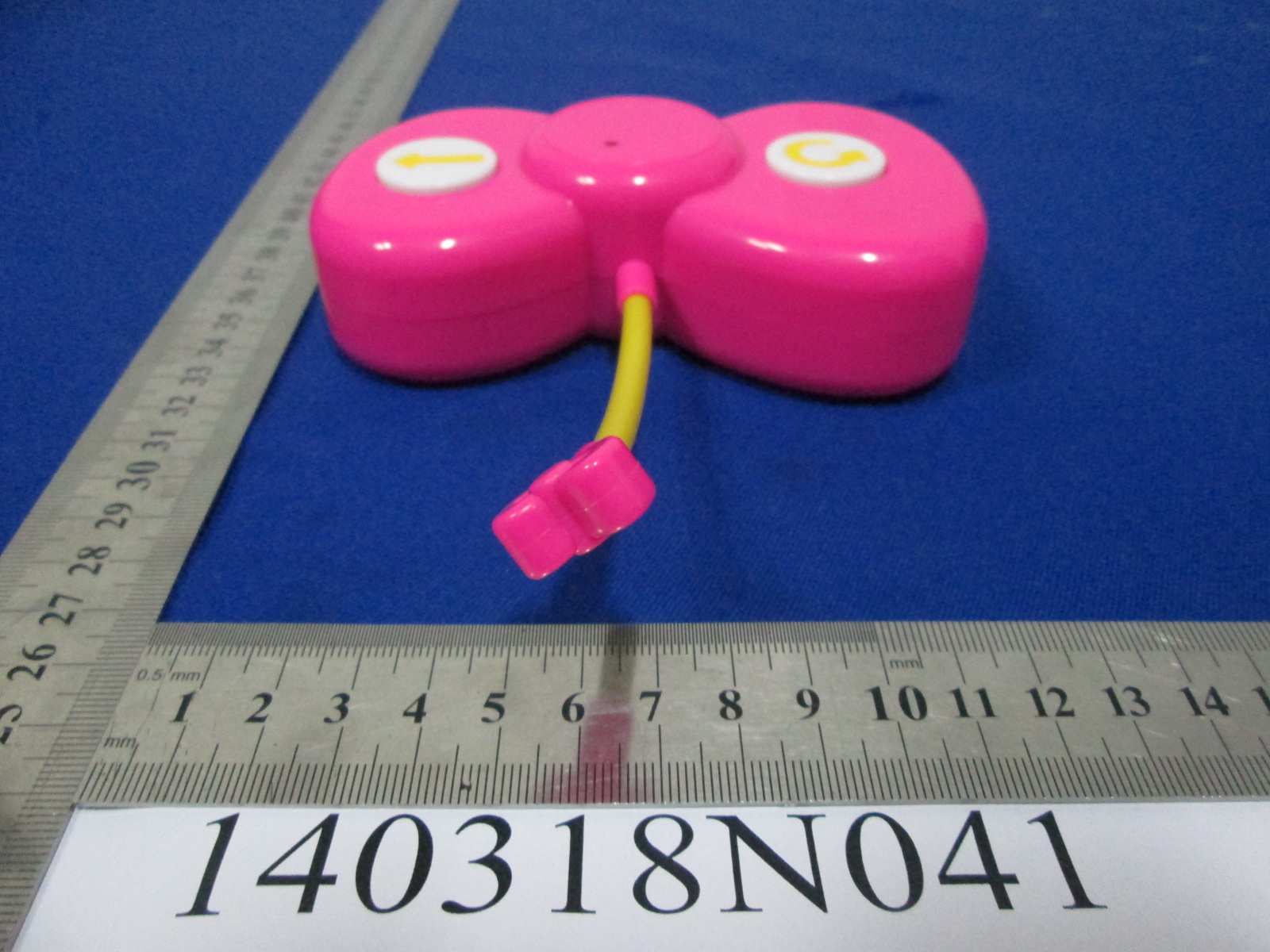

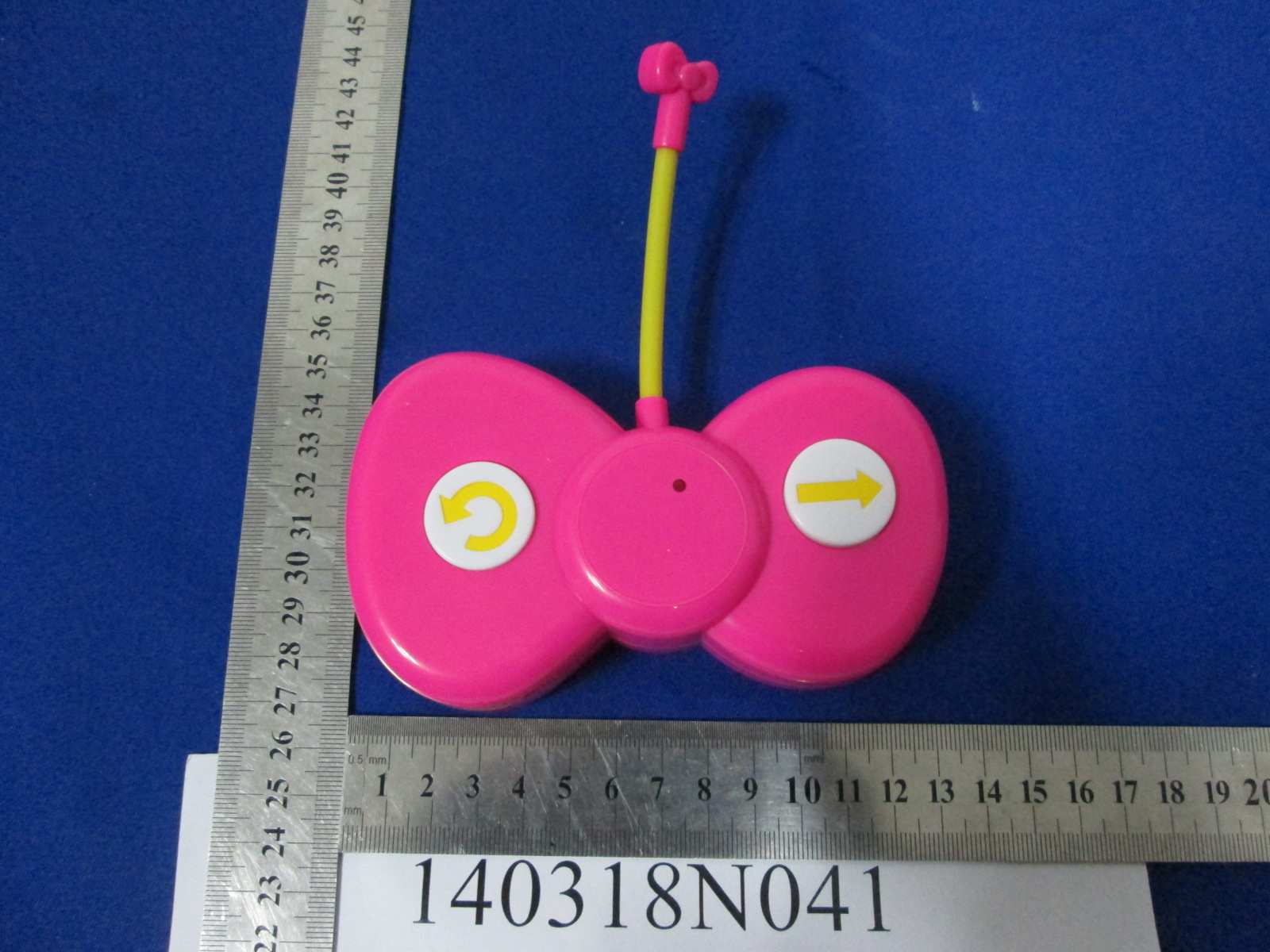

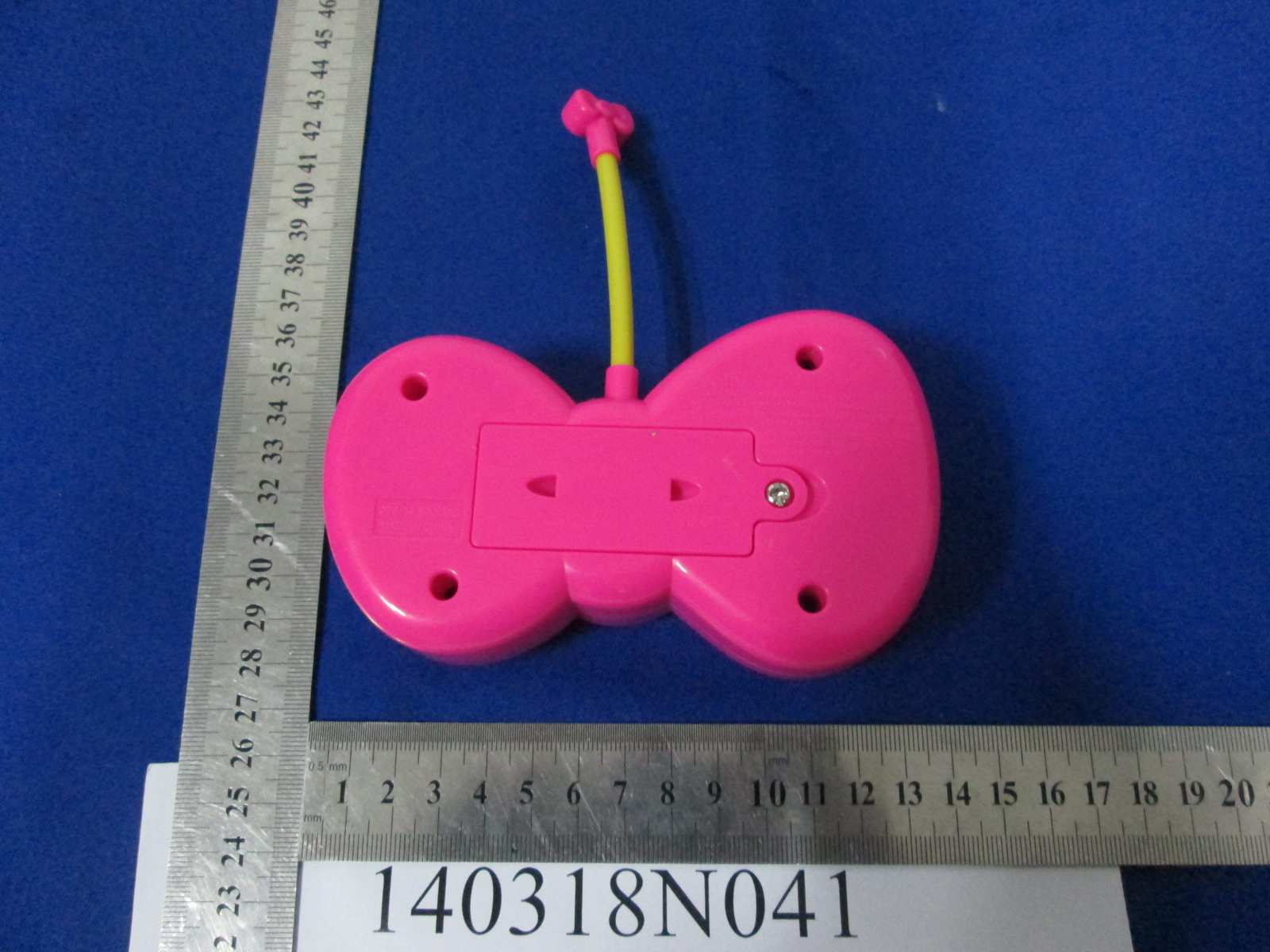

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 3 Report Version 1 Test Report No.: RF140318N041 PHOTOGRAPHS OF THE EUT Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 3 Report Version 1 Test Report No.: RF140318N041 Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel.: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 3 of 3 Report Version 1 Test Report No.: RF140318N041

ID Label/Location Info

FCC ID and statement location: 10.25" Hello Kitty Walk With Me RC, Item No: 84194, 96873, Controller 27MHz TX FCC ID: PWYJT27TX99018 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation. 25MM 1 0 MM

Internal Photos

Test Report

Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 1 of 20 Report Version 1 Test Report No.:RF140318N041 TEST REPORT Applicant JADA TOYS CO. LTD. Address Unit 318, 3/F, Tower A, New Mandarin Plaza,No.14 Science Museum Road, TST East, Kowloon, HK. Manufacturer or Supplier JADA TOYS CO. LTD. Address Unit 318, 3/F, Tower A, New Mandarin Plaza,No.14 Science Museum Road, TST East, Kowloon, HK. Product 10.25'' Hello Kitty Walk With Me RC Brand Name N/A Model 84194 Additional Model & Model Difference: 96873, See section 3.1 Date of tests Mar. 18 ~ Mar. 22, 2014 the tests have been carried out according to the requirements of the following standards: FCC Part 15, Subpart C, Section 15.227(2012-10) CONCLUSION: The submitted sample was found to COMPLY with the test requirement Tested by Venless Long Project Engineer / EMC Department Approved by Glyn He Supervisor / EMC Department Date: Mar. 24, 2014 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Bureau Veritas Shenzhen Co., Ltd. Dongguan Branch No. 34, Chenwulu Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong 523942, China Tel: +86 769 8593 5656 Fax: +86 769 8593 1080 Email: [email protected] Page 2 of 20 Report Version 1 Test Report No.:RF140318N041 TABLE OF CONTENTS RELEASE CONTROL RECORD ............................................................................................................ 3 1 SUMMARY OF TEST RESULTS ..................................................................................................... 4 2 MEASUREMENT UNCERTAINTY................................................................................................... 4 3 GENERAL INFORMATION .............................................................................................................. 5 3.1 GENERAL DESCRIPTION OF EUT ........................................................................................... 5 3.2 DESCRIPTION OF TEST MODES ............................................................................................. 6 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................................ 6 3.4 DESCRIPTION OF SUPPORT UNITS ....................................................................................... 6 4 TEST TYPES AND RESULTS ......................................................................................................... 7 4.1 RADIATED EMISSION MEASUREMENT .................................................................................. 7 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT ...................................................... 7 4.1.2 TEST INSTRUMENTS....................................................................................................... 8 4.1.3 TEST PROCEDURES ....................................................................................................... 9 4.1.4 DEVIATION FROM TEST STANDARD ............................................................................. 9 4.1.5 TEST SETUP................................................................................................................... 10 4.1.6 EUT OPERATING CONDITIONS .....................................................................................11 4.1.7 TEST RESULTS ...............................................................................................................11 4.2 20dB BANDWIDTH MEASUREMENT...................................................................................... 16 4.2.1 LIMITS OF 20dB BANDWIDTH MEASUREMENT......................................................... 16 4.2.2 TEST INSTRUMENTS ................................................................................................... 16 4.2.3 TEST PROCEDURE ...................................................................................................... 16 4.2.4 DEVIATION FROM TEST STANDARD .......................................................................... 17 4.2.5 TEST SETUP ................................................................................................................. 17 4.2.6 EUT OPERATING CONDITIONS................................................................................... 17 4.2.7 TEST RESULTS............................................................................................................. 18 5 PHOTOGRAPHS OF THE TEST CONFIGURATION.................................................................... 19 6 APPENDIX A - MODIFICATIONS RECORDERS FOR ENGINEERING CHANGES TO THE EUT BY THE LAB ..............................................................…

Text truncated - open the document above for the full version.

Test Setup Photos
