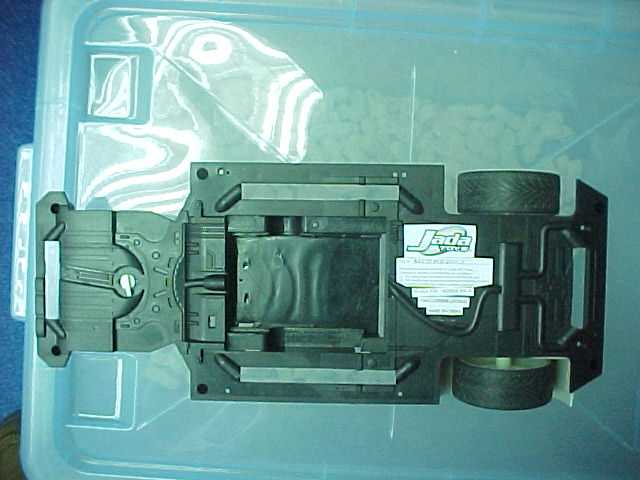

SCREW ON "NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the User's anthority to operate the equipment." 9 VOLTS BATTERY REPLACED PROCESSING CHARGER & BATTERY FCC ID: XXXJT49TX80000 SCALE 1/10 MAZDA RX-8 USED UNDER LICENSEMADE IN CHINA

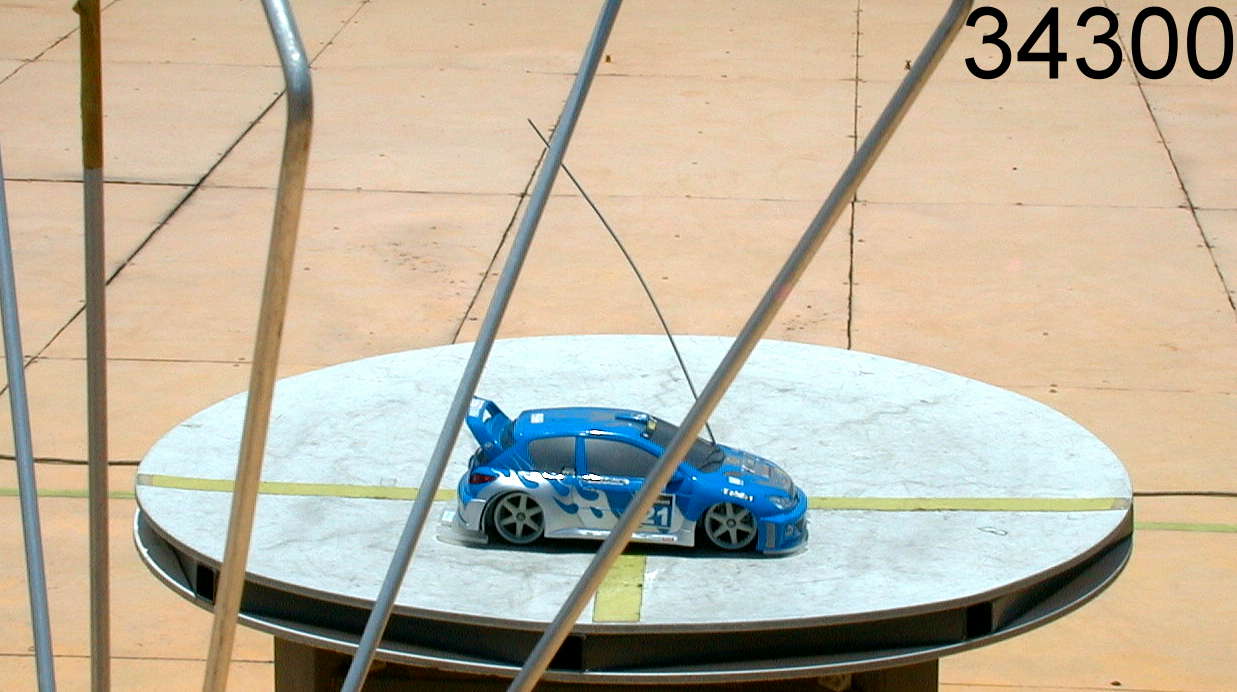

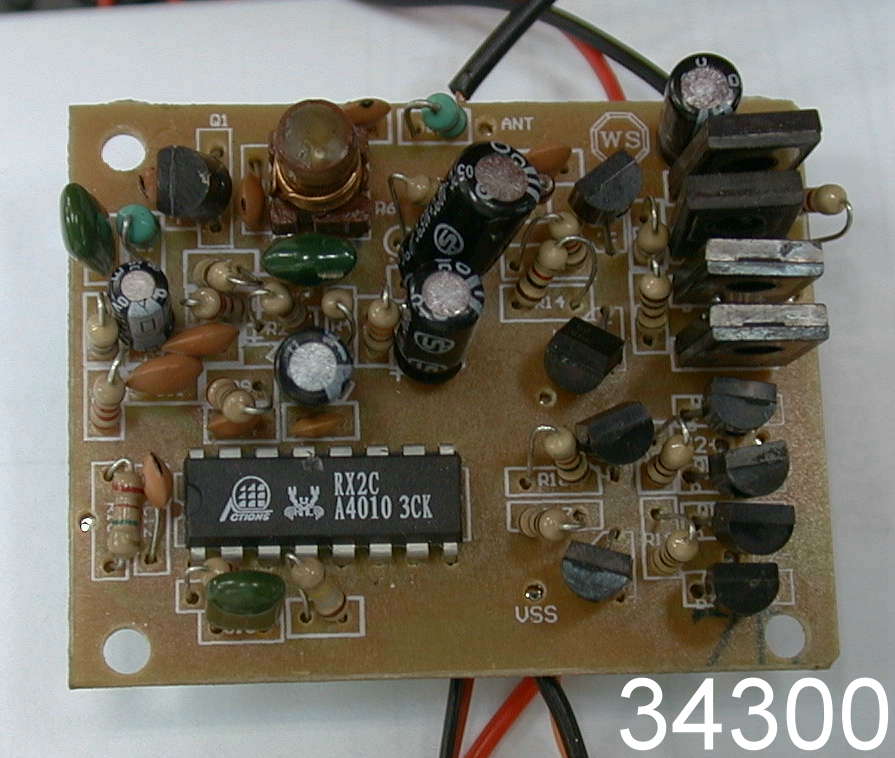

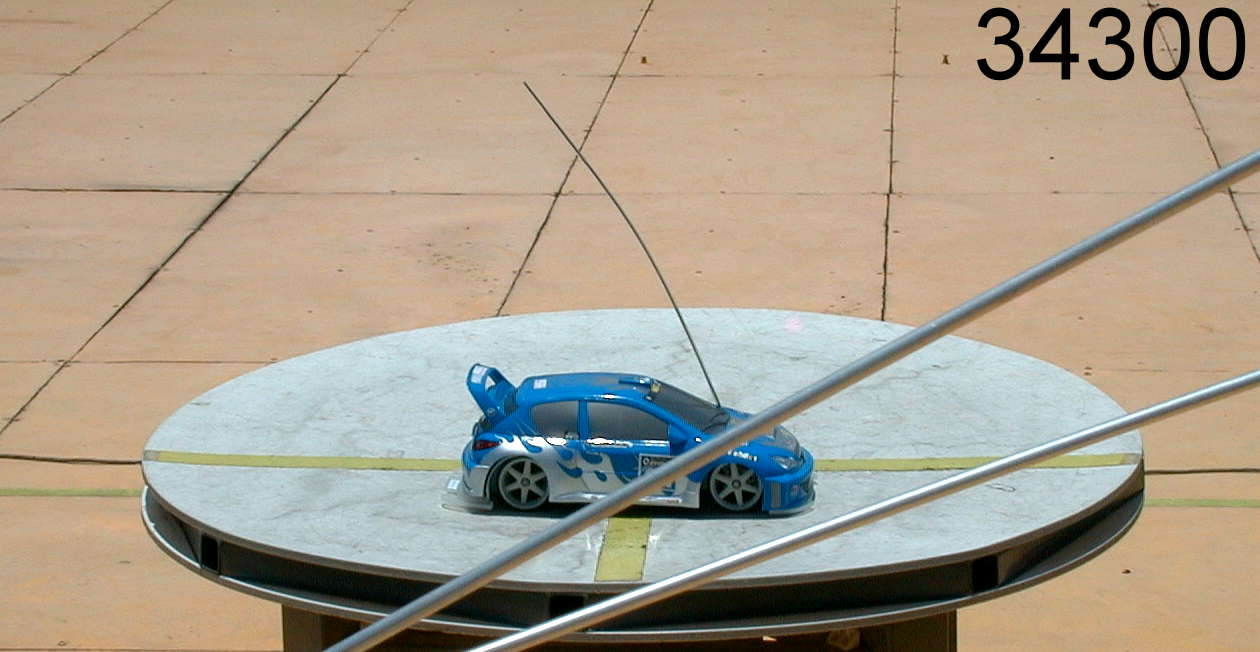

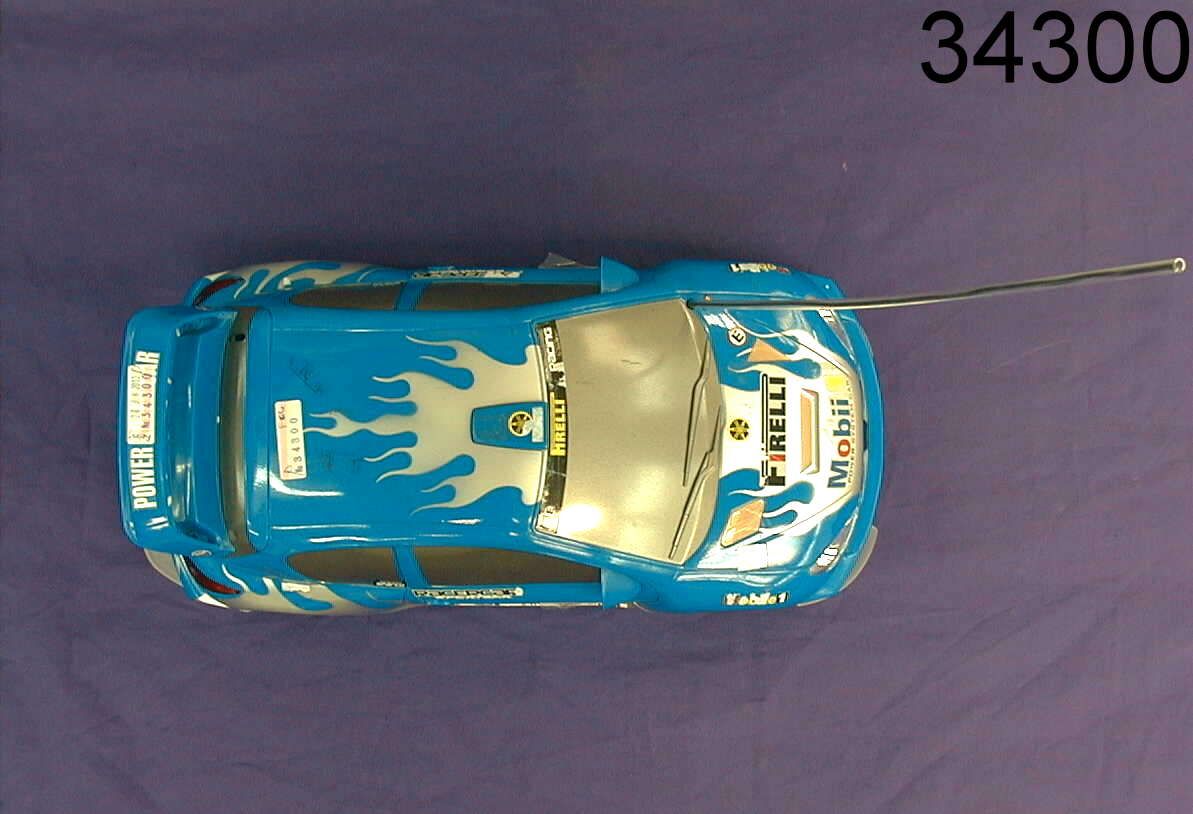

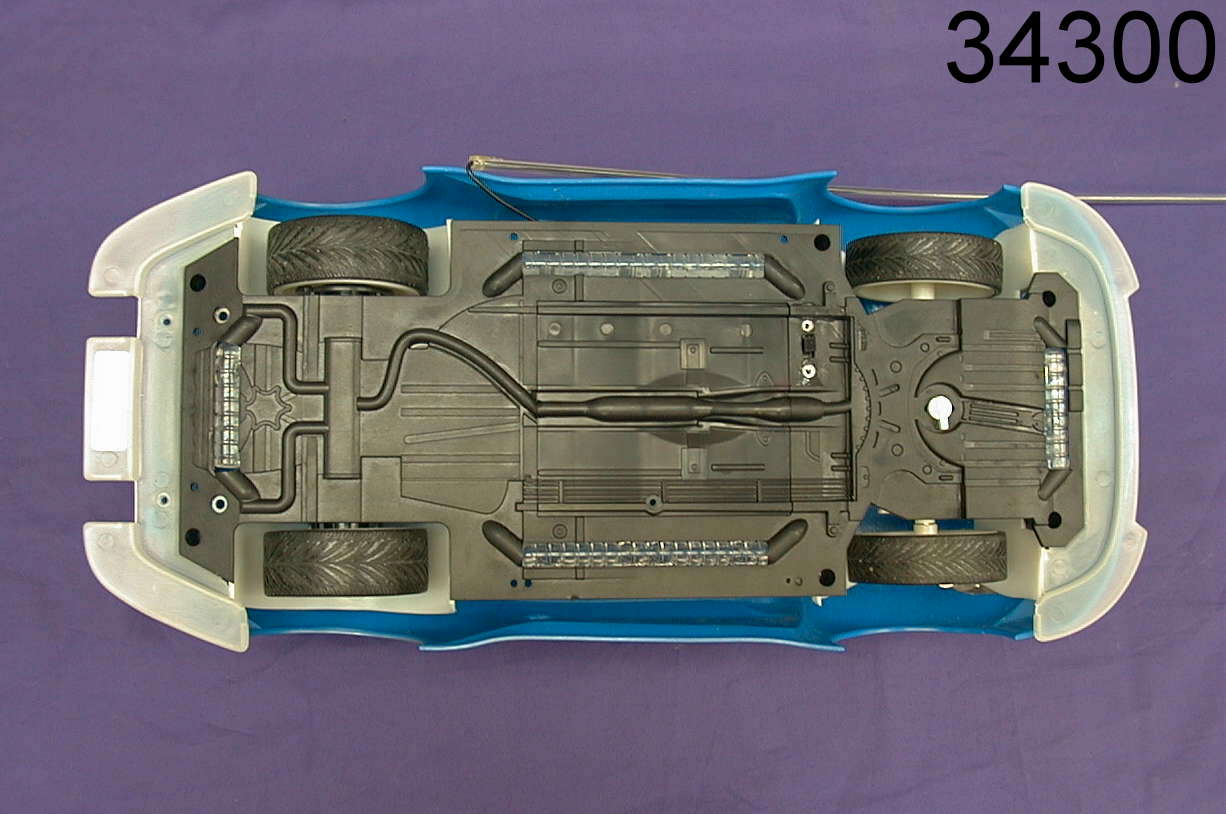

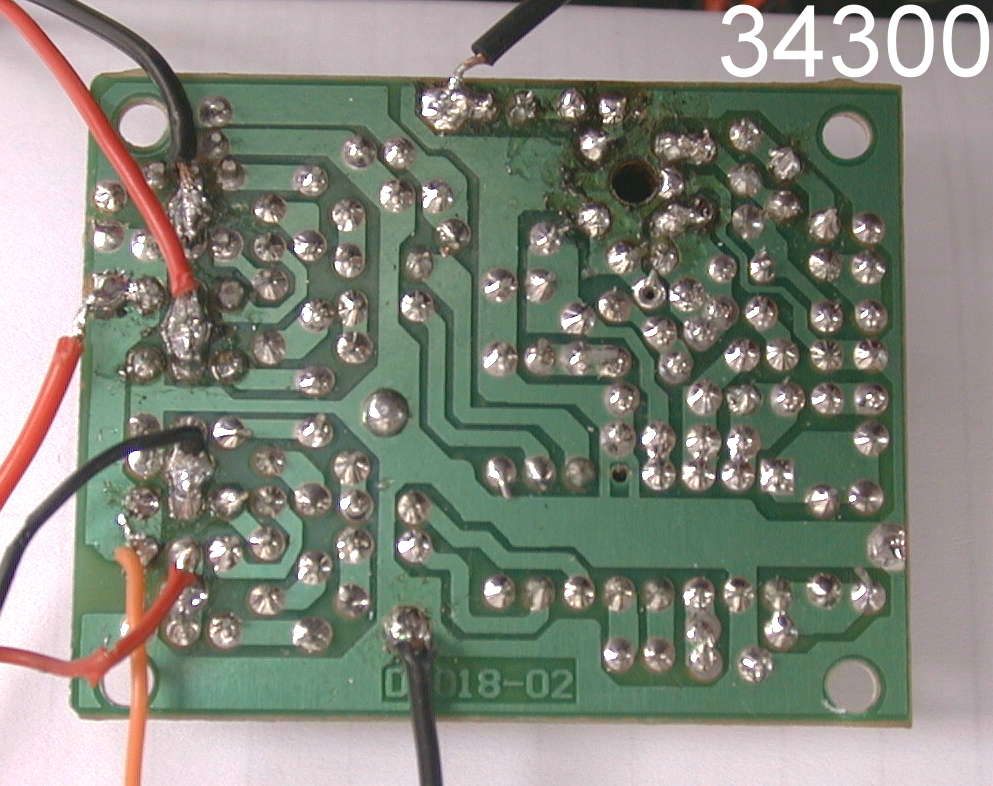

F F C C C C - - T T E E S S T T R R E E P P O O R R T T REPORT NO.: 34300B/3/400F FCC – Test Report No. 34300B/3/400F Date: 2003-07-23 Page 2 of 11 FCC listed testlab acc. to Section 2.948 of the FCC - Rules in compliance with the requirements of ANSI C63.4 - 1992 Product : RC Car Receiver 49MHz Product Class : Low Power Communication Device Receiver Model : JT49RX80000 Importer : JADA TOYS COMPANY LIMITED FCC – Test Report No. 34300B/3/400F Date: 2003-07-23 Page 3 of 11 TABLE OF CONTENTS 1. Cover sheet 2. Introduction 3. Table of Contents 4. Laboratory Report 5. Summary of Testresults 6. Test Equipment List 7. Radiated Emission Testprocedure (> 30MHz) 8. Radiated Emission Testprocedure (9kHz – 30MHz) 9. Interference Radiation (Datasheet) 10. Cohere Plot at Fundamental Frequency 11. Notes for Radiation Measurement (acc. to ANSI C63.4 - 1992) FCC – Test Report No. 34300B/3/400F Date: 2003-07-23 Page 4 of 11 LABORATORY - REPORT APPLICANT: ADDRESS: JADA TOYS COMPANY LIMITED Unit 614-617, Tower A, New Mandarin Plaza No. 14 Science Museum Road Tsimshatsui East, Kowloon HONG KONG DATE OF SAMPLE RECEIVED: 2003-06-05 DATE OF TESTING: 2003-06-23 DESCRIPTION OF SAMPLE: Product:RC Car Receiver 49MHz Product class:Low Power Communication Device Receiver Model number:JT49RX80000 Rating:DC 9.6V (Rechargeable Battery Pack) Country of Origin:P.R. CHINA INVESTIGATIONS REQUESTED: Measurements to the relevant clauses of F.C.C. Rules and Regulations Part 15 Subpart B – ‘Unintentional Radiators’ RESULTS: See the attached test sheets CONCLUSIONS From the measurement data obtained, the tested sample was considered to have COMPLIED with the requirements for the relevant clauses of Federal Communications Commission Rules as specified above. _____________________________ Authorized Signature Remark : Purpose of those tests in this report is to provide the applicant with the necessary test data of their device for the submission to FCC with application for Equipment Authorization under the FCC Equipment Authorization Program. The tests themselves are not Approval Tests FCC – Test Report No. 34300B/3/400F Date: 2003-07-23 Page 5 of 11 Summary of Test Results Interference Radiation: Test result:O.K. Test data:See attached data sheet Interference Voltage: Test result:N.A. Test data:N.A. PHOTOGRAPH OF THE SAMPLE FCC – Test Report No. 34300B/3/400F Date: 2003-07-23 Page 6 of 11 TEST EQUIPMENT LIST EquipmentManufacturerModelSerial No.Remark Test ReceiverRohde & Schwarz ESH 3863497/01510KHz – 30MHz Test ReceiverRohde & Schwarz ESVP860688/02225MHz – 1,300 MHz Artificial Mains Network (LISN) SchwarzbeckNSLK 8127-- 2 x 10A, 50Ω, 50μH 10KHz-30MHz Antenna SystemSchwarzbeckBBA 9106 / UHALP 9107 --30MHz – 1000MHz Antenna Mast SystemSchwarzbeckAM9104--Max. 4 meters height Spectrum Analyzer with Q. Peak Tektronix2712B0230069KHz – 1.8GHz Interface for Spectrum 2712 TektronixTD3F14A-- Test ReceiverRohde & Schwarz ESH 3892580/00610KHz – 30MHz Test ReceiverRohde & Schwarz ESVP863512/01225MHz – 1,300 MHz Impulse LimiterRohde & Schwarz ESH-3-Z2-- Artificial Mains Network (LISN) SchwarzbeckNSLK 8127-- 2 x 10A, 50Ω, 50μH 10KHz-30MHz Antenna SystemSchwarzbeckBBA 9106 / UHALP 9107 --30MHz – 1000MHz Signal GeneratorRohde & Schwarz SWS 2879113/42100KHz – 1040 MHz Digital MultimeterTektronixDM2510GDM- 2510GTW105 55 10KHz – 30MHz Turntable with Controller DrehtischDT312-- φ120 cm FCC – Test Report No. 34300B/3/400F Date: 2003-07-23 Page 7 of 11 Radiated Emission Testprocedure (> 30MHz) Equipment under test (on turntable) Test receiver ESVP R & S Required test distance: 3m Antenna system Schwarzbeck BBA 9106/ UHALP 9107 FCC – Test Report No. 34300B/3/400F Date: 2003-07-23 Page 8 of 11 Radiated Emission Test Procedure ( 9kHz – 30MHz) Test distance : 3 m Loop antenna HFH2-Z2 Rohde & Schwarz Equipment under test (on turntable) Test Receiver ESH3 Rohde & Schwarz 82 Unintentional Radiators Date: 2003-07-23 Measurement of Radiated Emissions Page: 9 of 11 Acc:FCC Part 15 Subpart B IECC Ref:34300B/3/400F Test Equipment Model:JT49RX80000 Receiver: ESVP Rohde & Schwarz Applicant:JADA TOYS COMPANY LIMITED Antenna: Schwarzbeck BBA 9106 and UHALP 9107 Ser.Nr.:1 Set under test:RC Car Receiver 49MHz Connected sets: - Operating mode:Receiver - Power "On" 1. Standby Mode Frequency (MHz) Horz. Reading dB(μV) Vert. Reading dB(μV) Antenna Factor (dB) Horiz. Test Result dB(μV/m) Vert. Test Result dB(μV/m) Limit dB(μV/m) 30<16<1618.4< 34.4 < 34.440.0 49.6<161611.8 27.827.840.0 50162011.7 27.731.740.0 50.4<161611.6 27.627.640.0 60<16<168.4< 24.4 < 24.440.0 100<16<1610.3< 26.3 < 26.343.5 300<16<1620.0< 36.0 < 36.046.0 500<16<1619.7< 35.7 < 35.746.0 700<16<1622.4< 38.4 < 38.446.0 1000<16<1626.5< 42.5 < 42.554.0 2. Motor running mode (motor noise measurement only) 30<18<1818.4< 36.4 < 36.440.0 50<18<1811.7 29.7 < 29.740.0 100<18<1810.3< 28.3 < 28.343.5 300<18<1820.0< 38.0 < 38.046.0 500<18<1819.7< 37.7 < 37.746.0 700<18<1822.4< 40.4 < 40.446.0 1000<18<1826.5< 44.5 < 44.554.0 Remark:All frequencies in the required range have been scanned and only those significant and representative readings are reported above. All emissions not reported above are all well below the limit. Note:Unless otherwise indicated, the recorded readings are in quasi-peak values. FCC – Test Report No. 34300B/3/400F Date: 2003-07-23 Page 10 of 11 Cohere Plot at fundamental frequency Sample location: Less than 0.5m from the measuring antenna Applied signal: - 60dBm (non-modulated, 49.86 MHz) Remark: Self-cohere Note: A signal generator was set to the unit under test operating frequency. An unmodulated continuous wave (CW) signal was radiated at the superregenerative receiver operating frequency to cohere the characteristic broadband emissions from the receiver. All emissions observed complies with FCC limits. FCC – Test Report No. 34300B/3/400F Date: 2003-07-23 Page 11 of 11 Notes for Radiation Measurement 1. Measurement facility: Measurement facility located at Fanling (Hong Kong), placed on file wi…
