PWYJT49RX86100RADIO CONTROL CAR

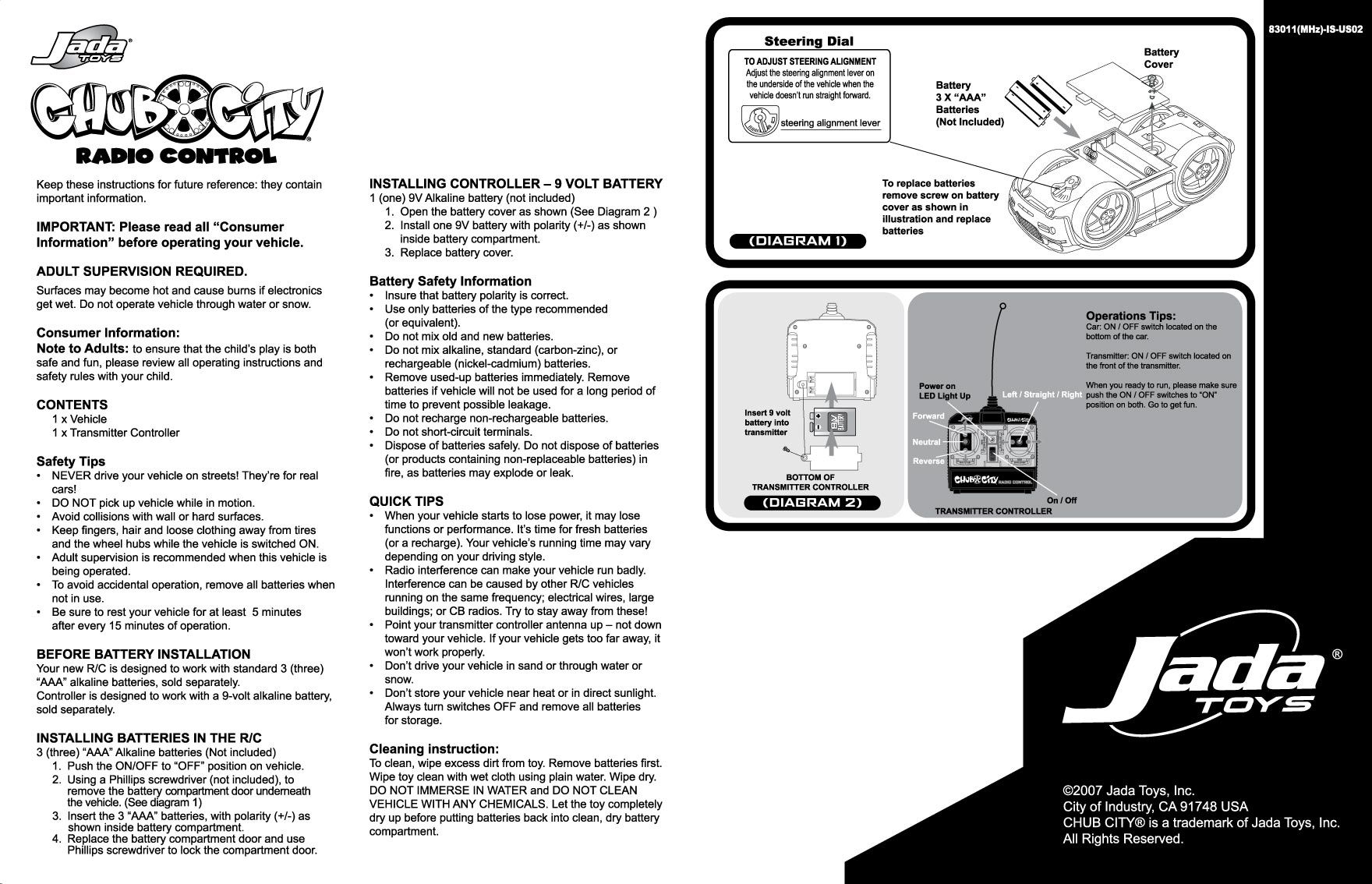

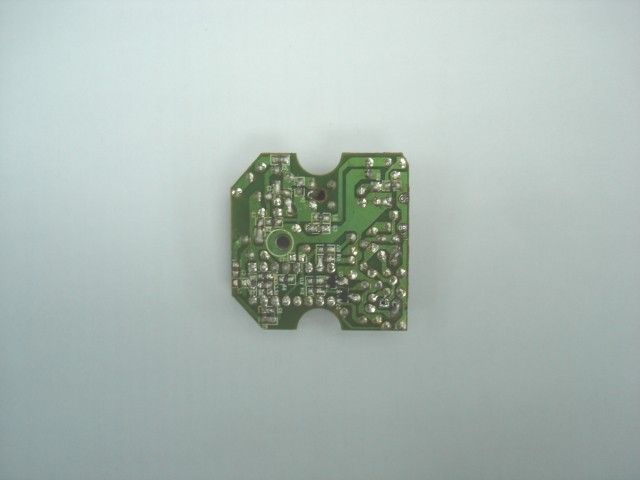

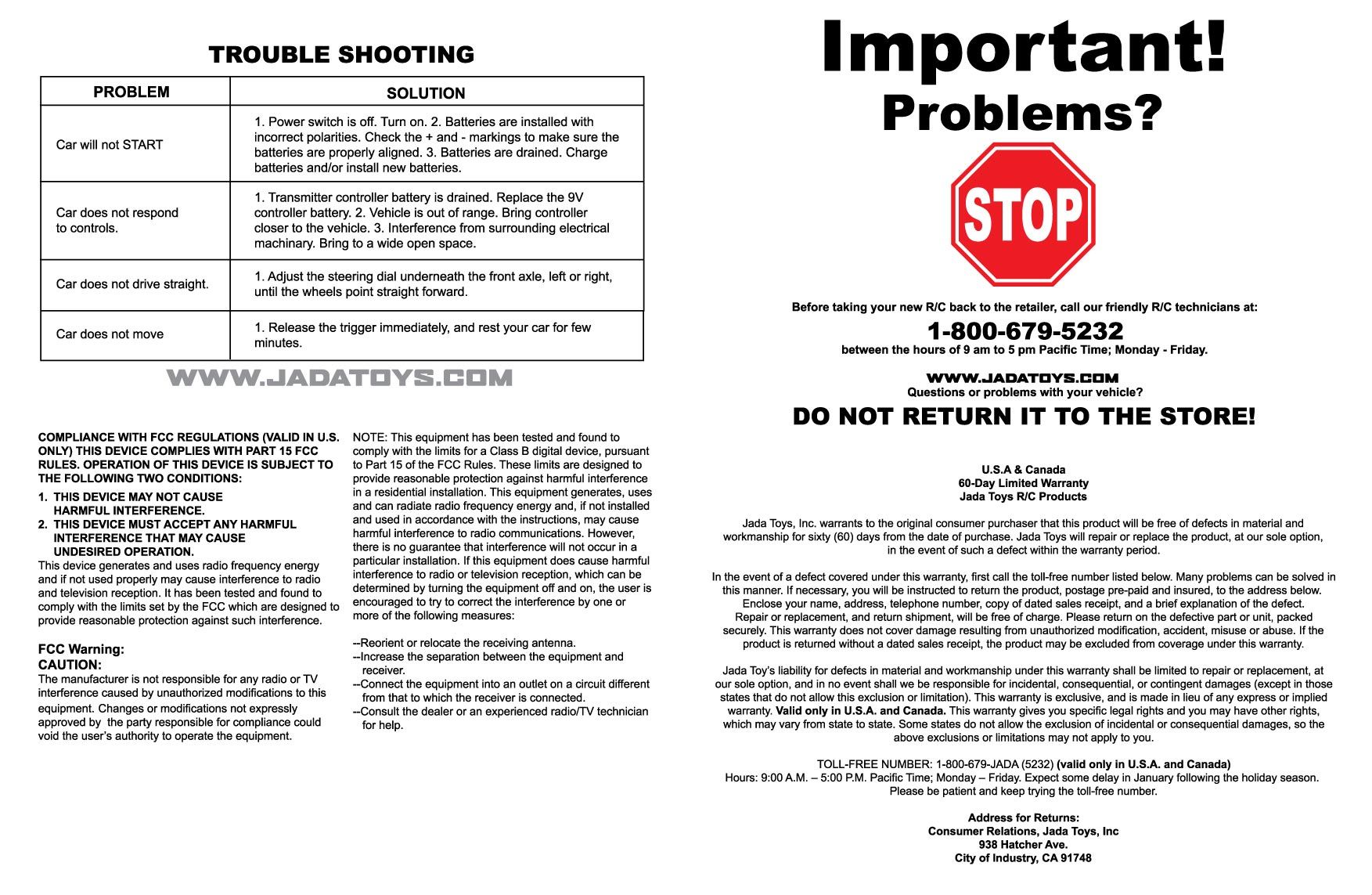

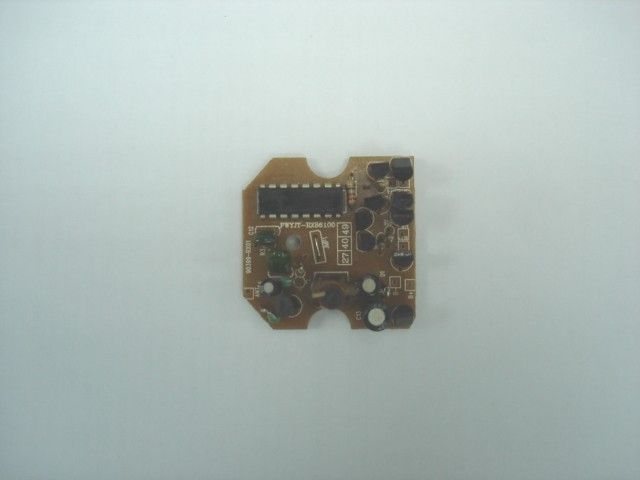

Jada Toys Co. Ltd. Model No: 83011/83014/83022 Transmitter and receiver Circuitry Operating Description: Transmitter Unit: When the power switch turn to “ON”,Q4 and the crystal produce a carrier frequency , press one of the keys K1 (Forward or Backward) , K2(Left or Right), The Encode IC TX-2 give the signal out and Q5 to modulation after amplifier the signal and transmit from antenna. Receiver Unit: The modulation signal receive from the antenna and pass to local oscillation and demodulation from Q1, the encoding signal transfer to Decode IC RX-2 after decoding the direct control signal go to the motor driver unit,the Q3～Q8 control Forward and Backward, the Q9～Q12 control Left and Right. PDF 文件使用 "pdfFactory Pro" 试用版本创建 www.fineprint.com.cn

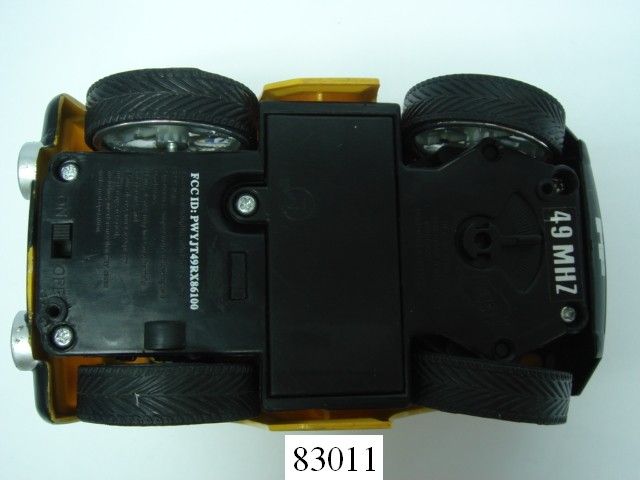

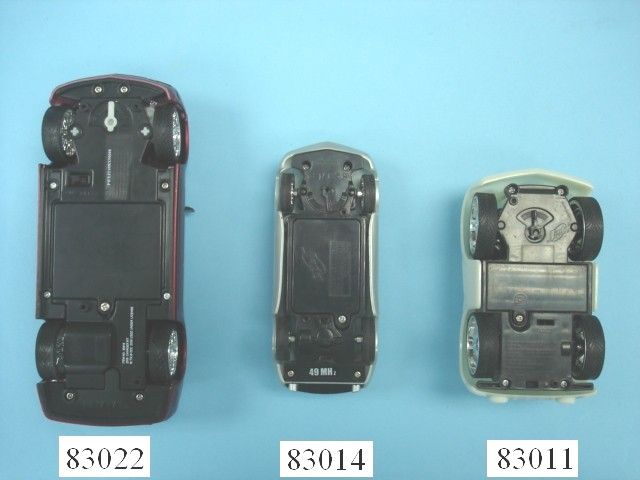

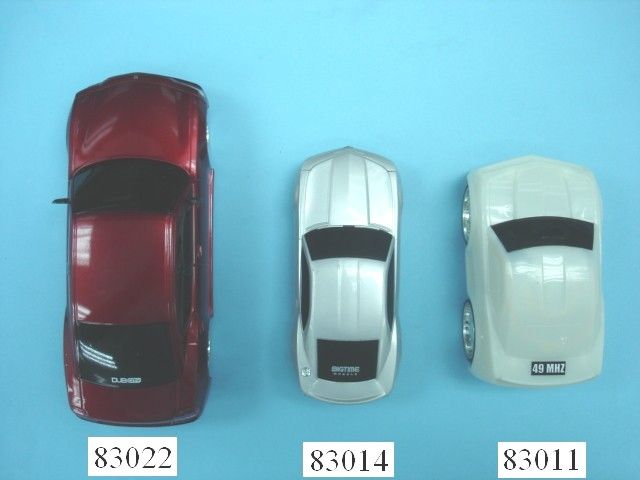

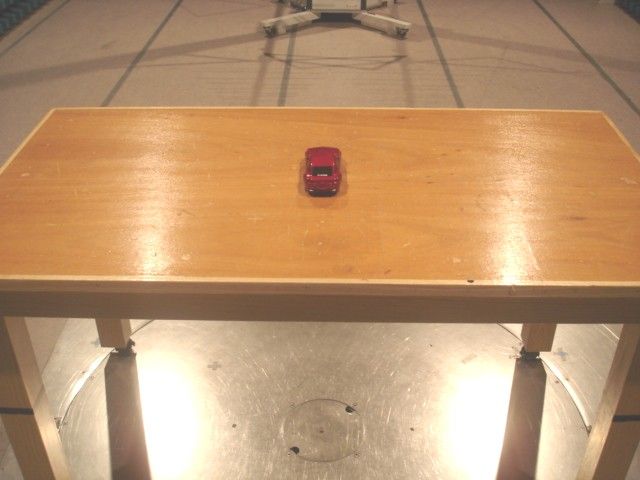

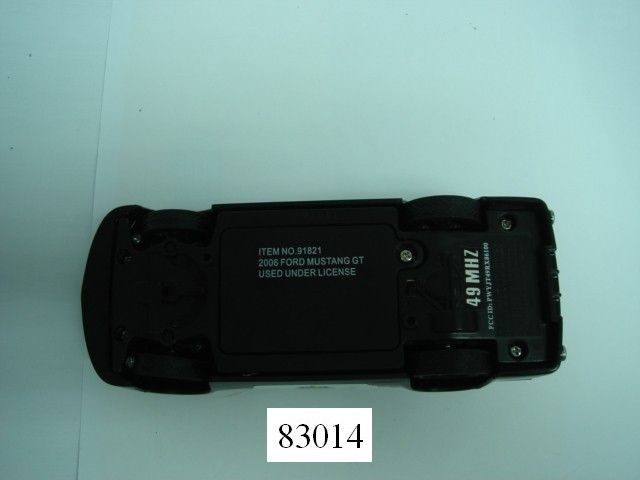

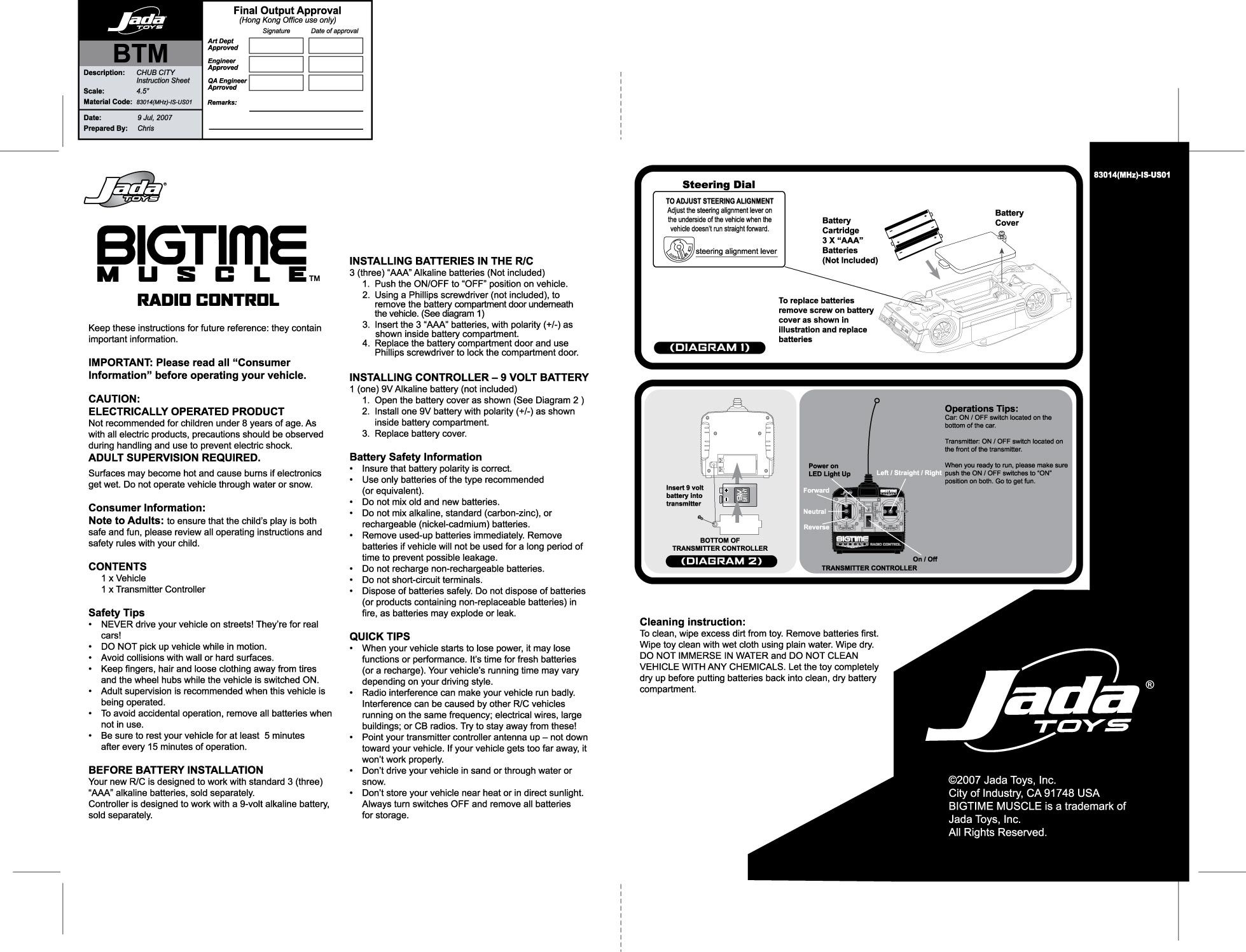

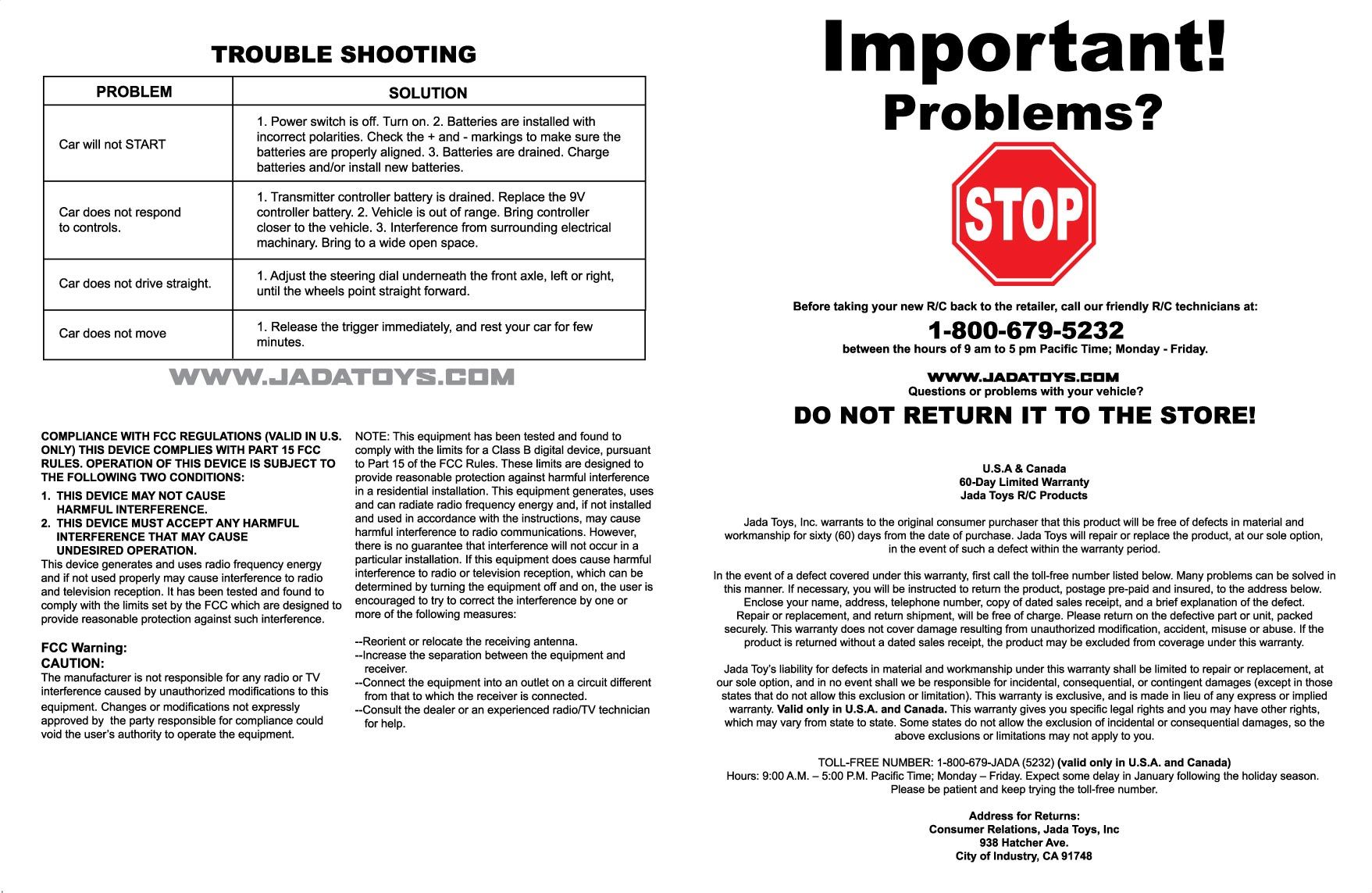

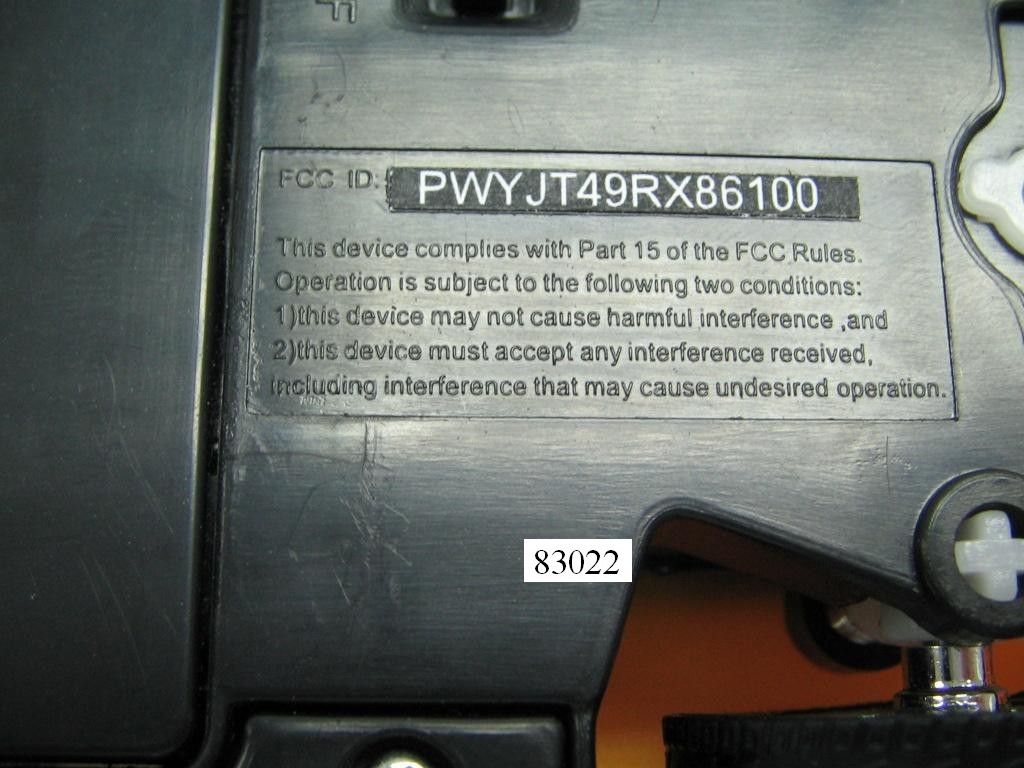

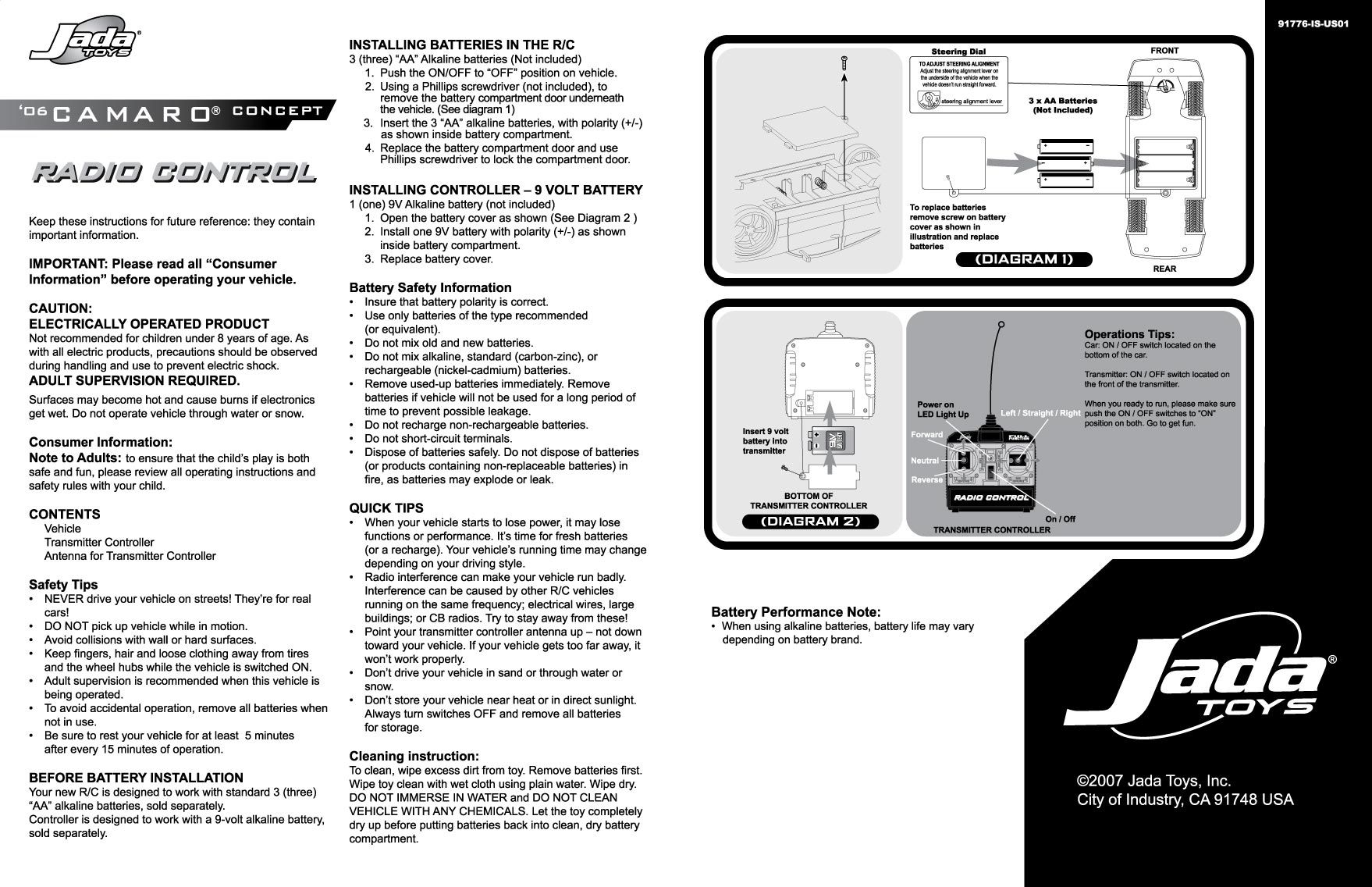

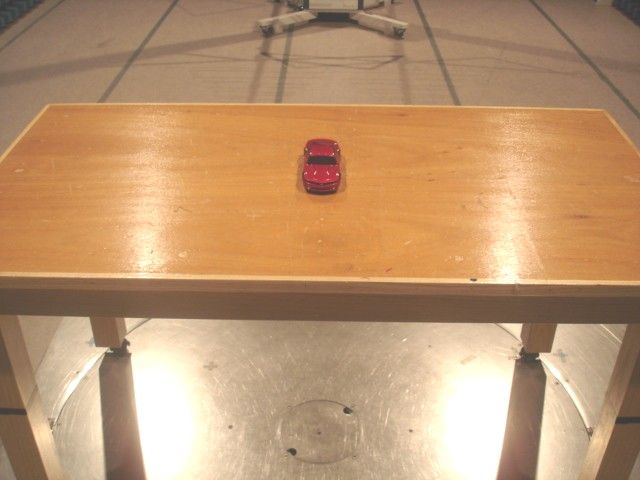

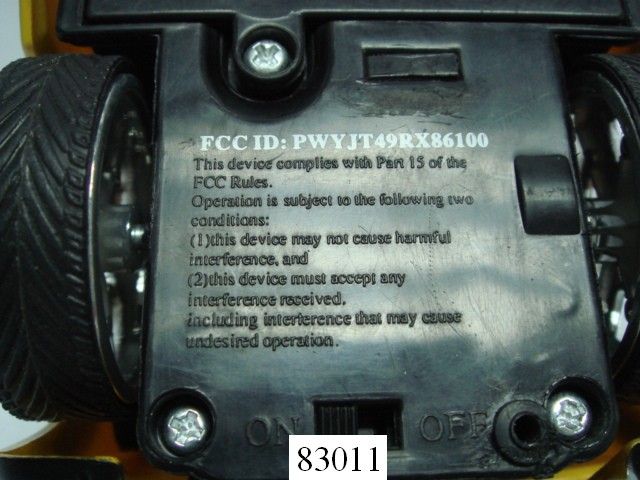

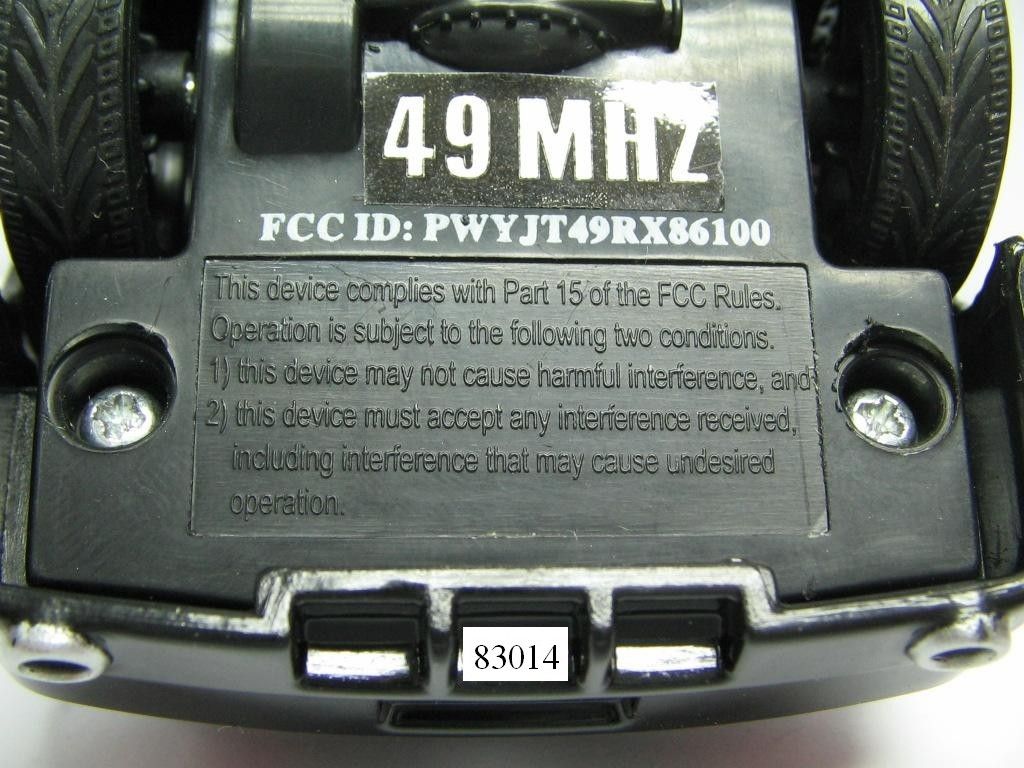

TEST REPORT Report No. : AJ025058-001 Date : 2007 September 06 Page 1 of 11 FCC ID: PWYJT49RX86100 This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Application No. : LJ217730(9) Applicant : Jada Toys Co., Ltd Unit 901, 9/F, Energy Plaza, 92 Granville Road, Tsim Sha Tsui, Kowloon, Hong Kong Sample Description : One(1) submitted sample(s) stated to be 4.5 inch Chub City Radio Control Car, 5.5 inch Big Time Muscle Radio Control Car, 7.5 inch Dub City Radio Control Car of Model No. 83011, 83014, 83022 Radio Frequency : 49.860MHz Receiver Rating : 3 x 1.5V AAA size batteries for 83011 3 x 1.5V AAA size batteries for 83014 3 x 1.5V AA size batteries for 83022 No. of submitted sample : Six (6) piece(s) *** Date Received : 2007 July 24 Test Period : 2007 August 02 ñ 2007 August 07 Test Requested : FCC Part 15 Certification. Test Method : 47 CFR Part 15 (10-1-05 Edition) ANSI C63.4 ñ 2003 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart B. Remark : All three models are the same in circuitry and components: and therefore 83022 has been chosen to be the representative of the test sample. For and on behalf of CMA Industrial Development Foundation Limited Authorized Signature : ____________________________________________________ Danny Chui Deputy Manager - EL. Division TEST REPORT Report No. : AJ025058-001 Date : 2007 September 06 Page 2 of 11 FCC ID: PWYJT49RX86100 This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Table of Contents 1 General Information .............................................................................................................................3 1.1 General Description .....................................................................................................................3 1.2 Location of the test site ................................................................................................................4 1.3 List of measuring equipment........................................................................................................5 2 Description of the radiated emission test .............................................................................................6 2.1 Test Procedure..............................................................................................................................6 2.2 Test Result....................................................................................................................................6 2.3 Radiated Emission Measurement Data ........................................................................................7 3 Description of the Line-conducted Test...............................................................................................8 3.1 Test Procedure..............................................................................................................................8 3.2 Test Result....................................................................................................................................8 3.3 Graph and Table of Conducted Emission Measurement Data .....................................................8 4 Photograph ...........................................................................................................................................9 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission ......................9 4.2 Photographs of the External and Internal Configurations of the EUT.........................................9 5 Supplementary document ...................................................................................................................10 5.1 Bandwidth ..................................................................................................................................10 5.2 Duty cycle ..................................................................................................................................10 5.3 Transmission time ......................................................................................................................10 5.4 Power Spectral Density ..............................................................................................................10 6 Appendices .........................................................................................................................................11 TEST REPORT Report No. : AJ025058-001 Date : 2007 September 06 Page 3 of 11 FCC ID: PWYJT49RX86100 This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com 1 General Information 1.1 General Description The equipment under test (EUT) is a receiver for 7.5 inch Dub City Radio Control Car. It operates at 49.860MHz and the oscillation of radio control is generated by a LRC circuit. The EUT is powered by 3 x 1.5V size batteries. When it received a forward, backward, turn right or turn left signal, it will move to the corresponding direction The brief circuit description is listed as follows: - Q1 and associated circuit act as a RF amplifier. - U1 and associated circuit act as a decoder. - Q2, D1 and associated …
